HONDA CIVIC COUPE 2016 10.G Owners Manual

480

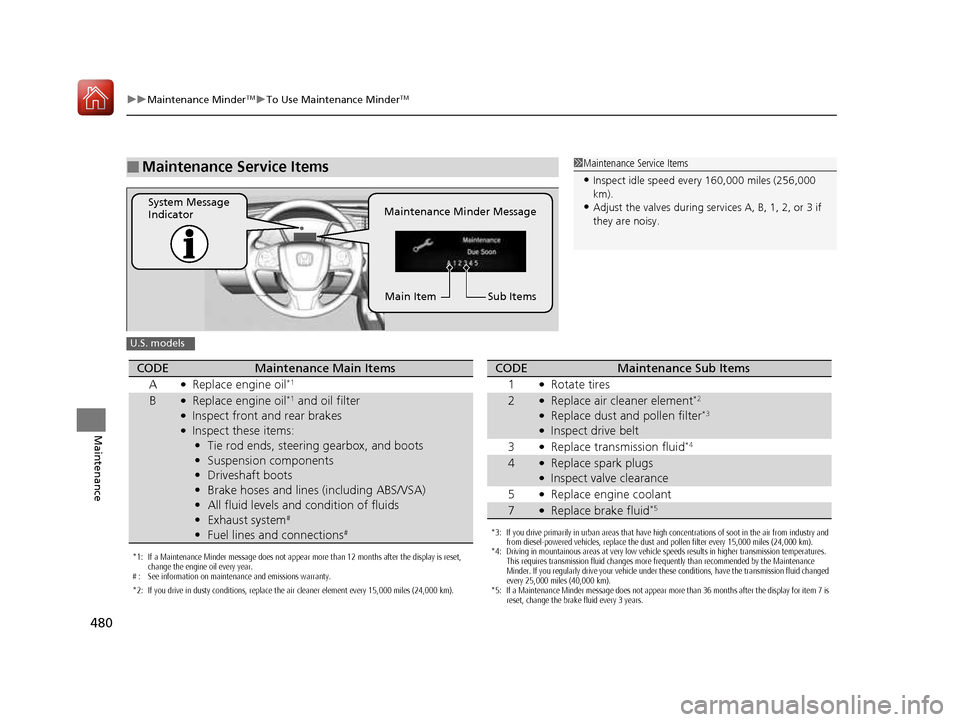

uuMaintenance MinderTMuTo Use Maintenance Minder TM
Maintenance
■Maintenance Service Items1Maintenance Service Items
• Inspect idle speed every 160,000 miles (256,000 km).
• Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A ●
Replace engine oil *1
B●
Replace engine oil *1
and oil filter
● Inspect front and rear brakes
● Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system #
• Fuel lines and connections #
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1 ●
Rotate tires
2●Replace air cleaner element *2
● Replace dust and pollen filter *3
● Inspect drive belt
3 ●
Replace transmission fluid *4
4●
Replace spark plugs
● Inspect valve clearance
5 ●
Replace engine coolant
7●Replace brake fluid *5
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 480 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

481
uuMaintenance MinderTMuTo Use Maintenance Minder TM
Continued
Maintenance

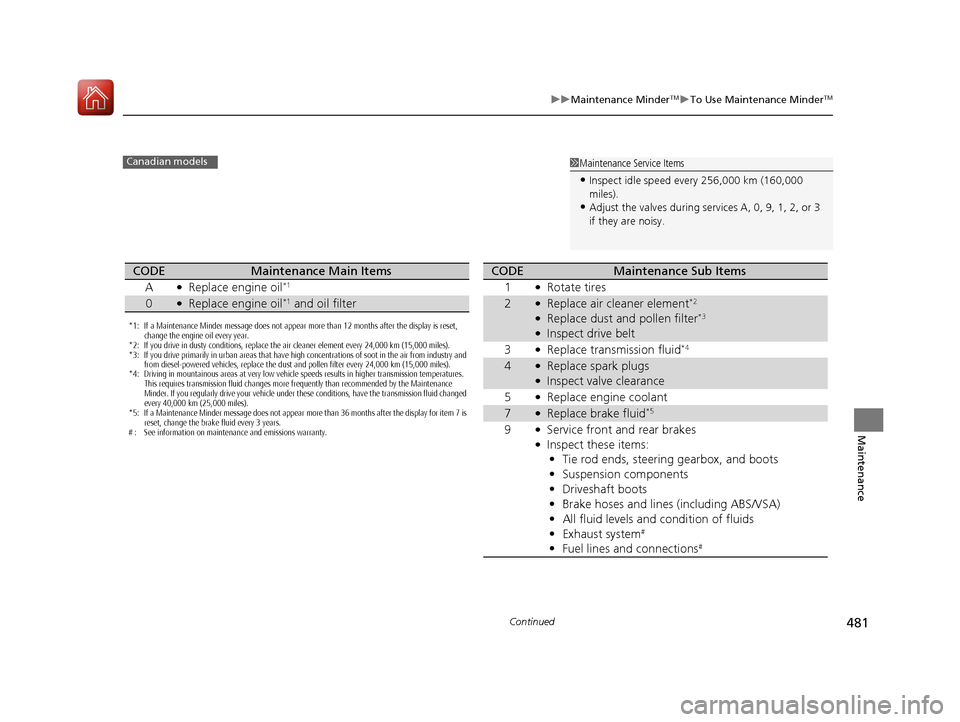

1Maintenance Service Items
• Inspect idle speed every 256,000 km (160,000
miles).
• Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 40,000 km (25,000 miles).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A ●
Replace engine oil *1
0●
Replace engine oil *1
and oil filter
CODEMaintenance Sub Items
1 ●
Rotate tires
2●Replace air cleaner element *2
● Replace dust and pollen filter *3
● Inspect drive belt
3 ●
Replace transmission fluid *4
4●
Replace spark plugs
● Inspect valve clearance
5 ●
Replace engine coolant
7●Replace brake fluid *5
9 ●
Service front and rear brakes
● Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system #
• Fuel lines and connections #
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 481 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

uuMaintenance MinderTMuTo Use Maintenance Minder TM
482
Maintenance

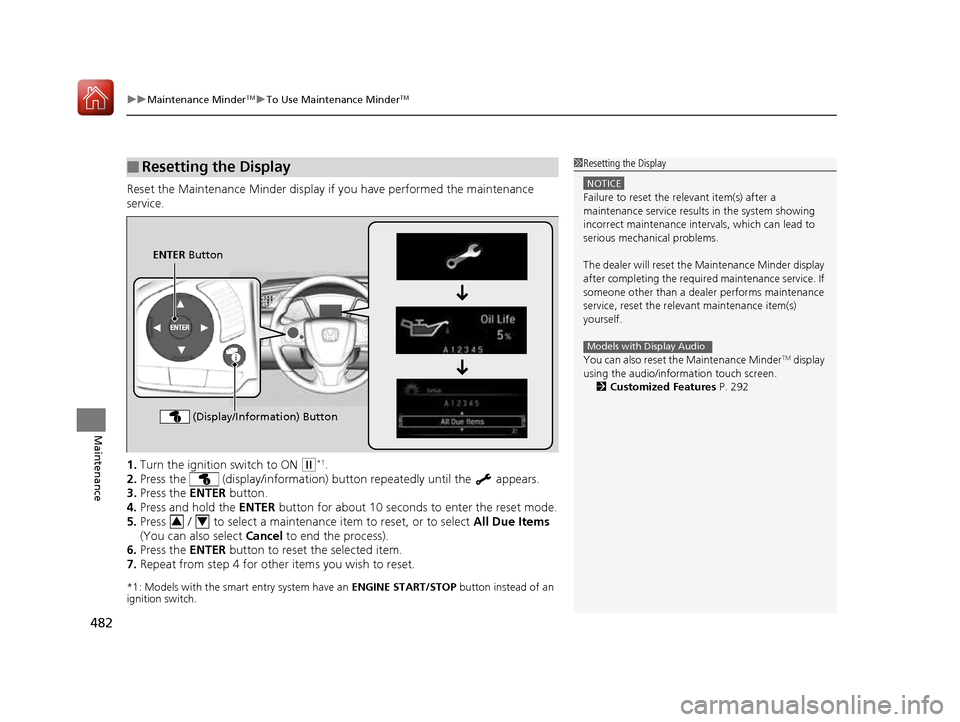

Reset the Maintenance Minder display if you have performed the maintenance service. 1. Turn the ignition switch to ON
(w*1
.
2. Press the (display/information) bu tton repeatedly until the appears.
3. Press the ENTER button.
4. Press and hold the ENTER button for about 10 seconds to enter the reset mode.
5. Press / to select a maintenance item to reset, or to select All Due Items
(You can also select Cancel to end the process).
6. Press the ENTER button to reset the selected item.
7. Repeat from step 4 for other items you wish to reset.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Resetting the Display1Resetting the Display
NOTICE
Failure to reset the relevant item(s) after a
maintenance service results in the system showing
incorrect maintenance interv als, which can lead to
serious mechanical problems.
The dealer will reset the Maintenance Minder display
after completing the required maintenance service. If
someone other than a deal er performs maintenance
service, reset the relevant maintenance item(s)
yourself.
You can also reset the Maintenance Minder TM
display
using the audio/information touch screen.
2 Customized Features P. 292
Models with Display Audio
ENTER Button
(Display/Information) Button
34
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 482 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

483
Continued
Maintenance

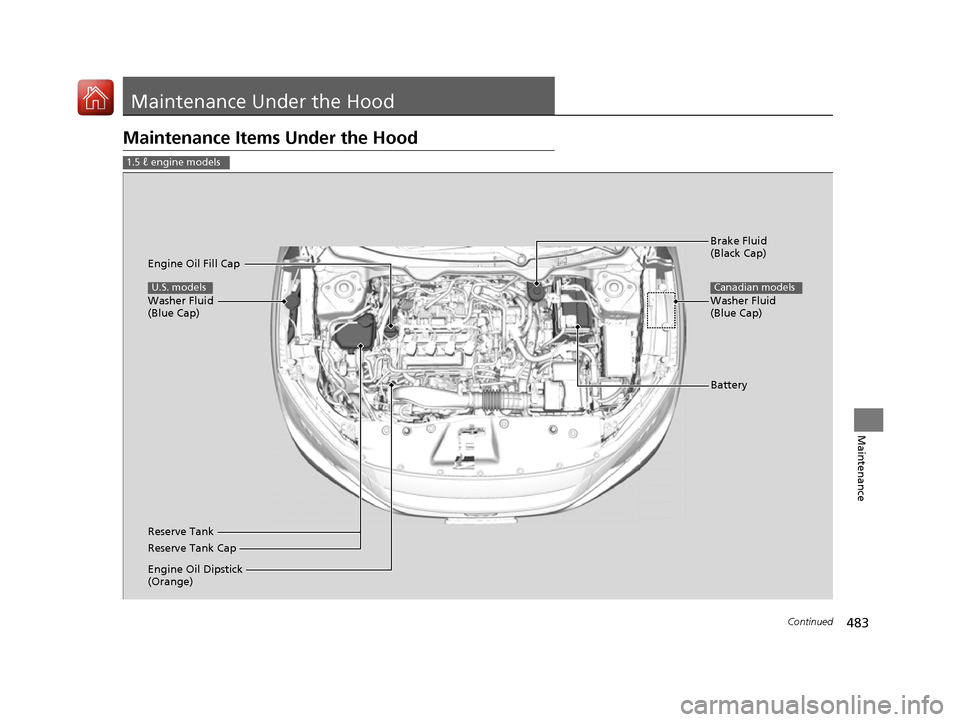

Maintenance Under the Hood
Maintenance Items Under the Hood
1.5 ℓ engine models
Brake Fluid
(Black Cap)
Reserve Tank
Washer Fluid
(Blue Cap)
Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap
Battery
Reserve Tank Cap
U.S. models
Washer Fluid
(Blue Cap)
Canadian models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 483 ページ >0>.>/６年>0月>/>0日　金曜日　午後４時>/６分

484
uuMaintenance Under the HooduMaintenance Items Under the Hood
Maintenance

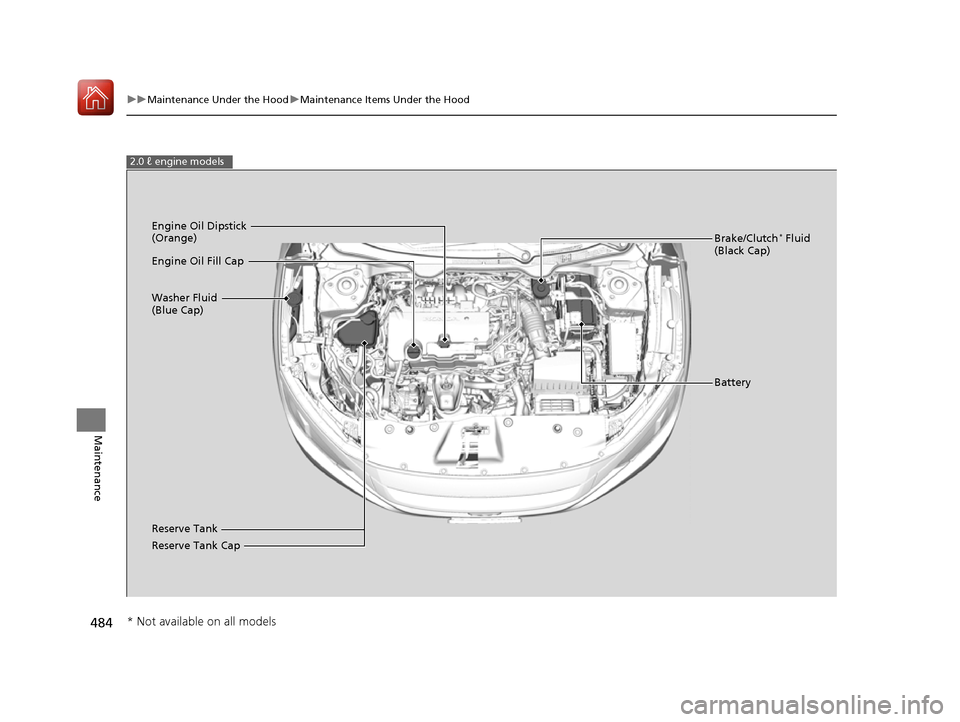

2.0 ℓ engine models
Brake/Clutch*
Fluid
(Black Cap)
Reserve Tank
Washer Fluid
(Blue Cap)
Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap
Battery
Reserve Tank Cap
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 484 ページ >0>.>/６年>0月>/>0日　金曜日　午後４時>/６分

485
uuMaintenance Under the HooduOpening the Hood
Maintenance

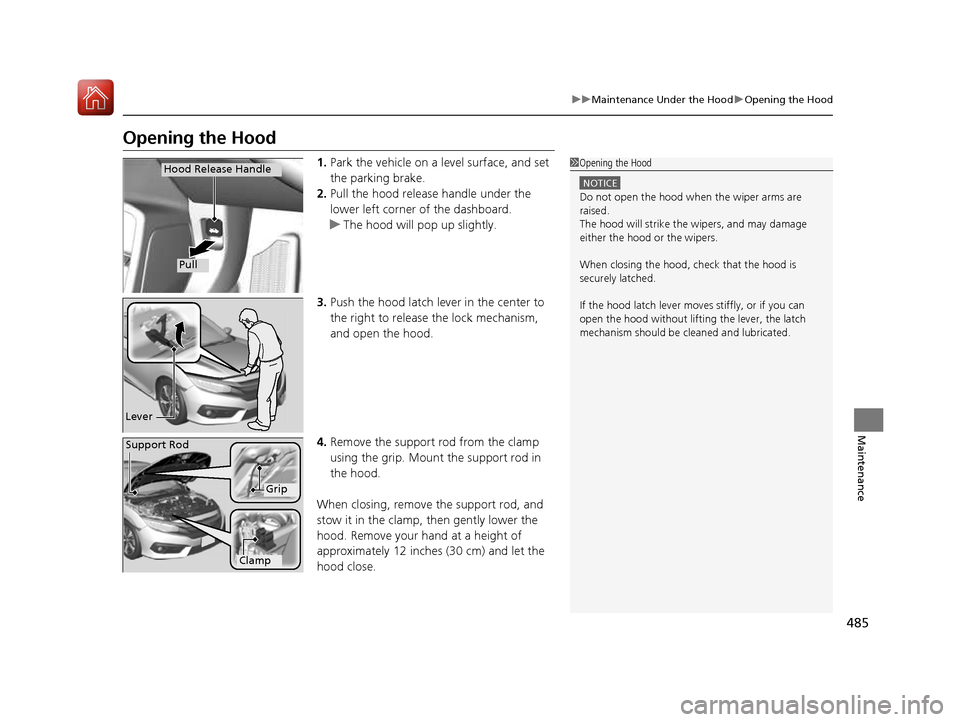

Opening the Hood1.Park the vehicle on a level surface, and set the parking brake.
2. Pull the hood release handle under the
lower left corner of the dashboard.
uThe hood will pop up slightly.
3. Push the hood latch lever in the center to the right to release the lock mechanism,
and open the hood.
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.
1Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised.
The hood will strike the wipers, and may damage
either the hood or the wipers.
When closing the hood, check that the hood is
securely latched. If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cl eaned and lubricated.
Hood Release Handle
Pull
Lever
Support Rod
Grip
Clamp
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 485 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

486
uuMaintenance Under the HooduRecommended Engine Oil
Maintenance

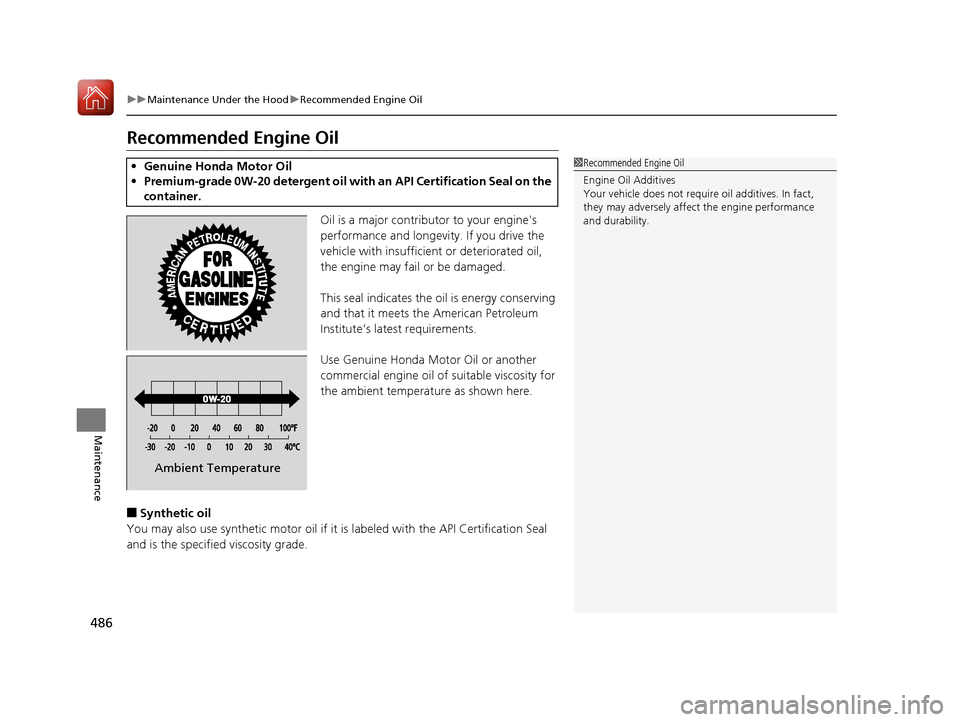

Recommended Engine OilOil is a major contributor to your engine's
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.
Use Genuine Honda Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown here.
■ Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.
• Genuine Honda Motor Oil
• Premium-grade 0W-20 detergent oil with an API Certification Seal on the
container.1Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
Ambient Temperature
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 486 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

487
uuMaintenance Under the HooduOil Check
Continued
Maintenance

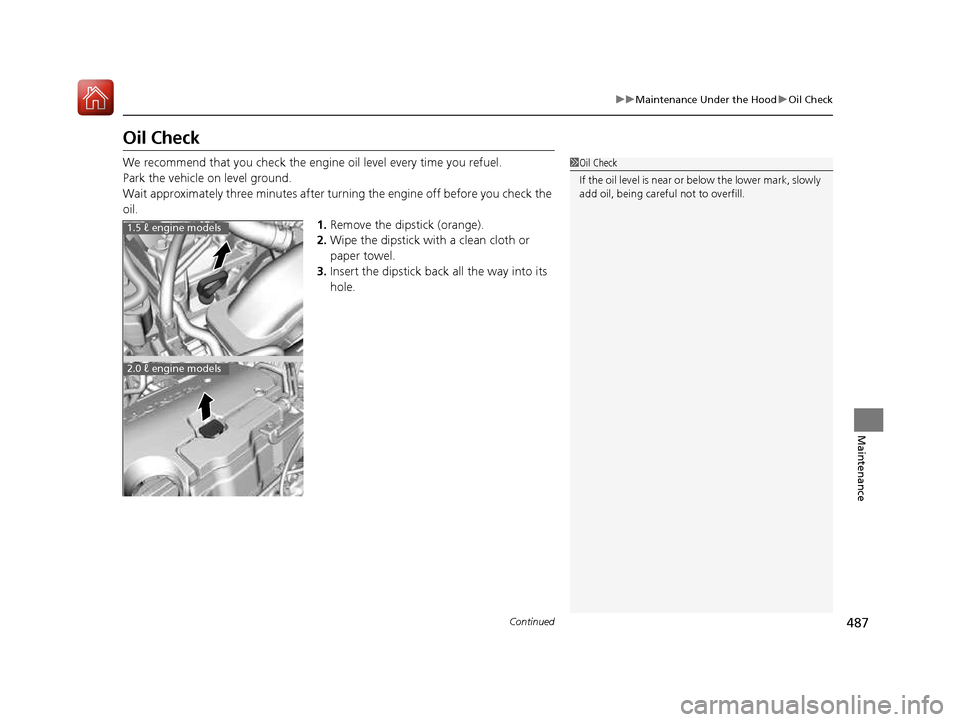

Oil Check
We recommend that you check the engine oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turn ing the engine off before you check the
oil. 1.Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into its
hole.
1Oil Check
If the oil level is near or below the lower mark, slowly
add oil, being carefu l not to overfill.
1.5 ℓ engine models
2.0 ℓ engine models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 487 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

488
uuMaintenance Under the HooduOil Check
Maintenance

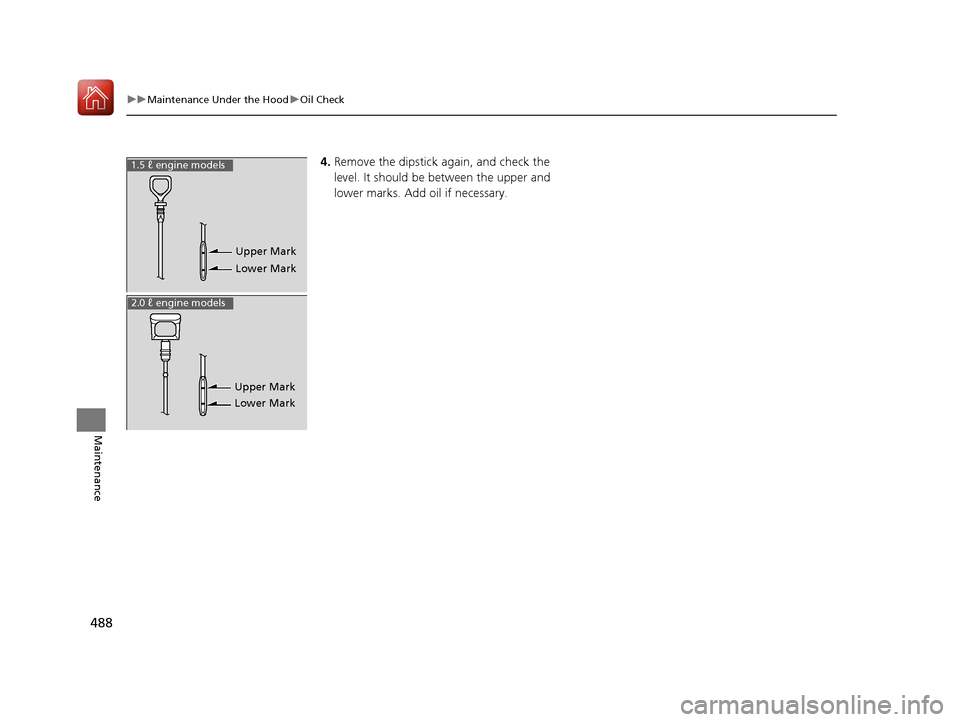

4.Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.
Upper Mark
Lower Mark
1.5 ℓ engine models
Upper Mark Lower Mark
2.0 ℓ engine models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 488 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

489
uuMaintenance Under the HooduAdding Engine Oil
Maintenance

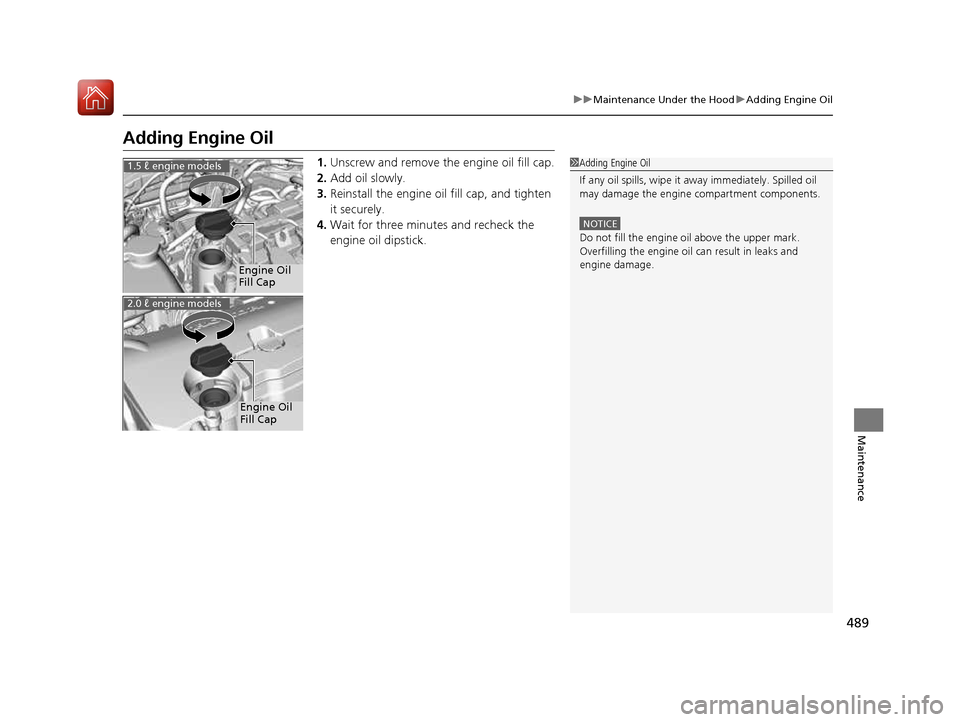

Adding Engine Oil1.Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck the
engine oil dipstick.
1Adding Engine Oil
If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.
NOTICE
Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.
Engine Oil
Fill Cap
1.5 ℓ engine models
Engine Oil
Fill Cap
2.0 ℓ engine models
