uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter
Maintenance

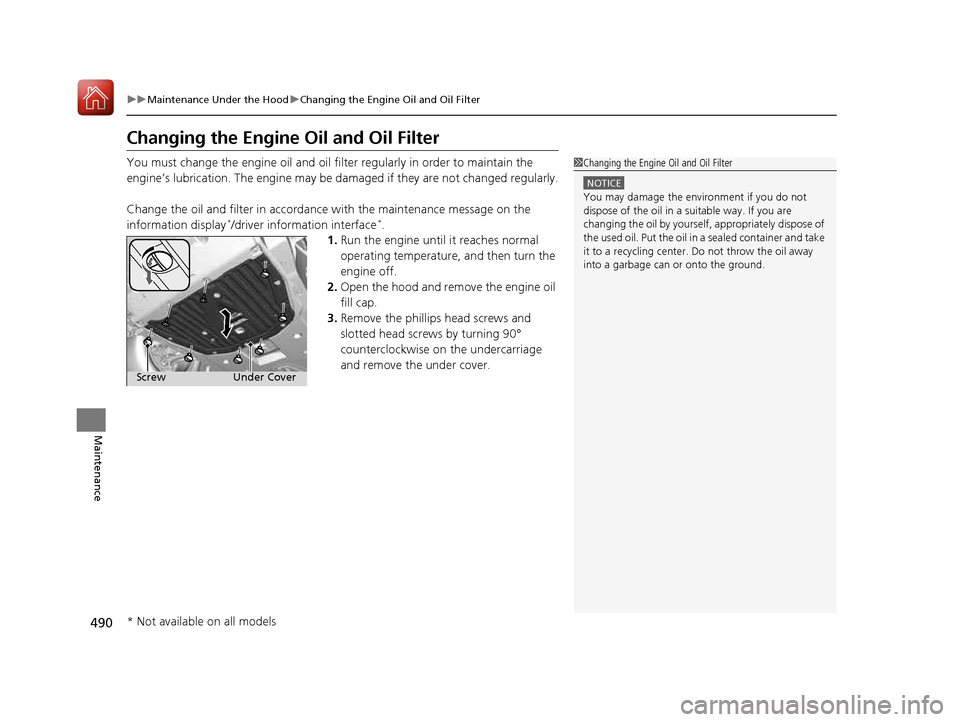

Changing the Engine Oil and Oil Filter
You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Change the oil and filter in accordan ce with the maintenance message on the
information display *
/driver information interface *
.
1. Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the phillips head screws and
slotted head screws by turning 90°
counterclockwise on the undercarriage
and remove the under cover.
1Changing the Engine Oil and Oil Filter
NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
Under Cover
Screw
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 490 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

491
uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter
Continued
Maintenance

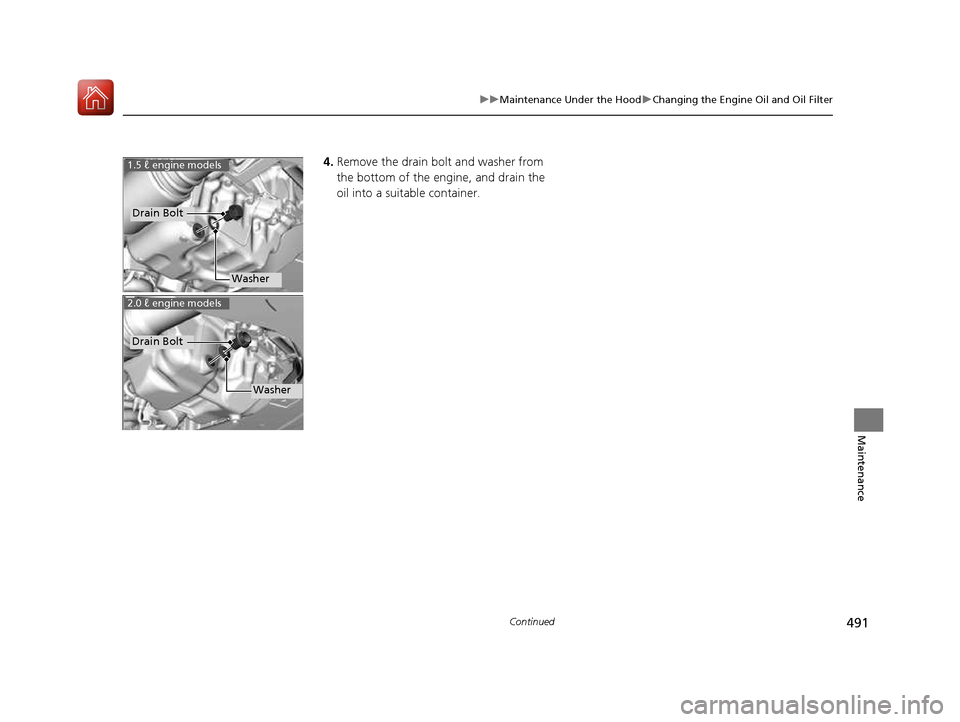

4.Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.1.5 ℓ engine models
Drain Bolt
Washer
2.0 ℓ engine models
Drain Bolt
Washer
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 491 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuMaintenance Under the HooduChanging the Engine Oil and Oil Filter
492
Maintenance

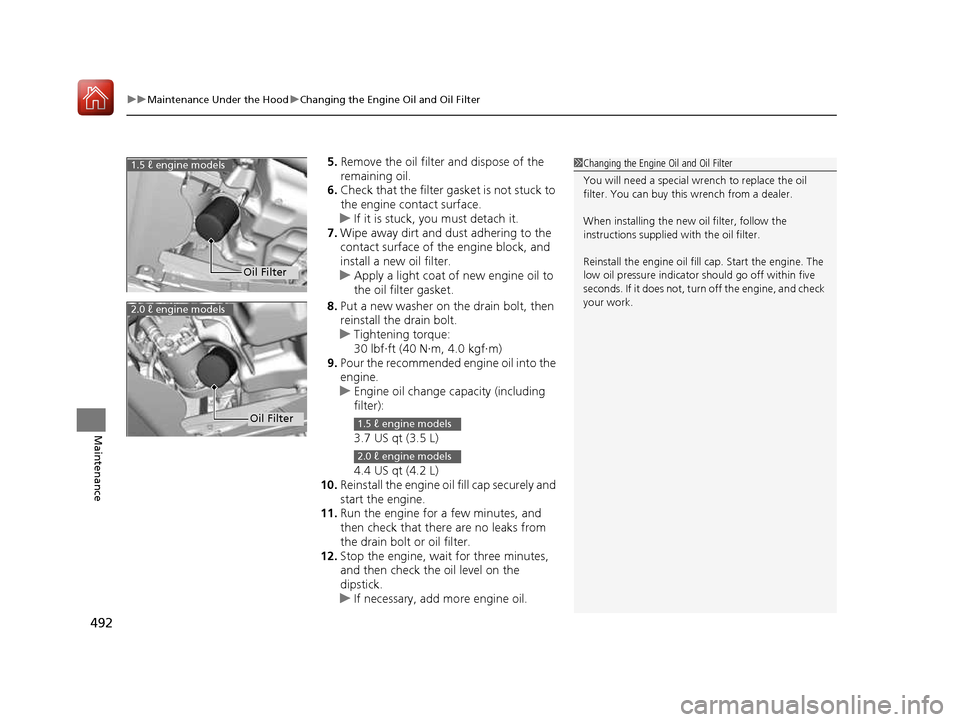

5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter ga sket is not stuck to
the engine contact surface.
uIf it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
uApply a light coat of new engine oil to the oil filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
uTightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
uEngine oil change capacity (including filter):
3.7 US qt (3.5 L)
4.4 US qt (4.2 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there are no leaks from
the drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
uIf necessary, add more engine oil.
1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter. Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
1.5 ℓ engine models
2.0 ℓ engine models
Oil Filter1.5 ℓ engine models
2.0 ℓ engine models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 492 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

493
uuMaintenance Under the HooduEngine Coolant
Continued
Maintenance

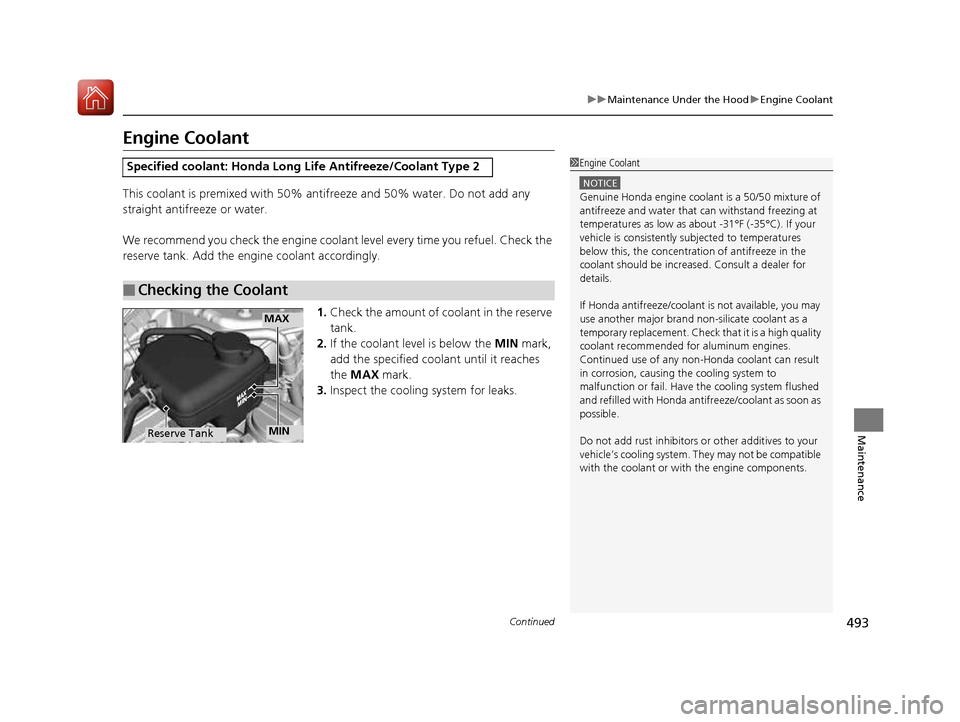

Engine Coolant
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank. Add the engine coolant accordingly.
1.Check the amount of coolant in the reserve tank.
2. If the coolant level is below the MIN mark,
add the specified coolant until it reaches the MAX mark.
3. Inspect the cooling system for leaks.
Specified coolant: Ho nda Long Life Antifreeze/Coolant Type 2
■Checking the Coolant
1Engine Coolant
NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for details. If Honda antifreeze /coolant is not available, you may
use another major brand non- silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible with the coolant or with the engine components.
MAX
MINReserve Tank
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 493 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuMaintenance Under the HooduEngine Coolant
494
Maintenance
1. Make sure the engine and radiator are cool.
2. Turn the reserve tank cap 1/8 of a turn
counterclockwise and relieve any pressure
in the cooling system. Do not push the cap
down when turning.
3. Push down and turn the reserve tank cap
counterclockwise to remove it.
4. Pour coolant into the reserve tank until it
reaches the MAX mark.
5. Put the reserve tank cap back on, and
tighten it fully.

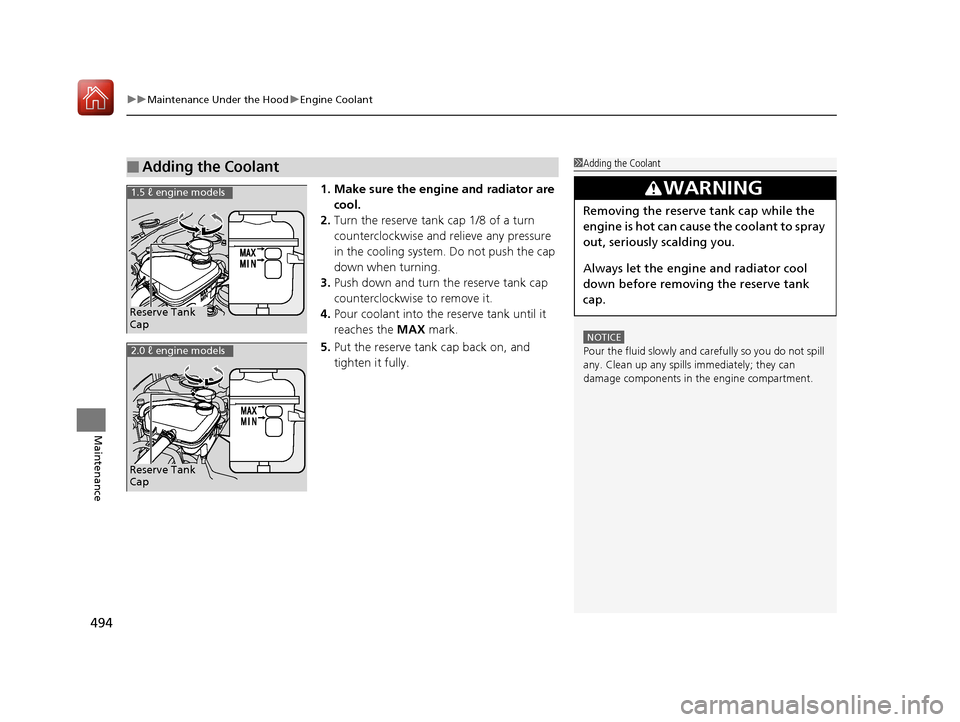

■Adding the Coolant1Adding the Coolant
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
3WARNING
Removing the reserve tank cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the reserve tank
cap.
Reserve Tank Cap
1.5 ℓ engine models
Reserve Tank Cap
2.0 ℓ engine models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 494 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

495
uuMaintenance Under the HooduTransmission Fluid
Maintenance

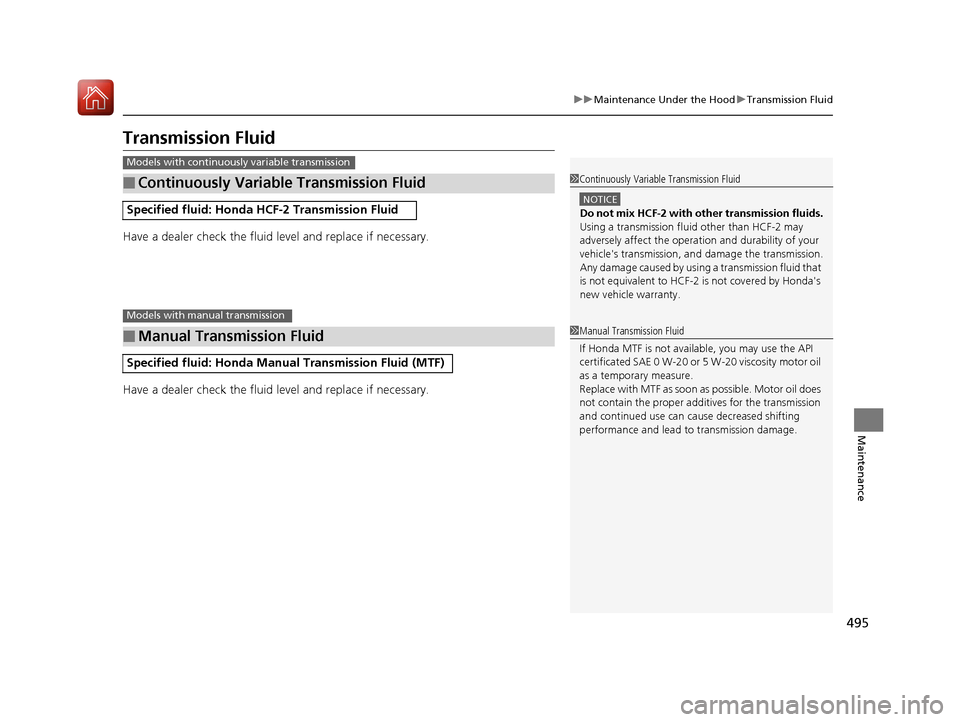

Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Have a dealer check the fluid level and replace if necessary.
■Continuously Variable Transmission Fluid
Specified fluid: Honda HCF-2 Transmission Fluid
■Manual Transmission Fluid
Specified fluid: Honda Manual Transmission Fluid (MTF)
Models with continuously variable transmission
1Continuously Variable Transmission Fluid
NOTICE
Do not mix HCF-2 with other transmission fluids.
Using a transmission fluid other than HCF-2 may
adversely affect the operation and durability of your
vehicle's transmission, and damage the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to HCF-2 is not covered by Honda's new vehicl e warranty.
Models with manual transmission
1Manual Transmission Fluid
If Honda MTF is not availa ble, you may use the API
certificated SAE 0 W-20 or 5 W-20 viscosity motor oil
as a temporary measure. Replace with MTF as soon as possible. Motor oil does
not contain the proper addi tives for the transmission
and continued use can cause decreased shifting
performance and lead to transmission damage.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 495 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

496

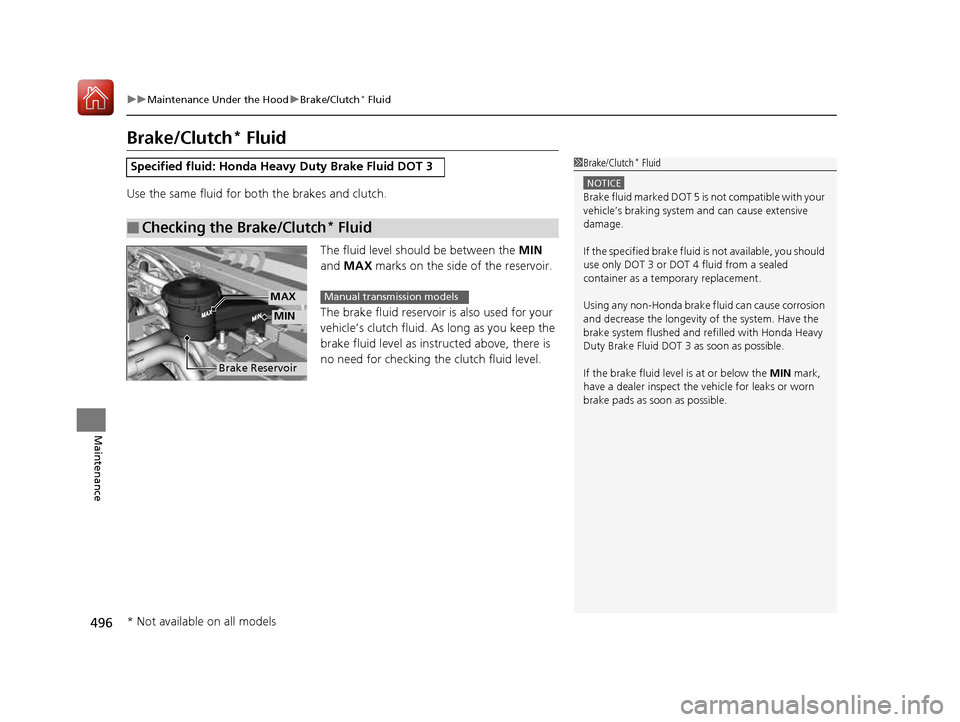

uuMaintenance Under the HooduBrake/Clutch*
Fluid
Maintenance
Brake/Clutch *
Fluid
Use the same fluid for bo th the brakes and clutch.
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.
The brake fluid reservoir is also used for your
vehicle’s clutch fluid. As long as you keep the
brake fluid level as instru cted above, there is
no need for checking the clutch fluid level.
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake/Clutch *
Fluid
1Brake/Clutch *
Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage. If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a tem porary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
Brake Reservoir
MIN
MAXManual transmission models
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 496 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

497
uuMaintenance Under the HooduRefilling Window Washer Fluid
Maintenance

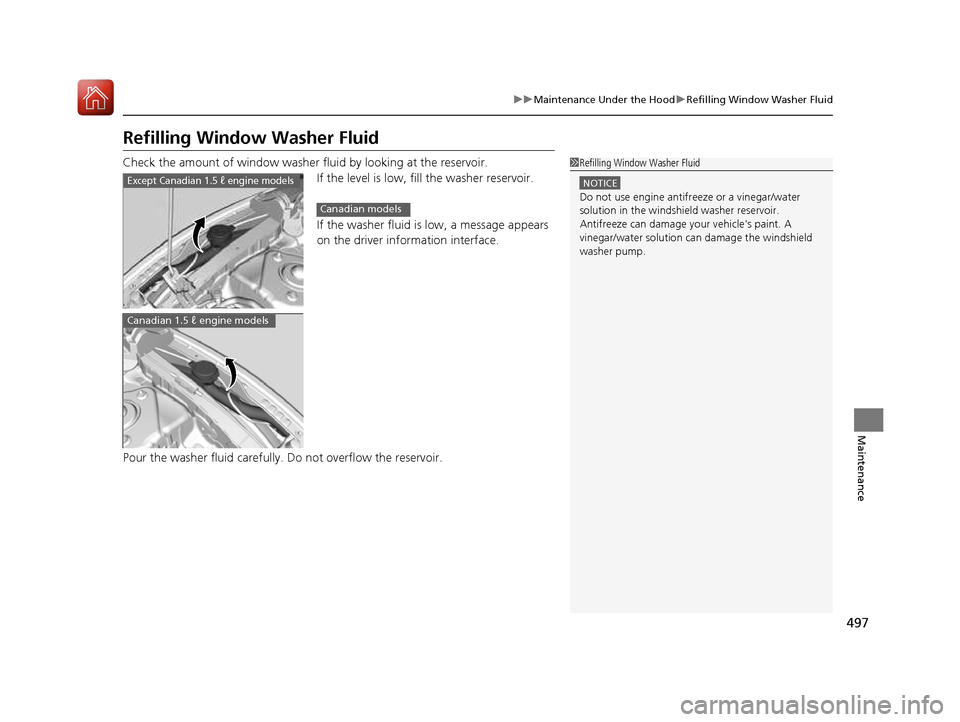

Refilling Window Washer Fluid
Check the amount of window washer fluid by looking at the reservoir.If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the driver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.
1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle's paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Except Canadian 1.5 ℓ engine models
Canadian models
Canadian 1.5 ℓ engine models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 497 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

498
Maintenance
Replacing Light Bulbs

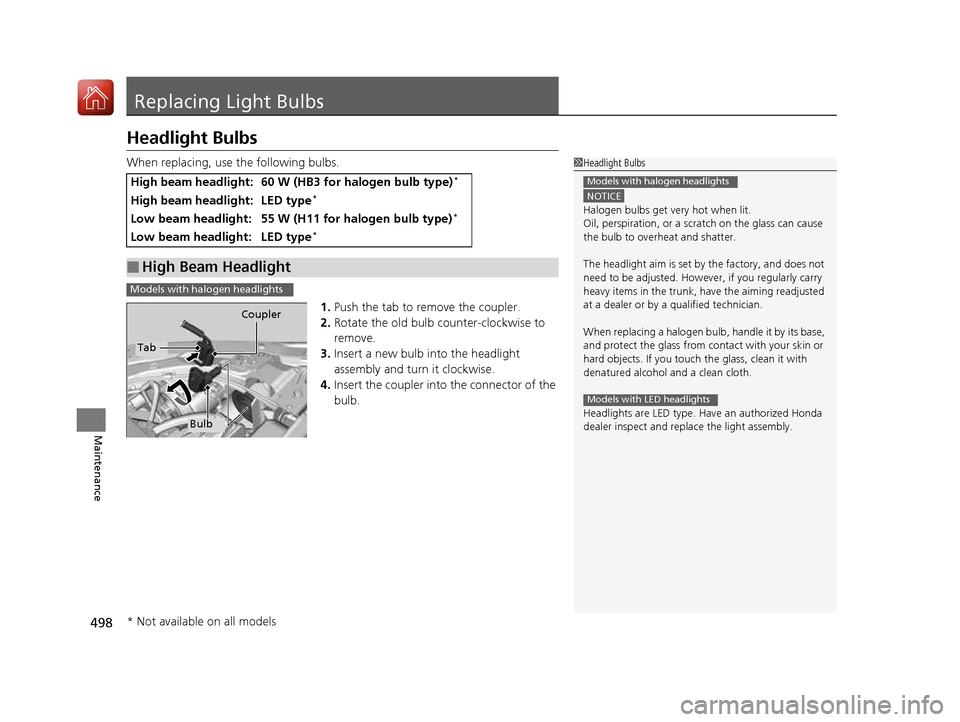

Headlight Bulbs
When replacing, use the following bulbs.1.Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
High beam headlight:60 W (HB3 for halogen bulb type) *
High beam headlight:LED type*
Low beam headlight:55 W (H11 for halogen bulb type) *
Low beam headlight:LED type*
■High Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted at a dealer or by a qualified technician.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Headlights are LED type. Ha ve an authorized Honda
dealer inspect and replace the light assembly.
Models with halogen headlights
Models with LED headlights
Models with halogen headlights
Tab Coupler
Bulb
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 498 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

499
uuReplacing Light BulbsuHeadlight Bulbs
Maintenance
1.Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to remove.
3. Insert a new bulb into the headlight assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.

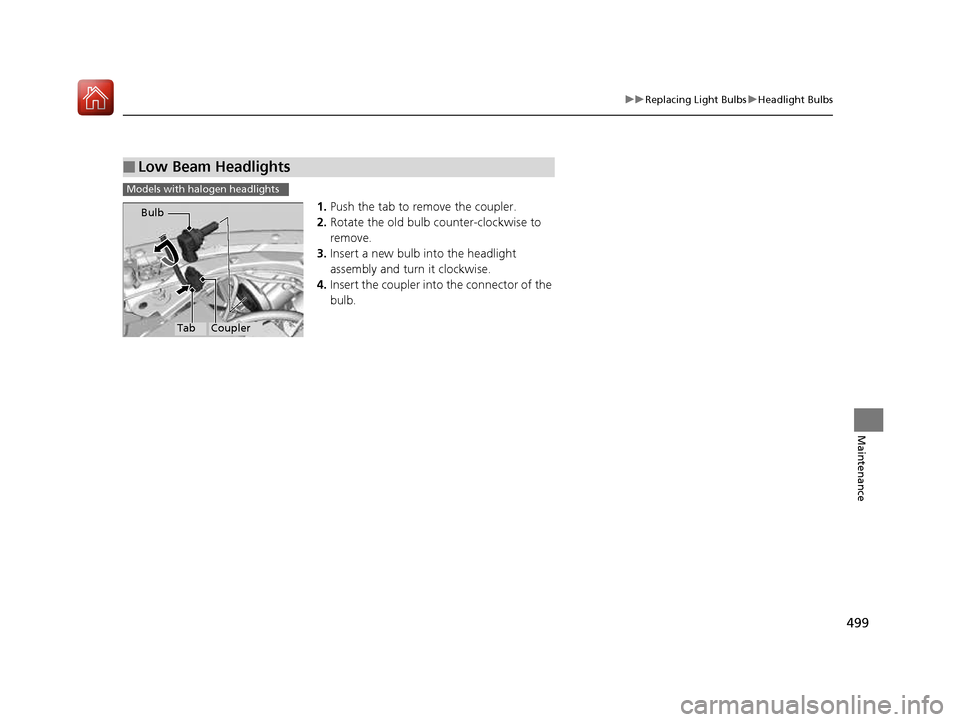

■Low Beam Headlights
Models with halogen headlights
TabCoupler
Bulb
