HONDA CIVIC COUPE 2016 10.G Owners Manual

500
uuReplacing Light BulbsuFog Light Bulbs*
Maintenance

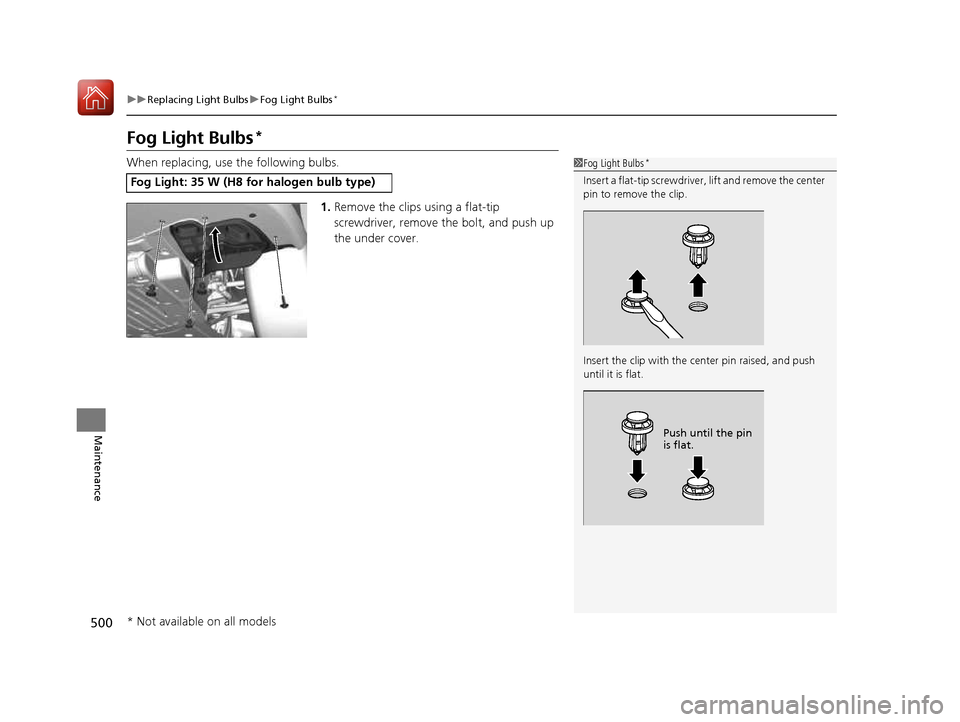

Fog Light Bulbs *
When replacing, use the following bulbs.
1.Remove the clips using a flat-tip
screwdriver, remove the bolt, and push up
the under cover.
Fog Light: 35 W (H8 for halogen bulb type)
1Fog Light Bulbs *
Insert a flat-tip screwdriver, lift and remove the center pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Push until the pin
is flat.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 500 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

501
uuReplacing Light BulbsuFog Light Bulbs*
Maintenance

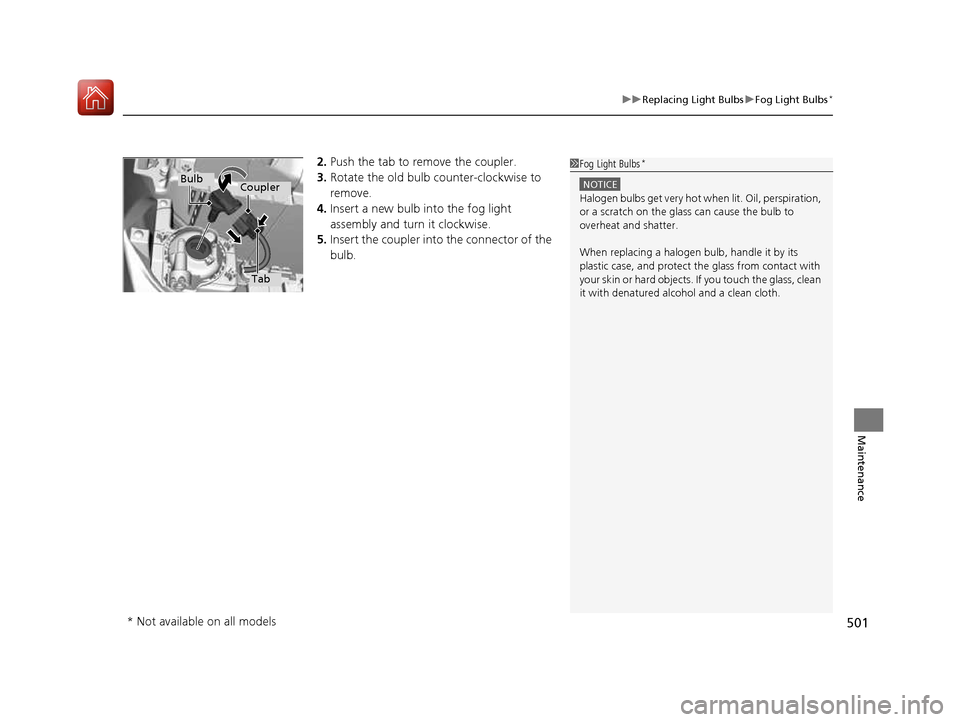

2.
Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to remove.
4. Insert a new bulb into the fog light assembly and turn it clockwise.
5. Insert the coupler into the connector of the
bulb.1Fog Light Bulbs *
NOTICE
Halogen bulbs get very hot wh
en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
When replacing a halogen bulb, handle it by its
plastic case, and protect th e glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alc ohol and a clean cloth.
Tab
CouplerBulb
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 501 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

502
uuReplacing Light BulbsuFront Turn Signal Light Bulbs
Maintenance

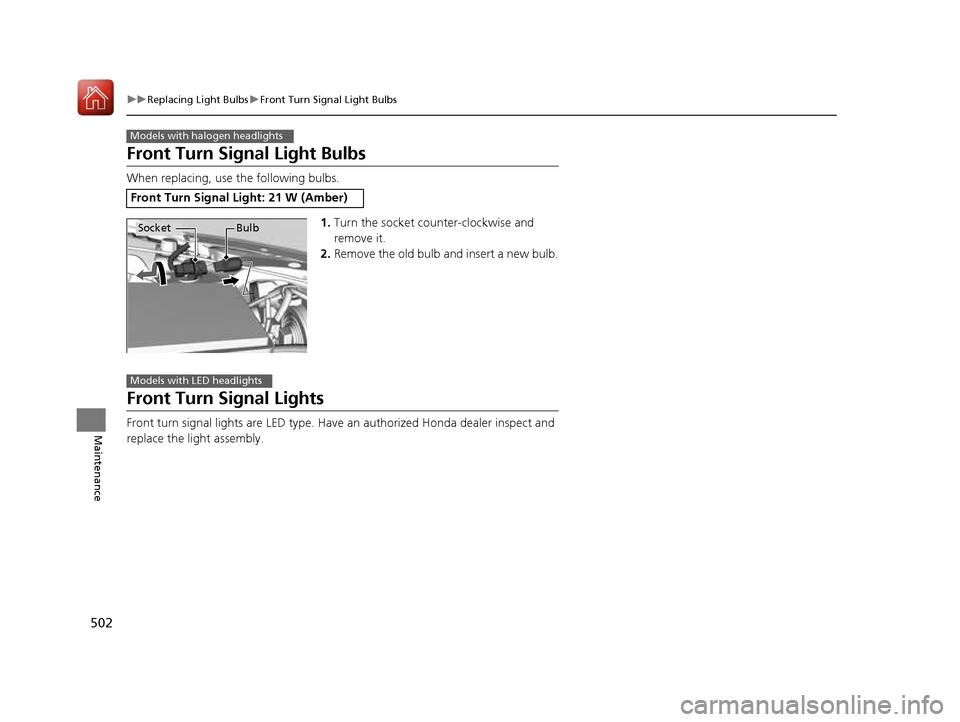

Front Turn Signal Light Bulbs
When replacing, use the following bulbs.1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Front Turn Signal Light: 21 W (Amber)
Models with halogen headlights
Socket Bulb
Models with LED headlights
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 502 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

503
uuReplacing Light BulbsuFront Side Marker Light Bulbs
Continued
Maintenance

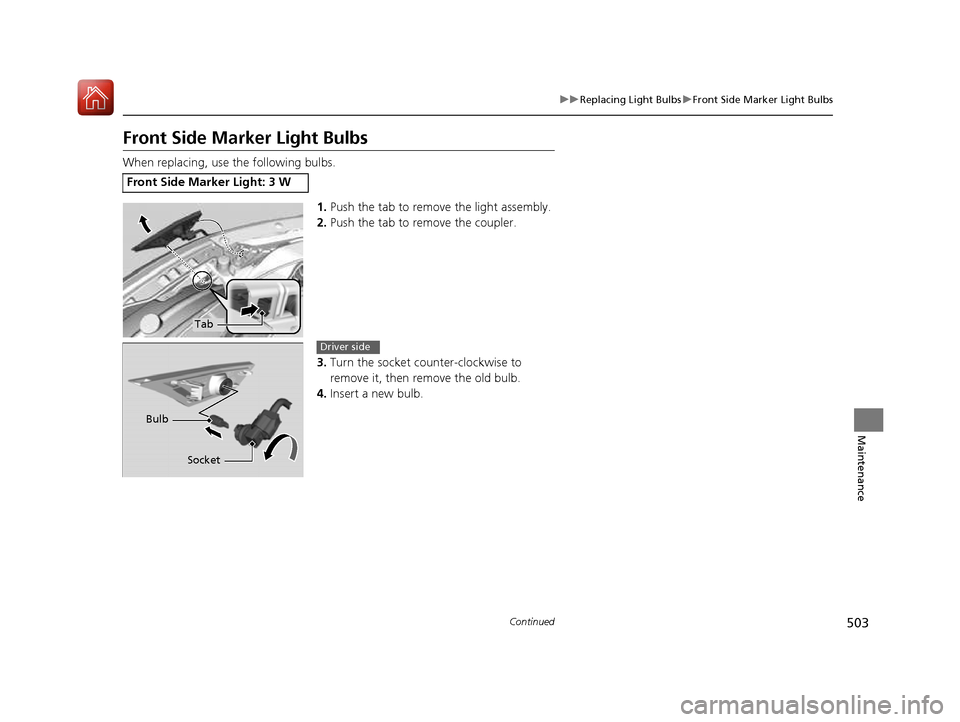

Front Side Marker Light Bulbs
When replacing, use the following bulbs.1.Push the tab to remove the light assembly.
2. Push the tab to remove the coupler.
3. Turn the socket counter-clockwise to
remove it, then remove the old bulb.
4. Insert a new bulb.
Front Side Marker Light: 3 W
Tab
Socket
Bulb
Driver side
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 503 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

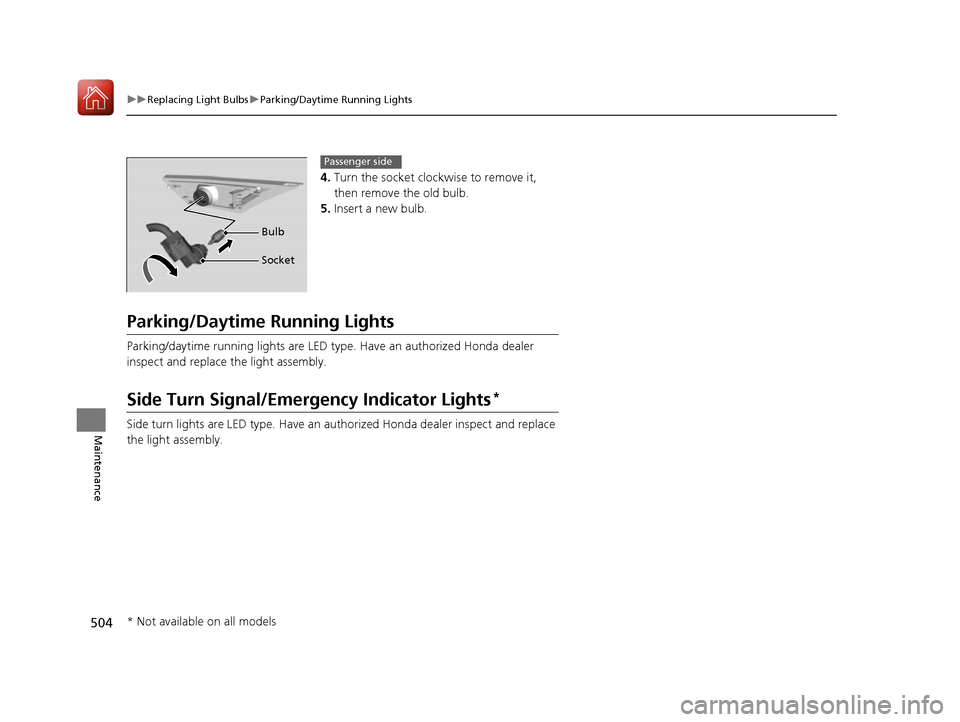

504
uuReplacing Light BulbsuParking/Daytime Running Lights
Maintenance
4.Turn the socket clockwise to remove it,
then remove the old bulb.
5. Insert a new bulb.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights *
Side turn lights are LED type. Have an au thorized Honda dealer inspect and replace
the light assembly.
Bulb
Socket
Passenger side
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 504 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

505
uuReplacing Light BulbsuBrake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light and Back-Up Light Bulbs
Maintenance

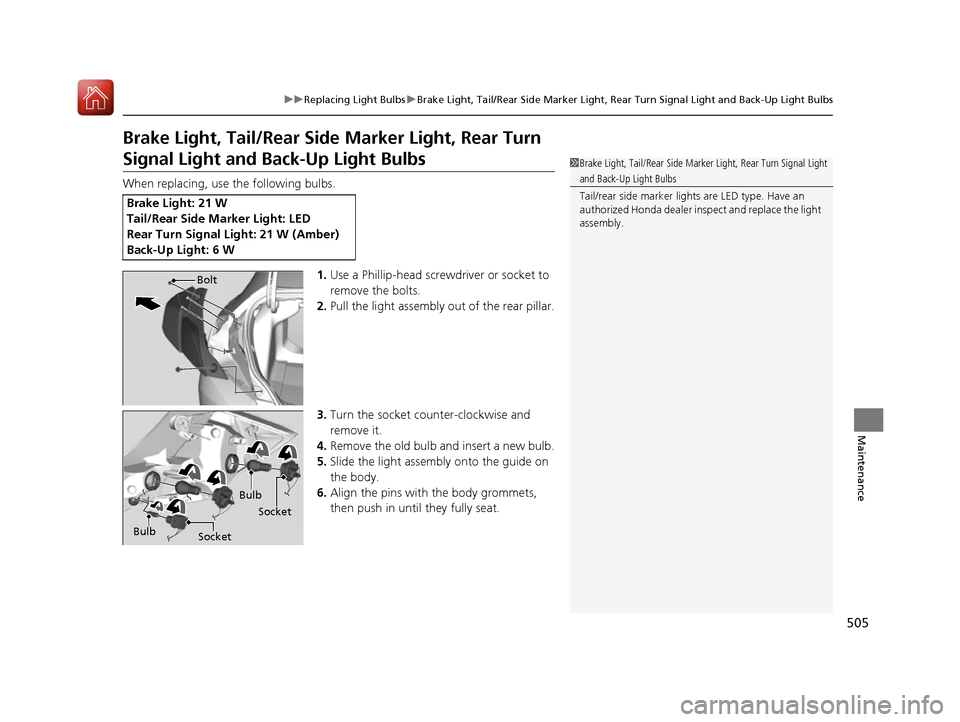

Brake Light, Tail/Rear Side Marker Light, Rear Turn
Signal Light and Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillip-head screwdriver or socket to remove the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and remove it.
4. Remove the old bulb and insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in until they fully seat.
Brake Light: 21 W
Tail/Rear Side Marker Light: LED
Rear Turn Signal Light: 21 W (Amber)
Back-Up Light: 6 W
1Brake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light
and Back-Up Light Bulbs
Tail/rear side marker lights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Bolt
Bulb
Socket
Bulb Socket
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 505 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

506
uuReplacing Light BulbsuTaillight
Maintenance

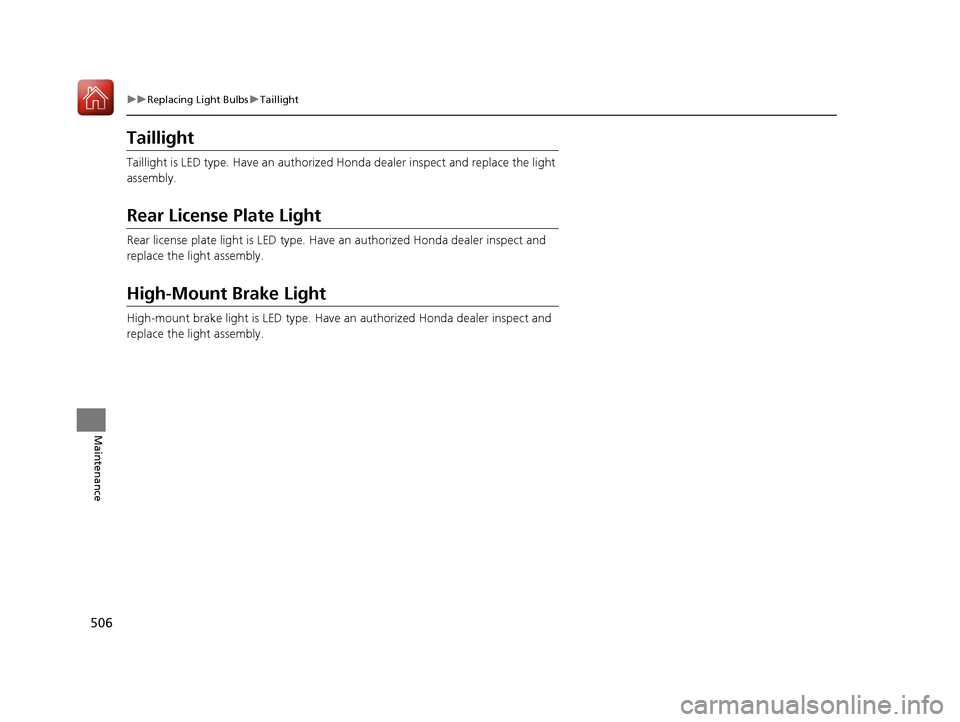

Taillight
Taillight is LED type. Have an authorized Honda dealer inspect and replace the light
assembly.
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 506 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

507
Continued
Maintenance

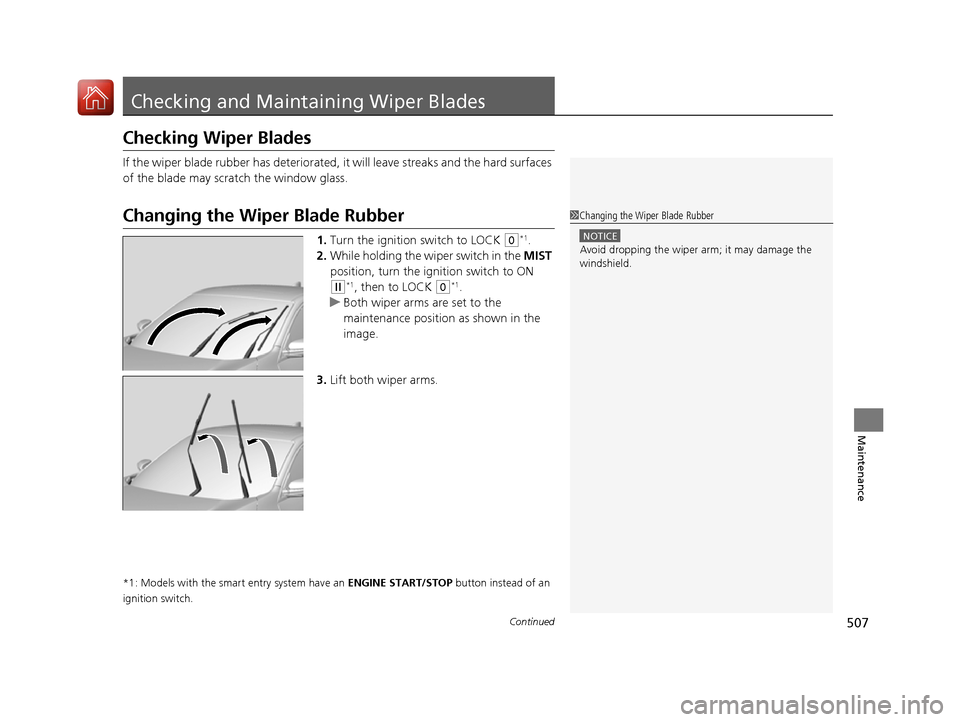

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated,
it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1.Turn the ignition switch to LOCK
(0 *1
.
2. While holding the wiper switch in the MIST
position, turn the ignition switch to ON
(w *1
, then to LOCK (0 *1
.
uBoth wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 507 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

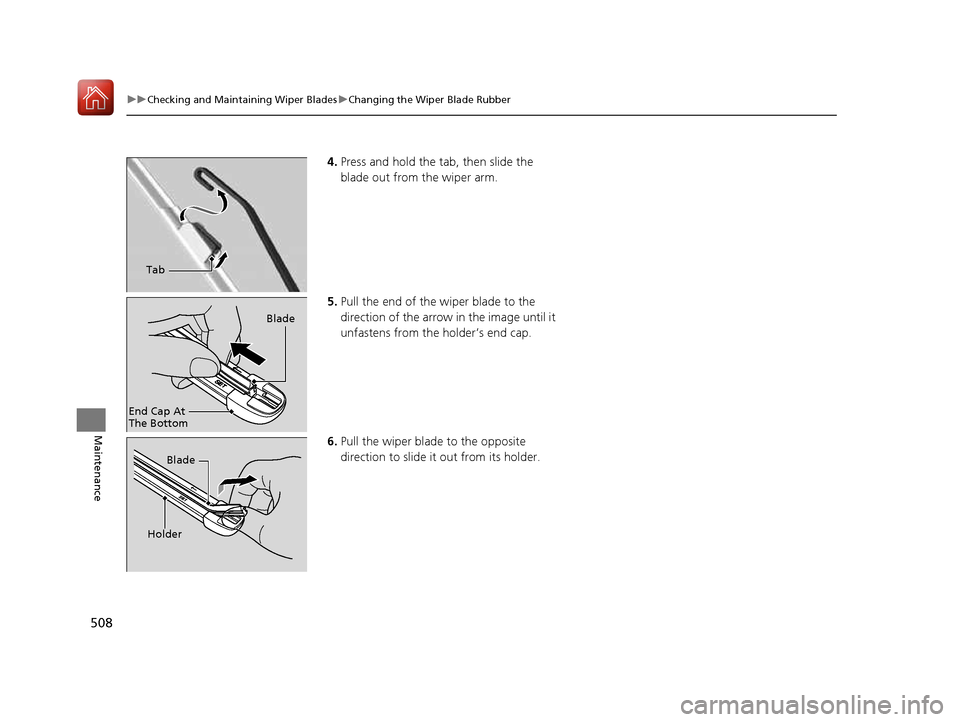

508
uuChecking and Maintaining Wiper BladesuChanging the Wiper Blade Rubber
Maintenance
4.Press and hold the tab, then slide the
blade out from the wiper arm.
5. Pull the end of the wiper blade to the
direction of the arrow in the image until it
unfastens from the holder’s end cap.
6. Pull the wiper blade to the opposite
direction to slide it out from its holder.
Tab
Blade
End Cap At
The Bottom
Blade
Holder
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 508 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

509
uuChecking and Maintaining Wiper BladesuChanging the Wiper Blade Rubber
Maintenance

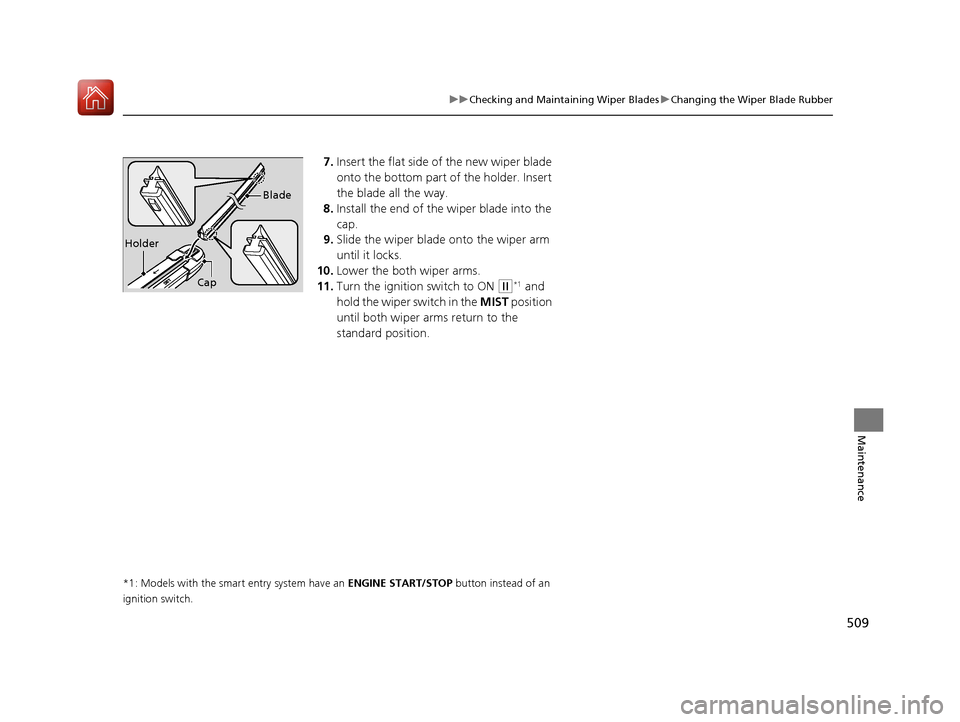

7.Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the wiper blade onto the wiper arm
until it locks.
10. Lower the both wiper arms.
11. Turn the ignition switch to ON
(w*1
and
hold the wiper switch in the MIST position
until both wiper arms return to the
standard position.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.Cap Blade
Holder
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 509 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分
