70
Safe Driving

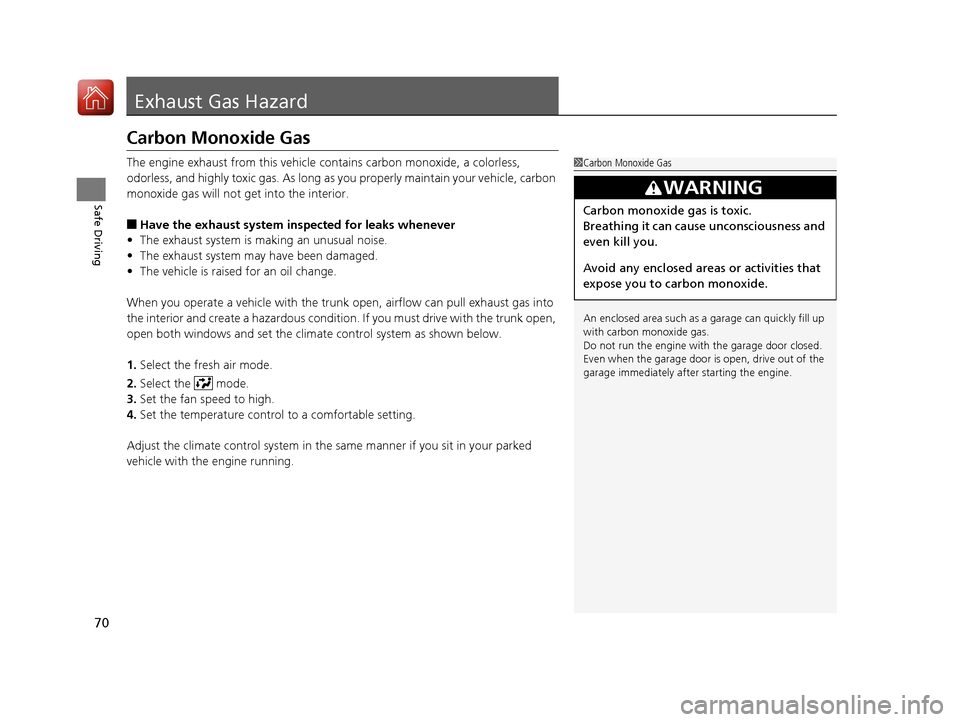

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■ Have the exhaust system inspected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open both windows and set the climate control system as shown below. 1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the garage immediat ely after starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 70 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

71
Safe Driving

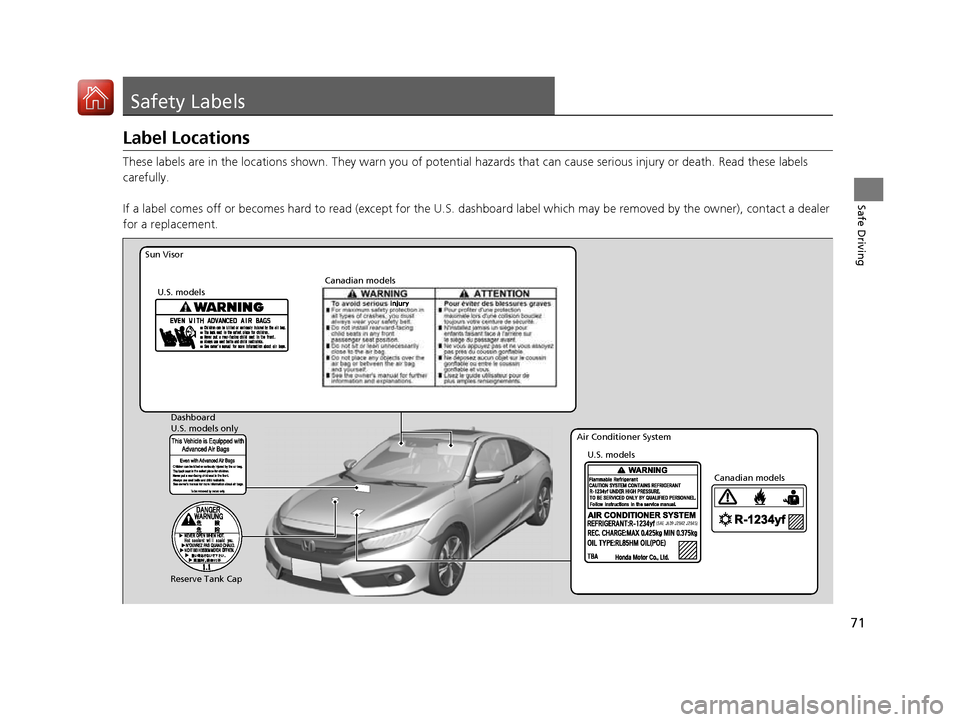

Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
(SAE J639 J2842 J2845)
Sun Visor
U.S. models Canadian models
Reserve Tank Cap U.S. models
U.S. models only
Dashboard
Canadian models
Air Conditioner System
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 71 ページ >0>.>/６年>0月>/>0日　金
曜日　午後４時>/６分

72
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 72 ページ >0>.>/６年>0月>/>0日　金曜日　午後４時>/６分

73
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators ............................................ 74
Information Display Warning and Information Messages *
.................... 91
Driver Information Interface Warning and Information Messages *
.................... 93
Gauges and Displays
Gauges ............................................ 105 Information Display *
........................ 106
Driver Information Interface *
........... 109
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 73 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

74
Instrument Panel

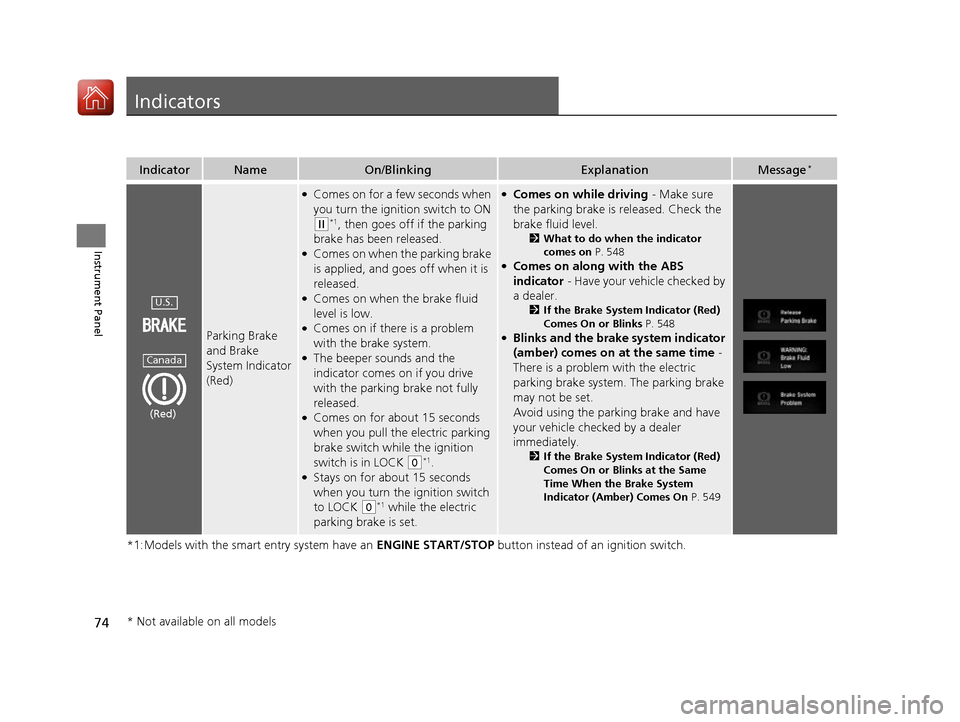

Indicators
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Parking Brake and Brake
System Indicator (Red)
●
Comes on for a fe w seconds when
you turn the igniti on switch to ON
(w*1
, then goes off if the parking
brake has been released.
● Comes on when the parking brake
is applied, and goes off when it is released.
● Comes on when the brake fluid
level is low.
● Comes on if there is a problem
with the brake system.
● The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully released.
● Comes on for about 15 seconds
when you pull the electric parking
brake switch while the ignition
switch is in LOCK
(0 *1
.
● Stays on for about 15 seconds
when you turn the ignition switch
to LOCK
(0 *1
while the electric
parking brake is set.
● Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level. 2What to do when the indicator
comes on P. 548
● Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer. 2If the Brake System Indicator (Red)
Comes On or Blinks P. 548
● Blinks and the brake system indicator
(amber) comes on at the same time -
There is a problem with the electric
parking brake system. The parking brake
may not be set.
Avoid using the parking brake and have
your vehicle checked by a dealer
immediately. 2If the Brake System Indicator (Red)
Comes On or Blinks at the Same
Time When the Brake System
Indicator (Amber) Comes On P. 549
U.S.
Canada
(Red)
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 74 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

75
uuIndicatorsu
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*

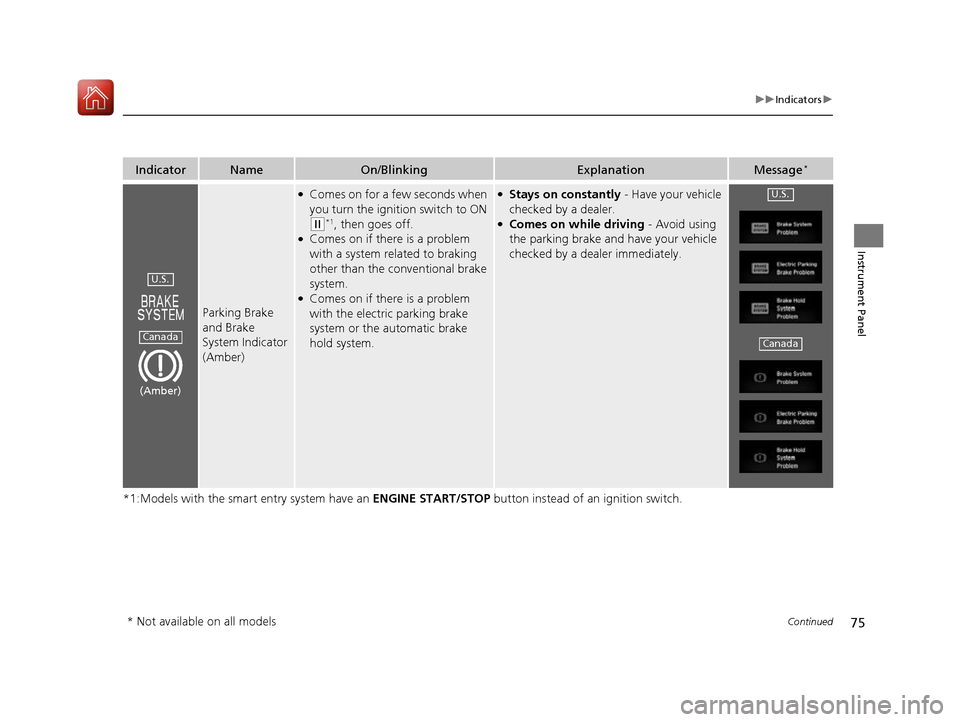

Parking Brake
and Brake
System Indicator (Amber)
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w *1
, then goes off.
● Comes on if there is a problem
with a system related to braking
other than the conventional brake system.
● Comes on if there is a problem
with the electric parking brake
system or the automatic brake
hold system.
●Stays on constantly - Have your vehicle
checked by a dealer.
● Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by a dealer immediately.
U.S.
Canada
(Amber)
U.S.
Canada
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 75 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

76
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*

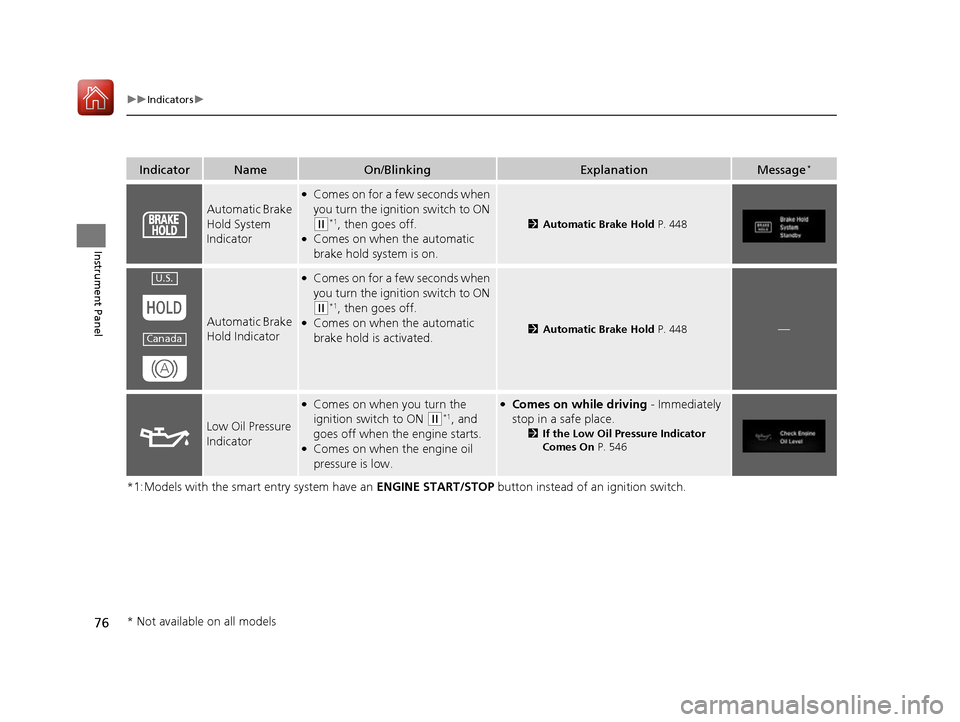

Automatic Brake Hold System
Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w *1
, then goes off.
● Comes on when the automatic
brake hold system is on.2 Automatic Brake Hold P. 448
Automatic Brake
Hold Indicator
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w *1
, then goes off.
● Comes on when the automatic
brake hold is activated.
2 Automatic Brake Hold P. 448—
Low Oil Pressure
Indicator
●
Comes on when you turn the
ignition switch to ON
(w *1
, and
goes off when the engine starts.
● Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place. 2If the Low Oil Pressure Indicator
Comes On P. 546
U.S.
Canada
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 76 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

77
uuIndicatorsu
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*

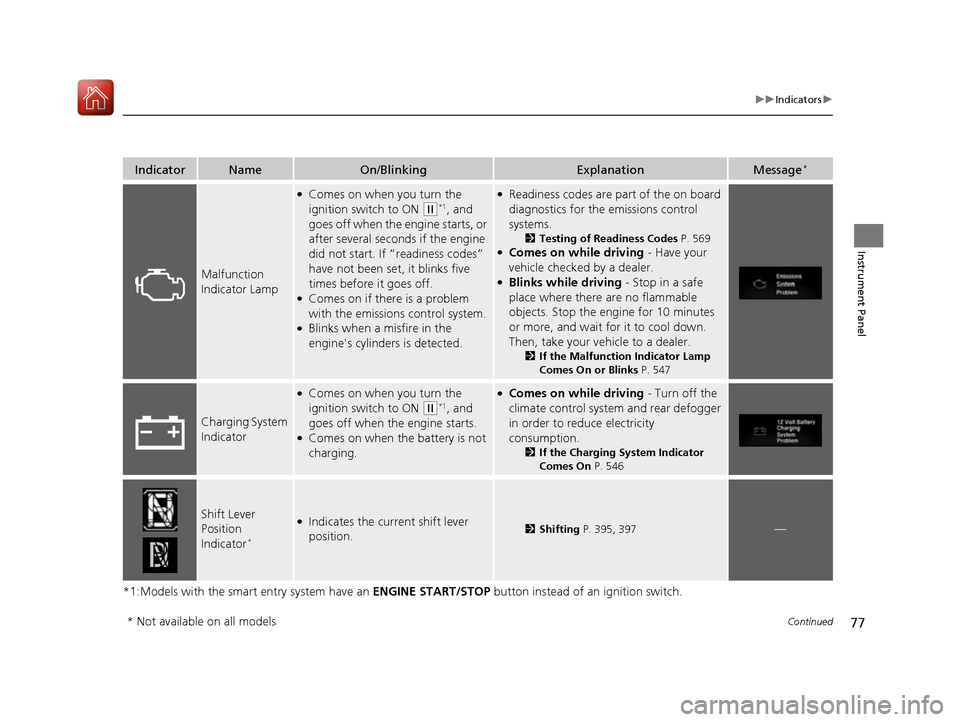

Malfunction Indicator Lamp
●
Comes on when you turn the
ignition switch to ON
(w *1
, and
goes off when the engine starts, or
after several seconds if the engine
did not start. If “readiness codes”
have not been set, it blinks five
times before it goes off.
● Comes on if there is a problem
with the emissions control system.
● Blinks when a misfire in the
engine's cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 569
● Comes on while driving - Have your
vehicle checked by a dealer.
● Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take your vehicle to a dealer. 2If the Malfunction Indicator Lamp
Comes On or Blinks P. 547
Charging System
Indicator
●
Comes on when you turn the
ignition switch to ON
(w *1
, and
goes off when the engine starts.
● Comes on when the battery is not
charging.
● Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption. 2If the Charging System Indicator
Comes On P. 546
Shift Lever
Position
Indicator*●
Indicates the current shift lever
position.2 Shifting P. 395, 397—
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 77 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

78
uuIndicatorsu
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*

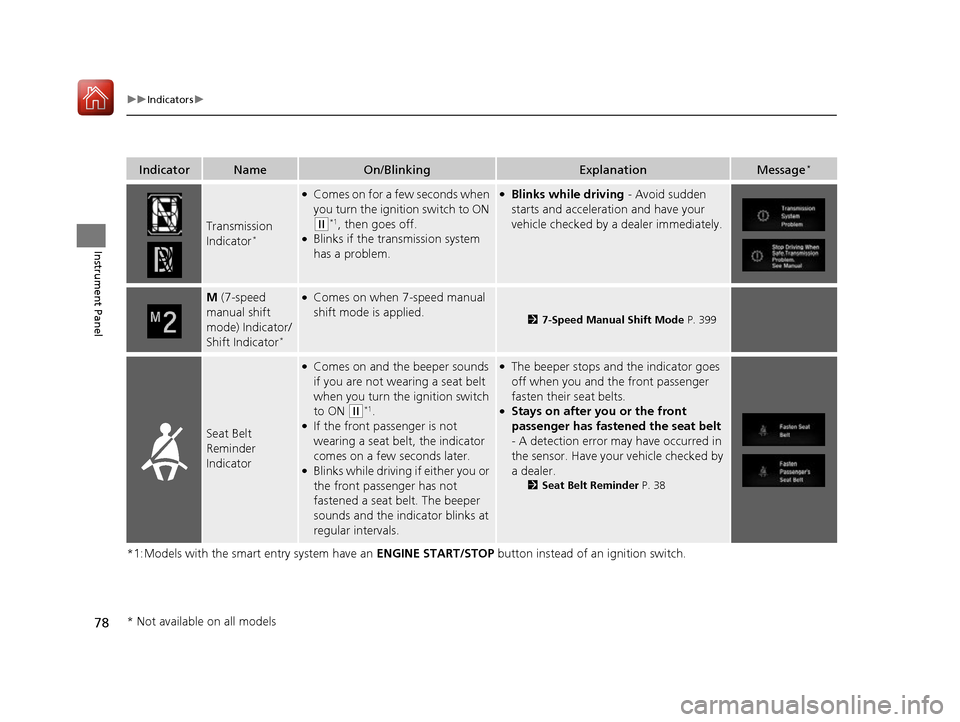

Transmission
Indicator*
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w *1
, then goes off.
● Blinks if the transmission system
has a problem.
●Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer immediately.
M (7-speed
manual shift
mode) Indicator/ Shift Indicator *●
Comes on when 7-speed manual
shift mode is applied.
2 7-Speed Manual Shift Mode P. 399
Seat Belt Reminder
Indicator
●
Comes on and the beeper sounds
if you are not wearing a seat belt
when you turn the ignition switch
to ON
(w *1
.
● If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
● Blinks while driving if either you or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
● Stays on after you or the front
passenger has fastened the seat belt
- A detection error may have occurred in
the sensor. Have your vehicle checked by a dealer.
2Seat Belt Reminder P. 38
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 78 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

79
uuIndicatorsu
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*

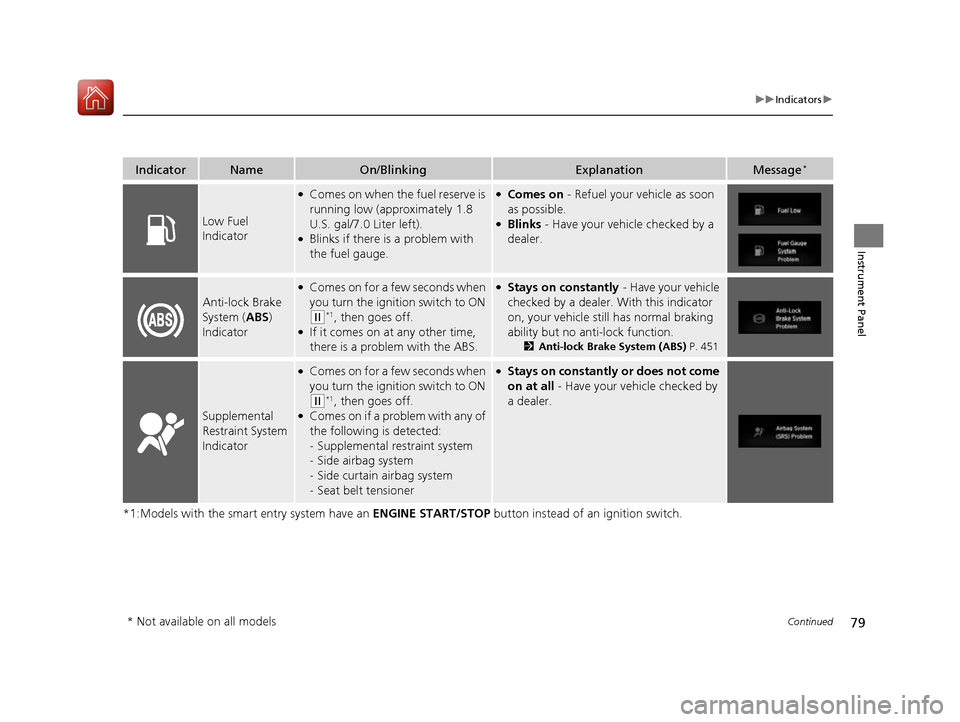

Low Fuel
Indicator
●
Comes on when the fuel reserve is
running low (approximately 1.8
U.S. gal/7.0 Liter left).
● Blinks if there is a problem with the fuel gauge.●Comes on - Refuel your vehicle as soon
as possible.
● Blinks - Have your vehicle checked by a
dealer.
Anti-lock Brake System ( ABS)
Indicator
● Comes on for a few seconds when you turn the ignition switch to ON
(w *1
, then goes off.
● If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have your vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function. 2Anti-lock Brake System (ABS) P. 451
Supplemental
Restraint System
Indicator
●
Comes on for a few seconds when you turn the ignition switch to ON
(w *1
, then goes off.
● Comes on if a problem with any of
the following is detected: -Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●
Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
* Not available on all models
