uuGauges and DisplaysuDriver Information Interface*
110
Instrument Panel

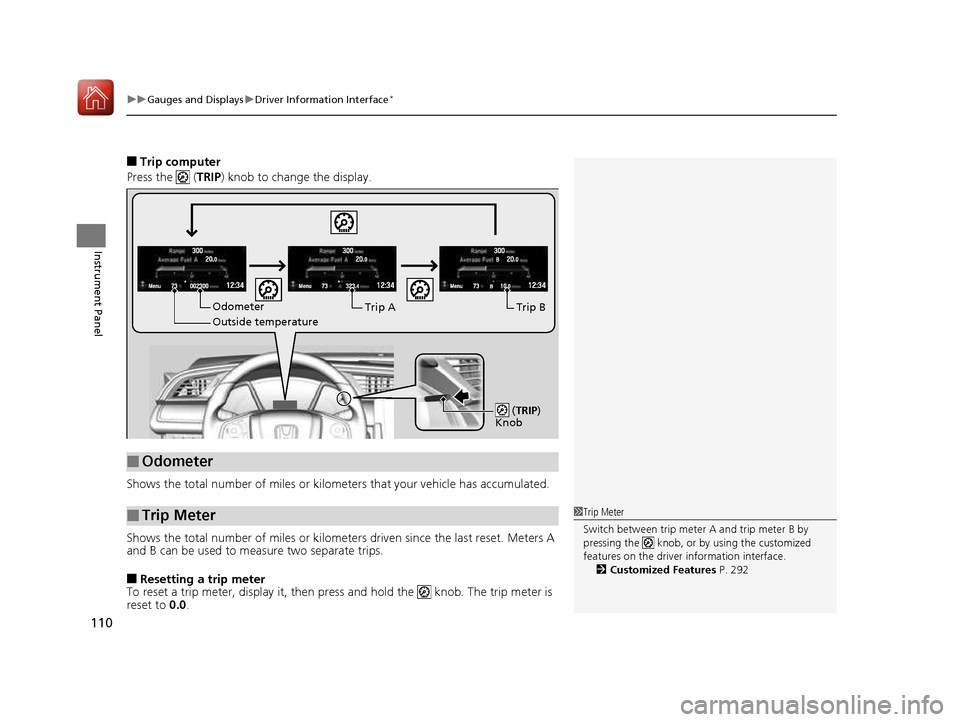

■ Trip computer
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips. ■ Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
■Odometer
■Trip Meter
Odometer
Outside temperature Trip ATrip B
(
TRIP )
Knob
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob, or by using the customized
features on the driver information interface.
2 Customized Features P. 292
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 110 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued111
uuGauges and DisplaysuDriver Information Interface*
Instrument Panel

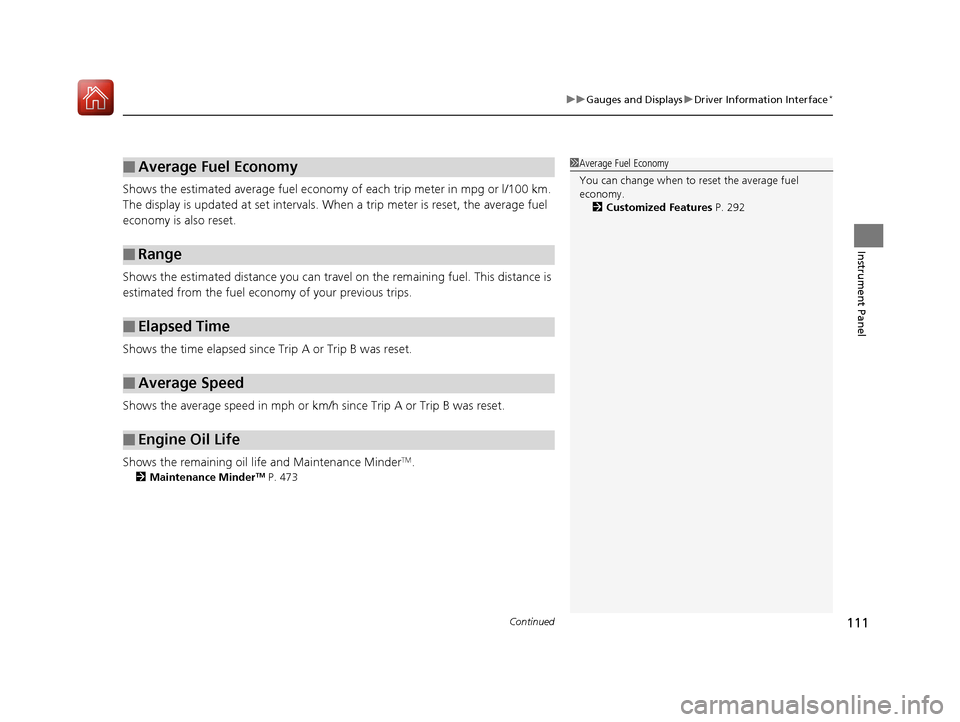

Shows the estimated average fuel economy
of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance Minder TM
.
2 Maintenance Minder TM
P. 473
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 292
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 111 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuGauges and DisplaysuDriver Information Interface*
112
Instrument Panel

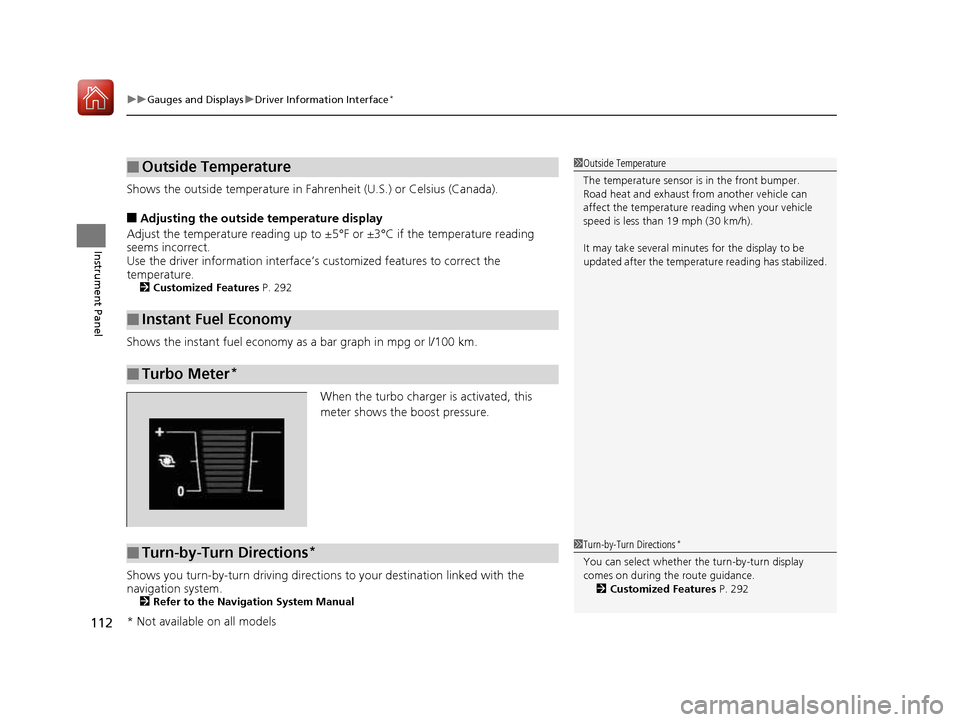

Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■ Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the driver information interface’s customized features to correct the
temperature. 2 Customized Features P. 292
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
When the turbo charger is activated, this
meter shows the boost pressure.
Shows you turn-by-turn driving directions to your destination linked with the
navigation system. 2 Refer to the Navigation System Manual
■Outside Temperature
■Instant Fuel Economy
■Turbo Meter *
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
■Turn-by-Turn Directions
*1Turn-by-Turn Directions
*
You can select whether th e turn-by-turn display
comes on during the route guidance. 2 Customized Features P. 292
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 112 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

113
Controls
This chapter explains how to operate th e various controls necessary for driving.
Clock.................................................. 114
Locking and Unlocking the Doors Key Types and Functions .................. 116
Low Smart Entry Remote Signal Strength*... 118Locking/Unlocking the Doors from the Outside .......................................... 119
Locking/Unlocking the Doors from the Inside ............................................. 126
Auto Door Locking/Unlocking .......... 129
Opening and Closing the Trunk ....... 133
Security System Immobilizer System .......................... 136
Security System Alarm ...................... 136
Opening and Closing the Windows ..... 139
Opening and Closing the Moonroof*..... 142
Operating the Switches Around the
Steering Wheel
Ignition Switch *
............................... 143
ENGINE START/STOP Button *
........... 144
Ignition Switch and Power Mode
Comparison ................................... 147
Turn Signals ..................................... 148
Light Switches.................................. 148 Fog Lights *
...................................... 151
Daytime Running Lights ................... 151
Wipers and Washers ........................ 152
Brightness Control ........................... 154Rear Defogger/Heat ed Door Mirror*

Button ........................................... 155
Adjusting the Steering Wheel........... 156 Adjusting the Mirrors
Interior Rearview Mirror ................... 157
Power Door Mirrors ......................... 158
Adjusting the Seats .......................... 159
Interior Lights/Interior Convenience
Items ................................................ 168
Climate Control System Using Automatic Climate Control .... 179
Synchronized Mode *
....................... 184
Automatic Climate Control Sensors......185
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 113 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

114
Controls

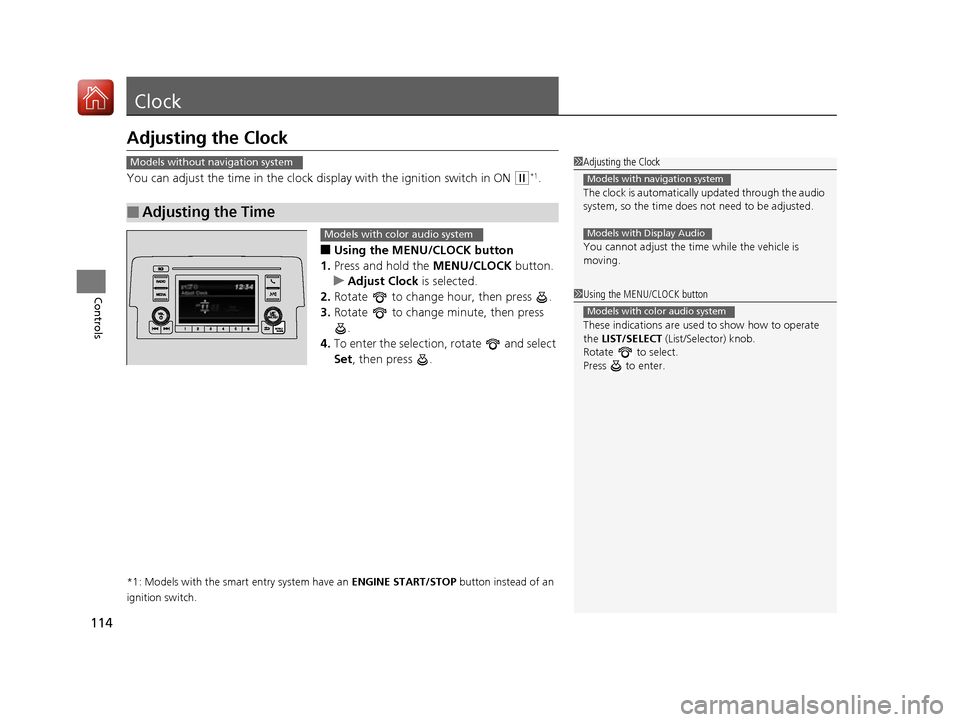

Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON
(w*1
.
■ Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
uAdjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1Adjusting the Clock The clock is automatically updated through the audio
system, so the time does not need to be adjusted.
You cannot adjust the time while the vehicle is moving.
Models with navigation system
Models with Display Audio
Models without navigation system
1Using the MENU/CLOCK button
These indications are used to show how to operate
the LIST/SELECT (List/Selector) knob.
Rotate to select.
Press to enter.
Models with color audio system
Models with color audio system
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 114 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

115
uuClockuAdjusting the Clock
Controls

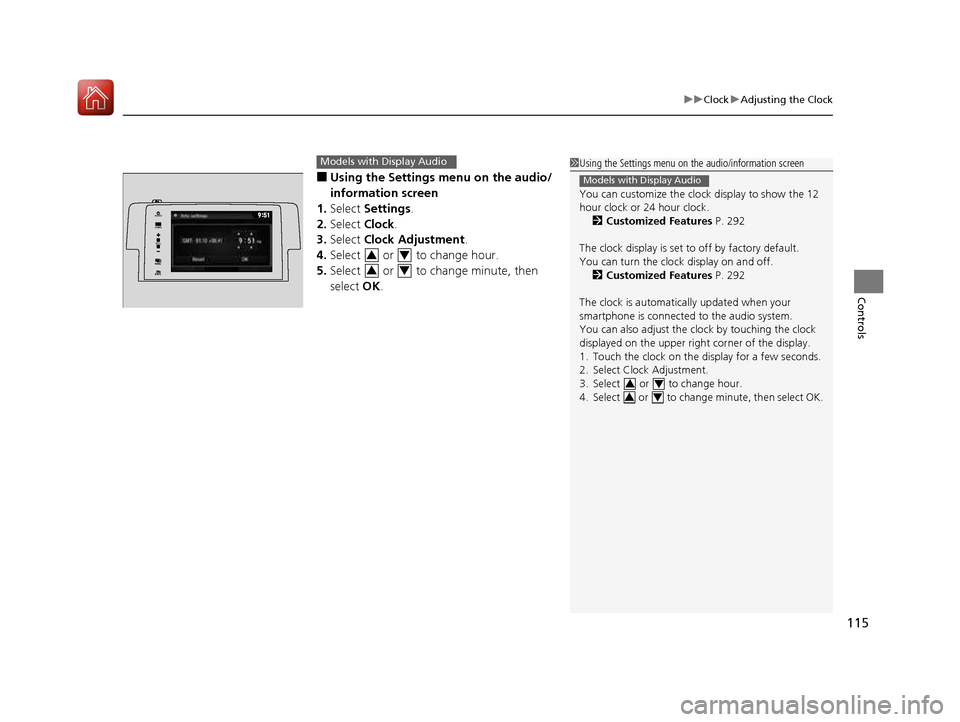

■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select Clock.
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then select OK.
Models with Display Audio1Using the Settings menu on the audio/information screen
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 292
The clock display is set to off by factory default.
You can turn the clock display on and off. 2 Customized Features P. 292
The clock is automatica lly updated when your
smartphone is connected to the audio system.
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the di splay for a few seconds.
2. Select Clock Adjustment.
3. Select or to change hour.
4. Select or to change minute, then select OK.
Models with Display Audio
3434
VO L
HOME
MENUBACK
AUDIO
34
34
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 115 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

116
Controls

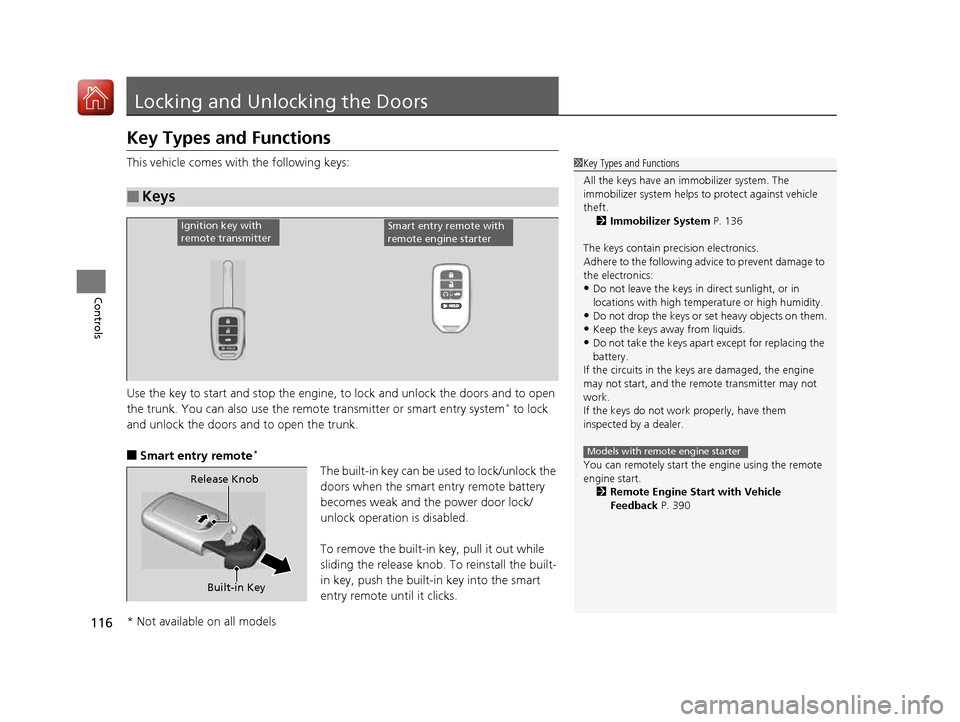

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, to lock and unlock the doors and to open
the trunk. You can also use the remote transmitter or smart entry system*
to lock
and unlock the doors and to open the trunk.
■ Smart entry remote *
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.
■Keys
1Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.
2 Immobilizer System P. 136
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
• Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
• Do not drop the keys or set heavy objects on them.
• Keep the keys away from liquids.
• Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the remote
engine start.
2 Remote Engine Start with Vehicle
Feedback P. 390
Models with remote engine starter
Ignition key with
remote transmitterSmart entry remote with
remote engine starter
Built-in Key
Release Knob
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 116 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

117
uuLocking and Unlocking the DoorsuKey Types and Functions
Controls

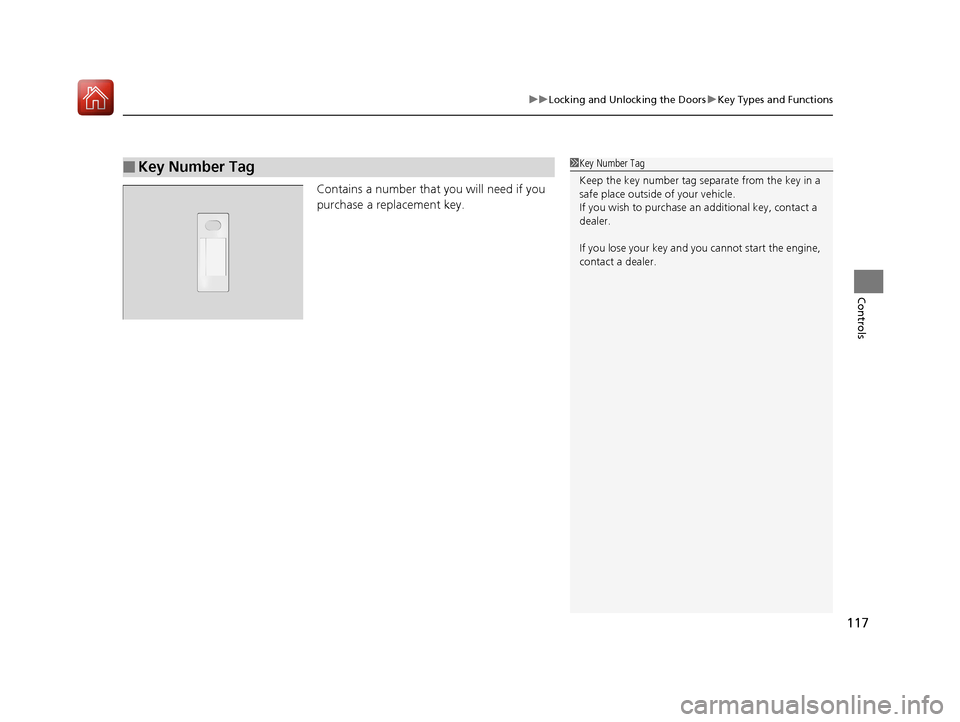

Contains a number that you will need if you
purchase a replacement key.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 117 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

118
uuLocking and Unlocking the DoorsuLow Smart Entry Remote Signal Strength*
Controls
Low Smart Entry Remo
te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors, opening the trunk, or to start the engine.
In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable: • Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.
1Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on re gularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 118 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

119
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Continued
Controls

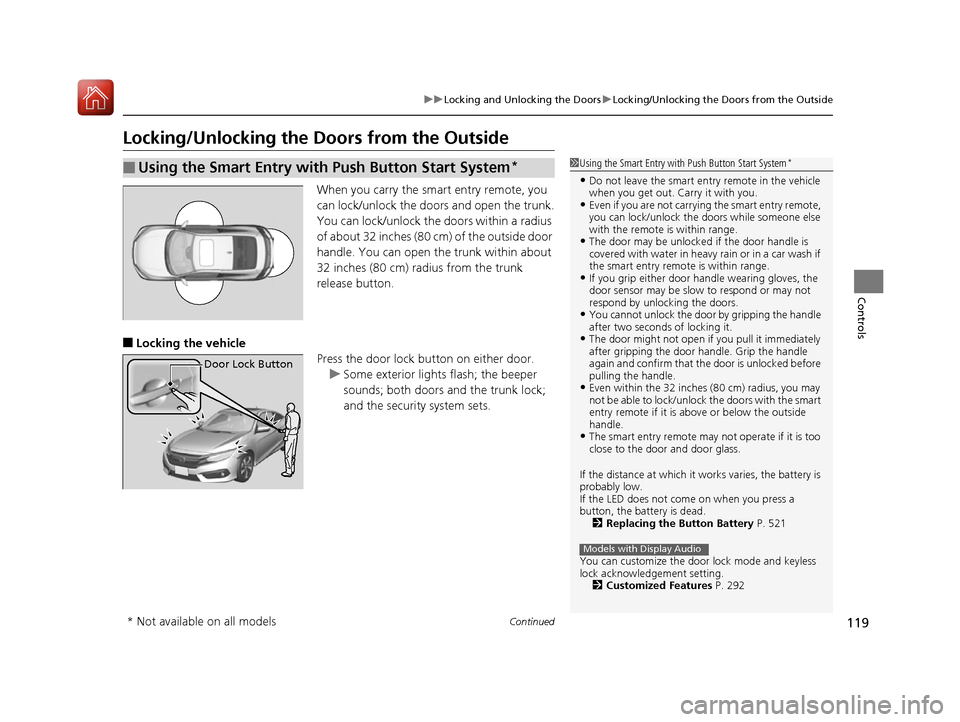

Locking/Unlocking the Doors from the OutsideWhen you carry the smart entry remote, you
can lock/unlock the doors and open the trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.
■ Locking the vehicle
Press the door lock button on either door.
uSome exterior lights flash; the beeper
sounds; both doors and the trunk lock;
and the security system sets.
■Using the Smart Entry with Push Button Start System *1Using the Smart Entry with Push Button Start System
*
• Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
• Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
• The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
• If you grip either door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
• You cannot unlock the door by gripping the handle
after two seconds of locking it.
• The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
• Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the smart
entry remote if it is a bove or below the outside
handle.
• The smart entry remote may not operate if it is too
close to the door and door glass.
If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 521
You can customize the door lock mode and keyless
lock acknowledge ment setting.
2 Customized Features P. 292
Models with Display Audio
Door Lock Button
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 119 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
