HONDA CIVIC COUPE 2019 Owner's Manual (in English)

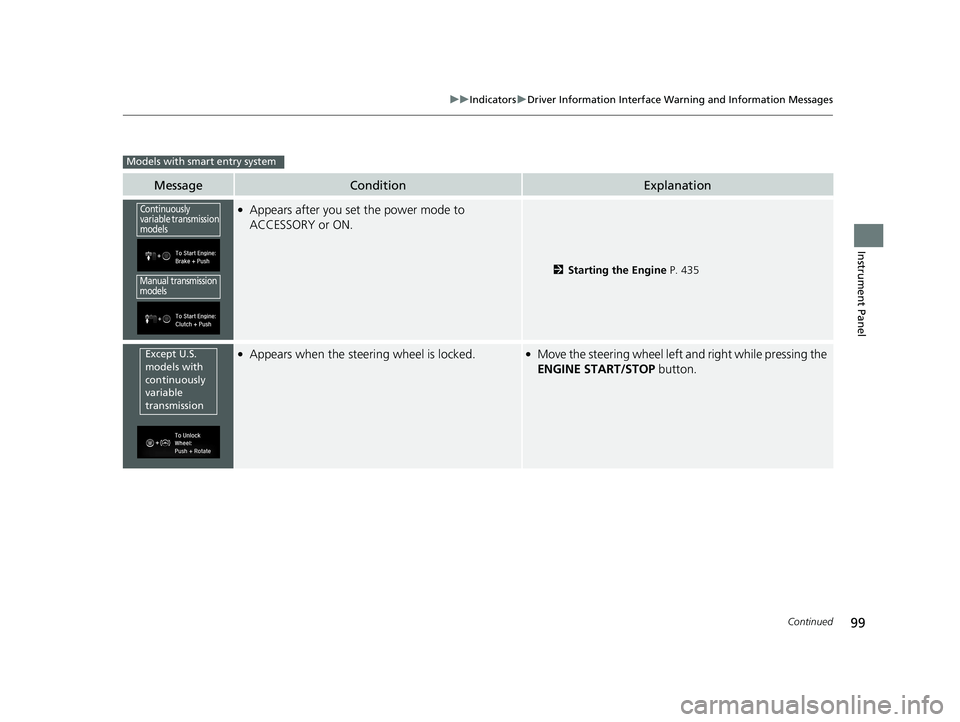

99
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears after you set the power mode to
ACCESSORY or ON.
2Starting the Engine P. 435
●Appears when the steering wheel is locked.●Move the steering wheel left an d right while pressing the
ENGINE START/STOP button.
Models with smart entry system
Continuously
variable transmission
models
Manual transmission
models
Except U.S.
models with
continuously
variable
transmission
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 99 ページ ２０１８年９月４日　火曜 日　午後１時３８分

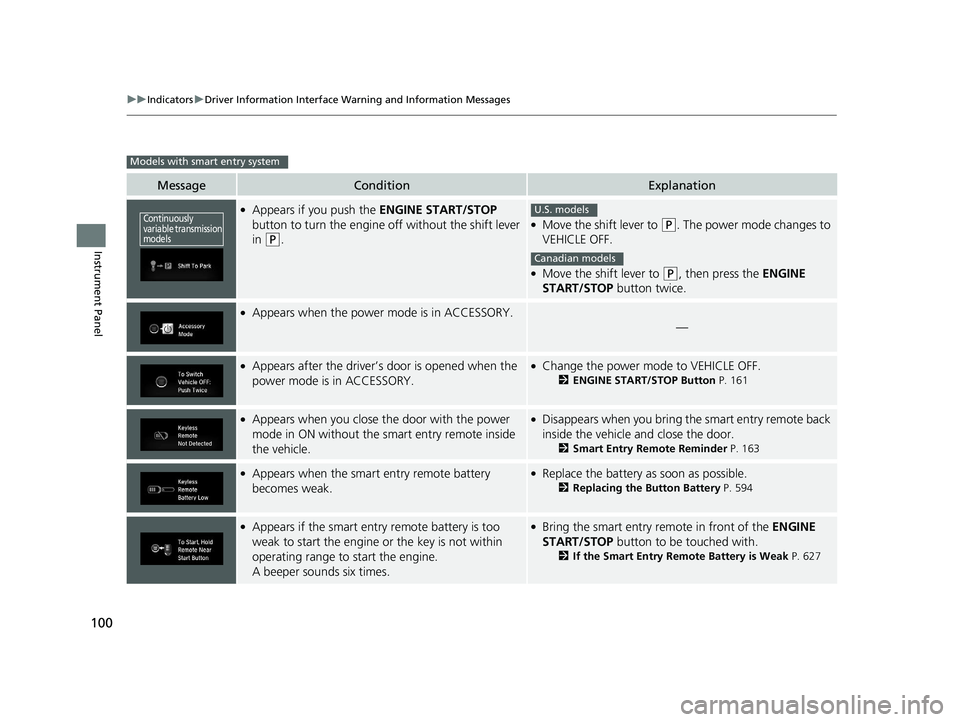

100
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Move the shift lever to (P, then press the ENGINE
START/STOP button twice.
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2 ENGINE START/STOP Button P. 161
●Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
2Smart Entry Remote Reminder P. 163
●Appears when the smart entry remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 594
●Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2If the Smart Entry Remote Battery is Weak P. 627
Models with smart entry system
Continuously
variable transmission
modelsU.S. models
Canadian models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 100 ページ ２０１８年９月４日　火 曜日　午後１時３８分

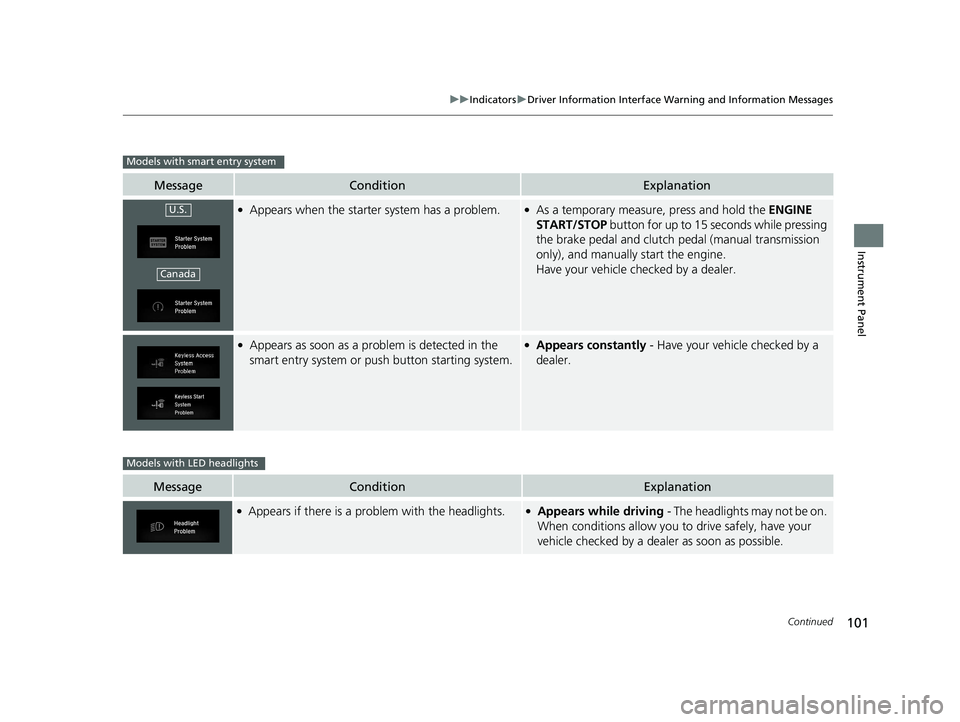

101
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the starter system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while pressing
the brake pedal and clutch pedal (manual transmission
only), and manually start the engine.
Have your vehicle checked by a dealer.
●Appears as soon as a problem is detected in the
smart entry system or push button starting system.●Appears constantly - Have your vehicle checked by a
dealer.
MessageConditionExplanation
●Appears if there is a problem with the headlights.●Appears while driving - The headlights may not be on.
When conditions allow you to drive safely, have your
vehicle checked by a deal er as soon as possible.
Models with smart entry system
U.S.
Canada
Models with LED headlights
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 101 ページ ２０１８年９月４日　火 曜日　午後１時３８分

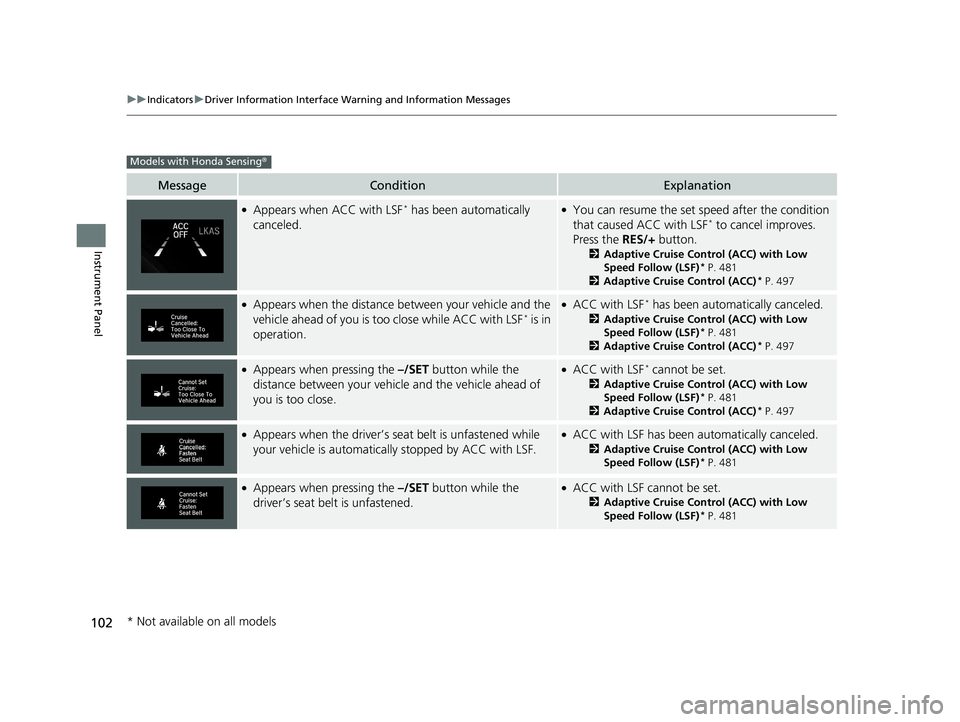

102
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when ACC with LSF* has been automatically
canceled.●You can resume the set speed after the condition
that caused ACC with LSF* to cancel improves.
Press the RES/+ button.
2Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)* P. 481
2 Adaptive Cruise Control (ACC)* P. 497
●Appears when the distance be tween your vehicle and the
vehicle ahead of you is to o close while ACC with LSF* is in
operation.
●ACC with LSF* has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)* P. 481
2 Adaptive Cruise Control (ACC)* P. 497
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle ahead of
you is too close.●ACC with LSF* cannot be set.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)* P. 481
2 Adaptive Cruise Control (ACC)* P. 497
●Appears when the driver’s seat belt is unfastened while
your vehicle is automatically stopped by ACC with LSF.●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)* P. 481
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)* P. 481
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 102 ページ ２０１８年９月４日　火 曜日　午後１時３８分

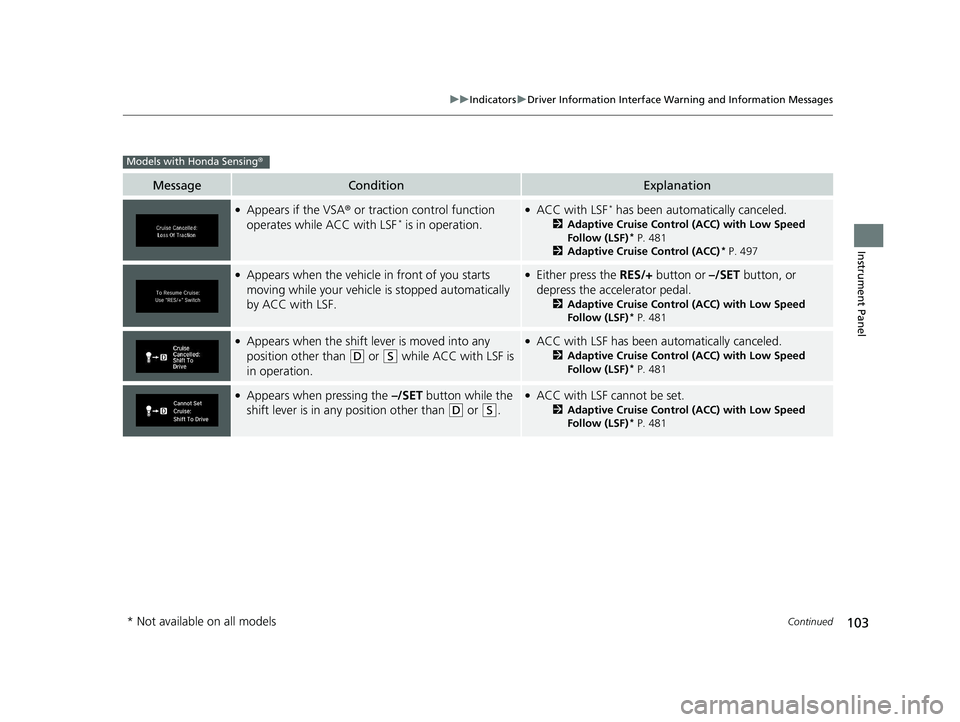

103
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the VSA® or traction control function
operates while ACC with LSF* is in operation.
●ACC with LSF* has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 481
2 Adaptive Cruise Control (ACC)* P. 497
●Appears when the vehicle in front of you starts
moving while your vehicle is stopped automatically
by ACC with LSF.●Either press the RES/+ button or –/SET button, or
depress the accelerator pedal.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 481
●Appears when the shift le ver is moved into any
position other than
(D or (S while ACC with LSF is
in operation.
●ACC with LSF has been au tomatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 481
●Appears when pressing the –/SET button while the
shift lever is in any position other than
(D or (S.
●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 481
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 103 ページ ２０１８年９月４日　火 曜日　午後１時３８分

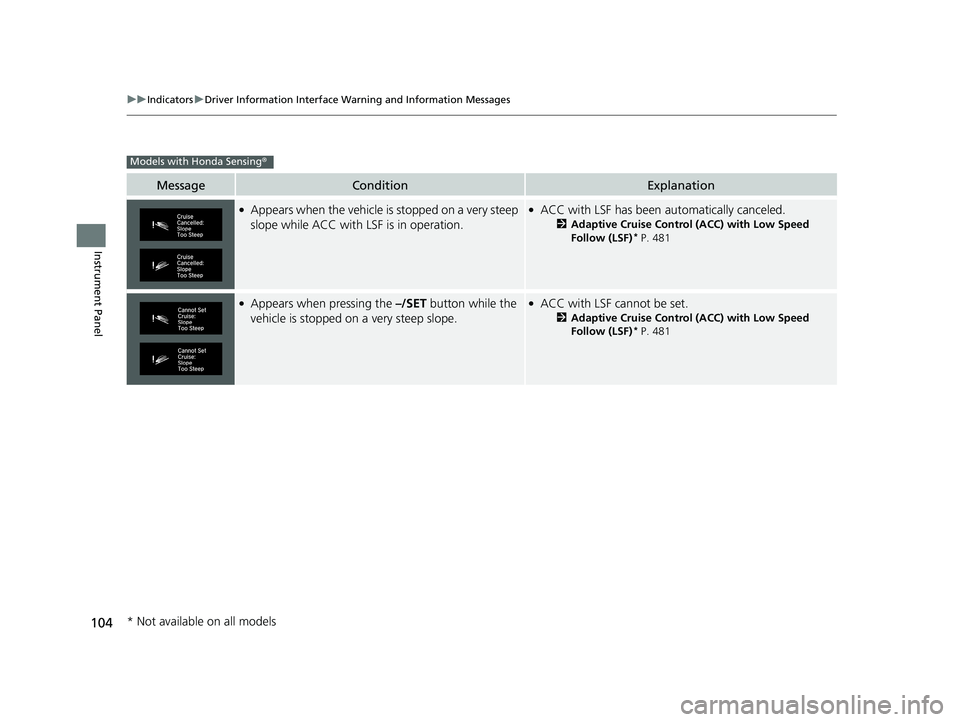

104
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 481
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 481
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 104 ページ ２０１８年９月４日　火 曜日　午後１時３８分

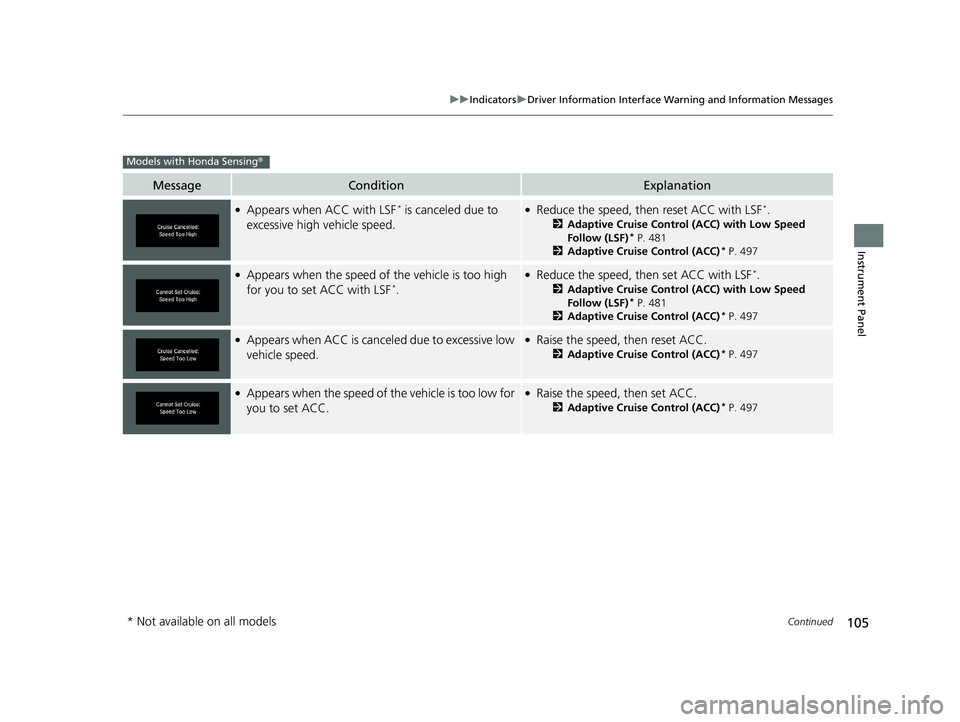

105
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when ACC with LSF* is canceled due to
excessive high vehicle speed.●Reduce the speed, then reset ACC with LSF*.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 481
2 Adaptive Cruise Control (ACC)* P. 497
●Appears when the speed of the vehicle is too high
for you to set ACC with LSF*.
●Reduce the speed, then set ACC with LSF*.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 481
2 Adaptive Cruise Control (ACC)* P. 497
●Appears when ACC is cancel ed due to excessive low
vehicle speed.●Raise the speed, then reset ACC.
2 Adaptive Cruise Control (ACC)* P. 497
●Appears when the speed of the vehicle is too low for
you to set ACC.●Raise the speed, then set ACC.
2 Adaptive Cruise Control (ACC)* P. 497
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 105 ページ ２０１８年９月４日　火 曜日　午後１時３８分

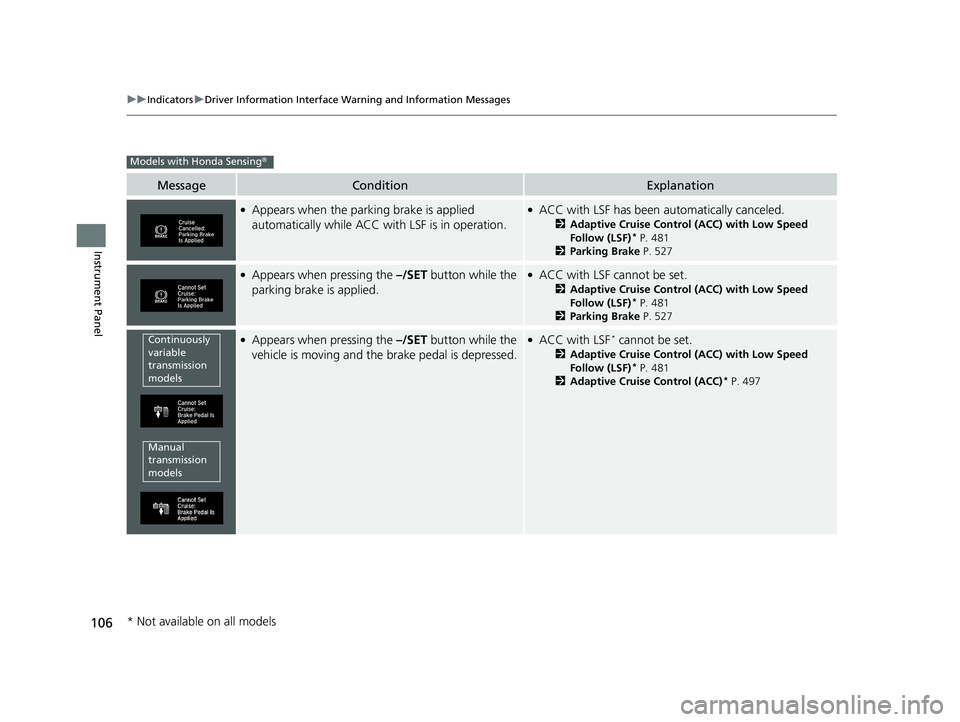

106
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the parking brake is applied
automatically while ACC with LSF is in operation.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 481
2 Parking Brake P. 527
●Appears when pressing the –/SET button while the
parking brake is applied.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 481
2 Parking Brake P. 527
●Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.●ACC with LSF* cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 481
2 Adaptive Cruise Control (ACC)* P. 497
Models with Honda Sensing ®
Continuously
variable
transmission
models
Manual
transmission
models
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 106 ページ ２０１８年９月４日　火 曜日　午後１時３８分

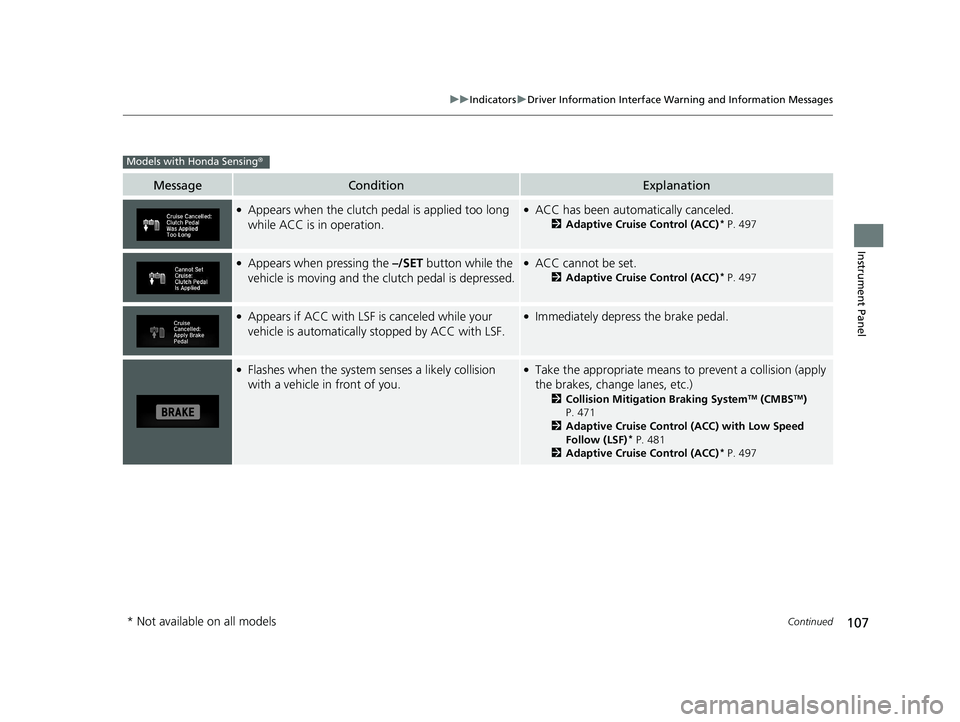

107
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the clutch pedal is applied too long
while ACC is in operation.●ACC has been automatically canceled.
2Adaptive Cruise Control (ACC)* P. 497
●Appears when pressing the –/SET button while the
vehicle is moving and the clutch pedal is depressed.●ACC cannot be set.
2 Adaptive Cruise Control (ACC)* P. 497
●Appears if ACC with LSF is canceled while your
vehicle is automatically stopped by ACC with LSF.●Immediately depress the brake pedal.
●Flashes when the system senses a likely collision
with a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 471
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 481
2 Adaptive Cruise Control (ACC)* P. 497
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 107 ページ ２０１８年９月４日　火 曜日　午後１時３８分

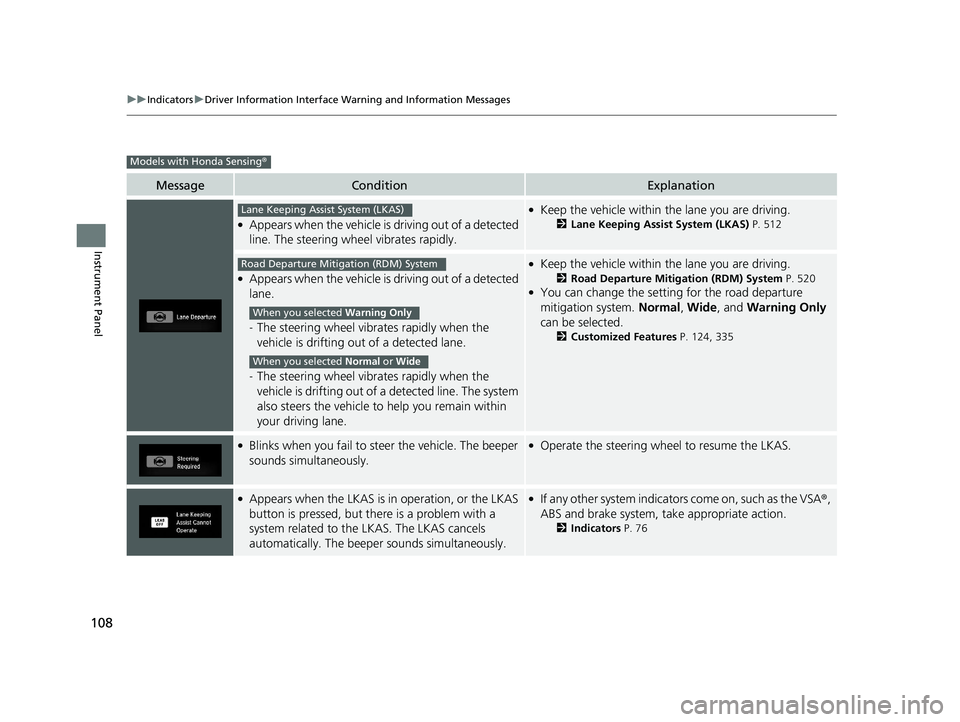

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS) P. 512
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 520●You can change the setting for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected.
2 Customized Features P. 124, 335
●Blinks when you fail to st eer the vehicle. The beeper
sounds simultaneously.●Operate the steering whee l to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If any other system indicators come on, such as the VSA®,
ABS and brake system, take appropriate action.
2 Indicators P. 76
Models with Honda Sensing ®
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 108 ページ ２０１８年９月４日　火 曜日　午後１時３８分
