HONDA CIVIC COUPE 2019 Owner's Manual (in English)

109

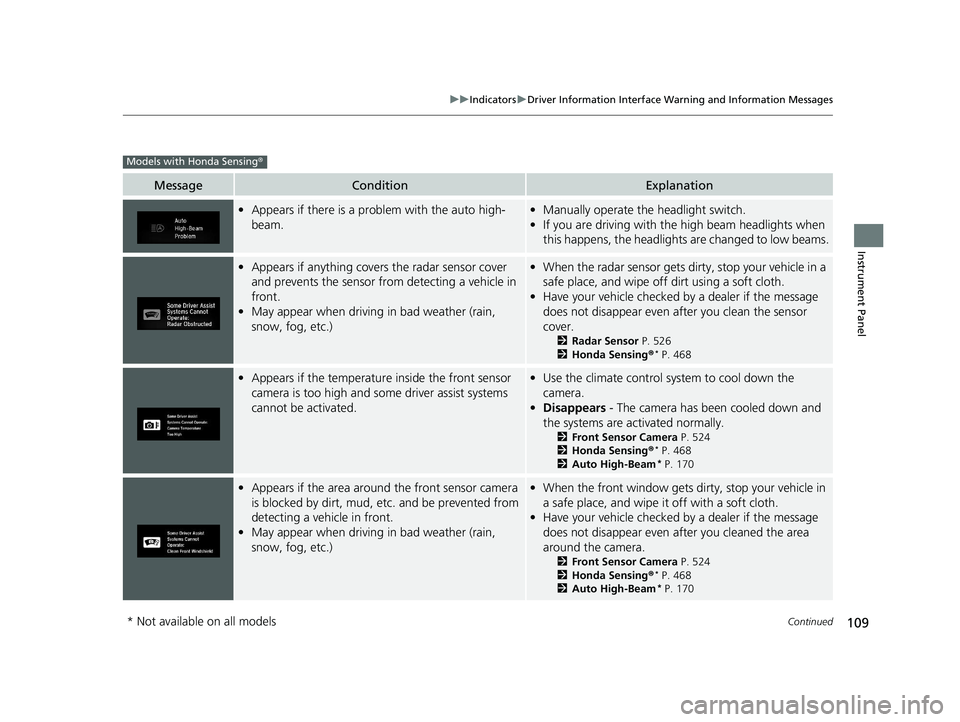

uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the auto high-
beam.•Manually operate the headlight switch.
• If you are driving with the high beam headlights when
this happens, the headlights are changed to low beams.
• Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even a fter you clean the sensor
cover.
2 Radar Sensor P. 526
2 Honda Sensing ®* P. 468
•Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.•Use the climate control system to cool down the
camera.
• Disappears - The camera has been cooled down and
the systems are activated normally.
2 Front Sensor Camera P. 524
2 Honda Sensing ®* P. 468
2 Auto High-Beam* P. 170
•Appears if the area around the front sensor camera
is blocked by dirt, mud, etc. and be prevented from
detecting a vehicle in front.
• May appear when driving in bad weather (rain,
snow, fog, etc.)•When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.
2 Front Sensor Camera P. 524
2 Honda Sensing ®* P. 468
2 Auto High-Beam* P. 170
Models with Honda Sensing ®
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 109 ページ ２０１８年９月４日　火 曜日　午後１時３８分

110

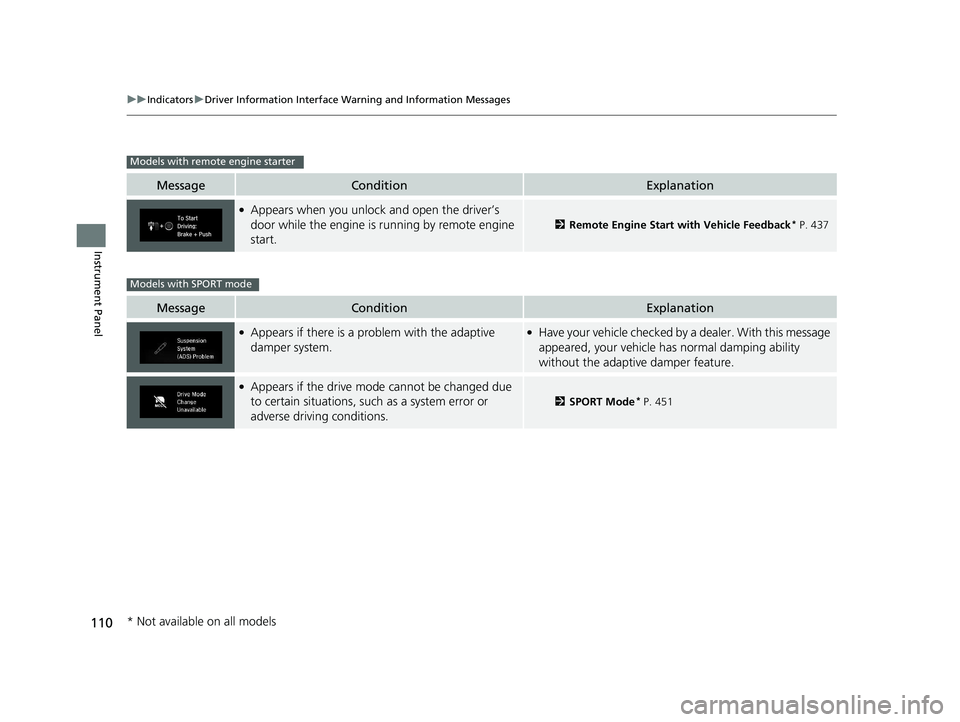

uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you unlock and open the driver’s
door while the engine is running by remote engine
start.
2Remote Engine Start with Vehicle Feedback* P. 437
MessageConditionExplanation
●Appears if there is a problem with the adaptive
damper system.●Have your vehicle checked by a dealer. With this message
appeared, your vehicle ha s normal damping ability
without the adaptive damper feature.
●Appears if the drive mode cannot be changed due
to certain situations, such as a system error or
adverse driving conditions.
2 SPORT Mode* P. 451
Models with remote engine starter
Models with SPORT mode
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 110 ページ ２０１８年９月４日　火 曜日　午後１時３８分

111Continued
Instrument Panel

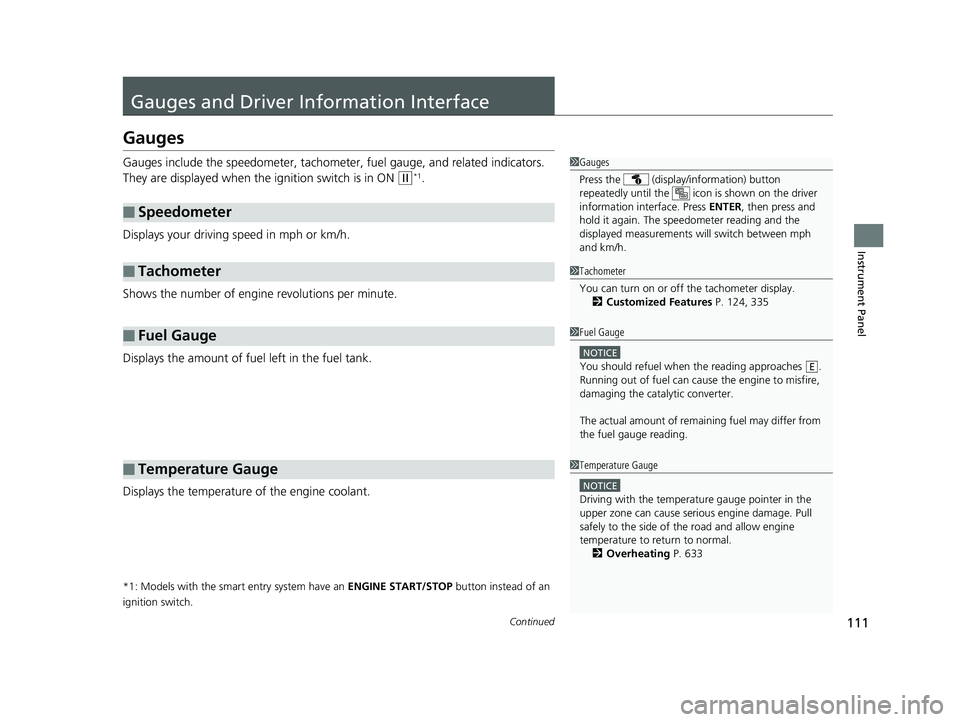

Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1 Gauges
Press the (display /information) button
repeatedly until the ic on is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
and km/h.
1 Tachometer
You can turn on or off the tachometer display.
2 Customized Features P. 124, 335
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 633
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 111 ページ ２０１８年９月４日　火 曜日　午後１時３８分

uuGauges and Driver Information Interface uGauges
112
Instrument Panel

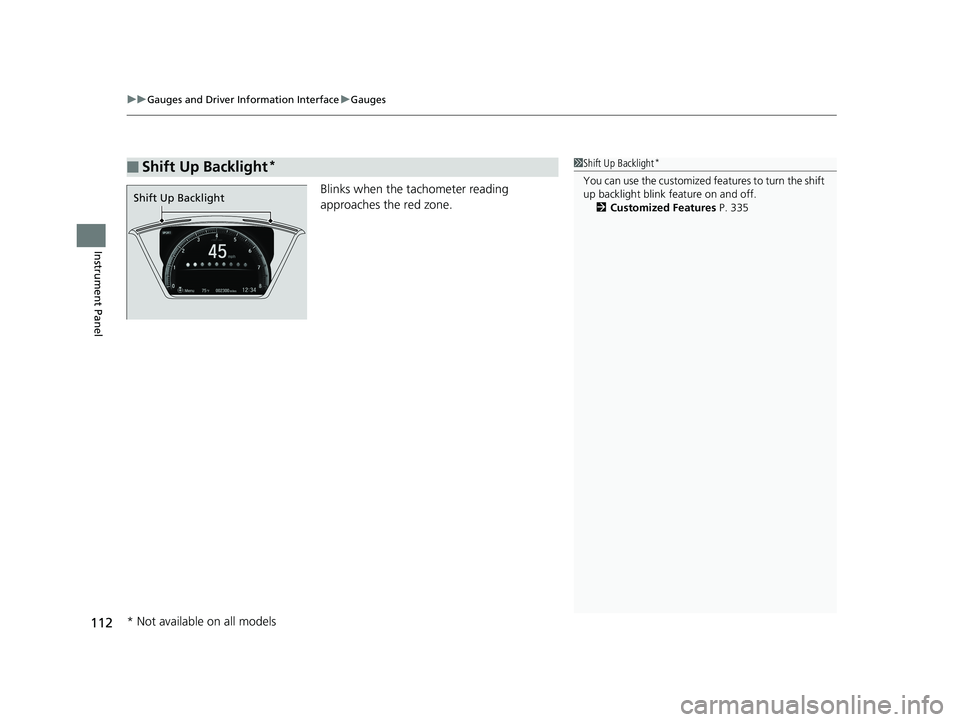

Blinks when the tachometer reading
approaches the red zone.
■Shift Up Backlight*1Shift Up Backlight*
You can use the customized features to turn the shift
up backlight blink feature on and off.
2 Customized Features P. 335
Shift Up Backlight
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 112 ページ ２０１８年９月４日　火 曜日　午後１時３８分

113
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

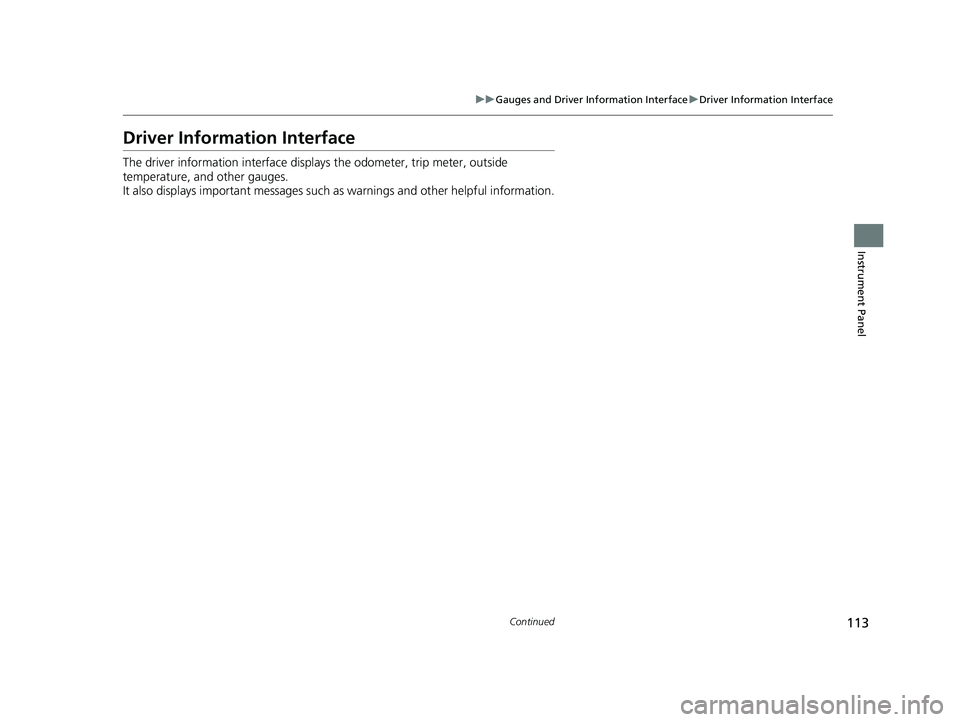

Driver Information Interface
The driver information interface displa ys the odometer, trip meter, outside
temperature, and other gauges.
It also displays important messages such as warnings and other helpful information.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 113 ページ ２０１８年９月４日　火 曜日　午後１時３８分

114
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

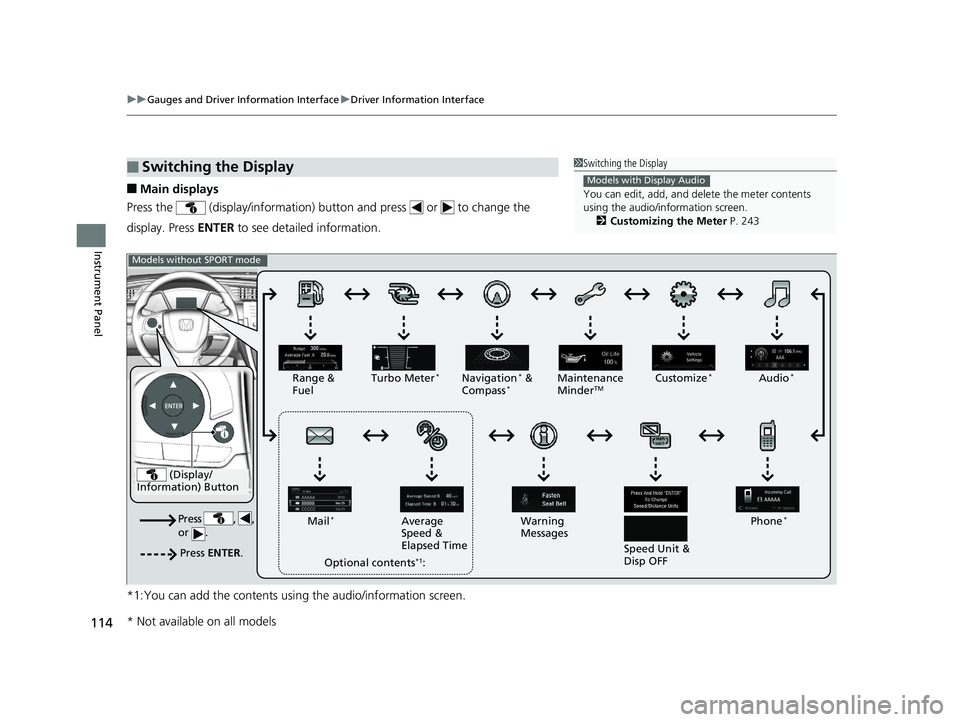

■Main displays
Press the (display/information) butto n and press or to change the
display. Press ENTER to see detailed information.
*1:You can add the contents usin g the audio/information screen.
■Switching the Display1Switching the Display
You can edit, add, and de lete the meter contents
using the audio/information screen. 2 Customizing the Meter P. 243
Models with Display Audio
(Display/
Information) Button
Press , ,
or .
Press ENTER .
Range &
Fuel Turbo Meter*Navigation* &
Compass*Maintenance
MinderTMAudio*
Phone*
Speed Unit &
Disp OFF
Warning
Messages
Average
Speed &
Elapsed Time
Mail
*
Optional contents*1:
Models without SPORT mode
Customize*
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 114 ページ ２０１８年９月４日　火
曜日　午後１時３８分

115
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

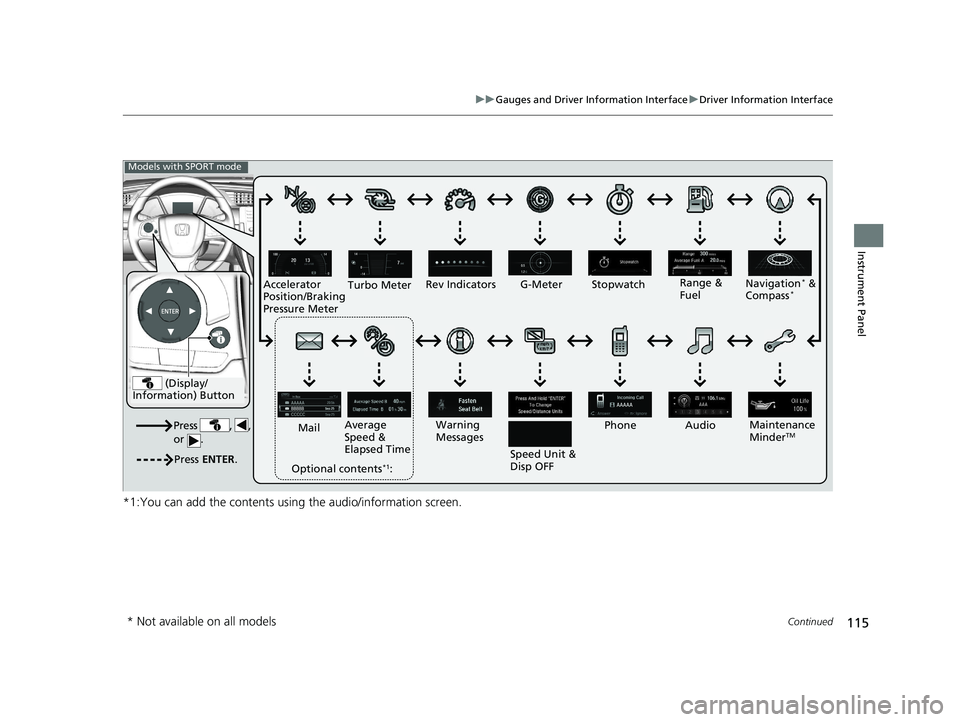

*1:You can add the contents using the audio/information screen.
(Display/
Information) Button
Press , ,
or .
Press ENTER .
Range &
Fuel
Turbo Meter
Navigation* &
Compass*
Maintenance
MinderTM
Rev Indicators
Audio
Phone
Speed Unit &
Disp OFF
Warning
Messages
Average
Speed &
Elapsed Time
Mail
Optional contents
*1:
Models with SPORT mode
G-Meter Stopwatch
Accelerator
Position/Braking
Pressure Meter
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 115 ページ ２０１８年９月４日　火 曜日　午後１時３８分

uuGauges and Driver Information Interface uDriver Information Interface
116
Instrument Panel

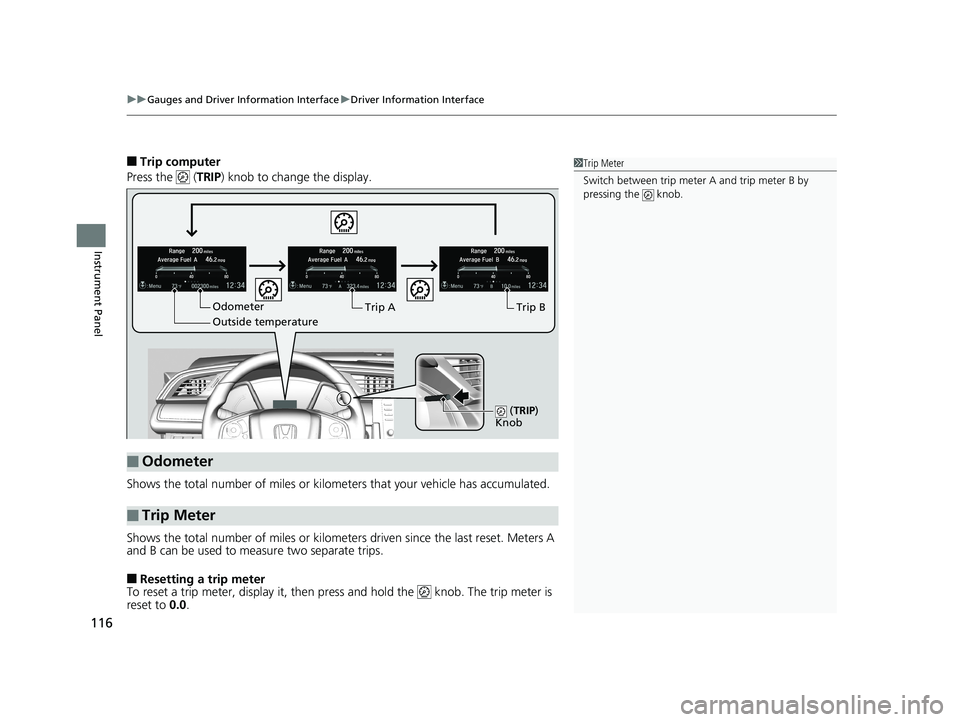

■Trip computer
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
■Odometer
■Trip Meter
Odometer
Outside temperature Trip ATrip B
(
TRIP)
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 116 ページ ２０１８年９月４日　火 曜日　午後１時３８分

Continued117
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

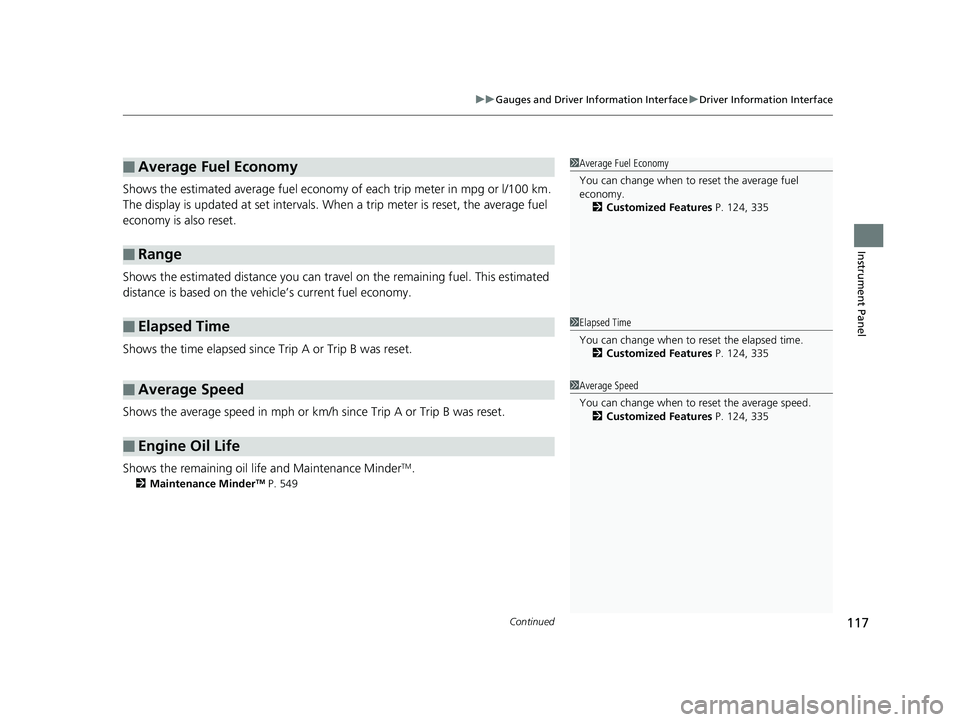

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 549
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 124, 335
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 124, 335
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 124, 335
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 117 ページ ２０１８年９月４日　火 曜日　午後１時３８分

uuGauges and Driver Information Interface uDriver Information Interface
118
Instrument Panel

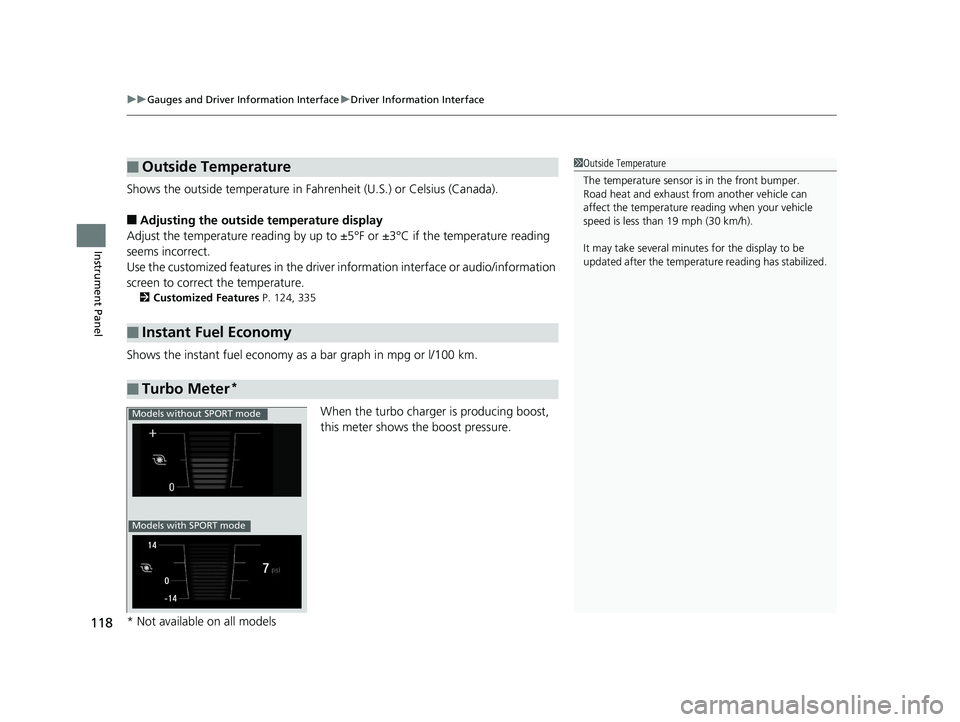

Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature readi ng by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the customized features in the driver information interface or audio/information
screen to correct the temperature.
2 Customized Features P. 124, 335
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
When the turbo charger is producing boost,
this meter shows th e boost pressure.
■Outside Temperature
■Instant Fuel Economy
■Turbo Meter*
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Models without SPORT mode
Models with SPORT mode
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 118 ページ ２０１８年９月４日　火 曜日　午後１時３８分
