HONDA CIVIC COUPE 2019 Owner's Manual (in English)

129

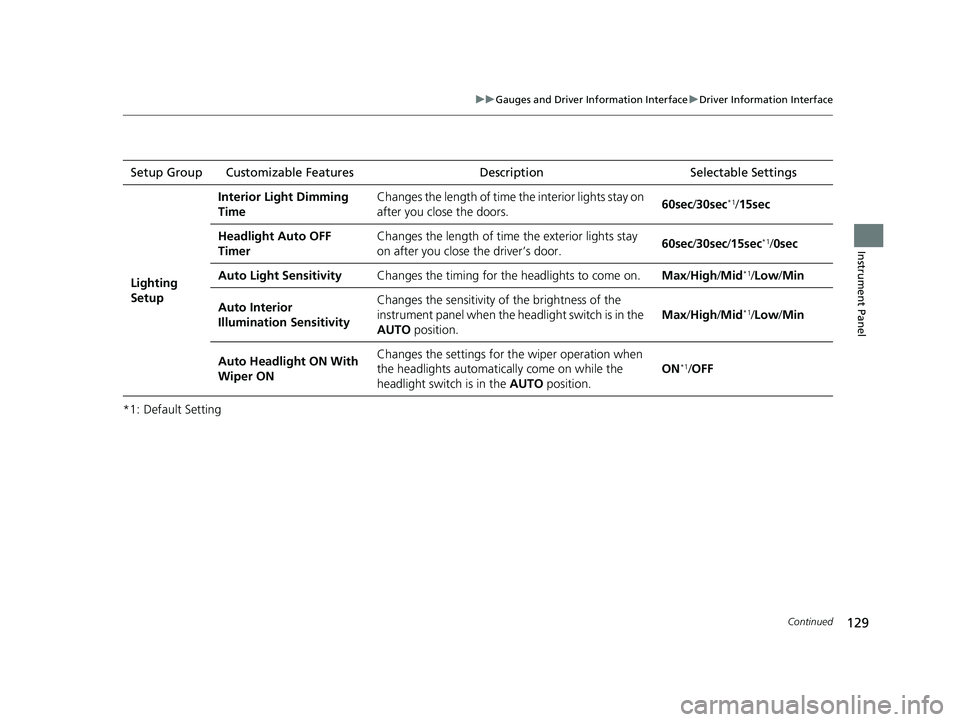

uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Lighting
Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay on
after you close the doors.
60sec
/30sec
*1/15sec
Headlight Auto OFF
Timer Changes the length of time
the exterior lights stay
on after you close the driver’s door. 60sec
/30sec /15sec
*1/ 0sec
Auto Light Sensitivity Changes the timing for the headlights to come on. Max/High /Mid
*1/Low /Min
Auto Interior
Illumination Sensitivity Changes the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO
position. Max
/High /Mid
*1/Low /Min
Auto Headlight ON With
Wiper ON Changes the settings for th
e wiper operation when
the headlights automatica lly come on while the
headlight switch is in the AUTO position. ON
*1/
OFF
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 129 ページ ２０１８年９月４日　火 曜日　午後１時３８分

130

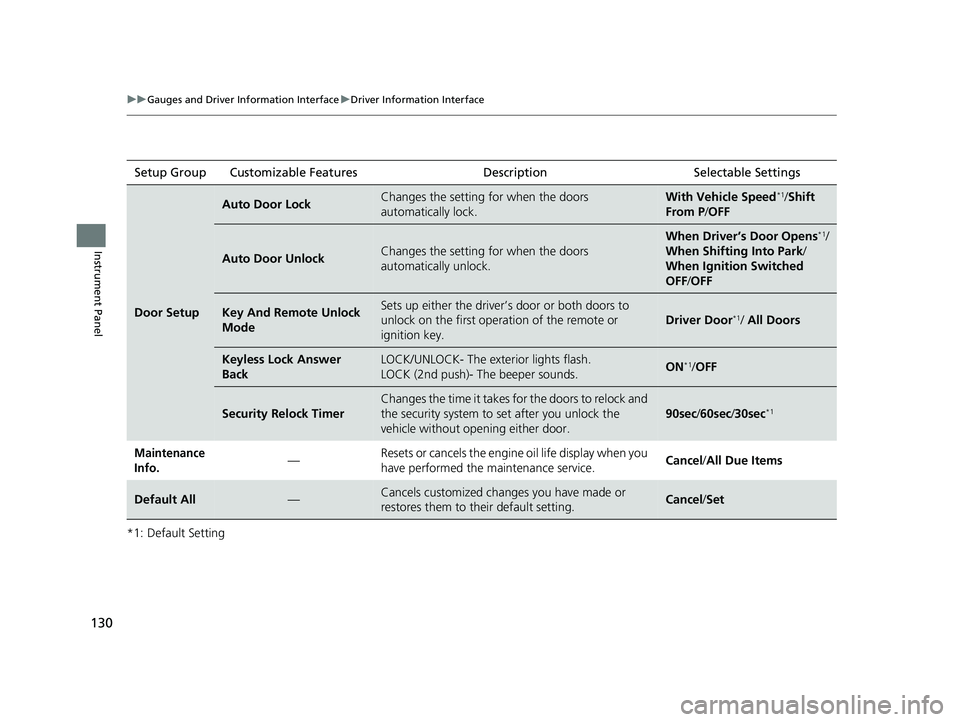

uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/
Shift
From P /OFF
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
When Driver’s Door Opens*1/
When Shifting Into Park/
When Ignition Switched
OFF /OFF
Key And Remote Unlock
ModeSets up either the driver’s door or both doors to
unlock on the first oper ation of the remote or
ignition key.
Driver Door*1/ All Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exte rior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/ OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening either door.
90sec /60sec /30sec*1
Maintenance
Info.— Resets or cancels the engine oil life display when you
have performed the maintenance service. Cancel
/All Due Items
Default All—Cancels customized changes you have made or
restores them to their default setting.Cancel /Set
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 130 ページ ２０１８年９月４日　火 曜日　午後１時３８分

131
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

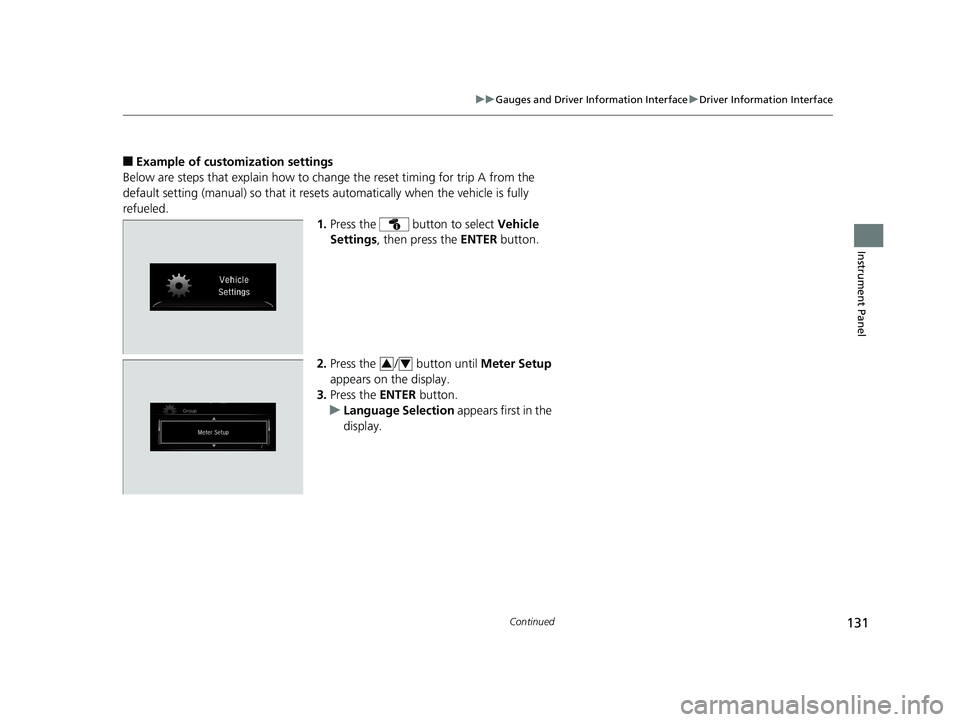

■Example of customization settings
Below are steps that explain how to ch ange the reset timing for trip A from the
default setting (manual) so that it resets automatically when the vehicle is fully
refueled. 1.Press the button to select Vehicle
Settings , then press the ENTER button.
2. Press the / button until Meter Setup
appears on the display.
3. Press the ENTER button.
u Language Selection appears first in the
display.
34
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 131 ページ ２０１８年９月４日　火 曜日　午後１時３８分

132
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

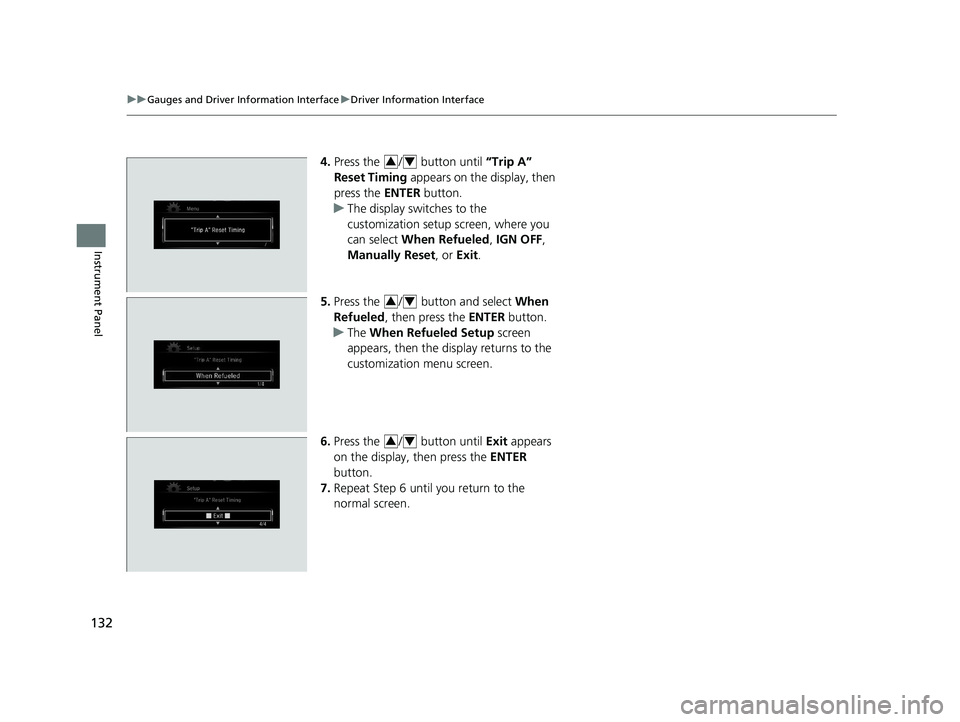

4. Press the / button until “Trip A”
Reset Timing appears on the display, then
press the ENTER button.
u The display switches to the
customization setup screen, where you
can select When Refueled , IGN OFF,
Manually Reset , or Exit .
5. Press the / button and select When
Refueled , then press the ENTER button.
u The When Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Press the / button until Exit appears
on the display, then press the ENTER
button.
7. Repeat Step 6 until you return to the
normal screen.34
34
34
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 132 ページ ２０１８年９月４日　火 曜日　午後１時３８分

133

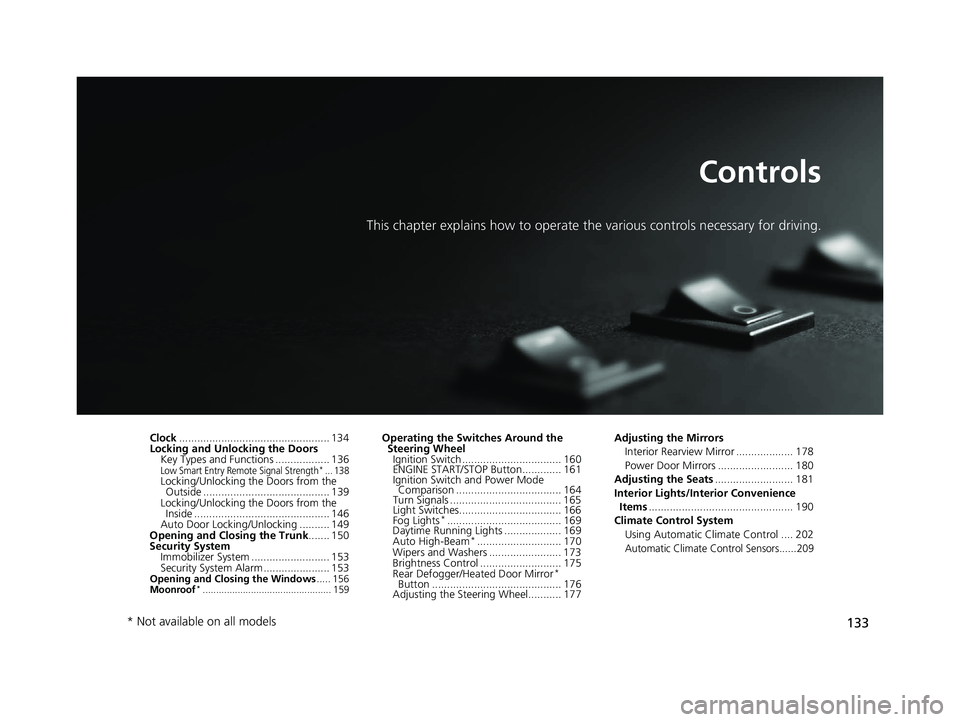

Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 134
Locking and Unlocking the Doors Key Types and Functions .................. 136
Low Smart Entry Remote Signal Strength*... 138Locking/Unlocking the Doors from the Outside .......................................... 139
Locking/Unlocking the Doors from the Inside ............................................. 146
Auto Door Locking/Unlocking .......... 149
Opening and Closing the Trunk ....... 150
Security System Immobilizer System .......................... 153
Security System Alarm ...................... 153
Opening and Closing the Windows ..... 156Moonroof*................................................ 159
Operating the Switches Around the
Steering Wheel Ignition Switch ................................. 160
ENGINE START/STOP Button............. 161
Ignition Switch and Power Mode Comparison ................................... 164
Turn Signals ..................................... 165
Light Switches.................................. 166
Fog Lights
*...................................... 169
Daytime Running Lights ................... 169
Auto High-Beam
*............................ 170
Wipers and Washers ........................ 173
Brightness Control ........................... 175
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 176
Adjusting the Steering Wheel........... 177 Adjusting the Mirrors
Interior Rearview Mirror ................... 178
Power Door Mirrors ......................... 180
Adjusting the Seats .......................... 181
Interior Lights/Interior Convenience Items ................................................ 190
Climate Control System Using Automatic Climate Control .... 202
Automatic Climate Control Sensors......209
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 133 ページ ２０１８年９月４日　火 曜日　午後１時３８分

134
Controls

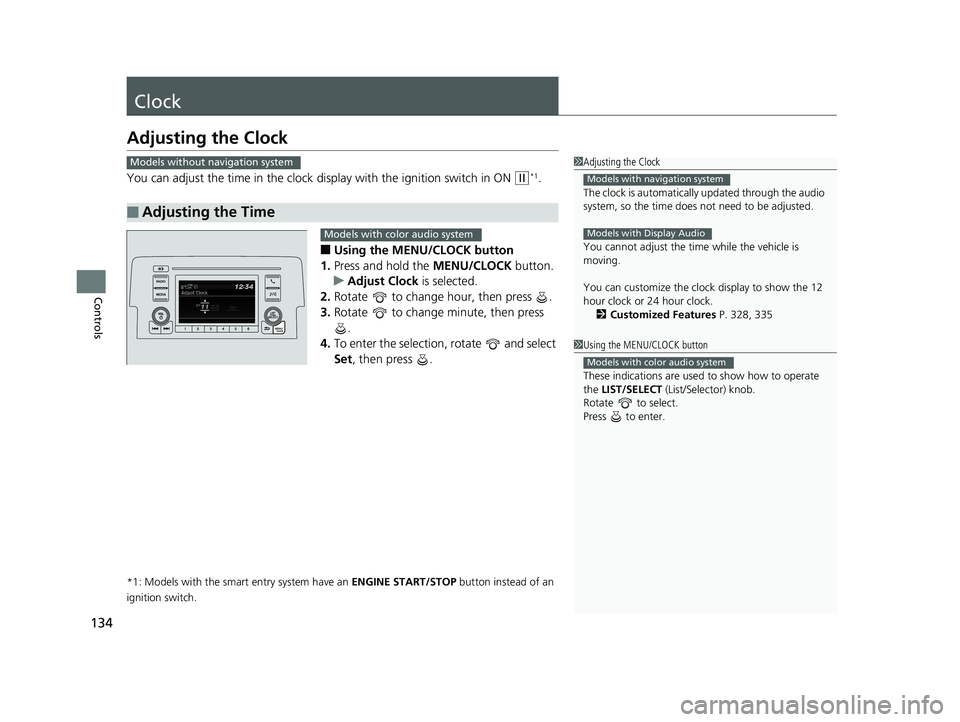

Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatically updated through the audio
system, so the time does not need to be adjusted.
You cannot adjust the time while the vehicle is
moving.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 328, 335
Models with navigation system
Models with Display Audio
Models without navigation system
1Using the MENU/CLOCK button
These indications are used to show how to operate
the LIST/SELECT (List/Selector) knob.
Rotate to select.
Press to enter.
Models with color audio system
Models with color audio system
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 134 ページ ２０１８年９月４日　火 曜日　午後１時３８分

135
uuClock uAdjusting the Clock
Controls

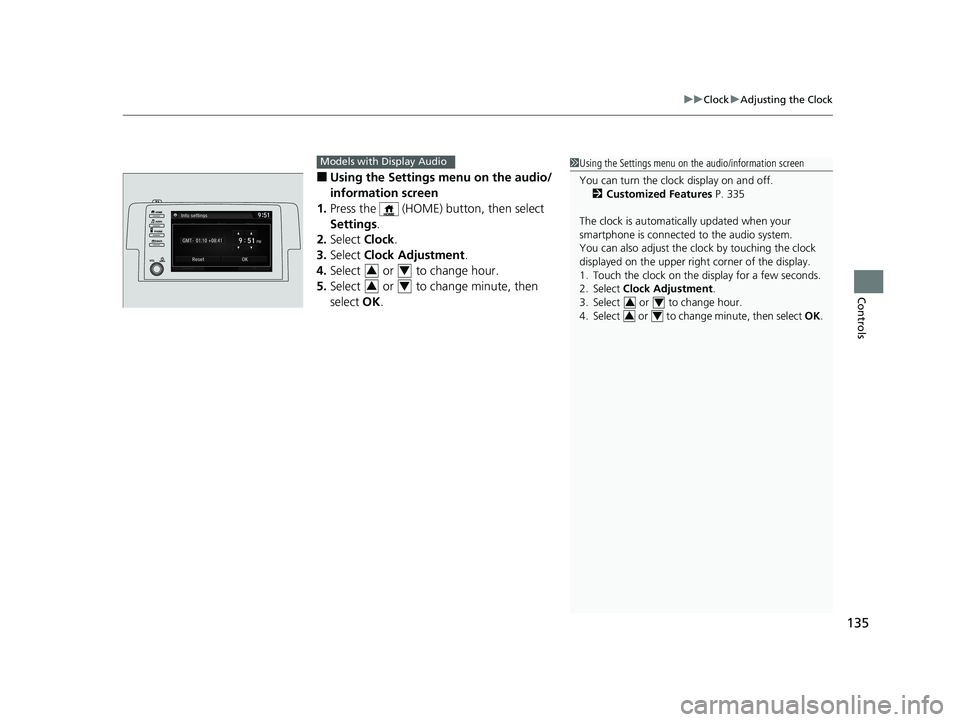

■Using the Settings menu on the audio/
information screen
1. Press the (HOME) button, then select
Settings .
2. Select Clock.
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK.
Models with Display Audio1Using the Settings menu on the audio/information screen
You can turn the clock display on and off.
2 Customized Features P. 335
The clock is automatica lly updated when your
smartphone is connected to the audio system.
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display for a few seconds.
2. Select Clock Adjustment .
3. Select or to change hour.
4. Select or to change minute, then select OK.
3434
34
34
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 135 ページ ２０１８年９月４日　火 曜日　午後１時３８分

136
Controls

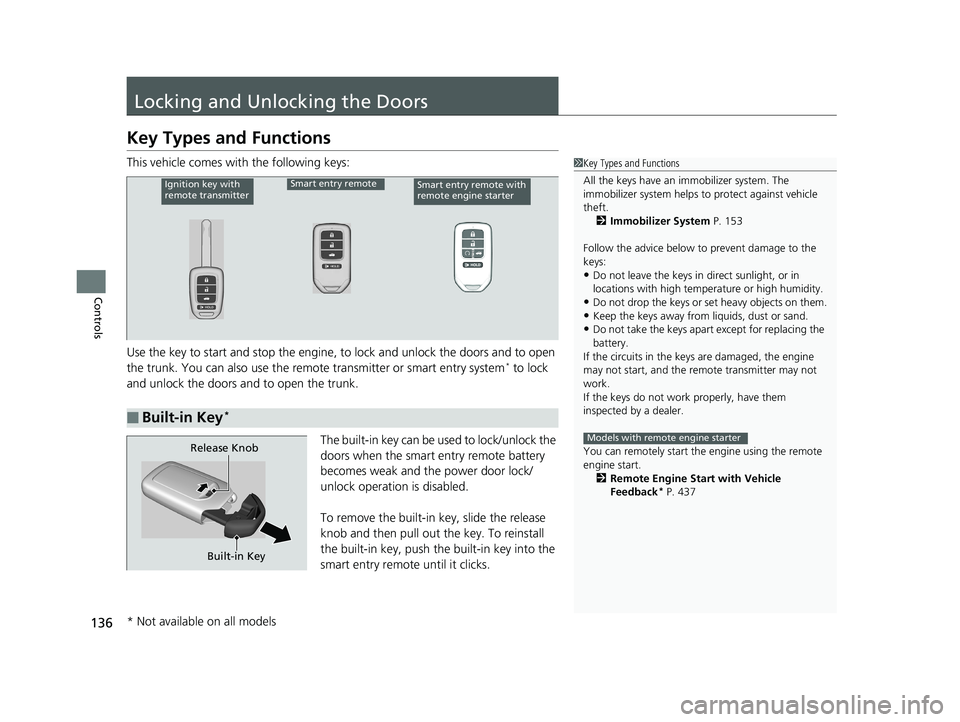

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, to lock and unlock the doors and to open
the trunk. You can also use the remote transmitter or smart entry system
* to lock
and unlock the doors and to open the trunk.
The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
smart entry remote until it clicks.
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 153
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust or sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start the engine using the remote
engine start. 2 Remote Engine Start with Vehicle
Feedback
* P. 437
Models with remote engine starter
■Built-in Key*
Ignition key with
remote transmitterSmart entry remote with
remote engine starterSmart entry remote
Built-in Key
Release Knob
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 136 ページ ２０１８年９月４日　火
曜日　午後１時３８分

137
uuLocking and Unlocking the Doors uKey Types and Functions
Controls

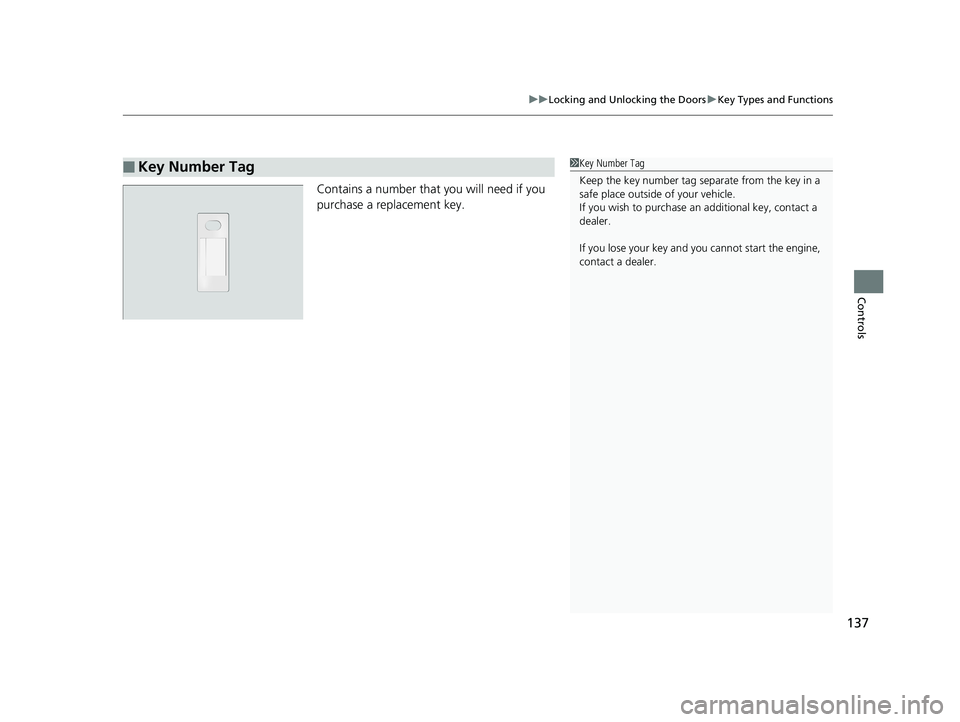

Contains a number that you will need if you
purchase a replacement key.
■Key Number Tag1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 137 ページ ２０１８年９月４日　火 曜日　午後１時３８分

138
uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*
Controls

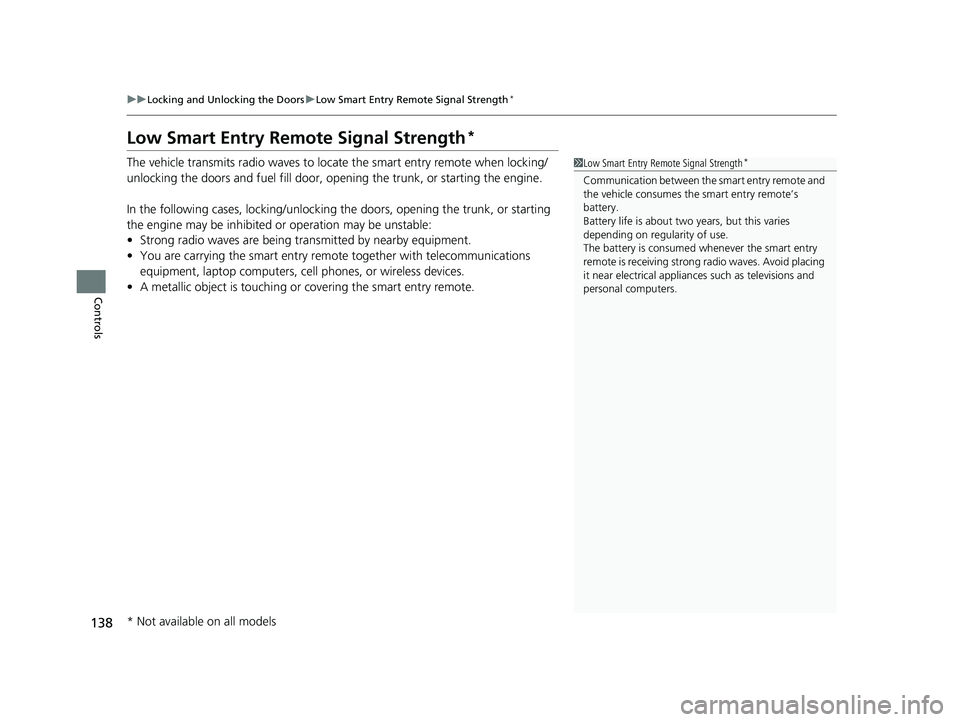

Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors and fuel fill door, opening the trunk, or starting the engine.
In the following cases, locking/unlocking the doors, opening the trunk, or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.1Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 138 ページ ２０１８年９月４日　火 曜日　午後１時３８分
