HONDA CIVIC HATCHBACK 2019 Owner's Manual (in English)

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the headlights.●Appears while driving - The headlights may not be on.
When conditions allow you to drive safely, have your
vehicle checked by a deal er as soon as possible.
MessageConditionExplanation
●Appears if you press the ENGINE START/STOP
button while the vehicle is moving.
2 Emergency Engine Stop P. 648
MessageConditionExplanation
●Appears if there is a problem with a system related
to Rev Match System while th e system is activated by
customization.●Have your vehicle checked by a dealer.
2 Rev Match System P. 463
●Appears if there is a pr oblem with the adaptive
damper system.●Have your vehicle checked by a dealer. Your vehicle will
have normal damping ability without the adaptive
damper feature.
●Appears if the drive mode cannot be changed due to
certain situations, such as a system error or adverse
driving conditions.
2 Drive Mode Switch P. 467
Models with LED headlight
1.5 L engine models
2.0 L engine models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 109 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the auto high-
beam.●Manually operate the headlight switch.●If you are driving with th e high-beam headlights when
this happens, the headlight s are changed to low beams.
●Appears when the Auto high- beam is in operation,
or the headlight switch is turned in AUTO, but there
the temperature inside the camera is too high. The
auto high-beam cancels automatically.●Use the climate control system to cool down the camera.●Goes off - The camera has been cooled down. Turing
the headlight switch in AUTO can resume the system.
2Front Sensor Camera* P. 472
●Appears when the area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.
●May appear when driving in bad weather (rain,
snow, fog, etc.)
●Have your vehicle checked by a dealer if the message
comes back on after you cleaned the area around the
camera.
Models with auto high-beam
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 110 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when ACC has been automatically
canceled.●You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
2 Adaptive Cruise Control (ACC)* P. 490
●Flashes when the system sens es a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)*
P. 537
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 474
2 Adaptive Cruise Control (ACC)* P. 490
Models with ACC
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 111 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
2 Adaptive Cruise Control (ACC)* P. 490
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle
ahead of you is too close.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
2 Adaptive Cruise Control (ACC)* P. 490
●Appears when the vehicle speed slows down to 22
mph (35 km/h) and the vehicle ahead of you goes
out of the ACC range while ACC is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC)* P. 490
●Appears when pressing the RES/+ or –/SET button
down while the vehicle speed is less than 25 mph
(40 km/h) and the vehicle ahead of you goes out of
the ACC range.●ACC cannot be set.
2 Adaptive Cruise Control (ACC)* P. 490
●Appears when the driver’s seat belt is unfastened
while your vehicle is au tomatically stopped by ACC.●ACC has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 112 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
●Appears when the shift le ver is moved into any
position other than
(D or (S while ACC is in
operation.
●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
●Appears when pressing the –/SET button while the
shift lever is in any position other than
(D or (S.
●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
●Appears when the vehicle is stopped on a very steep
slope while ACC is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 113 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

114
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

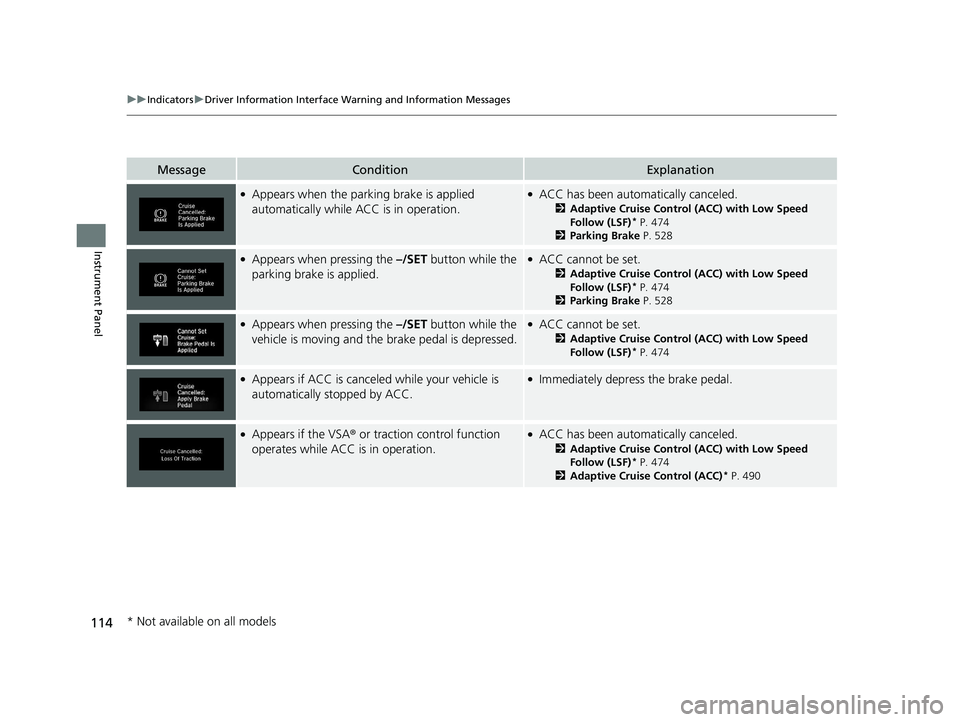

●Appears when the parking brake is applied
automatically while ACC is in operation.●ACC has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
2 Parking Brake P. 528
●Appears when pressing the –/SET button while the
parking brake is applied.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
2 Parking Brake P. 528
●Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.●ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
●Appears if ACC is canceled while your vehicle is
automatically stopped by ACC.●Immediately depress the brake pedal.
●Appears if the VSA ® or traction control function
operates while ACC is in operation.●ACC has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 474
2 Adaptive Cruise Control (ACC)* P. 490
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 114 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

115
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation

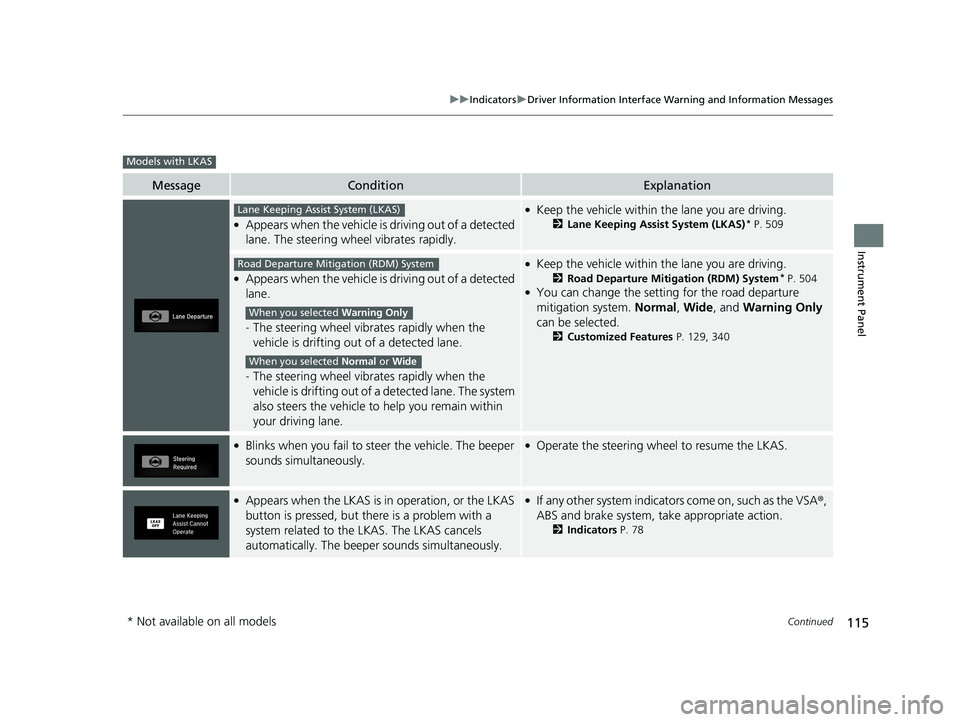

●Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS)* P. 509
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibrates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System* P. 504●You can change the setting for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected.
2 Customized Features P. 129, 340
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering wheel to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If any other system indicators come on, such as the VSA®,
ABS and brake system, take appropriate action.
2 Indicators P. 78
Models with LKAS
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 115 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

116
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

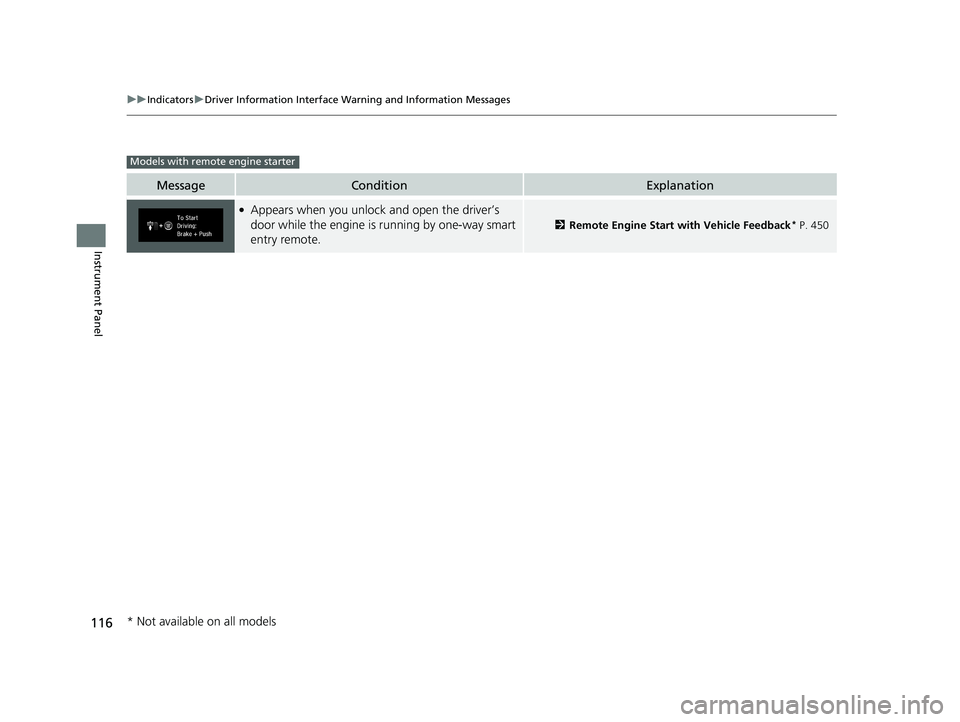

●Appears when you unlock and open the driver’s
door while the engine is running by one-way smart
entry remote.
2Remote Engine Start with Vehicle Feedback* P. 450
Models with remote engine starter
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 116 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

117Continued
Instrument Panel

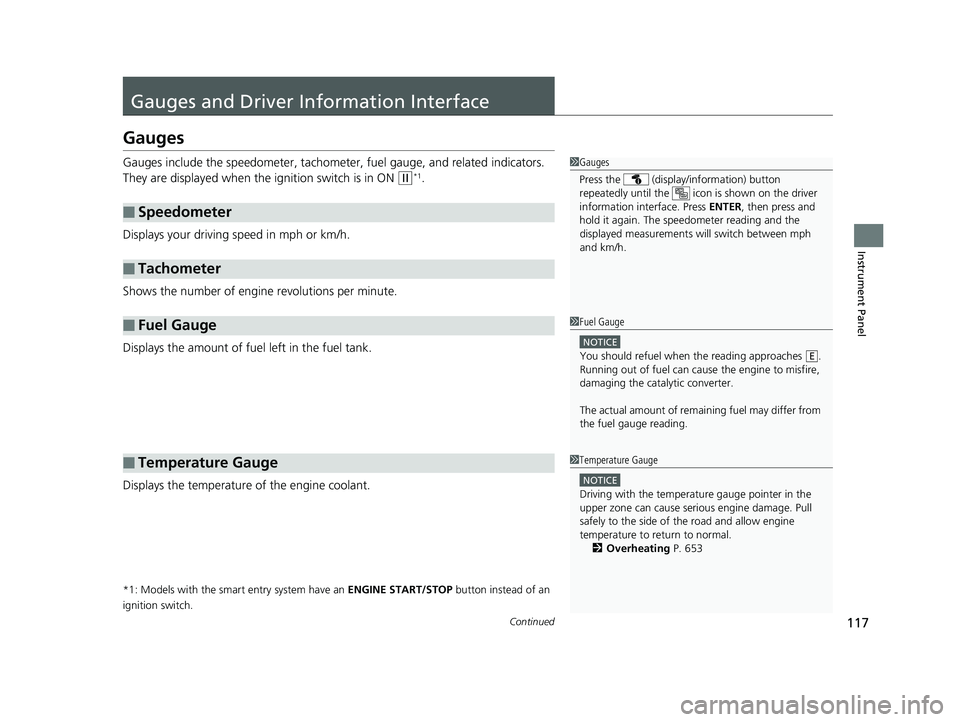

Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, tachometer , fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1 Gauges
Press the (display /information) button
repeatedly until the ic on is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
and km/h.
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 653
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 117 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

uuGauges and Driver Information Interface uGauges
118
Instrument Panel

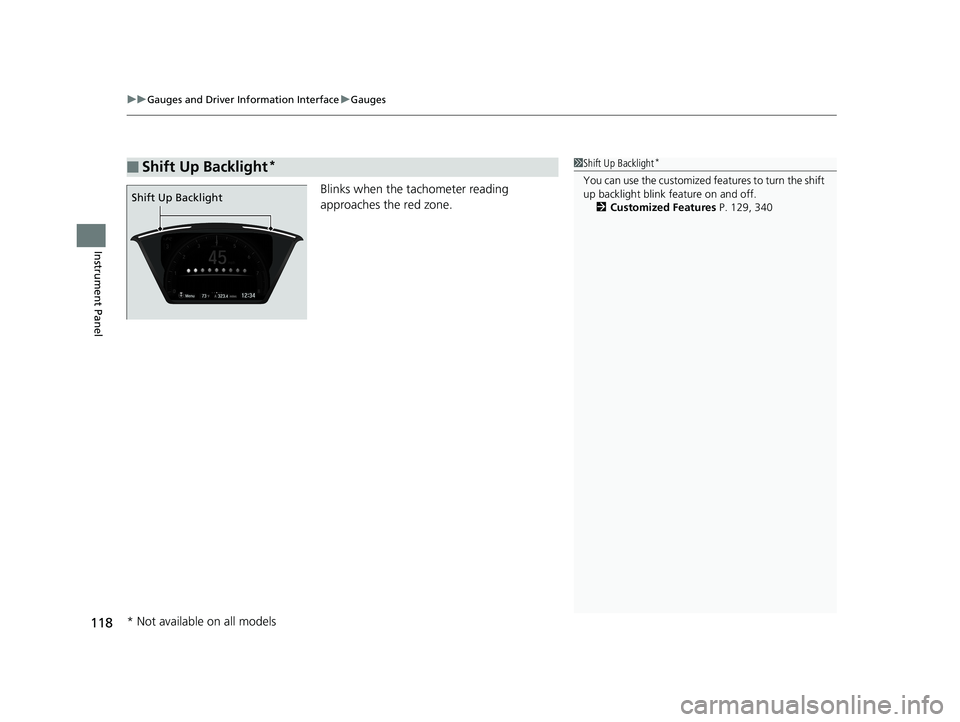

Blinks when the tachometer reading
approaches the red zone.
■Shift Up Backlight*1Shift Up Backlight*
You can use the customized features to turn the shift
up backlight blink feature on and off.
2 Customized Features P. 129, 340
Shift Up Backlight
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 118 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
