HONDA CIVIC HATCHBACK 2021 (in English) User Guide

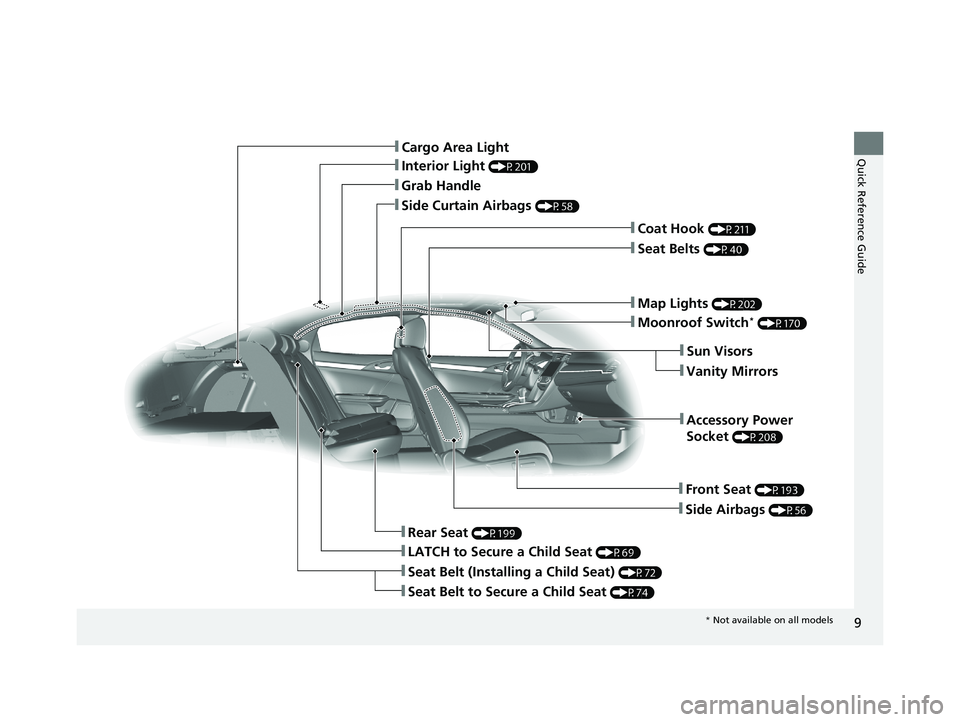

9
Quick Reference Guide
❚Side Curtain Airbags (P58)
❚Interior Light (P201)
❚Grab Handle
❚Rear Seat (P199)
❚Seat Belt to Secure a Child Seat (P74)
❚Seat Belt (Installing a Child Seat) (P72)
❚LATCH to Secure a Child Seat (P69)
❚Front Seat (P193)
❚Side Airbags (P56)
❚Accessory Power
Socket
(P208)
❚Map Lights (P202)
❚Moonroof Switch* (P170)
❚Seat Belts (P40)
❚Coat Hook (P211)
❚Sun Visors
❚Vanity Mirrors
❚Cargo Area Light
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 9 ページ ２０２０年８月２８日　金曜日　午後１時４８分

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P579)
❚Windshield Wipers (P184, 604)
❚Tires (P609, 635)
❚Fog Lights* (P180, 596)
❚Power Door Mirrors (P192)
❚How to Refuel (P564)
❚High-Mount Brake Light (P603)
❚Opening/Closing the Hatch (P160)
❚Multi-View Rear Camera (P560)
❚Door Lock/Unlock Control (P147)
❚Side Turn Signal Lights* (P176, 601)
❚Headlights (P177, 594)
❚Front Turn Signal Lights (P176, 598)
❚Parking/Daytime Running Lights (P176, 601)
❚Front Side Marker Lights (P599)
❚Taillights (P603)
❚Back-Up Lights (P602)
❚Brake Lights (P602)
❚Rear Turn Signal Lights (P602)
❚Taillights/Rear Side Marker Lights (P603)
❚Rear Wiper* (P186, 607)
❚Hatch Release Button (P161)
❚License Plate Light (P603)
21 CIVIC 5D HUM-31TGG6400_01.book 10 ページ ２０２０年８月２８日　金曜日　午後１時４８分

11
Quick Reference Guide
Eco Assist® System (P 472)
Ambient Meter●The color of the ambient meter changes
to green to indicate that the vehicle is
being driven in a fuel efficient manner.
ECON Button (P 472)
Helps maximize fuel economy.
ECON Mode Indicator (P 95)
Comes on when the ECON button is pressed.
The message is displayed for a few seconds when the
ECON button is pressed.
1.5 L engine models
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 11 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

12
Quick Reference Guide
Safe Driving (P 35)
Airbags (P 48)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 64)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restra ined in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 79)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 39)
●Before driving, check that the front seats, head restraints*,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 40)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
21 CIVIC 5D HUM-31TGG6400_01.book 12 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

13
Quick Reference Guide
Instrument Panel (P 81)
System Indicators
Malfunction Indicator
Lamp
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability
Assist
TM (VSA ®)
System Indicator
Vehicle Stability
Assist
TM (VSA ®) OFF
Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS) System
Indicator Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer
Immobilizer System Indicator/
Security System Alarm Indicator
Shift Lever
Position Indicator
*
Low Fuel Indicator
ECON Mode Indicator
*
Turn Signal and
Hazard Warning
Indicators
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic
Brake Hold
System Indicator
Automatic Brake
Hold IndicatorU.S.
Canada
Temperature
Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC) with
Low Speed Follow
*
Indicator (Amber/
Green)
System Message
Indicator
Collision Mitigation
Braking System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green) M
(7-speed manual shift mode)
Indicator/Shift Indicator
*
Auto High-Beam
Indicator
Shift Up/Down
Indicator
*
Drive Mode Indicator*
Speedometer
Fuel Gauge
Gear Position Indicator*
Gauges (P 122)/Driver Informat
ion Interface (P 124)/System Indicators (P 82)
Low Oil Pressure
Indicator
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 13 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

14
Quick Reference Guide
Controls (P 143)
Clock (P 144)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect Set, then press .
These indications are used to show how to
operate the selector knob.
•Rotate to select.
•Press to enter.
Models with color audio system
aPress the (Home) button, then
select Settings .
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
The clock is automatically updated through
the audio system.
Models with Display Audio
34
Models with navigation system
ENGINE START/STOP
Button
* (P 172)
●Press the button to ch ange the vehicle’s
power mode.
21 CIVIC 5D HUM-31TGG6400_01.book 14 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

15
Quick Reference Guide
Turn Signals (P 176)
Lights (P 177)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 184)
*1:Models with automatic intermittent wipers
*2:Models without auto matic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring
*
(-: Low sensitivity*1
(-: Lower speed, fewer sweeps*2
(+: High sensitivity*1
(+: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI : High speed wipe
Pull toward
you to spray
washer fluid.
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P 189)
●To adjust, pull the adjustment lever
toward you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipers
* Not available on all models
21 CIVIC 5D HUM-31TGG6400_01.book 15 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

16
Quick Reference Guide
Unlocking the Front
Doors from the Inside
(P 157)
●Pull either front door inner handle to
unlock and open it at the same time.
Hatch (P160)
●With all the doors unlocked, press the
hatch release button and lift open the
hatch.
●Press the hatch release button to unlock
and open the hatch when you carry the
smart entry remote.
Hatch Release
Button
Models without smart entry system
Models with smart entry system
Power Door Mirrors
(P 192)
●With the ignition switch in ON ( w*1, move
the selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
*1:Models with the smart entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Selector Switch
Adjustment Switch
Power Windows (P 167)
●With the ignition switch in ON ( w*1, open
and close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch Indicator
21 CIVIC 5D HUM-31TGG6400_01.book 16 ページ ２０２０年８月２８日　金曜日　午後１時４
８分

17
Quick Reference Guide
Climate Control System (P217)
●Press the AUTO button to activate th e climate control system.●Press the button to tu rn the system on or off.●Press the button to defrost the windshield.
The climate control system is voice operable. (P276)
Models with navigation system
Models with color audio system
Fan Control Dial
(Windshield De froster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(MODE Control) Button
(ON/OFF) ButtonAUTO Button
A/C (Air Conditioning) Button
21 CIVIC 5D HUM-31TGG6400_01.book 17 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分

18
Quick Reference Guide
Models with Display Audio
Models without SYNC button
Fan Control Dial
(Windshield De froster) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and
dashboard vents.
Air flows from dashboard
vents.
(Recirculation) Button
(CLIMATE) Button
(Fresh Air) Button
(ON/OFF) Button
AUTO Button
Audio/Information Screen
A/C (Air Conditioning) Icon
MODE Control Icon
Fan Control Icon
21 CIVIC 5D HUM-31TGG6400_01.book 18 ページ ２０２０年８月２８日　金曜日　午後１時４ ８分
