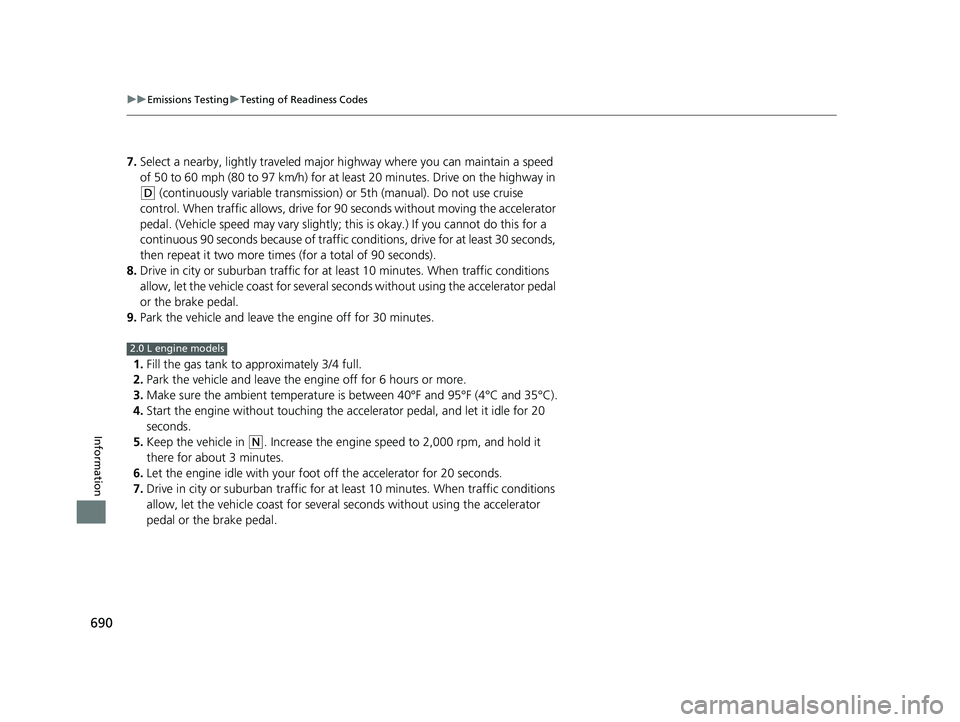

690
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (continuously variable transmission) or 5th (manual). Do not use cruise
control. When traffic allows , drive for 90 seconds without moving the accelerator
pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do this for a
continuous 90 seconds because of traffic conditions, drive for at least 30 seconds,
then repeat it two more time s (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the acce lerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(N. Increase the engine speed to 2,000 rpm, and hold it
there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
7. Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.
2.0 L engine models
21 CIVIC 5D HUM-31TGG6400_01.book 690 ページ ２０２０年８月２８日 金曜日 午後１時 ４８分
Page 693 of 711

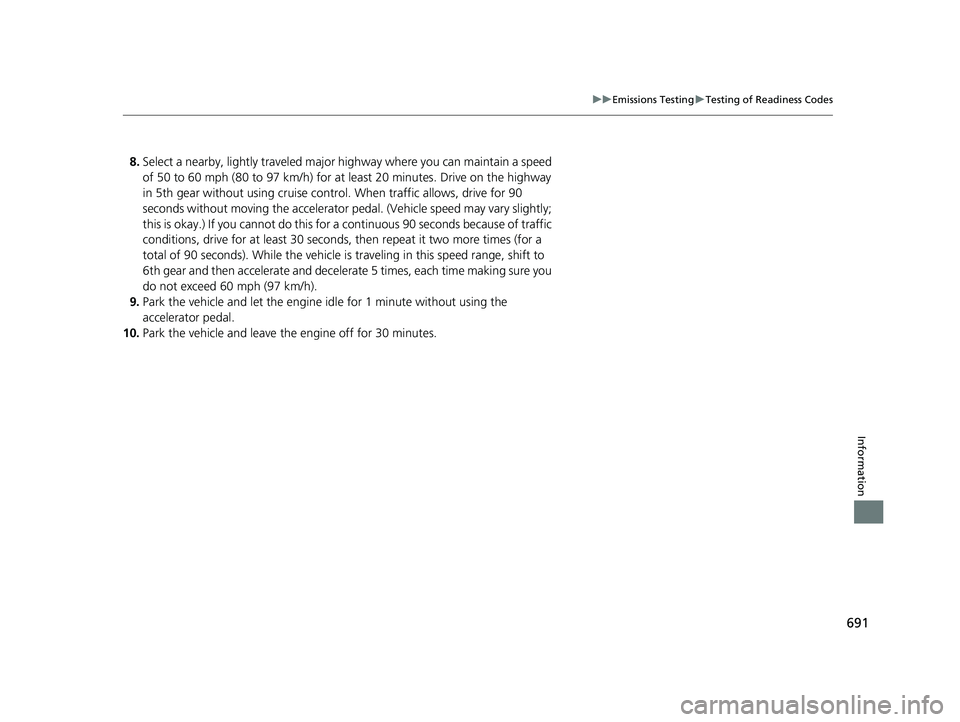

691
uuEmissions Testing uTesting of Readiness Codes
Information
8. Select a nearby, lightly trav eled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway
in 5th gear without using cruise con trol. When traffic allows, drive for 90
seconds without moving the accelerator peda l. (Vehicle speed may vary slightly;
this is okay.) If you cannot do this for a continuous 90 seconds because of traffic
conditions, drive for at leas t 30 seconds, then repeat it two more times (for a
total of 90 seconds). While the vehicle is traveling in this speed range, shift to
6th gear and then accelerate and decelera te 5 times, each time making sure you
do not exceed 60 mph (97 km/h).
9. Park the vehicle and let the engine idle for 1 minute without using the
accelerator pedal.
10. Park the vehicle and leave the engine off for 30 minutes.
21 CIVIC 5D HUM-31TGG6400_01.book 691 ページ ２０２０年８月２８日 金曜日 午後１時 ４８分
Page 698 of 711
696
Information

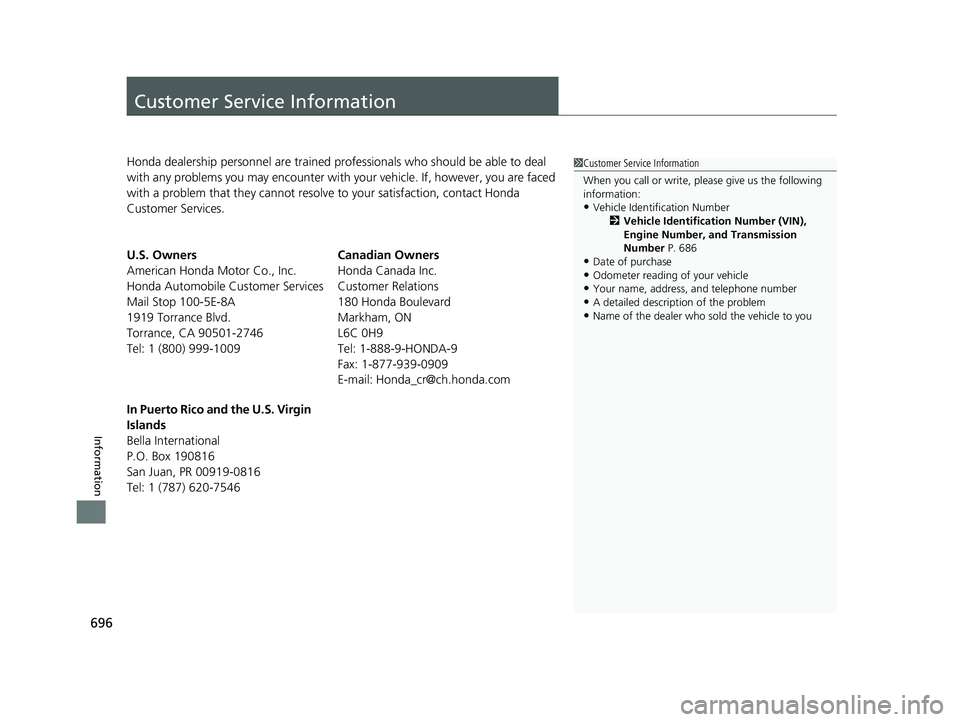

Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolv e to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, pl ease give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 686
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
21 CIVIC 5D HUM-31TGG6400_01.book 696 ページ ２０２０年８月２８日 金曜日 午後１時 ４８分
Page 700 of 711
Index
698
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 465
A
ABS (Anti-lock Brake System) ................... 556
Accelerator Position Meter ...................... 131
Accessories and Modifications ................. 631
Accessory Power Socket ........................... 208
Adaptive Cruise Control (ACC) ........... 99, 518
Adaptive Cruise Control (ACC) with Low Speed Follow ............................. 99, 501
Adding the Coolant .................................. 590
Additives Coolant ................................................... 589
Engine Oil ................................................ 582
Washer .................................................... 593
Additives, Engine Oil ................................ 582
Adjusting Armrest ................................................... 200
Clock ....................................................... 144
Front Head Restraints............................... 196
Front Seats .............................................. 193
Mirrors .................................................... 190
Rear Seats................................................ 199
Steering Wheel ........................................ 189
Temperature ............................................ 129
Adjusting the Clock .................................. 144
Adjusting the Sound ................................. 238
Agile Handling Assist ................................ 478 Air Conditioning System (Climate Control
System) .................................................... 217
Changing the Mode ................................ 220
Defrosting the Windshield and Windows ............................................... 221
Dust and Pollen Filter............................... 624
Recirculation/Fresh Air Mode ................... 220
Sensor ..................................................... 224
Using Automatic Climate Control ............ 217
Air Pressure ....................................... 610, 685
Airbags ........................................................ 48
Advanced Airbags ..................................... 54
After a Collision ........................................ 51
Airbag Care............................................... 63
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 51
Indicator.............................................. 60, 89
Passenger Front Airbag Off Indicator ......... 61
Sensors ..................................................... 48
Side Airbags .............................................. 56
Side Curtain Airbags.................................. 58
AM/FM Radio ............................................ 280
Android Auto ........................................... 316
Anti-lock Brake System (ABS) .................. 556
Indicator.................................................... 89
Apple CarPlay ........................................... 313
Armrest ..................................................... 200
Audio Remote Controls ........................... 230
Audio System .................................... 226, 251
Adjusting the Sound........................ 238, 273
Android Auto .......................................... 316 Apple CarPlay ......................................... 313
Audio/Information Screen ....................... 252
Bluetooth
® Audio ........................... 248, 303
Changing the Home Screen Icon Layout.. 256
Changing the Screen Interface ................ 270
Closing Apps .......................................... 272
Customizing the Meter ........................... 256
Display Setup .......................................... 274
Error Messages ....................................... 320
General Information................................ 324
Home Screen .......................................... 262
HondaLink ®........................................... 305
iPod ................................................ 242, 291
Limitations for Manual Operation ............ 275
Menu Customize .................................... 271
MP3/WMA/AAC ............................. 245, 300
Pandora ®.............................................. 298
Reactivating ............................................ 229
Recommended Devices ........................... 326
Remote Controls ..................................... 230
Security Code ......................................... 229
Selecting an Audio Source ...................... 275
Siri Eyes Free ........................................... 312
SiriusXM ® Radio ...................................... 283
Song By Voice
TM (SBV) ............................. 294
Status Area ............................................. 269
Theft Protection ...................................... 229
USB Flash Drives...................... 245, 300, 326
USB Port(s) .............................................. 227
Voice Control Operation ......................... 276
Wallpaper Setup ..................................... 260
21 CIVIC 5D HUM-31TGG6400_01.book 698 ページ ２０２０年８月２８日 金曜日 午後１時 ４８分
Page 702 of 711
700
Index
Continuously Variable TransmissionCreeping ................................................. 460
Fluid ........................................................ 591
Kickdown ................................................ 460
Operating the Shift Lever ................... 24, 462
Shift Lever Does Not Move....................... 665
Shifting.................................................... 461
Controls ..................................................... 143
Coolant (Engine) ....................................... 589
Adding the Coolant ................................. 590
Overheating............................................. 666
Creeping (Continuously Variable Transmission) ........................................... 460
Cup Holders ............................................... 205
Customer Service Information ................. 696
Customized Features ........................ 134, 350
D
Daytime Running Lights ........................... 180
Dead Battery ............................................. 662
Defaulting All the Settings ...................... 379
Defrosting the Windshield and Windows .................................................. 221
Devices that Emit Radio Waves ................ 687
Dimming Headlights ............................................... 177
Rearview Mirror ....................................... 190
Dipstick (Engine Oil) ................................. 583
Directional Signals (Turn Signal) .............. 176
Display Button .......................................... 252 Display Setup
............................................ 239
Display/Information Button ..................... 125
Door Mirrors ............................................. 192
Doors ......................................................... 145
Auto Door Locking .................................. 159
Auto Door Unlocking .............................. 159
Keys ........................................................ 145
Locking/Unlocking the Doors from the
Inside .................................................... 156
Locking/Unlocking the Doors from the Outside ................................................. 147
DOT Tire Quality Grading ........................ 612
Drive Mode Switch ................................... 473
Driver Information Interface ................... 124
Driving ...................................................... 443
Braking ................................................... 549
Continuously Variable Transmission ......... 460
Shifting Gear ........................................... 468
Shifting Position ...................................... 461
Starting the Engine.......................... 451, 454
Dust and Pollen Filter ............................... 624
E
Eco Assist System........................................ 11
ECON Mode .............................................. 472
Elapsed Time ............................................. 128
Electric Power Steering (EPS) System ........ 89
Indicator............................................ 89, 672
Electronic Stability Control (ESC) ............. 475
Emergency ................................................ 679 Emergency Engine Stop
........................... 661
Emissions Testing (Readiness Codes) ...... 689
Engine Coolant .................................................. 589
If the Battery Is Dead............................... 662
Oil .......................................................... 582
Starting........................................... 451, 454
Switch Buzzer ......................................... 171
Engine Coolant ........................................ 589
Adding the Coolant ................................ 590
Overheating ............................................ 666
Temperature Gauge ................................ 122
Engine Oil ................................................. 582
Adding ................................................... 585
Checking ................................................ 583
Displaying Oil Life ................................... 574
Low Oil Pressure Indicator ................. 84, 668
Recommended Engine Oil ....................... 582
ENGINE START/STOP Button .................... 172
EPS (Electric Power Steering) System ...... 672
Exhaust Gas Hazard (Carbon Monoxide) .. 79
Exterior Care (Cleaning) .......................... 628
Exterior Mirrors ........................................ 192F
Features.................................................... 225
Filters Dust and Pollen....................................... 624
Oil .......................................................... 586
Flat Tire ..................................................... 635
21 CIVIC 5D HUM-31TGG6400_01.book 700 ページ ２０２０年８月２８日 金曜日 午後１時 ４８分
Page 703 of 711
701
Index
Floor Mats................................................ 626
Fluids
Brake/Clutch ........................................... 592
Continuously Variable Transmission ........ 591
Engine Coolant ....................................... 589
Manual Transmission .............................. 591
Windshield Washer ................................. 593
FM/AM Radio ................................... 240, 280
Fog Light Indicator .................................... 93
Folding Down the Rear Seats .................. 199
Foot Brake ................................................ 552
Front Airbags (SRS) .................................... 51
Front Head Restraints .............................. 196
Front Seat Heaters ................................... 215
Front Seats ................................................ 193
Adjusting ................................................ 193
Front Sensor Camera ............................... 546
Fuel ..................................................... 26, 562
Fuel Economy and CO
2 Emissions ............ 566
Gauge .................................................... 122
Instant Fuel Economy .............................. 129
Low Fuel Indicator..................................... 88
Range ..................................................... 128
Recommendation.................................... 562
Refueling ................................................ 562
Fuel Economy and CO
2 Emissions ............ 566
Fuel Fill Door ...................................... 26, 564
Unable to Unlock .................................... 680
Fuses ......................................................... 674
Inspecting and Changing ........................ 678
Locations ........................................ 674, 676
G
Gasoline (Fuel)
Economy ................................................. 566
Gauge ..................................................... 122
Information ............................................. 562
Instant Fuel Economy ............................... 129
Low Fuel Indicator ..................................... 88
Refueling ................................................. 562
Gauges ...................................................... 122
Gear Shift Lever Positions Continuously Variable Transmission ......... 461
Manual Transmission ............................... 468
Glass (care) ........................................ 626, 629
Glove Box .................................................. 203
G-Meter ..................................................... 131
H
Halogen Bulbs ................................... 594, 597
Handling the Unexpected ........................ 633
HandsFreeLink ® (HFL) ....................... 383, 410
Automatic Import of Cellular Phonebook
and Call History ..................................... 423
Displaying Messages ................................ 437
HFL Buttons ..................................... 383, 410
HFL Menus ...................................... 386, 413
HFL Status Display ........................... 385, 412
In Case of Emergency .............................. 441
Limitations for Manual Operation .... 385, 412
Making a Call .................................. 404, 431
Options During a Call ...................... 409, 434 Phone Setup.................................... 390, 418
Phonebook Phonetic Modification ........... 427
Receiving a Call ............................... 408, 434
Receiving a Text Message/E-mail.............. 435
Ring Tone................................................ 422
Selecting a Text/E-mail Message
Account ................................................ 436
Speed Dial ....................................... 400, 424
To Set Up Text Messa ge/E-mail Options ... 421
Hatch ......................................................... 160
Light Bulb................................................ 684
Release Lever........................................... 681
Unable to Open....................................... 681
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 280
Headlights ................................................. 177
Aiming .................................................... 594
Auto High-Beam System.......................... 181
Automatic Operation............................... 178
Dimming ......................................... 177, 180
Operating................................................ 177
Heaters (Front Seat) ................................. 215
Heaters (Rear Seat) ................................... 216
HFL (HandsFreeLink ®)....................... 383, 410
High Beam Indicator .................................. 92
Hill Start Assist System ..................... 453, 458
HomeLink ® Universal Transceiver ............ 380
Honda App License Agreement .............. 327
Honda Sensing ®................................ 27, 488
HondaLink ®............................................. 305
21 CIVIC 5D HUM-31TGG6400_01.book 701 ページ ２０２０年８月２８日 金曜日 午後１時 ４８分
Page 705 of 711
703
Index
Load Limits............................................... 447
Locking/Unlocking ................................... 145
Auto Door Locking/Unlocking ................. 159
Childproof Door Locks ............................ 158
From Inside ............................................. 156
From Outside .......................................... 147
Keys........................................................ 145
Using a Key............................................. 154
Low Battery Charge ................................. 668
Low Fuel Indicator ..................................... 88
Low Oil Pressure Indicator ................. 84, 668
Low Smart Entry Remote Signal Strength .................................................. 146
Lower Anchors ........................................... 69
Luggage (Maximum Load Limit) ............. 447
M
Maintenance............................................ 569
Adding the Coolant ................................ 590
Battery .................................................... 620
Brake/Clutch Fluid ................................... 592
Cleaning ................................................. 625
Climate Control System .......................... 624
Coolant .................................................. 589
Maintenance Minder
TM............................ 573
Oil .......................................................... 583
Precautions ............................................. 570
Remote Transmitter ................................ 622
Replacing Light Bulbs .............................. 594
Safety ..................................................... 571 Service Items ........................................... 576
Tires ........................................................ 609
Transmission Fluid ................................... 591
Under the Hood ...................................... 579
Malfunction Indicator Lamp .............. 85, 669
Manual Transmission ................................ 468
Map Lights ................................................ 202
Maximum Load Limit ............................... 447
Meters, Gauges ......................................... 122
Mirrors ....................................................... 190
Adjusting ................................................. 190
Door ........................................................ 192
Exterior .................................................... 192
Interior Rearview ..................................... 190
Modifications (and Accessories) .............. 631
Moonroof .................................................. 170
MP3 ................................................... 245, 300
Multi-View Rear Camera .......................... 560
N
Numbers (Identification).......................... 686
O
Odometer.................................................. 127
Oil (Engine) ............................................... 582
Adding .................................................... 585
Checking ................................................. 583
Displaying Oil Life .................................... 574
Low Oil Pressure Indicator .................. 84, 668 Recommended Engine Oil ....................... 582
Viscosity .................................................. 582
Open Source Licenses ............................... 341
Opening Hatch ...................................................... 681
Opening/Closing Hatch ...................................................... 160
Hood....................................................... 581
Moonroof ............................................... 170
Power Windows ...................................... 167
Outside Temperature Display .................. 129
Overheating .............................................. 666
P
Paddle Shifters (7-Speed Manual
Shift Mode) ............................... 25, 465, 466
Pandora ®................................................. 298
Panic Mode ............................................... 166
Parking ...................................................... 558
Parking Brake ........................................... 549
Parking Brake and Brake System Indicator (Amber) ..................................... 83
Parking Brake and Brake System
Indicator (Red) .......................... 82, 670, 671
Passenger Front Airb ag Off Indicator....... 61
Passing Indicators ..................................... 177
Playing Bluetooth ® Audio ................ 248, 303
Power Windows ....................................... 167
Precautions While Driving ....................... 459
Rain ........................................................ 459
21 CIVIC 5D HUM-31TGG6400_01.book 703 ページ ２０２０年８月２８日 金曜日 午後１時 ４８分
Page 706 of 711
704
Index
Pregnant Women....................................... 46
Puncture (Tire) .......................................... 635
R
Radar Sensor............................................. 548
Radio (FM/AM) .................................. 240, 280
Radio (SiriusXM ®)...................................... 283
Radio Data System (RDS) .................. 241, 282
Range ........................................................ 128
RDS (Radio Data System) .................. 241, 282
Readiness Codes (Emissions Testing) ....... 689
Rear Defogger/Heated Door Mirror
Button ...................................................... 188
Rear Seat Heaters ..................................... 216
Rear Seats (Folding Down) ....................... 199
Rearview Mirror ........................................ 190
Refueling ................................................... 562
Fuel Gauge .............................................. 122
Gasoline .......................................... 562, 684
Low Fuel Indicator ..................................... 88
Regulations ............................... 486, 612, 687
Remote Engine Start ................................ 456
Remote Transmitter .................................. 153
Replacement Battery..................................................... 622
Bulbs ....................................................... 594
Fuses ............................................... 674, 676
Tires ........................................................ 615
Wiper Blade Rubber ......................... 604, 607
Reporting Safety Defects ......................... 688Resetting a Trip Meter
............................. 127
Rev Indicators ........................................... 131
Rev Match System .................................... 469
Road Departure Mitigation (RDM) ......... 541
On and Off.............................................. 543
S
Safe Driving ................................................ 35
Safety Check ............................................... 39
Safety Labels ............................................... 80
Safety Message ............................................. 3
Seat Belts .................................................... 40
Adjusting the Shoulder Anchor.................. 45
Automatic Seat Belt Tensioners ................. 43
Checking................................................... 47
Fastening .................................................. 44
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 72
Pregnant Women ...................................... 46
Reminder .................................................. 42
Warning Indicator ............................... 42, 88
Seat Heaters ...................................... 215, 216
Seats .......................................................... 193
Adjusting ................................................ 193
Front Seat Heaters ................................... 215
Front Seats .............................................. 193
Rear Seats ............................................... 199
Seat Heaters .................................... 215, 216
Security System ......................................... 163
Security System Alarm Indicator................. 95 Select Lever
................................ 24, 461, 468
Operation ................................. 24, 462, 468
Releasing ................................................ 665
Won’t Move ........................................... 665
Select/Reset Knob .................................... 127
Selecting a Child Seat ................................ 68
Selector Knob (Audio) ............................. 233
Setting the Clock ...................................... 144
Shift Lever .................................. 24, 461, 468
Shift Lever Position Indicator .................... 86
Shift Position Indicator ............................ 462
Shifting (Transmission) .................... 461, 468
Shoulder Anchor ........................................ 45
Side Airbags ............................................... 56
Side Curtain Airbags .................................. 58
Siri Eyes Free ............................................. 312
SiriusXM ® Radio ....................................... 283
Smart Entry with Push Button Start System ..................................................... 147
Snow Tires ................................................ 617
Song By Voice
TM (SBV) .............................. 294
Spare Tire ......................................... 648, 685
Spark Plugs ............................................... 684
Specifications ........................................... 684
Specified Fuel ................................... 562, 684
Speedometer ............................................ 122
SRS Airbags (Airbags) ................................ 51
Starting the Engine .......................... 451, 454
Does Not Start ........................................ 659
Engine Switch Buzzer .............................. 171
If the Battery Is Dead............................... 662
21 CIVIC 5D HUM-31TGG6400_01.book 704 ページ ２０２０年８月２８日 金曜日 午後１時 ４８分
Page 707 of 711
705
Index
Remote Engine Start ............................... 456
Steering Wheel
Adjusting ................................................ 189
Stopping ................................................... 558
Stopwatch ................................................ 132
Summer Tires ............................................ 617
Supplemental Restraint System (SRS) ....... 51
Switches (Around the Steering
Wheel) ............................................ 6, 7, 171
System Message Indicator ......................... 92
T
Tachometer.............................................. 122
Temperature Outside Temperature Display .................. 129
Temperature Sensor ................................ 129
Temporary Tire Repair Kit ....................... 636
Tie-down Anchors .................................... 212
Time (Setting) ........................................... 144
Tire Pressure Monitoring System
(TPMS) ..................................................... 482
Indicator ........................................... 91, 673
Tires .......................................................... 609
Air Pressure..................................... 610, 685
Checking and Maintaining ...................... 609
Inspection ............................................... 609
Labeling .................................................. 610
Puncture (Flat Tire) .................................. 635
Regulations ............................................. 612
Rotation.................................................. 616 Spare Tire ........................................ 648, 685
Summer .................................................. 617
Temporary Tire Repair Kit ........................ 636
Tire Chains .............................................. 617
Wear Indicators ....................................... 614
Winter ..................................................... 617
Tools .......................................................... 634
Towing Your Vehicle
Emergency .............................................. 679
TPMS (Tire Pressure Monitoring System) .................................................... 482
Indicator ............................................ 91, 673
Transmission ..................................... 461, 468
Continuously Variable Transmission ......... 461
Fluid ........................................................ 591
Manual .................................................... 468
Shift Lever Position Indicator ...... 86, 462, 464
Trip Meter ................................................. 127
Troubleshooting ....................................... 633
Blown Fuse ...................................... 674, 676
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door .......... 31
Emergency Towing .................................. 679
Engine Won’t Start .................................. 659
Noise When Braking .................................. 32
Overheating ............................................ 666
Premium Gasoline ................................... 684
Puncture/Flat Tire ..................................... 635
Rear Door Won’t Open ...................... 31, 158
Select Lever Won’t Move ......................... 665
Warning Indicators .................................... 82 Turbo Engine Vehicle
............................... 567
Turbo Meter ............................................. 129
Turn Signals .............................................. 176
Indicators (Instrument Panel) ..................... 92
Turn-by-Turn Directions ........................... 130
U
Unlocking the Doors................................ 147
Unlocking the Fron t Doors from the
Inside ....................................................... 156
USB Adapter Cable ................................... 226
USB Flash Drives ............................... 300, 326
USB Port(s) ................................................ 227
Using the Smart Entr y with Push Button
Start System ............................................ 147
V
Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 686
Vehicle Stability Assist
TM (VSA ®) .............. 475
Off Button............................................... 476
Off Indicator.............................................. 90
System Indicator ........................................ 90
Viscosity (Oil) .................................... 582, 685
21 CIVIC 5D HUM-31TGG6400_01.book 705 ページ ２０２０年８月２８日 金曜日 午後１時 ４８分
