HONDA CIVIC SEDAN 2020 Navigation Manual (in English)

Continued79
uu Driving to Your Destination u Viewing the Route
Navigation

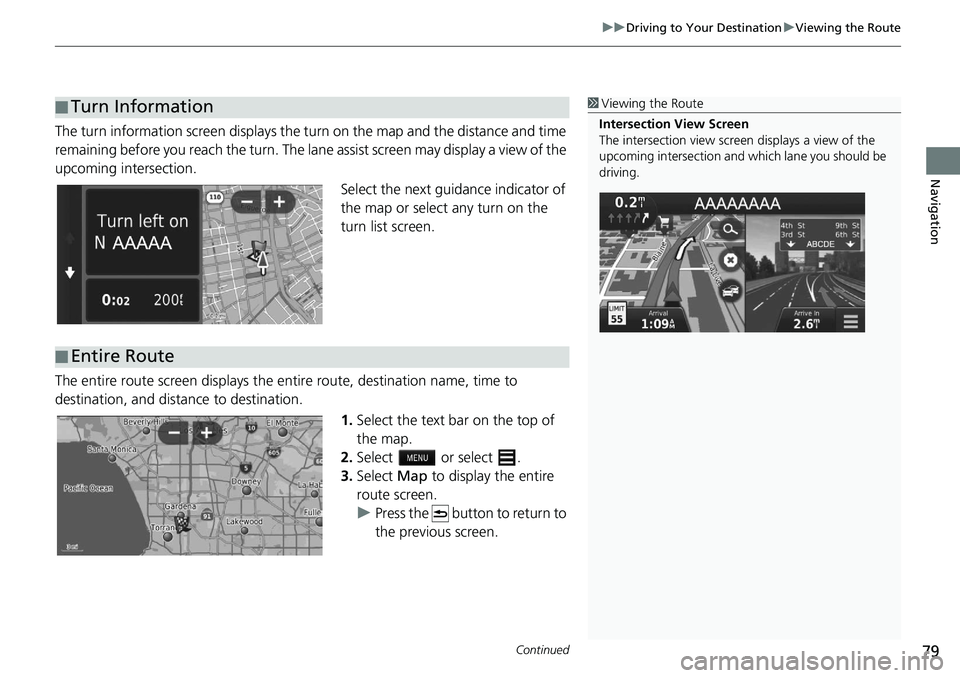

The turn information screen displays the turn on the map and the distance and time
remaining before you reach the turn. The lane assist screen may display a view of the
upcoming intersection.
Select the next guidance indicator of
the map or select any turn on the
turn list screen.
The entire route screen displays the en tire r
oute, destination name, time to
destination, and distance to destination.
1.Select
the text bar on the top of
the map.
2. Select or select .
3. Select Ma
p to display the entire
route screen.
u Press the button to return to
the previous screen.
■ Turn Information1
Viewing the Route
Intersection View Screen
The intersection view screen displays a view of the
upcoming intersection and which lane you should be
driving.
■ Entire Route

uu Driving to Your Destination u Viewing the Route
80
Navigation

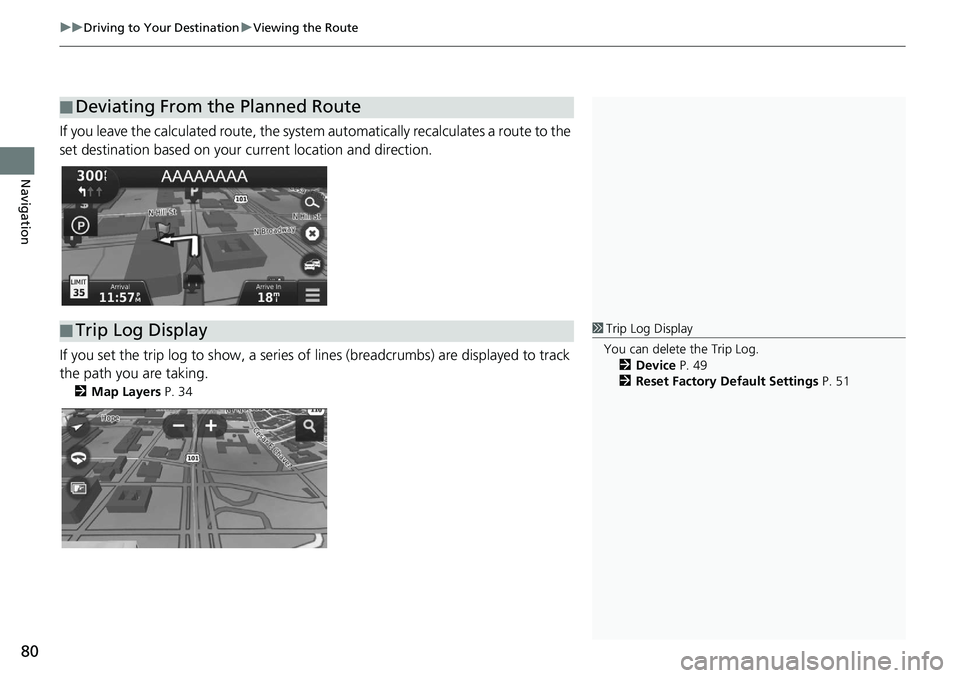

If you leave the calculated route, the system automatically recalculates a route to the
set destination based on your current location and direction.
If you set the trip log to show, a series of lines (breadcrumbs) are displayed to track
the path you are taking.
2 Map Layers P. 34
■Deviating From the Planned Route
■Trip Log Display1
Trip Log Display
You can delete the Trip Log. 2 Device P. 49
2 Reset Factory Default Settings P. 51

81
Navigation

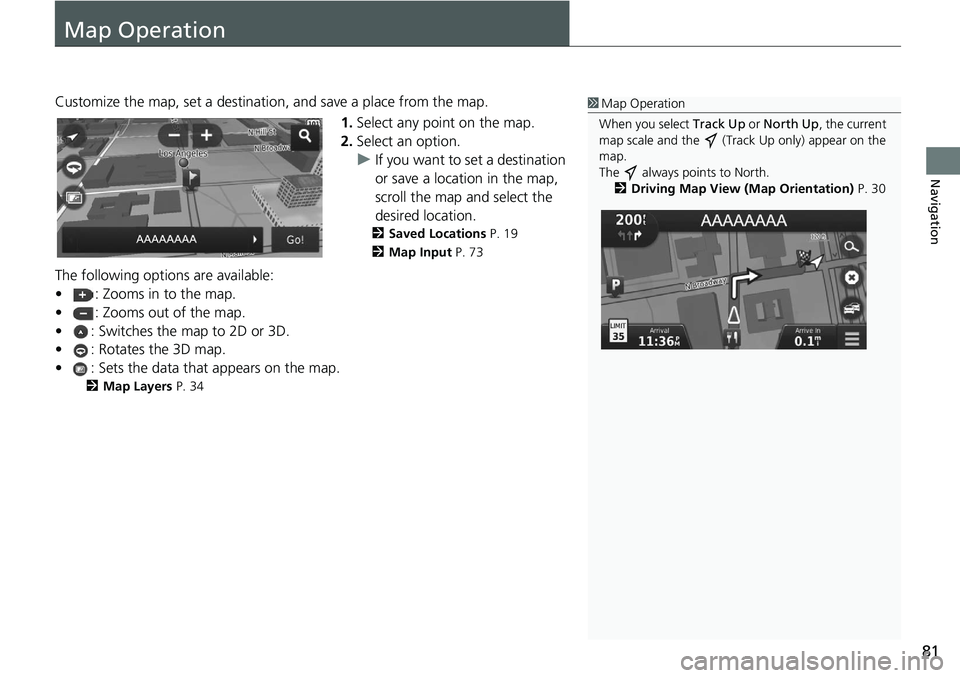

Map Operation
Customize the map, set a destination, and save a place from the map.
1.Select any
point on the map.
2. Select an option.
u If
you want to set a destination
or save a location in the map,
scroll the map and select the
desired location.
2 Saved Locations P. 19
2 Map Input P. 73
The following options are available:
• : Zooms in to the map.
• : Zooms out of the map.
• : Switches the map to 2D or 3D.
• : Rotates the 3D map.
• : Sets the data that appears on the map.
2Map Layers P. 34
1 Map Operation
When you select Track Up or North Up, the current
map scale and the (Track Up only) appear on the
map.
The always points to North. 2 Driving Map View (Map Orientation) P. 30

82
uu Map Operation u Map Menu
Navigation
Map Menu
H u
Select an option.
The following options are available:
• Where To? : Enters a new destination.
2 Entering a Destination P. 54
• Traffic : Displays the traffic information screen.
2 Traffic Information P. 86
• Mute : Turns the voice prompts on or off.
• Stop : Cancels the route guidance an d
removes your current route.
• De
tour : Calculates a detour route.
2Taking a Detour P. 92
• Exit Services : Displays a list of the exit services for the route.
2 Viewing Exit Services P. 83
• Where Am I? : Displays the information ab out yo ur current location.
2Viewing the Current Lo cation Information P. 84
• Map Layers : Sets the data that appears on the map.
2 Map Layers P. 34
• ecoRouteTM: Uses the ecoRouteTM features.
2 ecoRouteTM P. 109
• Settings : Changes settings for navigation functions.
2 System Setup P. 15
1 Map Menu
You can also display the map menu by selecting
on the map screen.

Continued83
uu Map Operation u Map Menu
Navigation
H u u Exit Services
You can view exit services (e.g., whether th e exit
is near gas stations, restaurants,
etc.) and add new destinations or waypoints to the calculated route.
1.Select or to display your
desired list of exit services.
2. Select
a category tab.
3.Select an option.
u The lo
cation is displayed on the
Calculate Route screen.
2 Viewing the Destination Map
P. 76
■ Viewing Exit Services1
Viewing Exit Services
The map screen of the selected exit is displayed when
you select .

uu Map Operation u Map Menu
84
Navigation
H u u Where Am I?

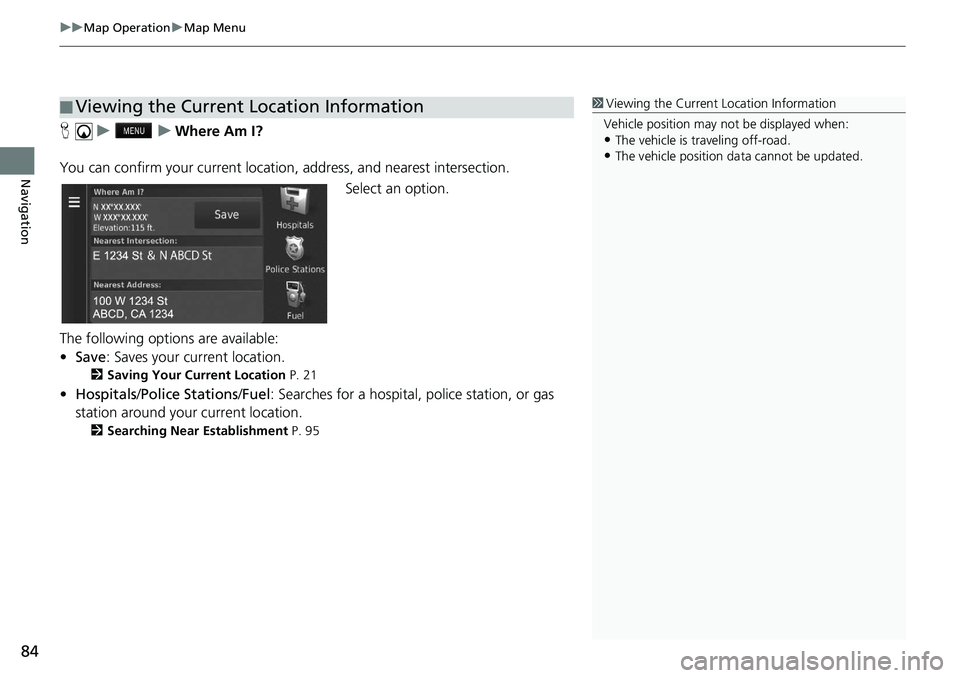

You can confirm your current location , address, and
nearest intersection.
Select an option.
The following options are available:
• Save : Saves your current location.
2 Saving Your Current Location P. 21
• Hospitals /Police Stations /Fuel : Searches for a hospital, police st ation, or gas
station around your current location.
2 Searching Near Establishment P. 95
■Viewing the Current Location Information1
Viewing the Current Location Information
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position da ta cannot be updated.

85
uu Map Operation u Map Menu
Navigation
H u u Where Am I?

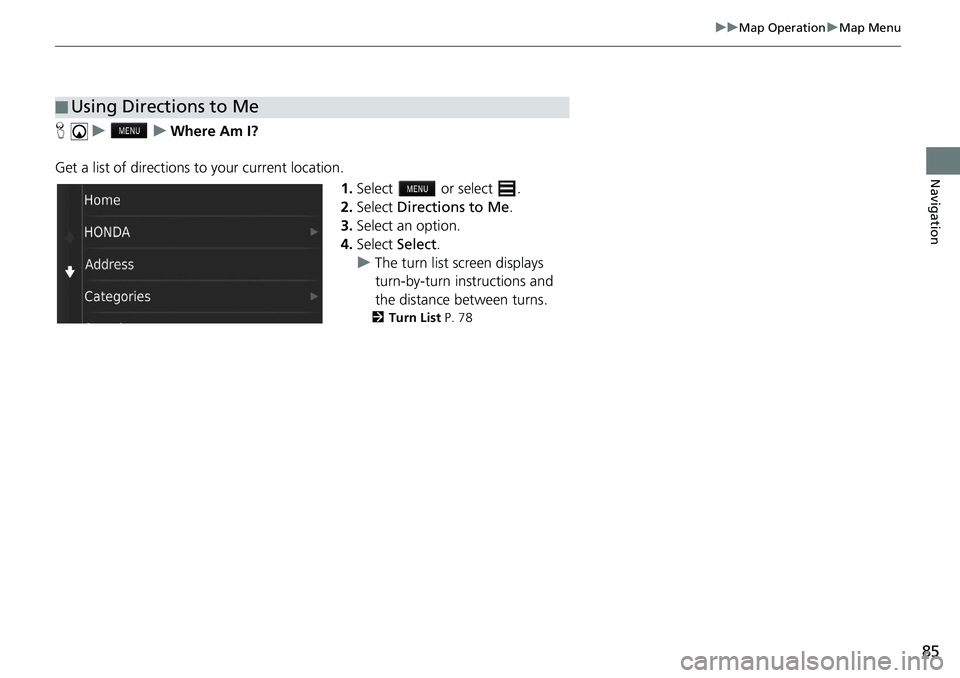

Get a list of directions to your current location. 1.Select or select .
2. Select Directions to Me .
3. Select an option.
4. Select Select.
u The turn list scre
en displays
turn-by-turn instructions and
the distance between turns.
2 Turn List P. 78
■Using Directions to Me

86
uu Map Operation u Traffic Information
Navigation

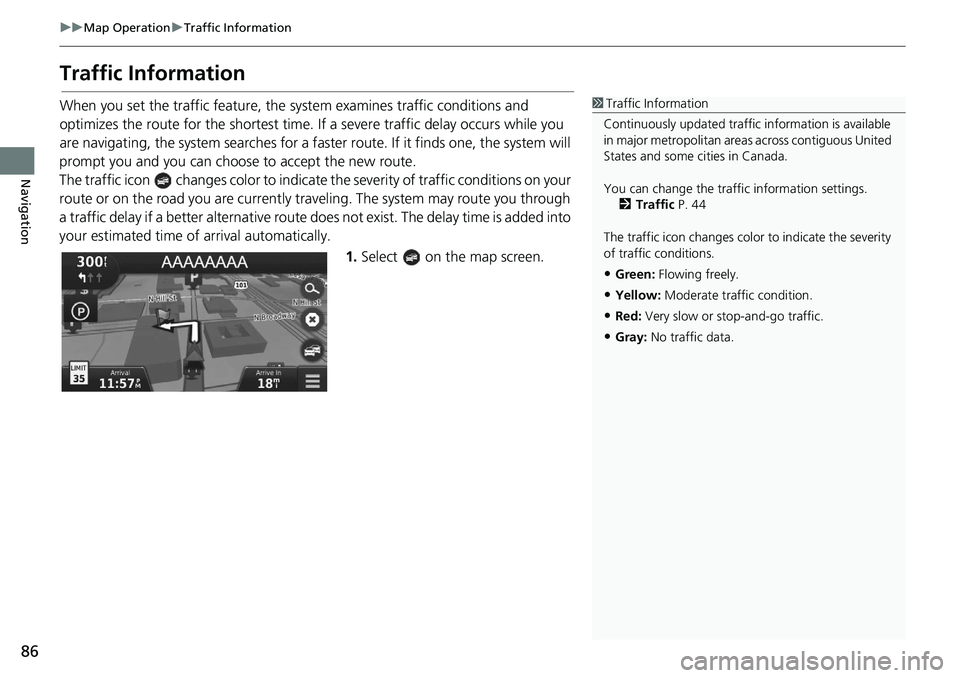

Traffic Information
When you set the traffic feature, the system examines traffic conditions and
optimizes the route for the shortest time. If a severe traffic delay occurs while you
are navigating, the system searches for a faster route. If it finds one, the system will
prompt you and you can choose to accept the new route.
The traffic icon changes color to indicate the seve rity of traffic conditions on your
route or on the road you are currently tra veling. The system may route you through
a t
raffic delay if a better alternative route do es not exist. The delay time is added into
your estimated time of arrival automatically.
1.Select on the map screen.
1Traffic Information
Continuously updated traffic information is available
in major metropolitan area s across contiguous United
States and some ci ties in Canada.
You can change the traffic information settings. 2 Traffic P. 44
The traffic icon changes color to indicate the severity
of traffic conditions.
•Green: Flowing freely.
•Yellow: Moderate traf fic condition.
•Red: Very slow or st op-and-go traffic.
•Gray: No traffic data.

87
uu Map Operation u Traffic Information
Continued
Navigation

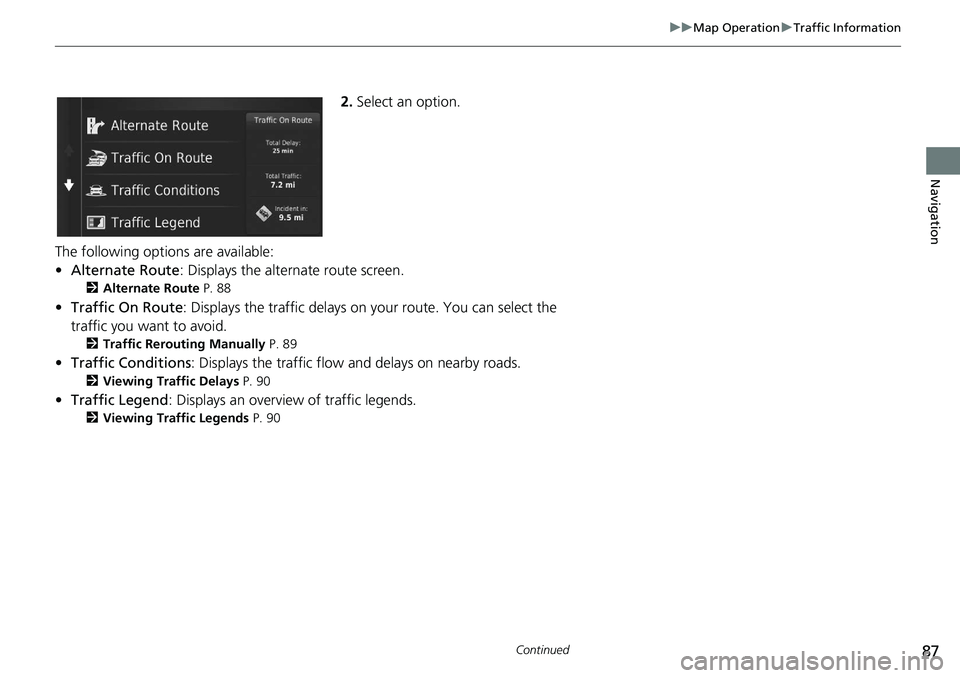

2. Select an option.
The following options are available:
•Alter
nate Route : Displays the alternate route screen.
2 Alternate Route P. 88
• Traffic On Route : Displays the traffic delays on your route. You can select the
traffi
c you want to avoid.
2 Traffic Rerouting Manually P. 89
• Traffic Conditions : Displays the traffic flow and delays on nearby roads.
2 Viewing Traffic Delays P. 90
• Traffic Legend : Displays an overview of traffic legends.
2Viewing Traffic Legends P. 90

88
uu Map Operation u Traffic Information
Navigation

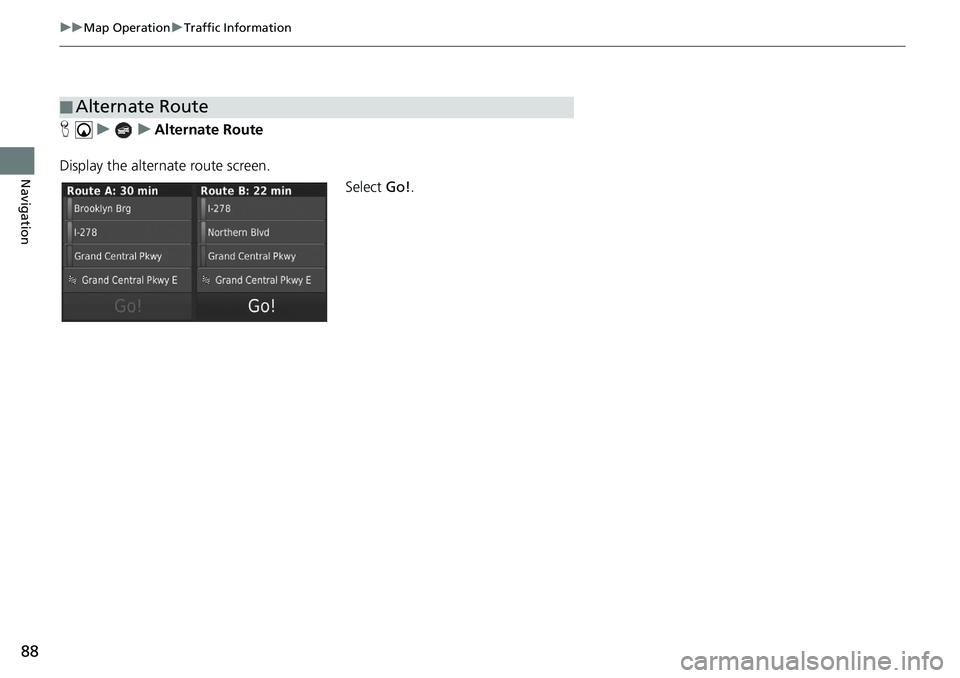

H u u Alternate Route
Display the alternate route screen. Select Go!.
■ Alternate Route
