Page 421 of 527

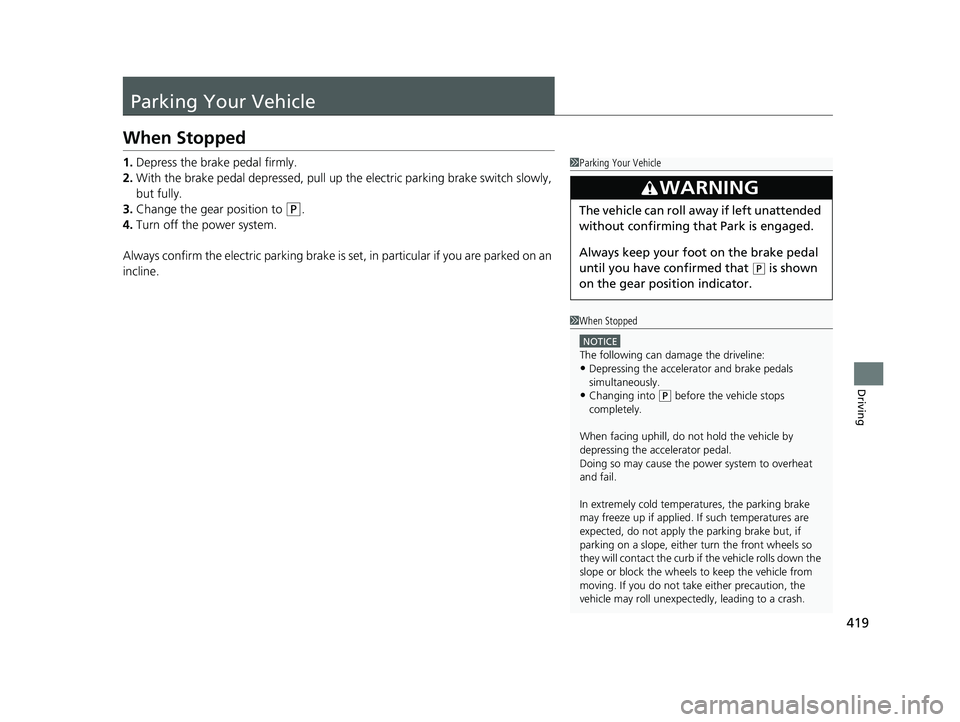

419
Driving
Parking Your Vehicle
When Stopped
1.Depress the brake pedal firmly.
2. With the brake pedal depressed, pull up the electric pa rking brake switch slowly,
but fully.
3. Change the gear position to
(P.
4. Turn off the power system.
Always confirm the electric parking brake is set, in particular if you are parked on an
incline.
1 Parking Your Vehicle
3WARNING
The vehicle can roll aw ay if left unattended
without confirming th at Park is engaged.
Always keep your foot on the brake pedal
until you have confirmed that
( P is shown
on the gear position indicator.
1 When Stopped
NOTICE
The following can damage the driveline:
•Depressing the accelera tor and brake pedals
simultaneously.
•Changing into ( P before the vehicle stops
completely.
When facing uphill, do not hold the vehicle by
depressing the accelerator pedal.
Doing so may cause the power system to overheat
and fail.
In extremely cold temper atures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpect edly, leading to a crash.
17 CLARITY FCV PPO-31TRT6000.book 419 ページ 2016年10月27日 木曜日 午後3 時11分
Page 422 of 527

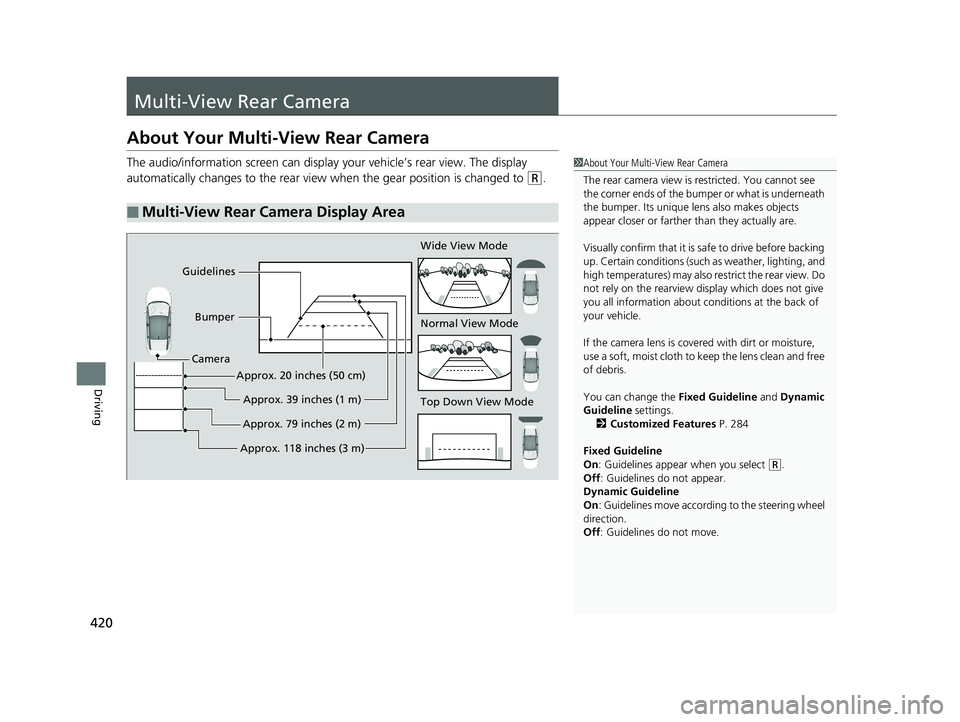

420
Driving
Multi-View Rear Camera
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view. The display
automatically changes to th e rear view when the gear position is changed to
(R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bum per or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also re strict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline settings. 2 Customized Features P. 284
Fixed Guideline
On : Guidelines appear when you select
(R.
Off : Guidelines do not appear.
Dynamic Guideline
On : Guidelines move according to the steering wheel
direction.
Off : Guidelines do not move.
Top Down View Mode Normal View Mode Wide View Mode
Guidelines
Bumper
Camera
Approx. 118 inches (3 m)Approx. 79 inches (2 m)Approx. 39 inches (1 m)
Approx. 20 inches (50 cm)
17 CLARITY FCV PPO-31TRT6000.book 420 ページ 2016年10月27日 木曜日 午後3
時11分
Page 423 of 527

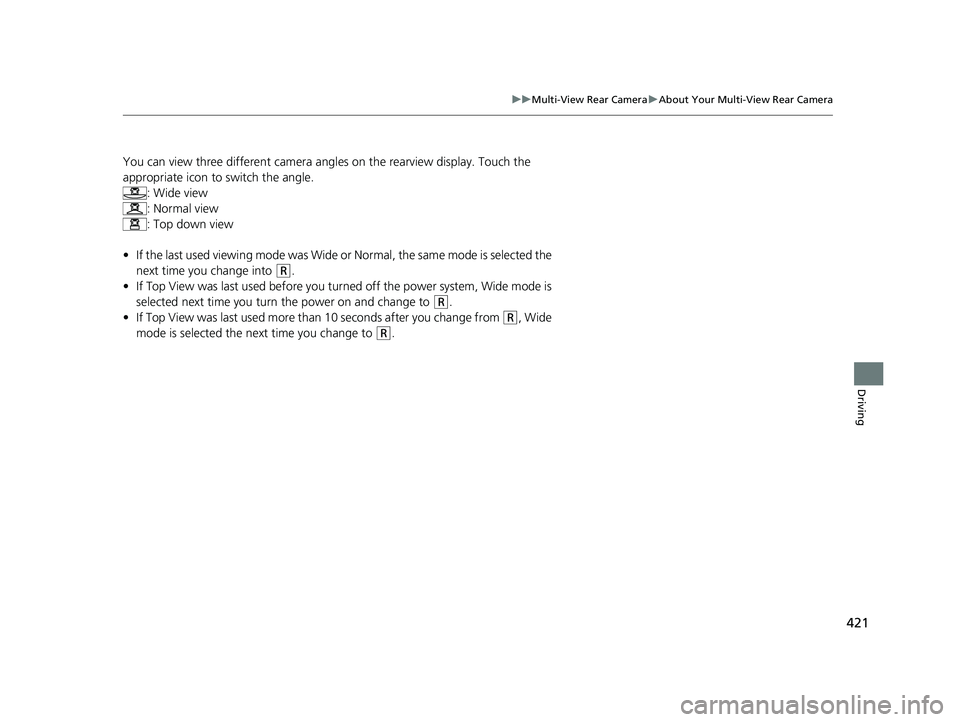

421
uuMulti-View Rear Camera uAbout Your Multi-View Rear Camera
Driving
You can view three differen t camera angles on the rearview display. Touch the
appropriate icon to switch the angle. : Wide view
: Normal view
: Top down view
• If the last used viewing mode was Wide or Normal, the same mode is selected the
next time you change into
(R.
• If Top View was last used before you tu rned off the power system, Wide mode is
selected next time you turn the power on and change to
(R.
• If Top View was last used more th an 10 seconds after you change from
(R, Wide
mode is selected the next time you change to
(R.
17 CLARITY FCV PPO-31TRT6000.book 421 ページ 2016年10月27日 木曜日 午後3 時11分
Page 424 of 527

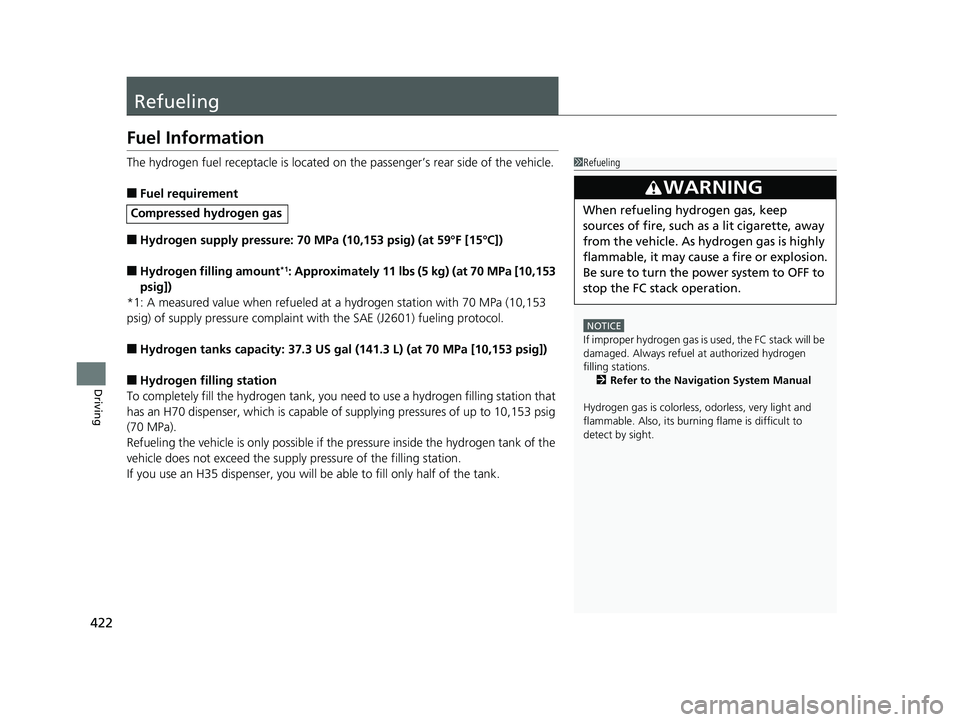

422
Driving
Refueling
Fuel Information
The hydrogen fuel receptacle is located on the passenger’s rear side of the vehicle.
■Fuel requirement
■Hydrogen supply pressure: 70 MPa (10,153 psig) (at 59°F [15°C])
■Hydrogen filling amount*1: Approximately 11 lbs (5 kg) (at 70 MPa [10,153
psig])
*1: A measured value when refueled at a hydrogen station with 70 MPa (10,153
psig) of supply pressure complaint with the SAE (J2601) fueling protocol.
■Hydrogen tanks capacity: 37.3 US gal (141.3 L) (at 70 MPa [10,153 psig])
■Hydrogen filling station
To completely fill the hydrogen tank, you n eed to use a hydrogen filling station that
has an H70 dispenser, which is capable of supplying pressures of up to 10,153 psig
(70 MPa).
Refueling the vehicle is only possible if the pressure inside the hydrogen tank of the
vehicle does not exceed the supply pressure of the filling station.
If you use an H35 dispenser, you will be able to fill only half of the tank.
Compressed hydrogen gas
1 Refueling
NOTICE
If improper hydrogen gas is us ed, the FC stack will be
damaged. Always refuel at authorized hydrogen
filling stations.
2 Refer to the Navigation System Manual
Hydrogen gas is colorless, odorless, very light and
flammable. Also, its burni ng flame is difficult to
detect by sight.
3WARNING
When refueling hydrogen gas, keep
sources of fire, such as a lit cigarette, away
from the vehicle. As hydrogen gas is highly
flammable, it may caus e a fire or explosion.
Be sure to turn the po wer system to OFF to
stop the FC stack operation.
17 CLARITY FCV PPO-31TRT6000.book 422 ページ 2016年10月27日 木曜日 午後3 時11分
Page 425 of 527

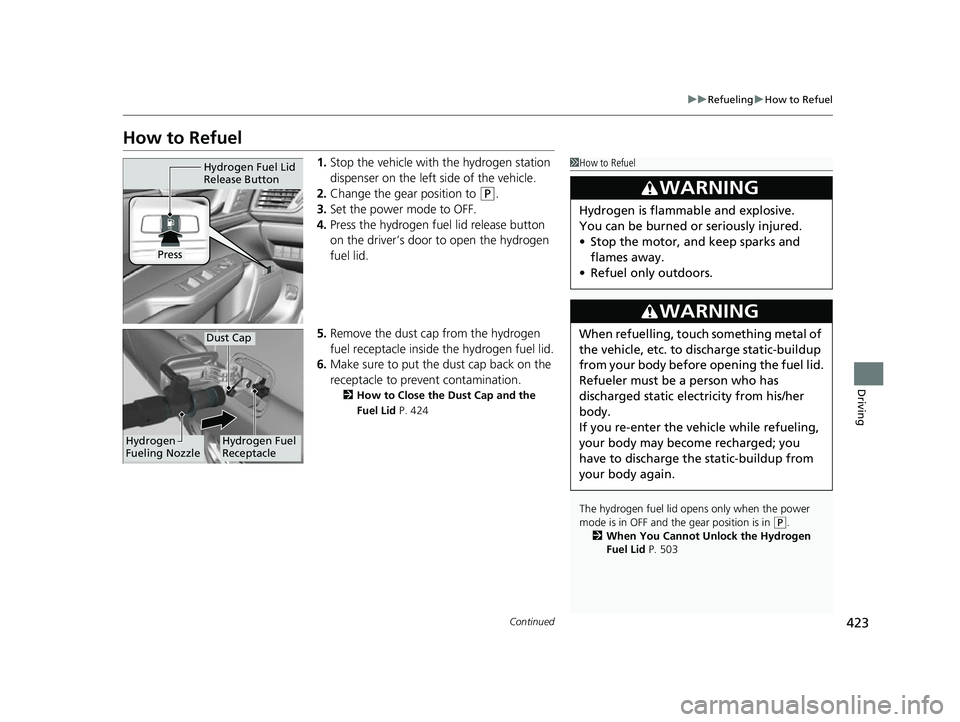

423
uuRefueling uHow to Refuel
Continued
Driving
How to Refuel
1. Stop the vehicle with the hydrogen station
dispenser on the left side of the vehicle.
2. Change the gear position to
(P.
3. Set the power mode to OFF.
4. Press the hydrogen fuel lid release button
on the driver’s door to open the hydrogen
fuel lid.
5. Remove the dust cap from the hydrogen
fuel receptacle inside the hydrogen fuel lid.
6. Make sure to put the dust cap back on the
receptacle to prevent contamination.
2 How to Close the Dust Cap and the
Fuel Lid P. 424
1How to Refuel
The hydrogen fuel lid ope ns only when the power
mode is in OFF and the gear position is in
( P.
2 When You Cannot Unlock the Hydrogen
Fuel Lid P. 503
3WARNING
Hydrogen is flammable and explosive.
You can be burned or seriously injured.
• Stop the motor, an d keep sparks and
flames away.
• Refuel only outdoors.
3WARNING
When refuelling, touc h something metal of
the vehicle, etc. to discharge static-buildup
from your body before opening the fuel lid.
Refueler must be a person who has
discharged static electricity from his/her
body.
If you re-enter the vehicle while refueling,
your body may become recharged; you
have to discharge the static-buildup from
your body again.
Hydrogen Fuel Lid
Release Button
Press
Hydrogen
Fueling NozzleHydrogen Fuel
Receptacle
Dust Cap
17 CLARITY FCV PPO-31TRT6000.book 423 ページ 2016年10月27日 木曜日 午後3 時11分
Page 426 of 527

uuRefueling uHow to Refuel

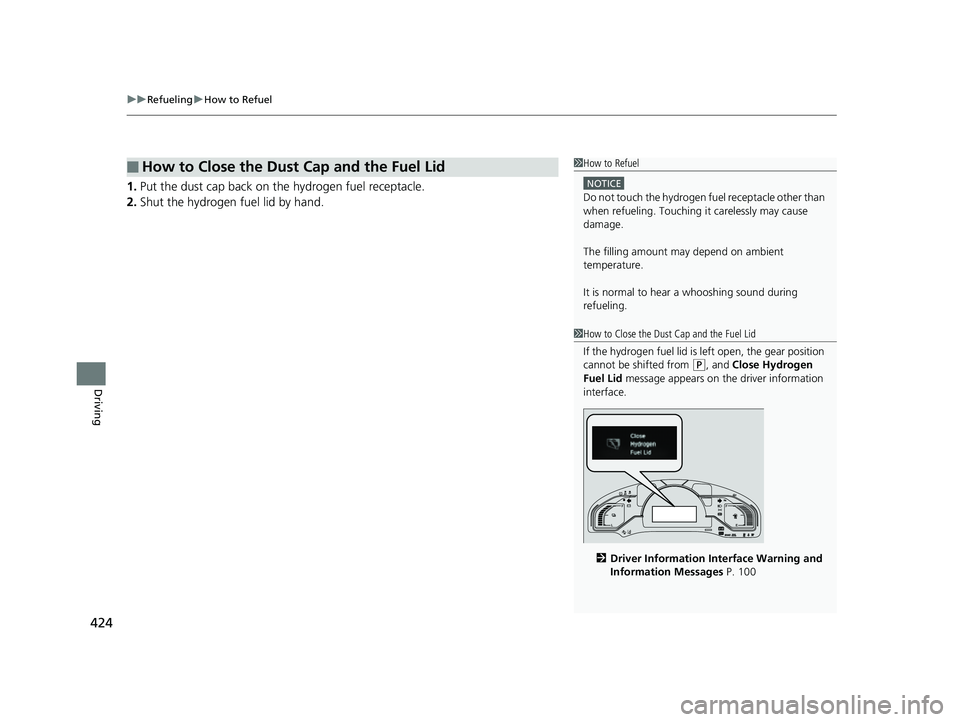

424
Driving
1. Put the dust cap back on the hydrogen fuel receptacle.
2. Shut the hydrogen fuel lid by hand.
■How to Close the Dust Cap and the Fuel Lid1How to Refuel
NOTICE
Do not touch the hydrogen fu el receptacle other than
when refueling. Touching it carelessly may cause
damage.
The filling amount may depend on ambient
temperature.
It is normal to hear a whooshing sound during
refueling.
1 How to Close the Dust Cap and the Fuel Lid
If the hydrogen fuel lid is left open, the gear position
cannot be shifted from
( P, and Close Hydrogen
Fuel Lid message appears on th e driver information
interface.
2 Driver Information Interface Warning and
Information Messages P. 100
17 CLARITY FCV PPO-31TRT6000.book 424 ページ 2016年10月27日 木曜日 午後3 時11分
Page 427 of 527

425
Driving

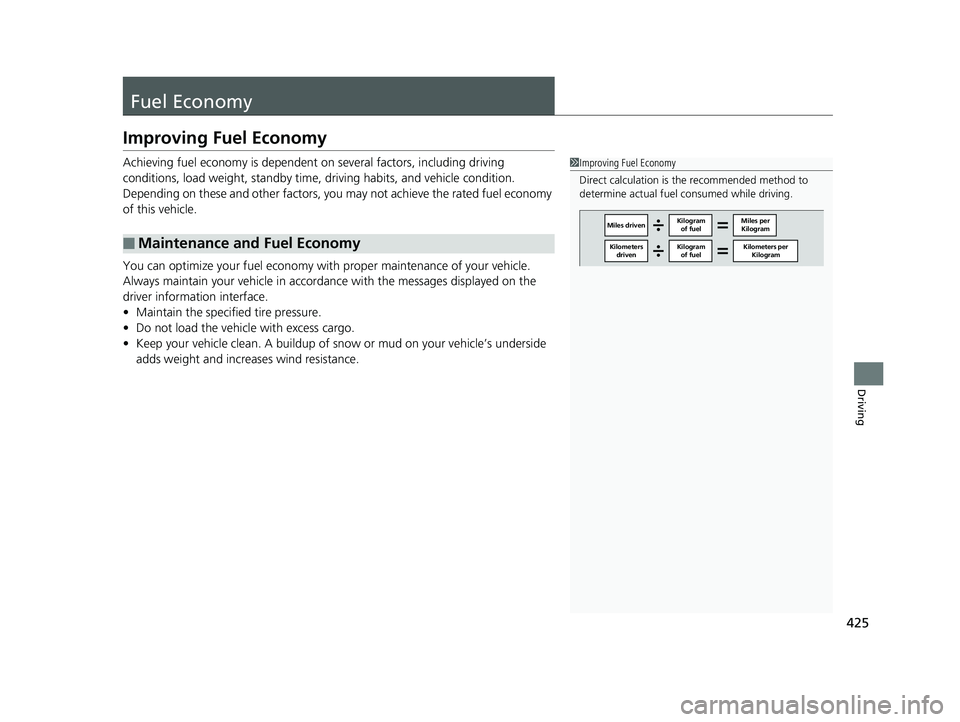

Fuel Economy
Improving Fuel Economy
Achieving fuel economy is dependent on several factors, including driving
conditions, load weight, standby time, driving habits, and vehicle condition.
Depending on these and other factors, you may not achieve the rated fuel economy
of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accord ance with the messages displayed on the
driver information interface.
• Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1Improving Fuel Economy
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
Miles driven Kilogram
of fuel Miles per
Kilogram
Kilogram of fuel Kilometers per
Kilogram
Kilometers
driven
17 CLARITY FCV PPO-31TRT6000.book 425 ページ 2016年10月27日 木曜日 午後3 時11分
Page 428 of 527

426
17 CLARITY FCV PPO-31TRT6000.book 426 ページ 2016年10月27日 木曜日 午後3時11分
Page 429 of 527

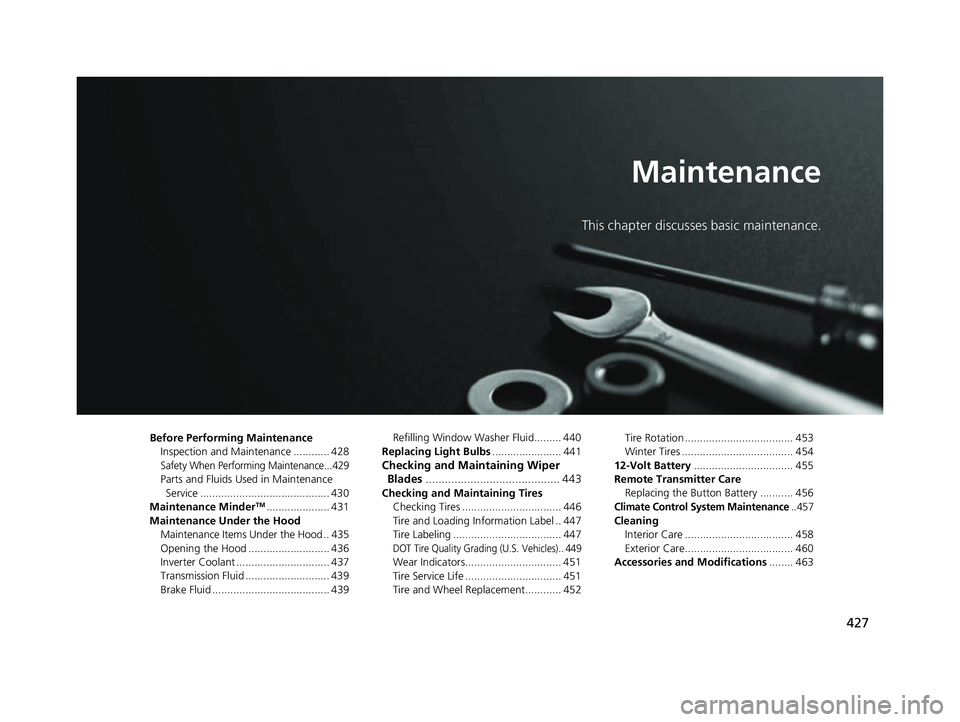

427
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 428
Safety When Performing Maintenance...429
Parts and Fluids Used in Maintenance Service ........................................... 430
Maintenance Minder
TM..................... 431
Maintenance Under the Hood Maintenance Items Under the Hood .. 435
Opening the Hood ........................... 436
Inverter Coolant ............................... 437
Transmission Fluid ............................ 439
Brake Fluid ....................................... 439 Refilling Window Washer Fluid......... 440
Replacing Light Bulbs ....................... 441
Checking and Maintaining Wiper
Blades .......................................... 443
Checking and Maintaining Tires
Checking Tires ................................. 446
Tire and Loading Information Label .. 447
Tire Labeling .................................... 447
DOT Tire Quality Grading (U.S. Vehicles).. 449
Wear Indicators................................ 451
Tire Service Life ................................ 451
Tire and Wheel Replacement............ 452 Tire Rotation .................................... 453
Winter Tires ..................................... 454
12-Volt Battery ................................. 455
Remote Transmitter Care Replacing the Button Battery ........... 456
Climate Control System Maintenance.. 457
CleaningInterior Care .................................... 458
Exterior Care.................................... 460
Accessories and Modifications ........ 463
17 CLARITY FCV PPO-31TRT6000.book 427 ページ 2016年10月27日 木曜日 午後3 時11分
Page 430 of 527

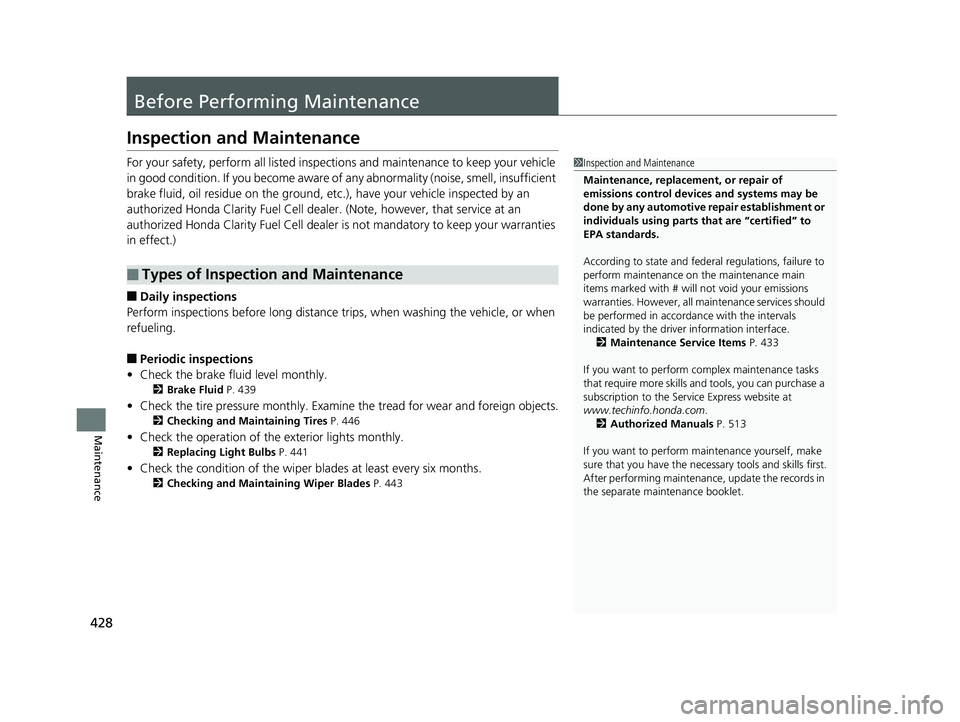

428
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc .), have your vehicle inspected by an
authorized Honda Clar ity Fuel Cell dealer. (Note, however, that service at an
authorized Honda Clarity Fuel Cell dealer is not mandatory to keep your warranties
in effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 439
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 446
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 441
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 443
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 433
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 513
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
17 CLARITY FCV PPO-31TRT6000.book 428 ページ 2016年10月27日 木曜日 午後3 時11分
