HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

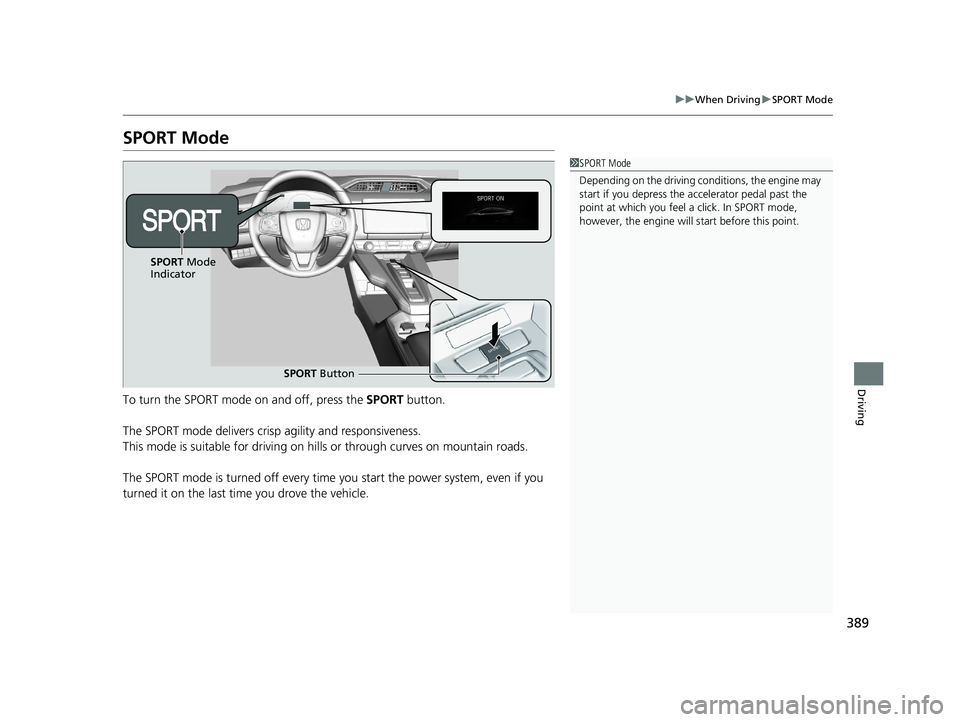

389 uu When Driving u SPORT Mode
Driving
SPORT Mode
To turn the SPORT mode on and off, press the SPORT button.
The SPORT mode delivers crisp agility and responsiveness.
This mode is suitable for driving on hills or through curves on mountain roads.
The SPORT mode is turned off every time you start the power system, even if you
turned it on the last time you drove the vehicle. 1 SPORT Mode
Depending on the driving c onditions, the engine may
start if you depress the ac celerator pedal past the
point at which you feel a click. In SPORT mode,
however, the engine will start before this point.
SPORT ButtonSPORT Mode
Indicator18 CLARITY PHEV CSS-31TRW6000.book 389 ページ ２０１７年８月３１日　木曜日　午後２時４９分

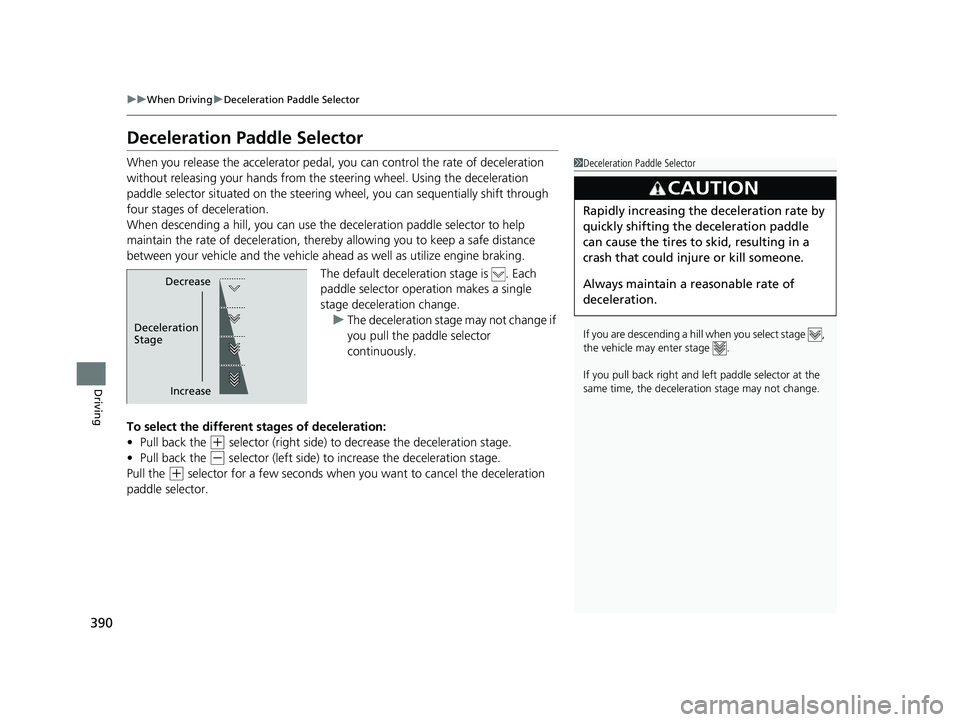

390 uu When Driving u Deceleration Paddle Selector
Driving Deceleration Paddle Selector When you release the accelerator pedal, you can control the rate of deceleration
without releasing your hands from the steering wheel. Using the deceleration
paddle selector situated on the steering wheel, you can sequentially shift through
four stages of deceleration.
When descending a hill, you can use the deceleration paddle selector to help
maintain the rate of deceleration, thereb y allowing you to keep a safe distance
between your vehicle and the vehicle ah ead as well as utilize engine braking.
The default deceleration stage is . Each
paddle selector oper ation makes a single
stage deceleration change.
u The deceleration stage may not change if
you pull the paddle selector
continuously.
To select the different stages of deceleration:
• Pull back the ( +
selector (right side) to decrease the deceleration stage.
• Pull back the ( -
selector (left side) to increase the deceleration stage.
Pull the ( +
selector for a few seconds when yo u want to cancel the deceleration
paddle selector. 1 Deceleration Paddle Selector
If you are descending a hill when you select stage ,
the vehicle may enter stage .
If you pull back right and le ft paddle sele ctor at the
same time, the deceleration stage may not change.
3
CAUTION Rapidly increasing the deceleration rate by
quickly shifting the deceleration paddle
can cause the tires to skid, resulting in a
crash that could injure or kill someone.
Always maintain a re asonable rate of
deceleration.Decrease
IncreaseDeceleration
Stage18 CLARITY PHEV CSS-31TRW6000.book 390 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued

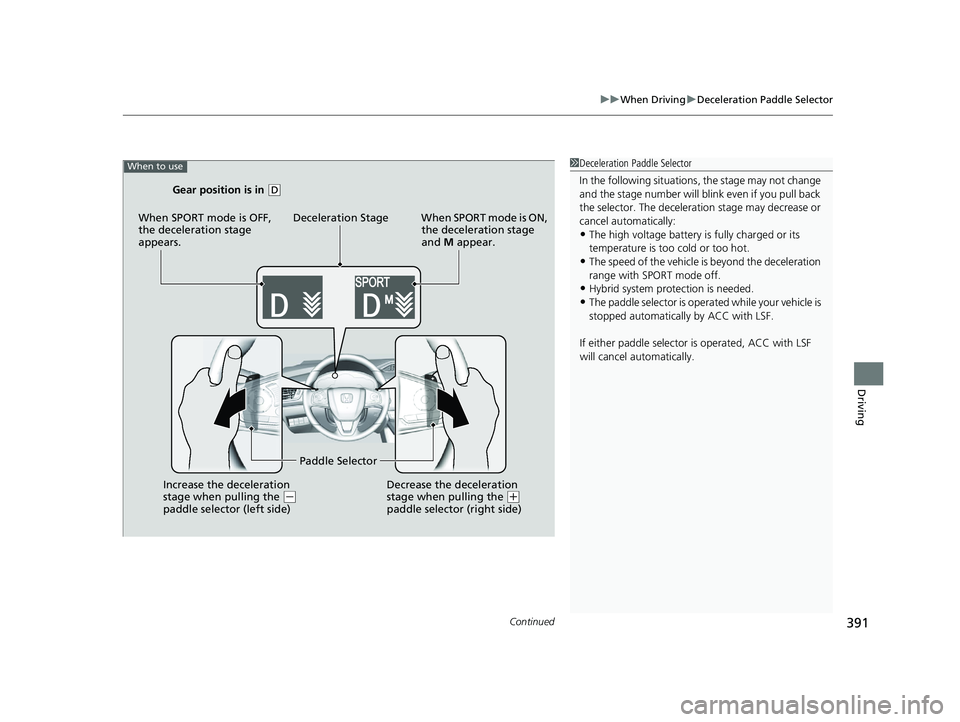

391uu When Driving u Deceleration Paddle Selector
Driving
1 Deceleration Paddle Selector
In the following situations , the stage may not change
and the stage number will blink even if you pull back
the selector. The decelerati on stage may decrease or
cancel automatically:
• The high voltage battery is fully charged or its
temperature is too cold or too hot.
• The speed of the vehicle is beyond the deceleration
range with SPORT mode off.
• Hybrid system protection is needed.
• The paddle selector is opera ted while your vehicle is
stopped automatically by ACC with LSF.
If either paddle selector is operated, ACC with LSF
will cancel automatically.When to use
Gear position is in ( D
When SPORT mode is OFF,
the deceleration stage
appears. Deceleration Stage When SPORT mode is ON,
the deceleration stage
and M appear.
Increase the deceleration
stage when pulling the ( -

paddle selector (left side) Paddle Selector
Decrease the deceleration
stage when pulling the ( +

paddle selector (right side)18 CLARITY PHEV CSS-31TRW6000.book 391 ページ ２０１７年８月３１日　木曜日　午後２時４９分

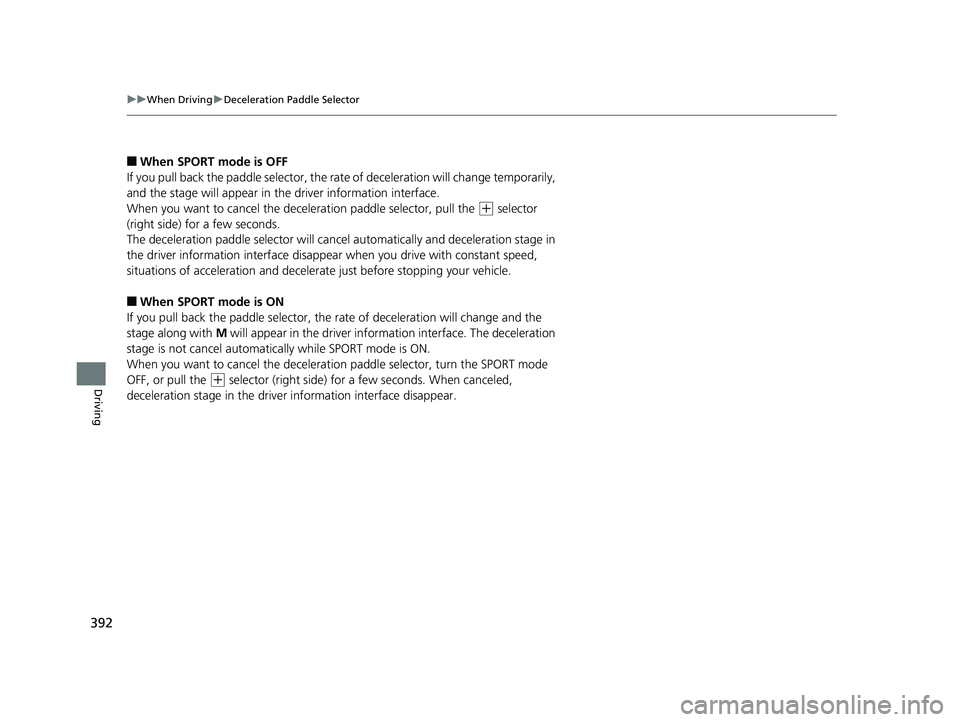

392 uu When Driving u Deceleration Paddle Selector
Driving ■ When SPORT mode is OFF
If you pull back the paddle selector, the rate of deceleration will change temporarily,
and the stage will appear in th e driver information interface.
When you want to cancel the deceleration paddle selector, pull the ( +
selector
(right side) for a few seconds.
The deceleration paddle selector will cancel automatically and deceleration stage in
the driver information interface disappear when you drive with constant speed,
situations of acceleration and decelerate just before stopping your vehicle.
■ When SPORT mode is ON
If you pull back the paddle selector, the rate of deceleration will change and the
stage along with M will appear in the driver inform ation interface. The deceleration
stage is not cancel automatica lly while SPORT mode is ON.
When you want to cancel the deceleration paddle selector, turn the SPORT mode
OFF, or pull the ( +
selector (right side) for a few seconds. When canceled,
deceleration stage in the driver information interface disappear.18 CLARITY PHEV CSS-31TRW6000.book 392 ページ ２０１７年８月３１日　木曜日　午後２時４９分

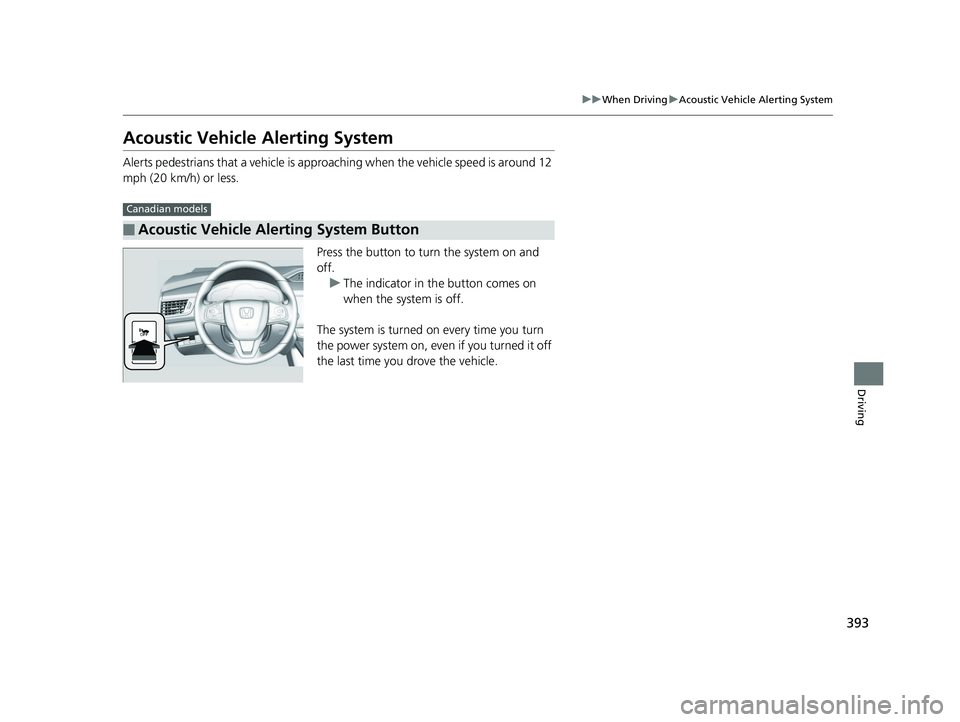

393uu When Driving u Acoustic Vehicle Alerting System
Driving
Acoustic Vehicle Alerting System Alerts pedestrians that a vehicle is approa ching when the vehicle speed is around 12
mph (20 km/h) or less.
Press the button to turn the system on and
off.
u The indicator in th e button comes on
when the system is off.
The system is turned on every time you turn
the power system on, even if you turned it off
the last time you drove the vehicle.■ Acoustic Vehicle Alerting System Button Canadian models18 CLARITY PHEV CSS-31TRW6000.book 393 ページ ２０１７年８月３１日　木曜日　午後２時４９分

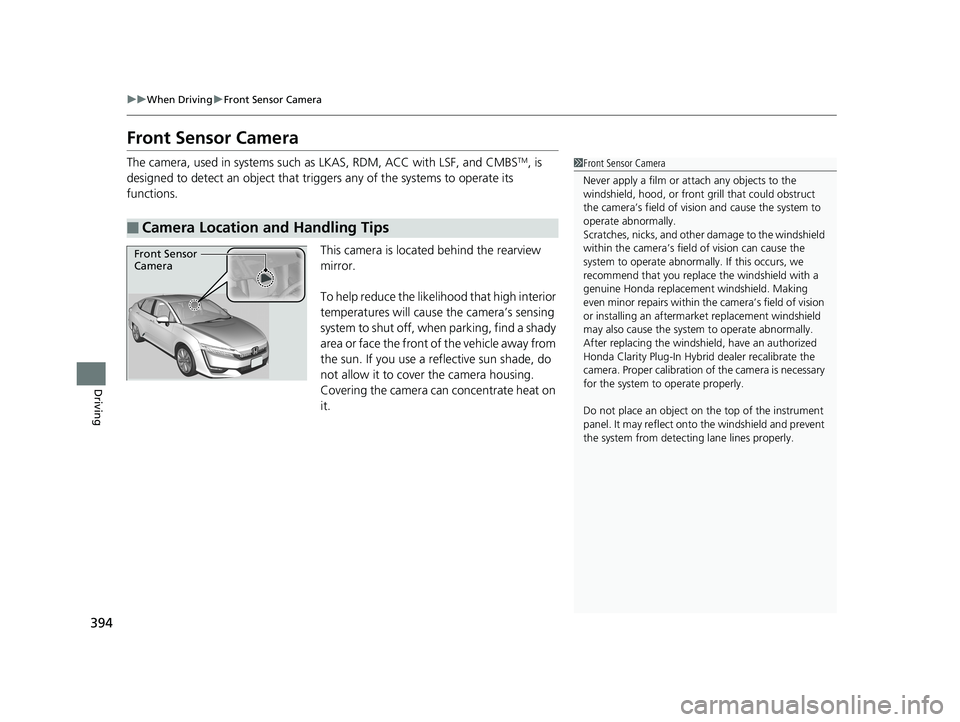

394 uu When Driving u Front Sensor Camera
Driving Front Sensor Camera The camera, used in systems such as LKAS, RDM, ACC with LSF, and CMBS TM
, is
designed to detect an object that triggers any of the systems to operate its
functions.
This camera is located behind the rearview
mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a re flective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.■ Camera Location and Handling Tips 1 Front Sensor Camera
Never apply a film or attach any objects to the
windshield, hood, or front grill that could obstruct
the camera’s field of vision and cause the system to
operate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s fiel d of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Honda replacem ent windshield. Making
even minor repairs within th e camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing th e windshield, have an authorized
Honda Clarity Plug-In Hybrid dealer recalibrate the
camera. Proper calibration of the camera is necessary
for the system to operate properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detect ing lane lines properly.Front Sensor
Camera18 CLARITY PHEV CSS-31TRW6000.book 394 ページ ２０１７年８月３１日　木曜日　午後２時４９分

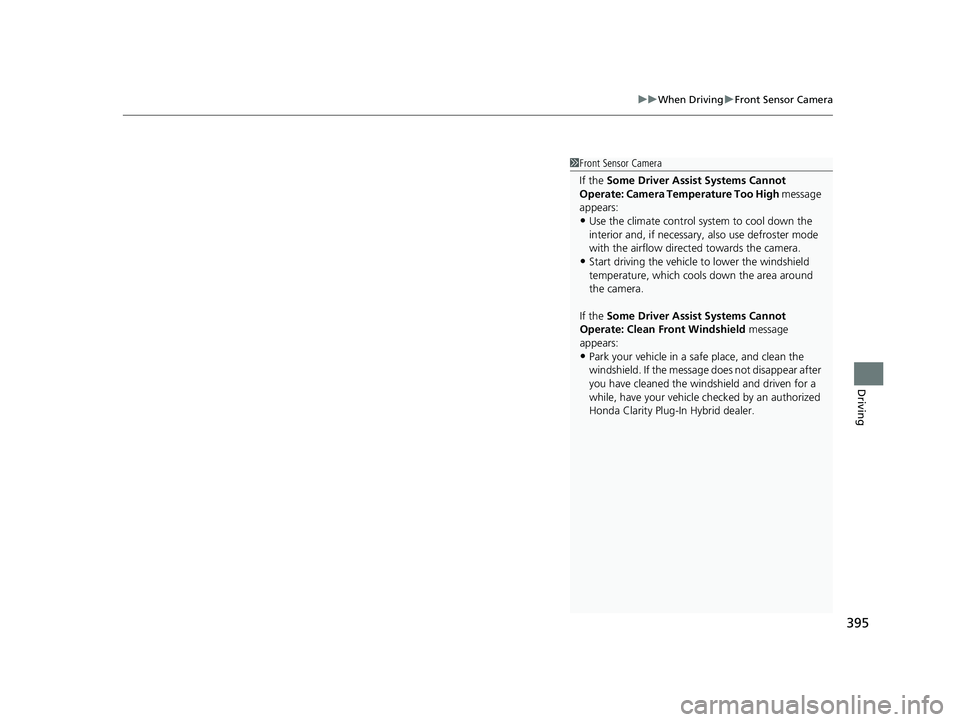

395 uu When Driving u Front Sensor Camera
Driving
1 Front Sensor Camera
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears:
• Use the climate control system to cool down the
interior and, if necessary, also use de froster mode
with the airflow directed towards the camera.
• Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
• Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by an authorized
Honda Clarity Plug-In Hybrid dealer.18 CLARITY PHEV CSS-31TRW6000.book 395 ページ ２０１７年８月３１日　木曜日　午後２時４９分

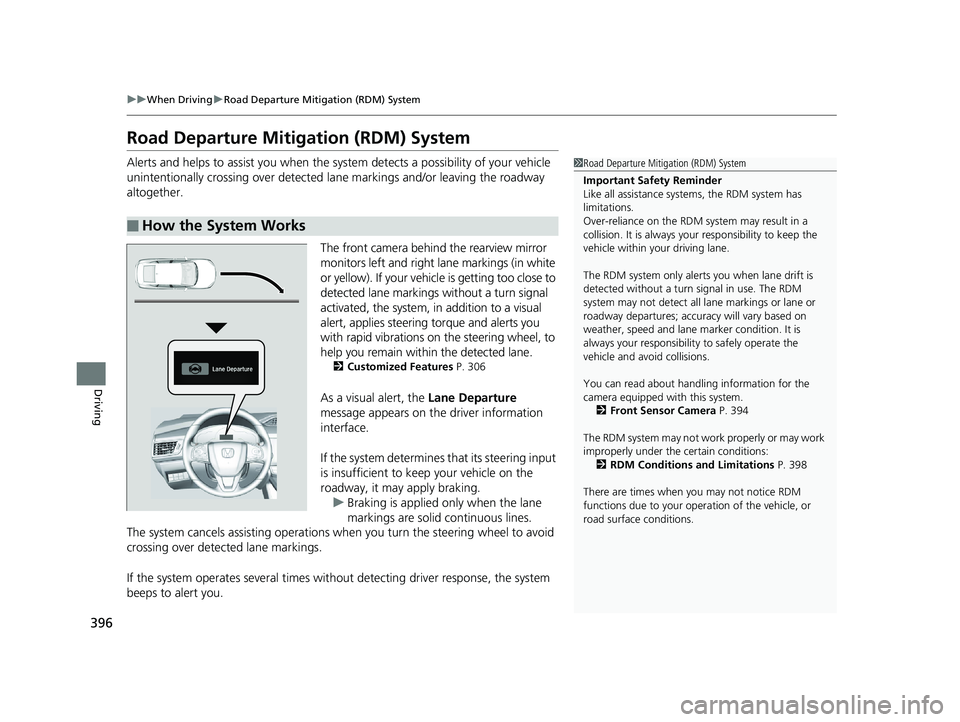

396 uu When Driving u Road Departure Mitigation (RDM) System
Driving Road Departure Mitigation (RDM) System Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected la ne markings and/or leaving the roadway
altogether.
The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicl e is getting too close to
detected lane markings without a turn signal
activated, the system, in addition to a visual
alert, applies steering torque and alerts you
with rapid vibrations on the steering wheel, to
help you remain within the detected lane. 2 Customized Features P. 306
As a visual alert, the Lane Departure
message appears on the driver information
interface.
If the system determines that its steering input
is insufficient to keep your vehicle on the
roadway, it may apply braking.
u Braking is applied only when the lane
markings are solid continuous lines.
The system cancels assisting operations when you turn th e steering wheel to avoid
crossing over detected lane markings.
If the system operates several times without detecting driver response, the system
beeps to alert you.■ How the System Works 1 Road Departure Mitigation (RDM) System
Important Safety Reminder
Like all assistance systems, the RDM system has
limitations.
Over-reliance on the RDM system may result in a
collision. It is always your responsibility to keep the
vehicle within your driving lane.
The RDM system only alerts you when lane drift is
detected without a turn signal in use. The RDM
system may not detect all la ne markings or lane or
roadway departures; accu racy will vary based on
weather, speed and lane marker condition. It is
always your responsibilit y to safely operate the
vehicle and avoid collisions.
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera P. 394
The RDM system may not wo rk properly or may work
improperly under the certain conditions:
2 RDM Conditions and Limitations P. 398
There are times when you may not notice RDM
functions due to your opera tion of the vehicle, or
road surface conditions.18 CLARITY PHEV CSS-31TRW6000.book 396 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued

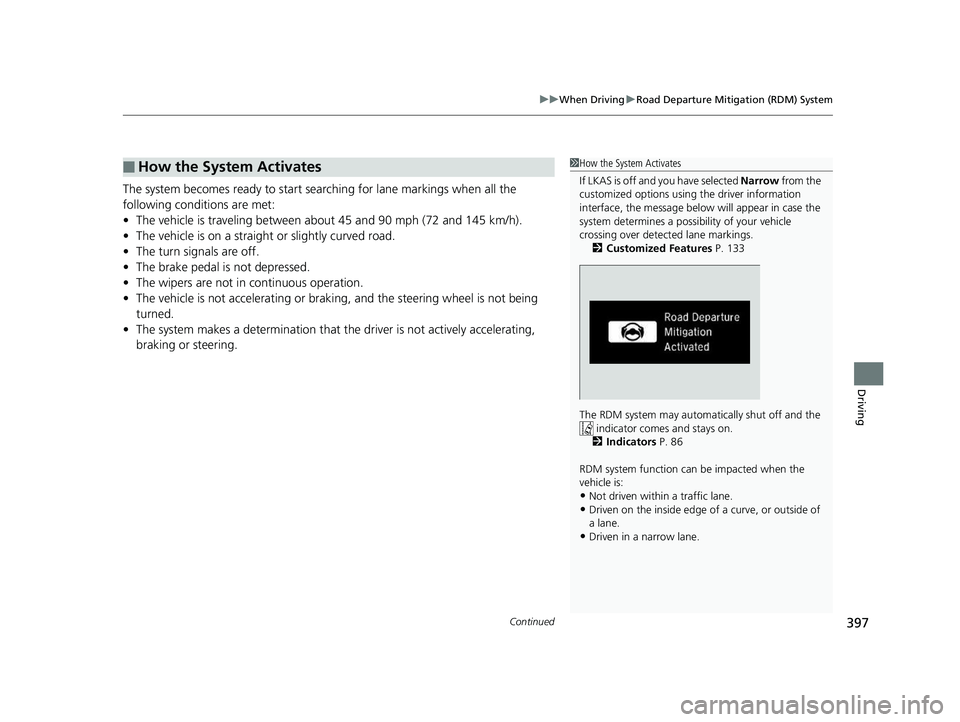

397uu When Driving u Road Departure Mitigation (RDM) System
Driving
The system becomes ready to start sear ching for lane mark ings when all the
following conditions are met:
• The vehicle is traveling between about 45 and 90 mph (72 and 145 km/h).
• The vehicle is on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.
• The vehicle is not accelera ting or braking, and the steering wheel is not being
turned.
• The system makes a determination that th e driver is not actively accelerating,
braking or steering.■ How the System Activates 1 How the System Activates
If LKAS is off and you have selected Narrow from the
customized options using the driver information
interface, the message below will appear in case the
system determines a possibility of your vehicle
crossing over detect ed lane markings.
2 Customized Features P. 133
The RDM system may automa tically shut off and the
indicator comes and stays on.
2 Indicators P. 86
RDM system function can be impacted when the
vehicle is:
• Not driven within a traffic lane.
• Driven on the inside edge of a curve, or outside of
a lane.
• Driven in a narrow lane.18 CLARITY PHEV CSS-31TRW6000.book 397 ページ ２０１７年８月３１日　木曜日　午後２時４９分

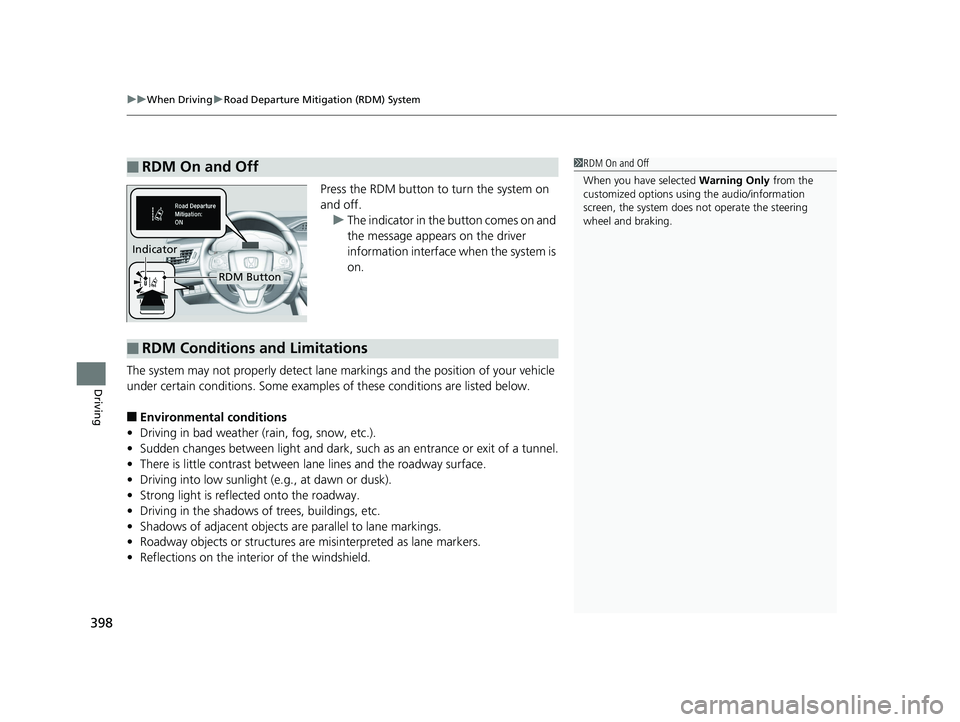

uu When Driving u Road Departure Mitigation (RDM) System
398
Driving Press the RDM button to turn the system on
and off.
u The indicator in the button comes on and
the message appears on the driver
information interface when the system is
on.
The system may not properly detect lane ma rkings and the position of your vehicle
under certain conditions. Some examples of these conditions are listed below.
■ Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, su ch as an entrance or exit of a tunnel.
• There is little contrast between la ne lines and the roadway surface.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto the roadway.
• Driving in the shadows of trees, buildings, etc.
• Shadows of adjacent objects are parallel to lane markings.
• Roadway objects or structures are misinterpreted as lane markers.
• Reflections on the interi or of the windshield.■ RDM On and Off 1 RDM On and Off
When you have selected Warning Only from the
customized options using the audio/information
screen, the system does not operate the steering
wheel and braking.
RDM ButtonIndicator
■ RDM Conditions and Limitations 18 CLARITY PHEV CSS-31TRW6000.book 398 ページ ２０１７年８月３１日　木曜日　午後２時４９分
