HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

429 uu When Driving u LaneWatch TM
Continued
Driving

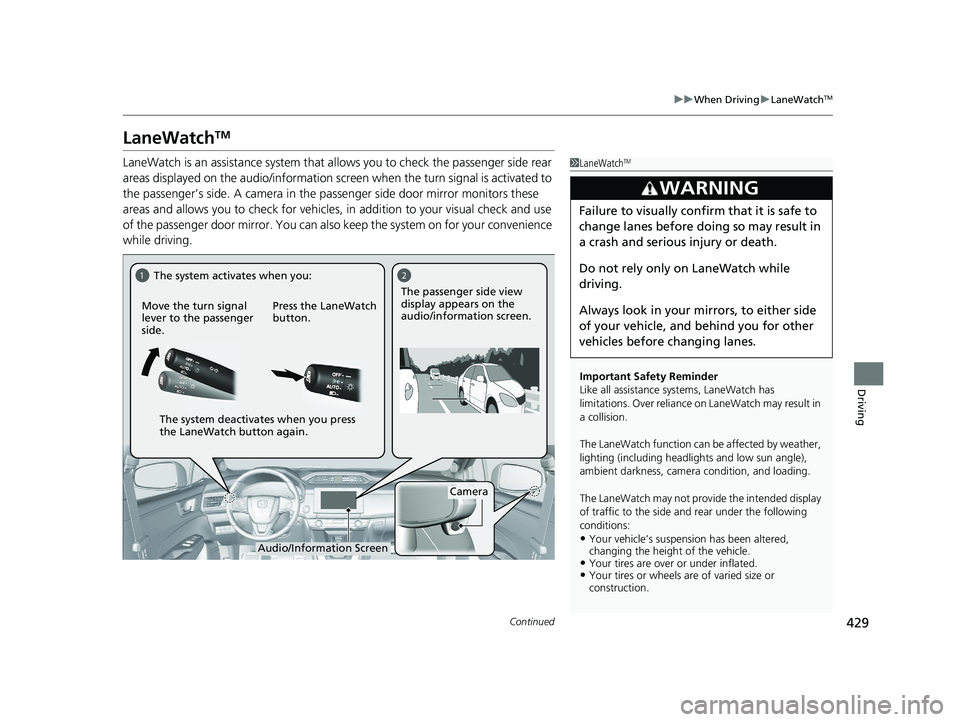

LaneWatch TM
LaneWatch is an assistance system that al lows you to check the passenger side rear
areas displayed on the audio/information screen when the turn signal is activated to
the passenger’s side. A camera in the pa ssenger side door mi rror monitors these
areas and allows you to check for vehicles, in addition to your visual check and use
of the passenger door mirror. You can also keep the system on for your convenience
while driving. 1 LaneWatch TM
Important Safety Reminder
Like all assistance systems, LaneWatch has
limitations. Over reliance on LaneWatch may result in
a collision.
The LaneWatch func tion can be affect ed by weather,
lighting (including headli ghts and low sun angle),
ambient darkness, camera condition, and loading.
The LaneWatch may not prov ide the intended display
of traffic to the side a nd rear under the following
conditions:
• Your vehicle’s suspension has been altered,
changing the height of the vehicle.
• Your tires are over or under inflated.
• Your tires or wheels are of varied size or
construction.3
WARNING Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.
Do not rely only on LaneWatch while
driving.
Always look in your mi rrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.1 2
CameraMove the turn signal
lever to the passenger
side. Press the LaneWatch
button. The passenger side view
display appears on the
audio/information screen.The system activates when you:
The system deactivates when you press
the LaneWatch button again.
Audio/Information Screen18 CLARITY PHEV CSS-31TRW6000.book 429 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu When Driving u LaneWatch TM
430

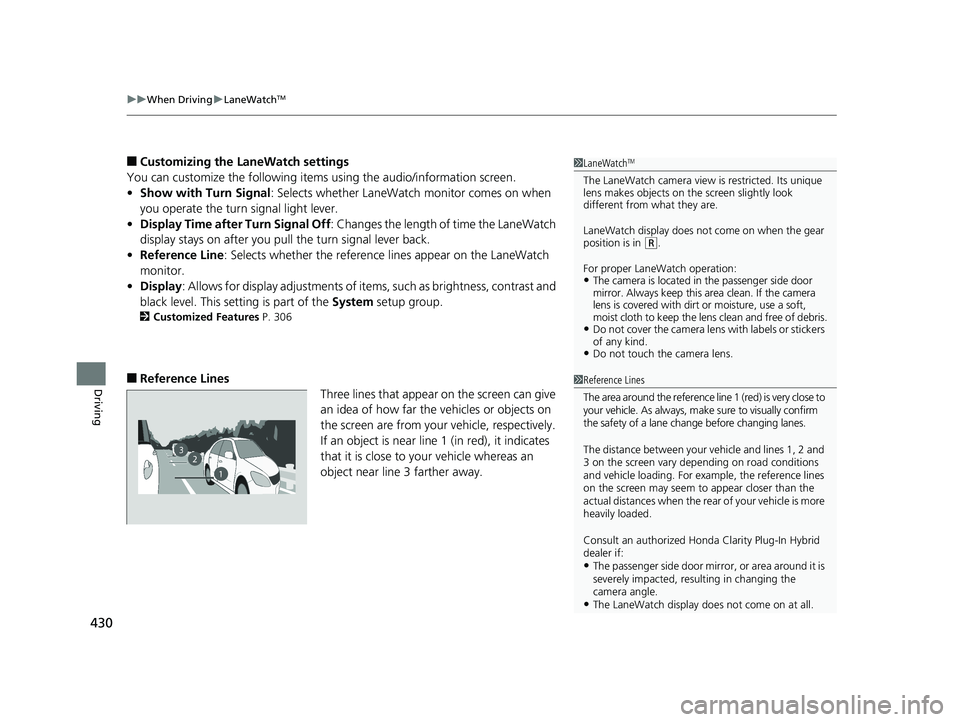

Driving ■ Customizing the LaneWatch settings
You can customize the following items using the audio/information screen.
• Show with Turn Signal : Selects whether LaneWatch monitor comes on when
you operate the turn signal light lever.
• Display Time after Turn Signal Off : Changes the length of time the LaneWatch
display stays on after you pull the turn signal lever back.
• Reference Line : Selects whether the reference lines appear on the LaneWatch
monitor.
• Display : Allows for display adjustments of items, such as brightness, contrast and
black level. This se tting is part of the System setup group.2 Customized Features P. 306
■ Reference Lines
Three lines that appear on the screen can give
an idea of how far the vehicles or objects on
the screen are from your vehicle, respectively.
If an object is near line 1 (in red), it indicates
that it is close to y our vehicle whereas an
object near line 3 farther away. 1 LaneWatch TM
The LaneWatch camera view is restricted. Its unique
lens makes objects on the screen slightly look
different from what they are.
LaneWatch display does not come on when the gear
position is in ( R
.
For proper LaneWatch operation:
• The camera is located in the passenger side door
mirror. Always keep this area clean. If the camera
lens is covered with dirt or moisture, use a soft,
moist cloth to keep the lens clean and free of debris.
• Do not cover the camera lens with labels or stickers
of any kind.
• Do not touch the camera lens.
23
1 1 Reference Lines
The area around the reference line 1 (red) is very close to
your vehicle. As always, m ake sure to visually confirm
the safety of a lane chan ge before changing lanes.
The distance betwee n your vehicle and lines 1, 2 and
3 on the screen vary depending on road conditions
and vehicle loading. For ex ample, the reference lines
on the screen may seem to appear closer than the
actual distances when the rear of your vehicle is more
heavily loaded.
Consult an authorized Honda Clarity Plug-In Hybrid
dealer if:
• The passenger side door mirr or, or area around it is
severely impacted, resulting in changing the
camera angle.
• The LaneWatch display doe s not come on at all.18 CLARITY PHEV CSS-31TRW6000.book 430 ページ ２０１７年８月３１日　木曜日　午後２時４９分

431Continued
Driving

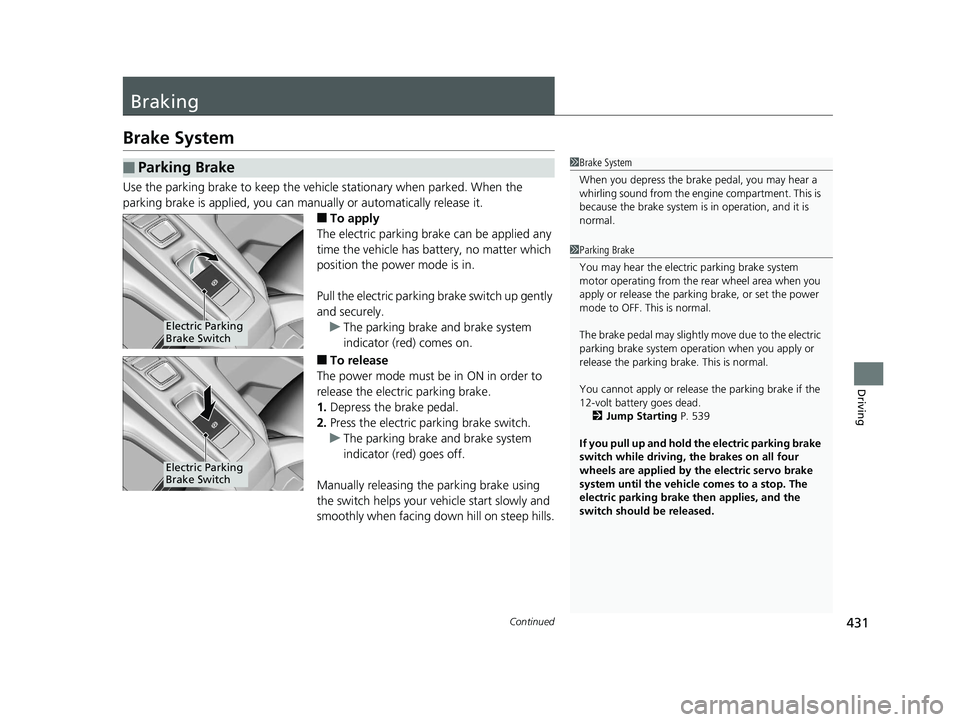

Braking Brake System Use the parking brake to keep the vehicl e stationary when parked. When the
parking brake is applied, you can manu ally or automatically release it.
■ To apply
The electric parking brake can be applied any
time the vehicle has battery, no matter which
position the power mode is in.
Pull the electric parking brake switch up gently
and securely.
u The parking brake and brake system
indicator (red) comes on.
■ To release
The power mode must be in ON in order to
release the electric parking brake.
1. Depress the brake pedal.
2. Press the electric parking brake switch.
u The parking brake and brake system
indicator (red) goes off.
Manually releasing the parking brake using
the switch helps your vehicle start slowly and
smoothly when facing down hill on steep hills.■ Parking Brake 1 Brake System
When you depress the brak e pedal, you may hear a
whirling sound from the engine compartment. This is
because the brake system is in operation, and it is
normal.
1 Parking Brake
You may hear the electric parking brake system
motor operating from the re ar wheel area when you
apply or release the parki ng brake, or set the power
mode to OFF. This is normal.
The brake pedal may slightly move due to the electric
parking brake system opera tion when you apply or
release the parking br ake. This is normal.
You cannot apply or release the parking brake if the
12-volt battery goes dead.
2 Jump Starting P. 539
If you pull up and hold the electric parking brake
switch while driving, the brakes on all four
wheels are applied by the electric servo brake
system until the vehicle comes to a stop. The
electric parking brake then applies, and the
switch should be released.Electric Parking
Brake Switch
Electric Parking
Brake Switch18 CLARITY PHEV CSS-31TRW6000.book 431 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Braking u Brake System
432

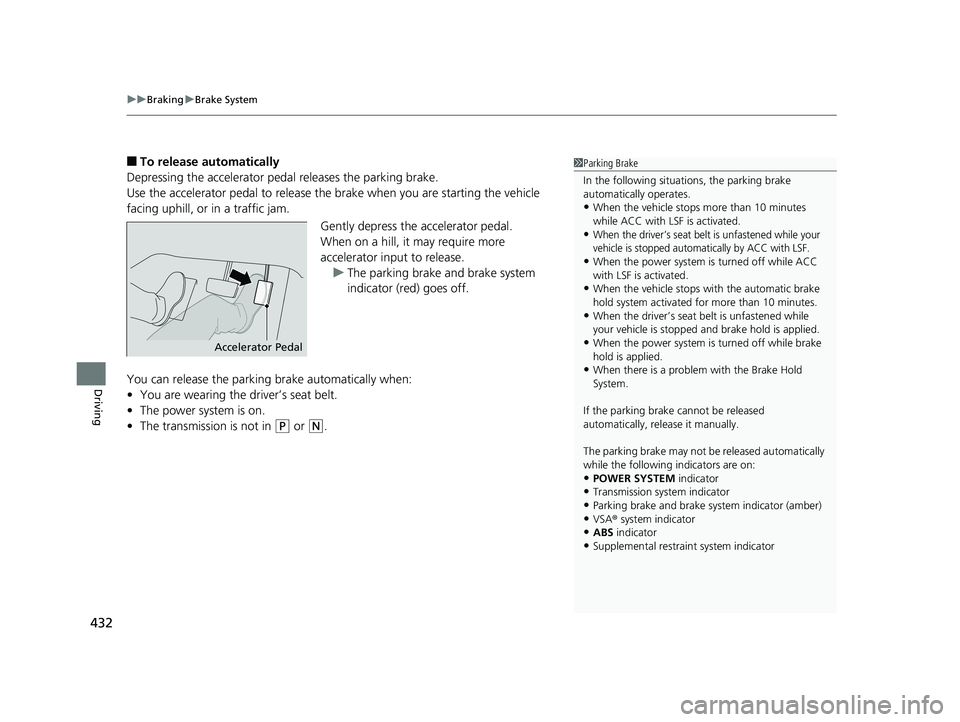

Driving ■ To release automatically
Depressing the accelerator pedal releases the parking brake.
Use the accelerator pedal to release th e brake when you are starting the vehicle
facing uphill, or in a traffic jam.
Gently depress the accelerator pedal.
When on a hill, it may require more
accelerator input to release.
u The parking brake and brake system
indicator (red) goes off.
You can release the parki ng brake automatically when:
• You are wearing the driver’s seat belt.
• The power system is on.
• The transmission is not in ( P
or ( N
. 1 Parking Brake
In the following situations, the parking brake
automatically operates.
• When the vehicle stops more than 10 minutes
while ACC with LSF is activated.
• When the driver’s seat belt is unfastened while your
vehicle is stopped automatically by ACC with LSF.
• When the power system is turned off while ACC
with LSF is activated.
• When the vehicle stops with the automatic brake
hold system activated for more than 10 minutes.
• When the driver’s seat belt is unfastened while
your vehicle is stopped and brake hold is applied.
• When the power system is turned off while brake
hold is applied.
• When there is a problem with the Brake Hold
System.
If the parking brake cannot be released
automatically, release it manually.
The parking brake may not be released automatically
while the following indicators are on:
• POWER SYSTEM indicator
• Transmission system indicator
• Parking brake and brake sy stem indicator (amber)
• VSA ® system indicator
• ABS indicator
• Supplemental restraint system indicatorAccelerator Pedal18 CLARITY PHEV CSS-31TRW6000.book 432 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued
433 uu Braking u Brake System
Driving

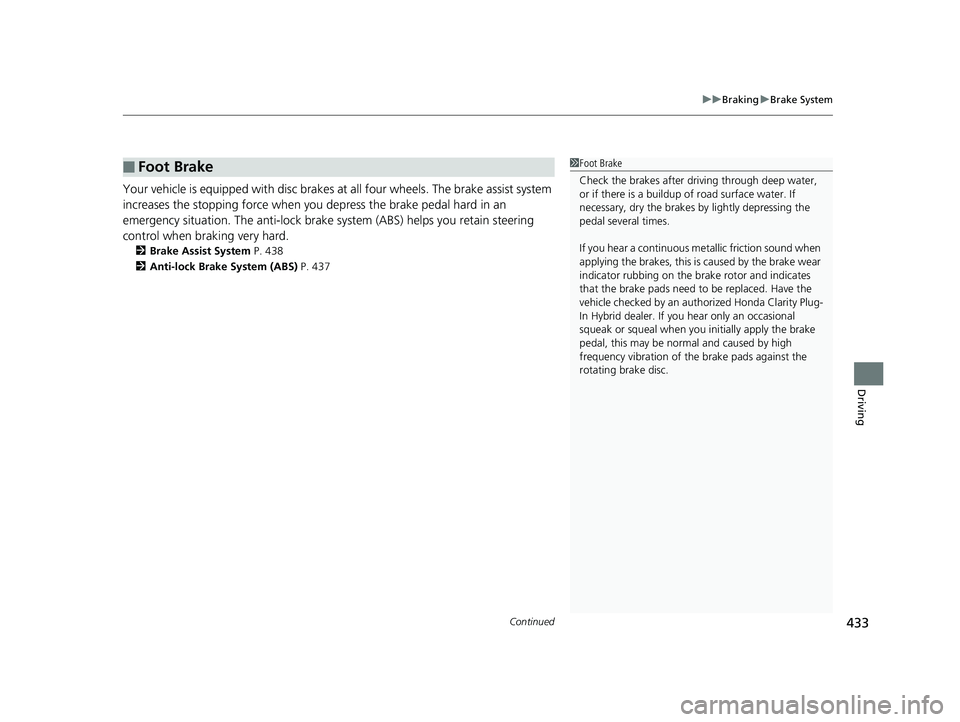

Your vehicle is equipped with disc brakes at all four wheels. The brake assist system
increases the stopping force when you depress the brake pedal hard in an
emergency situation. The an ti-lock brake system (ABS) helps you retain steering

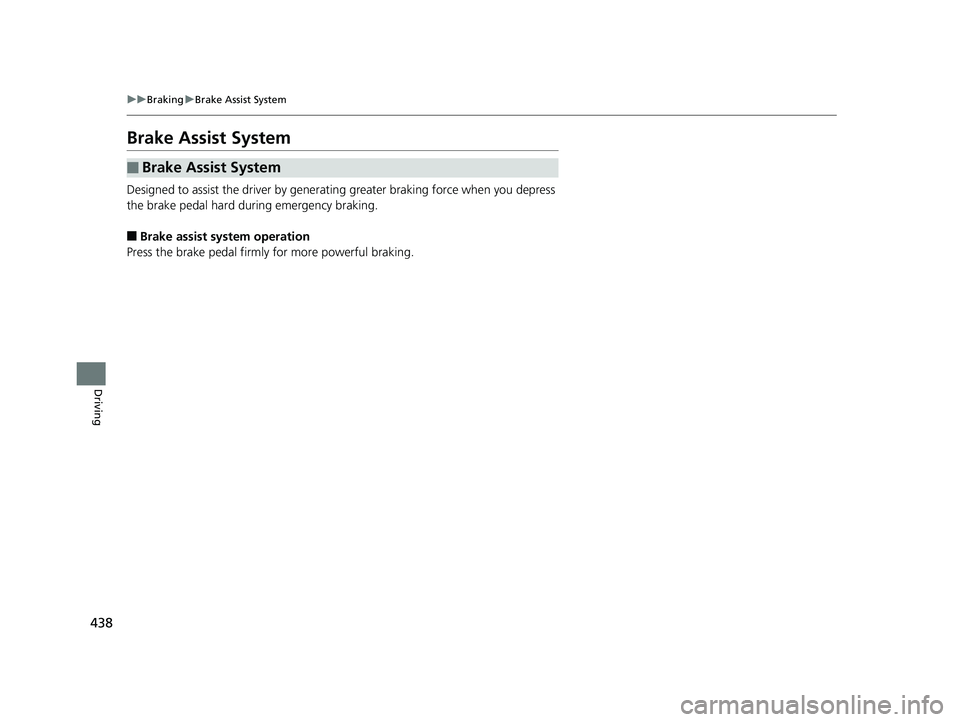

control when brak ing very hard.2 Brake Assist System P. 438
2 Anti-lock Brake System (ABS) P. 437
■ Foot Brake 1 Foot Brake
Check the brakes after driving through deep water,
or if there is a buildup of road surface water. If
necessary, dry the brakes by lightly depressing the
pedal several times.
If you hear a continuous me tallic friction sound when
applying the brakes, this is caused by the brake wear
indicator rubbing on the brake rotor and indicates
that the brake pads need to be replaced. Have the
vehicle checked by an aut horized Honda Clarity Plug-
In Hybrid dealer. If you hear only an occasional
squeak or squeal when y ou initially apply the brake
pedal, this may be nor mal and caused by high
frequency vibration of th e brake pads against the
rotating brake disc.18 CLARITY PHEV CSS-31TRW6000.book 433 ページ ２０１７年８月３１日　木曜日　午後２時４９分

uu Braking u Brake System
434

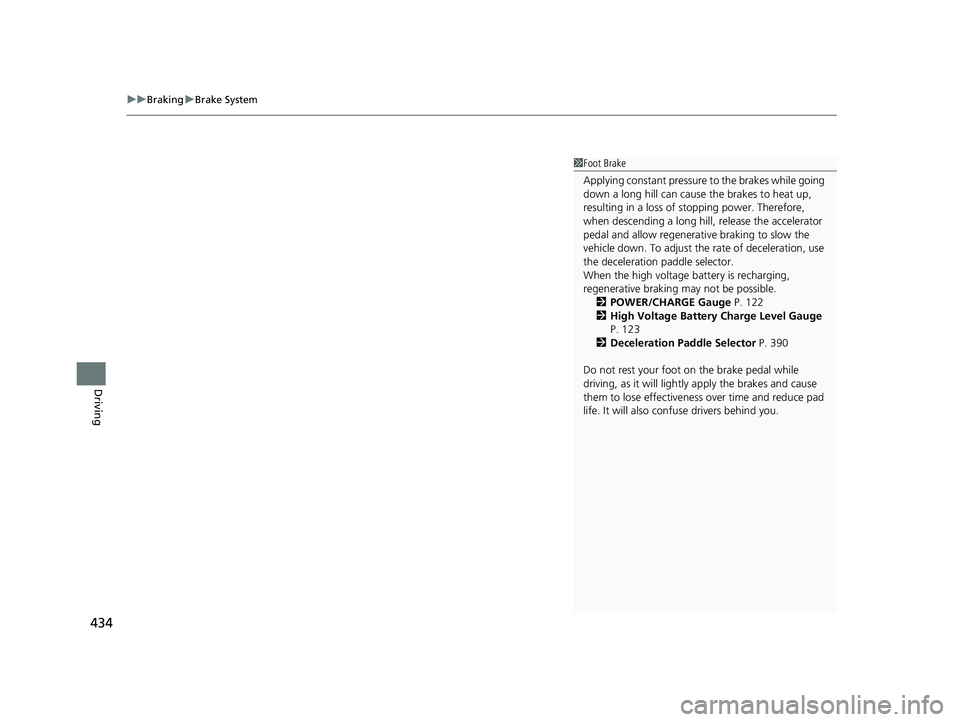

Driving 1 Foot Brake
Applying constant pressure to the brakes while going
down a long hill can cause the brakes to heat up,
resulting in a loss of stopping power. Therefore,
when descending a long hill , release the accelerator
pedal and allow regenerati ve braking to slow the
vehicle down. To adjust the rate of deceleration, use
the deceleration paddle selector.
When the high voltage battery is recharging,
regenerative braking may not be possible.
2 POWER/CHARGE Gauge P. 122
2 High Voltage Battery Charge Level Gauge
P. 123
2 Deceleration Paddle Selector P. 390
Do not rest your foot on the brake pedal while
driving, as it will lightly apply the brakes and cause
them to lose effectiveness over time and reduce pad
life. It will also conf use drivers behind you.18 CLARITY PHEV CSS-31TRW6000.book 434 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued
435 uu Braking u Brake System
Driving

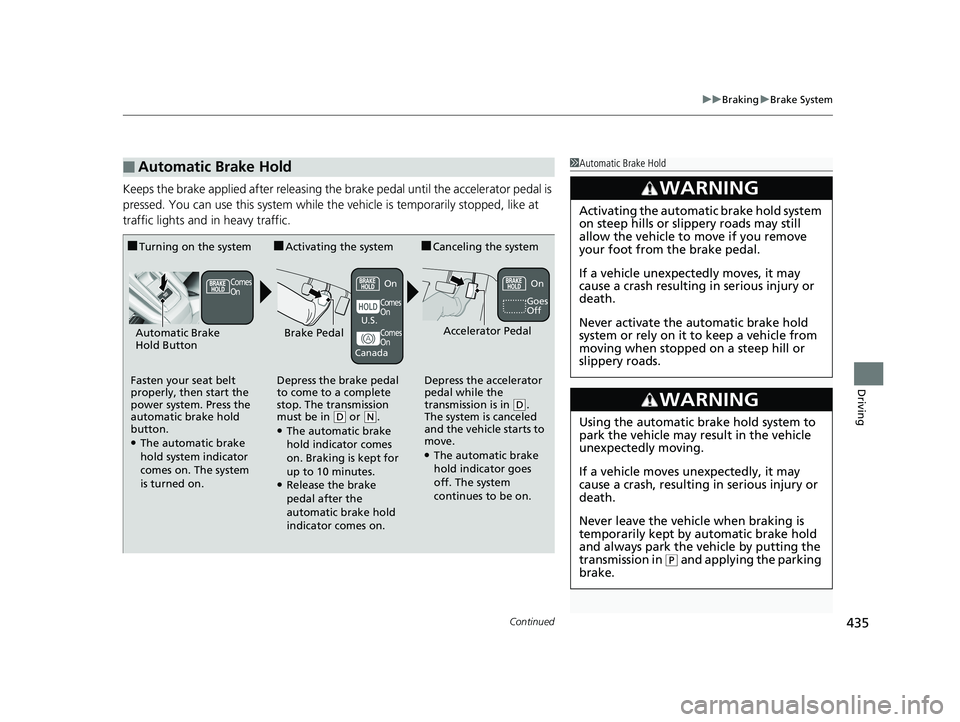

Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while th e vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.
■ Automatic Brake Hold 1 Automatic Brake Hold
3
WARNING Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3
WARNING Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicl e when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in ( P
and applying the parking
brake.■ Turning on the system
Fasten your seat belt
properly, then start the
power system. Press the
automatic brake hold
button. ●
The automatic brake
hold system indicator
comes on. The system
is turned on. ■ Activating the system
Depress the brake pedal
to come to a complete
stop. The transmission
must be in ( D
or ( N
. ●
The automatic brake
hold indicator comes
on. Braking is kept for
up to 10 minutes. ●
Release the brake
pedal after the
automatic brake hold
indicator comes on. ■ Canceling the system
Depress the accelerator
pedal while the
transmission is in ( D
.
The system is canceled
and the vehicle starts to
move. ●
The automatic brake
hold indicator goes
off. The system
continues to be on. Accelerator Pedal
Brake PedalAutomatic Brake
Hold Button Goes
OffComes
On On On
Comes
On
Comes
OnU.S.
Canada18 CLARITY PHEV CSS-31TRW6000.book 435 ページ ２０１７年８月３１日　木曜日　午後２時４９分

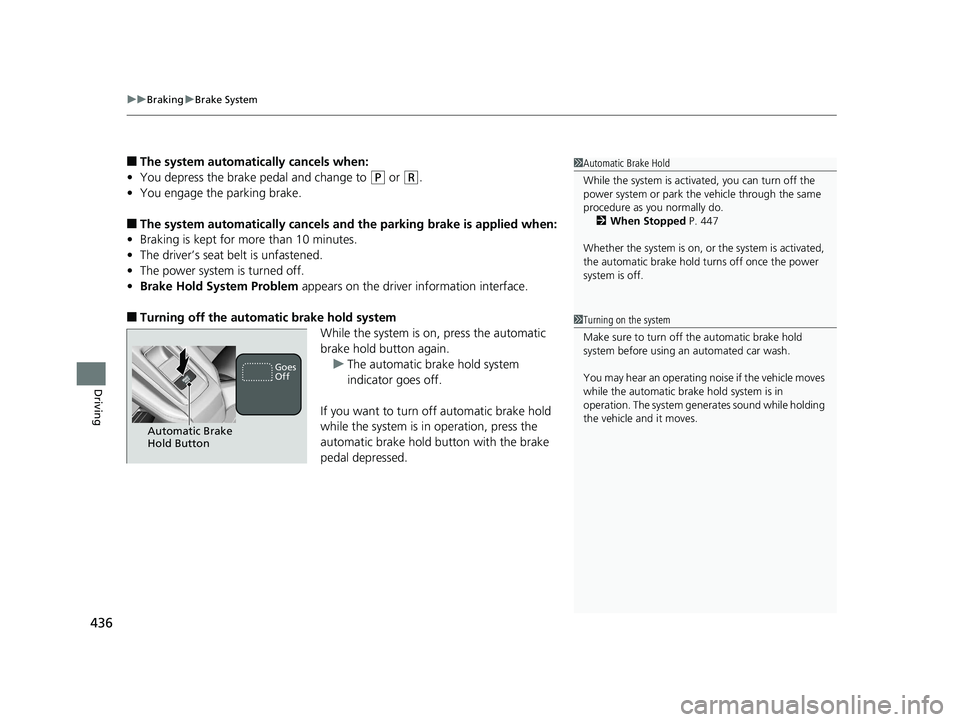

uu Braking u Brake System
436
Driving ■ The system automatically cancels when:
• You depress the brake pedal and change to ( P
or ( R
.
• You engage the parking brake.
■ The system automatically cancels and the parking brake is applied when:
• Braking is kept for more than 10 minutes.
• The driver’s seat belt is unfastened.
• The power system is turned off.
• Brake Hold System Problem appears on the driver information interface.
■ Turning off the automatic brake hold system
While the system is on, press the automatic
brake hold button again.
u The automatic brake hold system
indicator goes off.
If you want to turn off automatic brake hold
while the system is in operation, press the
automatic brake hold button with the brake
pedal depressed. 1 Automatic Brake Hold
While the system is activated, you can turn off the
power system or park th e vehicle through the same
procedure as you normally do.
2 When Stopped P. 447
Whether the system is on, or the system is activated,
the automatic brake hold turns off once the power
system is off.
1 Turning on the system
Make sure to turn off the automatic brake hold
system before using an automated car wash.
You may hear an operating noi se if the vehicle moves
while the automatic brake hold system is in
operation. The system ge nerates sound while holding
the vehicle and it moves.
Automatic Brake
Hold Button Goes
Off18 CLARITY PHEV CSS-31TRW6000.book 436 ページ ２０１７年８月３１日　木曜日　午後２時４９分

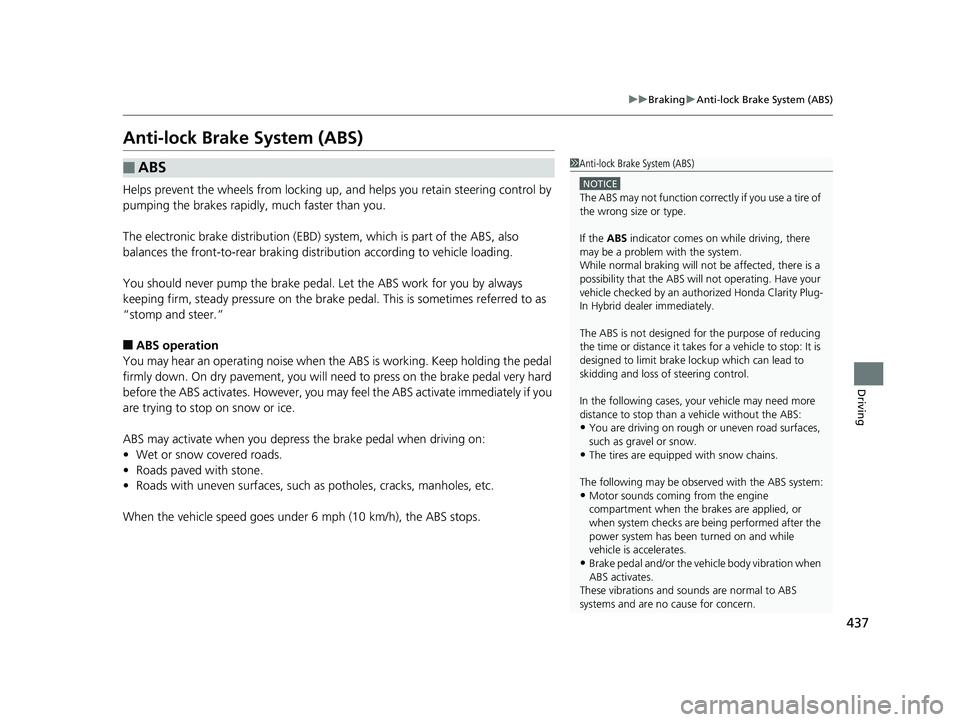

437uu Braking u Anti-lock Brake System (ABS)
Driving
Anti-lock Brake System (ABS) Helps prevent the wheels from locking up, and helps you retain steering control by
pumping the brakes rapidly, much faster than you.
The electronic brake distribu tion (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distribution according to vehicle loading.
You should never pu mp the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pe dal. This is sometimes referred to as
“stomp and steer.”
■ ABS operation
You may hear an operating noise when the ABS is working. Keep holding the pedal
firmly down. On dry pavement, you will ne ed to press on the brake pedal very hard
before the ABS activates. Ho wever, you may feel the ABS activate immediately if you
are trying to stop on snow or ice.
ABS may activate when you depres s the brake pedal when driving on:
• Wet or snow covered roads.
• Roads paved with stone.
• Roads with uneven surf aces, such as potholes , cracks, manholes, etc.
When the vehicle speed goes unde r 6 mph (10 km/h), the ABS stops.■ ABS 1 Anti-lock Brake System (ABS) NOTICE
The ABS may not function correc tly if you use a tire of
the wrong size or type.
If the ABS indicator comes on while driving, there
may be a problem with the system.
While normal braking will not be affected, there is a
possibility that the ABS will not operating. Have your
vehicle checked by an aut horized Honda Clarity Plug-
In Hybrid dealer immediately.
The ABS is not designed for the purpose of reducing
the time or distance it takes for a vehicle to stop: It is
designed to limit brake lockup which can lead to
skidding and loss of steering control.
In the following cases, yo ur vehicle may need more
distance to stop than a vehicle without the ABS:
• You are driving on rough or uneven road surfaces,
such as gravel or snow.
• The tires are equipped with snow chains.
The following may be observed with the ABS system:
• Motor sounds coming from the engine
compartment when the brakes are applied, or
when system checks are being performed after the
power system has been turned on and while
vehicle is accelerates.
• Brake pedal and/or the ve hicle body vibration when
ABS activates.
These vibrations and sou nds are normal to ABS
systems and are no cause for concern.18 CLARITY PHEV CSS-31TRW6000.book 437 ページ ２０１７年８月３１日　木曜日　午後２時４９分

438 uu Braking u Brake Assist System
Driving Brake Assist System Designed to assist the driver by generati ng greater braking force when you depress
the brake pedal hard during emergency braking.
■ Brake assist system operation
Press the brake pedal firmly for more powerful braking.
■ Brake Assist System 18 CLARITY PHEV CSS-31TRW6000.book 438 ページ ２０１７年８月３１日　木曜日　午後２時４９分
