HONDA CLARITY PLUG IN HYBRID 2018 Owners Manual

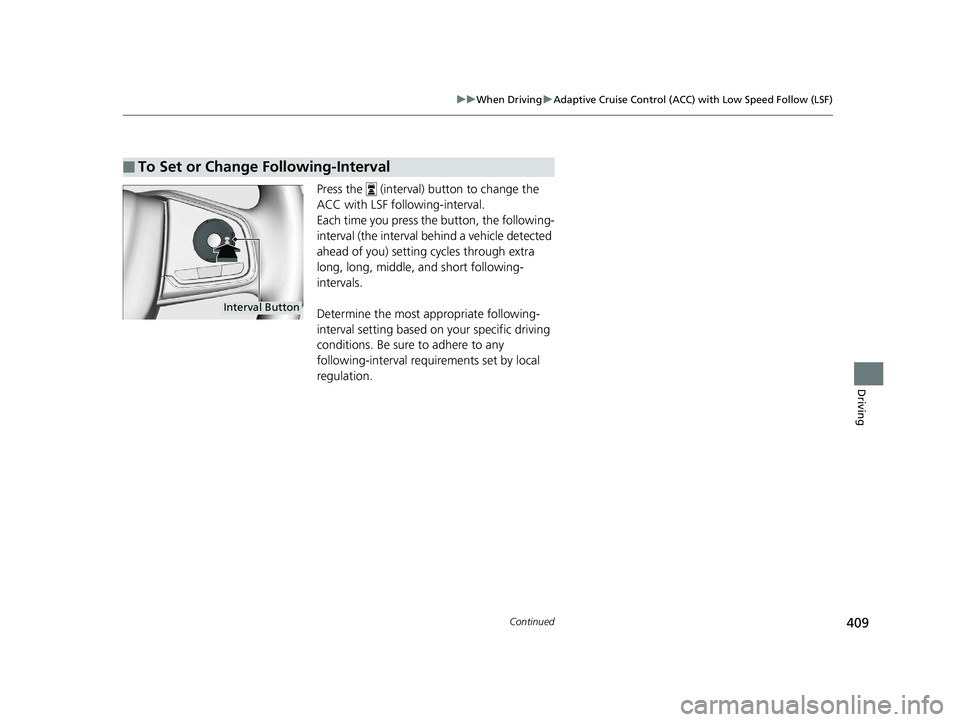

409uu When Driving u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
Continued
Driving
Press the (interval) button to change the
ACC with LSF foll owing-interval.
Each time you press th e button, the following-
interval (the interval behind a vehicle detected
ahead of you) setting cycles through extra
long, long, middle, and short following-
intervals.
Determine the most appropriate following-
interval setting based on your specific driving
conditions. Be sure to adhere to any
following-interval requirements set by local
regulation.■ To Set or Change Following-Interval Interval Button18 CLARITY PHEV CSS-31TRW6000.book 409 ページ ２０１７年８月３１日　木曜日　午後２時４９分

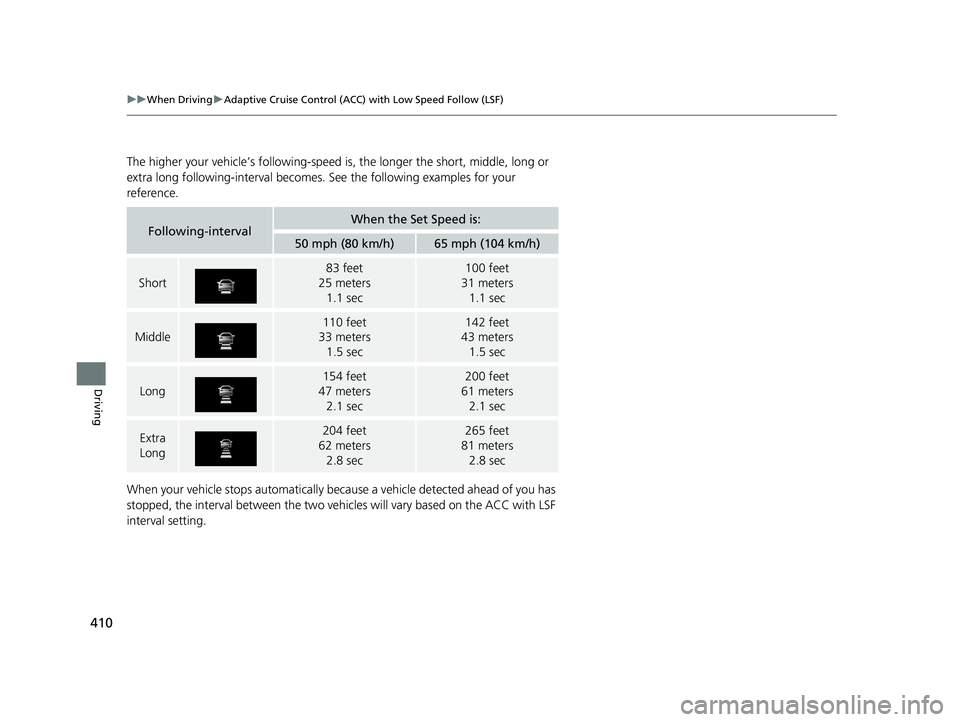

410 uu When Driving u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
Driving The higher your vehicle’s following-speed is, the longer the short, middle, long or
extra long following-interval becomes. See the following examples for your
reference.
When your vehicle stops automatically beca use a vehicle detected ahead of you has
stopped, the interval between the two vehi cles will vary based on the ACC with LSF
interval setting. Following-interval When the Set Speed is:
50 mph (80 km/h) 65 mph (104 km/h)
Short 83 feet
25 meters
1.1 sec 100 feet
31 meters
1.1 sec
Middle 110 feet
33 meters
1.5 sec 142 feet
43 meters
1.5 sec
Long 154 feet
47 meters
2.1 sec 200 feet
61 meters
2.1 sec
Extra
Long 204 feet
62 meters
2.8 sec 265 feet
81 meters
2.8 sec18 CLARITY PHEV CSS-31TRW6000.book 410 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued
411uu When Driving u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
Driving
To cancel ACC with LSF, do any of the
following:
• Press the CANCEL button.
• Press the MAIN button.
u ACC with LSF indicator goes off.
• Depress the brake pedal.
u When the LSF function has stopped the
vehicle, you cannot cancel ACC with LSF
by depressing the brake pedal.■ To Cancel 1 To Cancel
Resuming the prior set speed: After you have
canceled ACC with LSF, you can resume the prior set
speed while it is still displayed. Press the RES/+
button.
The set speed cannot be set or resumed when ACC
with LSF has been turned off using the MAIN button.
Press the MAIN button to activate the system, then
set the desired speed.CANCEL
Button
MAIN
Button18 CLARITY PHEV CSS-31TRW6000.book 411 ページ ２０１７年８月３１日　木曜日　午後２時４９分

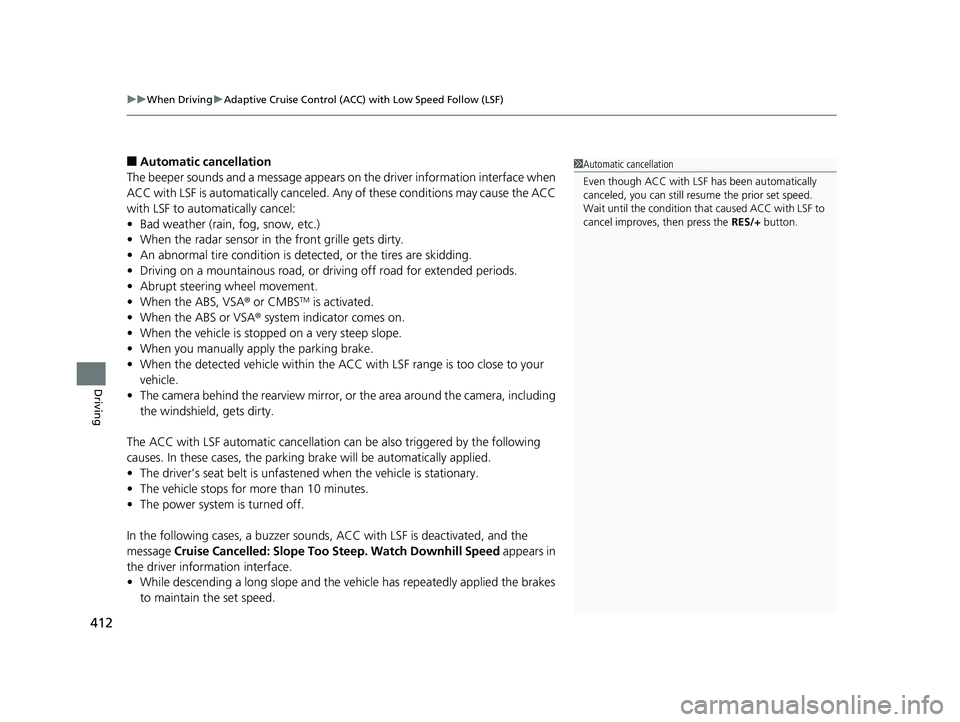

uu When Driving u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
412
Driving ■ Automatic cancellation
The beeper sounds and a message appears on the driver information interface when
ACC with LSF is automatically canceled. An y of these conditions may cause the ACC
with LSF to automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• When the radar sensor in the front grille gets dirty.
• An abnormal tire condition is detected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA ® or CMBS TM
is activated.
• When the ABS or VSA ® system indicator comes on.
• When the vehicle is stopped on a very steep slope.
• When you manually apply the parking brake.
• When the detected vehicle within the ACC with LSF range is too close to your
vehicle.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
The ACC with LSF automatic cancellation can be also triggered by the following
causes. In these cases, the parking brake will be automatically applied.
• The driver’s seat belt is unfasten ed when the vehicl e is stationary.
• The vehicle stops for mo re than 10 minutes.
• The power system is turned off.
In the following cases, a buzzer sounds, ACC with LSF is deactivated, and the
message Cruise Cancelled: Slope Too Steep. Watch Downhill Speed appears in
the driver information interface.
• While descending a long slope and the vehi cle has repeatedly applied the brakes
to maintain the set speed. 1 Automatic cancellation
Even though ACC with LSF has been automatically
canceled, you can still resu me the prior set speed.
Wait until the condition that caused ACC with LSF to
cancel improves, then press the RES/+ button.18 CLARITY PHEV CSS-31TRW6000.book 412 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued

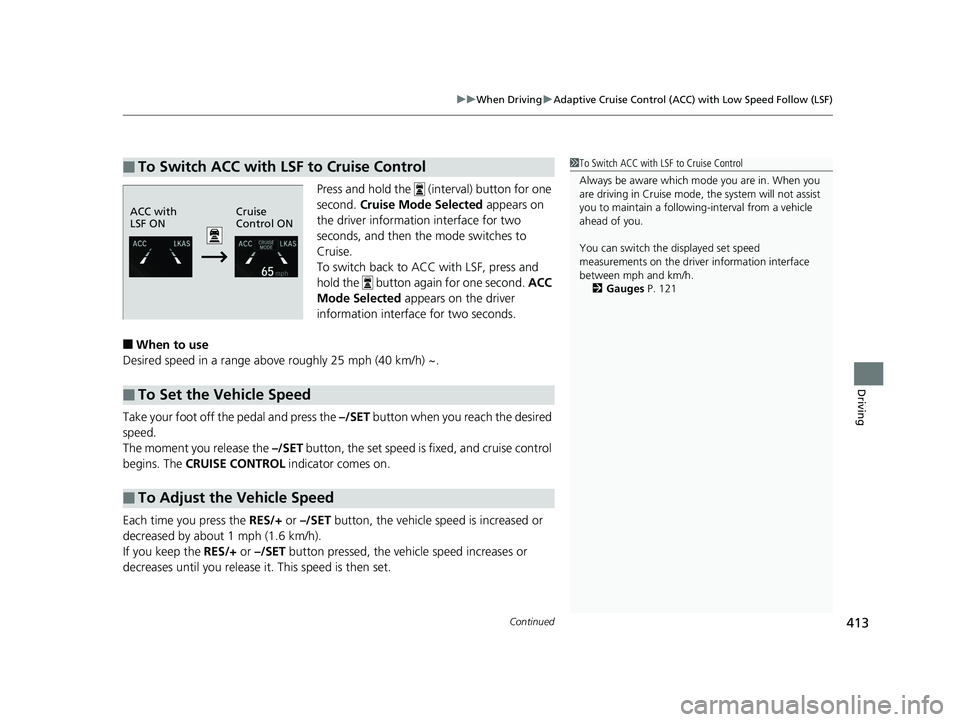

413uu When Driving u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
Driving
Press and hold the (interval) button for one
second. Cruise Mode Selected appears on
the driver informatio n interface for two
seconds, and then the mode switches to
Cruise.
To switch back to ACC with LSF, press and
hold the button again for one second. ACC
Mode Selected appears on the driver
information interfac e for two seconds.
■ When to use
Desired speed in a range above roughly 25 mph (40 km/h) ~.
Take your foot off the pedal and press the –/SET button when you reach the desired
speed.
The moment you release the –/SET button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.
Each time you press the RES/+ or –/SET button, the vehicle speed is increased or
decreased by about 1 mph (1.6 km/h).
If you keep the RES/+ or –/SET button pressed, the vehicle speed increases or
decreases until you release it . This speed is then set.■ To Switch ACC with LSF to Cruise Control 1 To Switch ACC with LSF to Cruise Control
Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a following-interval from a vehicle
ahead of you.
You can switch the displayed set speed
measurements on the driver information interface
between mph and km/h.
2 Gauges P. 121ACC with
LSF ON Cruise
Control ON
■ To Set the Vehicle Speed
■ To Adjust the Vehicle Speed 18 CLARITY PHEV CSS-31TRW6000.book 413 ページ ２０１７年８月３１日　木曜日　午後２時４９分

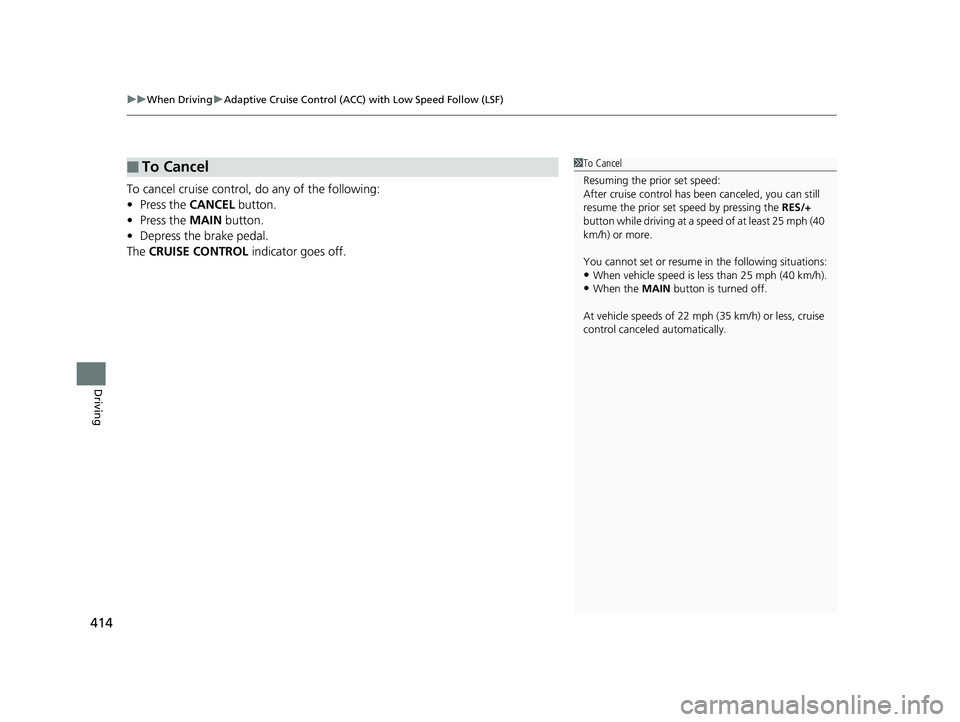

uu When Driving u Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)
414
Driving To cancel cruise control, do any of the following:
• Press the CANCEL button.
• Press the MAIN button.
• Depress the brake pedal.
The CRUISE CONTROL indicator goes off.
■ To Cancel 1 To Cancel
Resuming the prior set speed:
After cruise control has be en canceled, you can still
resume the prior set speed by pressing the RES/+
button while driving at a speed of at least 25 mph (40
km/h) or more.
You cannot set or resume in the following situations:
• When vehicle speed is less than 25 mph (40 km/h).
• When the MAIN button is turned off.
At vehicle speeds of 22 m ph (35 km/h) or less, cruise
control canceled automatically.18 CLARITY PHEV CSS-31TRW6000.book 414 ページ ２０１７年８月３１日　木曜日　午後２時４９分

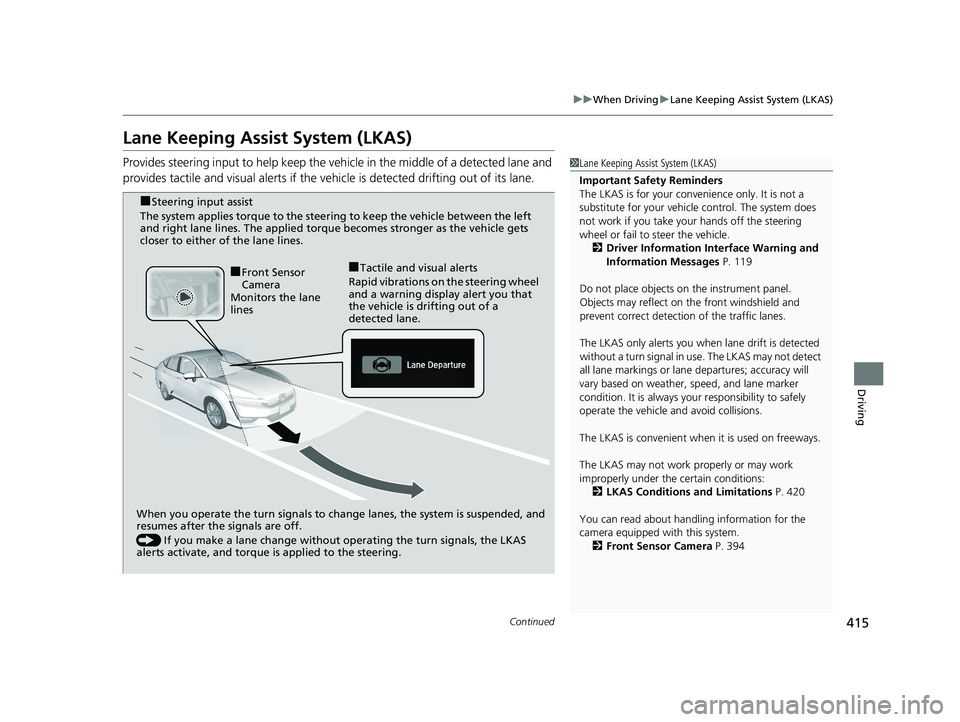

415uu When Driving u Lane Keeping Assist System (LKAS)
Continued
Driving
Lane Keeping Assist System (LKAS) Provides steering input to help keep the vehicle in the middle of a detected lane and
provides tactile and visual al erts if the vehicle is detected drifting out of its lane. 1 Lane Keeping Assist System (LKAS)
Important Safety Reminders
The LKAS is for your convenience only. It is not a
substitute for your vehicl e control. The system does
not work if you take y our hands off the steering
wheel or fail to steer the vehicle.
2 Driver Information Interface Warning and
Information Messages P. 119
Do not place objects on the instrument panel.
Objects may reflect on th e front windshield and
prevent correct detectio n of the traffic lanes.
The LKAS only alerts you wh en lane drift is detected
without a turn signal in us e. The LKAS may not detect
all lane markings or lane departures; accuracy will
vary based on weather, speed, and lane marker
condition. It is always your responsibility to safely
operate the vehicle an d avoid collisions.
The LKAS is convenient when it is used on freeways.
The LKAS may not work properly or may work
improperly under the certain conditions:
2 LKAS Conditions and Limitations P. 420
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera P. 394When you operate the turn signals to chan ge lanes, the system is suspended, and
resumes after the signals are off.
() If you make a lane change without operating the turn signals, the LKAS
alerts activate, and torque is applied to the steering.■ Front Sensor
Camera
Monitors the lane
lines
■ Tactile and visual alerts
Rapid vibrations on the steering wheel
and a warning display alert you that
the vehicle is drifting out of a
detected lane.■ Steering input assist
The system applies torque to the steering to keep the vehicle between the left
and right lane lines. The applied torque becomes stronger as the vehicle gets
closer to either of the lane lines.18 CLARITY PHEV CSS-31TRW6000.book 415 ページ ２０１７年８月３１日　木曜日　午後２時４９分

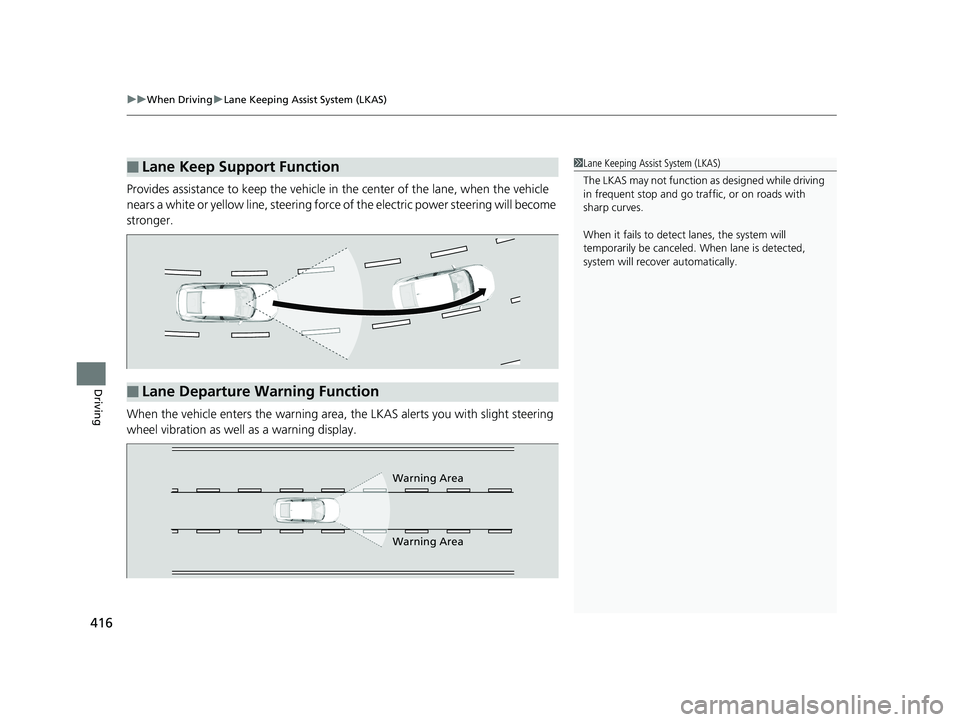

uu When Driving u Lane Keeping Assist System (LKAS)
416
Driving Provides assistance to keep the vehicle in the center of the lane, when the vehicle
nears a white or yellow line, steering force of the electric power steering will become
stronger.
When the vehicle enters the warning area, the LKAS alerts you with slight steering
wheel vibration as well as a warning display.■ Lane Keep Support Function 1 Lane Keeping Assist System (LKAS)
The LKAS may not function as designed while driving
in frequent stop and go traf fic, or on roads with
sharp curves.
When it fails to detect lanes, the system will
temporarily be canceled. When lane is detected,
system will recover automatically.
■ Lane Departure Warning Function Warning Area
Warning Area18 CLARITY PHEV CSS-31TRW6000.book 416 ページ ２０１７年８月３１日　木曜日　午後２時４９分

Continued

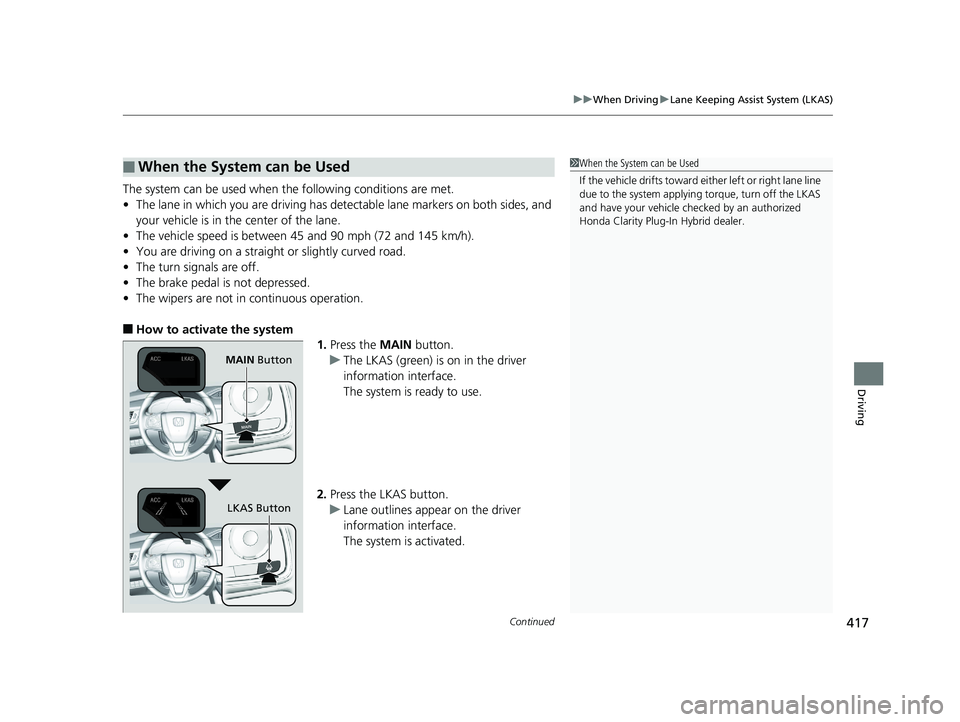

417uu When Driving u Lane Keeping Assist System (LKAS)
Driving
The system can be used when th e following conditions are met.
• The lane in which you are driving has detectable lane markers on both sides, and
your vehicle is in the center of the lane.
• The vehicle speed is between 45 and 90 mph (72 and 145 km/h).
• You are driving on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.
■ How to activate the system
1. Press the MAIN button.
u The LKAS (green) is on in the driver
information interface.
The system is ready to use.
2. Press the LKAS button.
u Lane outlines appear on the driver
information interface.
The system is activated.■ When the System can be Used 1 When the System can be Used
If the vehicle drifts toward ei ther left or ri ght lane line
due to the system applying torque, turn off the LKAS
and have your vehicle checked by an authorized
Honda Clarity Plug-In Hybrid dealer.
MAIN Button
LKAS Button18 CLARITY PHEV CSS-31TRW6000.book 417 ページ ２０１７年８月３１日　木曜日　午後２時４９分

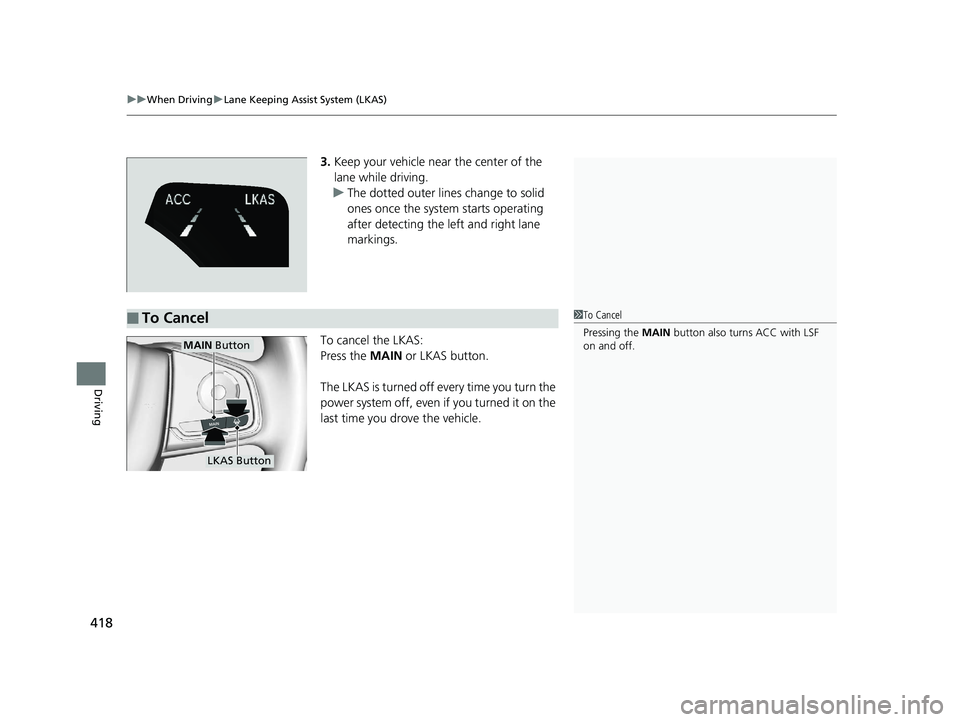

uu When Driving u Lane Keeping Assist System (LKAS)
418
Driving 3. Keep your vehicle near the center of the
lane while driving.
u The dotted outer lines change to solid
ones once the system starts operating
after detecting the left and right lane
markings.
To cancel the LKAS:
Press the MAIN or LKAS button.
The LKAS is turned off every time you turn the
power system off, even if you turned it on the
last time you drove the vehicle.
■ To Cancel 1 To Cancel
Pressing the MAIN button also turns ACC with LSF
on and off.MAIN Button
LKAS Button18 CLARITY PHEV CSS-31TRW6000.book 418 ページ ２０１７年８月３１日　木曜日　午後２時４９分
