479uu Maintenance Minder TM
u To Use Maintenance Minder TM
Continued
Maintenance
■ Maintenance Service Items 1 Maintenance Service Items
• Adjust the valves during services A, 0, 1, 2, or 3 if
they are noisy.
Maintenance Minder MessageSystem Message
Indicator
Sub ItemsMain Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.CODE Maintenance Main Items
A ●
Replace engine oil *1
and oil filter
0 ●
Inspect front and rear brakes ●
Check expiration date for Temporary Tire Repair Kit ●
Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system #
• Fuel lines and connections #
• Stay RR, RR Subframe
• Under body battery cover *2: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*3: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles (75,000 km) or 3 years.
*4: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
*5: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).CODE Maintenance Sub Items
1 ●
Rotate tires
2 ●
Replace dust and pollen filter *2
3 ●
Replace transmission fluid *3
4 ●
Replace spark plugs ●
Inspect valve clearance
5 ●
Replace engine coolant
7 ●
Replace brake fluid *4
8 ●
Replace air cleaner element *519 CLARITY PHEV-31TRW6100.book 479 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

480 uu Maintenance Minder TM
u To Use Maintenance Minder TM
Maintenance 1 Maintenance Service Items
• Adjust the valves during services A, 9, 1, 2, or 3 if
they are noisy.Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*3: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 75,000 km (47,500 miles) or 3 years.
*4: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
*5: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
# : See information on maintenance and emissions warranty.CODE Maintenance Main Items
A ●
Replace engine oil *1
and oil filter CODE Maintenance Sub Items
1 ●
Rotate tires
2 ●
Replace dust and pollen filter *2
3 ●
Replace transmission fluid *3
4 ●
Replace spark plugs ●
Inspect valve clearance
5 ●
Replace engine coolant
7 ●
Replace brake fluid *4
8 ●
Replace air cleaner element *5
9 ●
Service front and rear brakes ●
Check expiration date for Temporary Tire Repair Kit ●
Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system #
• Fuel lines and connections #
• Stay RR, RR Subframe
• Under body battery cover19 CLARITY PHEV-31TRW6100.book 480 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

481uu Maintenance Minder TM
u To Use Maintenance Minder TM
Maintenance

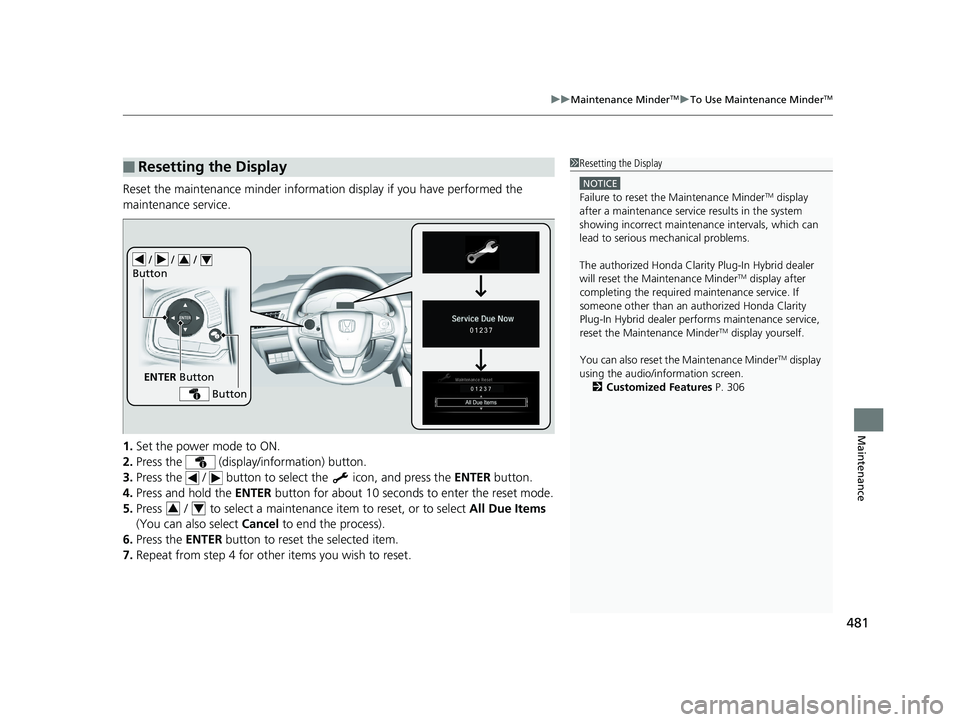

Reset the maintenance minder informatio n display if you have performed the
maintenance service.
1. Set the power mode to ON.
2. Press the (display/information) button.
3. Press the / button to select the icon, and press the ENTER button.
4. Press and hold the ENTER button for about 10 second s to enter the reset mode.
5. Press / to select a maintenance item to reset, or to select All Due Items
(You can also select Cancel to end the process).
6. Press the ENTER button to reset the selected item.
7. Repeat from step 4 for other items you wish to reset.■ Resetting the Display 1 Resetting the Display NOTICE
Failure to reset the Maintenance Minder TM
display
after a maintenance servic e results in the system
showing incorrect maintena nce intervals, which can
lead to serious mechanical problems.
The authorized Honda Clarity Plug-In Hybrid dealer
will reset the Maintenance Minder TM
display after
completing the required ma intenance service. If
someone other than an authorized Honda Clarity
Plug-In Hybrid dealer perf orms maintenance service,
reset the Maintenance Minder TM
display yourself.
You can also reset the Maintenance Minder TM
display
using the audio/information screen.
2 Customized Features P. 306 / / /
Button 3 4
ENTER Button
Button
3 419 CLARITY PHEV-31TRW6100.book 481 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

482

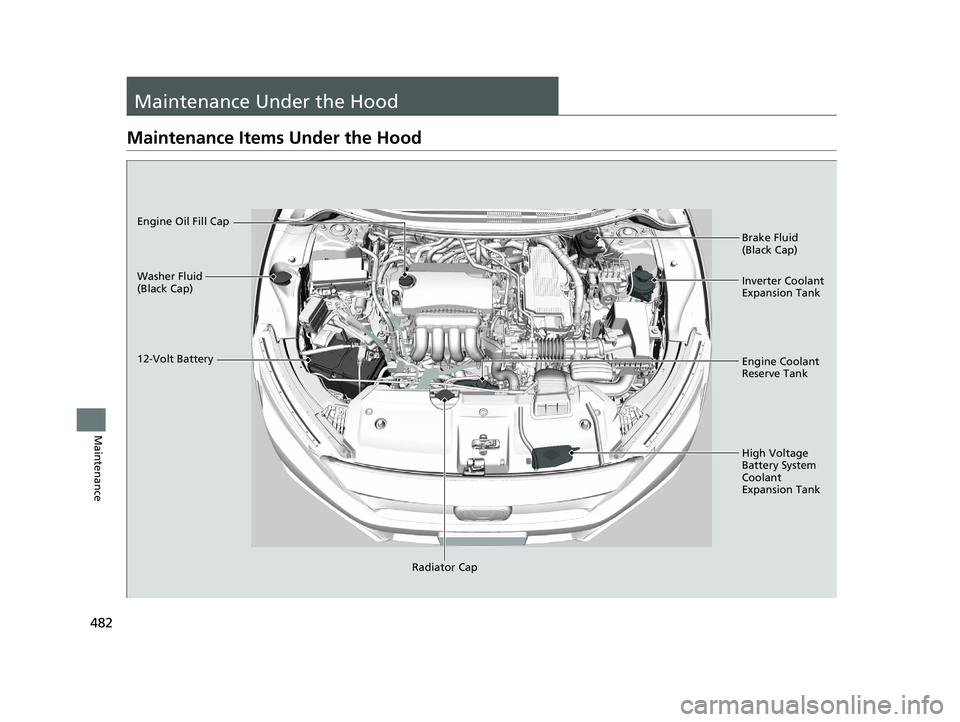

Maintenance Maintenance Under the Hood Maintenance Items Under the Hood Washer Fluid
(Black Cap)
12-Volt Battery Brake Fluid
(Black Cap)
Inverter Coolant
Expansion Tank
Engine Coolant
Reserve TankEngine Oil Fill Cap
Radiator Cap High Voltage
Battery System
Coolant
Expansion Tank19 CLARITY PHEV-31TRW6100.book 482 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

483uu Maintenance Under the Hood u Opening the Hood
Maintenance
Opening the Hood 1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
driver’s side lower corner of the dashboard.
u The hood will pop up slightly.
3. Push the hood latch lever (located under
the front edge of the hood to the center) to
the side and raise the hood. Once you have
raised the hood slightly , you can release the
lever.
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close. 1 Opening the Hood NOTICE
Do not open the hood when the wiper arms are
raised: The hood will strike the wipers, resulting in
possible damage to the hood and/or the wipers. NOTICE
Do not press the engine cover forcibly. This may
damage the engine cover and component parts.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cl eaned and lubricated.PullHood Release Handle
Lever
Support Rod
Grip
Clamp19 CLARITY PHEV-31TRW6100.book 483 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

484 uu Maintenance Under the Hood u Recommended Engine Oil

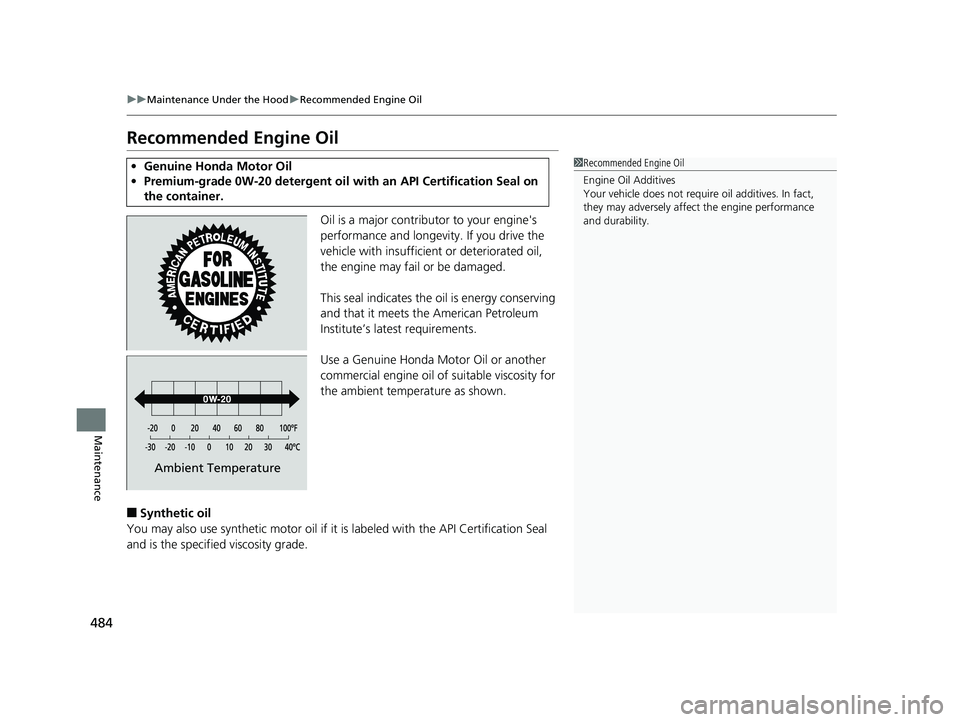

Maintenance Recommended Engine Oil Oil is a major contributor to your engine's
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.
Use a Genuine Honda Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown.
■ Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade. • Genuine Honda Motor Oil
• Premium-grade 0W-20 detergent oil wi th an API Certification Seal on
the container. 1 Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
Ambient Temperature19 CLARITY PHEV-31TRW6100.book 484 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

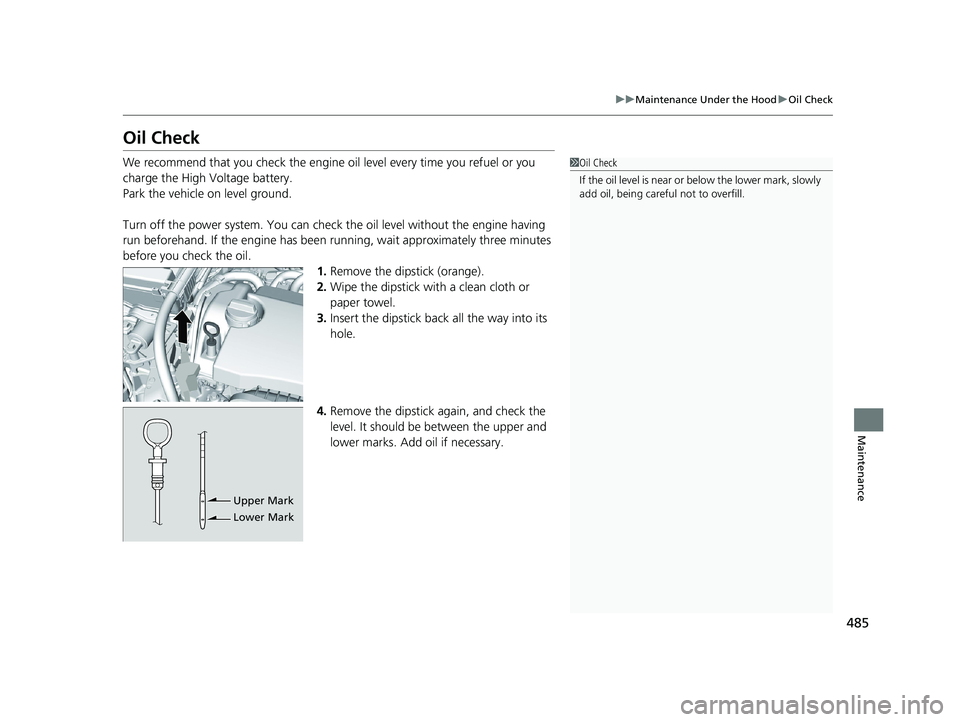

485uu Maintenance Under the Hood u Oil Check
Maintenance
Oil Check We recommend that you check the engine oil level every time you refuel or you
charge the High Voltage battery.
Park the vehicle on level ground.
Turn off the power system. You can check the oil level without the engine having
run beforehand. If the engine has been ru nning, wait approxim ately three minutes
before you check the oil.
1. Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into its
hole.
4. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary. 1 Oil Check
If the oil level is near or below the lower mark, slowly
add oil, being carefu l not to overfill.
Upper Mark
Lower Mark19 CLARITY PHEV-31TRW6100.book 485 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

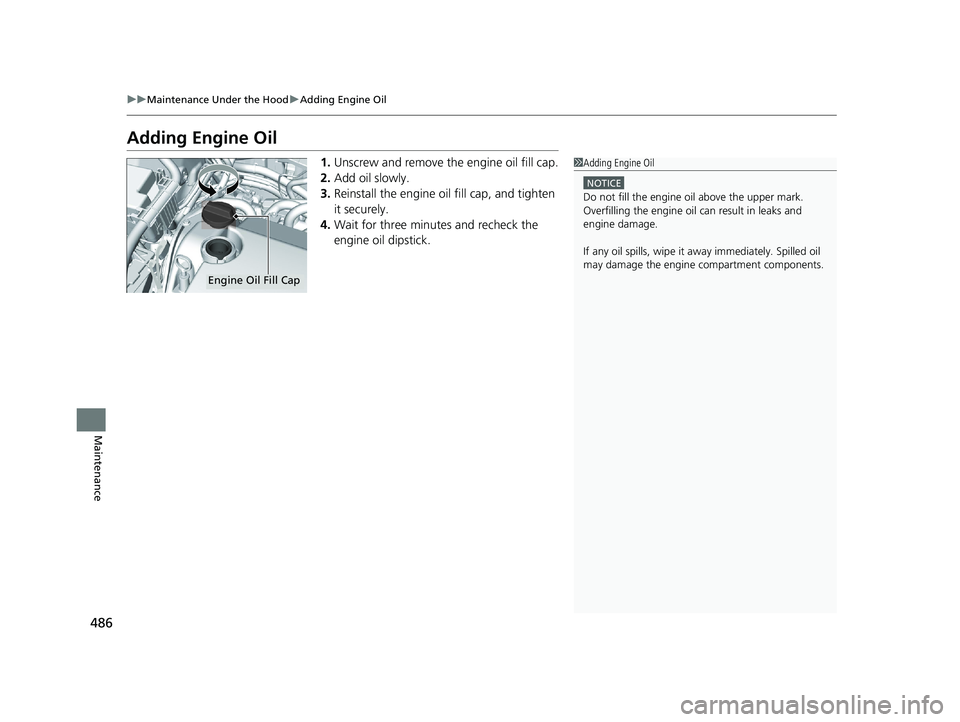

486 uu Maintenance Under the Hood u Adding Engine Oil
Maintenance Adding Engine Oil 1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck the
engine oil dipstick. 1 Adding Engine Oil NOTICE
Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.
If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.
Engine Oil Fill Cap19 CLARITY PHEV-31TRW6100.book 486 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

487uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter
Continued
Maintenance

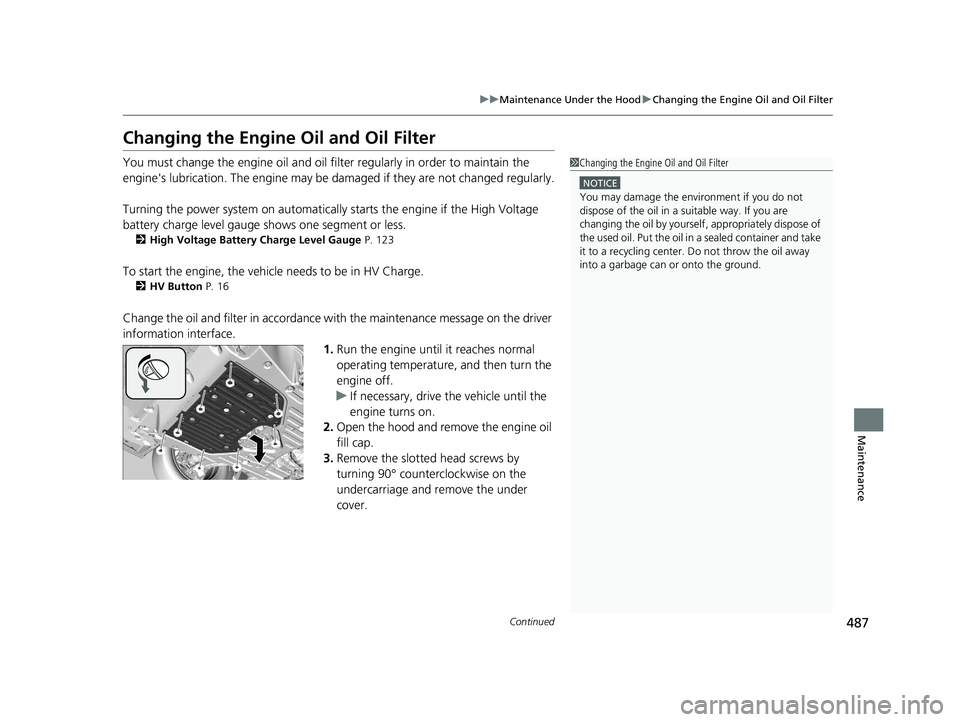

Changing the Engine Oil and Oil FilterYou must change the engine oil and oil fi lter regularly in order to maintain the
engine's lubrication. The engine may be damaged if they are not changed regularly.
Turning the power system on automatically starts the en gine if the High Voltage
battery charge level gauge shows one segment or less. 2 High Voltage Battery Charge Level Gauge P. 123
To start the engine, the vehicl e needs to be in HV Charge.2 HV Button P. 16
Change the oil and filter in accordance with the mainte nance message on the driver
information interface.
1. Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
u If necessary, drive the vehicle until the
engine turns on.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the slotted head screws by
turning 90° counterclockwise on the
undercarriage and remove the under
cover. 1 Changing the Engine Oil and Oil Filter NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.19 CLARITY PHEV-31TRW6100.book 487 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter
488
Maintenance 4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
3.5 US qt (3.3 L) 1 Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wr ench from an authorized
Honda Clarity Plug-In Hybrid dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Drain BoltWasher
Oil Filter19 CLARITY PHEV-31TRW6100.book 488 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
