499uu Checking and Maintaining Wiper Blades u Changing the Wiper Blade Rubber
Continued
Maintenance

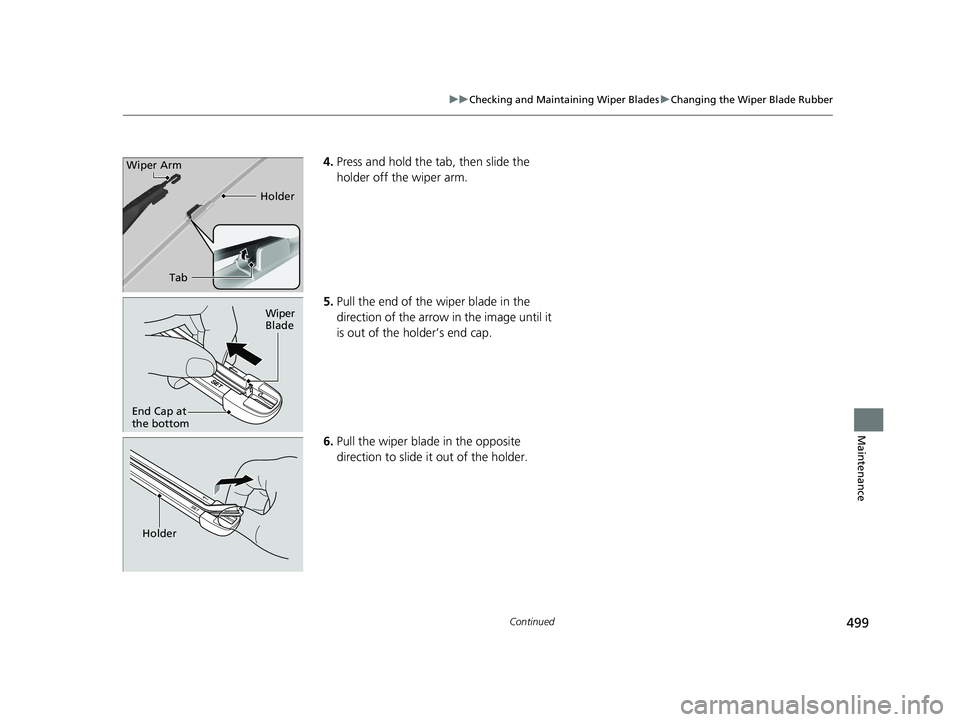

4. Press and hold the ta b, then slide the
holder off the wiper arm.
5. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
6. Pull the wiper blade in the opposite
direction to slide it out of the holder.Tab HolderWiper Arm
Wiper
Blade
End Cap at
the bottom
Holder19 CLARITY PHEV-31TRW6100.book 499 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

500 uu Checking and Maintaining Wiper Blades u Changing the Wiper Blade Rubber

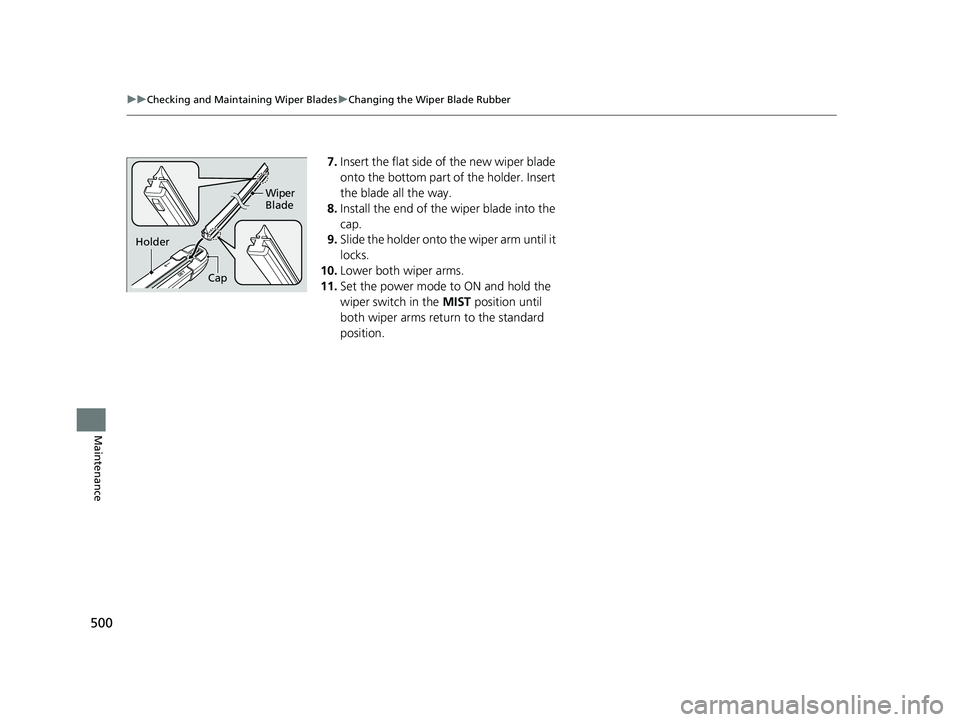

Maintenance 7. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the holder onto the wiper arm until it
locks.
10. Lower both wiper arms.
11. Set the power mode to ON and hold the
wiper switch in the MIST position until
both wiper arms return to the standard
position.Cap Wiper
Blade
Holder19 CLARITY PHEV-31TRW6100.book 500 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

501
Maintenance

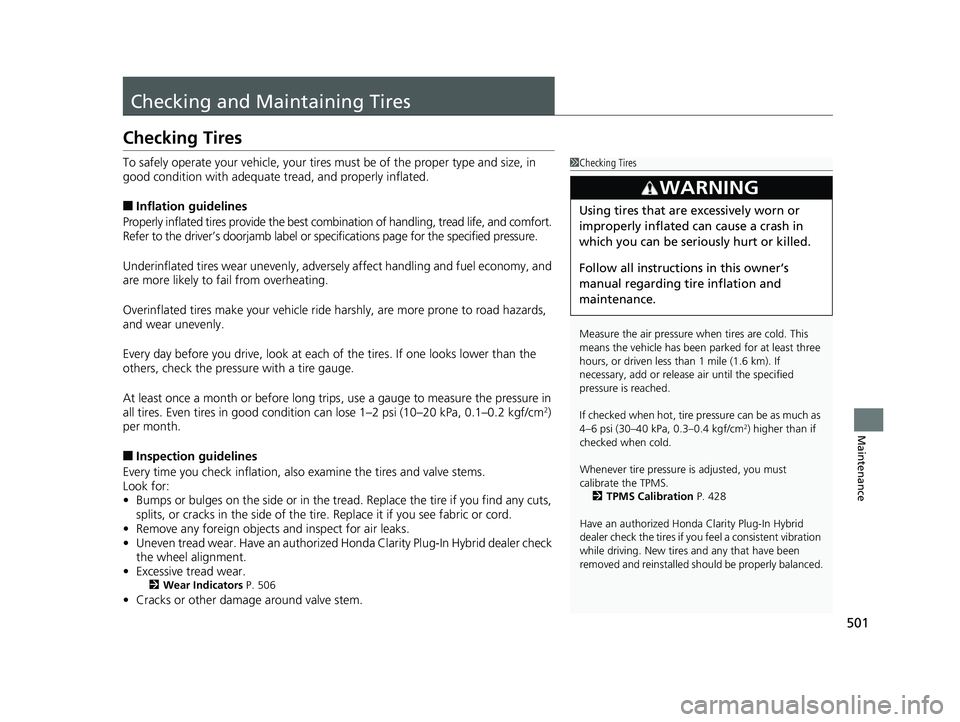

Checking and Maintaining Tires Checking Tires To safely operate your vehicle, your tire s must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■ Inflation guidelines
Properly inflated tires provid e the best combination of hand ling, tread life, and comfort.
Refer to the driver’s doorjamb label or spec ifications page for the specified pressure.
Underinflated tires wear unev enly, adversely affect handli ng and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride ha rshly, are more pron e to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips , use a gauge to measure the pressure in
all tires. Even tires in good condition can lose 1–2 psi (10–20 kPa, 0.1–0.2 kgf/cm 2
)
per month.
■ Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tr ead. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire . Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have an authorized H onda Clarity Plug-In Hybrid dealer check
the wheel alignment.
• Excessive tread wear. 2 Wear Indicators P. 506
• Cracks or other damage around valve stem. 1 Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm 2
) higher than if
checked when cold.
Whenever tire pressure is adjusted, you must
calibrate the TPMS.
2 TPMS Calibration P. 428
Have an authorized Honda Clarity Plug- In Hybrid
dealer check the tires if you feel a consiste nt vibration
while driving. New tires and any that have been
removed and reinstalled sh ould be properly balanced.3
WARNING Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding tire inflation and
maintenance.19 CLARITY PHEV-31TRW6100.book 501 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

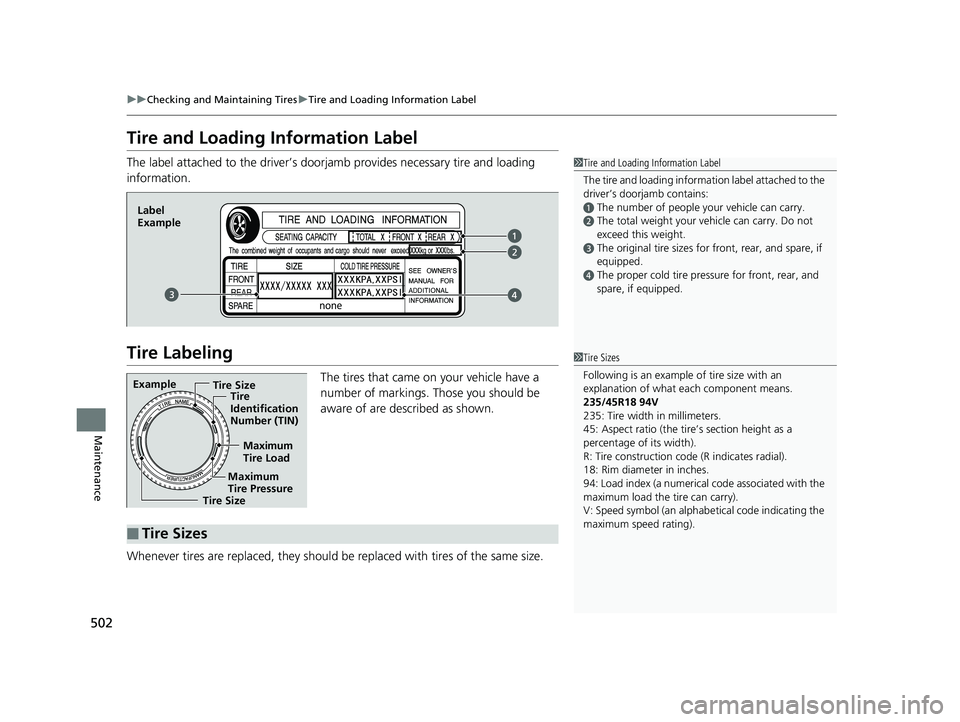

502 uu Checking and Maintaining Tires u Tire and Loading Information Label
Maintenance Tire and Loading Information Label The label attached to the driver’s doorj amb provides necessary tire and loading
information.
Tire Labeling The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described as shown.
Whenever tires are replaced, they should be replaced with tires of the same size. 1 Tire and Loading Information Label
The tire and loading informat ion label attached to the
driver’s doorjamb contains: a
The number of people your vehicle can carry. b
The total weight your ve hicle can carry. Do not
exceed this weight. c
The original tire sizes for front, rear, and spare, if
equipped. d
The proper cold tire pre ssure for front, rear, and
spare, if equipped.Label
Example
Example
Tire Size
Tire
Identification
Number (TIN)
Maximum
Tire Load
Maximum
Tire Pressure
Tire Size
■ Tire Sizes 1 Tire Sizes
Following is an example of tire size with an
explanation of what each component means.
235/45R18 94V
235: Tire width in millimeters.
45: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).
18: Rim diameter in inches.
94: Load index (a numerical code associated with the
maximum load the tire can carry).
V: Speed symbol (an alphab etical code indicating the
maximum speed rating).19 CLARITY PHEV-31TRW6100.book 502 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

503uu Checking and Maintaining Tires u Tire Labeling
Maintenance

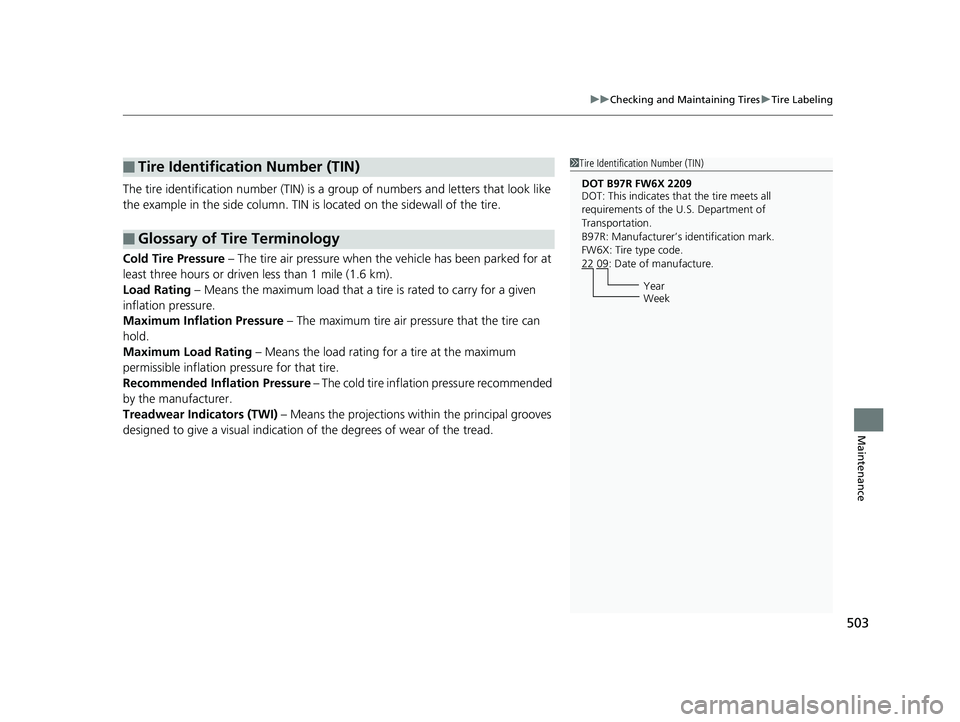

The tire identification number (TIN) is a group of numbers and letters that look like
the example in the side column. TIN is located on the sidewall of the tire.
Cold Tire Pressure – The tire air pressure when the vehicle has been parked for at
least three hours or driven less than 1 mile (1.6 km).
Load Rating – Means the maximum load that a ti re is rated to carry for a given
inflation pressure.
Maximum Inflation Pressure – The maximum tire air pressure that the tire can
hold.
Maximum Load Rating – Means the load rating for a tire at the maximum
permissible inflation pr essure for that tire.
Recommended Inflation Pressure – The cold tire inflat ion pressure recommended
by the manufacturer.
Treadwear Indicators (TWI) – Means the projections wi thin the principal grooves
designed to give a visual indication of the degrees of wear of the tread.■ Tire Identification Number (TIN)
■ Glossary of Tire Terminology 1 Tire Identification Number (TIN)
DOT B97R FW6X 2209
DOT: This indicates that the tire meets all
requirements of the U.S. Department of
Transportation.
B97R: Manufacturer’s identification mark.
FW6X: Tire type code.
22 09: Date of manufacture.
Year
Week19 CLARITY PHEV-31TRW6100.book 503 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

504 uu Checking and Maintaining Tires u DOT Tire Quality Grading (U.S. Vehicles)

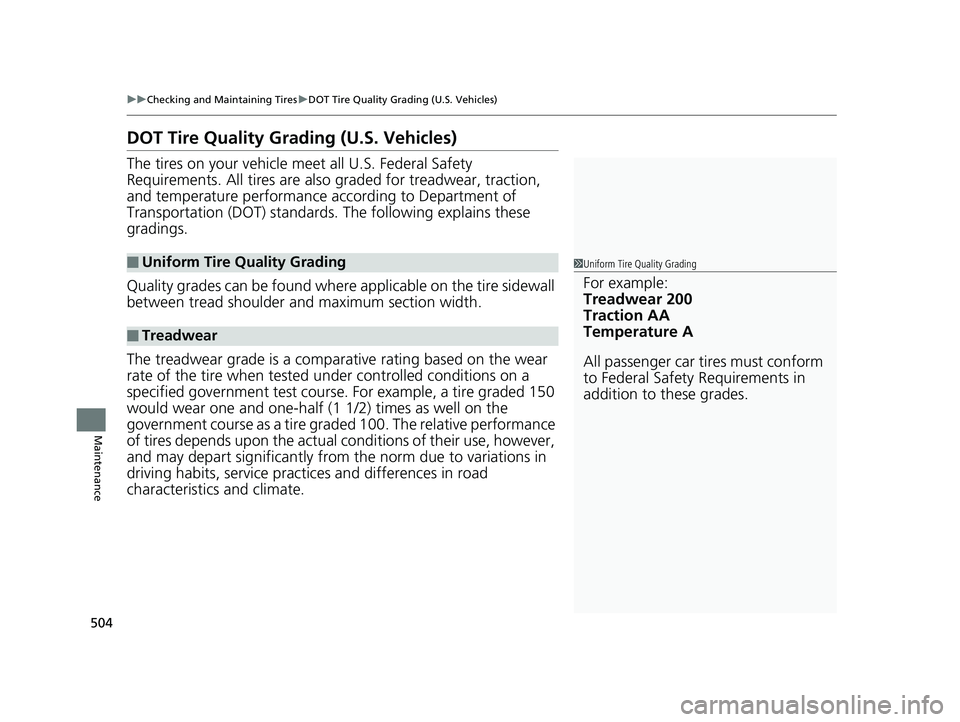

Maintenance DOT Tire Quality Grading (U.S. Vehicles) The tires on your vehicle meet all U.S. Federal Safety
Requirements. All tires are also graded for treadwear, traction,
and temperature performance a ccording to Department of
Transportation (DOT) standards. The following explains these
gradings.
Quality grades can be found where applicable on the tire sidewall
between tread shoulder an d maximum section width.
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested un der controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative performance
of tires depends upon the actual conditions of their use, however,
and may depart significantly from the norm due to variations in
driving habits, service practices and differences in road
characteristics and climate.■ Uniform Tire Quality Grading
■ Treadwear 1 Uniform Tire Quality Grading
For example:
Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.19 CLARITY PHEV-31TRW6100.book 504 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

505uu Checking and Maintaining Tires u DOT Tire Quality Grading (U.S. Vehicles)
Maintenance

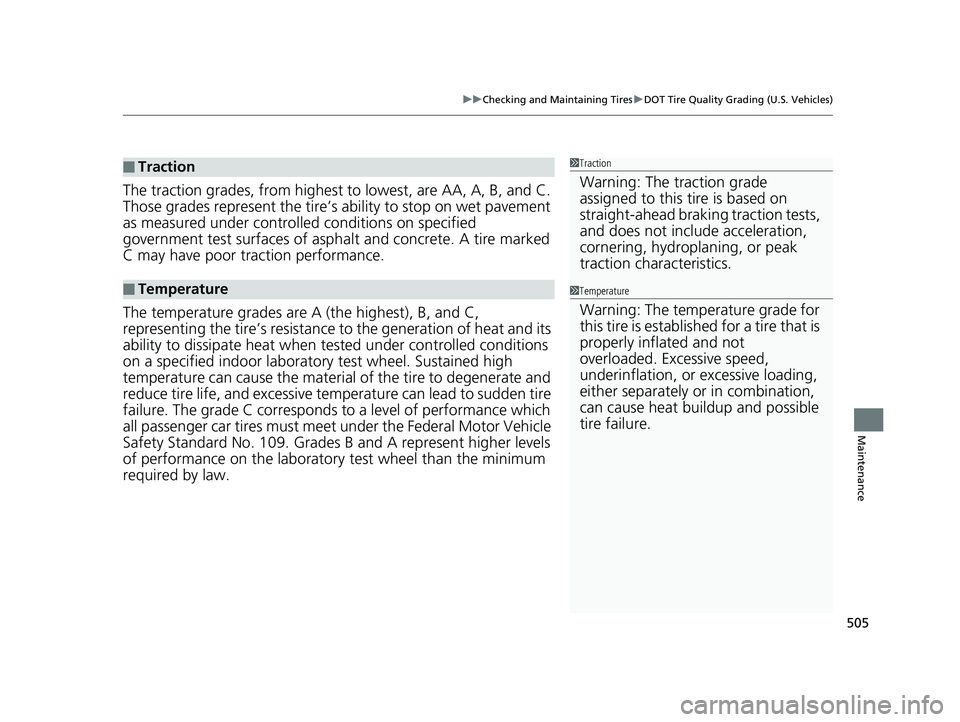

The traction grades, from highest to lowest, are AA, A, B, and C.
Those grades represent the tire’s ability to stop on wet pavement
as measured under controlled conditions on specified
government test surfaces of asph alt and concrete. A tire marked
C may have poor traction performance.
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat and its
ability to dissipate heat when te sted under controlled conditions
on a specified indoor laboratory test wheel. Sustained high
temperature can cause the material of the tire to degenerate and
reduce tire life, and ex cessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of performance which
all passenger car tires must meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B and A represent higher levels
of performance on the laboratory test wheel than the minimum
required by law.■ Traction
■ Temperature 1 Traction
Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics. 1 Temperature
Warning: The temperature grade for
this tire is establishe d for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.19 CLARITY PHEV-31TRW6100.book 505 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

506 uu Checking and Maintaining Tires u Wear Indicators

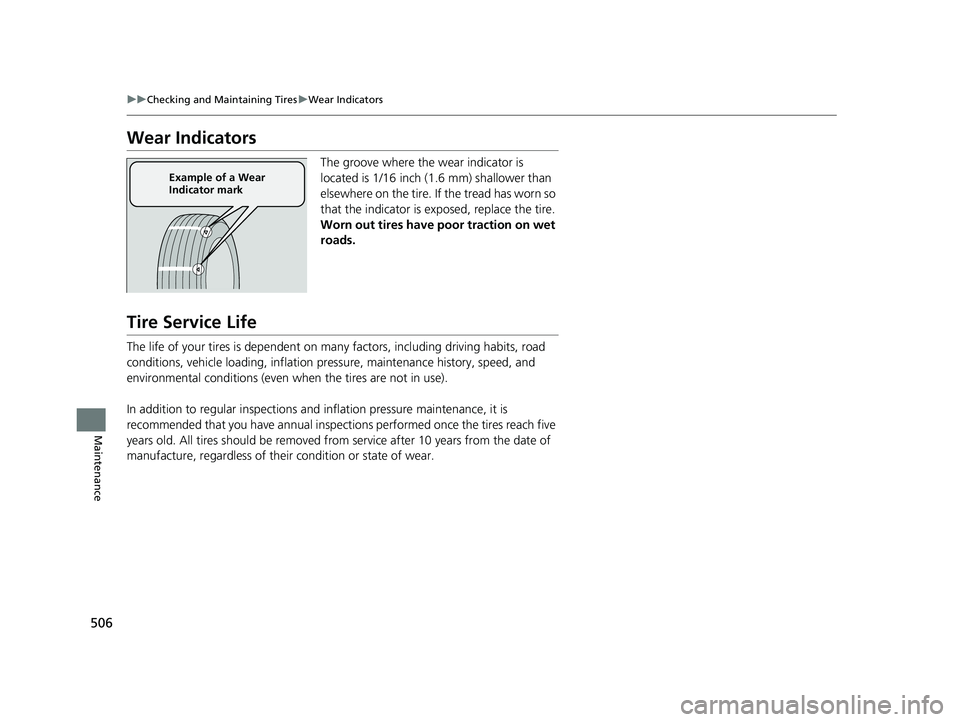

Maintenance Wear Indicators The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is ex posed, replace the tire.
Worn out tires have poor traction on wet
roads.
Tire Service Life The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pre ssure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).
In addition to regular in spections and inflation pres sure maintenance, it is
recommended that you have annual inspecti ons performed once the tires reach five
years old. All tires should be removed fro m service after 10 years from the date of
manufacture, regardless of their condition or state of wear. Example of a Wear
Indicator mark19 CLARITY PHEV-31TRW6100.book 506 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

507uu Checking and Maintaining Tires u Tire and Wheel Replacement
Maintenance

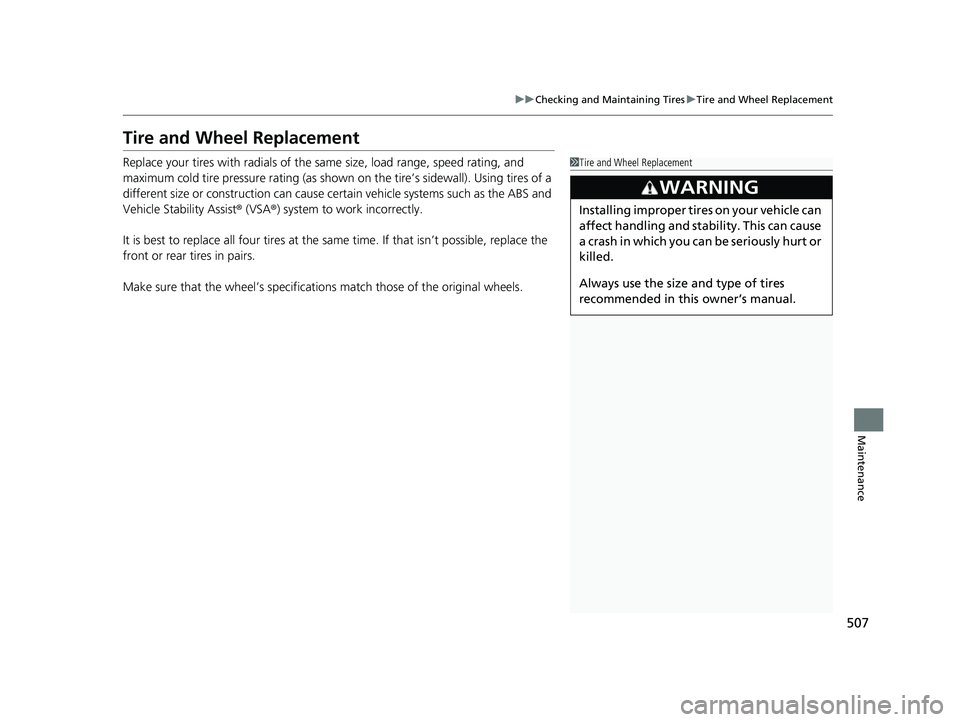

Tire and Wheel Replacement Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist ® (VSA ® ) system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
Make sure that the wheel’s specificati ons match those of the original wheels. 1 Tire and Wheel Replacement
3
WARNING Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.19 CLARITY PHEV-31TRW6100.book 507 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

508 uu Checking and Maintaining Tires u Tire Rotation

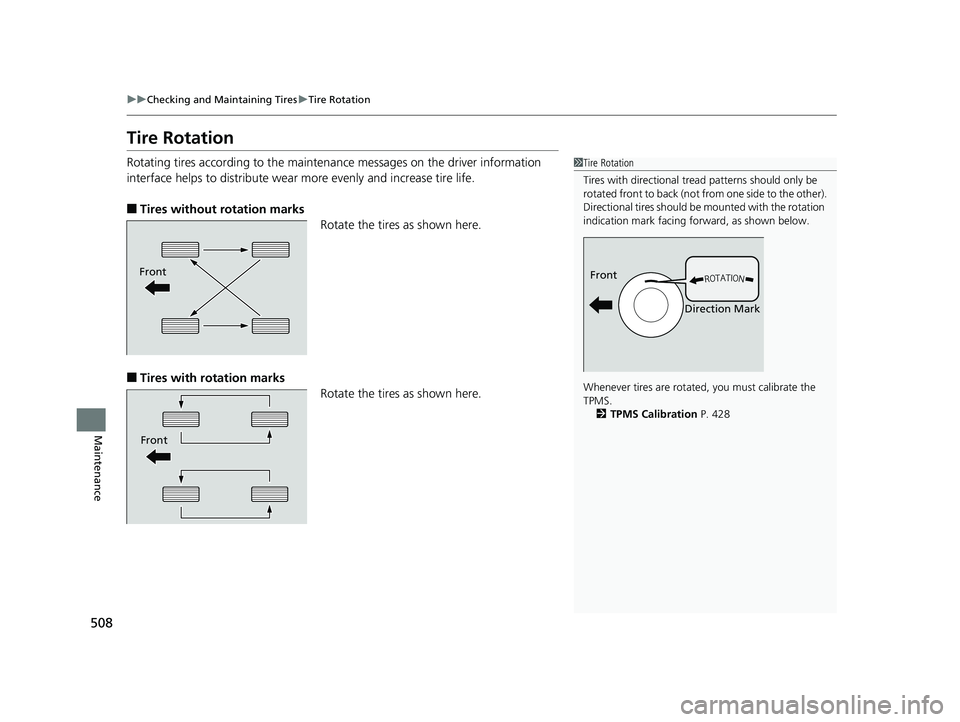

Maintenance Tire Rotation Rotating tires according to the maintena nce messages on the driver information
interface helps to distribute wear more evenly and increase tire life.
■ Tires without rotation marks
Rotate the tires as shown here.
■ Tires with rotation marks
Rotate the tires as shown here. 1 Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS.
2 TPMS Calibration P. 428Front
