559 uu Fuses u Fuse Locations
Continued
Handling the Unexpected
■ Fuse Box B
Located under the fuse box A.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number. Fuse Label
Fuse Box B ■ Circuit protected and fuse rating
Circuit Protected Amps
c QC CNT (10 A)
d R H/L HI 7.5 A
e L H/L HI 7.5 A
f IGC 10 A
g HAZARD 10 A
h IGB 15 A
i SMART 10 A
j IGA 10 A19 CLARITY PHEV-31TRW6100.book 559 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

560 uu Fuses u Fuse Locations

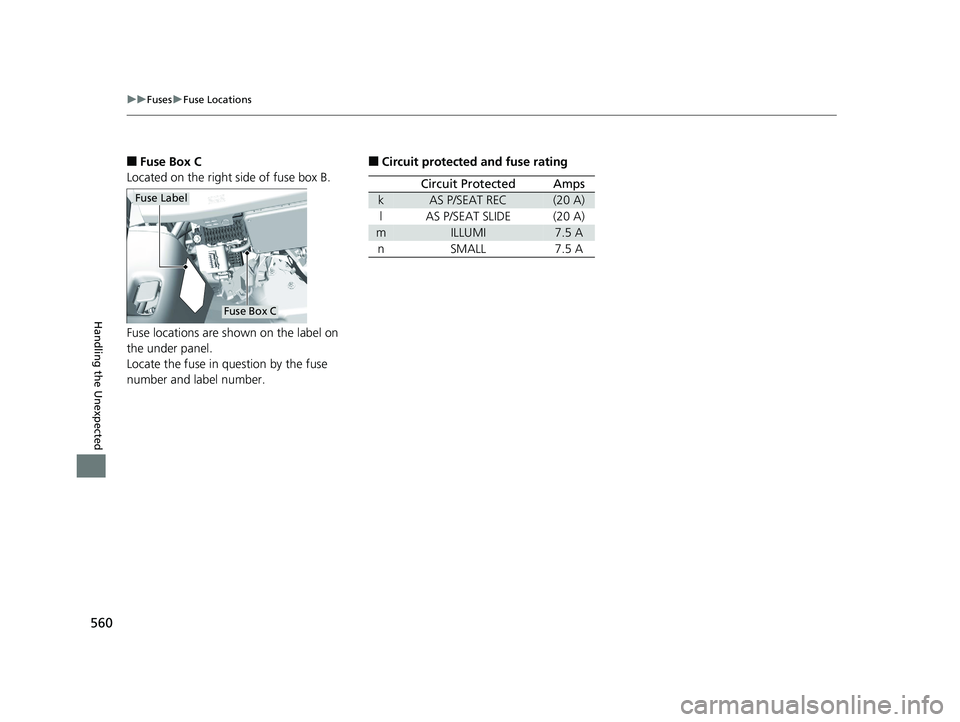

Handling the Unexpected ■ Fuse Box C
Located on the right side of fuse box B.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number. Fuse Label
Fuse Box C ■ Circuit protected and fuse rating
Circuit Protected Amps
k AS P/SEAT REC (20 A)
l AS P/SEAT SLIDE (20 A)
m ILLUMI 7.5 A
n SMALL 7.5 A19 CLARITY PHEV-31TRW6100.book 560 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

561 uu Fuses u Fuse Locations
Handling the Unexpected
■ Fuse Box D
Located inside the driver’s side outer panel.
Replacement of fuses in the driver’s side
outer panel should be done by an
authorized Honda Clarity Plug-In Hybrid
dealer. Fuse Box D
■ Circuit protected and fuse rating
Circuit Protected Amps
p − (10 A)
q IGMG (7.5 A)
r SHIFTER 7.5 A
s P-ACT DRV 7.5 A
t − −
u EPP (7.5 A)
v OPTION 7.5 A
w ESB 7.5 A19 CLARITY PHEV-31TRW6100.book 561 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

562 uu Fuses u Inspecting and Changing Fuses
Handling the Unexpected Inspecting and Changing Fuses 1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by
an authorized Honda Clarity Plug-In
Hybrid dealer.
3. Remove the fuse box cover.
4. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw, and
replace it with a new one.
5. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one. 1 Inspecting and Changing Fuses NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace the fuse with a spare fuse of the same
specified amperage.
Confirm the specified amperage using the charts on
P. 555 to 561.
There is a fuse puller on the back of the cover of the
engine compartment fuse box A.12-Volt Battery
Blown Fuse
Fuse Puller19 CLARITY PHEV-31TRW6100.book 562 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

563
Handling the Unexpected
Emergency Towing Call a professional towing service if you need to tow your vehicle.
■ Flat bed equipment
The operator loads your vehicle on the back of a flat bed truck.
This is the only way you can safely transport your vehicle.
Any other towing method will dama ge the vehicle’s drive system. 1 Emergency Towing NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight. NOTICE
Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
Do not use the hook on the rear of your vehicle for
the towing of other vehicles or emergency removal of
your vehicle. The hook may break.
If your vehicle needs to be towed backward, contact
an authorized Honda Clarity Plug-In Hybrid dealer or a
professional towing service.
Hook19 CLARITY PHEV-31TRW6100.book 563 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

564
Handling the Unexpected When You Cannot Unlock the Fuel Fill Door ■ What to Do When Unable to Unlock the Fuel Fill Door
If you cannot open the fuel fill door, use the following procedure.
1. Open the trunk and pull off the left inside
cover.
2. Pull the release lever towards you.
u The release lever opens the fuel fill door
when it is pulled.
3. Slowly remove the fuel fill cap by turning it
to the left. If you hear a release of pressure,
wait until it stops, then continue to slowly
remove the fuel fill cap. 2 How to Refuel P. 455
4. Add fuel very slowly.
u The automatic fuel tank vent valve does
not operate when the fuel fill door is
opened manually. Trying to add fuel too
rapidly when the vent valve is closed will
cause fuel vapors to be pushed out the
filler pipe and can cause a small amount
of liquid fuel to be spilled onto the
ground. 1 When You Cannot Unlo ck the Fuel Fill Door
The automatic fuel tank ve nt does not operate when
using the manual fuel door release. Gradually release
pressure by slowly turning th e fuel fill cap to the left.
If you hear a release of fuel vapors, wait until it stops,
then continue to slowly remove the fuel fill cap.
The malfunction indicator lamp may come on when
driving after you have refu eled by manually opening
the fuel fill door.
2 If the Malfunction Indicator Lamp Comes
On or Blinks P. 549
After taking these steps, contact an authorized
Honda Clarity Plug-In Hybr id dealer to have the
vehicle checked.3
WARNING Gasoline vapors in tank are under pressure.
• If using the manual fuel door release,
open the cap slowly to gradually release
pressure.
• Stop the engine, and keep all sparks,
heat, and flame away.
Release Lever19 CLARITY PHEV-31TRW6100.book 564 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

565
Handling the Unexpected
When You Cannot Open the Charge Lid If you cannot open the charge lid, use the following procedure:
1. Pull the release lever under the lower left
corner of the dashboard.
u The lid will pop up slightly.
■ What to Do When Unable to Open the Charge Lid 1 When You Cannot Open the Charge Lid
After taking this step, cont act an authorized Honda
Clarity Plug-In Hybrid deal er to have the vehicle
checked.
Release Lever19 CLARITY PHEV-31TRW6100.book 565 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

566

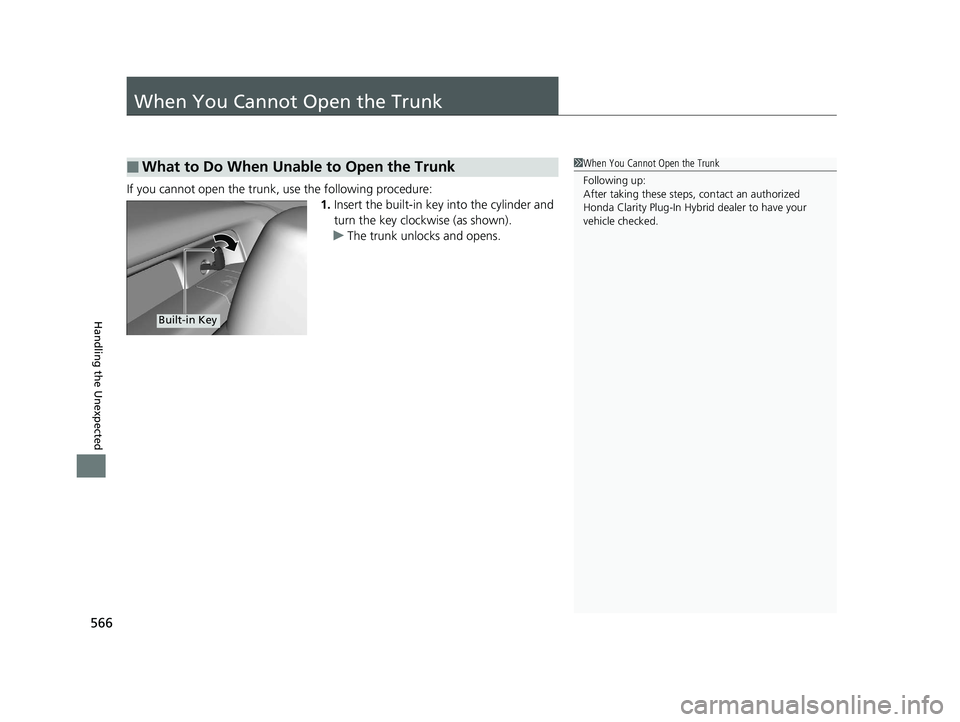

Handling the Unexpected When You Cannot Open the Trunk If you cannot open the trunk, use the following procedure:
1. Insert the built-in key into the cylinder and
turn the key clockwise (as shown).
u The trunk unlocks and opens.
■ What to Do When Unable to Open the Trunk 1 When You Cannot Open the Trunk
Following up:
After taking these steps, contact an authorized
Honda Clarity Plug-In Hybrid dealer to have your
vehicle checked.
Built-in Key19 CLARITY PHEV-31TRW6100.book 566 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

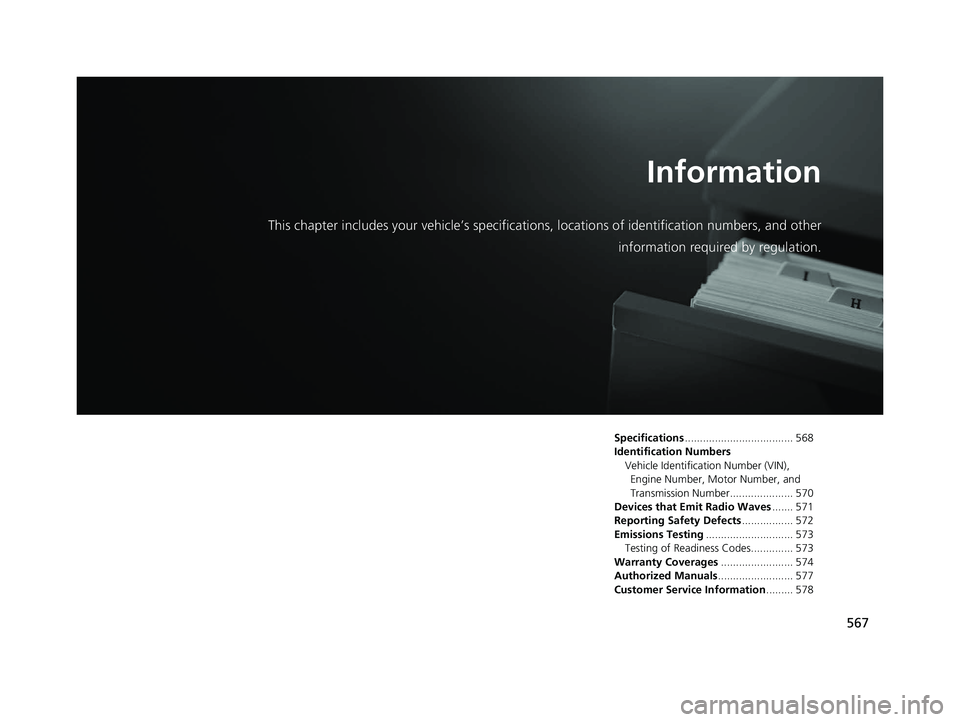

567InformationThis chapter includes your vehicl e’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 568
Identification Numbers
Vehicle Identification Number (VIN),
Engine Number, Motor Number, and
Transmission Number..................... 570
Devices that Emit Radio Waves ....... 571
Reporting Safety Defects ................. 572
Emissions Testing ............................. 573
Testing of Readiness Codes.............. 573
Warranty Coverages ........................ 574
Authorized Manuals ......................... 577
Customer Service Information ......... 57819 CLARITY PHEV-31TRW6100.book 567 ページ ２０１８年１０月２５日　木曜日　午後２時２９分

568
Information Specifications ■ Vehicle Specifications
■ Air Conditioning
■ Engine Specifications Model CLARITY PLUG-IN HYBRID
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:
Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front) See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear) See the certification label on the driver’s
doorjamb
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant Type SE-A2 (POE)
Quantity 8.54 – 10.4 cu-in (140 – 170 cc)
Displacement 91.4 cu-in (1,498 cm 3
)
Spark Plugs NGK DILZKAR7C11H ■ Fuel
■ Washer Fluid Type Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 7.0 US gal (26.5 L)
Tank Capacity 1.43 US qt (1.35 L)
■ Light Bulbs Headlights (Low Beam) LED
Headlights (High Beam) LED
Front Turn Signal Lights LED
Front Side Marker Lights LED
Parking/Daytime Running Lights LED
Taillights/Rear Side Marker Lights LED
Brake Lights LED
Taillights LED
Back-Up Lights LED
Rear Turn Signal Lights LED
High-Mount Brake Light LED
Rear License Plate Light LED
Interior Lights
Front and Rear Map Lights LED
Front and Rear Ambient Lights LED
Vanity Mirror Lights 1.4 W
Center Console Light LED
Glove Box Light LED
Front Foot Lights *
LED
Trunk Light LED
Illumination Lamp
(inside Charge Lid) LED
* Not available on all models 19 CLARITY PHEV-31TRW6100.book 568 ページ ２０１８年１０月２５日　木曜日　午後２時２９分
