HONDA CR-V 2014 RM1, RM3, RM4 / 4.G Navigation Manual

40
System Setup
Routing & Guidance
HINFO button  Setup  Other  Routing & Guidance
Choose various settings that determine th e navigation system functionality during
route guidance.
Select an item.
The following item s are available:
• Rerouting : Sets the route recalculation to automatic or manual mode.
2Rerouting P. 41
• Unverified Area Routing : Sets whether you use the ro ute guidance in unverified
areas.
2 Unverified Area Routing P. 42
• Edit Avoid Area : Specifies areas to avoid when calculating a route.
2Edit Avoid Area P. 44
• Edit Waypoint Search Area : Sets the distance from the route to find waypoints.
2Edit Waypoint Search Area P. 46
• Guidance Mode : Sets whether to display only the map screen or a split map-
guidance screen.
2 Guidance Mode P. 90
CR-V_KA-31T0A800.book 40 ページ ２０１１年７月４日　月曜日　午後１時５６分

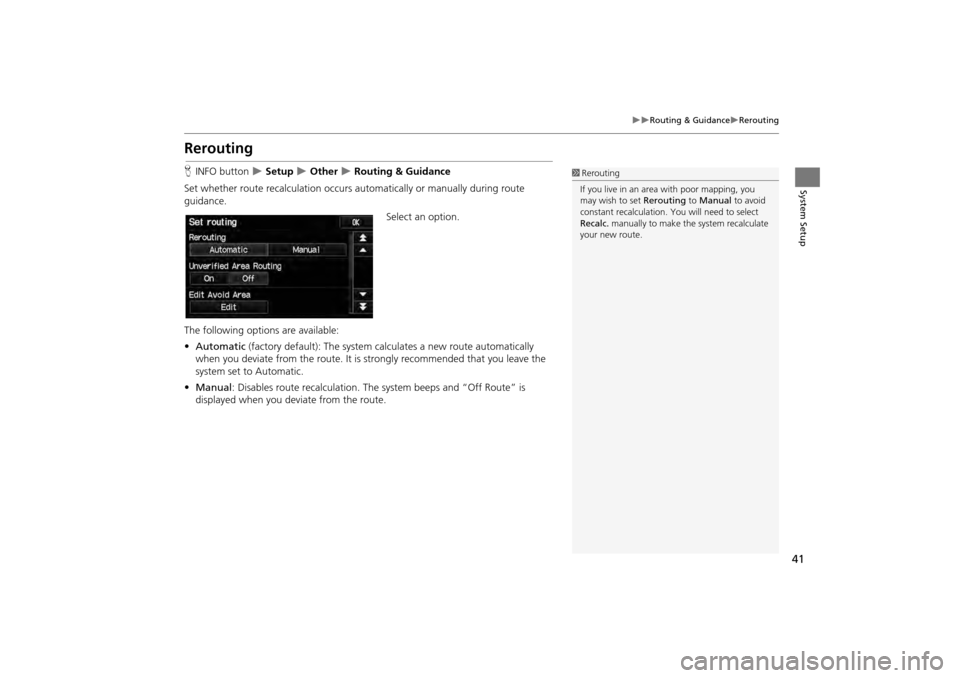

41
Routing & GuidanceRerouting
System Setup
Rerouting
HINFO button  Setup  Other  Routing & Guidance
Set whether route recalculation occurs automatically or manually during route
guidance. Select an option.
The following options are available:
• Automatic (factory default): The system ca lculates a new route automatically
when you deviate from the route. It is strongly recommended that you leave the
system set to Automatic.
• Manual : Disables route recalculation. The system beeps and “Off Route” is
displayed when you deviate from the route.1 Rerouting
If you live in an area with poor mapping, you
may wish to set Rerouting to Manual to avoid
constant recalcul ation. You will need to select
Recalc. manually to make the system recalculate
your new route.
CR-V_KA-31T0A800.book 41 ページ ２０１１年７月４日　月曜日　午後１時５６分

42
Routing & GuidanceUnverified Area Routing
System Setup
Unverified Area Routing
HINFO button  Setup  Other  Routing & Guidance
Receive turn-by-turn map and voice guidance in unverified areas. Select On or Off .1Unverified Area Routing
Unverified roads are found in rural areas, and
typically include residential streets away from the
center of a town. They may not be accurate, and
can contain errors in location, naming, and
address range.
Unverified roads are s hown only when viewing
the map in the 1/20, 1/8, 1/4, 1/2, 1, or 2 mile
map scales.
Vector line (dotted)
Blue-pink route line
Differences Off (factory default) On
On or Off?The driver wishes to manually
navigate using the navigation map
and choose the streets that lead to
the destination.The driver chooses to let the
navigation system suggest
possible routing, knowing that the
guidance may not be accurate.
Route
calculation Route is usually longer, using
verified roads whenever possible. Route is shorter, but uses
unverified (purple) streets that
may not be accurate.
Route lineA blue dotted vector line is displayed
on the map that continually points
to your destination.A blue-pink dashed route line
highlights suggested unverified
streets on the map while traveling
to your destination.
Cautionary
messages Cautionary pop-up screens and
voice announcements remind you to
obey all traffic restrictions. Cautionary pop-up screens and
voice announcements remind you
to exercise additional caution and
obey all traffic restrictions.
CR-V_KA-31T0A800.book 42 ページ ２０１１年７月４日　月曜日　午後１時５６分

43
Routing & GuidanceUnverified Area Routing
System SetupGuidance
(map/voice)There is no turn-by-turn map or
voice guidance.Voice guidance commands end
with the phrase “if possible” to
remind you to verify all traffic
restrictions.
My
Destination
(Direction
list) A direction list is typically not
available. However, depending on
your route, directions are provided
to help you reach the first available
verified road. A direction list is provided
showing unverified street names
in blue boxes and turn symbols in
pink.
Differences Off (factory default) On
CR-V_KA-31T0A800.book 43 ページ ２０１１年７月４日　月曜日　午後１時５６分

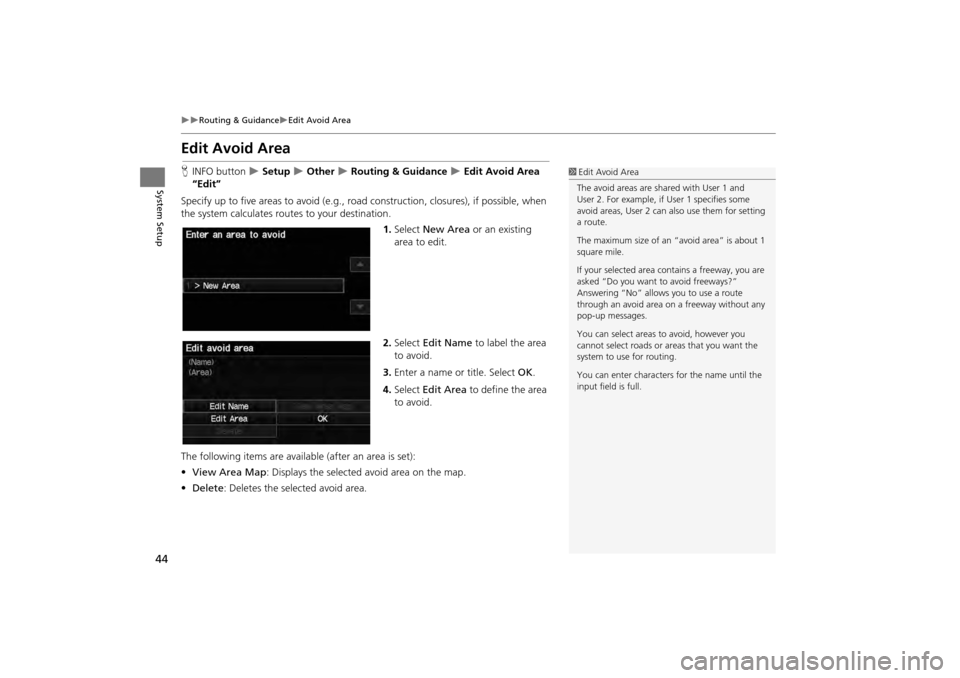

44
Routing & GuidanceEdit Avoid Area
System Setup
Edit Avoid Area
HINFO button  Setup  Other  Routing & Guidance  Edit Avoid Area
“Edit”
Specify up to five areas to avoid (e.g., road construction, closures), if possible, when
the system calculates rout es to your destination.
1.Select New Area or an existing
area to edit.
2. Select Edit Name to label the area
to avoid.
3. Enter a name or title. Select OK.
4. Select Edit Area to define the area
to avoid.
The following items are available (after an area is set):
• View Area Map: Displays the selected avoid area on the map.
• Delete : Deletes the selected avoid area.1Edit Avoid Area
The avoid areas are shared with User 1 and
User 2. For example, if User 1 specifies some
avoid areas, User 2 can al so use them for setting
a route.
The maximum size of an “avoid area” is about 1
square mile.
If your selected area contains a freeway, you are
asked “Do you want to avoid freeways?”
Answering “No” allows you to use a route
through an avoid area on a freeway without any
pop-up messages.
You can select areas to avoid, however you
cannot select roads or areas that you want the
system to use for routing.
You can enter characters for the name until the
input field is full.
CR-V_KA-31T0A800.book 44 ページ ２０１１年７月４日　月曜日　午後１時５６分

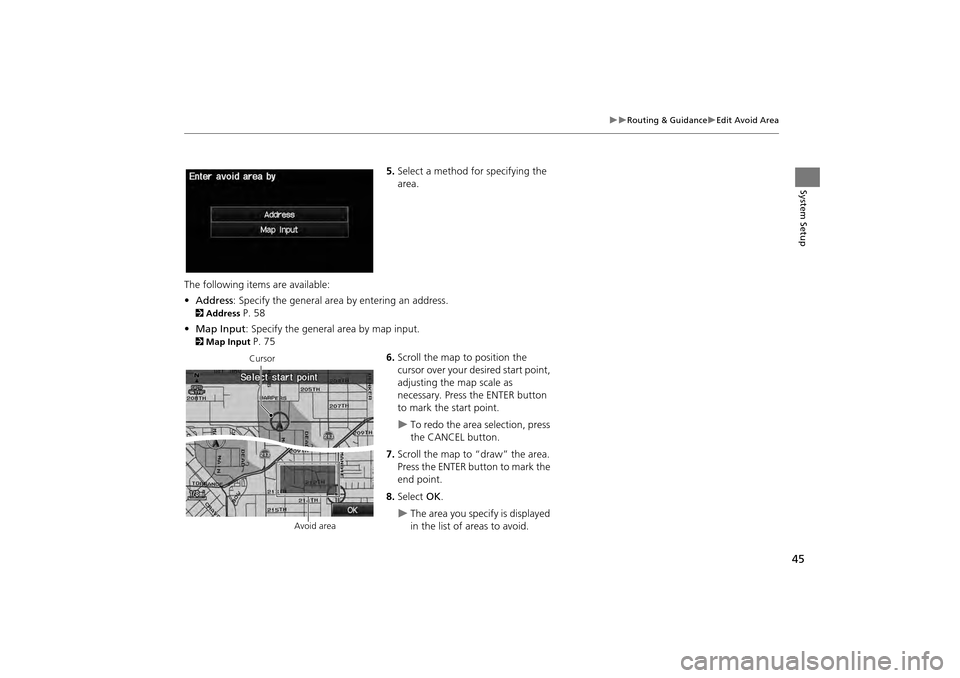

45
Routing & GuidanceEdit Avoid Area
System Setup
5.Select a method fo r specifying the
area.
The following items are available:
• Address : Specify the general area by entering an address.
2Address P. 58
• Map Input : Specify the general area by map input.
2Map Input P. 75
6.Scroll the map to position the
cursor over your desired start point,
adjusting the map scale as
necessary. Press the ENTER button
to mark the start point.
To redo the area selection, press
the CANCEL button.
7. Scroll the map to “draw” the area.
Press the ENTER button to mark the
end point.
8. Select OK.
The area you specify is displayed
in the list of areas to avoid.
Cursor
Avoid area
CR-V_KA-31T0A800.book 45 ページ ２０１１年７月４日　月曜日　午後１時５６分

46
Routing & GuidanceEdit Waypoint Search Area
System Setup
Edit Waypoint Search Area
HINFO button  Setup  Other  Routing & Guidance  Edit Waypoint
Search Area “Edit”
Select the distance from your highlighted route line (on either side of your route)
that the system will search for a waypoint.
2 Adding Waypoints P. 103
You can specify a different search dist ance for freeways and surface streets.
1.Select a search distance.
2. Select OK.
The following options are available:
• On Freeways : 1, 2, 5, or 10 miles can be set. Factory default is 2 miles.
• On Surface Street : 1/2, 1, 2, or 5 miles can be set. Factory default is 1/2 mile.
1Edit Waypoint Search Area
The search distance does not affect the search
range used for the Find Nearest voice commands
(e.g., say
d “Find nearest gas station” ).
CR-V_KA-31T0A800.book 46 ページ ２０１１年７月４日　月曜日　午後１時５６分

47
System Setup
Clock Adjustment
HINFO button  Setup  Other  Clock Adjustment  Clock Adjustment
Set the automatic adjustment of the sy stem clock for daylight saving and
international time zones.
Select an item.
The following items are available:
• Auto Daylight : The navigation system automati cally adjusts the clock (“spring
ahead” or “fall back” by one hour) when a daylight saving time change occurs.
On (factory default): Adjusts the clock automatically.
Off : Disables the feature.
• Auto Time Zone : The navigation syst em automatically adju sts the clock when
driving through different time zones.
On (factory default): Adjusts the clock automatically.
Off : Disables the feature.
• Clock Format : Sets the time notation to either 12-hour clock ( 12H, factory
default) or 24-hour clock ( 24H).
• Time Adjustment : Adjust the current time manually.
2Adjust Time P. 48
• Reset : Reset the clock settings to the factory default.
2Resetting the Clock Settings P. 48
1Clock Adjustment
You can check the time and date from any
screen using voice commands.
2 Global Commands P. 198
Auto Daylight
This function is not activated in areas that have
not adopted daylight saving time, even if you
have set Auto Daylight to On.
Auto Time Zone
If you live and work in two different time zones,
you may want to turn Auto Time Zone to Off.
When driving near a time zone boundary, the
displayed time zone ma y fluctuate between the
two zone times.
CR-V_KA-31T0A800.book 47 ページ ２０１１年７月４日　月曜日　午後１時５６分

48
Clock AdjustmentAdjust Time
System Setup
Adjust Time
HINFO button  Setup  Other  Clock Adjustment  Clock Adjustment
Adjust the current time (hours and minutes). 1.Select B or N to adjust the value.
2. Select OK on the top right of the
screen.
Resetting the Clock Settings
H INFO button  Setup  Other  Clock Adjustment  Clock Adjustment
Reset all clock settings to the factory defaults. Select OK under Reset.
CR-V_KA-31T0A800.book 48 ページ ２０１１年７月４日　月曜日　午後１時５６分

49
Clock AdjustmentSetting the Clock Type
System Setup
Setting the Clock Type
HINFO button  Setup  Other  Clock Adjustment  Clock Type
Set the design of the clock screen. 1.Select Clock Type or Background .
2. Select an option to change the
design.
3. Select OK.
CR-V_KA-31T0A800.book 49 ページ ２０１１年７月４日　月曜日　午後１時５６分
