HONDA CR-V 2014 RM1, RM3, RM4 / 4.G Navigation Manual

50
System Setup

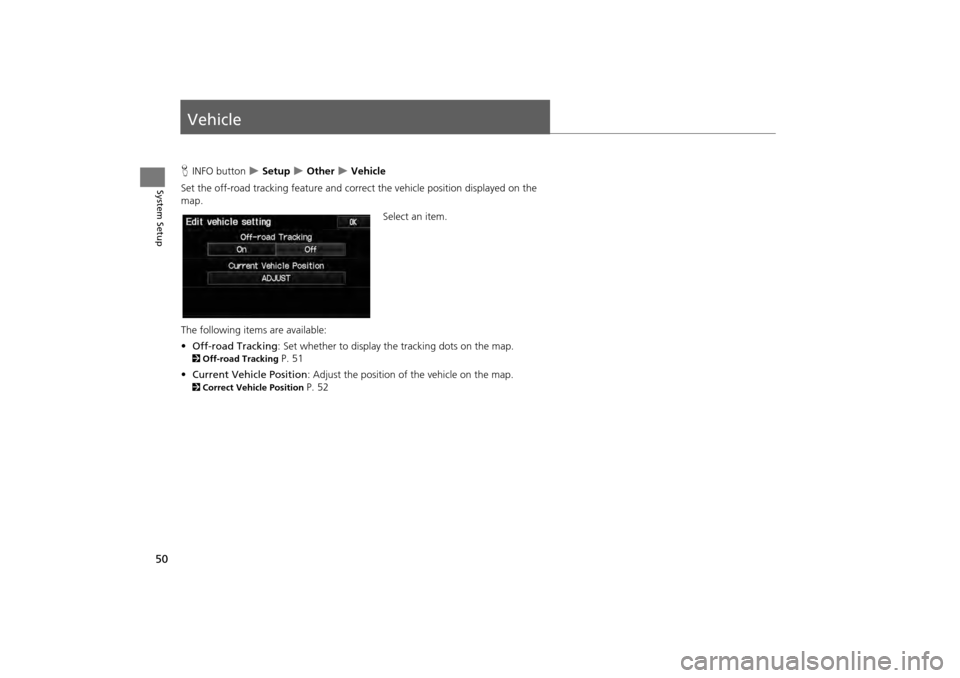

Vehicle
HINFO button  Setup  Other  Vehicle
Set the off-road tracking feature and correct the vehicle position displayed on the
map. Select an item.
The following item s are available:
• Off-road Tracking : Set whether to display th e tracking dots on the map.
2Off-road Tracking P. 51
• Current Vehicle Position : Adjust the position of the vehicle on the map.
2Correct Vehicle Position P. 52
CR-V_KA-31T0A800.book 50 ページ ２０１１年７月４日　月曜日　午後１時５６分

51
XXVehicleXOff-road Tracking
System Setup

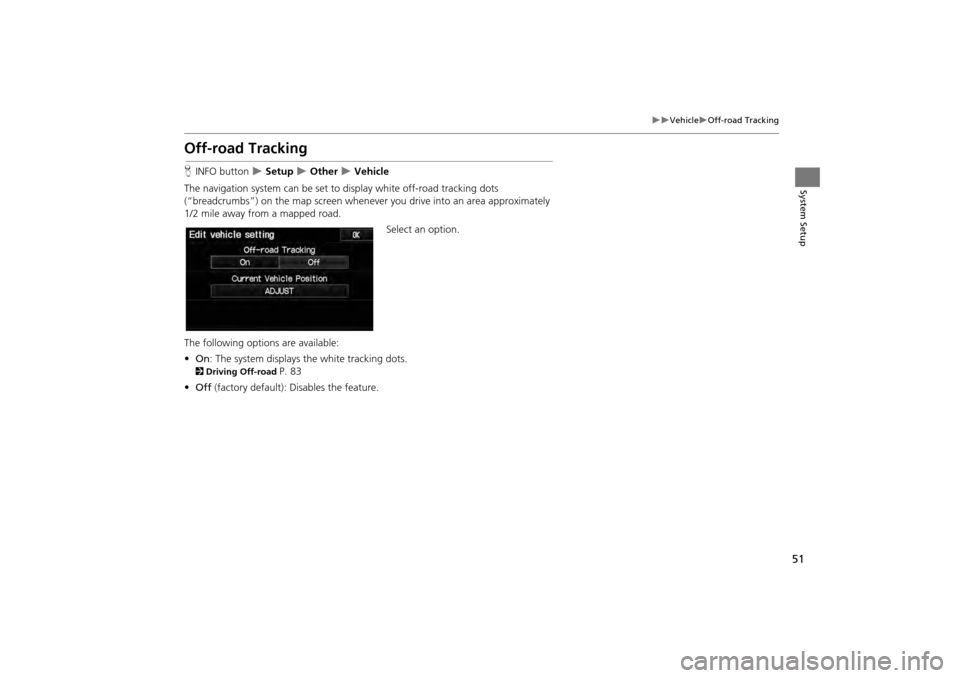

Off-road Tracking
HINFO button X Setup X Other X Vehicle
The navigation system can be set to display white off-road tracking dots
(“breadcrumbs”) on the map sc reen whenever you drive into an area approximately
1/2 mile away from a mapped road.
Select an option.
The following options are available:
• On : The system displays the white tracking dots.
2Driving Off-road P. 83
• Off (factory default): Disables the feature.
CR-V_KA-31T0A800_01.fm 51 ページ ２０１２年１月２０日　金曜日　午後４時２０分

52
VehicleCorrect Vehicle Position
System Setup

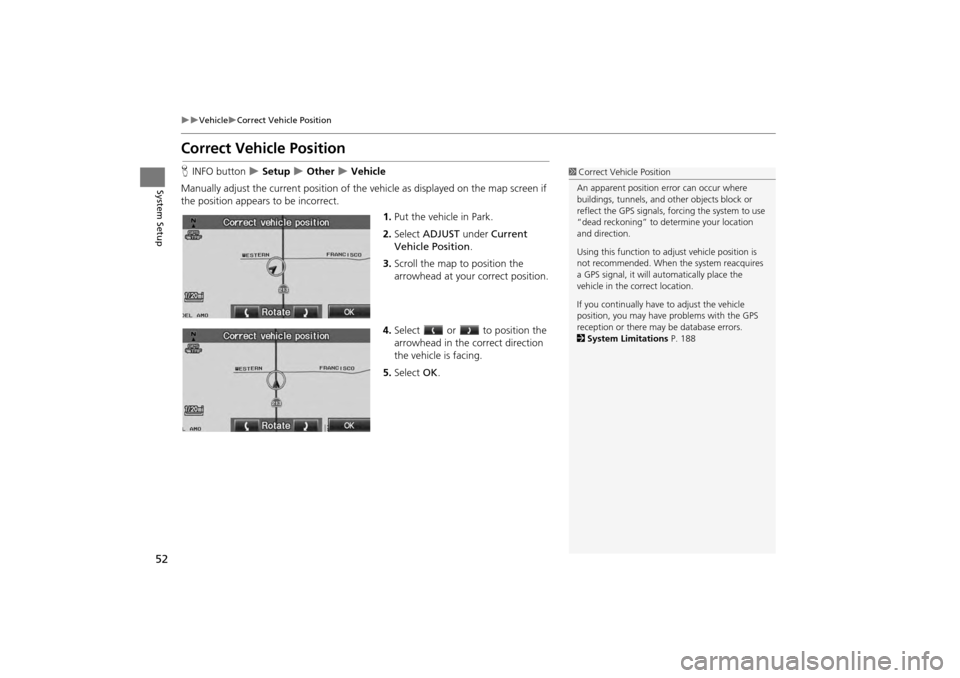

Correct Vehicle Position
HINFO button  Setup  Other  Vehicle
Manually adjust the current position of the vehicle as displayed on the map screen if
the position appear s to be incorrect.
1.Put the vehicle in Park.
2. Select ADJUST under Current
Vehicle Position .
3. Scroll the map to position the
arrowhead at your correct position.
4. Select or to position the
arrowhead in the correct direction
the vehicle is facing.
5. Select OK.1Correct Vehicle Position
An apparent position error can occur where
buildings, tunnels, and ot her objects block or
reflect the GPS signals, forcing the system to use
“dead reckoning” to determine your location
and direction.
Using this function to ad just vehicle position is
not recommended. When the system reacquires
a GPS signal, it will automatically place the
vehicle in the correct location.
If you continually have to adjust the vehicle
position, you may have problems with the GPS
reception or there may be database errors.
2 System Limitations P. 188
CR-V_KA-31T0A800.book 52 ページ ２０１１年７月４日　月曜日　午後１時５６分

53
System Setup

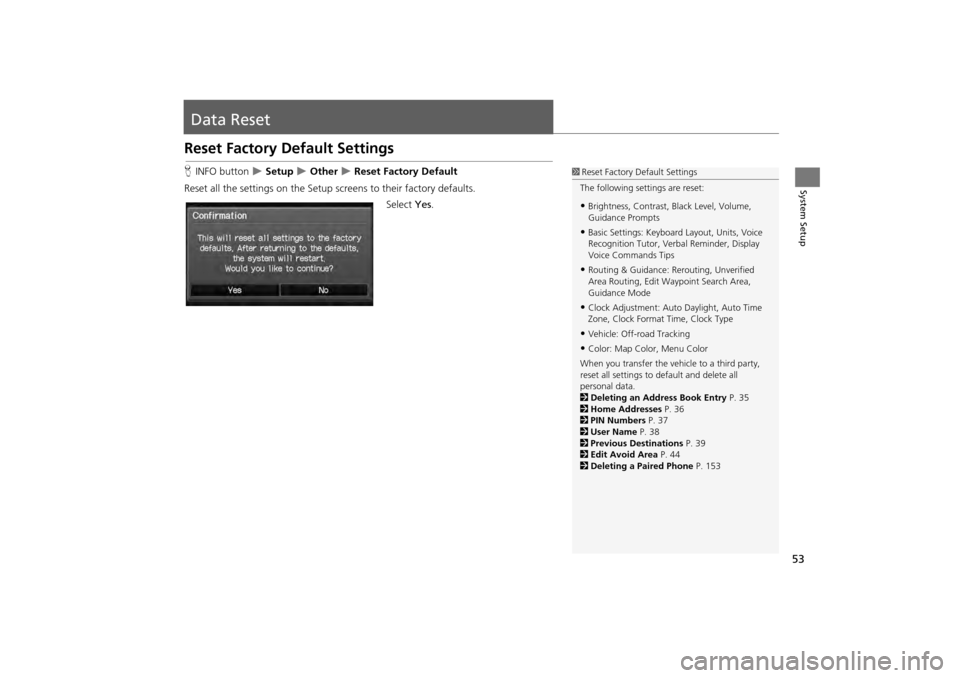

Data Reset
Reset Factory Default Settings
HINFO button  Setup  Other  Reset Factory Default
Reset all the settings on the Setup sc reens to their factory defaults.
Select Yes.1Reset Factory Default Settings
The following settings are reset:
•Brightness, Contrast, Black Level, Volume,
Guidance Prompts
•Basic Settings: Keyboard Layout, Units, Voice
Recognition Tutor, Verb al Reminder, Display
Voice Commands Tips
•Routing & Guidance: Rer outing, Unverified
Area Routing, Edit Wayp oint Search Area,
Guidance Mode
•Clock Adjustment: Auto Daylight, Auto Time
Zone, Clock Format Time, Clock Type
•Vehicle: Off-road Tracking
•Color: Map Color, Menu Color
When you transfer the vehicle to a third party,
reset all settings to default and delete all
personal data.
2 Deleting an Address Book Entry P. 35
2 Home Addresses P. 36
2 PIN Numbers P. 37
2 User Name P. 38
2 Previous Destinations P. 39
2 Edit Avoid Area P. 44
2 Deleting a Paired Phone P. 153
CR-V_KA-31T0A800.book 53 ページ ２０１１年７月４日　月曜日　午後１時５６分

54
Data ResetClear All Speed Dial
System Setup

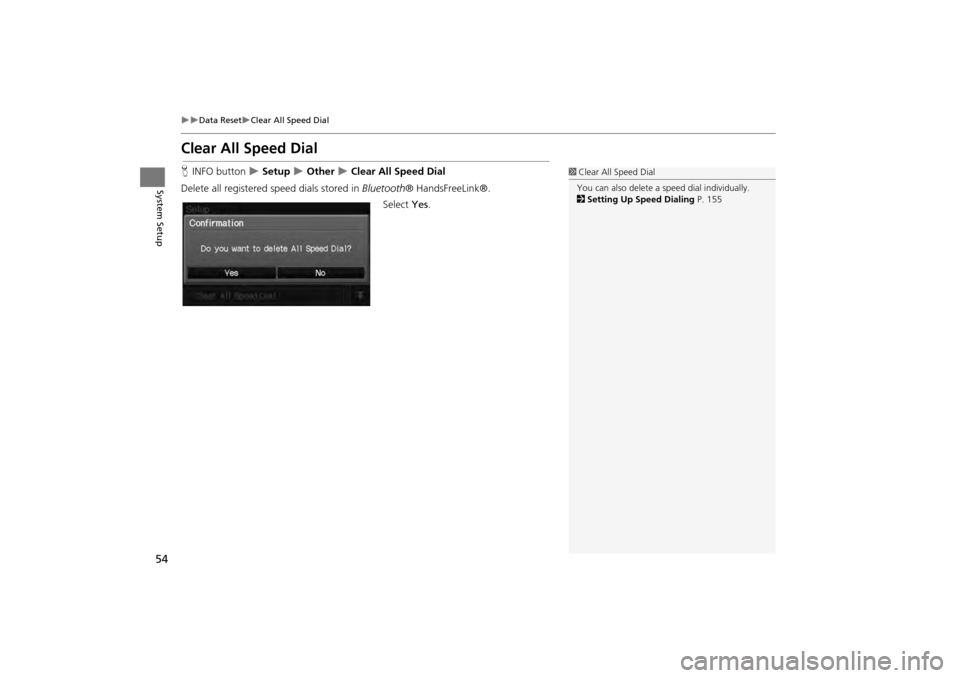

Clear All Speed Dial
HINFO button  Setup  Other  Clear All Speed Dial
Delete all registered speed dials stored in Bluetooth® HandsFreeLink®.
Select Yes.1Clear All Speed Dial
You can also delete a speed dial individually.
2 Setting Up Speed Dialing P. 155
CR-V_KA-31T0A800.book 54 ページ ２０１１年７月４日　月曜日　午後１時５６分

55

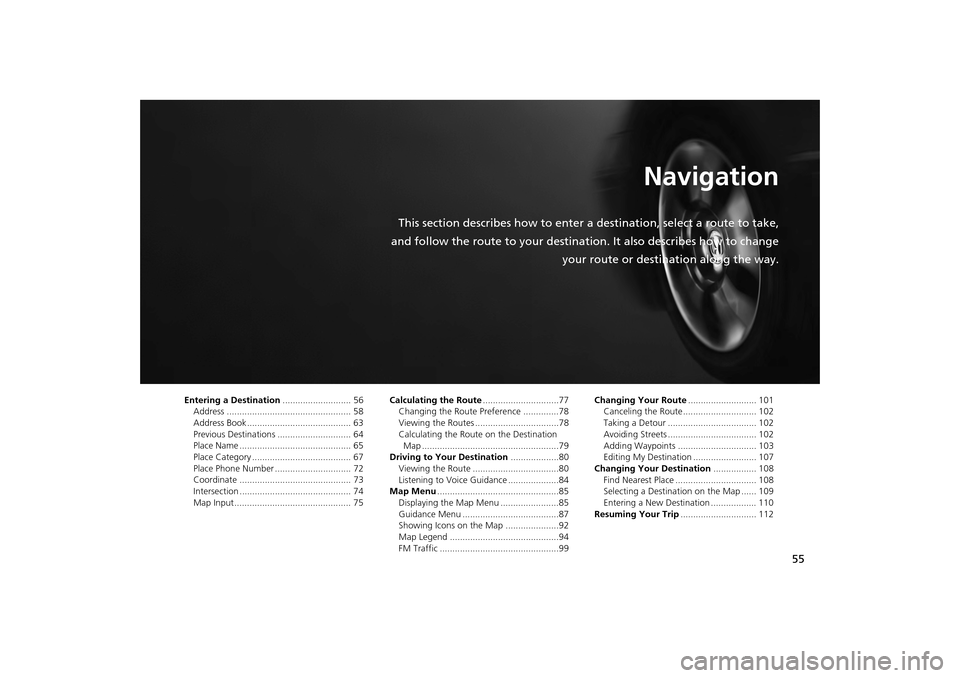

Navigation
This section describes how to enter a destination, select a route to take,
and follow the route to your destination. It also describes how to change your route or destination along the way.
Entering a Destination........................... 56
Address ................................................. 58
Address Book ......................................... 63
Previous Destinations ............................. 64
Place Name ............................................ 65
Place Category ....................................... 67
Place Phone Number .............................. 72
Coordinate ............................................ 73
Intersection ............................................ 74
Map Input.............................................. 75 Calculating the Route
..............................77
Changing the Route Preference ..............78
Viewing the Routes .................................78
Calculating the Route on the Destination
Map ......................................................79
Driving to Your Destination ...................80
Viewing the Route ..................................80
Listening to Voice Guidance ....................84
Map Menu ................................................85
Displaying the Map Menu .......................85
Guidance Menu ......................................87
Showing Icons on the Map .....................92
Map Legend ...........................................94
FM Traffic ...............................................99 Changing Your Route
........................... 101
Canceling the Route............................. 102
Taking a Detour ................................... 102
Avoiding Streets ................................... 102
Adding Waypoints ............................... 103
Editing My Destination ......................... 107
Changing Your Destination ................. 108
Find Nearest Place ................................ 108
Selecting a Destination on the Map ...... 109
Entering a New Destination .................. 110
Resuming Your Trip .............................. 112
CR-V_KA-31T0A800.book 55 ページ ２０１１年７月４日　月曜日　午後１時５６分

56
Navigation

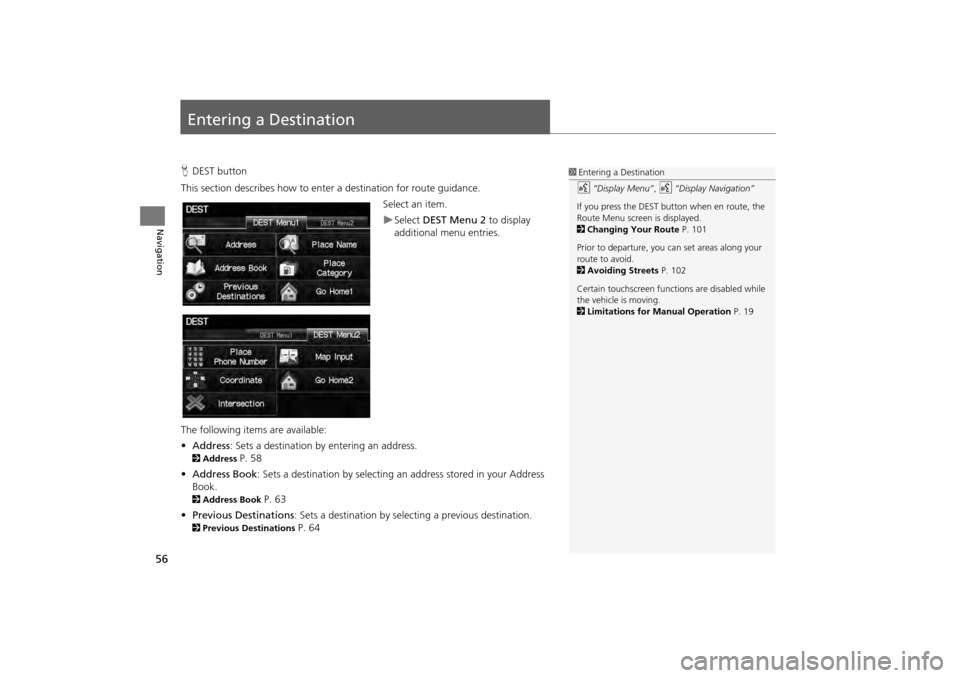

Entering a Destination
HDEST button
This section describes how to enter a destination for route guidance. Select an item.
Select DEST Menu 2 to display
additional menu entries.
The following item s are available:
• Address : Sets a destination by entering an address.
2Address P. 58
• Address Book: Sets a destination by selecting an address stored in your Address
Book.
2 Address Book P. 63
• Previous Destinations : Sets a destination by selecting a previous destination.
2Previous Destinations P. 64
1Entering a Destination
d “Display Menu” , d “Display Navigation”
If you press the DEST but ton when en route, the
Route Menu screen is displayed.
2 Changing Your Route P. 101
Prior to departure, you can set areas along your
route to avoid.
2 Avoiding Streets P. 102
Certain touchscreen functi ons are disabled while
the vehicle is moving.
2 Limitations for Manual Operation P. 19
CR-V_KA-31T0A800.book 56 ページ ２０１１年７月４日　月曜日　午後１時５６分

57
Entering a Destination
Navigation
•Place Name : Sets a destination by entering a place name.
2Place Name P. 65
• Place Category : Sets a destination by selecting a place/landmark.
2Place Category P. 67
• Place Phone Number : Sets a destination by entering the phone number of a
place/landmark.
2 Place Phone Number P. 72
• Coordinate: Sets a destination by entering latitude and longitude.
2 Coordinate P. 73
• Intersection : Sets a destination (intersection) by entering two streets.
2Intersection P. 74
• Map Input : Sets a destination by scrolling through the map.
2Map Input P. 75
• Go Home 1 or 2 : Sets your home addres s as a destination.
2Going Home P. 10
CR-V_KA-31T0A800.book 57 ページ ２０１１年７月４日　月曜日　午後１時５６分

58
Entering a DestinationAddress
Navigation

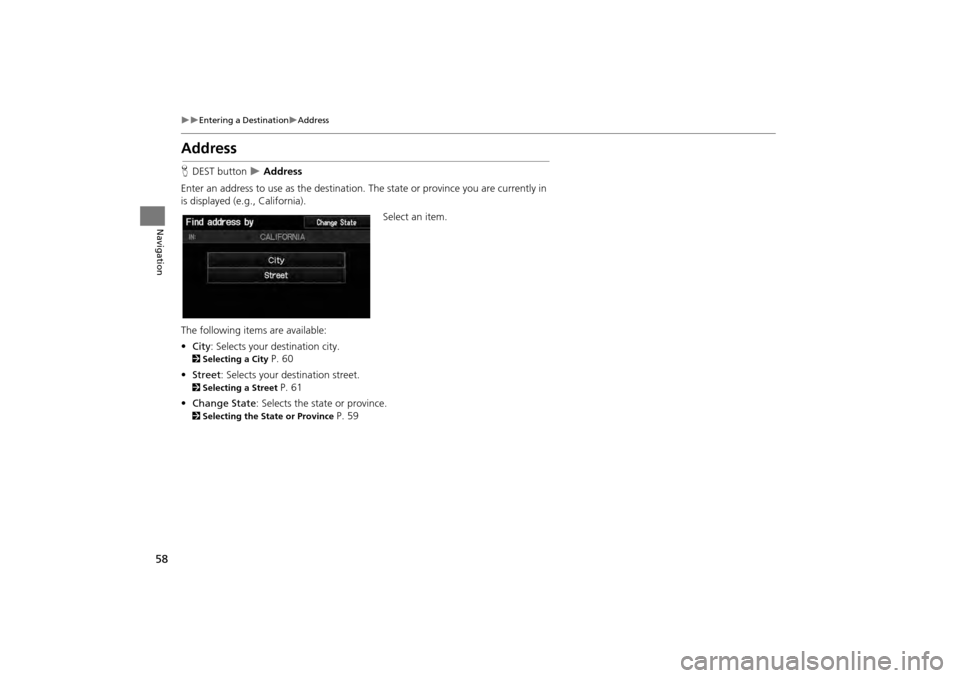

Address
HDEST button  Address
Enter an address to use as th e destination. The state or pr ovince you are currently in
is displayed (e.g., California).
Select an item.
The following item s are available:
• City : Selects your destination city.
2Selecting a City P. 60
• Street : Selects your destination street.
2Selecting a Street P. 61
• Change State : Selects the state or province.
2Selecting the State or Province P. 59
CR-V_KA-31T0A800.book 58 ページ ２０１１年７月４日　月曜日　午後１時５６分

59
Entering a DestinationAddress
Navigation
HDEST button  Address  Change State
1.Enter a state name.
Select List to display a list of
states.
2. Select a state from the list.
■Selecting the State or Province
CR-V_KA-31T0A800.book 59 ページ ２０１１年７月４日　月曜日　午後１時５６分
