HONDA CR-V 2015 RM1, RM3, RM4 / 4.G Owners Manual

110
uuGauges and Displays uMulti-Information Display*
Instrument Panel

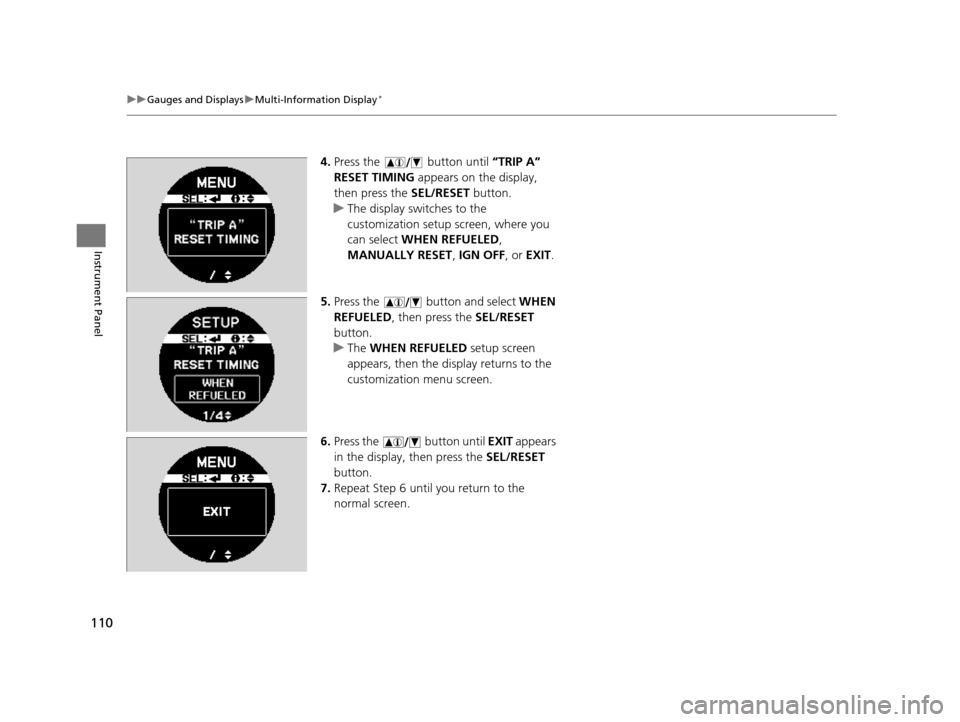

4. Press the button until “TRIP A”
RESET TIMING appears on the display,
then press the SEL/RESET button.
u The display switches to the
customization setup screen, where you
can select WHEN REFUELED ,
MANUALLY RESET , IGN OFF , or EXIT .
5. Press the button and select WHEN
REFUELED , then press the SEL/RESET
button.
u The WHEN REFUELED setup screen
appears, then the di splay returns to the
customization menu screen.
6. Press the button until EXIT appears
in the display, then press the SEL/RESET
button.
7. Repeat Step 6 until you return to the
normal screen.
15 CR-V-31T0A6300.book 110 ページ ２０１５年２月２日　月曜日　午前１０時３５分

111
uuGauges and Displays uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel

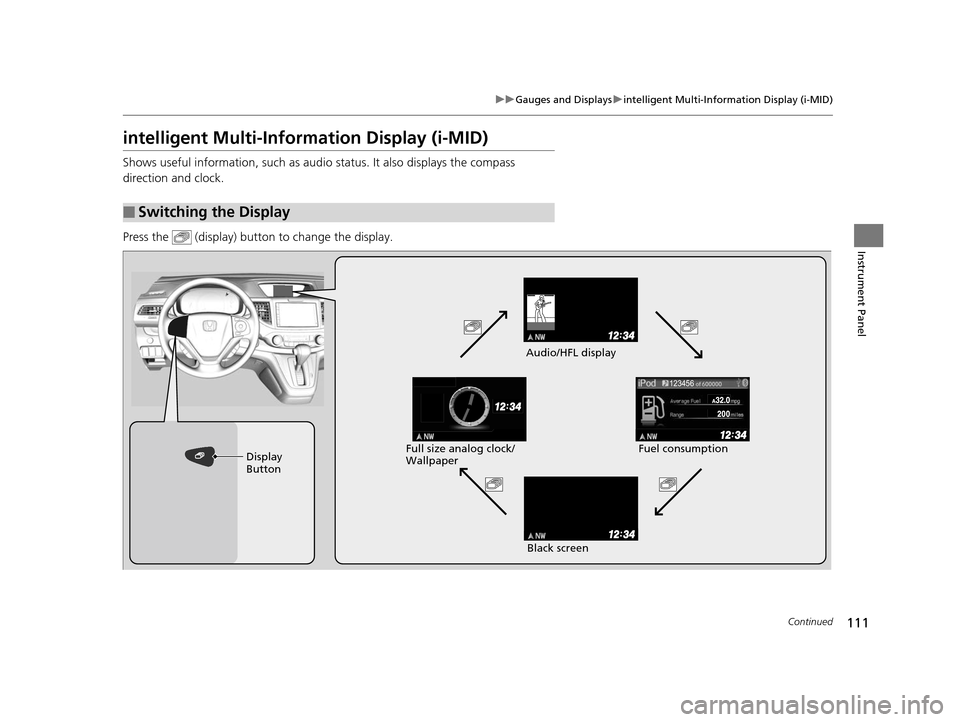

intelligent Multi-Information Display (i-MID)
Shows useful information, such as audi o status. It also displays the compass
direction and clock.
Press the (display) butto n to change the display.
■Switching the Display

Display
Button Fuel consumption
Audio/HFL display
Black screen
Full size analog clock/
Wallpaper
15 CR-V-31T0A6300.book 111 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuGauges and Displays uintelligent Multi-Information Display (i-MID)
112
Instrument Panel

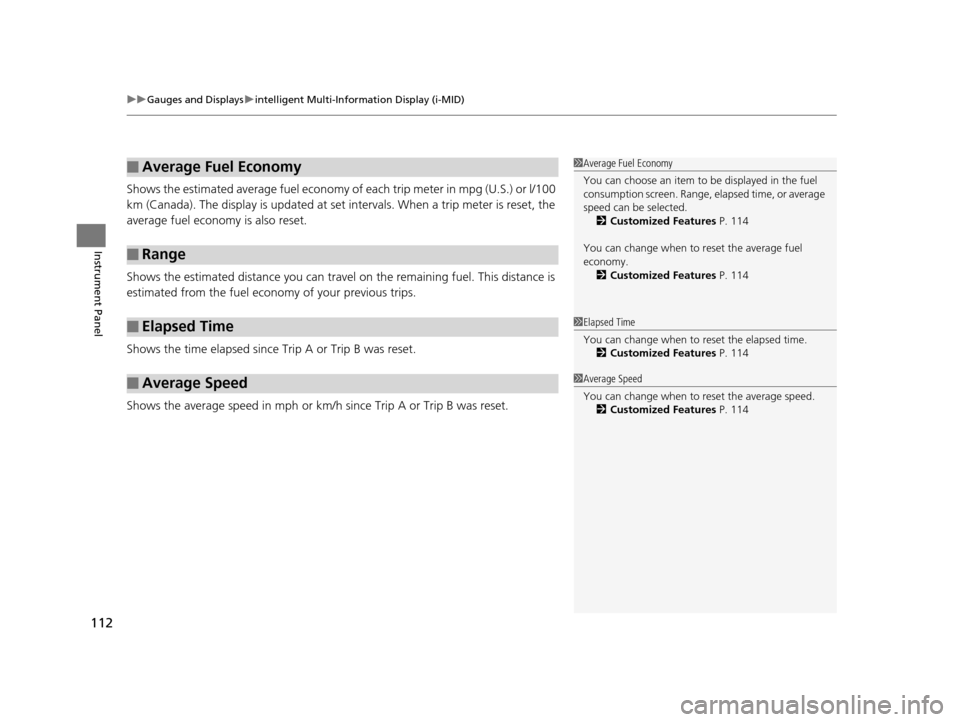

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
1Average Fuel Economy
You can choose an item to be displayed in the fuel
consumption screen. Range, elapsed time, or average
speed can be selected.
2 Customized Features P. 114
You can change when to reset the average fuel
economy. 2 Customized Features P. 114
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 114
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 114
15 CR-V-31T0A6300.book 112 ページ ２０１５年２月２日　月曜日　午前１０時３５分

Continued113
uuGauges and Displays uintelligent Multi-Information Display (i-MID)
Instrument Panel

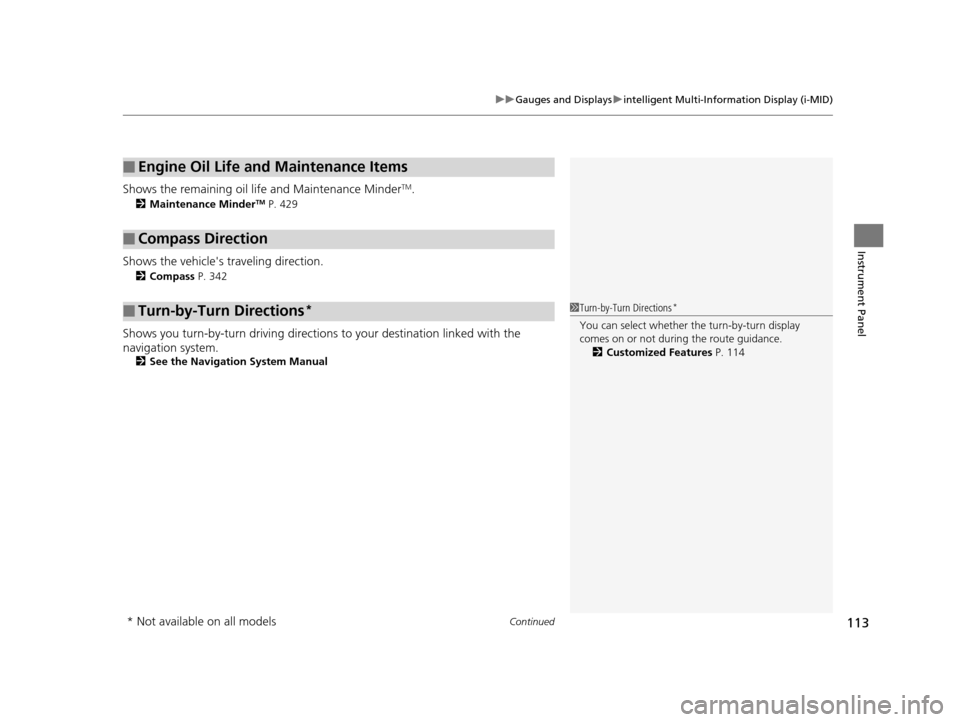

Shows the remaining oil life and Maintenance MinderTM.
2 Maintenance MinderTM P. 429
Shows the vehicle's traveling direction.
2Compass P. 342
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 See the Navigation System Manual
■Engine Oil Life and Maintenance Items
■Compass Direction
■Turn-by-Turn Directions*1Turn-by-Turn Directions*
You can select whether the turn-by-turn display
comes on or not during the route guidance.
2 Customized Features P. 114
* Not available on all models
15 CR-V-31T0A6300.book 113 ページ ２０１５年２月２日　月曜日　午前１０時３５分

uuGauges and Displays uintelligent Multi-Information Display (i-MID)
114
Instrument Panel

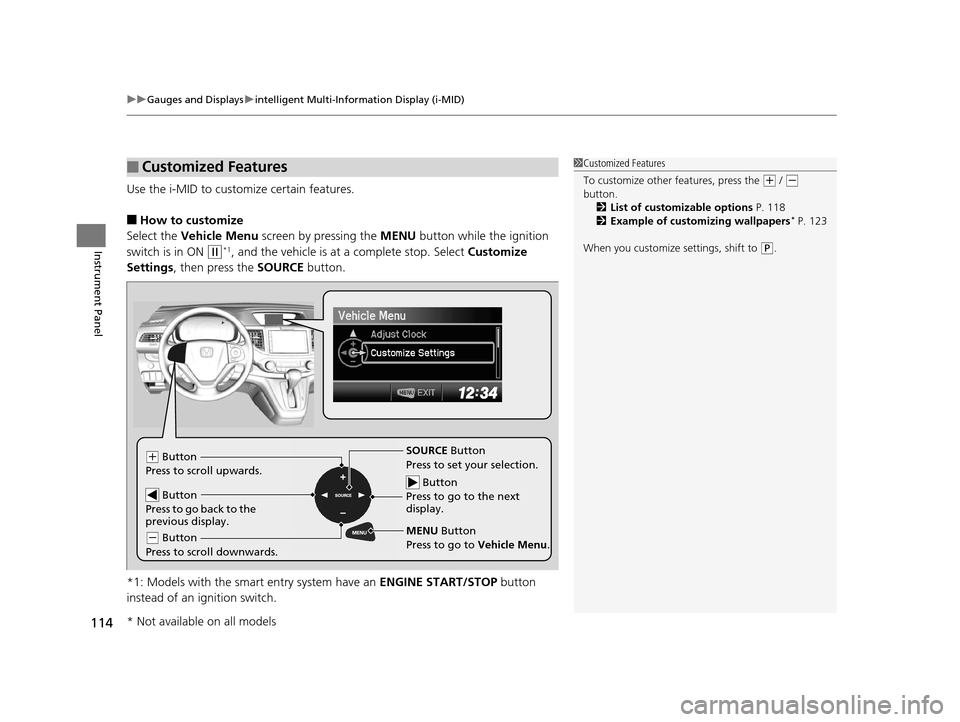

Use the i-MID to customize certain features.
■How to customize
Select the Vehicle Menu screen by pressing the MENU button while the ignition
switch is in ON
(w*1, and the vehicle is at a complete stop. Select Customize
Settings , then press the SOURCE button.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
■Customized Features1 Customized Features
To customize other features, press the
(+ / (-
button.
2 List of customizable options P. 118
2 Example of customizing wallpapers
* P. 123
When you customize settings, shift to
( P.
Button
Press to go to the next
display.
SOURCE Button
Press to set your selection.
MENU Button
Press to go to Vehicle Menu.(+ Button
Press to scroll upwards.
Button
Press to go back to the
previous display.
( - Button
Press to scroll downwards.
* Not available on all models
15 CR-V-31T0A6300.book 114 ページ ２０１５年２月２日　月曜日　午前１０時３５分

115
uuGauges and Displays uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel

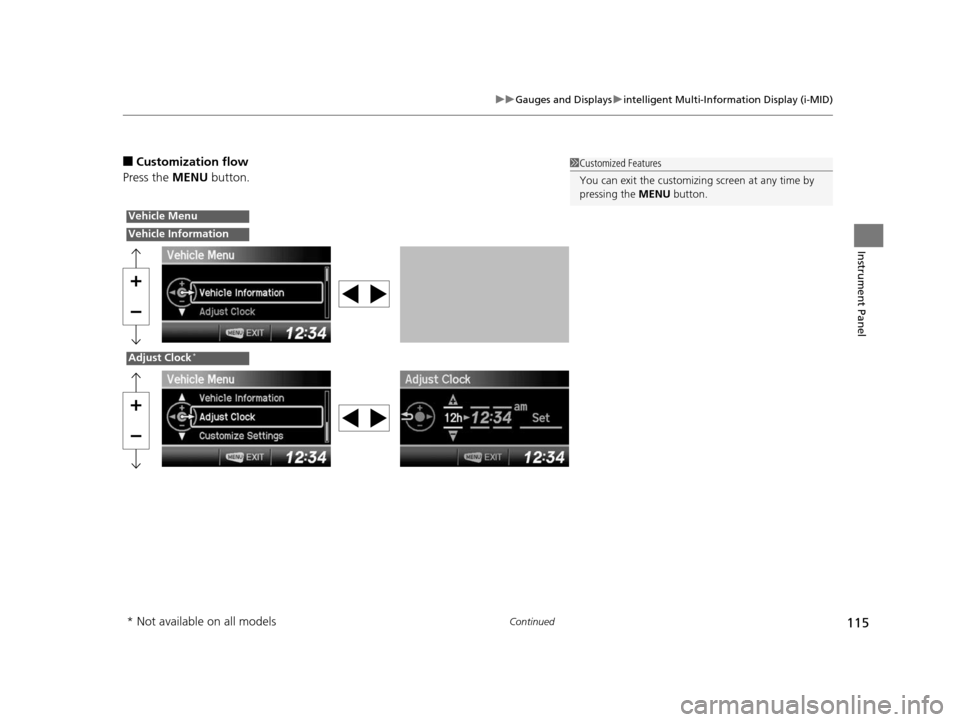

■Customization flow
Press the MENU button.1Customized Features
You can exit the customizin g screen at any time by
pressing the MENU button.
Vehicle Menu
Vehicle Information
Adjust Clock*
* Not available on all models
15 CR-V-31T0A6300.book 115 ページ ２０１５年２月２日　月曜日　午前１０時３５分

116
uuGauges and Displays uintelligent Multi-Information Display (i-MID)
Instrument Panel

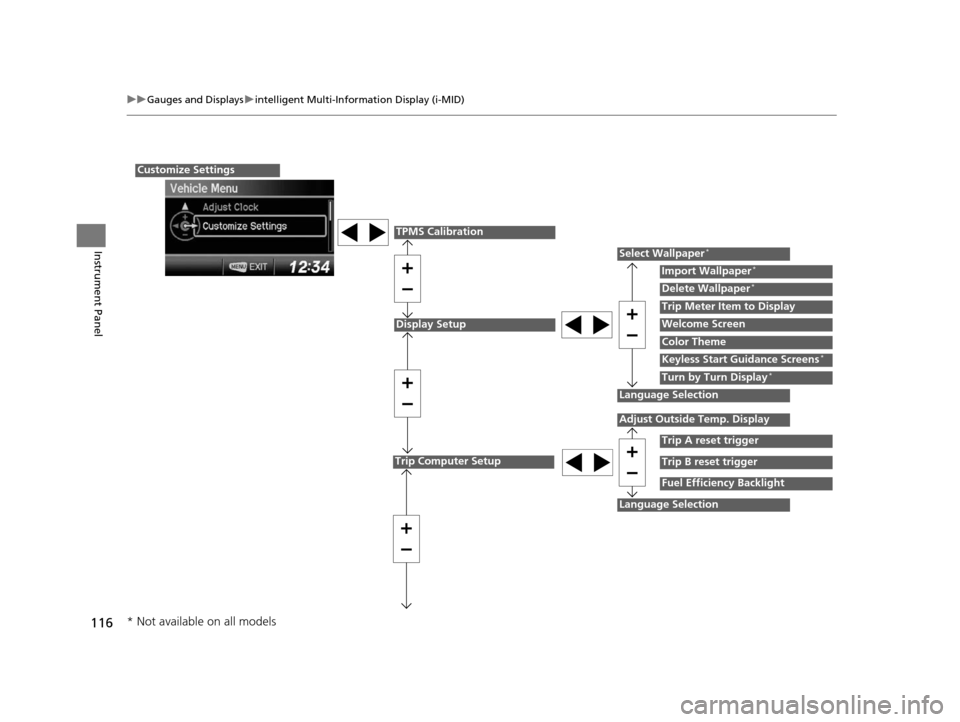

Customize Settings
Display Setup
Select Wallpaper*
Language Selection
Adjust Outside Temp. Display
Fuel Efficiency Backlight
Import Wallpaper*
Delete Wallpaper*
Trip Meter Item to Display
Welcome Screen
Color Theme
Turn by Turn Display*
Trip A reset trigger
Trip B reset trigger
TPMS Calibration
Trip Computer Setup
Keyless Start Guidance Screens*
Language Selection
* Not available on all models
15 CR-V-31T0A6300.book 116 ページ ２０１５年２月２日　月曜日　午前１０時３５分

117
uuGauges and Displays uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel

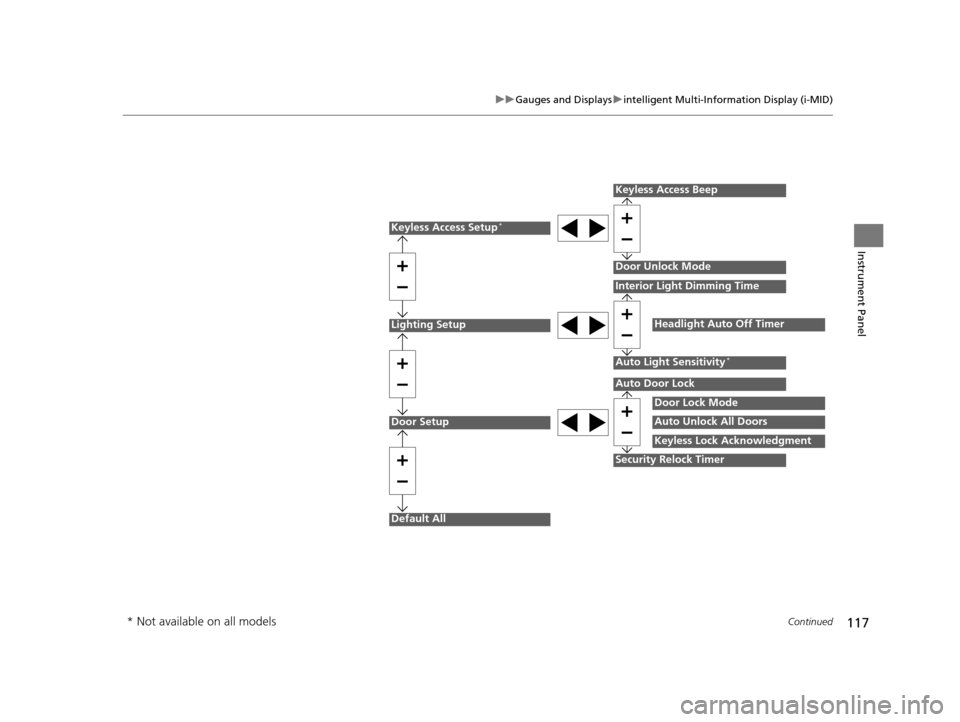

Lighting Setup
Door Setup
Default All
Interior Light Dimming Time
Auto Light Sensitivity*
Auto Door Lock
Security Relock Timer
Headlight Auto Off Timer
Door Lock Mode
Auto Unlock All Doors
Keyless Lock Acknowledgment
Keyless Access Setup*
Keyless Access Beep
Door Unlock Mode
* Not available on all models
15 CR-V-31T0A6300.book 117 ページ ２０１５年２月２日　月曜日　午前１０時３５分

118
uuGauges and Displays uintelligent Multi-Information Display (i-MID)
Instrument Panel

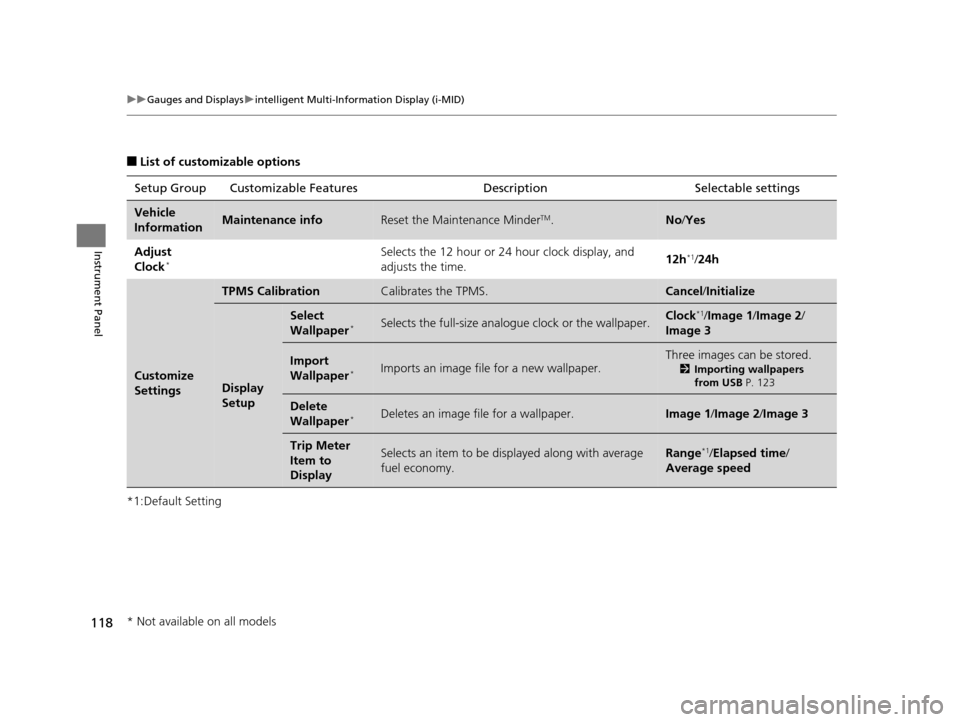

■List of customizable options
*1:Default Setting Setup Group Customizabl
e Features Description Selectable settings
Vehicle
InformationMaintenance infoReset the Maintenance MinderTM.No/Yes
Adjust
Clock
*Selects the 12 hour or 24 hour clock display, and
adjusts the time. 12h*1/
24h
Customize
Settings
TPMS CalibrationCalibrates the TPMS.Cancel /Initialize
Display
Setup
Select
Wallpaper*Selects the full-size analogue clock or the wallpaper.Clock*1/Image 1 /Image 2 /
Image 3
Import
Wallpaper*Imports an image file for a new wallpaper.
Three images can be stored.
2 Importing wallpapers
from USB P. 123
Delete
Wallpaper*Deletes an image file for a wallpaper.Image 1/Image 2/ Image 3
Trip Meter
Item to
DisplaySelects an item to be di splayed along with average
fuel economy.Range*1/ Elapsed time /
Average speed
* Not available on all models
15 CR-V-31T0A6300.book 118 ページ ２０１５年２月２日　月曜日　午前１０時３５分

119
uuGauges and Displays uintelligent Multi-Information Display (i-MID)
Continued
Instrument Panel
*1:Default Setting
*2:See the Navigation System Manual
*3:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Setup Group Customizable Features DescriptionSelectable settings
Customize
SettingsDisplay
Setup
Welcome
ScreenSelects whether the welcome screen comes on or not
when you turn the ignition switch to ON
(w*3.On*1/Off
Color ThemeChanges the color of the screen.Blue*1/Red/ Amber /Gray
Keyless Start
Guidance
Screens
*
Displays the push button start guidance when
conditions are met to change power mode.On /Off*1
Turn by Turn
Display*, *2Selects whether the turn-by -turn display comes on or
not during the route guidance.On*1/ Off
Language
SelectionChanges the displayed language.English*1/Francais /Español
* Not available on all models
