HONDA CR-V 2015 RM1, RM3, RM4 / 4.G Manual Online

80
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Smart Entry
System Indicator*
●Comes on for a few seconds when
you set the power mode to ON.
●Comes on as soon as a problem is
detected in the smart entry system or
push button starting system.
●Stays on constantly or does not come on
at all - Have your vehicle checked by a
dealer.
Starter System
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if the starter system has a
problem.
●As a temporary measure, press and hold the
ENGINE START/STOP button for up to 15
seconds while pressing the brake pedal and
manually start the engine. Have the vehicle
checked by a dealer.
—
* Not available on all models
15 CR-V-31T0A6300.book 80 ページ ２０１５年２月２日　月曜日　午前１０時３５分

81
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
System Message
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.
●While the indicator is on, press the
(information) button to see the message
again.
●Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.
●The multi-information display does not
return to the normal screen unless the
warning is cancelled, or the button
is pressed.
—
Brake System
Indicator (Amber)
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on if there is a problem with a
system related to braking other than
the conventional brake system.
●Comes on while driving - Have your
vehicle checked by a dealer.
●With this indicator on, your vehicle still has
normal braking ability.
U.S.
Canada
(Amber)
U.S.
Canada
* Not available on all models
15 CR-V-31T0A6300.book 81 ページ ２０１５年２月２日　月曜日　午前１０時３５分

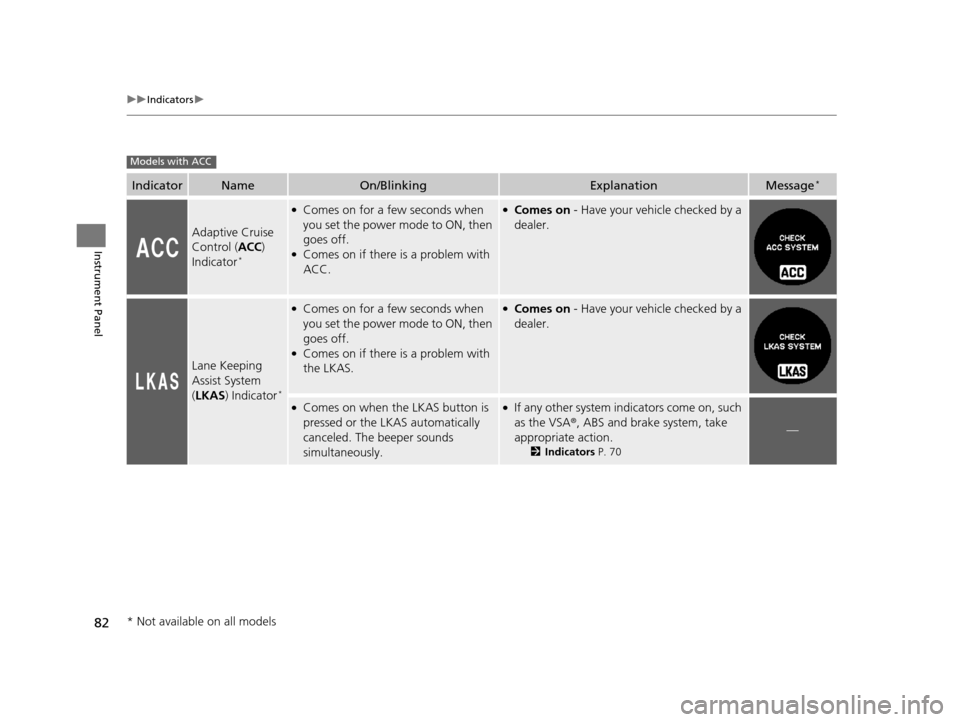

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage*
Adaptive Cruise
Control (ACC)
Indicator
*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
ACC.
●Comes on - Have your vehicle checked by a
dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
the LKAS.
●Comes on - Have your vehicle checked by a
dealer.
●Comes on when the LKAS button is
pressed or the LKAS automatically
canceled. The beeper sounds
simultaneously.●If any other system indicators come on, such
as the VSA ®, ABS and brake system, take
appropriate action.
2 Indicators P. 70
—
Models with ACC
* Not available on all models
15 CR-V-31T0A6300.book 82 ページ ２０１５年２月２日　月曜日　午前１０時３５分

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage*
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator*
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when you deactivate the
CMBSTM. A multi-information display
message appears for five seconds.
●Comes on if there is a problem with
the CMBSTM.
●Stays on constantly without the CMBSTM
off - Have your vehicle checked by a dealer.
2Collision Mitigation Braking SystemTM
(CMBSTM)* P. 409
Models with CMBSTM
* Not available on all models
15 CR-V-31T0A6300.book 83 ページ ２０１５年２月２日　月曜日　午前１０時３５分

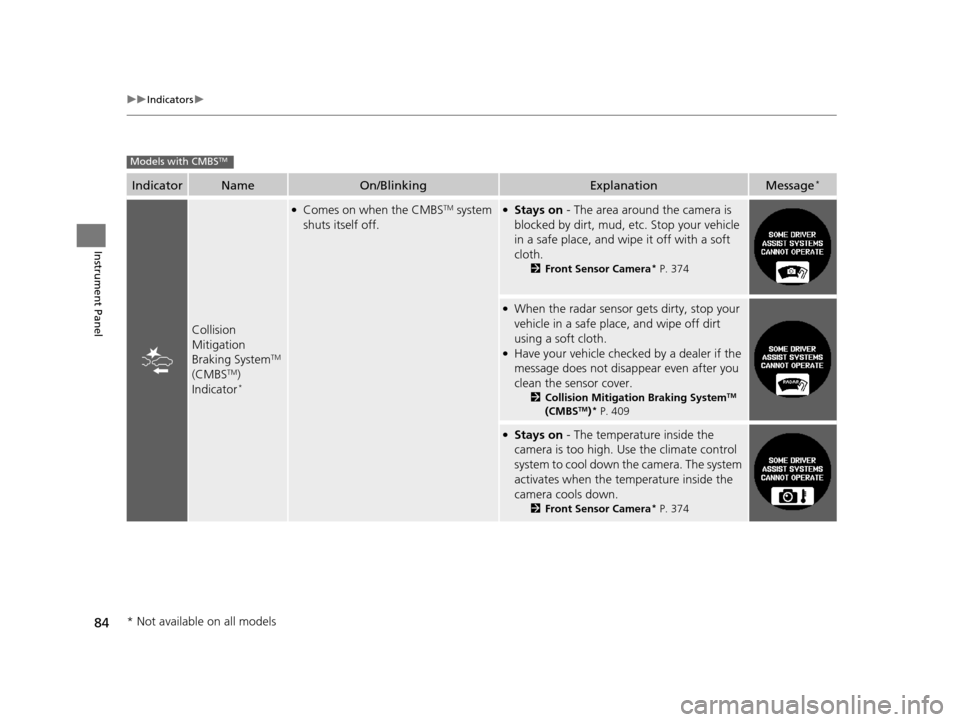

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage*
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator*
●Comes on when the CMBSTM system
shuts itself off.●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
2 Front Sensor Camera* P. 374
●When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt
using a soft cloth.
●Have your vehicle checked by a dealer if the
message does not disappear even after you
clean the sensor cover.
2Collision Mitigation Braking SystemTM
(CMBSTM)* P. 409
●Stays on - The temperature inside the
camera is too high. Us e the climate control
system to cool down the camera. The system
activates when the temperature inside the
camera cools down.
2 Front Sensor Camera* P. 374
Models with CMBSTM
* Not available on all models
15 CR-V-31T0A6300.book 84 ページ ２０１５年２月２日　月曜日　午前１０時３５分

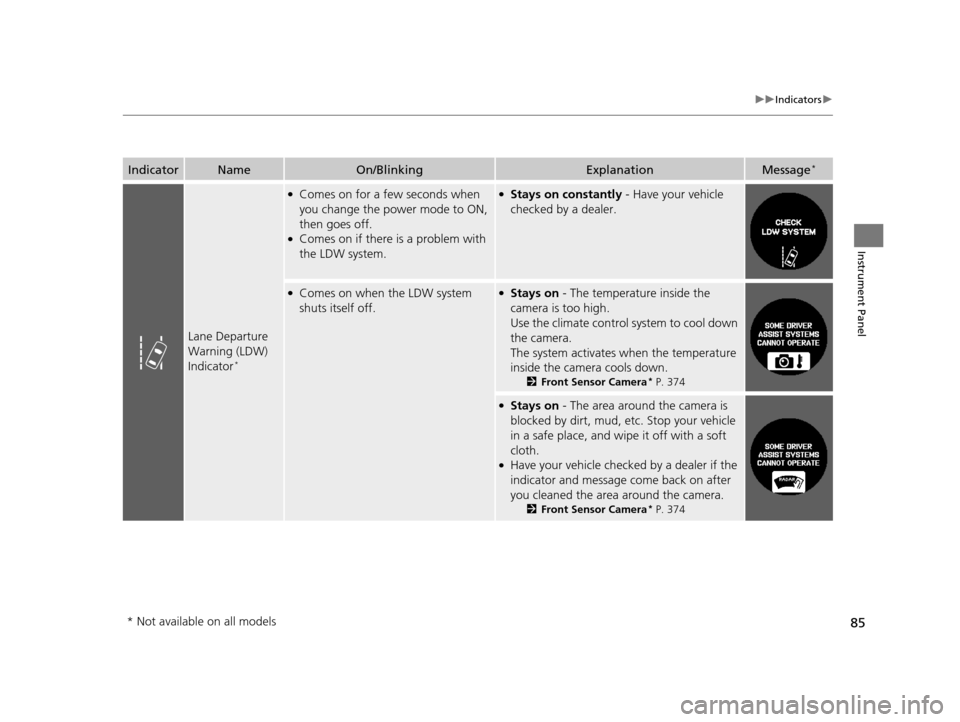

85
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage*
Lane Departure
Warning (LDW)
Indicator
*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on if there is a problem with
the LDW system.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on when the LDW system
shuts itself off.●Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool down
the camera.
The system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera* P. 374
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
●Have your vehicle checked by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
2 Front Sensor Camera* P. 374
* Not available on all models
15 CR-V-31T0A6300.book 85 ページ ２０１５年２月２日　月曜日　午前１０時３５分

86
uuIndicators uDisplay Warning and Information Messages*
Instrument Panel
Display Warning and Information Messages*
The following messages appear on the multi-information display* or intelligent multi-information display (i-MID). Press the
(information) button to see the message agai n with the system message indicator on.
MessageConditionExplanation
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 497
●Appears when the wa sher fluid is low.●Refill washer fluid.
2Refilling Window Washer Fluid P. 451
MessageConditionExplanation
●Appears when the differential temperature is too high.Stop in a safe place, shift to (P, and idle the engine until
the message goes off. If it does not goes off, take your
vehicle to a dealer.
2 Real Time AWD with Intelligent Control SystemTM*
P. 400
Canadian models
Models with AWD system
* Not available on all models
15 CR-V-31T0A6300.book 86 ページ ２０１５年２月２日　月曜日　午前１０時３５分

87
uuIndicators uDisplay Warning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you close the door with the power mode
in ON without the keyless remote inside the vehicle.●Disappears when you bring the keyless remote back
inside the vehicle, and close the door.
2Smart Entry Remote Reminder P. 156
●Appears when the smart entry remote battery becomes
weak.●Replace the battery as soon as possible.
2Smart Entry Remote* P. 476
●Appears when the starting system has a problem.●As a temporary measure, press and hold the ENGINE
START/STOP button for 15 seconds while depressing
the brake pedal and manually start the engine. Have the
vehicle checked by a dealer.
2 Starting the Engine P. 362
Models with smart entry system
* Not available on all models
15 CR-V-31T0A6300.book 87 ページ ２０１５年２月２日　月曜日　午前１０時３５分

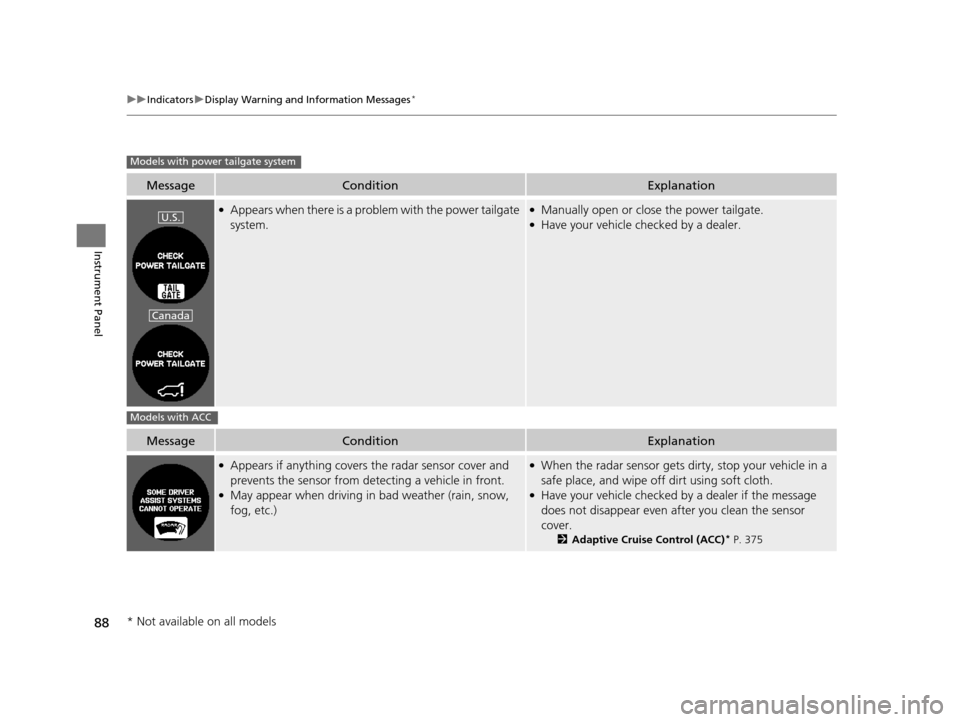

88
uuIndicators uDisplay Warning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when there is a problem with the power tailgate
system.●Manually open or close the power tailgate.●Have your vehicle checked by a dealer.
MessageConditionExplanation
●Appears if anything covers the radar sensor cover and
prevents the sensor from detecting a vehicle in front.
●May appear when driving in bad weather (rain, snow,
fog, etc.)
●When the radar sensor gets di rty, stop your vehicle in a
safe place, and wipe off dirt using soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even af ter you clean the sensor
cover.
2 Adaptive Cruise Control (ACC)* P. 375
Models with power tailgate system
U.S.
Canada
Models with ACC
* Not available on all models
15 CR-V-31T0A6300.book 88 ページ ２０１５年２月２日　月曜日　午前１０時３５分

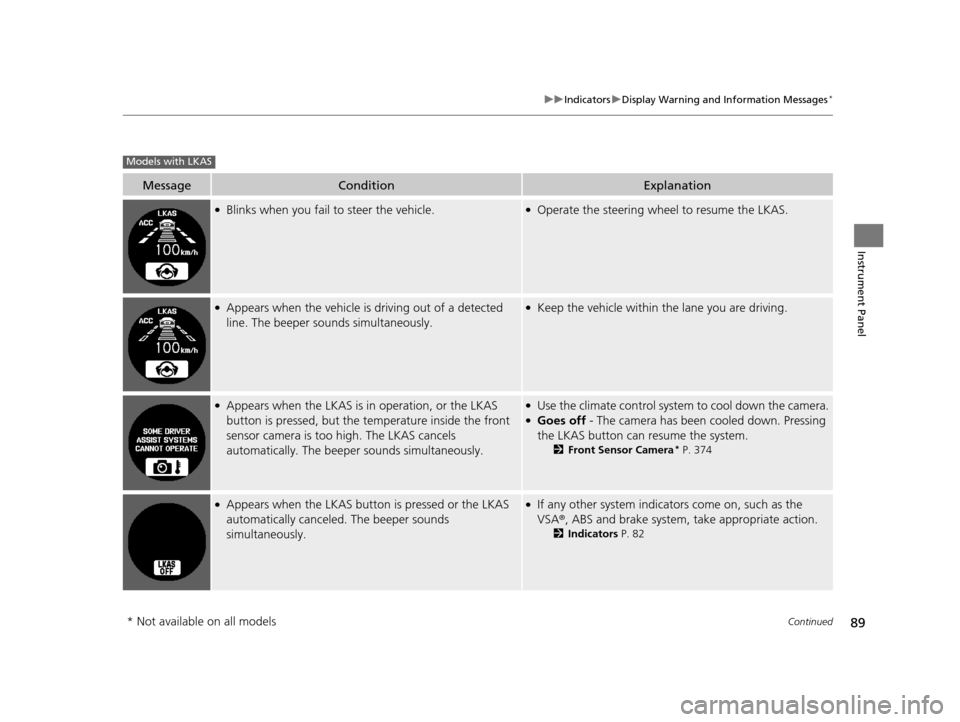

89
uuIndicators uDisplay Warning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Blinks when you fail to steer the vehicle.●Operate the steering whee l to resume the LKAS.
●Appears when the vehicle is driving out of a detected
line. The beeper sounds simultaneously.●Keep the vehicle within the lane you are driving.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but the temperature inside the front
sensor camera is too high. The LKAS cancels
automatically. The beeper sounds simultaneously.●Use the climate control system to cool down the camera.●Goes off - The camera has been cooled down. Pressing
the LKAS button can resume the system.
2 Front Sensor Camera* P. 374
●Appears when the LKAS button is pressed or the LKAS
automatically canceled . The beeper sounds
simultaneously.●If any other system indicato rs come on, such as the
VSA ®, ABS and brake system, take appropriate action.
2 Indicators P. 82
Models with LKAS
* Not available on all models
15 CR-V-31T0A6300.book 89 ページ ２０１５年２月２日　月曜日　午前１０時３５分
