HONDA CR-V 2015 RM1, RM3, RM4 / 4.G Owners Manual

uuGauges and Displays uMulti-Information Display*
100
Instrument Panel

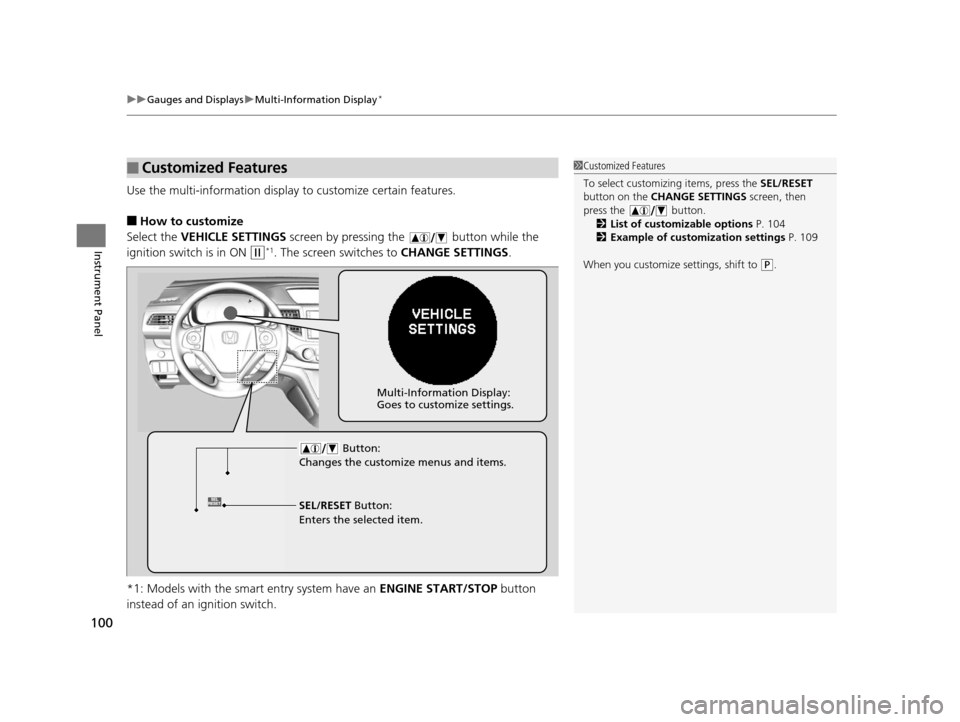

Use the multi-information display to customize certain features.
■How to customize
Select the VEHICLE SETTINGS screen by pressing the button while the
ignition switch is in ON
(w*1. The screen switches to CHANGE SETTINGS.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
■Customized Features1 Customized Features
To select customizing items, press the SEL/RESET
button on the CHANGE SETTINGS screen, then
press the button. 2 List of customizable options P. 104
2 Example of customization settings P. 109
When you customize settings, shift to
( P.
Multi-Information Display:
Goes to customize settings.
Button:
Changes the customize menus and items.
SEL/RESET Button:
Enters the selected item.
15 CR-V-31T0A6300.book 100 ページ ２０１５年２月２日　月曜日　午前１０時３５分

101
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel

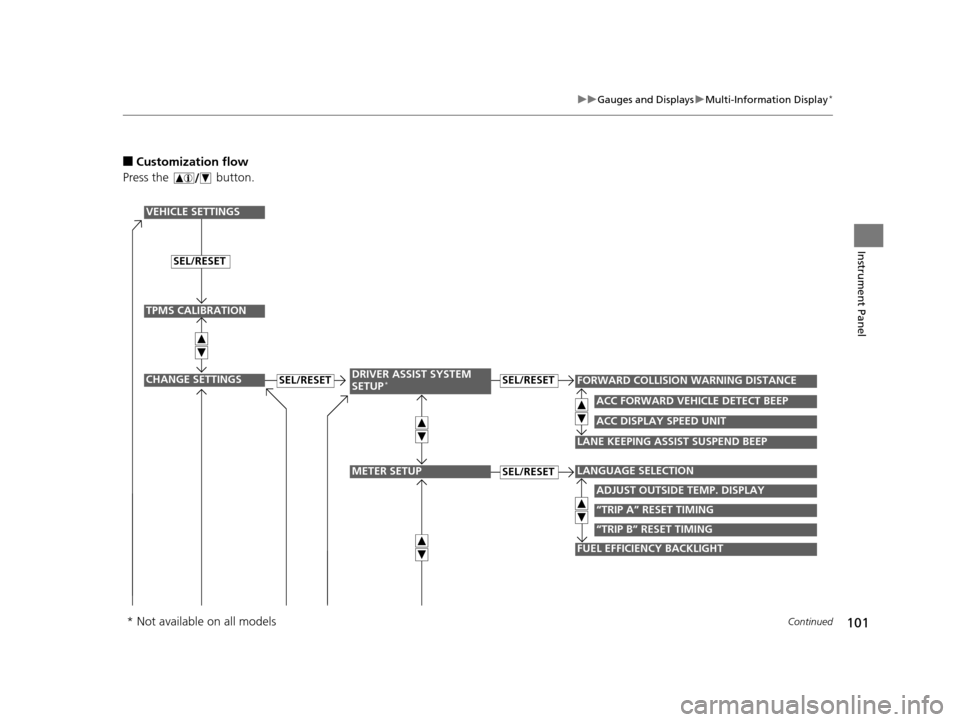

■Customization flow
Press the button.
“TRIP B” RESET TIMING
FUEL EFFICIENCY BACKLIGHT
“TRIP A” RESET TIMING
FORWARD COLLISION WARNING DISTANCESEL/RESET
VEHICLE SETTINGS
CHANGE SETTINGS
ADJUST OUTSIDE TEMP. DISPLAY
LANGUAGE SELECTION
SEL/RESETDRIVER ASSIST SYSTEM
SETUP*
METER SETUPSEL/RESET
LANE KEEPING ASSIST SUSPEND BEEP
TPMS CALIBRATION
ACC DISPLAY SPEED UNIT
ACC FORWARD VEHICLE DETECT BEEP
SEL/RESET
* Not available on all models
15 CR-V-31T0A6300.book 101 ページ ２０１５年２月２日　月曜日　午前１０時３５分

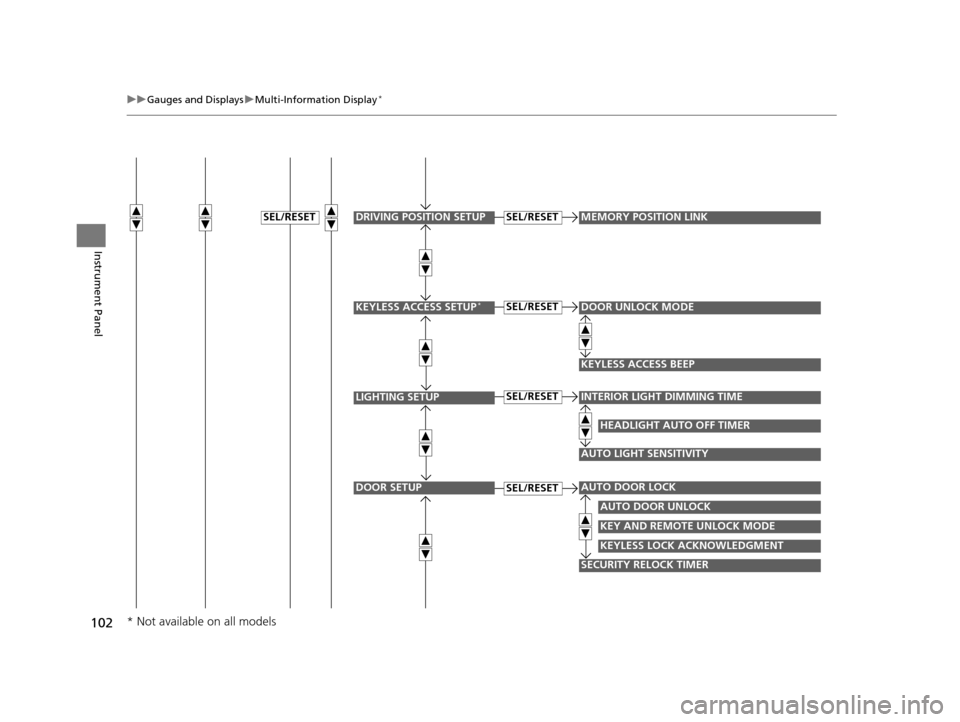

102
uuGauges and Displays uMulti-Information Display*
Instrument Panel
KEYLESS LOCK ACKNOWLEDGMENT
SECURITY RELOCK TIMER
KEY AND REMOTE UNLOCK MODE
INTERIOR LIGHT DIMMING TIME
AUTO DOOR UNLOCK
AUTO DOOR LOCK
SEL/RESET
DOOR SETUPSEL/RESET
AUTO LIGHT SENSITIVITY
HEADLIGHT AUTO OFF TIMER
SEL/RESETDRIVING POSITION SETUPSEL/RESETMEMORY POSITION LINK
LIGHTING SETUP
DOOR UNLOCK MODESEL/RESET
KEYLESS ACCESS BEEP
KEYLESS ACCESS SETUP*
* Not available on all models
15 CR-V-31T0A6300.book 102 ページ ２０１５年２月２日　月曜日　午前１０時３５分

103
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
SEL/RESET
EXIT
KEYLESS OPEN MODESEL/RESET
POWER OPEN BY OUTER HANDLE
POWER TAILGATE SETUP
MAINTENANCE RESET
DEFAULT ALL
EXIT
15 CR-V-31T0A6300.book 103 ページ ２０１５年２月２日　月曜日　午前１０時３５分

104
uuGauges and Displays uMulti-Information Display*
Instrument Panel

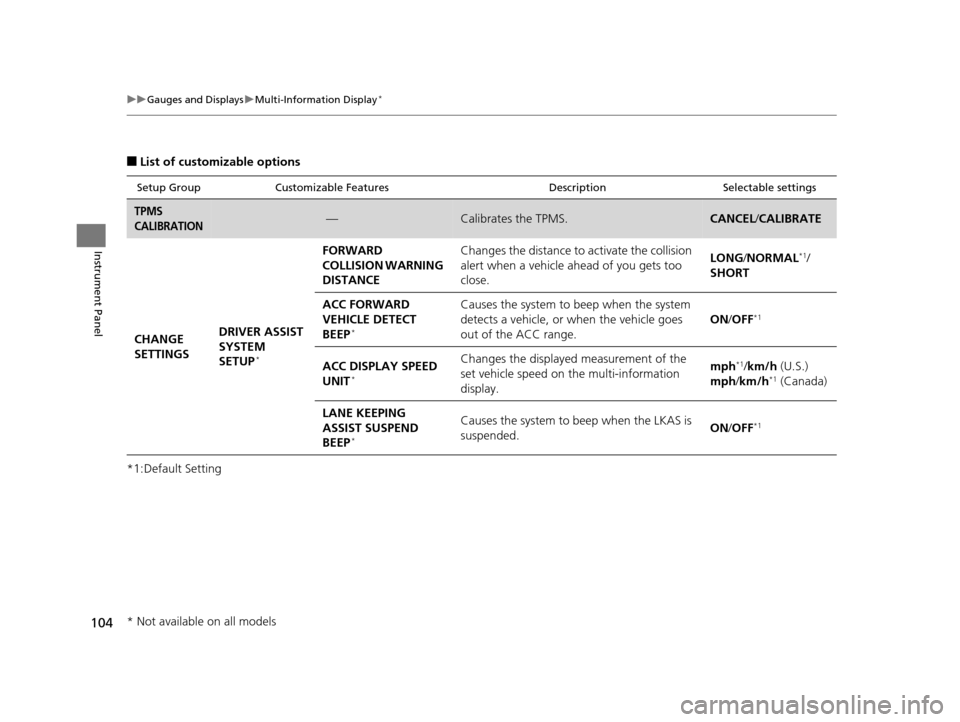

■List of customizable options
*1:Default Setting
Setup Group Customizable Features DescriptionSelectable settings
TPMS
CALIBRATION—Calibrates the TPMS.CANCEL/CALIBRATE
CHANGE
SETTINGS DRIVER ASSIST
SYSTEM
SETUP
*
FORWARD
COLLISION WARNING
DISTANCE Changes the distance to activate the collision
alert when a vehicle ah
ead of you gets too
close. LONG/
NORMAL*1/
SHORT
ACC FORWARD
VEHICLE DETECT
BEEP
*
Causes the system to beep when the system
detects a vehicle, or when the vehicle goes
out of the ACC range. ON
/OFF*1
ACC DISPLAY SPEED
UNIT*
Changes the displayed measurement of the
set vehicle speed on the multi-information
display. mph*1/
km/h (U.S.)
mph /km/h*1 (Canada)
LANE KEEPING
ASSIST SUSPEND
BEEP
*
Causes the system to beep when the LKAS is
suspended. ON
/OFF*1
* Not available on all models
15 CR-V-31T0A6300.book 104 ページ ２０１５年２月２日　月曜日　午前１０時３５分

105
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1:Default Setting
Setup Group Customizable Features DescriptionSelectable settings
CHANGE
SETTINGSMETER SETUP LANGUAGE
SELECTION
Changes the displayed language.
ENGLISH
*1/
FRANCAIS /ESPANOL
ADJUST OUTSIDE
TEMP. DISPLAY Adjusts the temperature reading by a few
degrees. −5°F ~
±0°F
*1 ~ +5°F
(U.S.)
−3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“TRIP A” RESET
TIMING Changes the setting of how to reset trip
meter A, average fuel economy A, average
speed A, and elapsed time A. WHEN REFUELED
/
IGN OFF /MANUALLY
RESET
*1
“TRIP B” RESET
TIMING Changes the setting of how to reset trip
meter B, average fuel economy B, average
speed B, and elapsed time B. WHEN REFUELED
/
IGN OFF /MANUALLY
RESET
*1
FUEL EFFICIENCY
BACKLIGHT Turns the ambient meter feature on and off.
ON*1/OFF
15 CR-V-31T0A6300.book 105 ページ ２０１５年２月２日　月曜日　午前１０時３５分

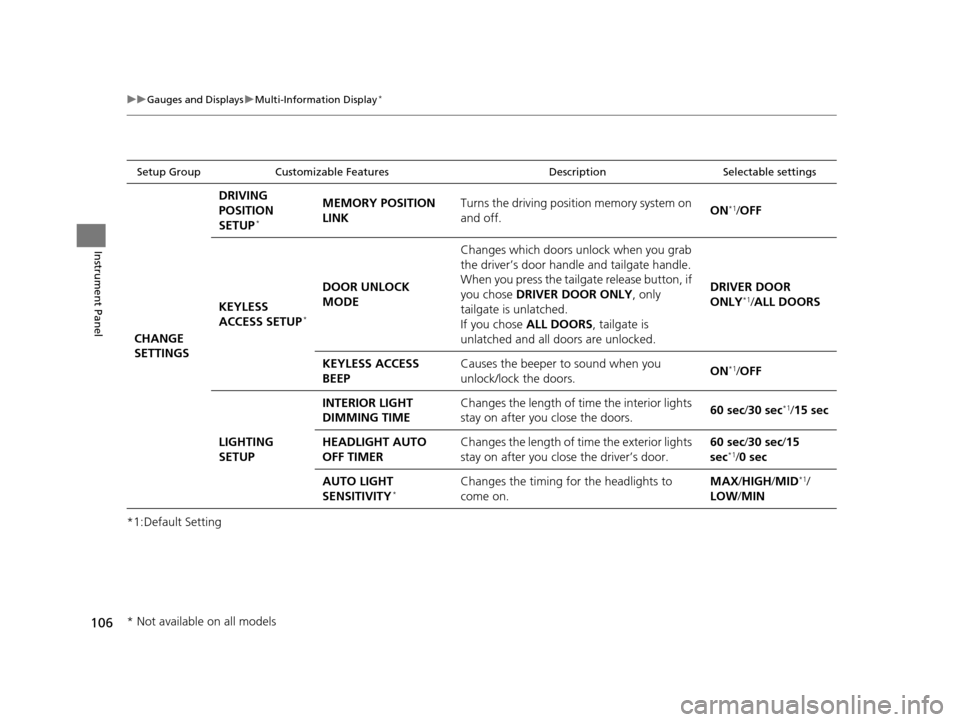

106
uuGauges and Displays uMulti-Information Display*
Instrument Panel
*1:Default Setting
Setup Group Customizable Features DescriptionSelectable settings
CHANGE
SETTINGSDRIVING
POSITION
SETUP
*
MEMORY POSITION
LINK
Turns the driving position memory system on
and off.
ON*1/
OFF
KEYLESS
ACCESS SETUP
*
DOOR UNLOCK
MODE Changes which doors unlock when you grab
the driver’s door handle and tailgate handle.
When you press the tailgate release button, if
you chose
DRIVER DOOR ONLY , only
tailgate is unlatched.
If you chose ALL DOORS , tailgate is
unlatched and all doors are unlocked. DRIVER DOOR
ONLY*1/
ALL DOORS
KEYLESS ACCESS
BEEP Causes the beeper to sound when you
unlock/lock the doors.
ON
*1/
OFF
LIGHTING
SETUP INTERIOR LIGHT
DIMMING TIME
Changes the length of time the interior lights
stay on after you close the doors.
60 sec/
30 sec
*1/15 sec
HEADLIGHT AUTO
OFF TIMER Changes the length of time the exterior lights
stay on after you close the driver’s door. 60 sec/
30 sec/15
sec
*1/ 0 sec
AUTO LIGHT
SENSITIVITY
*Changes the timing for the headlights to
come on. MAX
/HIGH /MID*1/
LOW /MIN
* Not available on all models
15 CR-V-31T0A6300.book 106 ページ ２０１５年２月２日　月曜日　午前１０時３５分

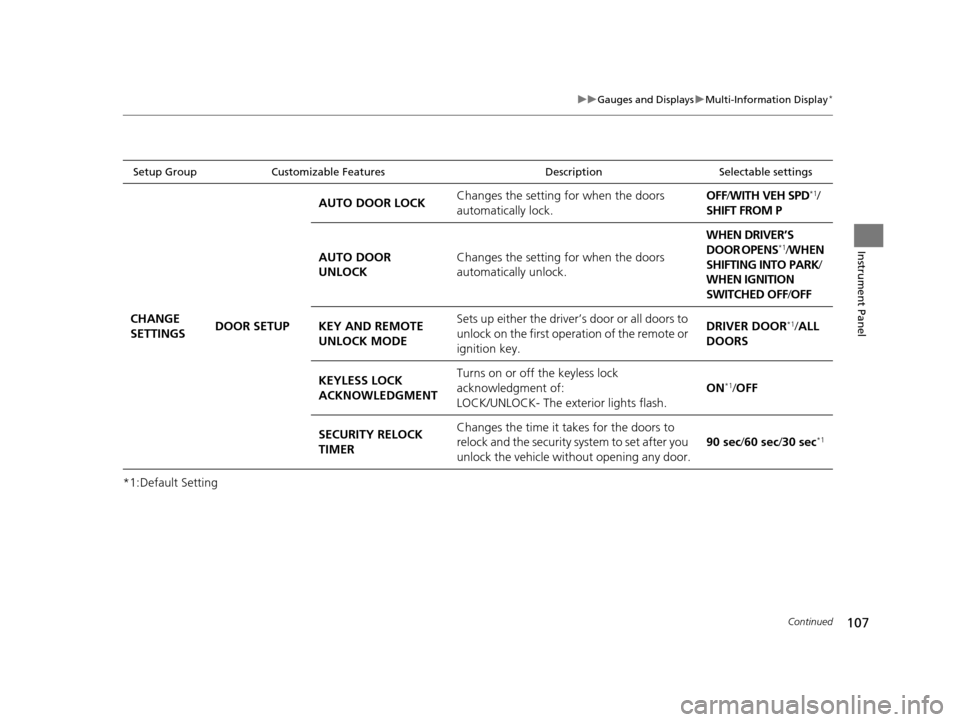

107
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1:Default Setting
Setup Group Customizable Features DescriptionSelectable settings
CHANGE
SETTINGSDOOR SETUP AUTO DOOR LOCK
Changes the setting
for when the doors
automatically lock. OFF
/WITH VEH SPD
*1/
SHIFT FROM P
AUTO DOOR
UNLOCK Changes the setting
for when the doors
automatically unlock. WHEN DRIVER’S
DOOR OPENS
*1/
WHEN
SHIFTING INTO PARK /
WHEN IGNITION
SWITCHED OFF /OFF
KEY AND REMOTE
UNLOCK MODE Sets up either the driver’s door or all doors to
unlock on the first operation of the remote or
ignition key. DRIVER DOOR
*1/
ALL
DOORS
KEYLESS LOCK
ACKNOWLEDGMENT Turns on or off the keyless lock
acknowledgment of:
LOCK/UNLOCK- The exterior lights flash.
ON
*1/
OFF
SECURITY RELOCK
TIMER Changes the time it takes for the doors to
relock and the security system to set after you
unlock the vehicle without opening any door.
90 sec
/60 sec /30 sec
*1
15 CR-V-31T0A6300.book 107 ページ ２０１５年２月２日　月曜日　午前１０時３５分

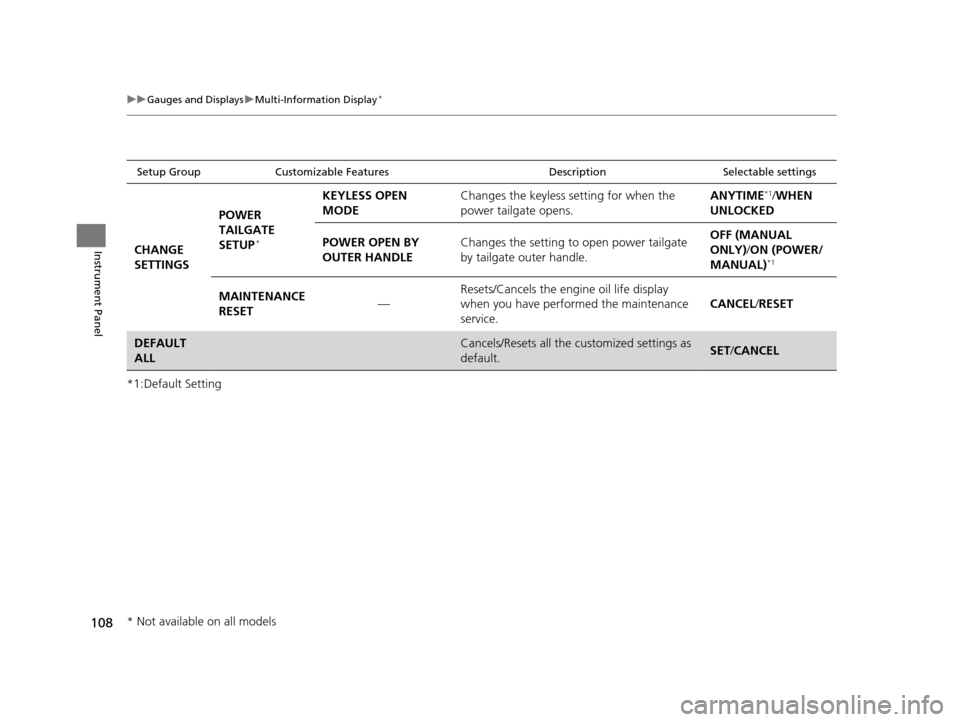

108
uuGauges and Displays uMulti-Information Display*
Instrument Panel
*1:Default Setting
Setup Group Customizable Features DescriptionSelectable settings
CHANGE
SETTINGSPOWER
TAILGATE
SETUP*
KEYLESS OPEN
MODE
Changes the keyless setting for when the
power tailgate opens. ANYTIME*1/
WHEN
UNLOCKED
POWER OPEN BY
OUTER HANDLE Changes the setting to open power tailgate
by tailgate outer handle. OFF (MANUAL
ONLY)
/ON (POWER/
MANUAL)
*1
MAINTENANCE
RESET —Resets/Cancels the engine oil life display
when you have performed the maintenance
service. CANCEL
/RESET
DEFAULT
ALLCancels/Resets all the cu stomized settings as
default.SET /CANCEL
* Not available on all models
15 CR-V-31T0A6300.book 108 ページ ２０１５年２月２日　月曜日　午前１０時３５分

109
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel

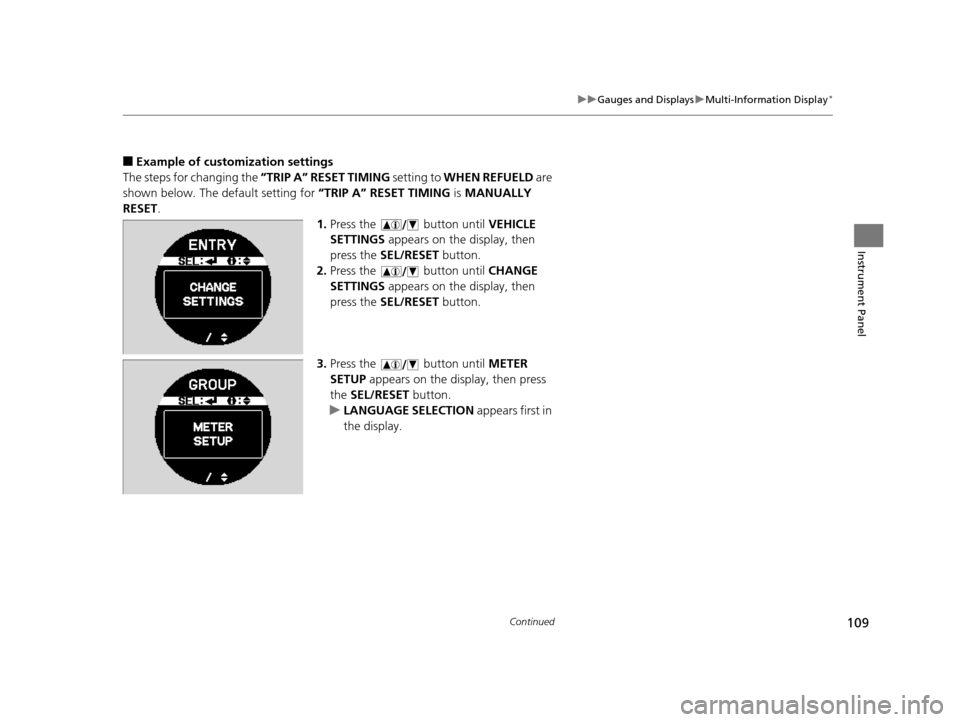

■Example of customization settings
The steps for changing the “TRIP A” RESET TIMING setting to WHEN REFUELD are
shown below. The default setting for “TRIP A” RESET TIMING is MANUALLY
RESET .
1.Press the button until VEHICLE
SETTINGS appears on the display, then
press the SEL/RESET button.
2. Press the button until CHANGE
SETTINGS appears on the display, then
press the SEL/RESET button.
3. Press the button until METER
SETUP appears on the display, then press
the SEL/RESET button.
u LANGUAGE SELECTION appears first in
the display.
