HONDA CR-V 2017 RM1, RM3, RM4 / 4.G Owners Manual

200
uuAdjusting the Seats uMaintain a Proper Sitting Position
Controls

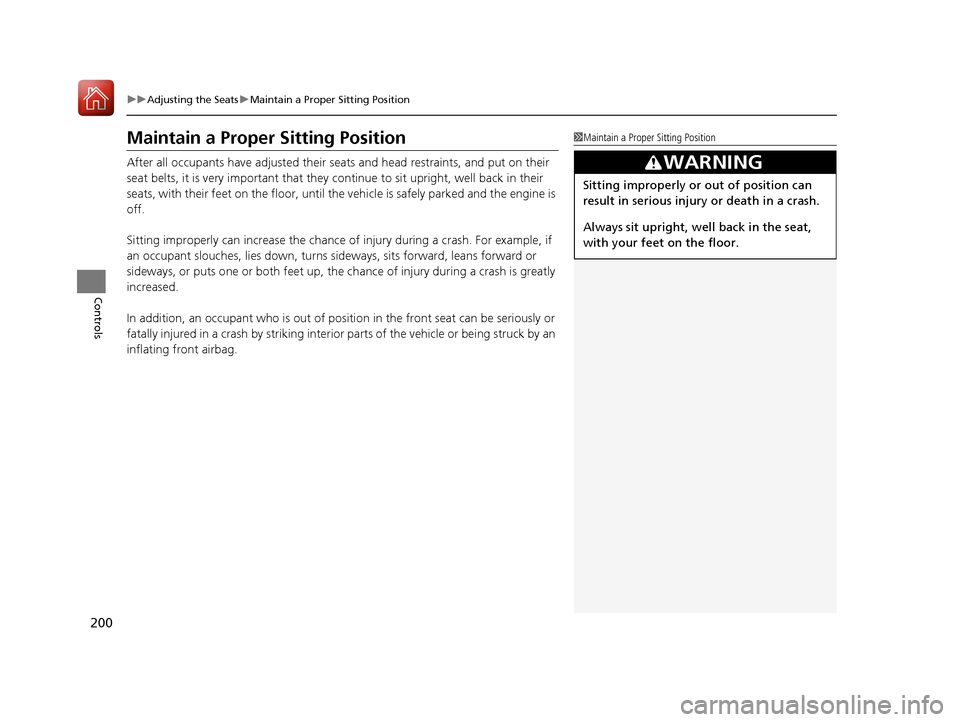

Maintain a Proper Sitting Position
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
1 Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
17 CR-V-31TLA6000.book 200 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

201
uuAdjusting the Seats uRear Seats
Controls
Rear Seats
1. Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 46
3.Lower the rear seat head restraint to its
lowest position. Put the armrest back into
the seat-back.
4. Pull the release lever and fold down the
seat.
4. Pull the release lever and fold down the
seat.
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the cargo area.
Never drive with the seat-back folded down and the
tailgate open.
2 Exhaust Gas Hazard P. 76
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure all items in the cargo area or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
3WARNING
Make sure the seat-backs are latched
securely before driving.
Latch plate
anchor buckle
Release LeverFrom the rear seat side
Release LeverFrom the cargo area side
17 CR-V-31TLA6000.book 201 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

202
uuAdjusting the Seats uArmrest
Controls

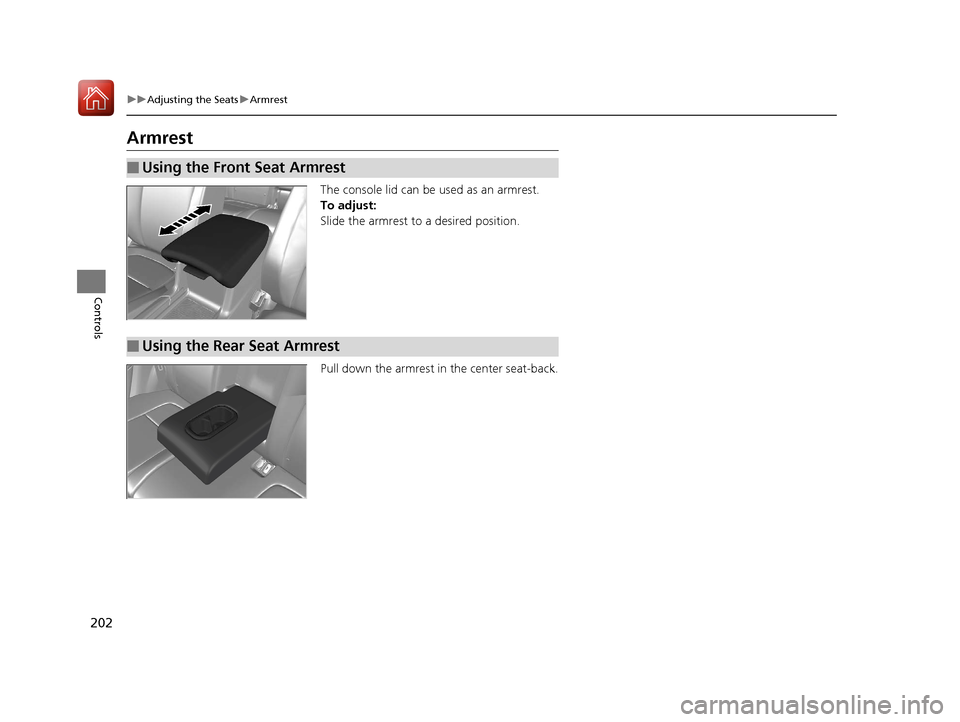

Armrest
The console lid can be used as an armrest.
To adjust:
Slide the armrest to a desired position.
Pull down the armrest in the center seat-back.
■Using the Front Seat Armrest
■Using the Rear Seat Armrest
17 CR-V-31TLA6000.book 202 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

203Continued
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver's door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver's door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 335
The interior lights go off i mmediately in the following
situations:
•When you lock the driver's door.
•When you close the driver's door with the key in
the ignition switch.
•When you close the driver’s door in ACCESSORY
mode.
•When you turn the ignition switch to ON ( w*1.
If you leave any doors open in VEHICLE OFF (LOCK)
mode, or without the key in the ignition switch, the
interior lights go off after about 15 minutes.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an ignition
switch.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
Door
Activated
Position
Off
Front
Front
Models with moonroof
Models with panoramic roof
Door Activated Position
Off
On
Models without smart entry system
Models with smart entry system
17 CR-V-31TLA6000.book 203 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

204
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls
■Front

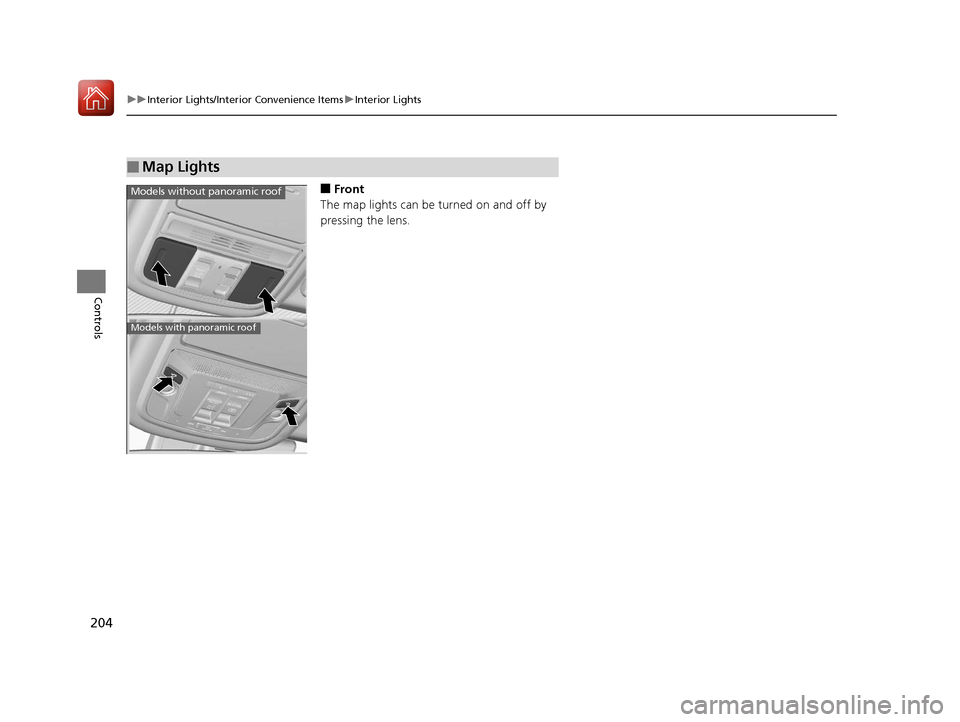

The map lights can be turned on and off by
pressing the lens.
■Map Lights
Models without panoramic roof
Models with panoramic roof
17 CR-V-31TLA6000.book 204 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

205
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

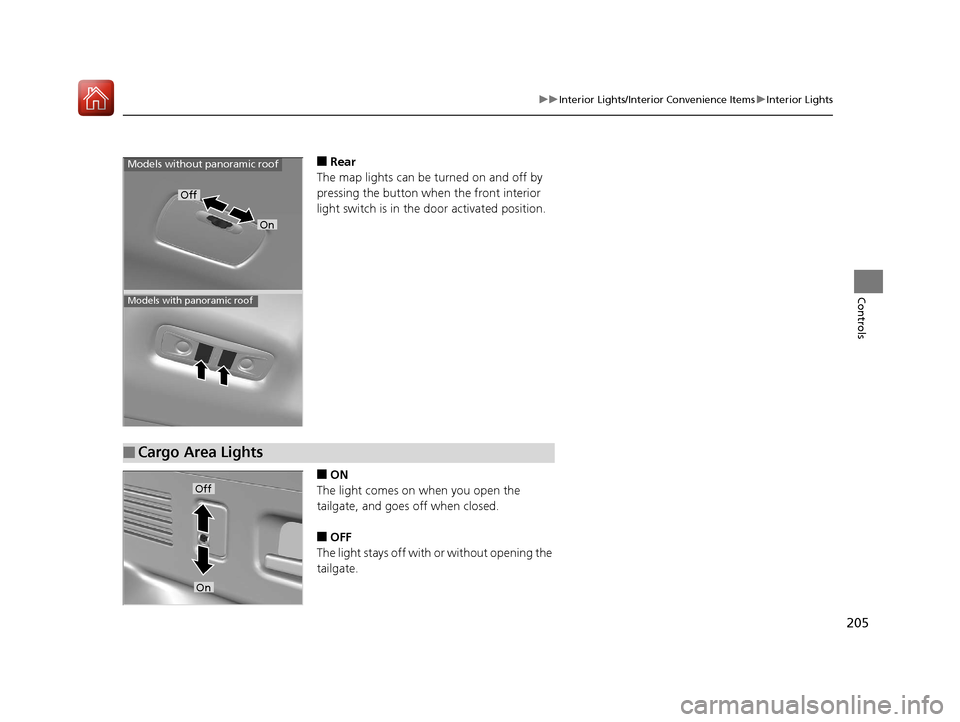

■Rear
The map lights can be turned on and off by
pressing the button when the front interior
light switch is in the door activated position.
■ON
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
Models without panoramic roof
Models with panoramic roof
Off
On
■Cargo Area Lights
Off
On
17 CR-V-31TLA6000.book 205 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

206
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Interior Convenience Items
Pull the handle to open the glove box. You
can lock the glove box with the master key or
the built-in key.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
17 CR-V-31TLA6000.book 206 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

207
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

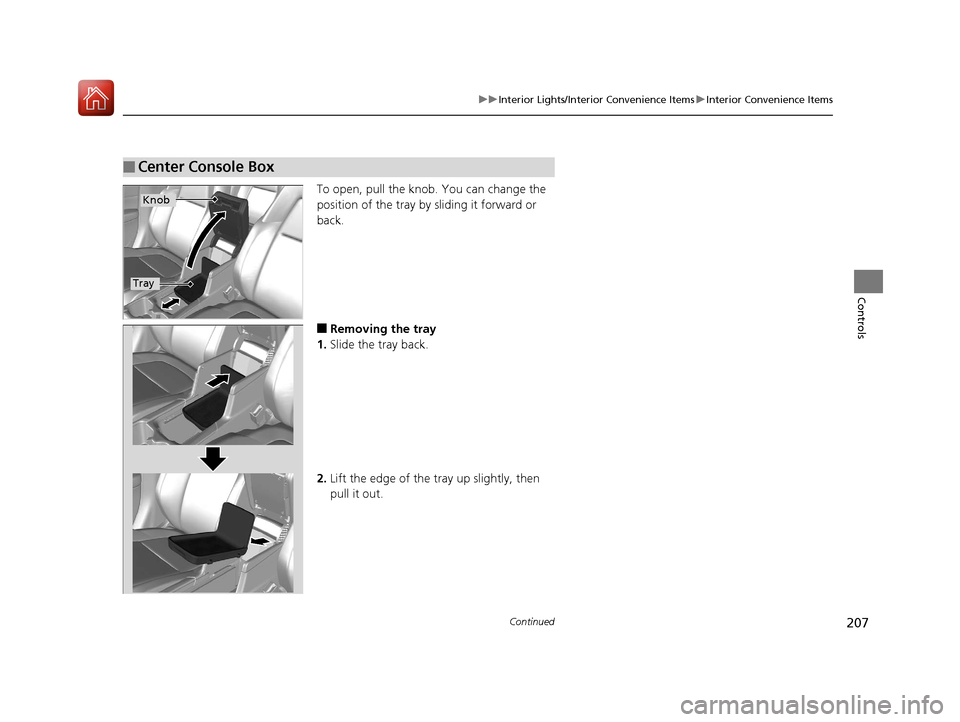

To open, pull the knob. You can change the
position of the tray by sliding it forward or
back.
■Removing the tray
1. Slide the tray back.
2. Lift the edge of the tray up slightly, then
pull it out.
■Center Console Box
Knob
Tray
17 CR-V-31TLA6000.book 207 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

208
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Storing the tray:
Line the tray up with th e slots located at the
rear section of the console box, and then push
it down all the way until it is in the locked
position.
Slot
17 CR-V-31TLA6000.book 208 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

209
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

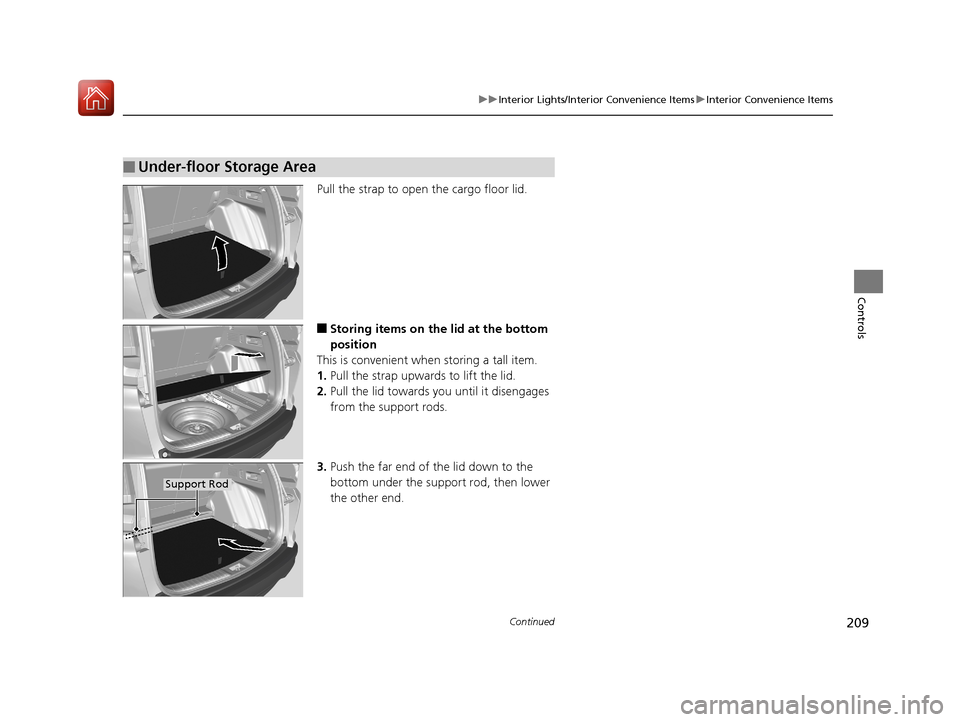

Pull the strap to open the cargo floor lid.
■Storing items on the lid at the bottom
position
This is convenient when storing a tall item.
1. Pull the strap upwards to lift the lid.
2. Pull the lid towards you until it disengages
from the support rods.
3. Push the far end of the lid down to the
bottom under the support rod, then lower
the other end.
■Under-floor Storage Area
Support Rod
17 CR-V-31TLA6000.book 209 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
