check engine HONDA CR-V 2017 RM1, RM3, RM4 / 4.G Repair Manual

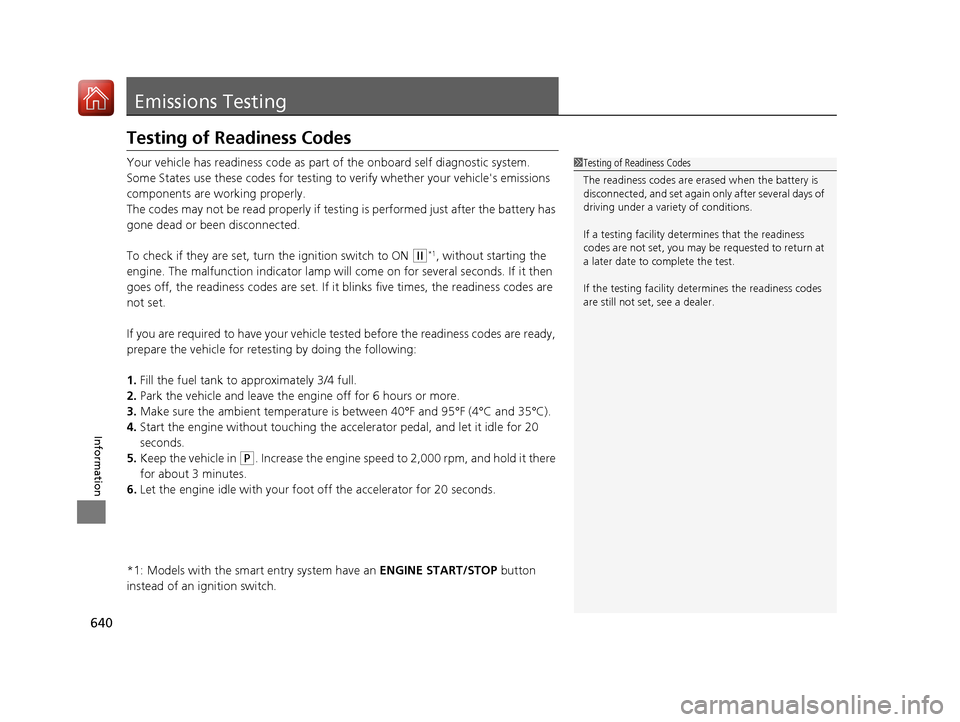

640
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle's emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the fuel tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
17 CR-V-31TLA6000.book 640 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

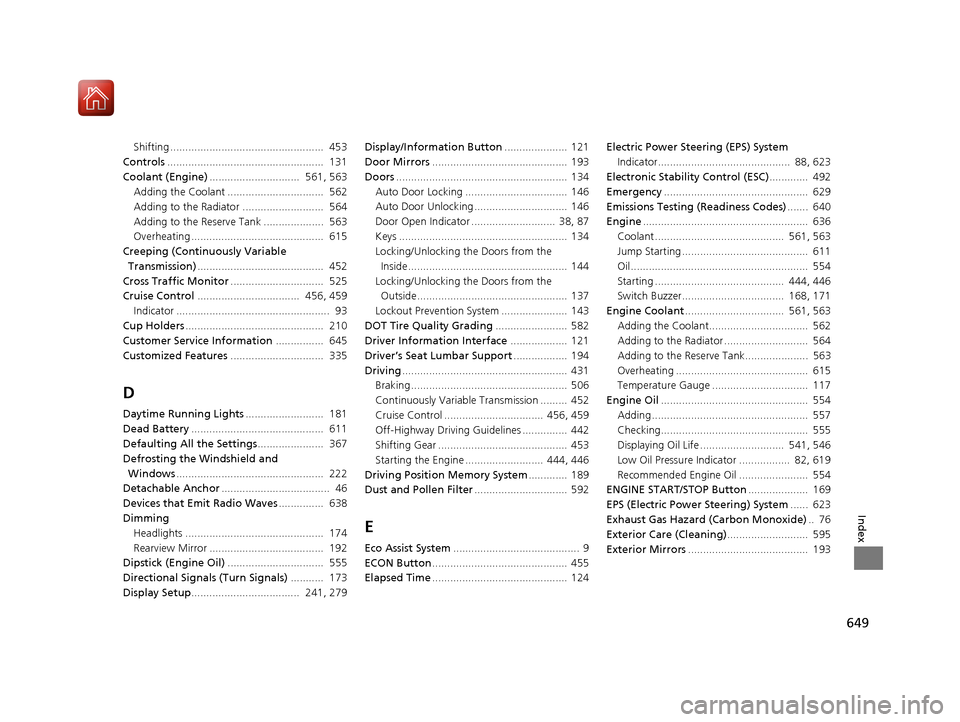

649
Index
Shifting ................................................... 453
Controls .................................................... 131
Coolant (Engine) .............................. 561, 563
Adding the Coolant ................................ 562
Adding to the Radiator ........................... 564
Adding to the Reserve Tank .................... 563
Overheating ............................................ 615
Creeping (Continuously Variable
Transmission) .......................................... 452
Cross Traffic Monitor ............................... 525
Cruise Control .................................. 456, 459
Indicator ................................................... 93
Cup Holders .............................................. 210
Customer Service Information ................ 645
Customized Features ............................... 335
D
Daytime Running Lights .......................... 181
Dead Battery ............................................ 611
Defaulting All the Settings ...................... 367
Defrosting the Windshield and Windows ................................................. 222
Detachable Anchor .................................... 46
Devices that Emit Radio Waves ............... 638
Dimming Headlights .............................................. 174
Rearview Mirror ...................................... 192
Dipstick (Engine Oil) ................................ 555
Directional Signals (Turn Signals) ........... 173
Display Setup .................................... 241, 279 Display/Information Button
..................... 121
Door Mirrors ............................................. 193
Doors ......................................................... 134
Auto Door Locking .................................. 146
Auto Door Unlocking ............................... 146
Door Open Indicator ............................ 38, 87
Keys ........................................................ 134
Locking/Unlocking the Doors from the
Inside..................................................... 144
Locking/Unlocking the Doors from the Outside.................................................. 137
Lockout Prevention System ...................... 143
DOT Tire Quality Grading ........................ 582
Driver Information Interface ................... 121
Driver’s Seat Lumbar Support .................. 194
Driving ....................................................... 431
Braking .................................................... 506
Continuously Variable Transmission ......... 452
Cruise Control ................................. 456, 459
Off-Highway Driving Guidelines ............... 442
Shifting Gear ........................................... 453
Starting the Engine .......................... 444, 446
Driving Position Memory System ............. 189
Dust and Pollen Filter ............................... 592
E
Eco Assist System.......................................... 9
ECON Button ............................................. 455
Elapsed Time ............................................. 124 Electric Power Steering (EPS) System
Indicator............................................ 88, 623
Electronic Stability Control (ESC) ............. 492
Emergency ................................................ 629
Emissions Testing (Readiness Codes) ....... 640
Engine ....................................................... 636
Coolant ........................................... 561, 563
Jump Starting .......................................... 611
Oil ........................................................... 554
Starting ........................................... 444, 446
Switch Buzzer.................................. 168, 171
Engine Coolant ................................. 561, 563
Adding the Coolant................................. 562
Adding to the Radiator ............................ 564
Adding to the Reserve Tank..................... 563
Overheating ............................................ 615
Temperature Gauge ................................ 117
Engine Oil ................................................. 554
Adding .................................................... 557
Checking................................................. 555
Displaying Oil Life ............................ 541, 546
Low Oil Pressure Indicator ................. 82, 619
Recommended Engine Oil ....................... 554
ENGINE START/STOP Button .................... 169
EPS (Electric Power Steering) System ...... 623
Exhaust Gas Hazard (Carbon Monoxide) .. 76
Exterior Care (Cleaning) ........................... 595
Exterior Mirrors ........................................ 193
17 CR-V-31TLA6000.book 649 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

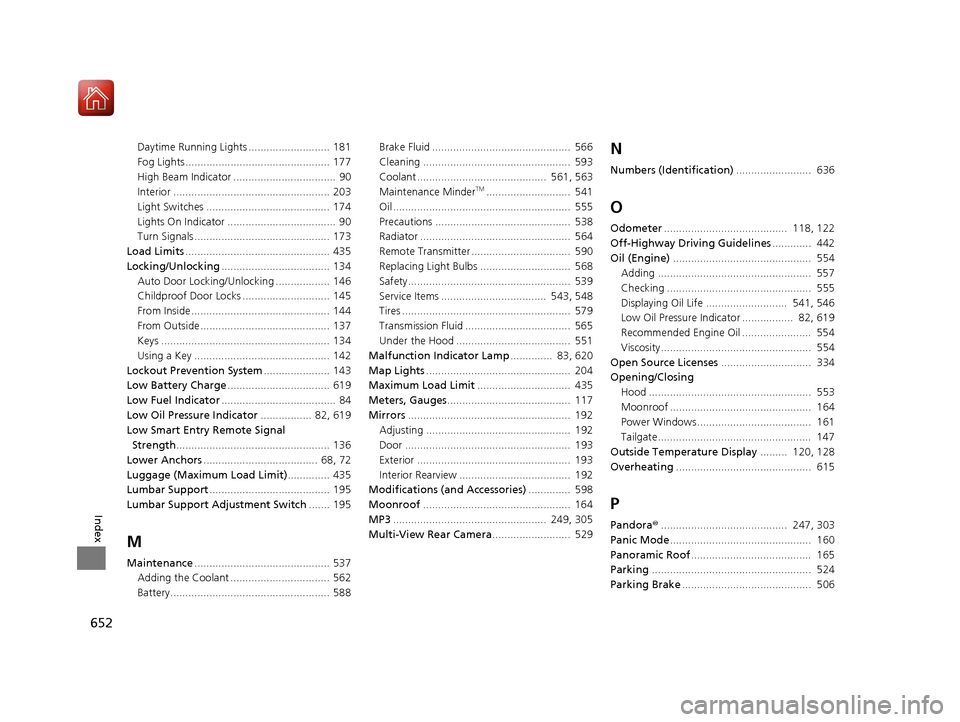

652
Index
Daytime Running Lights ........................... 181
Fog Lights ................................................ 177
High Beam Indicator .................................. 90
Interior .................................................... 203
Light Switches ......................................... 174
Lights On Indicator .................................... 90
Turn Signals ............................................. 173
Load Limits ................................................ 435
Locking/Unlocking .................................... 134
Auto Door Locking/Unlocking .................. 146
Childproof Door Locks ............................. 145
From Inside .............................................. 144
From Outside ........................................... 137
Keys ........................................................ 134
Using a Key ............................................. 142
Lockout Prevention System ...................... 143
Low Battery Charge .................................. 619
Low Fuel Indicator ...................................... 84
Low Oil Pressure Indicator ................. 82, 619
Low Smart Entry Remote Signal Strength ................................................... 136
Lower Anchors ...................................... 68, 72
Luggage (Maximum Load Limit) .............. 435
Lumbar Support ........................................ 195
Lumbar Support Adjustment Switch ....... 195
M
Maintenance............................................. 537
Adding the Coolant ................................. 562
Battery..................................................... 588 Brake Fluid .............................................. 566
Cleaning ................................................. 593
Coolant ........................................... 561, 563
Maintenance Minder
TM............................ 541
Oil ........................................................... 555
Precautions ............................................. 538
Radiator .................................................. 564
Remote Transmitter ................................. 590
Replacing Light Bulbs .............................. 568
Safety...................................................... 539
Service Items ................................... 543, 548
Tires ........................................................ 579
Transmission Fluid ................................... 565
Under the Hood ...................................... 551
Malfunction Indicator Lamp .............. 83, 620
Map Lights ................................................ 204
Maximum Load Limit ............................... 435
Meters, Gauges ......................................... 117
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 598
Moonroof ................................................. 164
MP3 ................................................... 249, 305
Multi-View Rear Camera .......................... 529
N
Numbers (Identification) ......................... 636
O
Odometer......................................... 118, 122
Off-Highway Driving Guidelines ............. 442
Oil (Engine) .............................................. 554
Adding ................................................... 557
Checking ................................................ 555
Displaying Oil Life ........................... 541, 546
Low Oil Pressure Indicator ................. 82, 619
Recommended Engine Oil ....................... 554
Viscosity.................................................. 554
Open Source Licenses .............................. 334
Opening/Closing
Hood ...................................................... 553
Moonroof ............................................... 164
Power Windows...................................... 161
Tailgate................................................... 147
Outside Temperature Display ......... 120, 128
Overheating ............................................. 615
P
Pandora®.......................................... 247, 303
Panic Mode ............................................... 160
Panoramic Roof ........................................ 165
Parking ..................................................... 524
Parking Brake ........................................... 506
17 CR-V-31TLA6000.book 652 ページ ２０１６年１０月１１日　火曜日　午後６時３７分

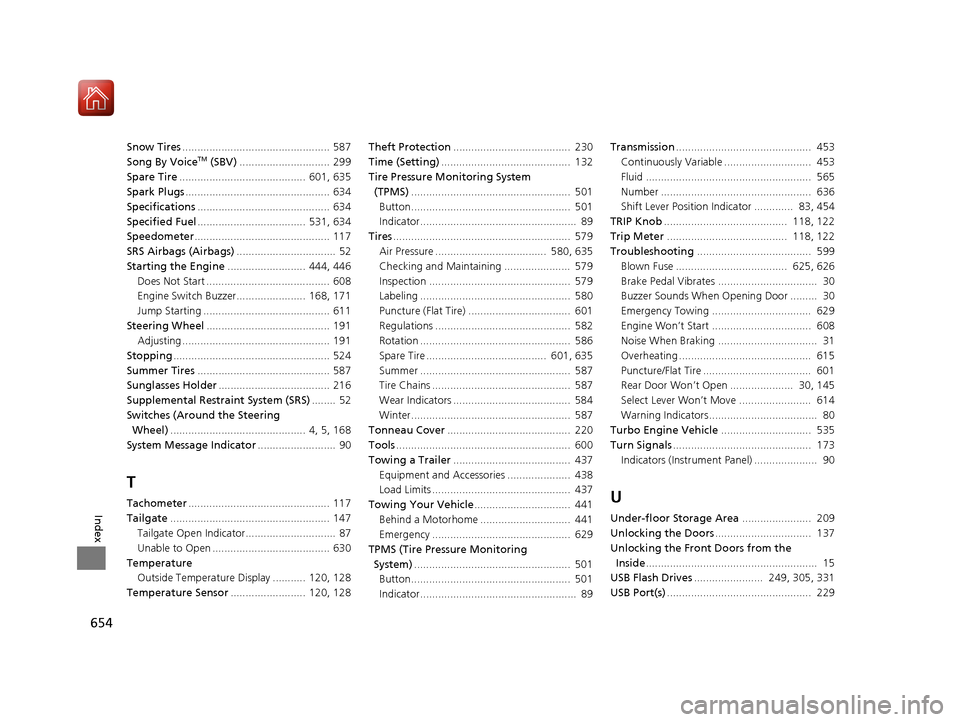

654
Index
Snow Tires................................................. 587
Song By VoiceTM (SBV) .............................. 299
Spare Tire .......................................... 601, 635
Spark Plugs ................................................ 634
Specifications ............................................ 634
Specified Fuel .................................... 531, 634
Speedometer ............................................. 117
SRS Airbags (Airbags) ................................. 52
Starting the Engine .......................... 444, 446
Does Not Start ......................................... 608
Engine Switch Buzzer....................... 168, 171
Jump Starting .......................................... 611
Steering Wheel ......................................... 191
Adjusting ................................................. 191
Stopping .................................................... 524
Summer Tires ............................................ 587
Sunglasses Holder ..................................... 216
Supplemental Restraint System (SRS) ........ 52
Switches (Around the Steering
Wheel) ............................................. 4, 5, 168
System Message Indicator .......................... 90
T
Tachometer............................................... 117
Tailgate ..................................................... 147
Tailgate Open Indicator.............................. 87
Unable to Open ....................................... 630
Temperature Outside Temperature Display ........... 120, 128
Temperature Sensor ......................... 120, 128 Theft Protection
....................................... 230
Time (Setting) ........................................... 132
Tire Pressure Monitoring System (TPMS) ..................................................... 501
Button..................................................... 501
Indicator.................................................... 89
Tires ........................................................... 579
Air Pressure ..................................... 580, 635
Checking and Maintaining ...................... 579
Inspection ............................................... 579
Labeling .................................................. 580
Puncture (Flat Tire) .................................. 601
Regulations ............................................. 582
Rotation .................................................. 586
Spare Tire ........................................ 601, 635
Summer .................................................. 587
Tire Chains .............................................. 587
Wear Indicators ....................................... 584
Winter..................................................... 587
Tonneau Cover ......................................... 220
Tools .......................................................... 600
Towing a Trailer ....................................... 437
Equipment and Accessories ..................... 438
Load Limits .............................................. 437
Towing Your Vehicle ................................ 441
Behind a Motorhome .............................. 441
Emergency .............................................. 629
TPMS (Tire Pressure Monitoring
System) .................................................... 501
Button..................................................... 501
Indicator.................................................... 89 Transmission
............................................. 453
Continuously Variable ............................. 453
Fluid ....................................................... 565
Number .................................................. 636
Shift Lever Position Indicator ............. 83, 454
TRIP Knob ......................................... 118, 122
Trip Meter ........................................ 118, 122
Troubleshooting ...................................... 599
Blown Fuse ..................................... 625, 626
Brake Pedal Vibrates ................................. 30
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 629
Engine Won’t Start ................................. 608
Noise When Braking ................................. 31
Overheating ............................................ 615
Puncture/Flat Tire .................................... 601
Rear Door Won’t Open ..................... 30, 145
Select Lever Won’t Move ........................ 614
Warning Indicators.................................... 80
Turbo Engine Vehicle .............................. 535
Turn Signals .............................................. 173
Indicators (Instru ment Panel) ..................... 90U
Under-floor Storage Area ....................... 209
Unlocking the Doors ................................ 137
Unlocking the Fron t Doors from the
Inside ......................................................... 15
USB Flash Drives ....................... 249, 305, 331
USB Port(s) ................................................ 229
17 CR-V-31TLA6000.book 654 ページ ２０１６年１０月１１日　火曜日　午後６時３７分
