display HONDA CR-V 2020 (in English) Owner's Guide

Continued121
uuGauges and Displays uDriver Information Interface
Instrument Panel

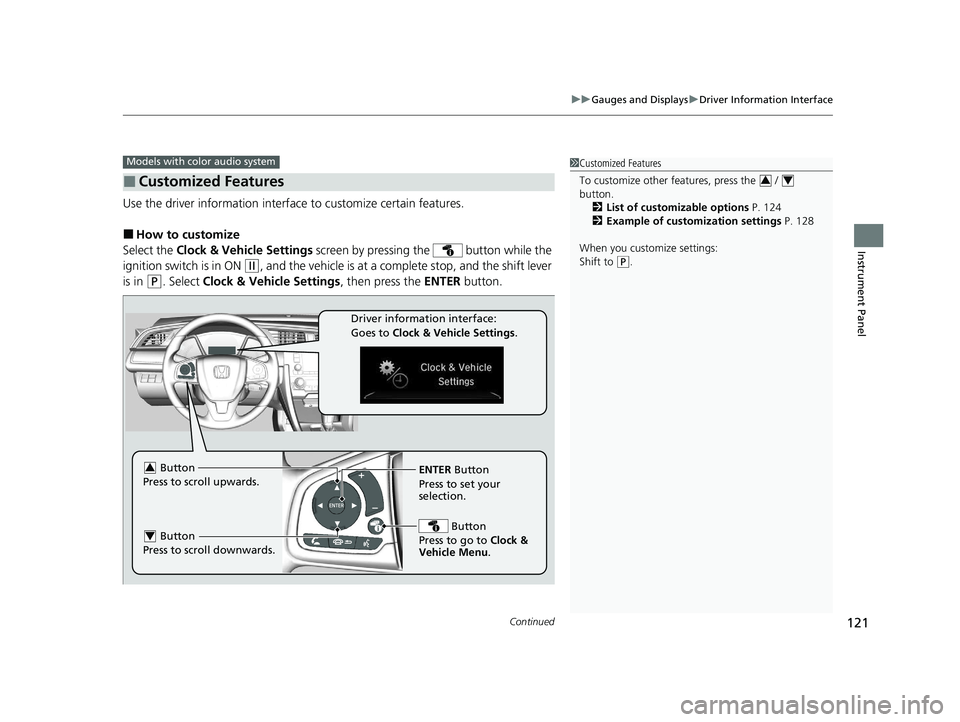

Use the driver information interface to customize certain features.
■How to customize
Select the Clock & Vehicle Settings screen by pressing the button while the
ignition switch is in ON
(w, and the vehicle is at a complete stop, and the shift lever
is in
(P. Select Clock & Vehicle Settings , then press the ENTER button.
■Customized Features
Models with color audio system1Customized Features
To customize other features, press the /
button.
2 List of customizable options P. 124
2 Example of customization settings P. 128
When you customize settings:
Shift to
( P.
34
ENTER Button
Press to set your
selection.
Button
Press to go to Clock &
Vehicle Menu . Button
Press to scroll upwards.3
Button
Press to scroll downwards.4
Driver information interface:
Goes to Clock & Vehicle Settings.
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 121 ページ ２０１９年１０月３日　木曜日　午後４時５５分

122
uuGauges and Displays uDriver Information Interface
Instrument Panel
■Customization flow
Press the button.
ENTERClock & Vehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
3
4
TPMS Calibration
ENTER
“Trip B” Reset Timing
Fuel Efficiency Backlight
3
4
ACC Forward Vehicle Detect Beep
3
4
Tachometer
ENTER
Forward Collision Warning Distance
3
4
3
4
Lane Keeping Assist Suspend Beep
Road Departure Mitigation Setting
Adjust Alarm Volume
Speed/Distance Units
3
4
ENTER
Driver Assist System Setup
Meter Setup
Driver Attention Monitor
Auto Engine Idle Stop Guidance Screens
ENTER
Adjust Clock
3
4Clock Setup
Clock Display
3
4
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 122 ページ ２０１９年１０月３日　木曜日　午後４時５５分

123
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

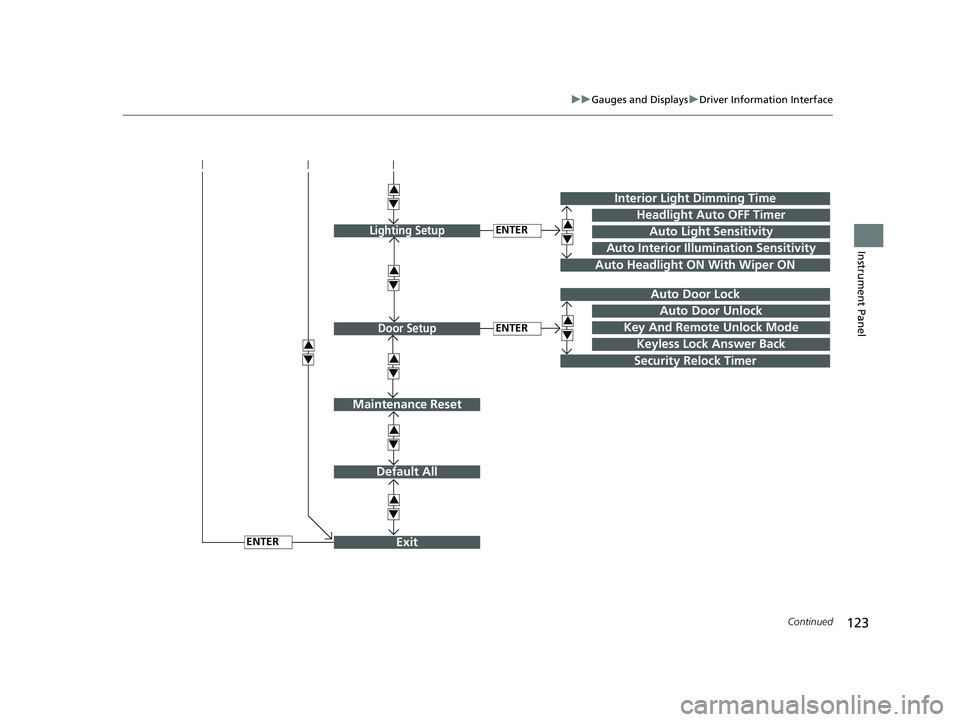

Exit
3
4
3
4
3
4
Maintenance Reset
Default All
3
4
ENTER
3
4
3
4
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity3
4
3
4
Auto Headlight ON With Wiper ON
ENTER
ENTER
Auto Interior Illumination Sensitivity
Lighting Setup
Door Setup
Security Relock Timer
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 123 ページ ２０１９年１０月３日　木曜日　午後４時５５分

124
uuGauges and Displays uDriver Information Interface
Instrument Panel

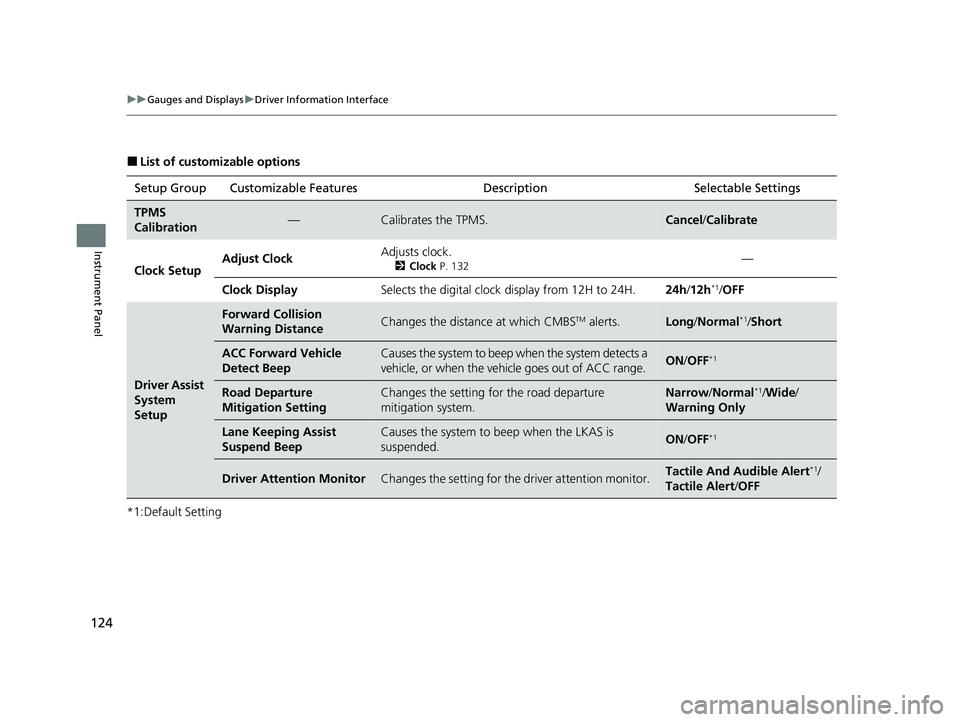

■List of customizable options
*1:Default Setting Setup Group Customizable Features Description Selectable Settings
TPMS
Calibration—Calibrates the TPMS.Cancel
/Calibrate
Clock Setup Adjust Clock
Adjusts clock.
2
Clock P. 132—
Clock Display Selects the digital clock display from 12H to 24H. 24h/12h
*1/ OFF
Driver Assist
System
Setup
Forward Collision
Warning DistanceChanges the distance at which CMBSTM alerts.Long /Normal*1/Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system detects a
vehicle, or when the vehi cle goes out of ACC range.ON/OFF*1
Road Departure
Mitigation SettingChanges the setting for the road departure
mitigation system.Narrow /Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend BeepCauses the system to beep when the LKAS is
suspended.ON /OFF*1
Driver Attention MonitorChanges the setting for the driver attention monitor.Tactile And Audible Alert*1/
Tactile Alert /OFF
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 124 ページ ２０１９年１０月３日　木曜日　午後４時５５分

125
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

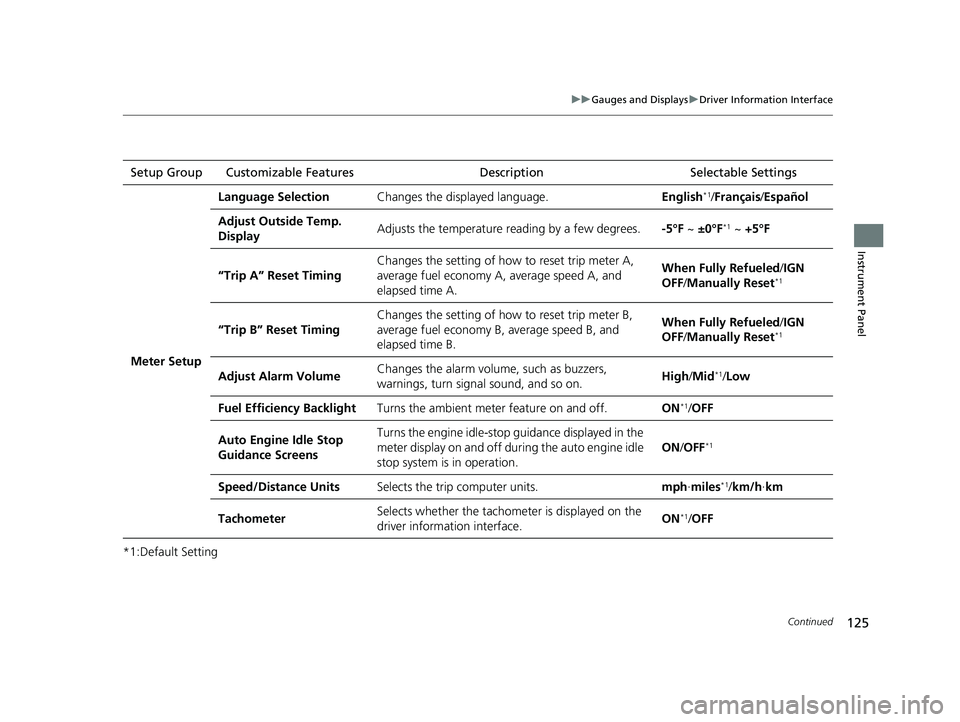

*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature r eading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.When Fully Refueled/ IGN
OFF /Manually Reset*1
“Trip B” Reset Timing
Changes the setting of ho w to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.When Fully Refueled/ IGN
OFF /Manually Reset*1
Adjust Alarm VolumeChanges the alarm volu me, such as buzzers,
warnings, turn signal sound, and so on.High /Mid*1/Low
Fuel Efficiency BacklightTurns the ambient meter feature on and off.ON*1/OFF
Auto Engine Idle Stop
Guidance ScreensTurns the engine idle-stop guidance displayed in the
meter display on and off during the auto engine idle
stop system is in operation.
ON /OFF*1
Speed/Distance UnitsSelects the trip computer units.mph ∙miles*1/km/h ∙km
TachometerSelects whether the tachom eter is displayed on the
driver information interface.ON*1/ OFF
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 125 ページ ２０１９年１０月３日　木曜日　午後４時５５分

126
uuGauges and Displays uDriver Information Interface
Instrument Panel

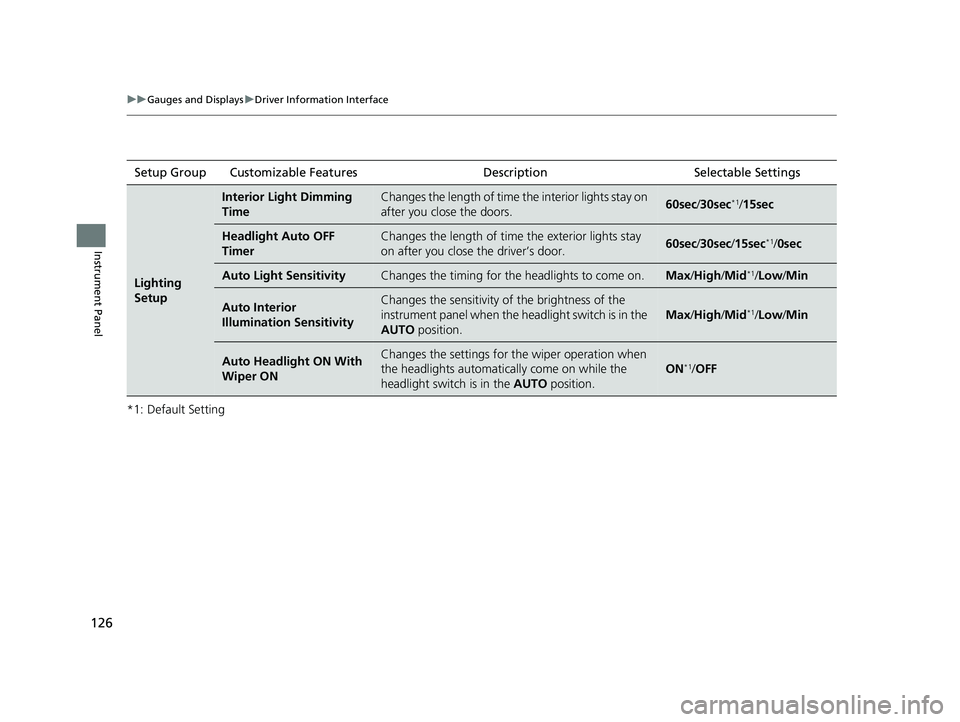

*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time th
e interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for the headlights to come on.Max/High /Mid*1/Low/ Min
Auto Interior
Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High /Mid*1/Low/ Min
Auto Headlight ON With
Wiper ONChanges the settings for the wiper operation when
the headlights automatically come on while the
headlight switch is in the AUTO position.
ON*1/OFF
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 126 ページ ２０１９年１０月３日　木曜日　午後４時５５分

127
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

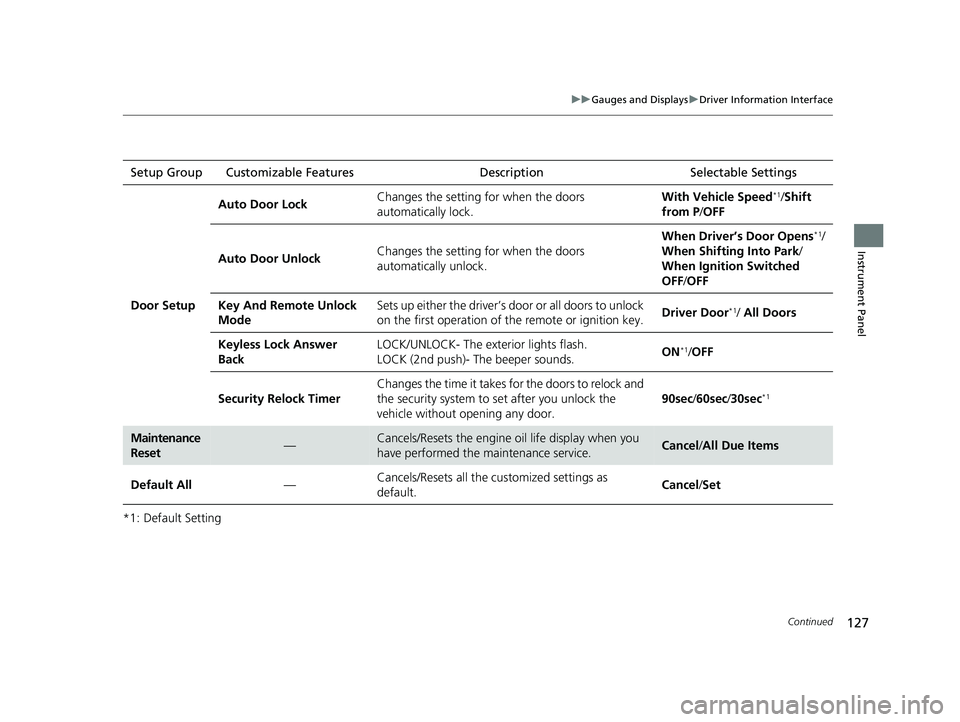

*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/Shift
from P /OFF
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
When Driver’s Door Opens*1/
When Shifting Into Park /
When Ignition Switched
OFF /OFF
Key And Remote Unlock
ModeSets up either the driver’s door or all doors to unlock
on the first operation of the remote or ignition key.Driver Door*1/ All Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
Maintenance
Reset—Cancels/Resets the engine oil life display when you
have performed the maintenance service. Cancel /All Due Items
Default All—Cancels/Resets all the customized settings as
default.Cancel /Set
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 127 ページ ２０１９年１０月３日　木曜日　午後４時５５分

128
uuGauges and Displays uDriver Information Interface
Instrument Panel

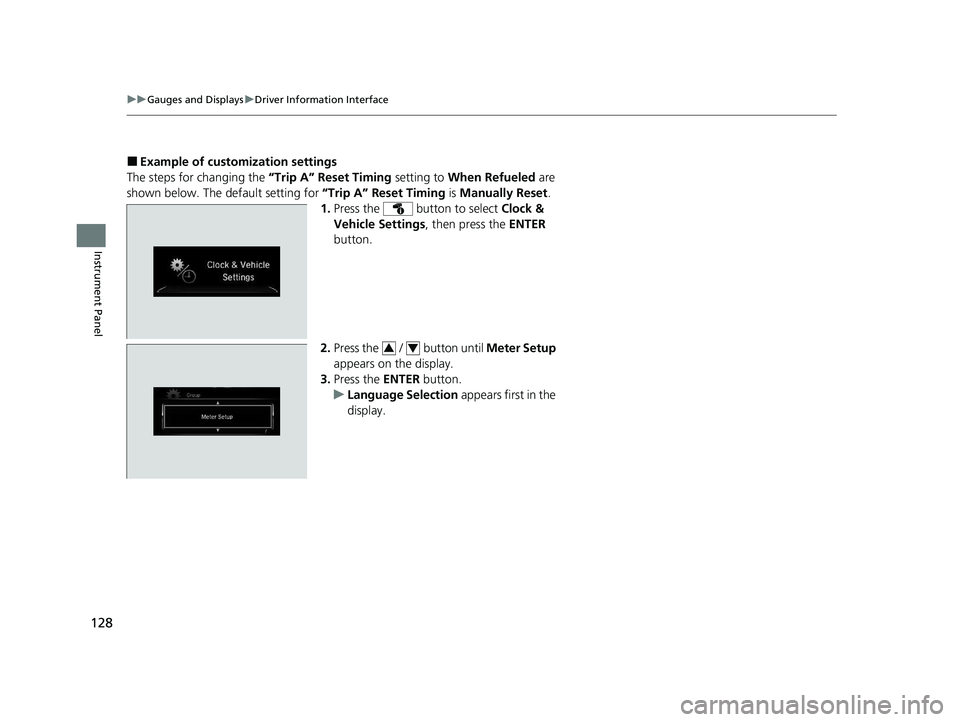

■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Press the button to select Clock &
Vehicle Settings , then press the ENTER
button.
2. Press the / button until Meter Setup
appears on the display.
3. Press the ENTER button.
u Language Selection appears first in the
display.
34
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 128 ページ ２０１９年１０月３日　木曜日　午後４時５５分

129
uuGauges and Displays uDriver Information Interface
Instrument Panel

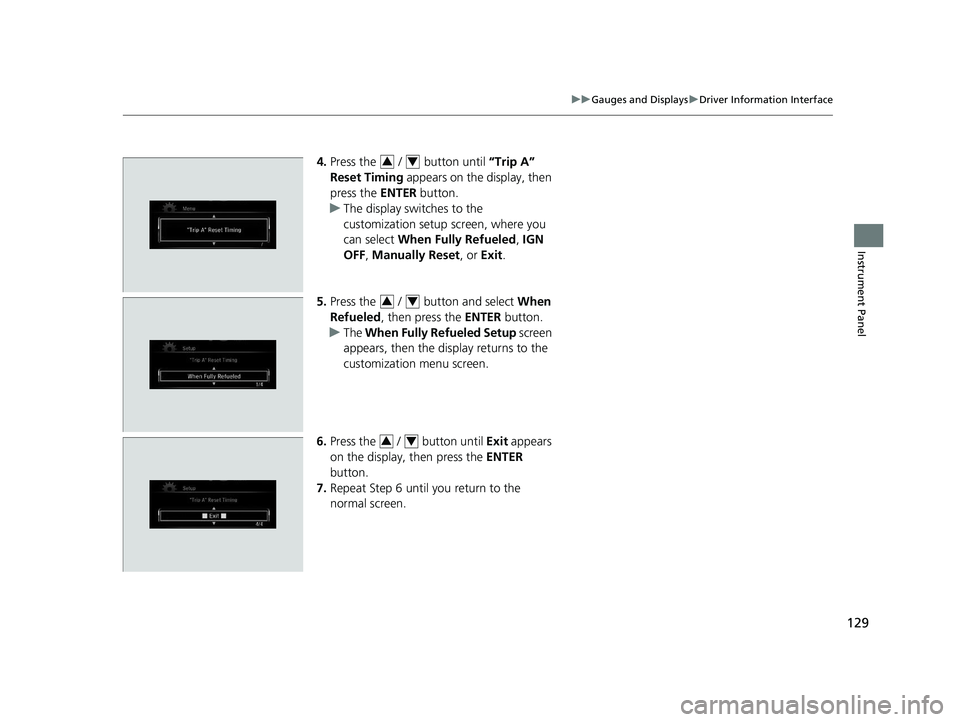

4. Press the / button until “Trip A”
Reset Timing appears on the display, then
press the ENTER button.
u The display swit ches to the
customization setup screen, where you
can select When Fully Refueled , IGN
OFF , Manually Reset , or Exit.
5. Press the / button and select When
Refueled , then press the ENTER button.
u The When Fully Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Press the / button until Exit appears
on the display, then press the ENTER
button.
7. Repeat Step 6 until you return to the
normal screen.34
34
34
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 129 ページ ２０１９年１０月３日　木曜日　午後４時５５分

132
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 353
Models with navigation system
Models with color audio system
Models without navigation system
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Models with color audio system
Models with color audio system
