HONDA CR-V 2020 Owner's Manual (in English)
Manufacturer: HONDA, Model Year: 2020, Model line: CR-V, Model: HONDA CR-V 2020Pages: 671, PDF Size: 33.11 MB
Page 371 of 671

369
uuCustomized Features u
Continued
Features
■List of customizable options
*1:Does not appear when you chan ge the screen interface design.
*2:Appears only when you change the screen interface design. Setup Group Customizable Features
Description Selectable Settings
Clock
Clock
Clock/
Wallpaper
Type
*1/Clock
Type*2
Clock
See Info on P. 370
Wallpaper
Clock Adjustment
Auto Time Zone*
Manual Time Zone*
Auto Daylight Saving Time
Clock Format
Clock Display
Overlay Clock Location
Clock Reset
HondaLinkDiagnostic & Location Data
OthersInfo Screen Preference
DefaultCancels/Resets all customized items in the
Clock settings group as default.Yes/No
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 369 ページ 2019年10月3日 木曜日 午後4時55分
Page 372 of 671

370
uuCustomized Features u
Features
*1:Default Setting
*2:Does not appear when you change the screen interface design.
*3:Appears only when you change the screen interface design.Setup
Group Customizable Features Desc
ription Selectable Settings
Info Clock Clock/
Wallpaper
Type
*2/
Clock
Type
*3
Clock Changes the clock display type. Analog
/Digital*1/
Small Digital /Off
Wallpaper
●Changes the wallpaper type.●Imports an image file for a new wallpaper.●Deletes an image file for a wallpaper. Blank
/Galaxy
*1/
Metallic /Time Zone
Clock Adjustment Adjusts Clock. —
Auto Time Zone
*Automatically adjusts th e clock when driving
through different time zones. On*1/
Off
Manual Time Zone
*Changes the time zone manually. —
Auto Daylight Saving Time Select
On to have the GPS automatically adjust
the clock to daylight savings time. Select Off to
cancel this function. On
*1/
Off
Clock Format Selects the digital clock display from 12H to 24H. 12H
*1/24H
Clock Display Selects whether the clock display comes on. On
*1/Off
Overlay Clock Location Changes the clock display layout. Upper Right
*1/
Upper
Left/ Lower Right/
Lower Left /Off
Clock Reset Resets the clock settings to the factory default. Yes/No
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 370 ページ 2019年10月3日 木曜日 午後4時55分
Page 373 of 671

371
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Info HondaLink
Diagnostic &
Location Data
Turns HondaLink
® on and off. On
*1/Off
Others Info Screen
Preference Selects the top menu wh
en the (display/
information) button is pressed.
●Info Top - A brief menu pops up.●Info Menu- A full menu pops up.●Off- A menu does not pop up. Info Top
/Info
Menu
*1/ Off
Default Cancels/Resets all customized items in the
Info settings
group as default. Yes
/No
Camera
Rear
Camera
Fixed Guideline
Selects whether the fixed gui delines come on the rear
camera monitor.
2 Multi-View Rear Camera P. 552
On*1/Off
Dynamic Guideline
Selects whether the guidelines adjust to the movement
of the steering wheel.
2 Multi-View Rear Camera P. 552
On*1/Off
DefaultCancels/Resets all customized items in the Rear Camera
setting group as default.Yes /No
LaneWatch*
Show with Turn
SignalSelects whether the LaneWatch display comes on when
you move the turn signal leve r to indicate a right turn.On*1/Off
Display Time after
Turn Signal OffChanges the length of time the LaneWatch display stays
on after the turn signal lever returns to the center.0 second*1/ 2 seconds
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 371 ページ 2019年10月3日 木曜日 午後4時55分
Page 374 of 671

372
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Feat
ures Description Selectable
Settings
CameraLaneWatch*
Reference LineSelects whether the reference lines come on the
LaneWatch monitor.On*1/Off
DefaultCancels/Resets all cust omized items in the
LaneWatch group as default.Yes/No
Cross Traffic Monitor*Turns on and off the cross traffic monitor.On*1/Off
Bluetooth
/ Wi-Fi Bluetooth Bluetooth On/Off Status
Changes the Bluetooth® status. On
*1/Off
Bluetooth Device List Pairs a new phone to HFL, edits or deletes a paired
phone.
2
Phone Setup P. 422
—
Priority
Device
Settings
Priority On/Off
StatusEnables the system to or disables it from automatically
establishing a connection with a
Bluetooth® device
which has been assigned priority.On*1/ Off
Audio Selects the priority device over another paired
audio device(s).
—
PhoneSelects the priority device over another paired
phone(s).—
Edit Pairing Code Edits a pairing code.
2
To change the pairing code setting P. 423Random/Fixed*1
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 372 ページ 2019年10月3日 木曜日 午後4時55分
Page 375 of 671

373
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Bluetooth
/ Wi-FiWi-Fi Wi-Fi On/Off Status
Changes the Wi-Fi mode. On/Off
*1
Wi-Fi Device List Connects, disconnects, or deletes the Wi-Fi
device. —
Wi-Fi Information Shows the Wi-Fi information of the head unit. —
Default Cancels/Resets all cust
omized items in the
Bluetooth / Wi-Fi group as default. Yes
/No
PhonePhone
Bluetooth Device List
Pairs a new phone to HFL, connects or
disconnects a paired phone.
2 Phone Setup P. 422
—
Edit Speed DialEdits, adds or deletes a speed dial entry.
2Speed Dial P. 428—
Ring ToneSelects the ring tone.Fixed/Mobile
Phone*1
Automatic Phone Sync
Sets a phonebook and call history data to be
automatically imported when a phone is paired
to HFL.
On*1/ Off
HondaLink AssistTurns HondaLink Assist on and off.On*1/Off
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 373 ページ 2019年10月3日 木曜日 午後4時55分
Page 376 of 671

374
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Phone
Text/Email
Enable Text/EmailTurns the text/e-mail message function on and
off.On*1/Off
Select AccountSelects a text or e-mail message account.—
New Message Notification
Selects whether a pop-up alert comes on the
screen when HFL receives a new text/e-mail
message.
On /Off*1
DefaultCancels/Resets all customized items in the
Phone settings group as default.Yes/No
AudioFM/AM
HD Radio Mode (FM)*
HD Radio Mode (AM)*
Selects whether the audi o system automatically
switches to the digital radio waves or receives
the analog waves only.
Auto*1/ Analog only
RDS INFOTurns on and off the RDS information.On*1/Off
FM/AM mode
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 374 ページ 2019年10月3日 木曜日 午後4時55分
Page 377 of 671

375
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
AudioSXM*
TuneStartTurns on and off, starts the song from the
beginning as you change preset stations.On*1/Off
SportsFlash
Setup
InterruptTurns on and off the sports alert function.Off*1/On(One Time) /
On(Continue)
Favorite
TeamSelects your favorite sports teams.
2 Live Sports Alert P. 299—
Interrupt
BeepCauses the system to beep when the sports
alert is notified.On*1/ Off
Traffic & Weather SetupSelects the region you want to receive the
information.—
Multiple Channel Mix
PresetTurns multiple channel mix preset on and off.On*1/Off
SiriusXM® mode
* Not available on all models
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 375 ページ 2019年10月3日 木曜日 午後4時55分
Page 378 of 671

376
uuCustomized Features u
Features
*1:Default Setting
*2:Appears only when you change the screen interface design.Setup
Group Customizable Features Description Selectable Settings
Audio
BluetoothBluetooth Device List
Pairs a new phone to HFL, edits or deletes a
paired phone.
2
Phone Setup P. 422
—
Other
[Your selected media]
Cover ArtTurns the cover art display on and off.On*1/Off
Audio Source Pop-Up
Selects whether the list of selectable audio source
comes on when Audio is selected on the home
screen.
On /Off*1
DefaultCancels/Resets all cust omized items in the Audio
settings group as default.Yes /No
SystemHome
Home Screen Edit OrderChanges the home screen icon layout.—
Menu Icon Position*2Changes the position of the menu icons on the
Audio , Phone , and Info screen.—
Configuration of
Instrument PanelChanges the Instrument Panel screen icon
layout. —
Tachometer SettingTurns on and off the tachometer display.On*1/ Off
Bluetooth® mode
iPod or USB mode
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 376 ページ 2019年10月3日 木曜日 午後4時55分
Page 379 of 671

377
uuCustomized Features u
Continued
Features
*1:Default Setting
*2:Does not appear when you chan ge the screen interface design.
Setup
Group Customizable Features Desc
ription Selectable Settings
System
Display
Display
Settings
BrightnessChanges the brightness of the audio/information
screen.—
ContrastChanges the contrast of the audio/information
screen.—
Black LevelChanges the black level of the audio/information
screen.—
Background Color*2Changes the background color of the audio/
information screen.Blue/Amber /Red/
Violet/ BlueGreen*1
Touch Panel SensitivitySets the sensitivity of the touch panel screen.High/Low*1
Sound/
BeepGuidance Volume
Changes the sound volume.
Adjusts the guidance volume of the navigation
system.
1 ~6*1~11
Text Message VolumeChanges the text/e-mail message reading
volume. 1~6*1~11
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 377 ページ 2019年10月3日 木曜日 午後4時55分

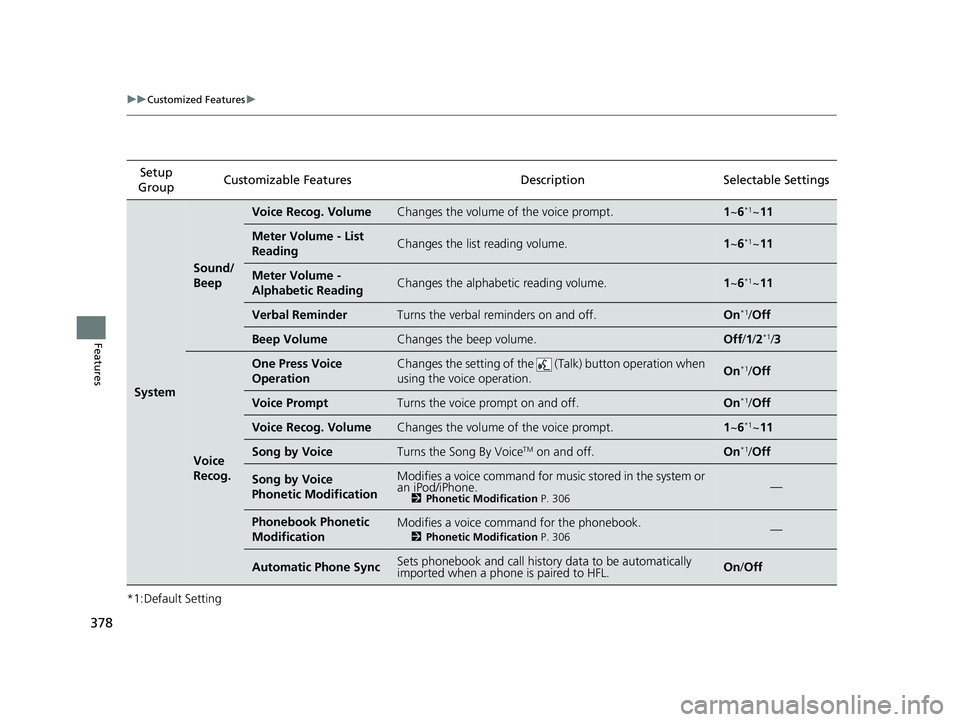

Page 380 of 671

378
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
System
Sound/
Beep
Voice Recog. VolumeChanges the volume of the voice prompt.1~6*1~11
Meter Volume - List
ReadingChanges the list reading volume.1~6*1~11
Meter Volume -
Alphabetic ReadingChanges the alphabetic reading volume.1~6*1~11
Verbal ReminderTurns the verbal reminders on and off.On*1/Off
Beep VolumeChanges the beep volume.Off /1 /2*1/3
Voice
Recog.
One Press Voice
OperationChanges the setting of the (Talk) button operation when
using the voice operation.On*1/ Off
Voice PromptTurns the voice prompt on and off.On*1/Off
Voice Recog. VolumeChanges the volume of the voice prompt.1 ~6*1~11
Song by VoiceTurns the Song By VoiceTM on and off.On*1/Off
Song by Voice
Phonetic ModificationModifies a voice command for mu sic stored in the system or
an iPod/iPhone.
2 Phonetic Modification P. 306—
Phonebook Phonetic
ModificationModifies a voice command for the phonebook.
2Phonetic Modification P. 306—
Automatic Phone SyncSets phonebook and call history data to be automatically
imported when a phone is paired to HFL.On/Off
20 CR-V PET ELP_MAP_HMIN_HCM_J-31TLA6310.book 378 ページ 2019年10月3日 木曜日 午後4時55分
