Page 7 of 690

6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Steering Wheel Adjustments (P204)
❚Hazard Warning Button
❚System Indicators (P90)
❚Rear Defogger (P200)
❚Gauges (P126)
❚POWER Button (P185)
❚Audio System (P249, 270)
❚Navigation System*
() See the Navigation System Manual
❚Heated Door Mirror Button* (P200)
❚Seat Heater Buttons* (P233)
❚Driver Information Interface (P128)
❚Collision Mitigation Braking SystemTM (CMBSTM) OFF Button (P508)
❚ (Vehicle Stability AssistTM (VSA ®) System OFF) Button (P488)
❚Road Departure Mitigation (RDM) Button (P543)
❚Climate Control System (P234)
❚Parking Sensor System Button* (P560)
❚Power Tailgate Button* (P172)
21 CR-V HYBRID HMIN-31TPG6100.book 6 ページ 2020年9月14日 月曜日 午前11時36分
Page 8 of 690

7
Quick Reference Guide
❚Navigation System Voice Control Buttons*
() See the Navigation System Manual
❚Bluetooth ® HandsFreeLink ® System Voice
Control Buttons
(P397, 421)
❚ / / / Buttons (P128, 246)
❚ENTER Button (P128, 246)
❚Wipers/Washers (P197)
❚Headlights/Turn Signals (P188, 189)
❚Fog Lights* (P193)
❚Interval Button (P526)
❚MAIN Button (P516, 534)
❚ (Display/Information) Button
(P128, 271)
❚Selector (-) (P 482)
❚Selector (+) (P 482)
❚ (TRIP) Knob (P129)
❚Brightness Control (P201)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P515)
❚Lane Keeping Assist System (LKAS) Button
(P532)
❚Horn (Press an area around .)
❚Heated Steering Wheel Button* (P232)
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 7 ページ 2020年9月14日 月曜日 午前11時36分
Page 9 of 690

Visual Index
8
Quick Reference Guide
❚Rearview Mirror (P205)
❚Driver’s Front Airbag
(P59)
❚Memory Buttons* (P 203)
❚Interior Fuse Box (P659)
❚Passenger’s Front Airbag
(P59)
❚SET Button* (P 203)
❚Power Window Switches (P181)
❚Door Mirror Controls (P206)
❚Master Door Lock Switch (P 164)
❚Electric Parking Brake
Switch
(P549)
❚Automatic Brake Hold
Button
(P553)
❚Glove Box (P219)
❚SPORT Button (P481)
❚Accessory Power Socket
(P228)
❚Shift Buttons (P475)
❚EV Button (P14)
❚ECON Button (P485)
❚Wireless Charger* (P229)
❚USB Port(s) (P243)
❚Hood Release Handle (P585)
❚Fuel Fill Door Release Handle (P571)
❚Driver’s Pocket
21 CR-V HYBRID HMIN-31TPG6100.book 8 ページ 2020年9月14日 月曜日 午前11時36分
Page 28 of 690

27
Quick Reference Guide
Models with SYNC button
Passenger’s side Temperature
Control Dial
(Windshield Defroster) ButtonDriver’s side Temperature
Control Dial (Recirculation) Button
(CLIMATE) Button
(ON/OFF) Button
AUTO Button
Audio/Information Screen
SYNC (Synchronization) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and dashboard vents,
and back of the center console.
Air flows from dashboard vents,
and back of the center console.
(Fresh Air) Button
Fan Control Buttons
21 CR-V HYBRID HMIN-31TPG6100.book 27 ページ 2020年9月14日 月曜日 午前11時36分
Page 31 of 690

30
Quick Reference Guide
Audio System (P242)
(P249)Models with color audio system
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
Selector Knob (Phone) Button
21 CR-V HYBRID HMIN-31TPG6100.book 30 ページ 2020年9月14日 月曜日 午前11時36分

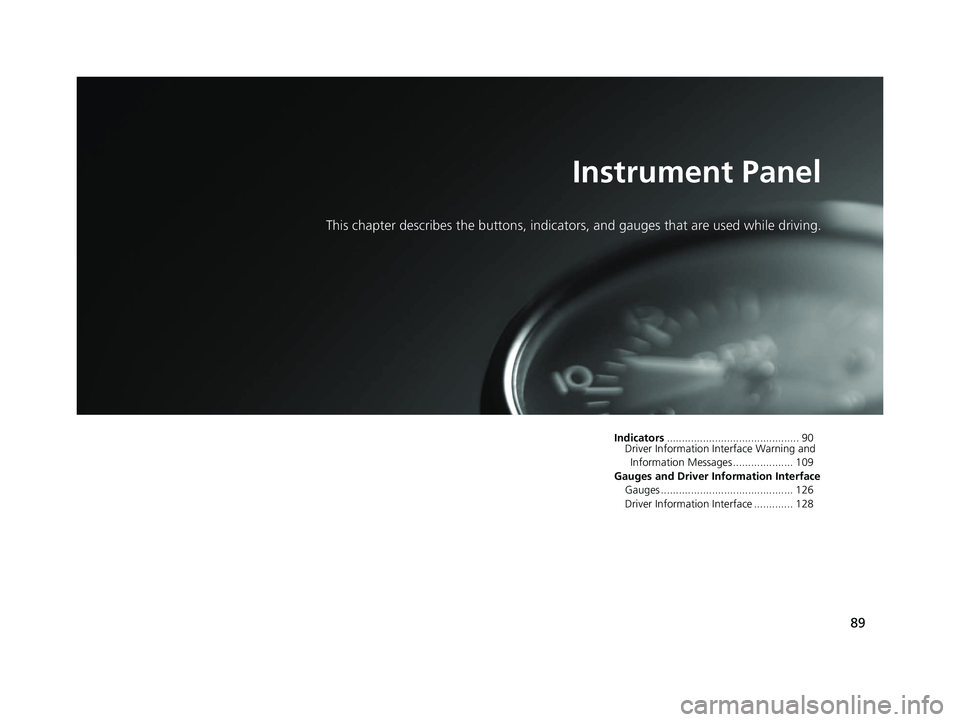

Page 90 of 690

89
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 90
Driver Information Interface Warning and
Information Messages .................... 109
Gauges and Driver Information Interface Gauges ............................................ 126
Driver Information Interface ............. 128
21 CR-V HYBRID HMIN-31TPG6100.book 89 ページ 2020年9月14日 月曜日 午前11時36分
Page 236 of 690

235
uuClimate Control System uUsing Automatic Climate Control
Continued
Controls
Driver’s Side Temperature
Control Dial Fan Control Buttons
CLIMATE Button
Passenger’s Side
Temperature Control Dial
SYNC (Synchronization) Button
(Windshield Defroster) Button
(Fresh Air) Button
(ON/OFF) Button
(Recirculation) Button
AUTO Button
Models with SYNC button
Air flows
from
dashboard
vents, and
back of the
center
console. Air flows
from floor
and
dashboard
vents, and
back of the
center
console. Air flows
from floor
vents.
Air flows
from floor
and
windshield
defroster
vents.
21 CR-V HYBRID HMIN-31TPG6100.book 235 ページ 2020年9月14日 月曜日 午前11時36分
Page 237 of 690

uuClimate Control System uUsing Automatic Climate Control
236
Controls
Use the system when the power system is on.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
dial.
3. Press the (ON/OFF) button to cancel.1Using Automatic Climate Control
Press the CLIMATE button to display A/C, MODE, and
fan control information on th e audio/information screen
to operate manually. Select icon to turn
On or Off A/C,
change the vent mode, or change the fan speed.
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button that were pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Models with SYNC button
All models
Models without SYNC button
Models with SYNC button
All models
21 CR-V HYBRID HMIN-31TPG6100.book 236 ページ 2020年9月14日 月曜日 午前11時36分
Page 243 of 690

242
Features
Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM® Radio service*. It can also
play USB flash drives, iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface
*.
1 About Your Audio System
SiriusXM ® Radio
* is available on a subscription basis
only. For more information on SiriusXM ® Radio*,
contact a dealer. 2 General Information on the Audio System
P. 344
SiriusXM ® Radio
* is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ®
* is a registered tra demark of SiriusXM
Radio, Inc.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
Remote Controls
iPod
USB Flash Drive
* Not available on all models
21 CR-V HYBRID HMIN-31TPG6100.book 242 ページ 2020年9月14日 月曜日 午前11時36分
Page 247 of 690

246
uuAudio System uAudio Remote Controls
Features
Audio Remote Controls
Allow you to operate the audio system wh ile driving. The information is shown on
the driver information interface. Buttons
Press or to cycle through the audio
mode as follows:
FM1 FM2 AM USB/iPod
Pandora ®Bluetooth ®Audio
FM AM SiriusXM® USB iPod
Bluetooth ®Audio Pandora ®Apps
Audio Apps
ENTER Button
• When listening to a USB flash drive
1. From the audio screen in the dr iver information interface, press ENTER to display
the folder list.
2. Press or to select a folder.
3. Press ENTER to display a list of tracks in that folder.
4. Press or to select a track, then press ENTER.1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions may not be available.
Press the (Hang-up/back) button to go back
to the previous command or cancel a command.
Press the (Display/informa tion) button to switch
display. 2 Switching the Display P. 128
Button
ENTER Button
Button
(+ (- Bar
(Display/Information)
Button
Button3
Button4
34
34
Models with color audio system
Models with Display Audio
Models with Display Audio
34
34
21 CR-V HYBRID HMIN-31TPG6100.book 246 ページ 2020年9月14日 月曜日 午前11時36分
