HONDA CR-V HYBRID 2020 Owner's Manual (in English)

139
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Customization flow
Press the button.
ENTER
TPMS Calibration
Vehicle Settings
Lane Keeping Assist Suspend Beep
Forward Collision Warning Distance
Road Departure Mitigation Setting
Driver Attention Monitor
Driver Assist System SetupENTER
ACC Forward Vehicle Detect Beep
“Trip B” Reset Timing
Language Selection
“Trip A” Reset Timing
Adjust Alarm Volume
Speed/Distance Units
Reverse Alert Tone
Meter SetupENTER
Adjust Outside Temp. Display
3
4
3
4
3
4
3
4
3
4
3
4
ENTER
Fuel Efficiency Backlight
20 CR-V HYBRID HMIN-31TPG6000.book 139 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

140
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Exit
Default All
Auto Door Lock
Walk Away Auto Lock
Security Relock Timer
Headlight Auto OFF Timer
Auto Headlight ON With Wiper ON
ENTER
ENTER
Lighting Setup
Door Setup
ENTER
Auto Interior Illumination Sensitivity
Door Unlock Mode
Remote Start System ON/OFF
ENTERKeyless Access SetupKeyless Access Light Flash
Keyless Access Beep
3
4
3
4
3
4
3
4
3
4
3
4
3
4Interior Light Dimming Time
Auto Light Sensitivity
Key And Remote Unlock Mode
Keyless Lock Answer Back
Auto Door Unlock
Maintenance Reset
3
4
3
4
3
4
20 CR-V HYBRID HMIN-31TPG6000.book 140 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

141
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
Calibration—Calibrates the TPMS.Cancel/Calibrate
Driver Assist
System
Setup
Forward Collision
Warning DistanceChanges the distance at which CMBSTM alerts.Long /Normal*1/ Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system detects
a vehicle, or when the vehicle goes out of ACC
range.
ON /OFF*1
Road Departure
Mitigation SettingChanges the setting fo r the road departure
mitigation system.Narrow/ Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend BeepCauses the system to b eep when the LKAS is
suspended.ON /OFF*1
Driver Attention MonitorChanges the setting for the driver attention monitor.Tactile And Audible Alert*1/
Tactile Alert /OFF
20 CR-V HYBRID HMIN-31TPG6000.book 141 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

142
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

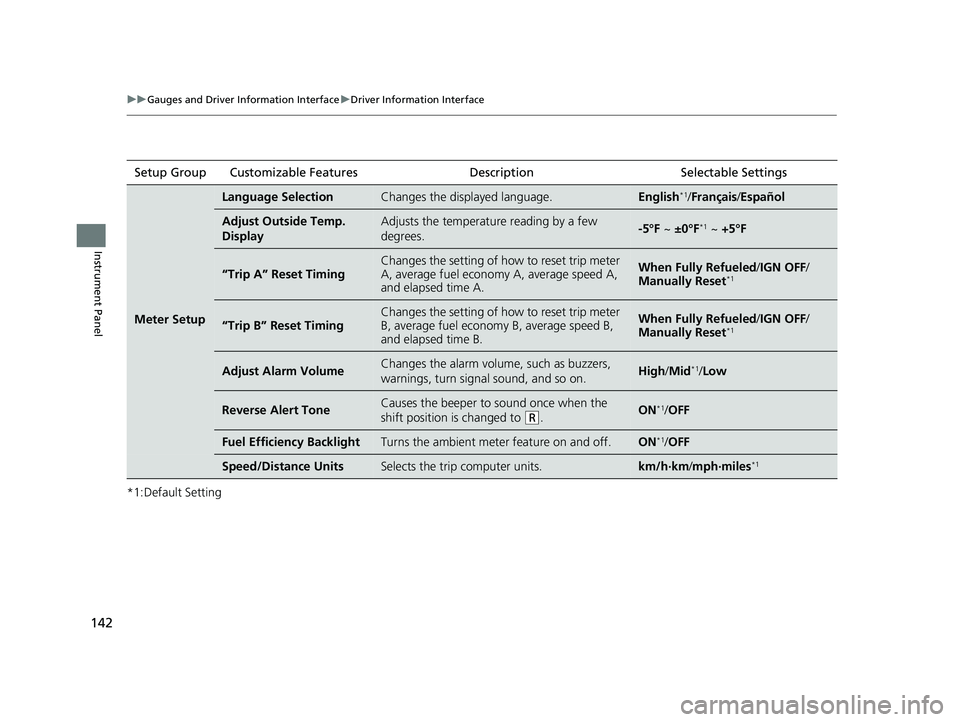

*1:Default SettingSetup Group Customizabl
e Features Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few
degrees.-5°F ~ ±0°F*1 ~ +5°F
“Trip A” Reset TimingChanges the setting of how to reset trip meter
A, average fuel economy A, average speed A,
and elapsed time A.When Fully Refueled /IGN OFF /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter
B, average fuel economy B, average speed B,
and elapsed time B.When Fully Refueled /IGN OFF /
Manually Reset*1
Adjust Alarm VolumeChanges the alarm volume, such as buzzers,
warnings, turn signal sound, and so on.High /Mid*1/Low
Reverse Alert ToneCauses the beeper to sound once when the
shift position is changed to
(R.ON*1/OFF
Fuel Efficiency BacklightTurns the ambient meter feature on and off.ON*1/OFF
Speed/Distance UnitsSelects the trip computer units.km/h∙km /mph∙miles*1
20 CR-V HYBRID HMIN-31TPG6000.book 142 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

143
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Keyless
Access
Setup
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/All Doors
Keyless Access Light
FlashCauses some exterior li ghts to flash when you
unlock/lock the doors.ON*1/ OFF
Keyless Access BeepSets the beeper sound or not when you grab either
front door handle.ON*1/OFF
Remote Start System
ON/OFFTurns the remote engine start feature on and off.ON*1/OFF
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for th e headlights to come on.Max/High /Mid*1/Low /Min
Auto Interior
Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High /Mid*1/Low /Min
Auto Headlight ON With
Wiper ONChanges the settings for th e wiper operation when
the headlights automatica lly come on while the
headlight switch is in the AUTO position.
ON*1/OFF
20 CR-V HYBRID HMIN-31TPG6000.book 143 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

144
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Door Setup
Auto Door LockChanges the setting for when the doors and the
tailgate automatically lock.With Vehicle Speed*1/
Shift
From P /OFF
Auto Door UnlockChanges the setting for when the doors and the
tailgate automatically unlock.
When Driver’s Door Opens*1/
When Shifting Into Park/
When Ignition Switched
OFF /OFF
Key And Remote Unlock
ModeSets up either the driver’s door or all doors to unlock
on the first operation of the remote.Driver Door*1/ All Doors
Walk Away Auto Lock
Changes the settings for the automatic locking the
doors when you walk away from the vehicle while
carrying the smart entry remote.
ON /OFF*1
Keyless Lock Answer
BackLOCK/UNLOCK- The exte rior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/ OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
Maintenance
Reset—Resets the Maintenance MinderTM display when you
have performed the maintenance service.Cancel /All Due Items
Default All—Cancels customized changes you have made or
restores them to their default setting.Cancel /Set
20 CR-V HYBRID HMIN-31TPG6000.book 144 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

145
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

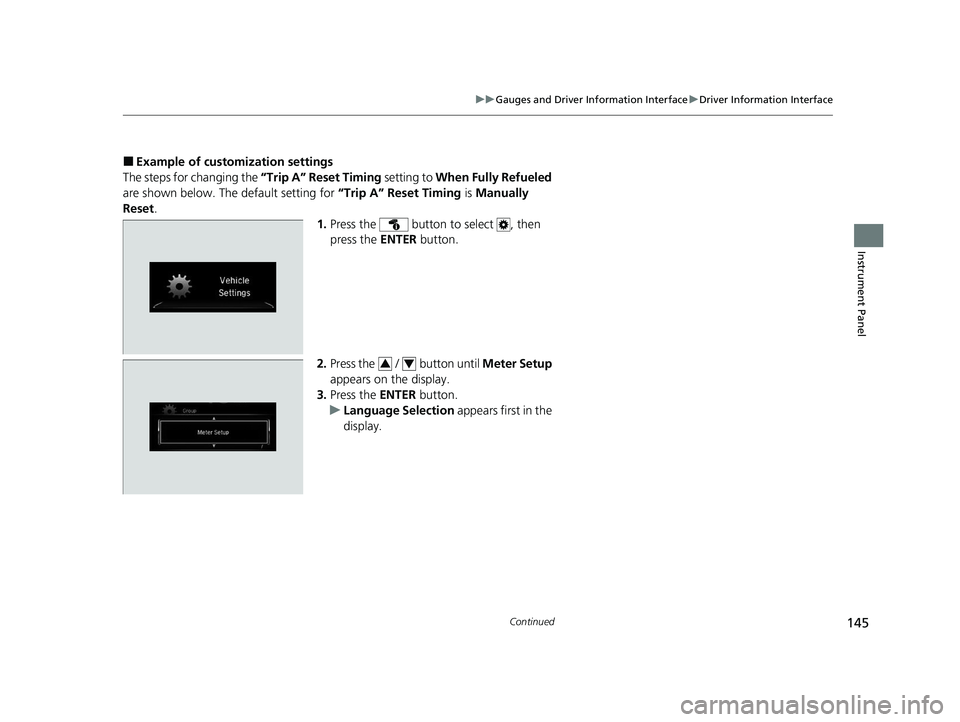

■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Fully Refueled
are shown below. The default setting for “Trip A” Reset Timing is Manually
Reset .
1.Press the button to select , then
press the ENTER button.
2. Press the / button until Meter Setup
appears on the display.
3. Press the ENTER button.
u Language Selection appears first in the
display.
34
20 CR-V HYBRID HMIN-31TPG6000.book 145 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

146
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

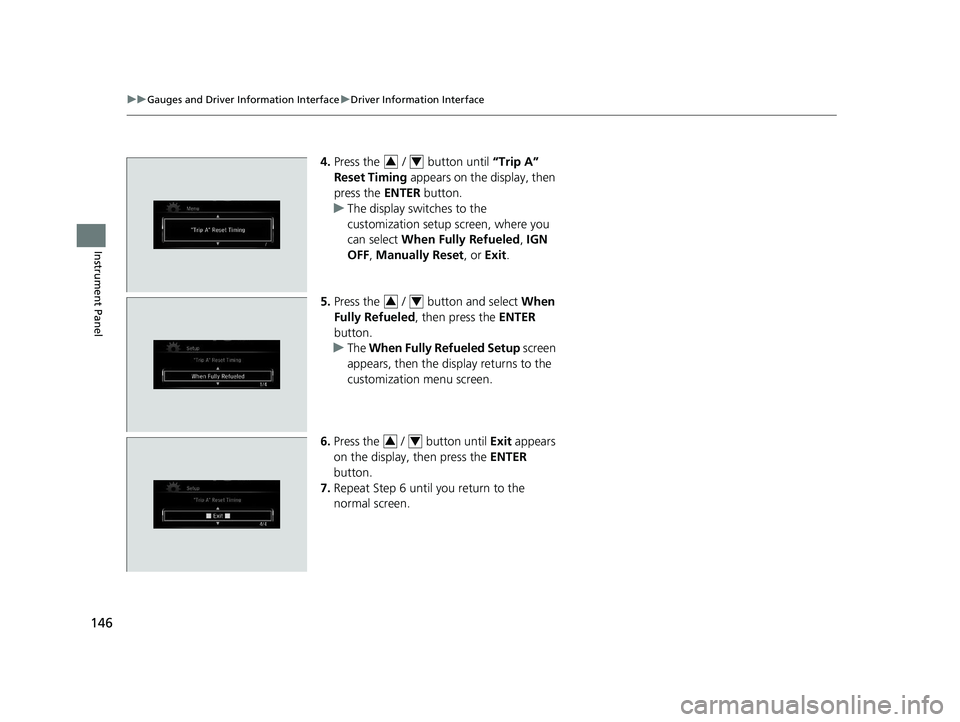

4. Press the / button until “Trip A”
Reset Timing appears on the display, then
press the ENTER button.
u The display switches to the
customization setup screen, where you
can select When Fully Refueled , IGN
OFF , Manually Reset , or Exit .
5. Press the / button and select When
Fully Refueled , then press the ENTER
button.
u The When Fully Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Press the / button until Exit appears
on the display, then press the ENTER
button.
7. Repeat Step 6 until you return to the
normal screen.34
34
34
20 CR-V HYBRID HMIN-31TPG6000.book 146 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

147
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 148
Locking and Unlocking the Doors Key .................................................. 150
Low Smart Entry Remote Signal Strength ... 152
Locking/Unlocking the Doors from the Outside .......................................... 153
Locking/Unlocking the Doors from the Inside ............................................. 160
Childproof Door Locks ..................... 162
Auto Door Locking/Unlocking .......... 163
Tailgate .............................................. 164
Security System Immobilizer System .......................... 175
Security System Alarm
*.................... 175
Opening and Closing the Windows .... 178Moonroof*........................................ 182
Operating the Switches Around the Steering Wheel
POWER Button................................. 183
Turn Signals ..................................... 186
Light Switches.................................. 187
Fog Lights
*...................................... 191
Daytime Running Lights ................... 191
Auto High-Beam .............................. 192
Wipers and Washers ........................ 195
Brightness Control ........................... 199 Rear Defogger/Heated Door Mirror
*
Button ........................................... 198
Driving Position Memory System*.... 200
Adjusting the Steering Wheel .......... 202
Adjusting the Mirrors ....................... 203
Adjusting the Seats .......................... 205
Interior Convenience Items .............. 215
Climate Control System Using Automatic Climate Control .... 232
Automatic Climate Control Sensors ...... 238
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 147 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

148
Controls

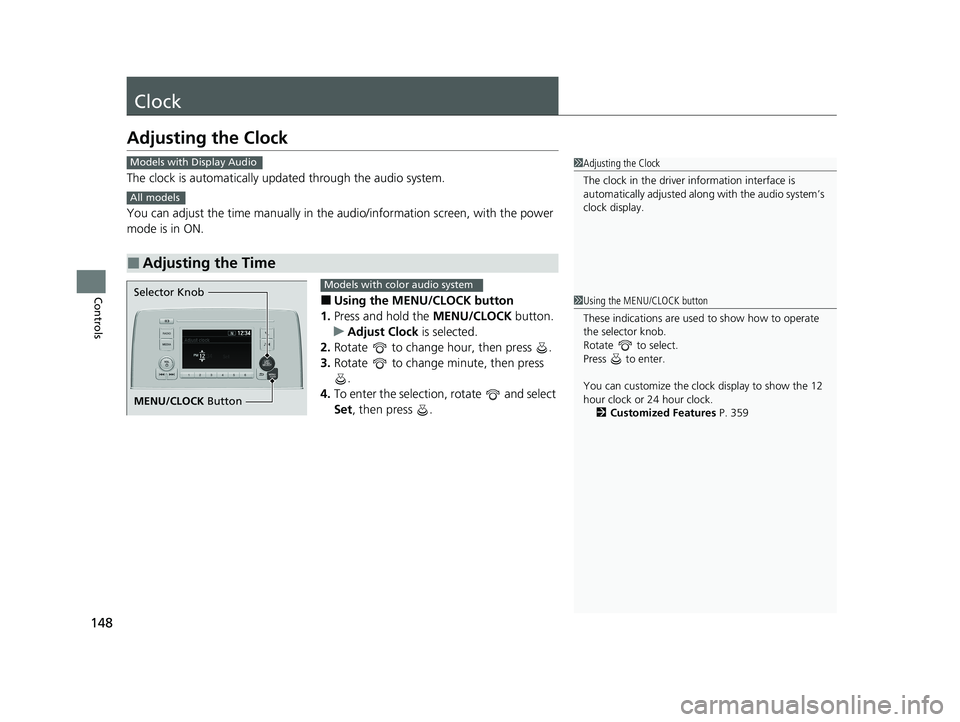

Clock
Adjusting the Clock
The clock is automatically updated through the audio system.
You can adjust the time manually in the audio/information screen, with the power
mode is in ON.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
■Adjusting the Time
1Adjusting the Clock
The clock in the driver information interface is
automatically adjusted along with the audio system’s
clock display.Models with Display Audio
All models
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 359Selector Knob
MENU/CLOCK Button
Models with color audio system
