HONDA CR-V HYBRID 2020 Owner's Manual (in English)

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the cooling system.●Drive slowly to prevent overheating and have your
vehicle checked by a dealer as soon as possible.
●Appears when you set the power mode to ON without
fastening the driver's seat belt.●Fasten the seat belt properly before you start to drive.
●Appears when you try to change the transmission
without depressing the brake pedal.●Depress the brake pedal, then change the
transmission.
●Appears when you try to change the transmission
without releasing your foot off the accelerator pedal.●Release your foot off the accelerator pedal, then
change the transmission.
●Appears when the (P button is pressed while the
vehicle is moving.
●Appears if you put the transmission into (R while the
vehicle is moving forward, or into
(D while the vehicle
is reversing.
●Make sure that the vehicle comes to a stop before
operating the shift button.
20 CR-V HYBRID HMIN-31TPG6000.book 109 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the electric system.●Appears when you set the power mode to OFF while
driving.
●Immediately stop in a safe place and set the parking
brake, then restart the power system. If the message
disappears, continue driving.
●Continue driving if the me ssage goes off soon after.●If there is a problem with the transmission system,
the transmission indicator system comes on.
2Transmission System Indicator P. 93
●Appears when the automatic brake hold system is
turned off.
2Automatic Brake Hold P. 551
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 551
●Appears when the automa tic brake hold button is
pressed without depressing the brake pedal while the
automatic brake hold is in operation.●Press the automatic brake ho ld button with the brake
pedal depressed.
2 Automatic Brake Hold P. 551
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 551
2 Parking Brake P. 547
20 CR-V HYBRID HMIN-31TPG6000.book 110 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while the
electric parking brake is in operation.●Press the electric parking brake switch with the brake
pedal depressed.
2Parking Brake P. 547
●Appears when the vehicle is no longer able to run due
to a malfunction.●Immediately stop in a safe place.●Have your vehicle checked by a dealer.
●Appears when there is a risk that the vehicle will move
unexpectedly after you have stopped due to a
malfunction with the vehicle.●While the vehicle is stopped, apply the parking brake.
2 Parking Brake P. 547●Have your vehicle checked by a dealer.
●Appears as soon as a proble m is detected in the smart
entry system or push button starting system.●Appears constantly - Have your vehicle checked by
a dealer.
●Appears when you close the door with the power
mode in ON without the smart entry remote inside the
vehicle.●Disappears when you bring the smart entry remote
back inside the vehicle and close the door.
2 Smart Entry Remote Reminder P. 185
20 CR-V HYBRID HMIN-31TPG6000.book 111 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the smart entry remote battery becomes
weak.
2Replacing the Button Battery P. 613
●Appears when you set the power mode to ACCESSORY
or ON.
2 Turning on the Power P. 465
●Appears if you press the POWER button while the
vehicle is moving.
2 Emergency Power System Off P. 642
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2POWER Button P. 183
●Appears if the smart entry re mote’s battery is too weak
to turn on the power system or the key is not within
operating range to turn on the power system. The
beeper sounds six times.●Bring the back of the smart entry remote into contact
with the POWER button.
2If the Smart Entry Remote Battery is Weak
P. 641
20 CR-V HYBRID HMIN-31TPG6000.book 112 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you press and hold (N button for more
than two seconds.●Disappears when you set the shift position to a shift
other than
(N.
2 If you want to keep the transmission in (N
position [car wash mode] P. 477
●Appears when the vehicle is stopped with the driver’s
seat belt unfastened and there is a chance that the
vehicle may roll unintentionally.●Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 475
●Appears when the power system temperature is high.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Park in a safe place, and cool the system down.
2Overheating P. 645
●Appears when the High Volt age battery temperature is
low.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Goes off once you start dr iving as the High Voltage
battery warms up.
●Appears after the 12-volt battery charging system
indicator comes on.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Contact a dealer immediately.
●Appears when the High Volt age battery temperature is
too low to operate (approx. -22°F [-30°C] or below).●You can start the engine and use the climate control
system to warm up the interior, which will also warm
the High Voltage battery enough for you to drive the
vehicle.
20 CR-V HYBRID HMIN-31TPG6000.book 113 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

114
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the High Voltage battery and other
system control temperatures are too low to operate
(approx. -40°F [-40°C] or below).●You must wait for an increase in the ambient
temperature or move the vehicle to a warmer
location.
●Consult a dealer if necessary.
●Appears if the power system is in diagnostic mode.●You may notice a decrease in available power. Have
your vehicle checked by a dealer.
●As a result of diagnostics, the power system indicator
may come on.
2 Power System Indicator P. 91
●Appears when you have met following situations and
EV mode is canceled.
-Battery Temperature At Limit.
- Battery Charge Too Low.
- Engine Too Cold.
- Cabin Being Heated.
- Speed Too High.
- Hard Accelerati on Requested.●EV mode is available once the condition is improved
or the cause that canceled EV mode is cleared.
●Appears when you depress the accelerator pedal while
the shift position is in
(N.
●Remove your foot off the accelerator pedal. When
driving, depress the brake pedal and operate the shift
position.
20 CR-V HYBRID HMIN-31TPG6000.book 114 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

115
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you put the transmission into (N, then
release the
(N button.2 If you want to keep the transmission in (N
position [car wash mode] P. 477
●Appears when you repeatedly change the shift position
between
(P and other positions in short period.
●Take some time before chan ging the shift position.
●Appears if the engine needs to be started when you
press the EV button.
—
●Appears when you have met following situations and
EV mode has been automatically canceled.
-When the High Voltage battery charge is low.
- When the velocity of your vehicle is high.
- When your vehicle's speed exceeds 25 mph (40 km/h)
before the engine warms up enough.
- When depressing the accelerator pedal deeply.
- When driving on a slope.●EV mode is availa ble once the condition is improved
or the cause that canceled EV mode is cleared.
●Appears when the High Voltage battery is running
extremely low.●Contact a dealer immediately.
20 CR-V HYBRID HMIN-31TPG6000.book 115 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

116
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the automatic
lighting control system.●Appears while driving - Manually turn the lights
on, and have your vehicl e checked by a dealer.
●Appears if there is a problem with the headlights.●Appears while driving - The headlights may not be
on.
When conditions allow you to drive safely, have your
vehicle checked by a dealer as soon as possible.
●Appears when you unlock and open the driver’s door
while the power system is on by remote engine start.
2 Remote Engine Start P. 467
●Appears if the vehicle is being driven in a manner
consistent with drowsy or inattentive driving.
2Driver Attention Monitor P. 133
●Appears when ACC with Lo w Speed Follow has been
automatically canceled.●You can resume the set speed after the condition
that caused ACC with Low Speed Follow to cancel
improves. Press the RES/+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
20 CR-V HYBRID HMIN-31TPG6000.book 116 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

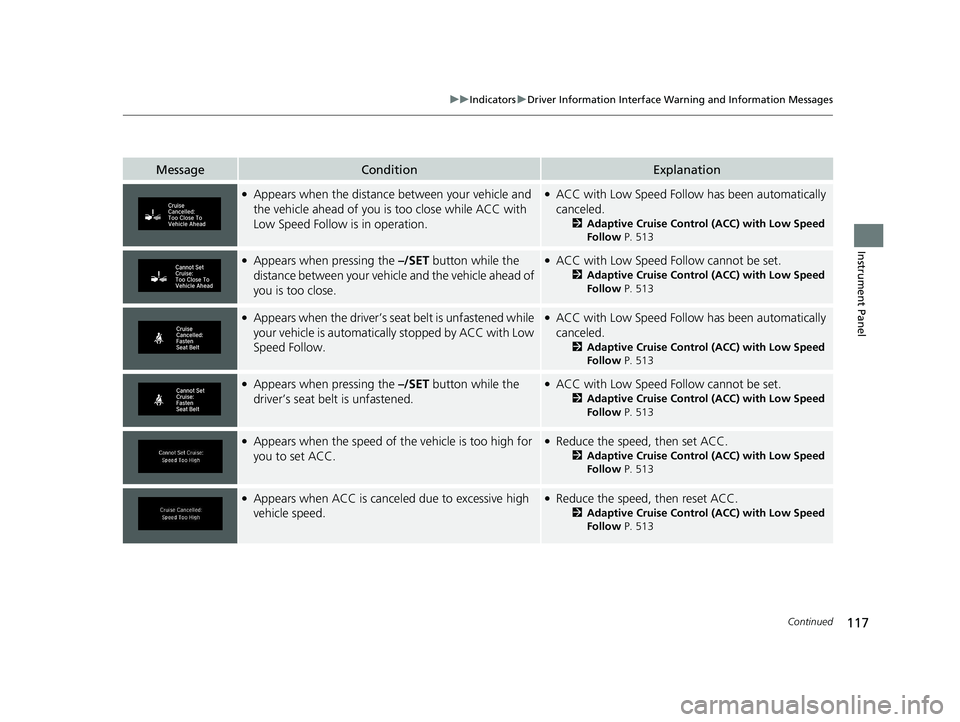

117
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with
Low Speed Follow is in operation.●ACC with Low Speed Follow has been automatically
canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle ahead of
you is too close.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
●Appears when the driver’s seat belt is unfastened while
your vehicle is automatica lly stopped by ACC with Low
Speed Follow.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
●Appears when the speed of th e vehicle is too high for
you to set ACC.●Reduce the speed, then set ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
●Appears when ACC is cancel ed due to excessive high
vehicle speed.●Reduce the speed, then reset ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
20 CR-V HYBRID HMIN-31TPG6000.book 117 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

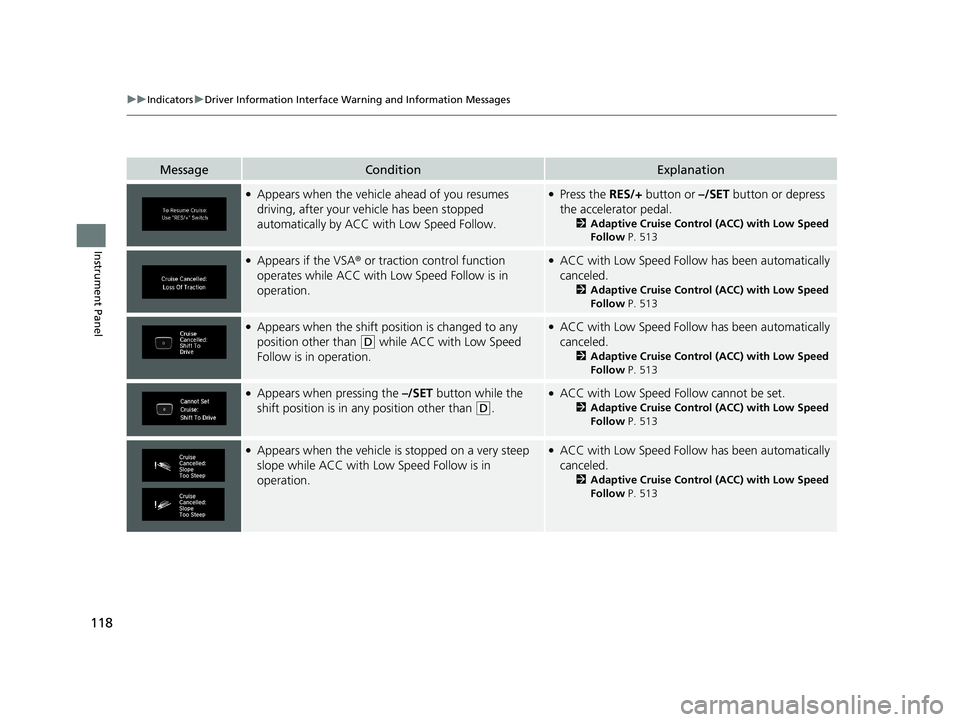

118
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle ahead of you resumes
driving, after your vehicle has been stopped
automatically by ACC with Low Speed Follow.●Press the RES/+ button or –/SET button or depress
the accelerator pedal.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
●Appears if the VSA ® or traction control function
operates while ACC with Low Speed Follow is in
operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
●Appears when the shift pos ition is changed to any
position other than
(D while ACC with Low Speed
Follow is in operation.
●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
●Appears when pressing the –/SET button while the
shift position is in any position other than
(D.
●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
●Appears when the vehicle is stopped on a very steep
slope while ACC with Low Speed Follow is in
operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
20 CR-V HYBRID HMIN-31TPG6000.book 118 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
