HONDA CR-V HYBRID 2020 Owner's Manual (in English)

129
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
Shows the remaining oil life and Maintenance MinderTM.
2 Maintenance MinderTM P. 577
Shows the average fuel economy for the last
three driving cycles (1-3), and the current
driving cycle (0) in mpg or l/100 km.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.
■Maintenance MinderTM
■Average Fuel Economy Records
20 CR-V HYBRID HMIN-31TPG6000.book 129 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

130
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Eco Drive Display
The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is, the further the icon moves forward.
The more aggressive the deceleration is, the further the icon moves backward.
Keep the icon near the center of the circ le for better fuel economy while driving.
■Eco Drive Display/Drive Cycle Score/Lifetime Points
Aggressive
Deceleration
Vehicle Icon
Aggressive
Acceleration
Moderate
Deceleration Slow
Acceleration/
DecelerationModerate
Acceleration
20 CR-V HYBRID HMIN-31TPG6000.book 130 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

131
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel

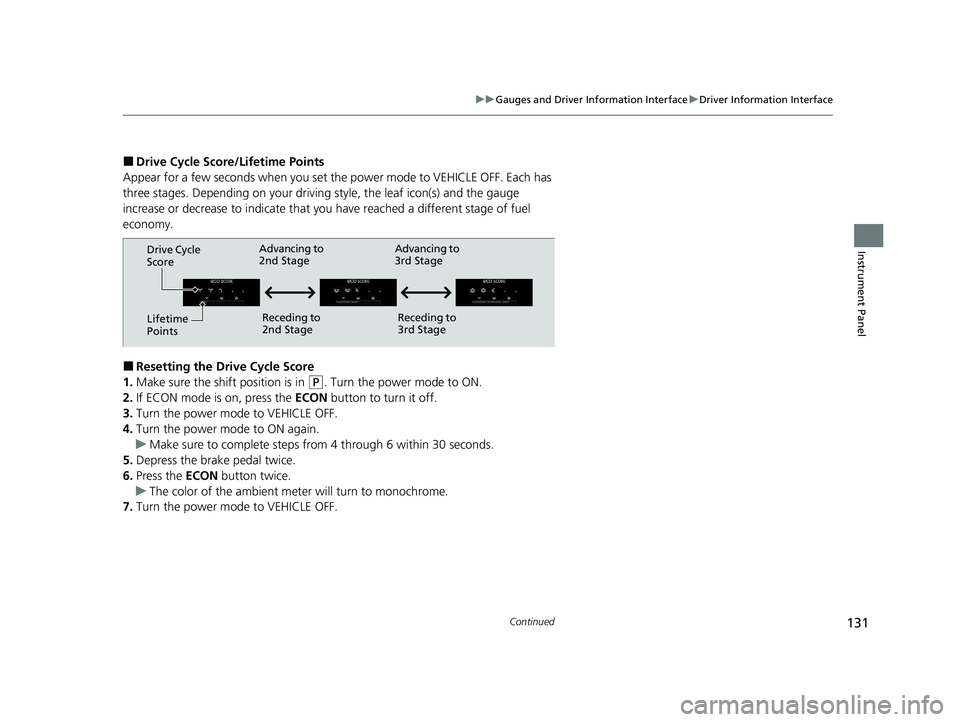

■Drive Cycle Score/Lifetime Points
Appear for a few seconds when you set th e power mode to VEHICLE OFF. Each has
three stages. Depending on your driving style, the leaf ic on(s) and the gauge
increase or decrease to indicate that yo u have reached a different stage of fuel
economy.
■Resetting the Drive Cycle Score
1. Make sure the shift position is in
(P. Turn the power mode to ON.
2. If ECON mode is on, press the ECON button to turn it off.
3. Turn the power mode to VEHICLE OFF.
4. Turn the power mode to ON again.
u Make sure to complete steps fro m 4 through 6 within 30 seconds.
5. Depress the brake pedal twice.
6. Press the ECON button twice.
u The color of the ambient mete r will turn to monochrome.
7. Turn the power mode to VEHICLE OFF.
Drive Cycle
Score
Lifetime
Points Advancing to
2nd Stage
Receding to
2nd Stage Advancing to
3rd Stage
Receding to
3rd Stage
20 CR-V HYBRID HMIN-31TPG6000.book 131 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuGauges and Driver Information Interface uDriver Information Interface
132
Instrument Panel
Displays the power flow of the motor an d engine, indicating the vehicle’s power
source and whether the battery is being charged.
■Power Flow Monitor1 Power Flow Monitor
While the vehicle is stat ionary with the engine
running, the following ma y appear on the driver
information interface.
Power is supplied by
the motor and the
engine.
The motor is charging
the High Voltage
battery. The engine is running
and the motor is
charging the High
Voltage battery.
RegenerationPower is being
supplied by only the
engine.
Hybrid (HV)
Engine ON
Engine OFF
Power is supplied by
the motor.
Electric Vehicle (EV)
The engine is running
and the motor is charging
the High Voltage battery.
Engine (Direct Drive)
Power Flow Engine
20 CR-V HYBRID HMIN-31TPG6000.book 132 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

Continued133
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
The Driver Attention Monitor an alyzes steering inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver's attention in the Driver Information Interface.
When the (display/information) button
is pressed, bars in the Driver Information
Interface light up in white to indicate the
degree of the driver's attention.
2Switching the Display P. 126
■Driver Attention Monitor1Driver Attention Monitor
The Driver Attenti on Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system's feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.
Driver Information Interface
ENTER
(Display/ Information) Button
Level
20 CR-V HYBRID HMIN-31TPG6000.book 133 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

134
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

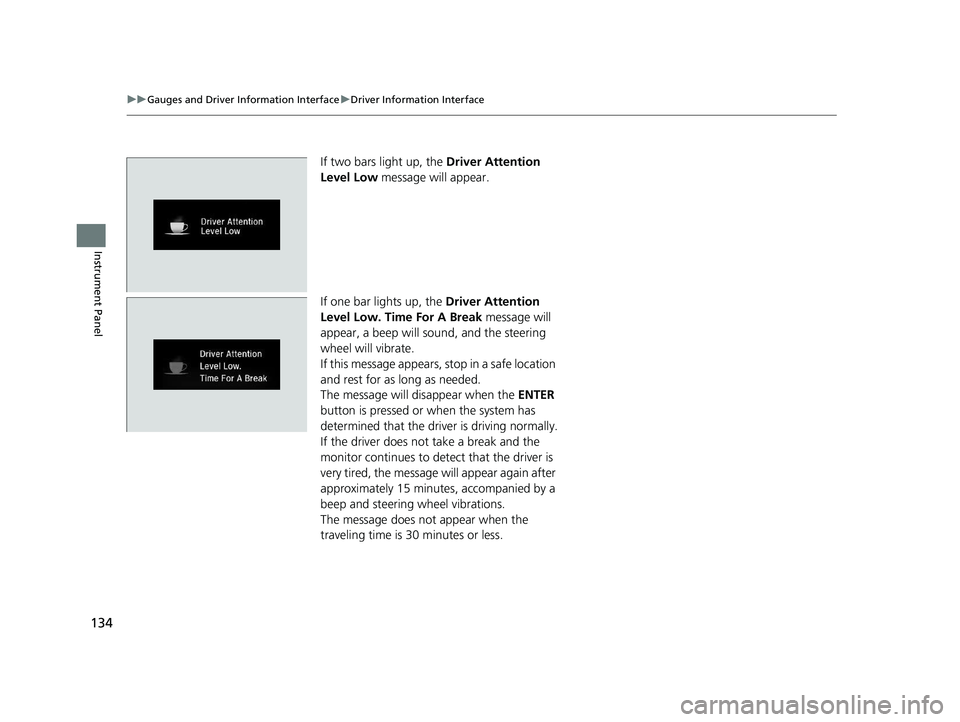

If two bars light up, the Driver Attention
Level Low message will appear.
If one bar lights up, the Driver Attention
Level Low. Time For A Break message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the ENTER
button is pressed or when the system has
determined that the driv er is driving normally.
If the driver does not take a break and the
monitor continues to dete ct that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.
20 CR-V HYBRID HMIN-31TPG6000.book 134 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

Continued135
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■The Driver Attention Monitor resets when
• the power system is turned off.
• the driver unfastens the seat belt and op ens the door while the vehicle is stopped.
■For the Driver Attentio n Monitor to function
• the vehicle must be traveling above 25 mph (40 km/h).
• the electric power steering (EPS) system indicator must be off.
■Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances.
• the steering assist function of the Lane Keeping Assist System (LKAS) is active.
2 Lane Keeping Assist System (LKAS) P. 530
•the condition of the road is poor, e.g. the surface is unpaved or bumpy.
• it is windy.
• the driver is frequently op erating the vehicle in an assertive manner such as
changing lanes or accelerating.
■Customizing
You can change the Driver Atte ntion Monitor settings. Select Tactile And Audible
Alert , Tactile Alert , or OFF .
2Customized Features P. 138, 366
1For the Driver Attention Monitor to function
The bars in the Driver Information Interface remain
grayed out unless the Driv er Attention Monitor is
functioning.
20 CR-V HYBRID HMIN-31TPG6000.book 135 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuGauges and Driver Information Interface uDriver Information Interface
136
Instrument Panel
The indicators on th e display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Real Time AWD with Intelligent Control
SystemTM P. 488
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature display
Adjust the temperature read ing by up to ±5°F if the temperature reading seems
incorrect.
■AWD Torque Distribution Monitor
■Outside Temperature1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
You can adjust the temperature reading. 2 Customized Features P. 138, 366
20 CR-V HYBRID HMIN-31TPG6000.book 136 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

Continued137
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android AutoTM P. 333
Show the current audio information.
2Audio System Basic Operation P. 268
Show the current phone information.
2Bluetooth ® HandsFreeLink ® P. 419
■Navigation*
■Audio*
■Phone*
1 Navigation*
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 366
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 137 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuGauges and Driver Information Interface uDriver Information Interface
138
Instrument Panel
Use the driver information interfac e to customize certain features.
■How to customize
Select the screen by pressing the button while the power mode is in ON,
and the vehicle is at a complete stop, and the shift position is in
(P. Select , then
press the ENTER button.
■Customized Features
Models with color audio system1Customized Features
To customize other features, press the /
button.
2 List of customizable options P. 141
2 Example of customization settings P. 145
Put the transmission into
( P before you attempt to
change any customized setting.
34
ENTER Button
Press to set your
selection.
Button
Press to go to Vehicle
Settings. Button
Press to go to the next
display.4
Button
Press to go back to the
previous display.3
