HONDA CR-V HYBRID 2020 Owner's Manual (in English)

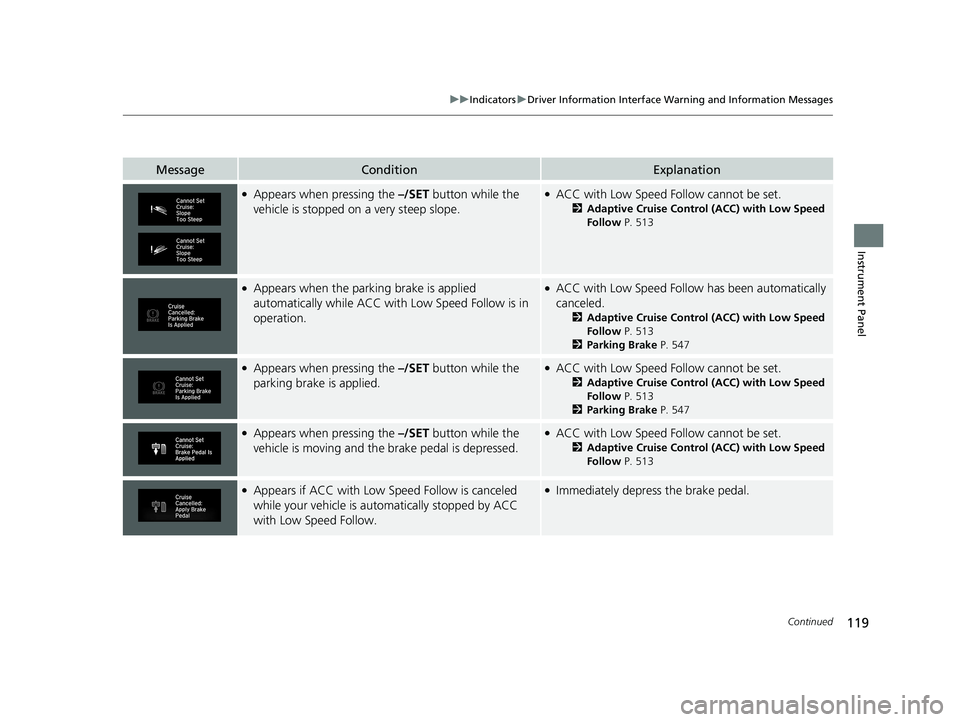

119
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
●Appears when the parking brake is applied
automatically while ACC with Low Speed Follow is in
operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
2 Parking Brake P. 547
●Appears when pressing the –/SET button while the
parking brake is applied.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
2 Parking Brake P. 547
●Appears when pressing the –/SET button while the
vehicle is moving and th e brake pedal is depressed.●ACC with Low Speed Follow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
●Appears if ACC with Low Speed Follow is canceled
while your vehicle is au tomatically stopped by ACC
with Low Speed Follow.●Immediately depress the brake pedal.
20 CR-V HYBRID HMIN-31TPG6000.book 119 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

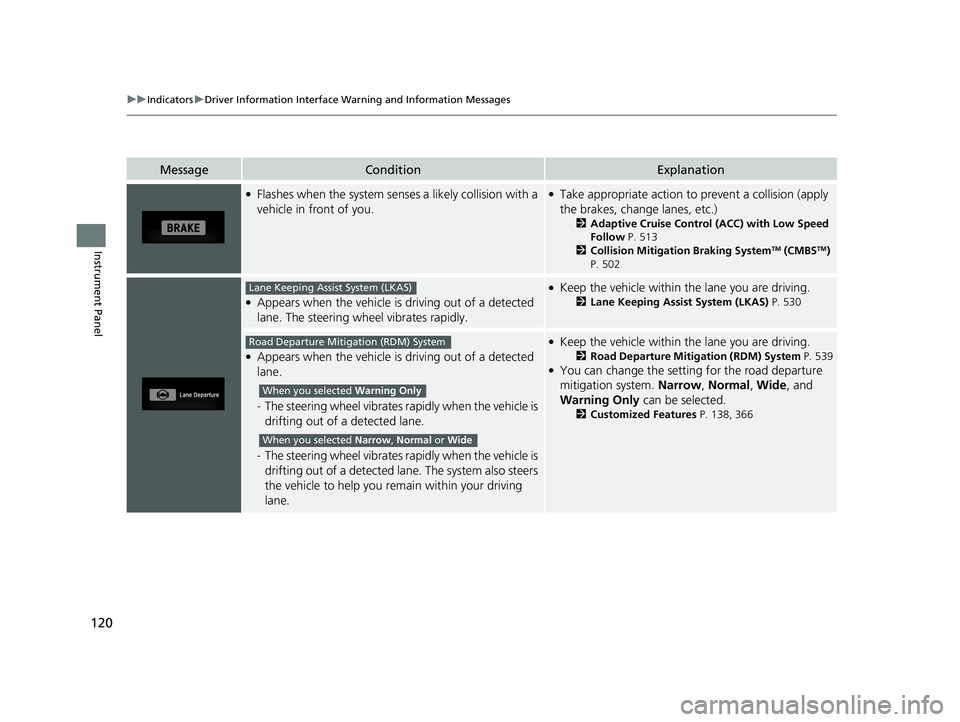

120
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Flashes when the system senses a likely collision with a
vehicle in front of you.●Take appropriate action to prevent a collision (apply
the brakes, change lanes, etc.)
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 513
2 Collision Mitigation Braking System
TM (CMBSTM)
P. 502
●Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2 Lane Keeping Assist System (LKAS) P. 530
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates ra pidly when the vehicle is
drifting out of a detected lane.
- The steering wheel vibrates ra pidly when the vehicle is
drifting out of a detected lane. The system also steers
the vehicle to help you remain within your driving
lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 539●You can change the setting for the road departure
mitigation system. Narrow, Normal , Wide , and
Warning Only can be selected.
2Customized Features P. 138, 366
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow, Normal or Wide
20 CR-V HYBRID HMIN-31TPG6000.book 120 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

121
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is likely to drive out of a
detected lane.
The RDM system also steers the vehicle to help you
remain within your driving lane.—
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering whee l to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a system
related to the LKAS. The LKAS cancels automatically.
The beeper sounds simultaneously if selected by
customization.●If any other system indicato rs come on, such as the
VSA ®, ABS and brake system, take appropriate
action.
2 Indicators P. 88
●Appears if anything covers the radar sensor cover and
prevents the sensor from detecting a vehicle in front.
●May appear when driving in bad weather (rain, snow,
fog, etc.)
●When the radar sensor gets dirty, stop your vehicle in
a safe place, and wipe off dirt using a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even af ter you clean the sensor
cover.
2 Radar Sensor P. 546
2 Honda Sensing ® P. 499
Road Departure Mitigation (RDM) System
When you selected Narrow
20 CR-V HYBRID HMIN-31TPG6000.book 121 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

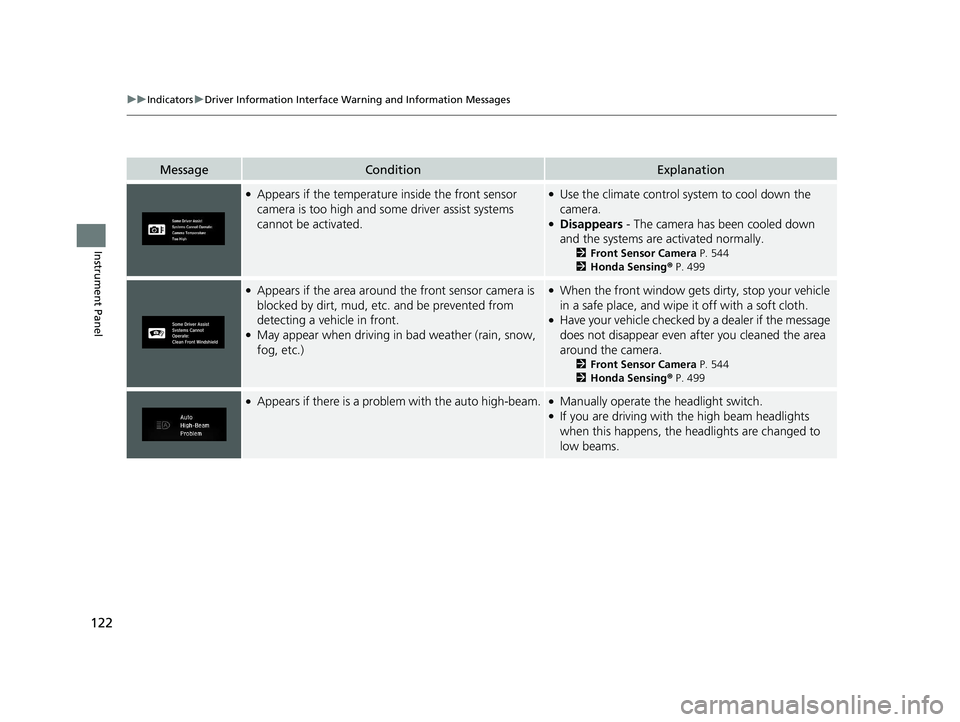

122
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.●Use the climate control system to cool down the
camera.
●Disappears - The camera has been cooled down
and the systems are activated normally.
2 Front Sensor Camera P. 544
2 Honda Sensing ® P. 499
●Appears if the area around the front sensor camera is
blocked by dirt, mud, etc. and be prevented from
detecting a vehicle in front.
●May appear when driving in bad weather (rain, snow,
fog, etc.)
●When the front window gets dirty, stop your vehicle
in a safe place, and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even a fter you cleaned the area
around the camera.
2 Front Sensor Camera P. 544
2 Honda Sensing ® P. 499
●Appears if there is a proble m with the auto high-beam.●Manually operate the headlight switch.●If you are driving with the high beam headlights
when this happens, the h eadlights are changed to
low beams.
20 CR-V HYBRID HMIN-31TPG6000.book 122 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

123
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the real time AWD
with intelligent control systemTM.
●The engine drives the front wheels only in this state.
Have your vehicle checked by a dealer.
●Appears when the differential temperature is too high.●Stop in a safe place, change to (P, and idle the
engine until the message disappears. If the message
does not disappear, have your vehicle checked by a
dealer.
2 Real Time AWD with Intelligent Control
SystemTM P. 488
MessageConditionExplanation
●Appears when there is a problem with the power
tailgate system.●Manually open or close the power tailgate.●Have your vehicle checked by a dealer.
MessageConditionExplanation
●Appears while you are custom izing the settings and the
shift position changed out of
(P.2 Customized Features P. 138
Models with power tailgate
Models with color audio system
20 CR-V HYBRID HMIN-31TPG6000.book 123 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

124
Instrument Panel
Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, fuel gauge, and other related indicators. They are
displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
Displays the amount of fuel left in the fuel tank.
■Electric motor
The degree to which the electric motor is being powered is displayed by the readings
on the POWER side.
■Battery charge in progress
The degree to which the High Voltage battery is being charged is displayed by the
readings on the CHARGE side.
■Speedometer
■Fuel Gauge
■POWER/CHARGE Gauge
1Gauges
Press the (display /information) button
repeatedly until the icon is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
and km/h.
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
20 CR-V HYBRID HMIN-31TPG6000.book 124 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

125
uuGauges and Driver Information Interface uGauges
Instrument Panel
Shows the remaining High Voltage battery charge level.
■High Voltage Battery Charge Level Gauge1High Voltage Battery Charge Level Gauge
The High Voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt battery has been replaced.
•When the 12-volt battery has been disconnected.•When the High Voltage battery control system
corrects its reading.
The charge level readi ng will be corrected
automatically while driving.
Changes in the temperature of the High Voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charge remains the
same.
20 CR-V HYBRID HMIN-31TPG6000.book 125 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

126
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Driver Information Interface
The driver information interface shows the odometer, trip meter, outside
temperature indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (display/information) button, and then press or to change the
display. Press ENTER to see detailed information.
■Switching the Display
(Display/
Information)
Button
Press , or .
Press ENTER . Eco Drive
Display
Audio
*Phone*
Speed Unit & Disp OFF
Warning
Messages Average
Fuel
Economy Records
Driver
Attention Monitor
Range &
Fuel Average
Speed &
Elapsed Time Navigation*
& Compass*
Customize*
Power Flow Monitor
AWD Torque Distribution Mo

nitor
Maintenance
MinderTM
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 126 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

Continued127
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
■Trip computer
Press the ( TRIP) knob to change display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Odometer
■Trip Meter
Odometer Outside temperature Trip ATrip B
(
TRIP)
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
20 CR-V HYBRID HMIN-31TPG6000.book 127 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuGauges and Driver Information Interface uDriver Information Interface
128
Instrument Panel
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can travel on the remaining power and fuel. This
estimated distance is based on the vehicle’s current fuel economy.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the instant fuel economy as a bar graph in mph or l/100 km.
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Instant Fuel Economy Gauge
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 138, 366
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 138, 366
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 138, 366
20 CR-V HYBRID HMIN-31TPG6000.book 128 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
