HONDA CR-V HYBRID 2020 (in English) Owner's Guide

19

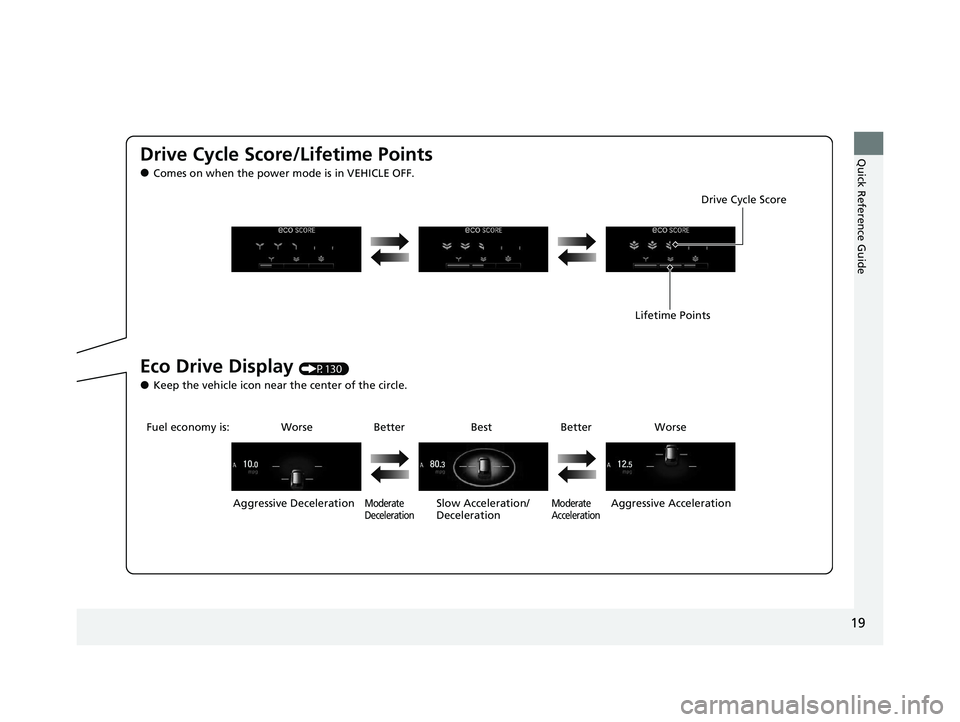

Quick Reference GuideDrive Cycle Score/Lifetime Points
●Comes on when the power mode is in VEHICLE OFF.
Eco Drive Display (P130)
●Keep the vehicle icon near the center of the circle.Aggressive Deceleration
Fuel economy is: Best Drive Cycle Score
Lifetime Points
Worse Worse
Better Better
Moderate
DecelerationSlow Acceleration/
DecelerationAggressive AccelerationModerate
Acceleration
20 CR-V HYBRID HMIN-31TPG6000.book 19 ページ ２０１９年１１月２８日　木曜日　午後１
時５０分

20
Quick Reference Guide

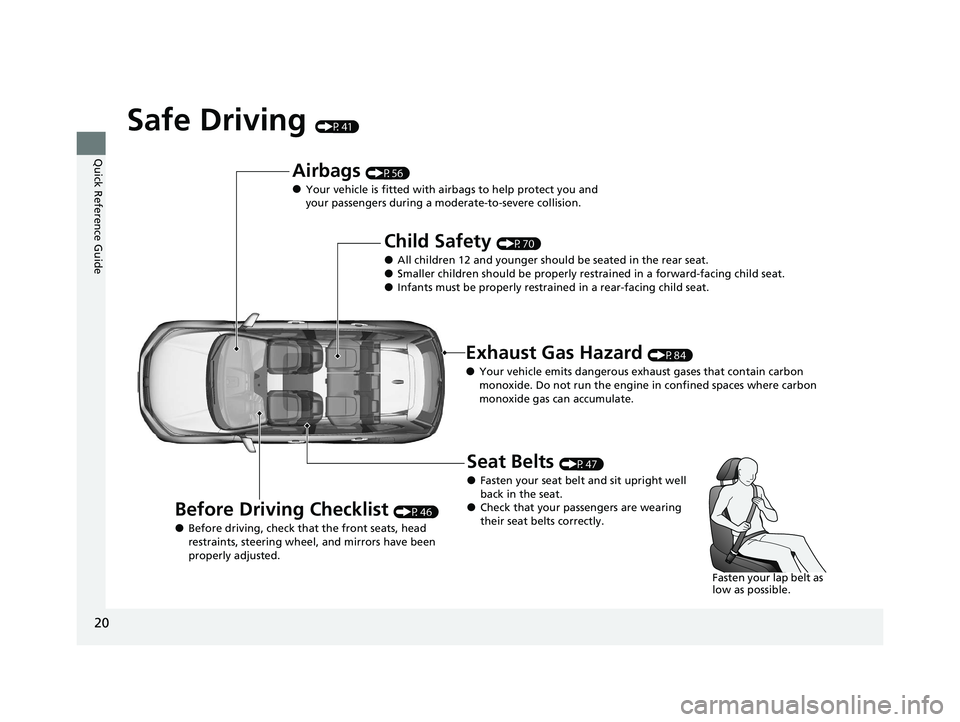

Safe Driving (P41)
Airbags (P56)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P70)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restra ined in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P84)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P46)
●Before driving, check that the front seats, head
restraints, steering wheel, and mirrors have been
properly adjusted.
Seat Belts (P47)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
20 CR-V HYBRID HMIN-31TPG6000.book 20 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

21
Quick Reference Guide

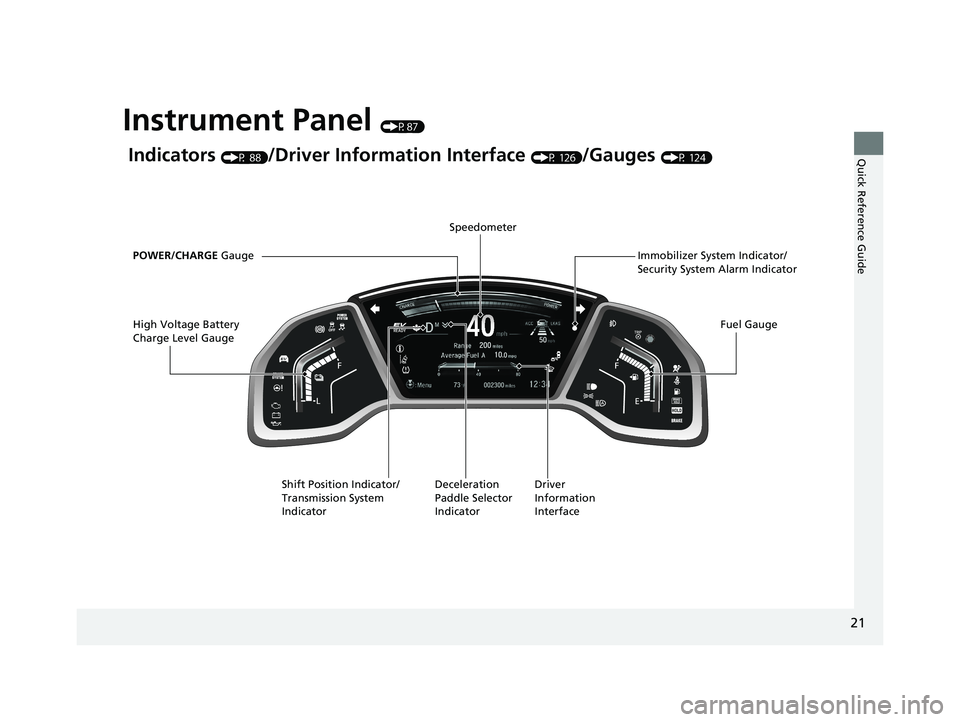

Instrument Panel (P87)
Indicators (P 88)/Driver Information Interface (P 126)/Gauges (P 124)
Speedometer
Fuel Gauge
Driver
Information
Interface
High Voltage Battery
Charge Level Gauge POWER/CHARGE
Gauge Immobilizer System Indicator/
Security System Alarm Indicator
Shift Position Indicator/
Transmission System
Indicator
Deceleration
Paddle Selector
Indicator
20 CR-V HYBRID HMIN-31TPG6000.book 21 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

22
Quick Reference Guide

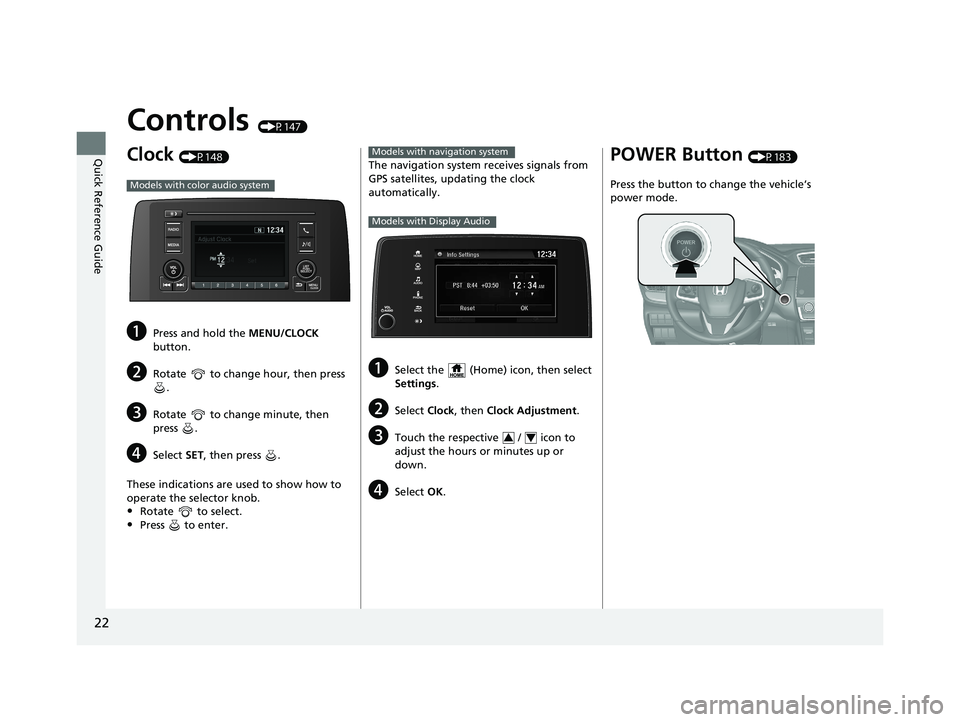

Controls (P147)
Clock (P148)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the selector knob.
•Rotate to select.
•Press to enter.
Models with color audio system
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
aSelect the (Home) icon, then select
Settings.
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
Models with navigation system
Models with Display Audio
34
POWER Button (P183)
Press the button to change the vehicle’s
power mode.
20 CR-V HYBRID HMIN-31TPG6000.book 22 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

23
Quick Reference Guide

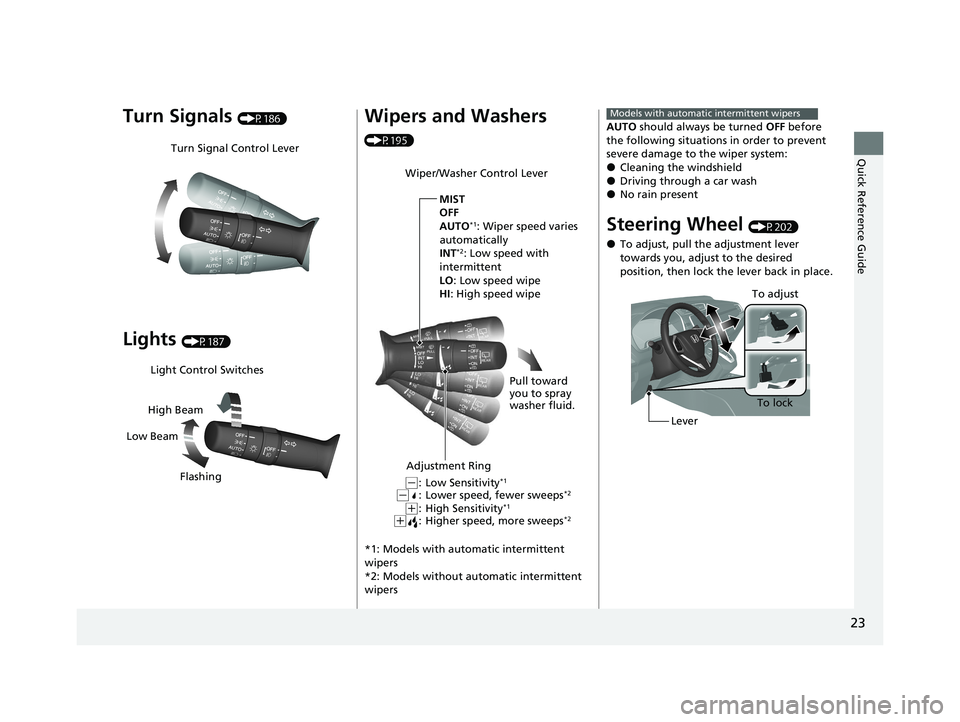

Turn Signals (P186)
Lights (P187)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P195)
*1: Models with automatic intermittent
wipers
*2: Models without automatic intermittent
wipers
Wiper/Washer Control Lever Adjustment Ring MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:(+:
(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P202)
●To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipers
Lever
To lock
To adjust
20 CR-V HYBRID HMIN-31TPG6000.book 23 ページ ２０１９年１１月２８日　木曜日　午後１
時５０分

24
Quick Reference Guide

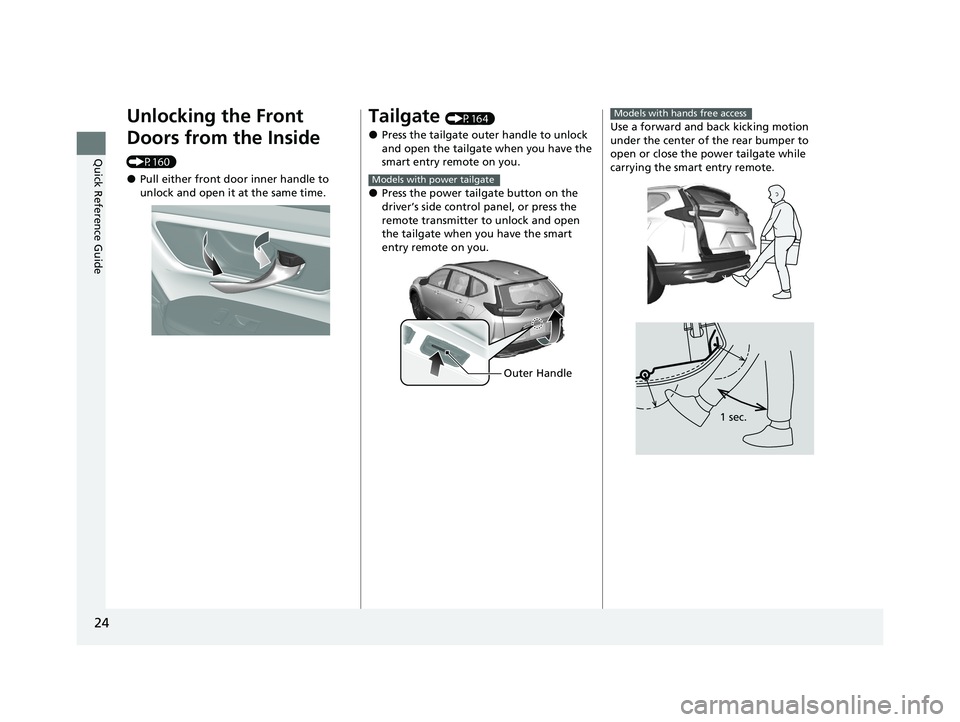

Unlocking the Front
Doors from the Inside
(P160)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P164)
●Press the tailgate outer handle to unlock
and open the tailgate when you have the
smart entry remote on you.
●Press the power tailgate button on the
driver’s side control panel, or press the
remote transmitter to unlock and open
the tailgate when you have the smart
entry remote on you.
Models with power tailgate
Outer Handle
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the smart entry remote.
Models with hands free access
1 sec.
20 CR-V HYBRID HMIN-31TPG6000.book 24 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

25
Quick Reference Guide

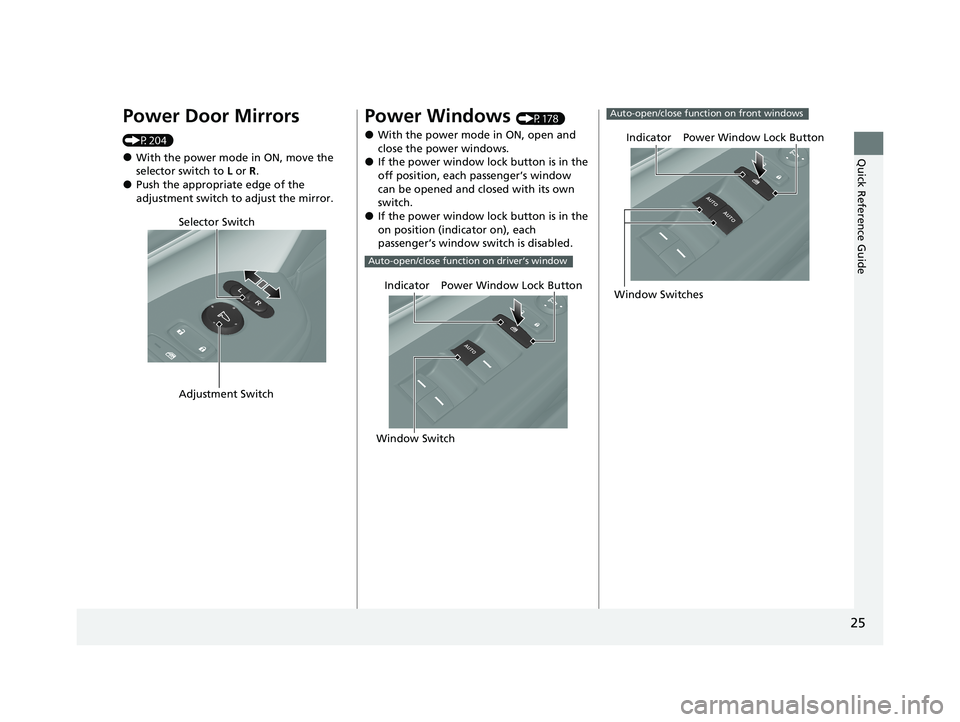

Power Door Mirrors
(P204)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P178)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Auto-open/close function on driver’s window
Power Window Lock Button
Window Switch Indicator
Auto-open/close function on front windows
Power Window Lock Button
Window Switches Indicator
20 CR-V HYBRID HMIN-31TPG6000.book 25 ページ ２０１９年１１月２８日　木曜日　午後１
時５０分

26
Quick Reference Guide

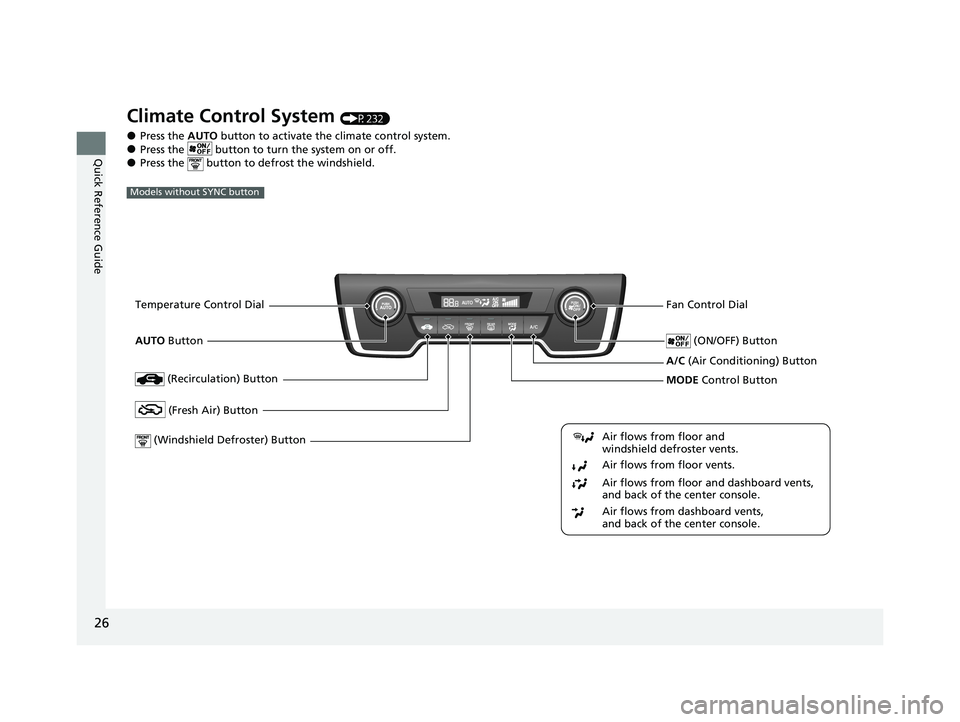

Climate Control System (P232)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Models without SYNC button
Fan Control Dial
(Fresh Air) ButtonTemperature Control Dial
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and dashboard vents,
and back of the center console.
Air flows from dashboard vents,
and back of the center console.
(Recirculation) ButtonMODE Control Button
(ON/OFF) Button
AUTO
Button
A/C (Air Conditioning) Button
(Windshield De froster) Button
20 CR-V HYBRID HMIN-31TPG6000.book 26 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

27
Quick Reference Guide

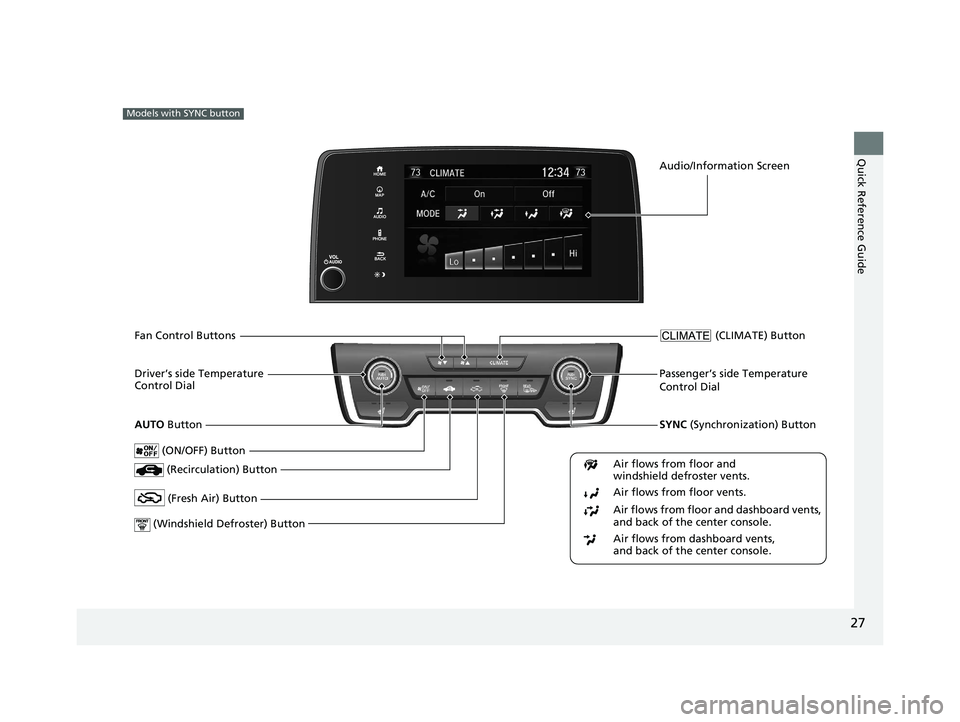

Models with SYNC button
Passenger’s side Temperature
Control Dial
(Windshield De froster) ButtonDriver’s side Temperature
Control Dial
(Recirculation) Button
(CLIMATE) Button
(ON/OFF) Button
AUTO Button
Audio/Information Screen
SYNC (Synchronization) Button
Air flows from floor and
windshield defroster vents.
Air flows from floor vents.
Air flows from floor and dashboard vents,
and back of the center console.
Air flows from dashboard vents,
and back of the center console.
(Fresh Air) Button
Fan Control Buttons
20 CR-V HYBRID HMIN-31TPG6000.book 27 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

28
Quick Reference Guide

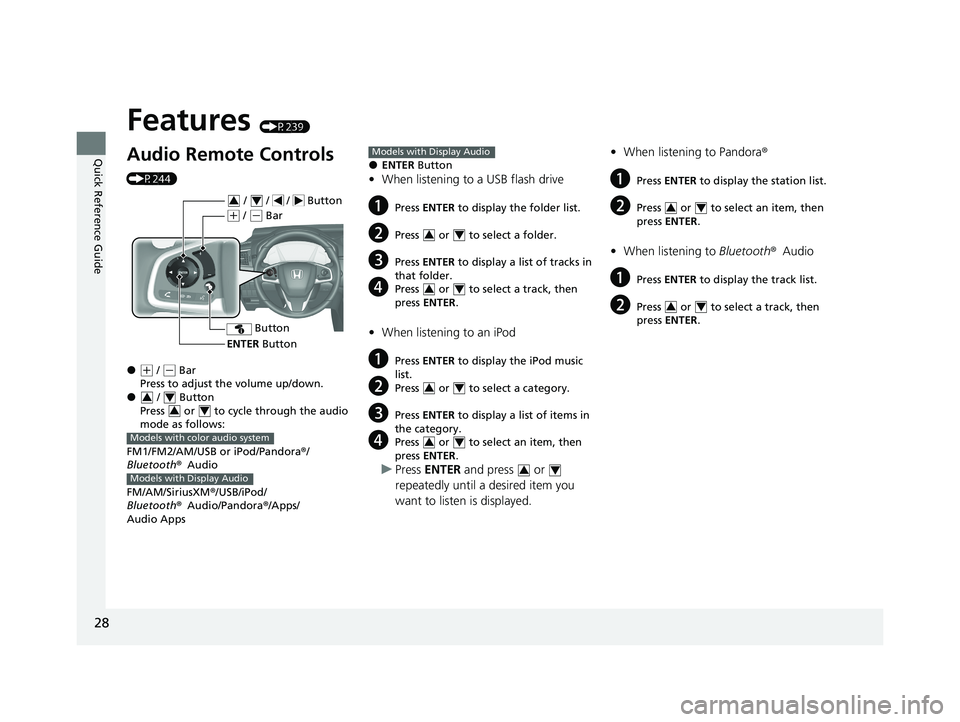

Features (P239)
Audio Remote Controls
(P244)
●(+ / ( - Bar
Press to adjust the volume up/down.
● / Button
Press or to cycle through the audio
mode as follows:
FM1/FM2/AM/USB or iPod/Pandora ®/
Bluetooth ®Audio
FM/AM/SiriusXM® /USB/iPod/
Bluetooth ®Audio/Pandora® /Apps/
Audio Apps
ENTER Button
/ / / Button34
(+ / (- Bar
Button
3434
Models with color audio system
Models with Display Audio
●ENTER Button
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
Models with Display Audio
34
34
34
34
34
• When listening to Pandora ®
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
20 CR-V HYBRID HMIN-31TPG6000.book 28 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分
