Continued79
uuChild Safety uSafety of Infants and Small Children
Safe Driving

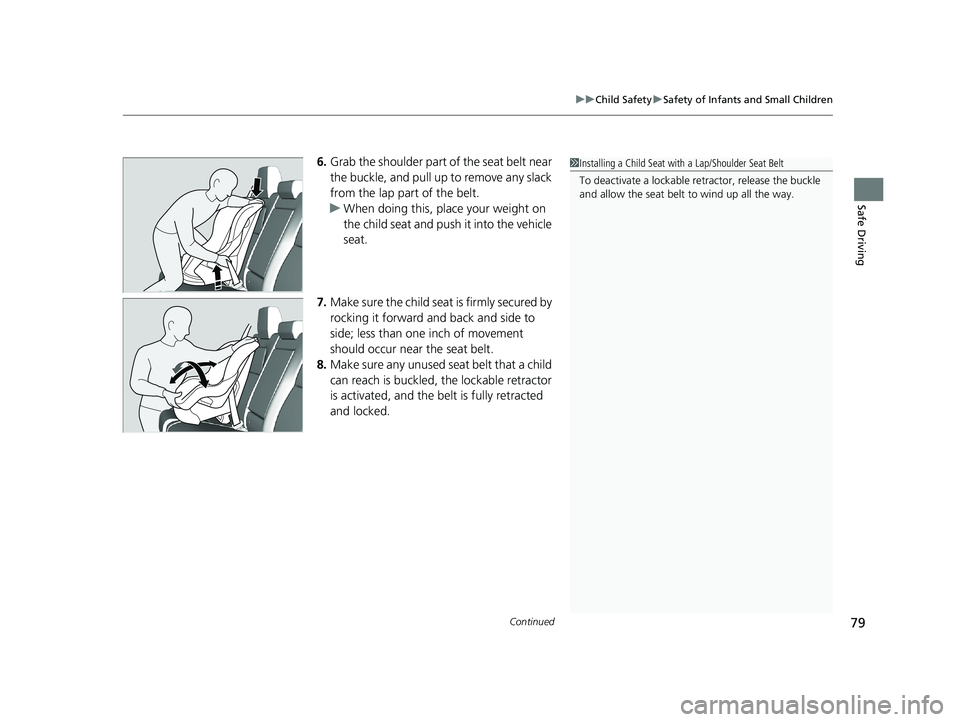

6. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the vehicle
seat.
7. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.
8. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.1 Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
20 CR-V HYBRID HMIN-31TPG6000.book 79 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

uuChild Safety uSafety of Infants and Small Children
80

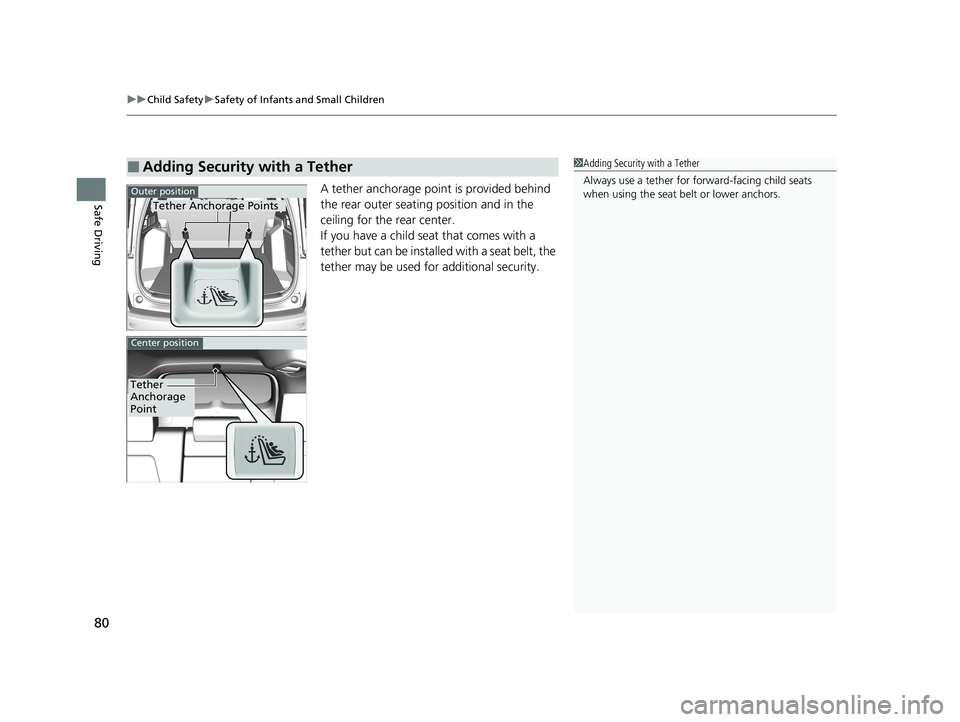

Safe DrivingA tether anchorage point is provided behind
the rear outer seating position and in the
ceiling for the rear center.
If you have a child seat that comes with a
tether but can be installe d with a seat belt, the
tether may be used for additional security.
■Adding Security with a Tether1 Adding Security with a Tether
Always use a tether for forward-facing child seats
when using the seat be lt or lower anchors.
Tether Anchorage Points
Outer position
Tether
Anchorage
Point
Center position
20 CR-V HYBRID HMIN-31TPG6000.book 80 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

81
uuChild Safety uSafety of Infants and Small Children
Safe Driving

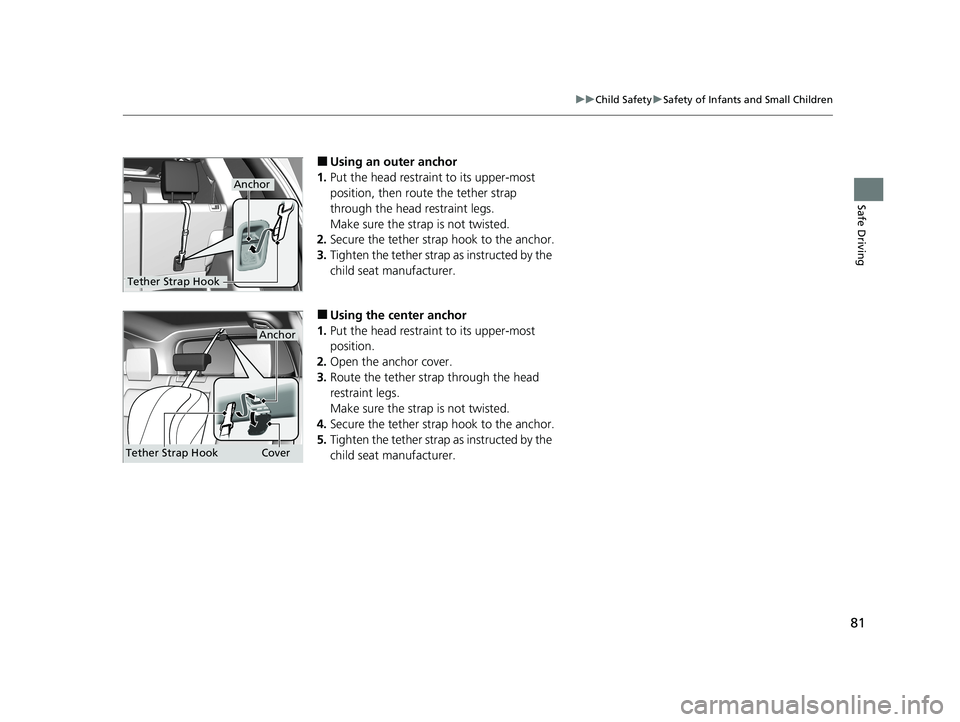

■Using an outer anchor
1. Put the head restraint to its upper-most
position, then route the tether strap
through the head restraint legs.
Make sure the strap is not twisted.
2. Secure the tether strap hook to the anchor.
3. Tighten the tether strap as instructed by the
child seat manufacturer.
■Using the center anchor
1. Put the head restraint to its upper-most
position.
2. Open the anchor cover.
3. Route the tether strap through the head
restraint legs.
Make sure the strap is not twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Tether Strap Hook
Anchor
Tether Strap Hook
Anchor
Cover
20 CR-V HYBRID HMIN-31TPG6000.book 81 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

82
uuChild Safety uSafety of Larger Children
Safe Driving

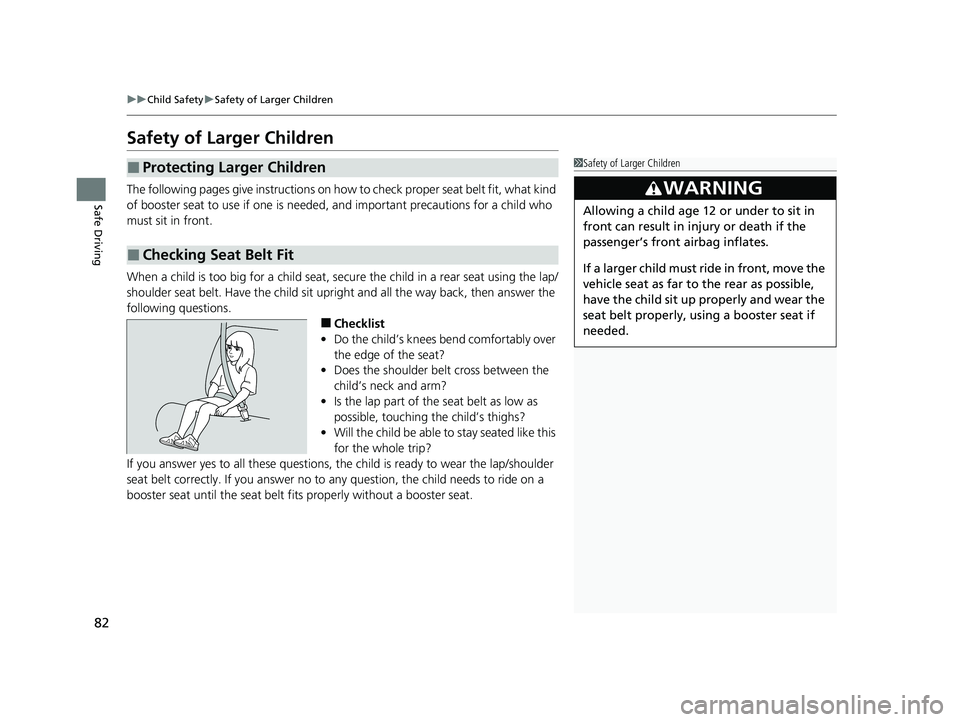

Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed , and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upright and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, us ing a booster seat if
needed.
20 CR-V HYBRID HMIN-31TPG6000.book 82 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

83
uuChild Safety uSafety of Larger Children

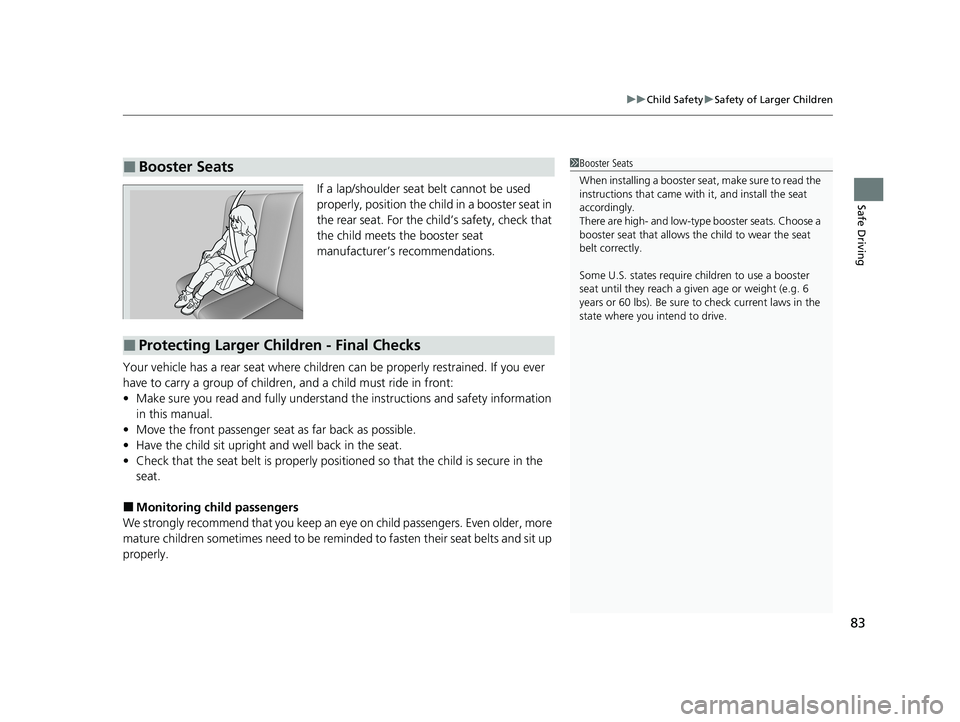

Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the child’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat , make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states require children to use a booster
seat until they reach a gi ven age or weight (e.g. 6
years or 60 lbs). Be sure to check current laws in the
state where you intend to drive.
■Protecting Larger Children - Final Checks
20 CR-V HYBRID HMIN-31TPG6000.book 83 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

84
Safe Driving

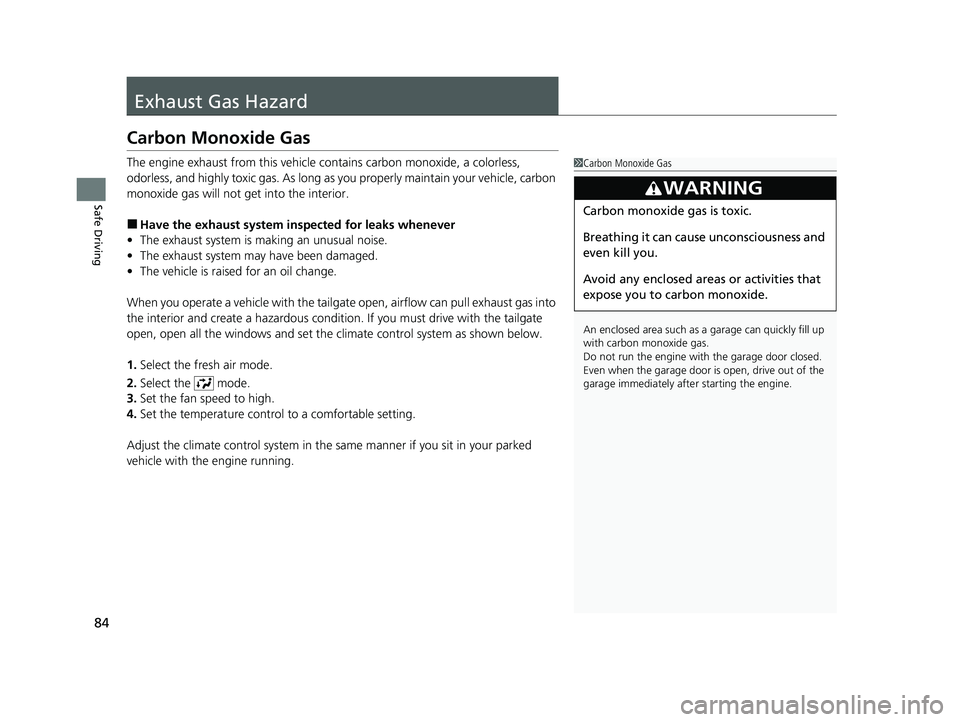

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailgat e open, airflow can pull exhaust gas into
the interior and create a hazardous conditio n. If you must drive with the tailgate
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
20 CR-V HYBRID HMIN-31TPG6000.book 84 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

85
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels carefully.
If a label comes off or becomes hard to read (except for the dashboard label which may be removed by the owner), contact a deal er for a
replacement.
Sun Visor
High Voltage System
Components
Inverter Coolant Filler
Tank Cap
Dashboard
Air Conditioner System
Sun Visor
Radiator Cap
20 CR-V HYBRID HMIN-31TPG6000.book 85 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

86
20 CR-V HYBRID HMIN-31TPG6000.book 86 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

87
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 88
Driver Information Interface Warning and
Information Messages .................... 107
Gauges and Driver Information Interface Gauges ............................................ 124
Driver Information Interface ............. 126
20 CR-V HYBRID HMIN-31TPG6000.book 87 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

88
Instrument Panel

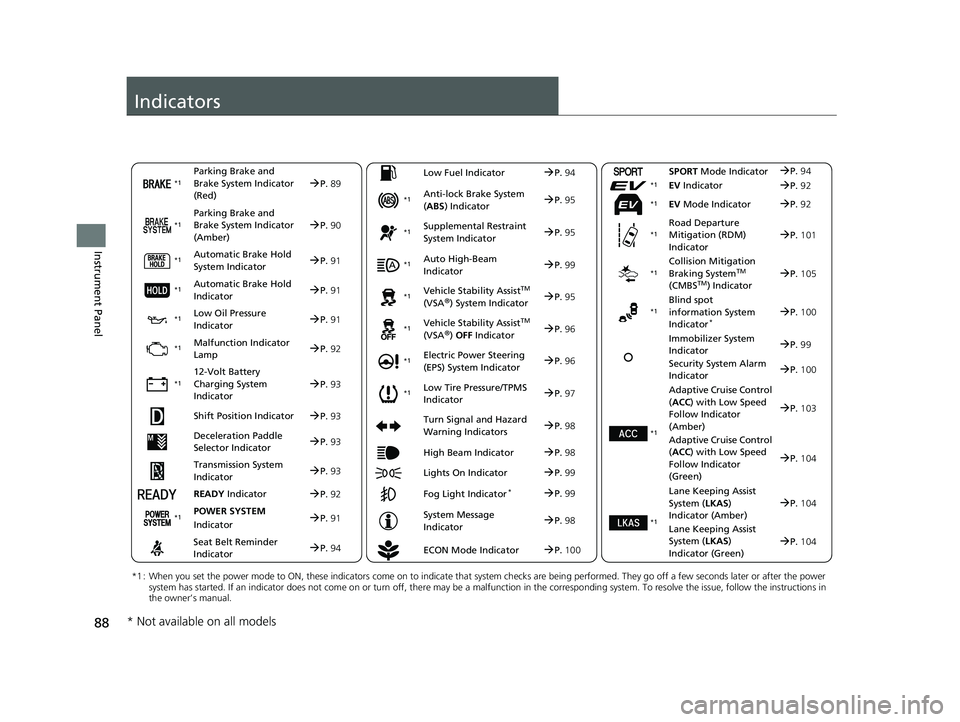

Indicators
Deceleration Paddle
Selector IndicatorP.93
Parking Brake and
Brake System Indicator
(Red)
Parking Brake and
Brake System Indicator
(Amber)
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
P. 89*1
Malfunction Indicator
Lamp
12-Volt Battery
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Seat Belt Reminder
Indicator Low Fuel Indicator
Vehicle Stability AssistTM
(VSA®) System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Auto High-Beam
Indicator
Electric Power Steering
(EPS) System Indicator
Turn Signal and Hazard
Warning Indicators
Lights On Indicator High Beam Indicator
Fog Light Indicator*
ECON Mode Indicator
System Message
Indicator
SPORT
Mode Indicator
Adaptive Cruise Control
( ACC ) with Low Speed
Follow Indicator
(Amber)
Lane Keeping Assist
System ( LKAS)
Indicator (Amber)
P. 90
P.91
P.91
P.92
P.93
*1
*1
*1 *1
*1
*1
Shift Position IndicatorP. 93
Transmission System
I
ndicatorP. 93
READY Indi
catorP.92
POWER SYSTEM
I
ndicatorP. 91
P.94
P.94
P.95
P.95
P.99
P.95
*1
*1
*1
*1
P.96
*1P.96
P.99
P.103
P.98
P.98
P.100
P.99
P.100
P.98
P.94
P.104
*1Adaptive Cruise Control
(ACC ) with Low Speed
Follow Indicator
(Green)
P. 104
Lane Keeping Assist
Sy
stem ( LKAS)
Indicator (Green)P. 104
*1
EV IndicatorP.92*1
EV Mode IndicatorP.92*1
*1
Immobilizer System
Indicator P.99
Security System Alarm
In
dicator
Low Oil Pressure
IndicatorP. 91*1
Road Departure
Mitigation (RDM)
IndicatorP.101*1
Collision Mitigation
Braking SystemTM
(CMBSTM) IndicatorP. 105*1
Blind spot
information System
Indicator
*P.100*1
Low Tire Pressure/TPMS
IndicatorP.97*1
* Not available on all models
