HONDA CR-V HYBRID 2020 (in English) Owners Manual

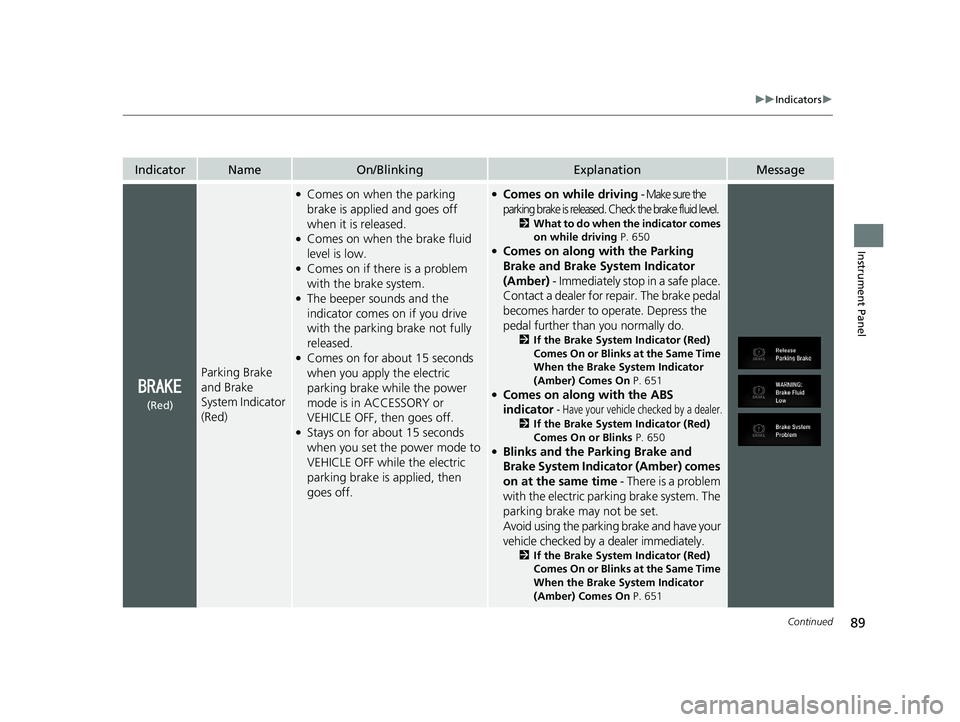

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on when the parking
brake is applied and goes off
when it is released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on for about 15 seconds
when you apply the electric
parking brake while the power
mode is in ACCESSORY or
VEHICLE OFF, then goes off.
●Stays on for about 15 seconds
when you set the power mode to
VEHICLE OFF while the electric
parking brake is applied, then
goes off.
●Comes on while driving - Make sure the
parking brake is released. Check the brake fluid level.
2 What to do when the indicator comes
on while driving P. 650
●Comes on along with the Parking
Brake and Brake System Indicator
(Amber) - Immediately stop in a safe place.
Contact a dealer for repair. The brake pedal
becomes harder to operate. Depress the
pedal further than you normally do.
2If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 651
●Comes on along with the ABS
indicator
- Have your vehicle checked by a dealer.
2If the Brake System Indicator (Red)
Comes On or Blinks P. 650
●Blinks and the Parking Brake and
Brake System Indicator (Amber) comes
on at the same time - There is a problem
with the electric parking brake system. The
parking brake may not be set.
Avoid using the parking brake and have your
vehicle checked by a dealer immediately.
2If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 651
(Red)
20 CR-V HYBRID HMIN-31TPG6000.book 89 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

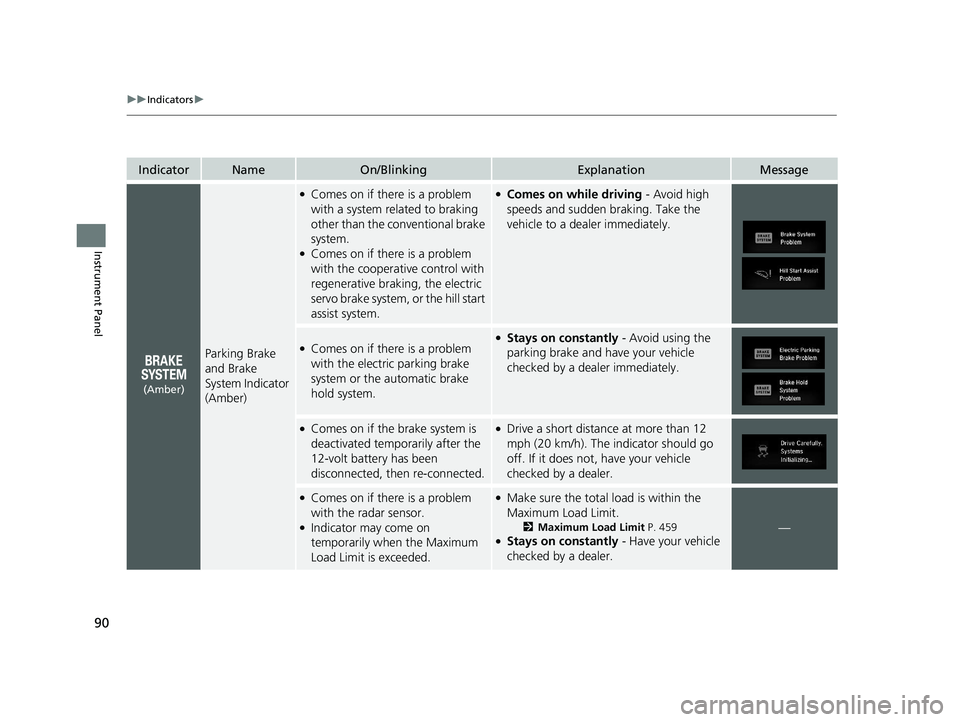

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Amber)
●Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
●Comes on if there is a problem
with the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
●Comes on while driving - Avoid high
speeds and sudden braking. Take the
vehicle to a dealer immediately.
●Comes on if there is a problem
with the electric parking brake
system or the automatic brake
hold system.●Stays on constantly - Avoid using the
parking brake and have your vehicle
checked by a dealer immediately.
●Comes on if the brake system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
●Comes on if there is a problem
with the radar sensor.
●Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 459●Stays on constantly - Have your vehicle
checked by a dealer.
—
(Amber)
20 CR-V HYBRID HMIN-31TPG6000.book 90 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

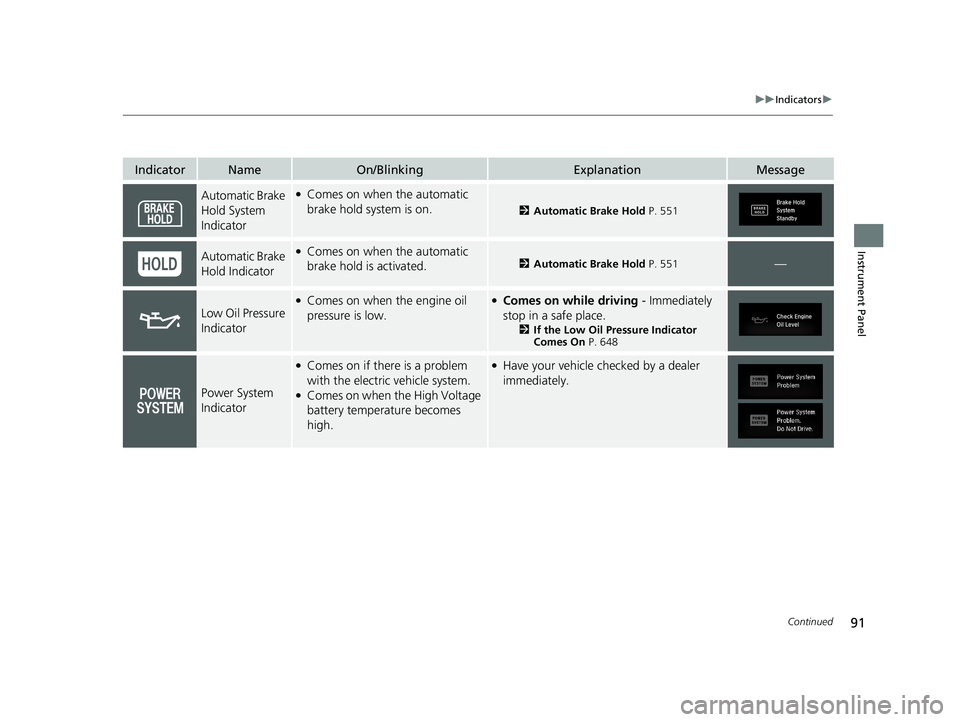

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic Brake
Hold System
Indicator●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 551
Automatic Brake
Hold Indicator●Comes on when the automatic
brake hold is activated.2Automatic Brake Hold P. 551—
Low Oil Pressure
Indicator
●Comes on when the engine oil
pressure is low.●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 648
Power System
Indicator
●Comes on if there is a problem
with the electric vehicle system.
●Comes on when the High Voltage
battery temperature becomes
high.
●Have your vehicle checked by a dealer
immediately.
20 CR-V HYBRID HMIN-31TPG6000.book 91 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

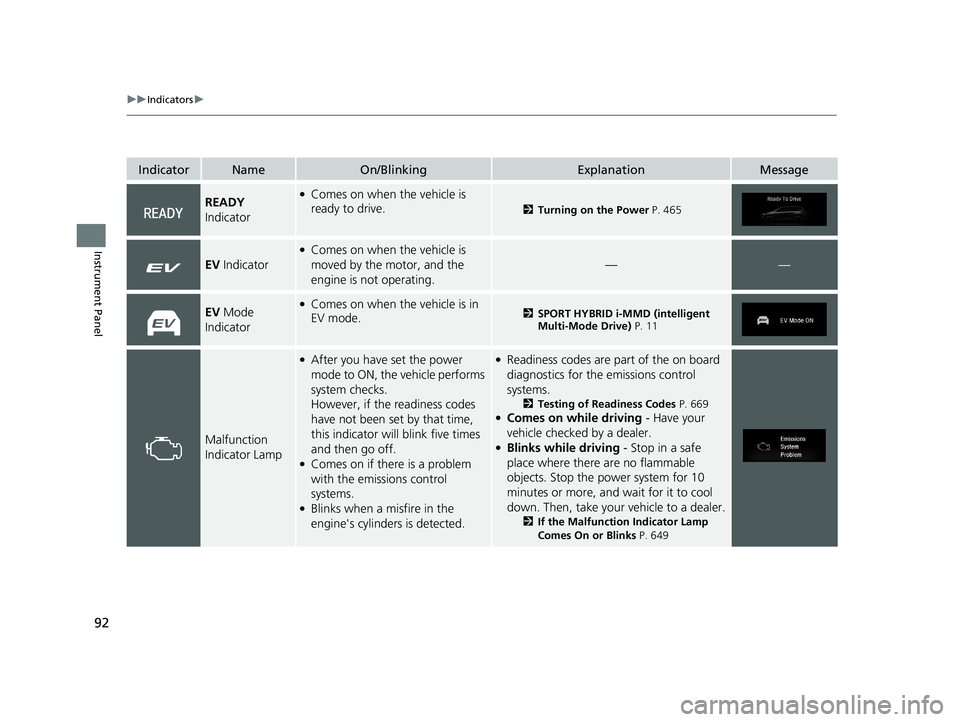

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
READY
Indicator●Comes on when the vehicle is
ready to drive.
2 Turning on the Power P. 465
EV Indicator
●Comes on when the vehicle is
moved by the motor, and the
engine is not operating.
——
EV Mode
Indicator●Comes on when the vehicle is in
EV mode.2 SPORT HYBRID i-MMD (intelligent
Multi-Mode Drive) P. 11
Malfunction
Indicator Lamp
●After you have set the power
mode to ON, the vehicle performs
system checks.
However, if the readiness codes
have not been set by that time,
this indicator will blink five times
and then go off.
●Comes on if there is a problem
with the emissions control
systems.
●Blinks when a misfire in the
engine's cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 669●Comes on while driving - Have your
vehicle checked by a dealer.
●Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the power system for 10
minutes or more, and wait for it to cool
down. Then, take your vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 649
20 CR-V HYBRID HMIN-31TPG6000.book 92 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

93
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
12-volt Battery
Charging
System Indicator●Comes on when the 12-volt
battery is not charging.●Stop in a safe place and have your vehicle
checked by a dealer immediately.
2If the 12-volt Battery Charging
System Indicator Comes On P. 648
Shift Position
Indicator●Indicates the current shift
position.
2Shifting P. 473—
Transmission
System Indicator
●The indicated current shift
position blinks if there is a
problem with the transmission
system.●Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by a dealer.
●The indicated current shift
position or all the shift positions
blink if you cannot select
(P due
to the transmission system failure.
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
Deceleration
Paddle Selector
Indicator
●Comes on when the paddle
selector is pulled.
●Blinks when the rate of
deceleration does not change
while pulling the paddle selector.
●Comes on with M when SPORT
mode is selected and pulling the
paddle selector.
2 Deceleration Paddle Selector P. 480—
20 CR-V HYBRID HMIN-31TPG6000.book 93 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

94
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
SPORT Mode
Indicator●Comes on when you press the
SPORT button.●The ambient meter remains lit up in red as
long as sport mode is on.
2SPORT Mode P. 479
Seat Belt
Reminder
Indicator
●Blinks and the beep er sounds for a
few seconds if you are not
wearing a seat belt when you set
the power mode to ON, then the
indicator comes on.
●If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
●Blinks while driving if you and/or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●Stays on after you and/or the front
passenger has fastened the seat belt(s)
- A detection error ma y have occurred in
the sensor. Have your vehicle checked by a
dealer.
2 Seat Belt Reminder P. 49
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 2.1
U.S. gal/8.0 Liter left).
●Blinks if there is a problem with
the fuel gauge.
●Comes on - Refuel your vehicle as soon as
possible.
●Blinks - Have your vehicle checked by a
dealer.
20 CR-V HYBRID HMIN-31TPG6000.book 94 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

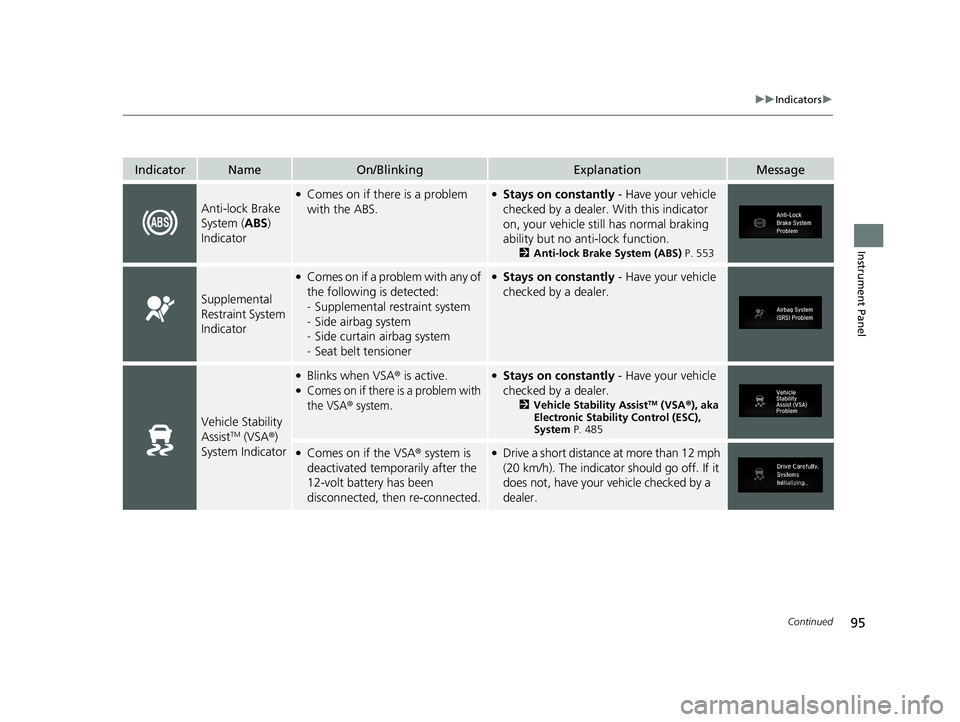

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Anti-lock Brake
System (ABS)
Indicator
●Comes on if there is a problem
with the ABS.●Stays on constantly - Have your vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 553
Supplemental
Restraint System
Indicator
●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner●Stays on constantly - Have your vehicle
checked by a dealer.
Vehicle Stability
AssistTM (VSA ®)
System Indicator
●Blinks when VSA ® is active.●Comes on if there is a problem with
the VSA
® system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC),
System P. 485
●Comes on if the VSA ® system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
20 CR-V HYBRID HMIN-31TPG6000.book 95 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

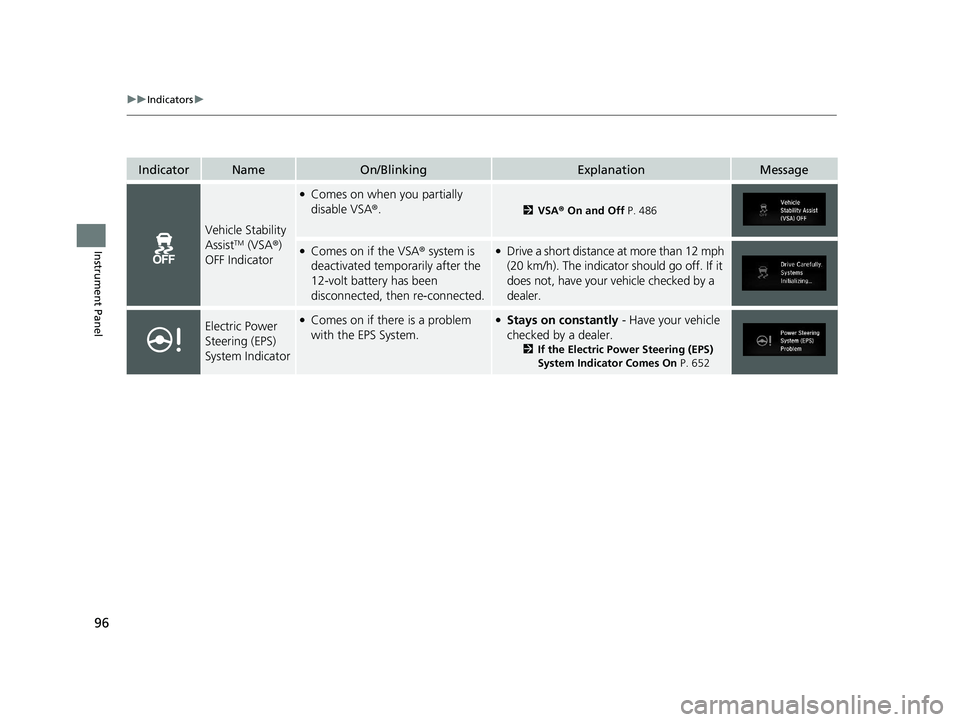

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
AssistTM (VSA®)
OFF Indicator
●Comes on when you partially
disable VSA ®.
2VSA ® On and Off P. 486
●Comes on if the VSA ® system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
Electric Power
Steering (EPS)
System Indicator●Comes on if there is a problem
with the EPS System.●Stays on constantly - Have your vehicle
checked by a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 652
20 CR-V HYBRID HMIN-31TPG6000.book 96 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

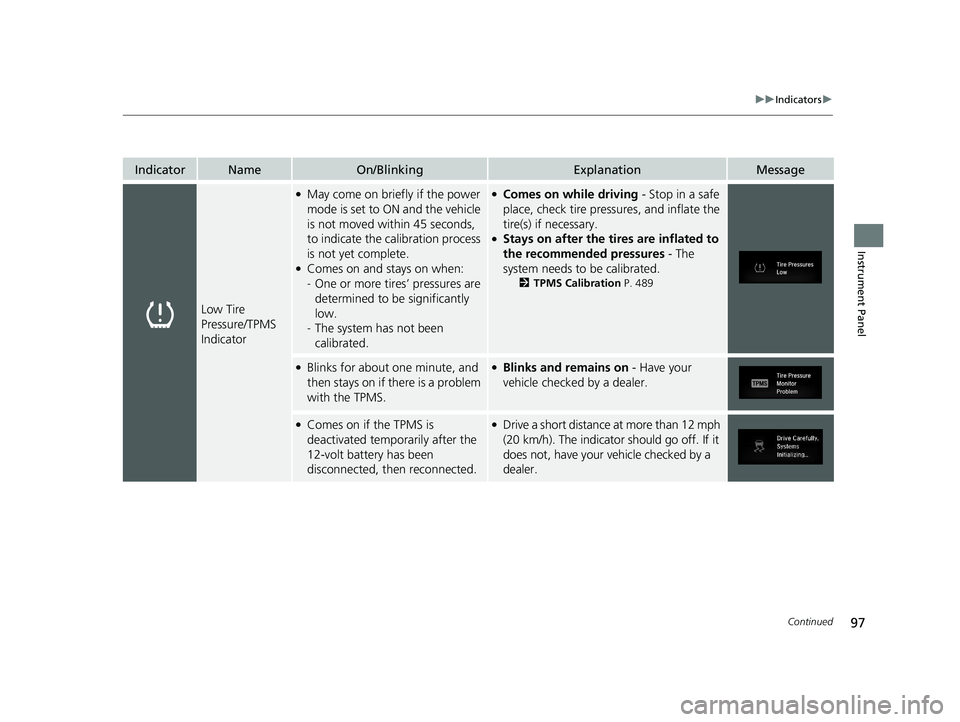

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/TPMS
Indicator
●May come on briefly if the power
mode is set to ON and the vehicle
is not moved within 45 seconds,
to indicate the calibration process
is not yet complete.
●Comes on and stays on when:
-One or more tires’ pressures are
determined to be significantly
low.
- The system has not been
calibrated.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
●Stays on after the tires are inflated to
the recommended pressures - The
system needs to be calibrated.
2 TPMS Calibration P. 489
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS.●Blinks and remains on - Have your
vehicle checked by a dealer.
●Comes on if the TPMS is
deactivated temporarily after the
12-volt battery has been
disconnected, then reconnected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
20 CR-V HYBRID HMIN-31TPG6000.book 97 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
●Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.●While the indicator is on, press the
(display/information) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface.
Respond to the message accordingly.
●The driver informatio n interface does not
return to the normal screen unless the
warning is canceled, or the button is
pressed.
—
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly
- Have your vehicle checked by a dealer.
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
20 CR-V HYBRID HMIN-31TPG6000.book 98 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分
