TPMS HONDA CR-V HYBRID 2020 Owner's Manual (in English)

34
Quick Reference Guide
VSA® On and Off (P486)
●The Vehicle Stability AssistTM (VSA ®)
system helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you turn on the power system.
●To partially disable VSA® functionality/
features, press and hold it until you hear
a beep.
Tire Pressure Monitoring
System (TPMS)
(P489)
●Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
●The TPMS is turned on automatically
every time you turn on the power system.
●A calibration procedure must be
performed when certain conditions arise.
CMBSTM On and Off
(P506)
●When a possible collision is likely
unavoidable, the CMBSTM can help you to
reduce the vehicle sp eed and the severity
of the collision.
●The CMBSTM is turned on every time you
turn on the power system.
●To turn the CMBSTM on or off, press and
hold the button until you hear a beep.
Refueling (P568)
Fuel recommendation: Unleaded gasoline , pump octane number 87 or higher
Fuel tank capacity:14 US gal (53 L)
aPull the fuel fill door
release handle.
bAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
20 CR-V HYBRID HMIN-31TPG6000.book 34 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

40
Quick Reference Guide
I'm seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring System (TPMS) needs attention. If
you recently inflated or changed a tire, you have to recalibrate
the system.
2 Tire Pressure Monitoring System (TPMS) (P489)
Why does the shift position
automatically change to
(P
when I open the driver’s
door to check for parking
space lines when
reversing?
•Fasten the driver’s seat belt.
•Close the driver’s door and manually change the shift
position.
2 When opening the driver’s door (P476)
20 CR-V HYBRID HMIN-31TPG6000.book 40 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

88
Instrument Panel
Indicators
Deceleration Paddle
Selector IndicatorP.93
Parking Brake and
Brake System Indicator
(Red)
Parking Brake and
Brake System Indicator
(Amber)
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
P. 89*1
Malfunction Indicator
Lamp
12-Volt Battery
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Seat Belt Reminder
Indicator Low Fuel Indicator
Vehicle Stability AssistTM
(VSA®) System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Auto High-Beam
Indicator
Electric Power Steering
(EPS) System Indicator
Turn Signal and Hazard
Warning Indicators
Lights On Indicator High Beam Indicator
Fog Light Indicator*
ECON Mode Indicator
System Message
Indicator
SPORT
Mode Indicator
Adaptive Cruise Control
( ACC ) with Low Speed
Follow Indicator
(Amber)
Lane Keeping Assist
System ( LKAS)
Indicator (Amber)
P. 90
P.91
P.91
P.92
P.93
*1
*1
*1 *1
*1
*1
Shift Position IndicatorP. 93
Transmission System
I
ndicatorP. 93
READY Indi
catorP.92
POWER SYSTEM
I
ndicatorP. 91
P.94
P.94
P.95
P.95
P.99
P.95
*1
*1
*1
*1
P.96
*1P.96
P.99
P.103
P.98
P.98
P.100
P.99
P.100
P.98
P.94
P.104
*1Adaptive Cruise Control
(ACC ) with Low Speed
Follow Indicator
(Green)
P. 104
Lane Keeping Assist
Sy
stem ( LKAS)
Indicator (Green)P. 104
*1
EV IndicatorP.92*1
EV Mode IndicatorP.92*1
*1
Immobilizer System
Indicator P.99
Security System Alarm
In
dicator
Low Oil Pressure
IndicatorP. 91*1
Road Departure
Mitigation (RDM)
IndicatorP.101*1
Collision Mitigation
Braking SystemTM
(CMBSTM) IndicatorP. 105*1
Blind spot
information System
Indicator
*P.100*1
Low Tire Pressure/TPMS
IndicatorP.97*1
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 88 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/TPMS
Indicator
●May come on briefly if the power
mode is set to ON and the vehicle
is not moved within 45 seconds,
to indicate the calibration process
is not yet complete.
●Comes on and stays on when:
-One or more tires’ pressures are
determined to be significantly
low.
- The system has not been
calibrated.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
●Stays on after the tires are inflated to
the recommended pressures - The
system needs to be calibrated.
2 TPMS Calibration P. 489
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS.●Blinks and remains on - Have your
vehicle checked by a dealer.
●Comes on if the TPMS is
deactivated temporarily after the
12-volt battery has been
disconnected, then reconnected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
20 CR-V HYBRID HMIN-31TPG6000.book 97 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

139
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Customization flow
Press the button.
ENTER
TPMS Calibration
Vehicle Settings
Lane Keeping Assist Suspend Beep
Forward Collision Warning Distance
Road Departure Mitigation Setting
Driver Attention Monitor
Driver Assist System SetupENTER
ACC Forward Vehicle Detect Beep
“Trip B” Reset Timing
Language Selection
“Trip A” Reset Timing
Adjust Alarm Volume
Speed/Distance Units
Reverse Alert Tone
Meter SetupENTER
Adjust Outside Temp. Display
3
4
3
4
3
4
3
4
3
4
3
4
ENTER
Fuel Efficiency Backlight
20 CR-V HYBRID HMIN-31TPG6000.book 139 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

141
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
Calibration—Calibrates the TPMS.Cancel/Calibrate
Driver Assist
System
Setup
Forward Collision
Warning DistanceChanges the distance at which CMBSTM alerts.Long /Normal*1/ Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system detects
a vehicle, or when the vehicle goes out of ACC
range.
ON /OFF*1
Road Departure
Mitigation SettingChanges the setting fo r the road departure
mitigation system.Narrow/ Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend BeepCauses the system to b eep when the LKAS is
suspended.ON /OFF*1
Driver Attention MonitorChanges the setting for the driver attention monitor.Tactile And Audible Alert*1/
Tactile Alert /OFF
20 CR-V HYBRID HMIN-31TPG6000.book 141 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

373
uuCustomized Features u
Continued
Features
Driver Assist System SetupForward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Lane Keeping Assist Suspend Beep
Road Departure Mi tigation Setting
Adjust Outside Temp. Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Vehicle
Meter Setup
Adjust Alarm Volume
New Message Notifications
Reverse Alert Tone
Turn By Turn Auto Display
Speed/Distance Units
CancelTPMS Calibration
Calibrate
Blind Spot Info
Fuel Efficiency Backlight
Memory Position Link
Driver Attention Monitor
Driving Position Setup
20 CR-V HYBRID HMIN-31TPG6000.book 373 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

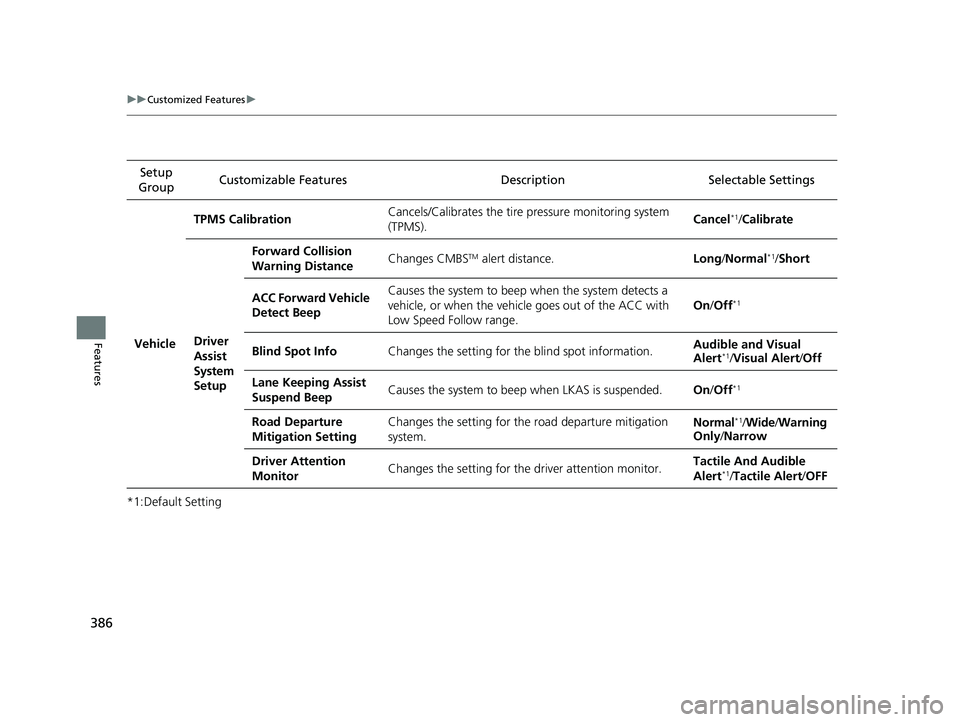

386
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
TPMS CalibrationCancels/Calibrates the tire
pressure monitoring system
(TPMS).Cancel*1/ Calibrate
Driver
Assist
System
Setup
Forward Collision
Warning DistanceChanges CMBSTM alert distance.Long /Normal*1/ Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system detects a
vehicle, or when the vehicl e goes out of the ACC with
Low Speed Follow range.
On /Off*1
Blind Spot InfoChanges the setting for th e blind spot information.Audible and Visual
Alert*1/Visual Alert /Off
Lane Keeping Assist
Suspend BeepCauses the system to beep when LKAS is suspended.On/Off*1
Road Departure
Mitigation SettingChanges the setting for the road departure mitigation
system.Normal*1/Wide /Warning
Only /Narrow
Driver Attention
MonitorChanges the setting for the driver attention monitor.Tactile And Audible
Alert*1/Tactile Alert/ OFF
20 CR-V HYBRID HMIN-31TPG6000.book 386 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

455
Driving
This chapter discusses driving and refueling.
Before Driving................................... 456
Towing a Trailer ................................ 461
Towing Your Vehicle ........................ 462
Off-Highway Driving Guidelines General Information ......................... 463
Important Safety Precautions............ 463
Avoiding Trouble ............................. 464
When Driving Turning on the Power ...................... 465
Precautions While Driving................. 471
Transmission .................................... 472
Shifting ............................................ 473
SPORT Mode.................................... 479 Deceleration Paddl
e Selector ............ 480
ECON Mode .................................... 483
Acoustic Vehicle Alerting System...... 484
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System .............. 485
Agile Handling Assist ....................... 487
Real Time AWD with Intelligent Control System
TM........................................ 488Tire Pressure Monitoring System (TPMS) .. 489Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 493
Blind spot information System*........... 495High Voltage Battery ........................ 498 Honda Sensing
®................................ 499
Collision Mitigation Braking SystemTM (CMBSTM) .... 502Adaptive Cruise Control (ACC) with Low Speed Follow ....... 513Lane Keeping Assist System (LKAS) .. 530Road Departure Mitigation (RDM) System.... 539Front Sensor Camera ....................... 544
Radar Sensor ................................... 546
Braking Brake System ................................... 547
Anti-lock Brake System (ABS) ........... 553
Brake Assist System ......................... 554
Parking Your Vehicle ........................ 555
Multi-View Rear Camera .................. 566
Refueling ........................................... 568
Fuel Economy and CO
2 Emissions .... 571
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 455 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

485
uuWhen Driving uVehicle Stability AssistTM (VSA ®), aka Electronic Stability Control (ESC), System
Continued
Driving
Vehicle Stability AssistTM (VSA ®), aka Electronic
Stability Control (ESC), System
VSA ® helps to stabilize the vehicle during corn ering if the vehicle turns more or less
than what was intended. It also assists in maintaining traction on slippery surfaces.
It does so by regulating engine outp ut and selectively applying the brakes.
When VSA ® activates, you may notice that the
engine and motor do not respond to the
accelerator. You may also notice some noise
from the hydraulic system. You will also see
the indicator blink.
■VSA ® Operation
1 Vehicle Stability AssistTM (VSA® ), aka Electronic Stability Control
(ESC), System
The VSA ® may not function properl y if tire type and
size are mixed. Make sure to use the same size and
type of tire, and the air pressures as specified.
When the VSA ® system indicator comes on and stays on
while driving, there may be a problem with the system.
While this may not interfere with normal driving, have
your vehicle checked by a dealer immediately.
VSA ® cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and alwa ys leave a sufficient
margin of safety.
The main function of the VSA ® system is generally
known as Electronic Stability Control (ESC). The
system also includes a traction control function.
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Road Departure Mitigation
(RDM), Vehicle Stability Assist
TM (VSA ®) system,
Vehicle Stability AssistTM (VSA ®) OFF, low tire
pressure/TPMS, Collision Mitigation Braking SystemTM
(CMBSTM), and Parking Brake and Brake System
(Amber) may come on along with a message in the
Driver Information Interf ace after reconnecting the
12V-battery. Drive a short distance at more than 12
mph (20 km/h). The indicator should go off. If it does
not, have your vehicle checked by a dealer.
VSA® System
Indicator
20 CR-V HYBRID HMIN-31TPG6000.book 485 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
