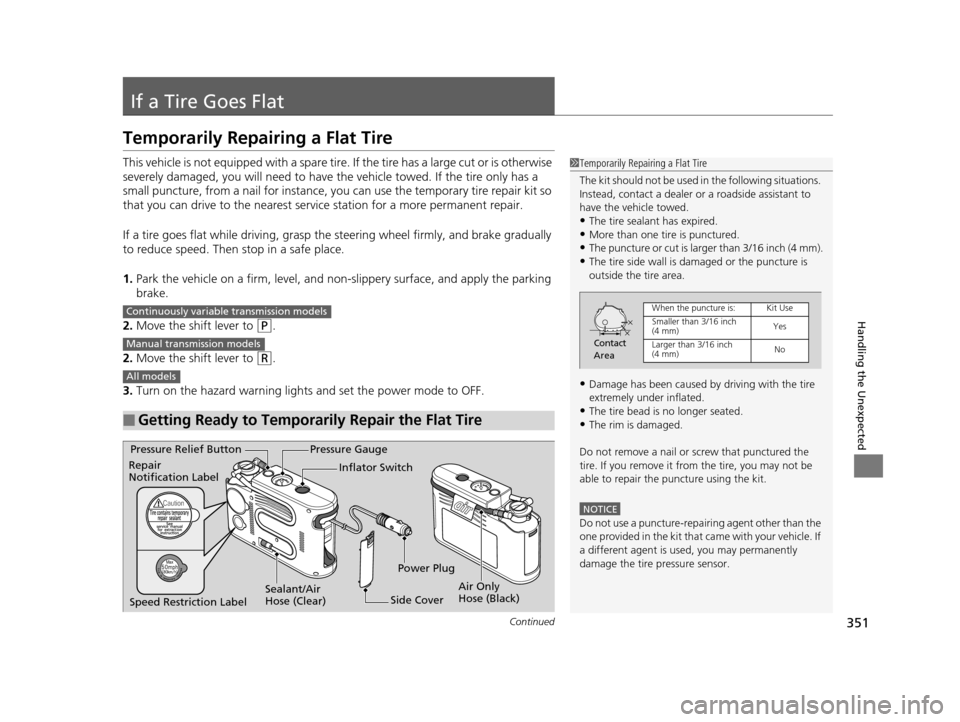

351Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
This vehicle is not equipped with a spare tire. If the tire has a large cut or is otherwise
severely damaged, you will need to have th e vehicle towed. If the tire only has a
small puncture, from a nail for instance, you can use the temporary tire repair kit so
that you can drive to the nearest servic e station for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface, and apply the parking
brake.
2. Move the shift lever to
(P.
2. Move the shift lever to
(R.
3. Turn on the hazard warning lights and set the power mode to OFF.
■Getting Ready to Temporarily Repair the Flat Tire
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or a roadside assistant to
have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.
•The puncture or cut is larger than 3/16 inch (4 mm).
•The tire side wall is da maged or the puncture is
outside the tire area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.
•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
Contact
Area
When the puncture is:Kit Use
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch
(4 mm) No
Continuously variable transmission models
Manual transmission models
All models
Pressure Gauge
Sealant/Air
Hose (Clear)
Pressure Relief Button
Air Only
Hose (Black)
Inflator Switch
Side Cover
Repair
Notification Label
Power Plug
Speed Restriction Label
16 CR-Z-31SZT6500.book 351 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

Index
399
Index
Index
Numbers
12 Volt Battery Charging System Indicator ................................................... 72
3-Mode Drive System ............................... 270
ECON Mode Indicator ............................... 81
NORMAL Mode Indicator .......................... 81
SPORT Mode Indicator .............................. 81
7-Speed Manual Shift Mode ................... 258
A
ABS (Anti-lock Brake System) .................. 288
Accessories and Modifications ................ 297
Accessory Power Socket ........................... 149
Active Head Restraints ............................. 145
Additives
Coolant .................................................. 314
Engine Oil ............................................... 309
Washer ................................................... 319
Additives, Engine Oil ............................... 309
Adjusting
Clock ...................................................... 108
Headlights .............................................. 320
Mirrors.................................................... 139
Seats....................................................... 141
Steering Wheel ....................................... 138
Adjusting the Sound ................................ 173
Air Conditioning System (Climate Control System) .................................................... 155
Changing the Mode................................ 155 Defrosting the Windshield and
Windows ............................................... 156
Dust and Pollen Filter ............................... 343
Recirculation/Fresh Air Mode ................... 155
Sensors .................................................... 157
Using Automatic Climate Control ............ 155
Air Pressure ............................................... 331
Airbags ........................................................ 43
Advanced Airbags ..................................... 49
After a Collision ......................................... 57
Airbag Care ............................................... 57
Event Data Recorders ................................... 0
Front Airbags (SRS) .................................... 46
Indicator ........................................ 54, 74, 78
Passenger Airbag Off Indicator .................. 55
Sensors ...................................................... 49
Side Airbag Cutoff System ......................... 52
Side Airbag Off Indicator ........................... 52
Side Airbags .............................................. 50
Side Curtain Airbags .................................. 53
AM/FM Radio ............................................ 175
Anti-lock Brake System (ABS) .................. 288
Indicator .................................................... 74
ASST Indicator ............................................. 90
Audio Remote Controls ............................ 164
Audio System ............................................ 160
Adjusting the Sound ................................ 173
Error Messages ........................................ 195
General Information ................................ 199
HDMI
TM Port ............................................ 162
iPhone ..................................................... 201 iPod ........................................................ 181
MP3/WMA/AAC .............................. 178, 186
Reactivating ............................................ 163
Recommended CDs ................................. 199
Recommended Devices............................ 201
Security Code .......................................... 163
Theft Protection ...................................... 163
USB Flash Drives ...................................... 201
USB Ports ................................................ 161
Audio/Information Screen ....................... 168
Authorized Manuals ................................ 397
Auto Door Locking/Unlocking ................. 118
Customize ................................................. 98
Auto Idle Stop
Continuously Variable Transmission ......... 264
Manual Transmission ............................... 267
Auto Idle Stop Indicator ............................ 80
Automatic Lighting .................................. 131
Average Fuel Economy .............................. 96
Average Fuel Economy Records ................ 96
Average Speed ........................................... 93
B
Back-Up Light........................................... 325
Battery ...................................................... 340
Charging System Indicator................. 72, 373
Jump Starting .......................................... 366
Maintenance (Checking the 12 Volt Battery) ................................................. 340
16 CR-Z-31SZT6500.book 399 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

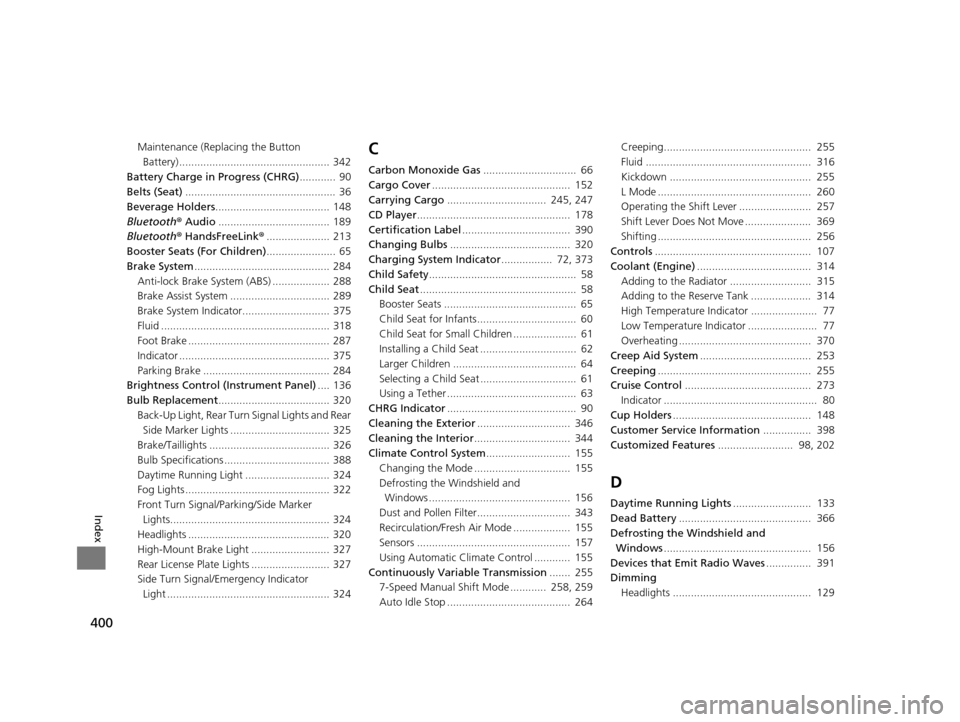

400
Index
Maintenance (Replacing the Button Battery) .................................................. 342
Battery Charge in Progress (CHRG) ............ 90
Belts (Seat) .................................................. 36
Beverage Holders ...................................... 148
Bluetooth ® Audio ..................................... 189
Bluetooth ® HandsFreeLink ®..................... 213
Booster Seats (For Children) ....................... 65
Brake System ............................................. 284
Anti-lock Brake System (ABS) ................... 288
Brake Assist System ................................. 289
Brake System Indicator............................. 375
Fluid ........................................................ 318
Foot Brake ............................................... 287
Indicator .................................................. 375
Parking Brake .......................................... 284
Brightness Control (Instrument Panel) .... 136
Bulb Replacement ..................................... 320
Back-Up Light, Rear Turn Signal Lights and Rear
Side Marker Lights ................................. 325
Brake/Taillights ........................................ 326
Bulb Specifications ................................... 388
Daytime Running Light ............................ 324
Fog Lights ................................................ 322
Front Turn Signal/Par king/Side Marker
Lights..................................................... 324
Headlights ............................................... 320
High-Mount Brake Light .......................... 327
Rear License Plate Lights .......................... 327
Side Turn Signal/Emergency Indicator Light ...................................................... 324C
Carbon Monoxide Gas ............................... 66
Cargo Cover .............................................. 152
Carrying Cargo ................................. 245, 247
CD Player ................................................... 178
Certification Label .................................... 390
Changing Bulbs ........................................ 320
Charging System Indicator ................. 72, 373
Child Safety ................................................. 58
Child Seat .................................................... 58
Booster Seats ............................................ 65
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat ................................ 62
Larger Children ......................................... 64
Selecting a Child Seat ................................ 61
Using a Tether ........................................... 63
CHRG Indicator ........................................... 90
Cleaning the Exterior ............................... 346
Cleaning the Interior ................................ 344
Climate Control System ............................ 155
Changing the Mode ................................ 155
Defrosting the Windshield and Windows ............................................... 156
Dust and Pollen Filter............................... 343
Recirculation/Fresh Air Mode ................... 155
Sensors ................................................... 157
Using Automatic Climate Control ............ 155
Continuously Variable Transmission ....... 255
7-Speed Manual Shift Mode ............ 258, 259
Auto Idle Stop ......................................... 264 Creeping................................................. 255
Fluid ....................................................... 316
Kickdown ............................................... 255
L Mode ................................................... 260
Operating the Shift Lever ........................ 257
Shift Lever Does Not Move ...................... 369
Shifting ................................................... 256
Controls .................................................... 107
Coolant (Engine) ...................................... 314
Adding to the Radiator ........................... 315
Adding to the Reserve Tank .................... 314
High Temperature Indicator ...................... 77
Low Temperature Indicator ....................... 77
Overheating ............................................ 370
Creep Aid System ..................................... 253
Creeping ................................................... 255
Cruise Control .......................................... 273
Indicator ................................................... 80
Cup Holders .............................................. 148
Customer Service Information ................ 398
Customized Features ......................... 98, 202
D
Daytime Running Lights .......................... 133
Dead Battery ............................................ 366
Defrosting the Windshield and
Windows ................................................. 156
Devices that Emit Radio Waves ............... 391
Dimming
Headlights .............................................. 129
16 CR-Z-31SZT6500.book 400 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

405
Index
S
Safe Driving................................................ 31
Safety Check ............................................... 35
Safety Labels .............................................. 67
Safety Message ............................................ 1
Seat ........................................................... 141
Adjusting ................................................ 141
Seat Heaters ........................................... 154
Seat Belts .................................................... 36
Automatic Seat Belt Tensioners ................. 38
Checking .................................................. 42
Fastening .................................................. 39
Installing a Child Seat................................ 62
Pregnant Women...................................... 41
Reminder .................................................. 37
Warning Indicator ............................... 37, 73
Seat Heaters ............................................. 154
Security System Immobilizer System Indicator..................... 80
Security System Alarm Indicator ................ 80
SEL/RESET Button ....................................... 98
Selecting a Child Seat ................................ 61
Setting the Clock ...................................... 108
Shift Lever .................................................. 23
Continuously Variable Transmission ........ 256
Operation ................................................. 23
Operation (Continuo usly Variable
Transmission) ........................................ 257
Operation (Manual Transmission) ............ 261
Releasing ................................................ 369
Won’t Move ........................................... 369 Shift Lever Position Indicator
................... 257
Shifting
Continuously Variable Transmission ......... 256
Manual Transmission ............................... 261
Side Airbags ................................................ 50
Cutoff System ........................................... 52
Off Indicator .............................................. 52
Side Curtain Airbags ................................... 53
Siri ® Eyes Free ........................................... 194
Snow Tires ................................................. 339
Spark Plugs ................................................ 388
Specifications ............................................ 388
Specified Fuel .................................... 293, 388
Speedometer .............................................. 89
SPORT Mode ....................................... 81, 270
SRS Airbags (Airbags) ................................. 43
Starting the Engine .................................. 251
Does Not Start ......................................... 362
Jump Starting .......................................... 366
Steering Wheel ......................................... 138
Adjusting ................................................. 138
Stopping .................................................... 290
Supplemental Restraint System (SRS) ........ 46
Switches (Around the Steering Wheel) ... 4, 5
System Message Indicator .......................... 78
T
Tachometer................................................. 89
Temperature
High Temperature Indicator ....................... 77 Low Temperature Indicator........................ 77
Temperature Sensor ................................. 157
Temporarily Repairing a Flat Tire ............ 351
Time (Setting) ........................................... 108
Tire Pressure Monitoring System
(TPMS) ..................................................... 280
Indicator............................................ 76, 377
Tires ........................................................... 331
Air Pressure ..................................... 332, 389
Checking and Maintaining ...................... 331
Inspection ............................................... 331
Labeling .................................................. 332
Regulations ............................................. 334
Rotation .................................................. 338
Tire Chains .............................................. 339
Wear Indicators ....................................... 336
Winter..................................................... 339
Tools .......................................................... 350
Towing a Trailer ....................................... 250
Towing Hook ............................................ 384
Towing Your Vehicle ................................ 250
Emergency .............................................. 383
TPMS (Tire Pressure Monitoring System) .................................................... 280
Indicator............................................ 76, 377
Transmission Continuously Variable ............................. 256
Fluid ................................................ 316, 317
Manual ................................................... 261
Number................................................... 390
Shift Lever Position Indicator.................... 257
16 CR-Z-31SZT6500.book 405 ページ ２０１５年９月１１日　金曜日　午前１１時４７分
