Instrument Panel

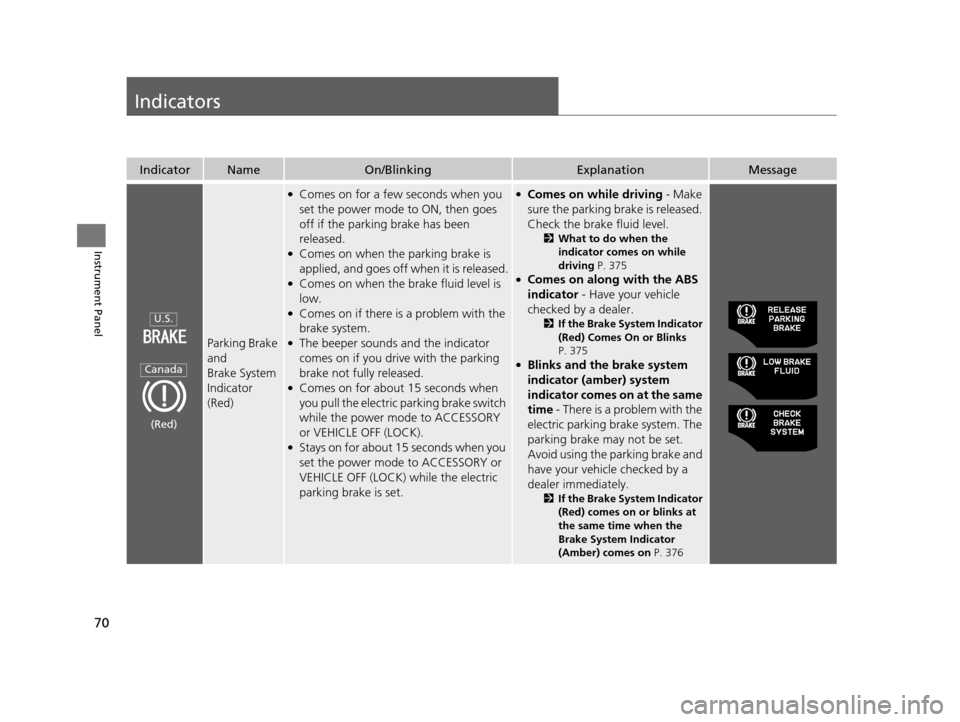

Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and
Brake System
Indicator
(Red)
●Comes on for a few seconds when you
set the power mode to ON, then goes
off if the parking brake has been
released.
●Comes on when the parking brake is
applied, and goes off when it is released.
●Comes on when the brake fluid level is
low.
●Comes on if there is a problem with the
brake system.
●The beeper sounds and the indicator
comes on if you drive with the parking
brake not fully released.
●Comes on for about 15 seconds when
you pull the electric parking brake switch
while the power mode to ACCESSORY
or VEHICLE OFF (LOCK).
●Stays on for about 15 seconds when you
set the power mode to ACCESSORY or
VEHICLE OFF (LOCK) while the electric
parking brake is set.
●Comes on while driving - Make
sure the parking brake is released.
Check the brake fluid level.
2 What to do when the
indicator comes on while
driving P. 375
●Comes on along with the ABS
indicator - Have your vehicle
checked by a dealer.
2 If the Brake System Indicator
(Red) Comes On or Blinks
P. 375
●Blinks and the brake system
indicator (amber) system
indicator comes on at the same
time - There is a problem with the
electric parking brake system. The
parking brake may not be set.
Avoid using the parking brake and
have your vehicle checked by a
dealer immediately.
2 If the Brake System Indicator
(Red) comes on or blinks at
the same time when the
Brake System Indicator
(Amber) comes on P. 376
U.S.
Canada
(Red)
16 CR-Z-31SZT6500.book 70 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

71
uuIndicators u
Continued
Instrument Panel

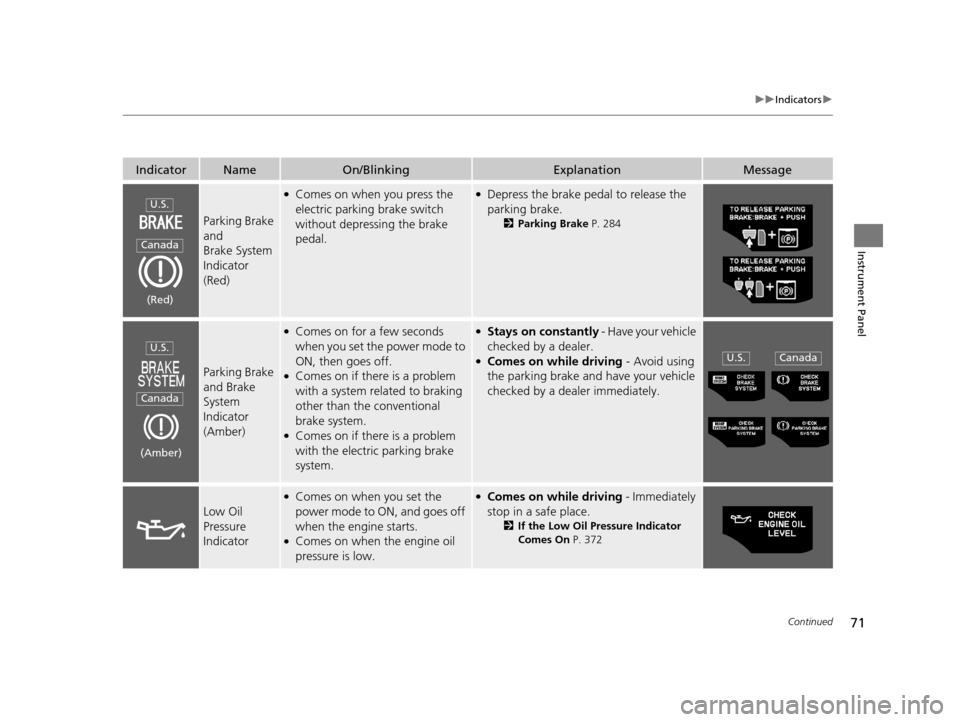

IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and
Brake System
Indicator
(Red)
●Comes on when you press the
electric parking brake switch
without depressing the brake
pedal.●Depress the brake pedal to release the
parking brake.
2Parking Brake P. 284
Parking Brake
and Brake
System
Indicator
(Amber)
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if there is a problem
with a system related to braking
other than the conventional
brake system.
●Comes on if there is a problem
with the electric parking brake
system.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by a dealer immediately.
Low Oil
Pressure
Indicator
●Comes on when you set the
power mode to ON, and goes off
when the engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 372
U.S.
Canada
(Red)
U.S.
Canada
(Amber)
U.S.Canada
16 CR-Z-31SZT6500.book 71 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

72
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

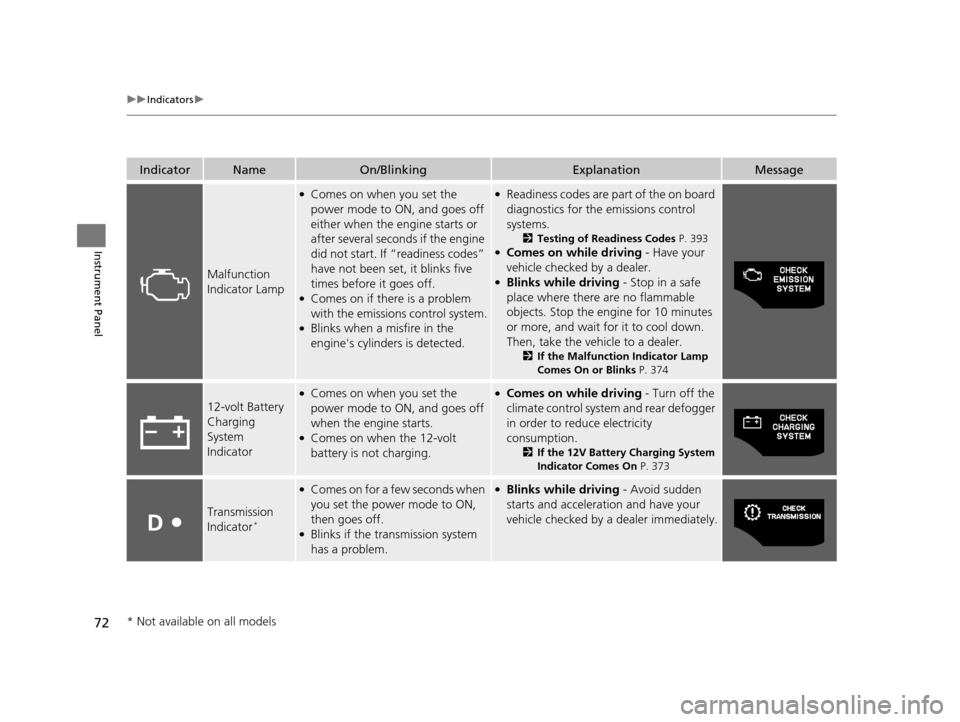

Malfunction
Indicator Lamp
●Comes on when you set the
power mode to ON, and goes off
either when the engine starts or
after several seconds if the engine
did not start. If “readiness codes”
have not been set, it blinks five
times before it goes off.
●Comes on if there is a problem
with the emissions control system.
●Blinks when a misfire in the
engine's cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 393●Comes on while driving - Have your
vehicle checked by a dealer.
●Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take the vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 374
12-volt Battery
Charging
System
Indicator
●Comes on when you set the
power mode to ON, and goes off
when the engine starts.
●Comes on when the 12-volt
battery is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption.
2 If the 12V Battery Charging System
Indicator Comes On P. 373
Transmission
Indicator*
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Blinks if the transmission system
has a problem.
●Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer immediately.
* Not available on all models
16 CR-Z-31SZT6500.book 72 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

73
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

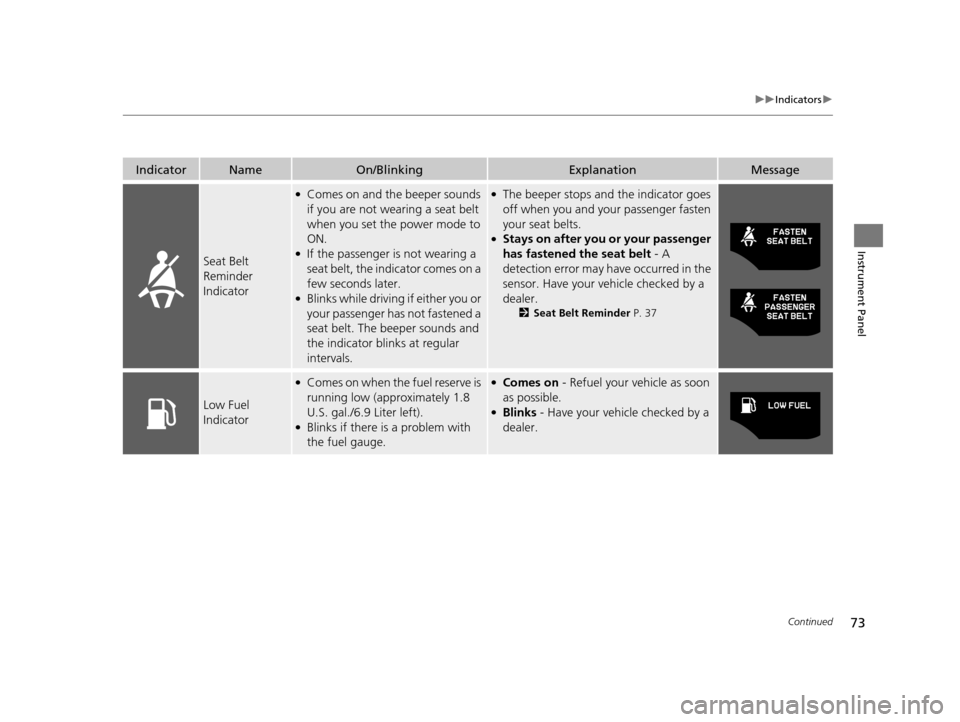

Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you set the power mode to
ON.
●If the passenger is not wearing a
seat belt, the indicator comes on a
few seconds later.
●Blinks while driving if either you or
your passenger has not fastened a
seat belt. The beeper sounds and
the indicator blinks at regular
intervals.
●The beeper stops and the indicator goes
off when you and your passenger fasten
your seat belts.
●Stays on after you or your passenger
has fastened the seat belt - A
detection error may have occurred in the
sensor. Have your vehicle checked by a
dealer.
2 Seat Belt Reminder P. 37
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 1.8
U.S. gal./6.9 Liter left).
●Blinks if there is a problem with
the fuel gauge.
●Comes on - Refuel your vehicle as soon
as possible.
●Blinks - Have your vehicle checked by a
dealer.
16 CR-Z-31SZT6500.book 73 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

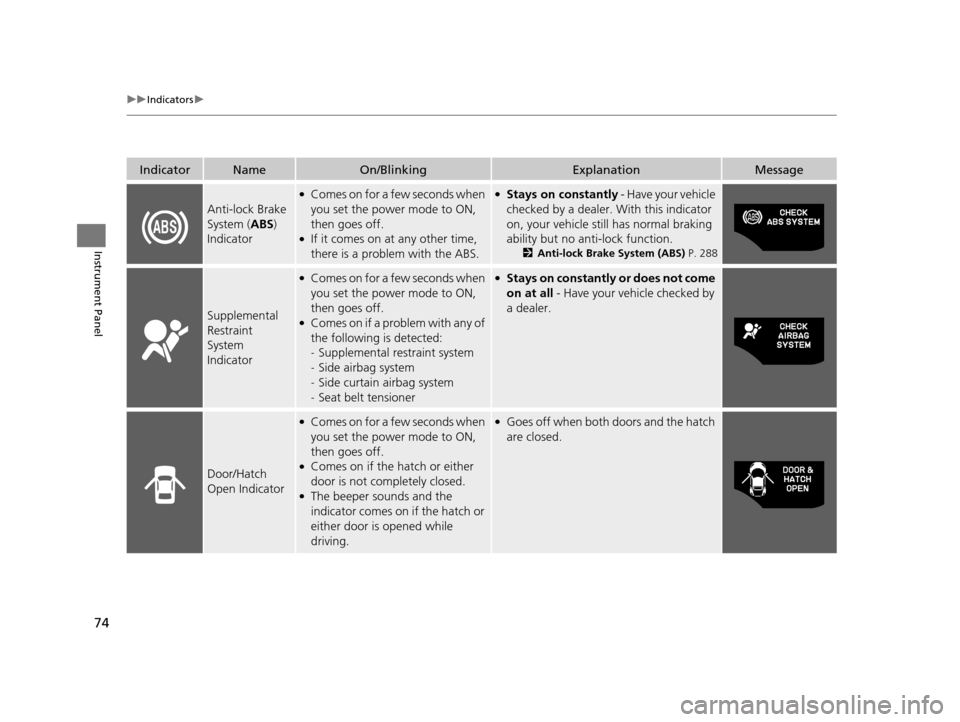

74
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Anti-lock Brake
System (ABS)
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have your vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no an ti-lock function.
2Anti-lock Brake System (ABS) P. 288
Supplemental
Restraint
System
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
Door/Hatch
Open Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if the hatch or either
door is not completely closed.
●The beeper sounds and the
indicator comes on if the hatch or
either door is opened while
driving.
●Goes off when both doors and the hatch
are closed.
16 CR-Z-31SZT6500.book 74 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

75
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

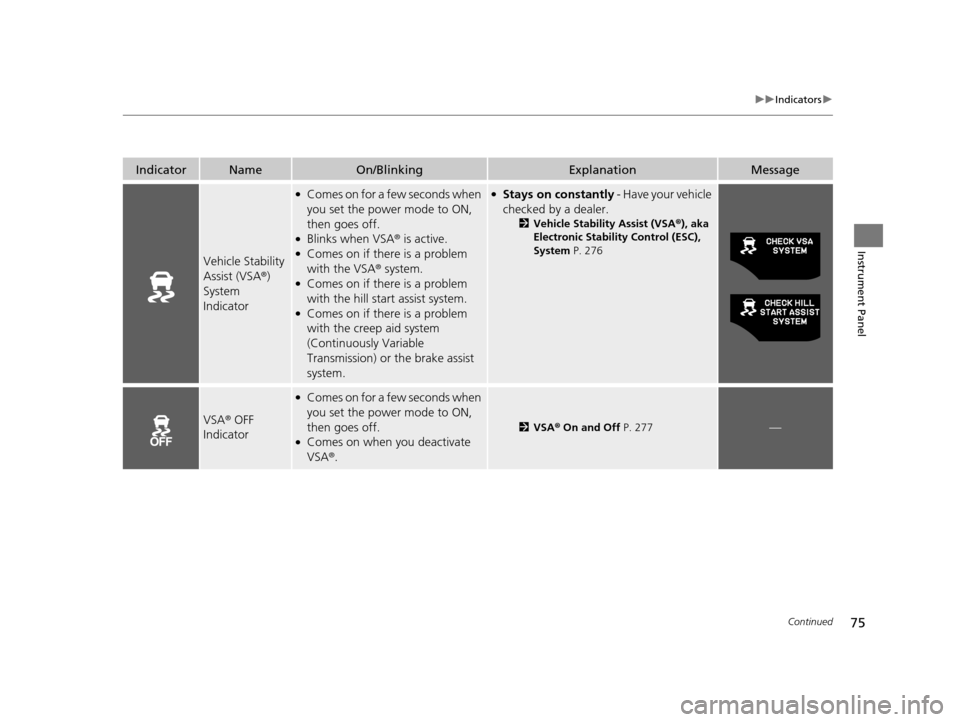

Vehicle Stability
Assist (VSA ®)
System
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Blinks when VSA ® is active.●Comes on if there is a problem
with the VSA® system.
●Comes on if there is a problem
with the hill start assist system.
●Comes on if there is a problem
with the creep aid system
(Continuously Variable
Transmission) or the brake assist
system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability Assist (VSA ®), aka
Electronic Stability Control (ESC),
System P. 276
VSA® OFF
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when you deactivate
VSA ®.
2VSA ® On and Off P. 277—
16 CR-Z-31SZT6500.book 75 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

76
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

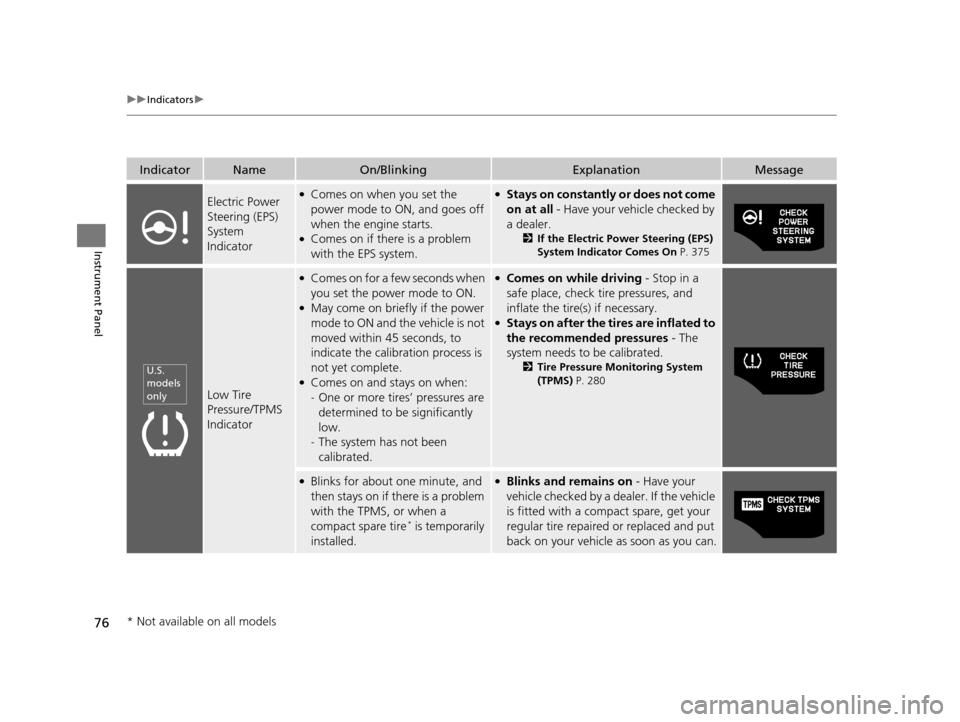

Electric Power
Steering (EPS)
System
Indicator●Comes on when you set the
power mode to ON, and goes off
when the engine starts.
●Comes on if there is a problem
with the EPS system.
●Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 375
Low Tire
Pressure/TPMS
Indicator
●Comes on for a few seconds when
you set the power mode to ON.
●May come on briefly if the power
mode to ON and the vehicle is not
moved within 45 seconds, to
indicate the calibration process is
not yet complete.
●Comes on and stays on when:
-One or more tires’ pressures are
determined to be significantly
low.
- The system has not been
calibrated.
●Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
●Stays on after the tires are inflated to
the recommended pressures - The
system needs to be calibrated.
2 Tire Pressure Monitoring System
(TPMS) P. 280
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a
compact spare tire
* is temporarily
installed.
●Blinks and remains on - Have your
vehicle checked by a d ealer. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
U.S.
models
only
* Not available on all models
16 CR-Z-31SZT6500.book 76 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

77
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
High
Temperature
Indicator (Red)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Blinks when the engine coolant
temperature goes up, and stays
on if the temperature continues to
rise.
●Goes off, then comes on blue when the
engine coolant temperature is low.
●Blinks while driving - Drive slowly to
prevent overheating.
●Stays on while driving - Immediately
stop in a safe place and allow the engine
to cool.
2 Overheating P. 370
Low
Temperature
Indicator (Blue)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the engine
coolant temperature is low.
●If the indicator stays on after the engine
has reached normal operating
temperature, there may be a problem
with the temperature sensors. Have your
vehicle inspected by a dealer.
—
IMA System
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the IMA system.
●Remains on or does not come on at
all - Avoid high speed driving and have
your vehicle checked by a dealer as soon
as possible.
2 If the IMA Indicator Comes On
P. 377
(Red)
(Amber)
16 CR-Z-31SZT6500.book 77 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

78
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

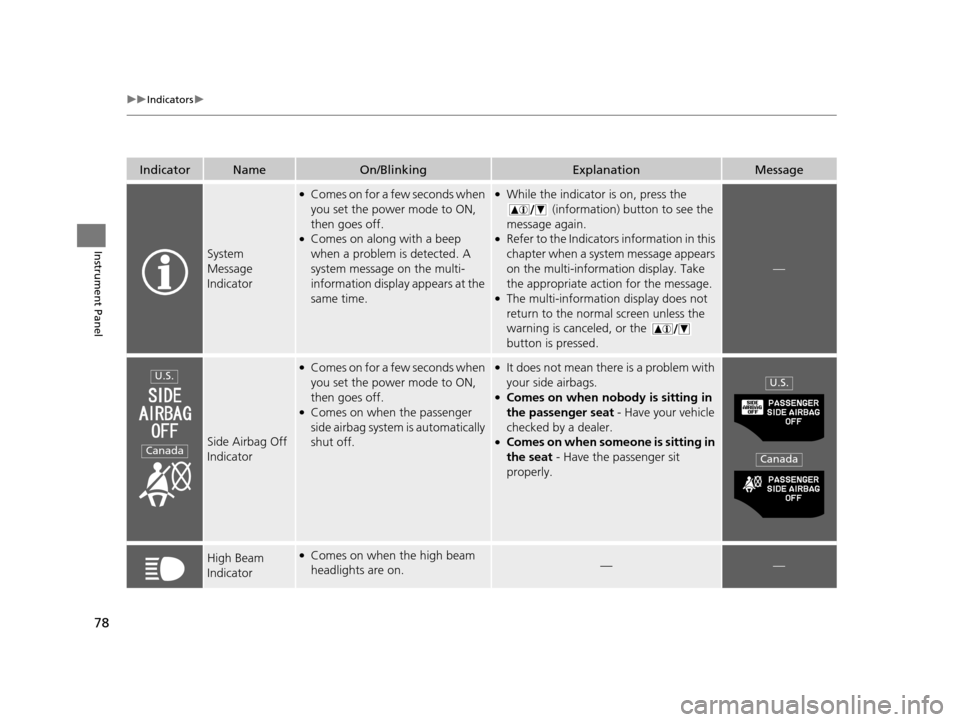

System
Message
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on along with a beep
when a problem is detected. A
system message on the multi-
information display appears at the
same time.
●While the indicator is on, press the
(information) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the multi-information display. Take
the appropriate action for the message.
●The multi-information display does not
return to the normal screen unless the
warning is canceled, or the
button is pressed.
—
Side Airbag Off
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the passenger
side airbag system is automatically
shut off.
●It does not mean there is a problem with
your side airbags.
●Comes on when nobody is sitting in
the passenger seat - Have your vehicle
checked by a dealer.
●Comes on when someone is sitting in
the seat - Have the passenger sit
properly.
High Beam
Indicator●Comes on when the high beam
headlights are on.——
U.S.
Canada
U.S.
Canada
16 CR-Z-31SZT6500.book 78 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

79
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard Warning
Indicators
●The turn signal indicators blink
when you operate the turn signal
lever.
●If you press the hazard warning
button, both indi cators and all
turn signals blin k at the same
time.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately.
2 Replacing Light Bulbs
P. 324, 325 —
Lights On
Indicator
●Comes on whenever the light
switch is on, or in AUTO* when
the exterior lights are on.
●If you set the power mode to
ACCESSORY or VEHICLE OFF (LOCK)
while the lights are on, a chime sounds
when the driver's door is opened.
—
Fog Light
Indicator*
●Comes on when the fog lights are
on.——
Shift Lever
Position
Indicator
*
●Indicates the current shift lever
position.
2Shifting P. 256—
M (7-speed
manual shift
mode)
Indicator/Shift
Indicator
*
●Comes on when the 7-speed
manual shift mode is applied.
2 7-Speed Manual Shift Mode P. 258—
* Not available on all models
16 CR-Z-31SZT6500.book 79 ページ ２０１５年９月１１日　金曜日　午前１１時４７分
