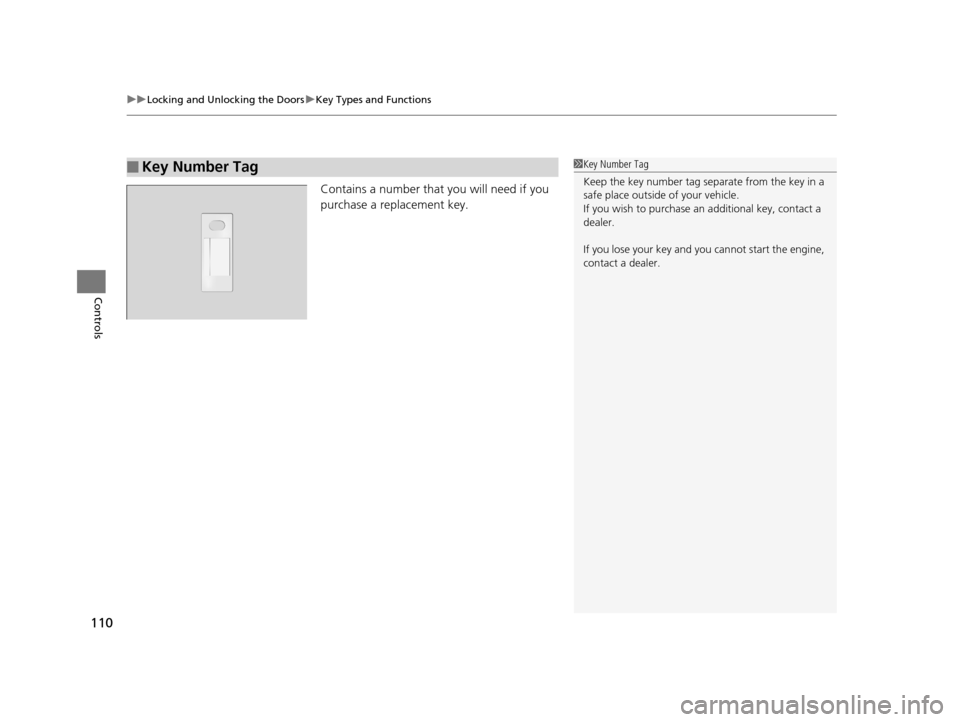

HONDA CR-Z 2016 1.G Owners Manual

uuLocking and Unlocking the Doors uKey Types and Functions
110
Controls
Contains a number that you will need if you
purchase a replacement key.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
16 CR-Z-31SZT6500.book 110 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

111

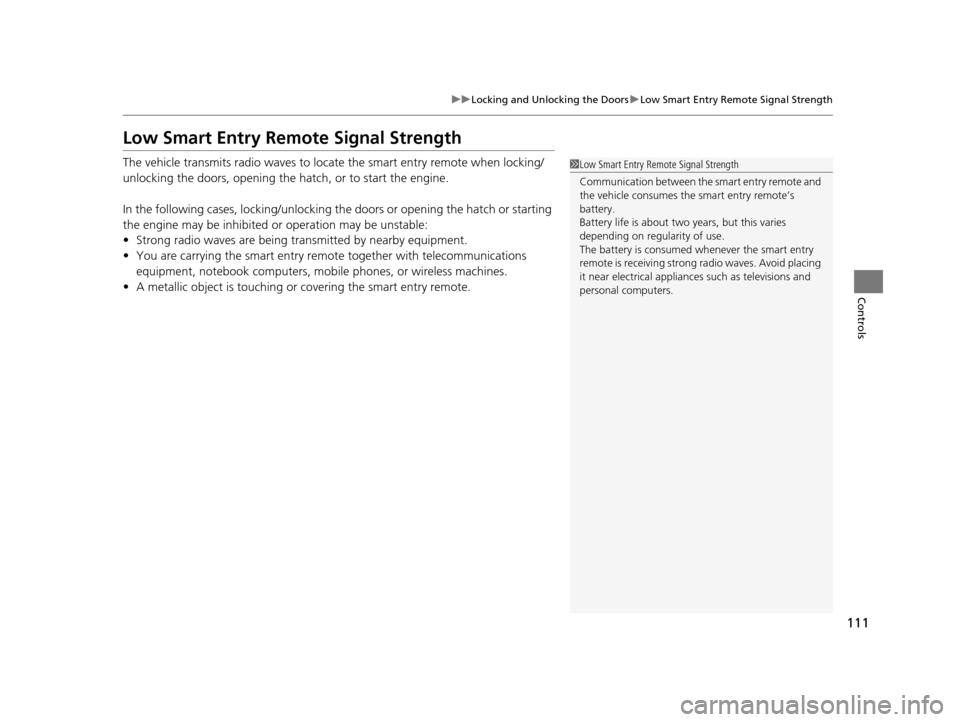

uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength
Controls
Low Smart Entry Remote Signal Strength
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors, opening the hatch, or to start the engine.
In the following cases, locking/unlocking th e doors or opening the hatch or starting
the engine may be inhibited or operation may be unstable:
• Strong radio waves are being transmitted by nearby equipment.
• You are carrying the smart entry remo te together with telecommunications
equipment, notebook computers, mo bile phones, or wireless machines.
• A metallic object is touching or covering the smart entry remote.1Low Smart Entry Remote Signal Strength
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
16 CR-Z-31SZT6500.book 111 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

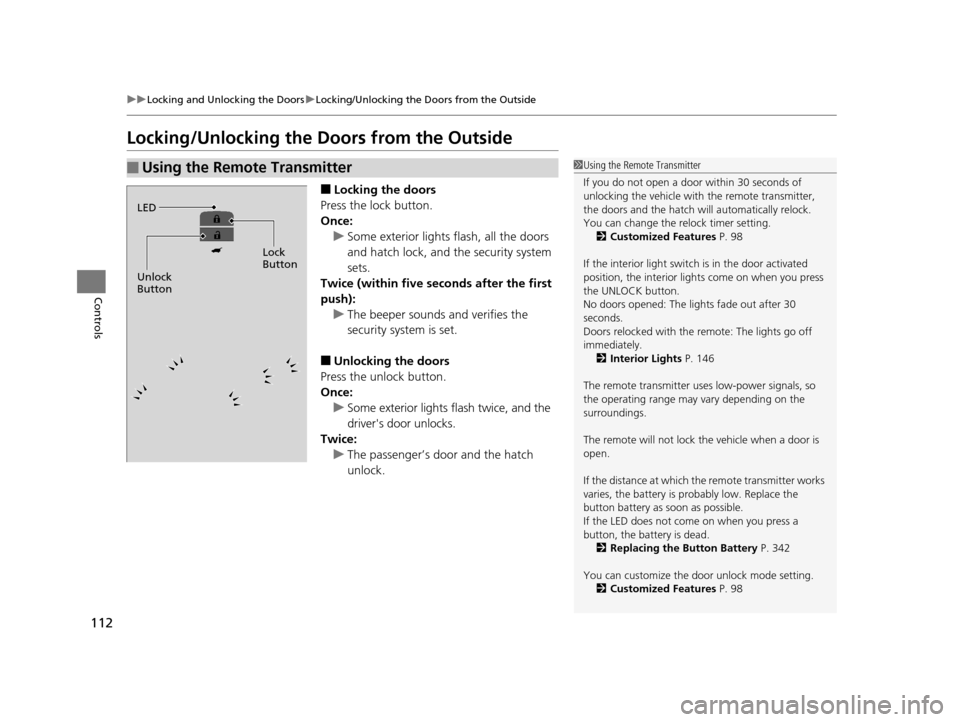

112
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Locking/Unlocking the Doors from the Outside
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
and hatch lock, and the security system
sets.
Twice (within five se conds after the first
push): u The beeper sounds and verifies the
security system is set.
■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the
driver's door unlocks.
Twice:
u The passenger’s door and the hatch
unlock.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors and the hatch will automatically relock.
You can change the relock timer setting.
2 Customized Features P. 98
If the interior light switch is in the door activated
position, the interior light s come on when you press
the UNLOCK button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 146
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the battery is pr obably low. Replace the
button battery as soon as possible.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 342
You can customize the door unlock mode setting. 2 Customized Features P. 98
LED
Unlock
Button Lock
Button
16 CR-Z-31SZT6500.book 112 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

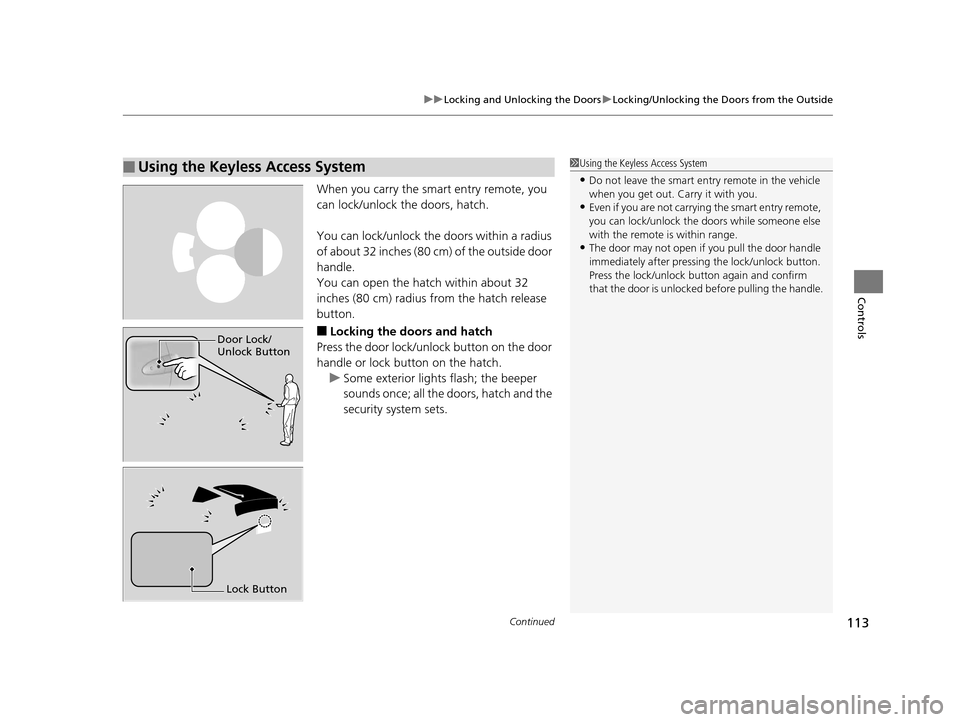

Continued113
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
When you carry the smart entry remote, you
can lock/unlock the doors, hatch.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle.
You can open the hatch within about 32
inches (80 cm) radius from the hatch release
button.
■Locking the doors and hatch
Press the door lock/unlock button on the door
handle or lock button on the hatch.
u Some exterior lights flash; the beeper
sounds once; all the doors, hatch and the
security system sets.
■Using the Keyless Access System1Using the Keyless Access System
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
•The door may not open if you pull the door handle
immediately after pressing the lock/unlock button.
Press the lock/unlock but ton again and confirm
that the door is unlocked before pulling the handle.
Door Lock/
Unlock Button
Lock Button
16 CR-Z-31SZT6500.book 113 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

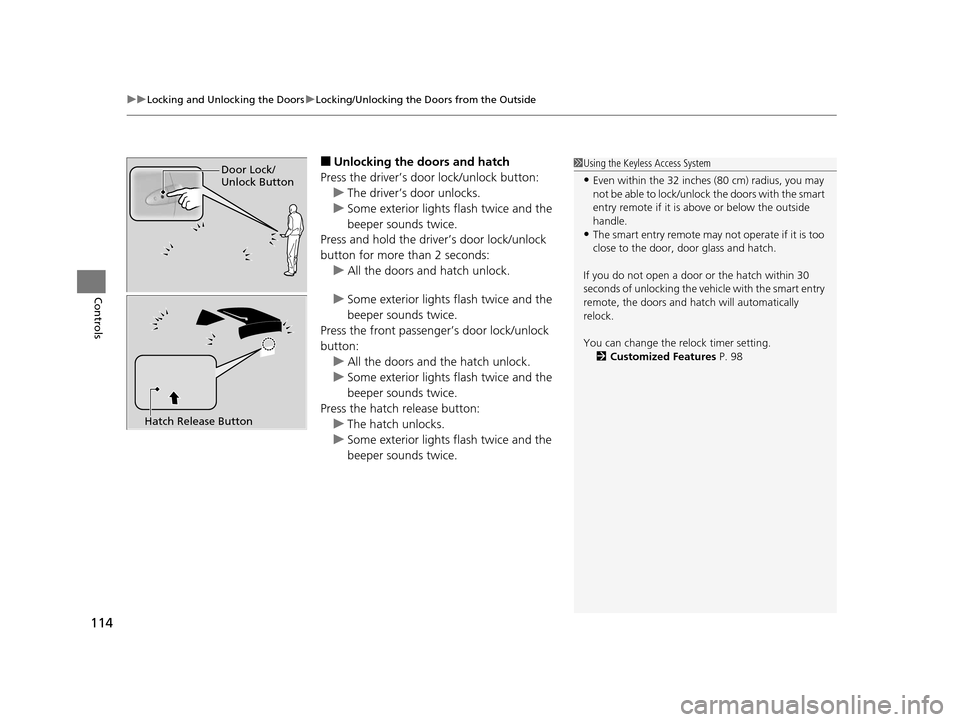

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
114
Controls
■Unlocking the doors and hatch
Press the driver’s door lock/unlock button: u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Press and hold the driver’s door lock/unlock
button for more than 2 seconds:
u All the doors and hatch unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the front passenger’s door lock/unlock
button: u All the doors and the hatch unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the hatch release button: u The hatch unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.1Using the Keyless Access System
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the smart
entry remote if it is a bove or below the outside
handle.
•The smart entry remote may not operate if it is too
close to the door, door glass and hatch.
If you do not open a door or the hatch within 30
seconds of unlocking the vehi cle with the smart entry
remote, the doors and hatch will automatically
relock.
You can change the relock timer setting. 2 Customized Features P. 98
Door Lock/
Unlock Button
Hatch Release Button
16 CR-Z-31SZT6500.book 114 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

115
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Fully insert the key and turn it.
■Locking the driver's door
Pull the lock tab rearward (1) or push the
master door lock switch in the lock direction
(2), and clos e the door.
■Locking the passenger's door
Pull the lock tab rearward and close the door.
■Lockout prevention system
The doors and the hatch cannot be locked when the keyless remote is inside the vehicle,
and either door or the hatch is open.
■Locking/Unlocking the Doors Using a Key1 Locking/Unlocking the Doors Using a Key
When you lock the driver's door with a key, all the
doors and hatch lock at the same time. When
unlocking, the driver's door unlocks first. Turn the
key a second time within a few seconds to unlock the
passenger’s door and the hatch.
You can customize the door unlock mode setting.
2 Customized Features P. 98
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver's door, all the doors and
hatch lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.
(1)
(2)
16 CR-Z-31SZT6500.book 115 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

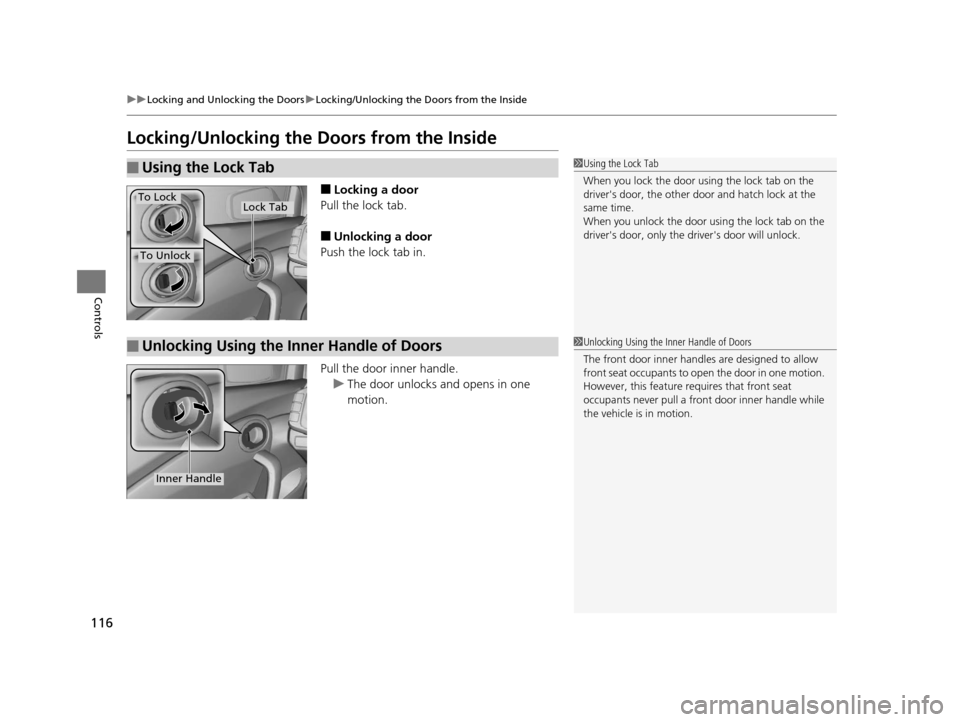

116
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Locking/Unlocking the Doors from the Inside
■Locking a door
Pull the lock tab.
■Unlocking a door
Push the lock tab in.
Pull the door inner handle. u The door unlocks and opens in one
motion.
■Using the Lock Tab1Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, the other door and hatch lock at the
same time.
When you unlock the door using the lock tab on the
driver's door, only the driv er's door will unlock.
To Unlock
Lock TabTo Lock
■Unlocking Using the Inner Handle of Doors1Unlocking Using the Inner Handle of Doors
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Inner Handle
16 CR-Z-31SZT6500.book 116 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

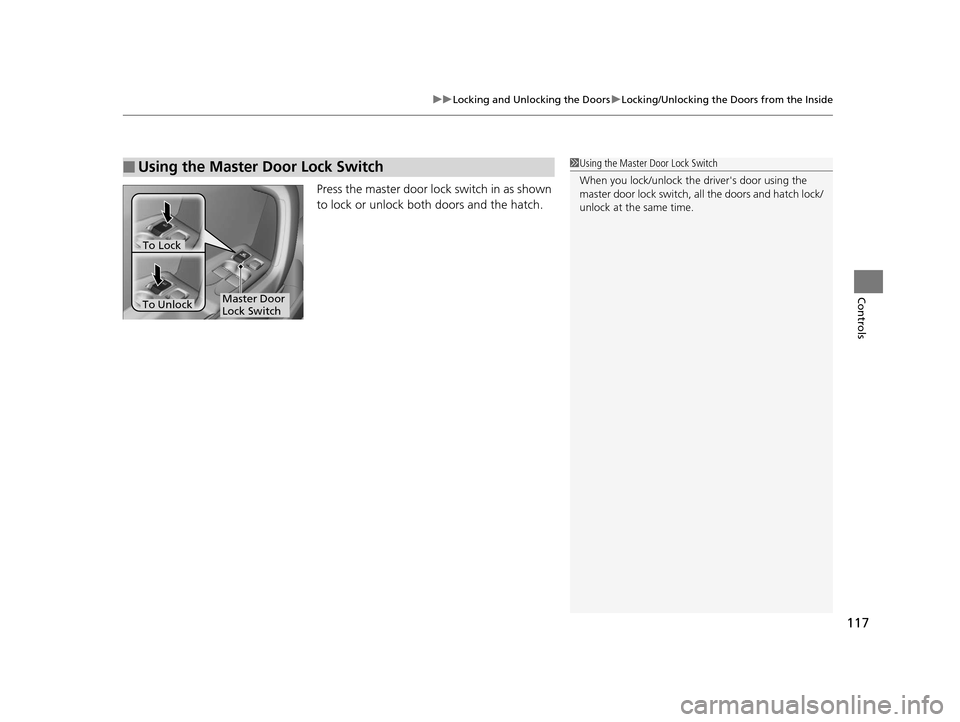

117
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Press the master door lo ck switch in as shown
to lock or unlock both doors and the hatch.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock the driver's door using the
master door lock switch, al l the doors and hatch lock/
unlock at the same time.
Master Door
Lock Switch
To Lock
To Unlock
16 CR-Z-31SZT6500.book 117 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

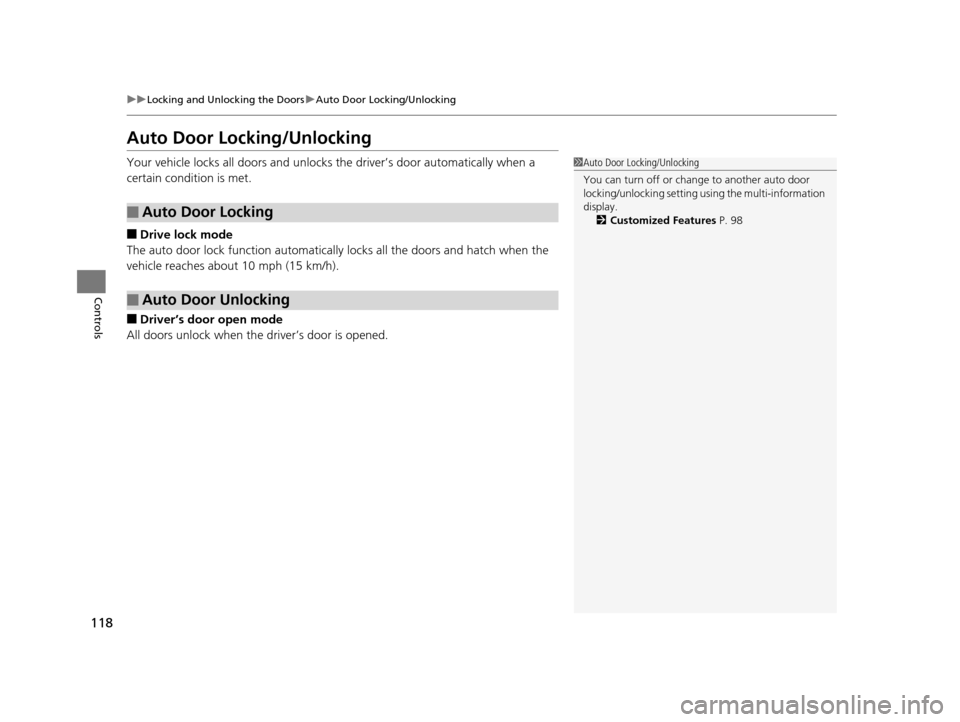

118
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks all doors and unlocks the driver’s door automatically when a
certain condition is met.
■Drive lock mode
The auto door lock function automatically locks all the doors and hatch when the
vehicle reaches about 10 mph (15 km/h).
■Driver’s door open mode
All doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the multi-information
display. 2 Customized Features P. 98
16 CR-Z-31SZT6500.book 118 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

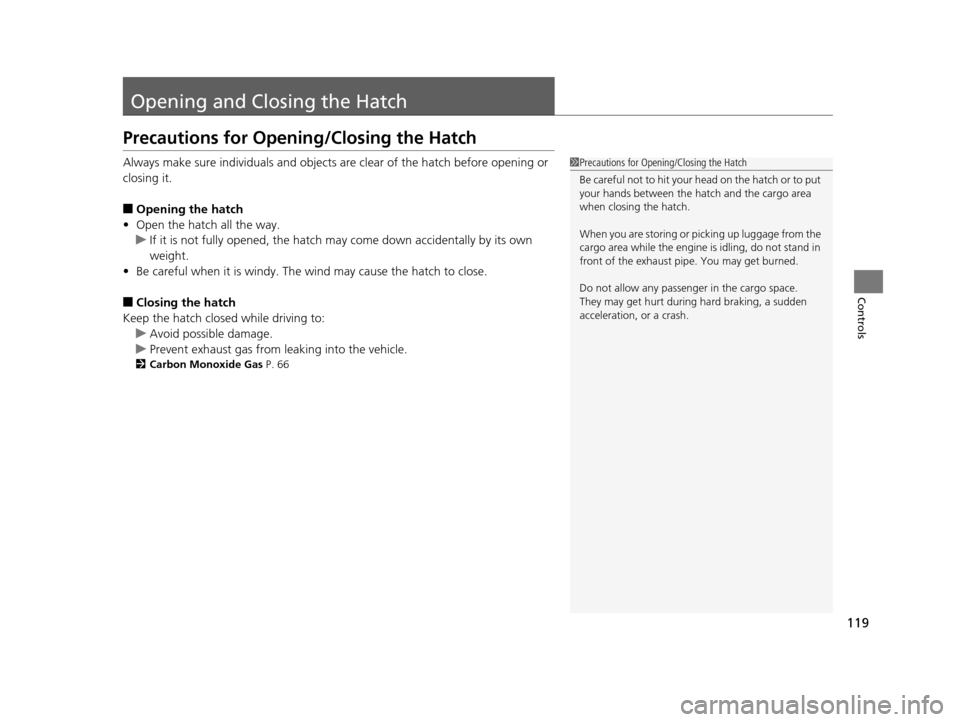

119
Controls
Opening and Closing the Hatch
Precautions for Opening/Closing the Hatch
Always make sure individuals and objects are clear of the hatch before opening or
closing it.
■Opening the hatch
• Open the hatch all the way.
u If it is not fully opened, the hatch may come down accidentally by its own
weight.
• Be careful when it is windy. The wind may cause the hatch to close.
■Closing the hatch
Keep the hatch closed while driving to: u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 66
1Precautions for Opening/Closing the Hatch
Be careful not to hit your head on the hatch or to put
your hands between the ha tch and the cargo area
when closing the hatch.
When you are storing or pi cking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.
Do not allow any passenger in the cargo space.
They may get hurt during ha rd braking, a sudden
acceleration, or a crash.
16 CR-Z-31SZT6500.book 119 ページ ２０１５年９月１１日　金曜日　午前１１時４７分
