HONDA CR-Z 2016 1.G Owners Manual

100

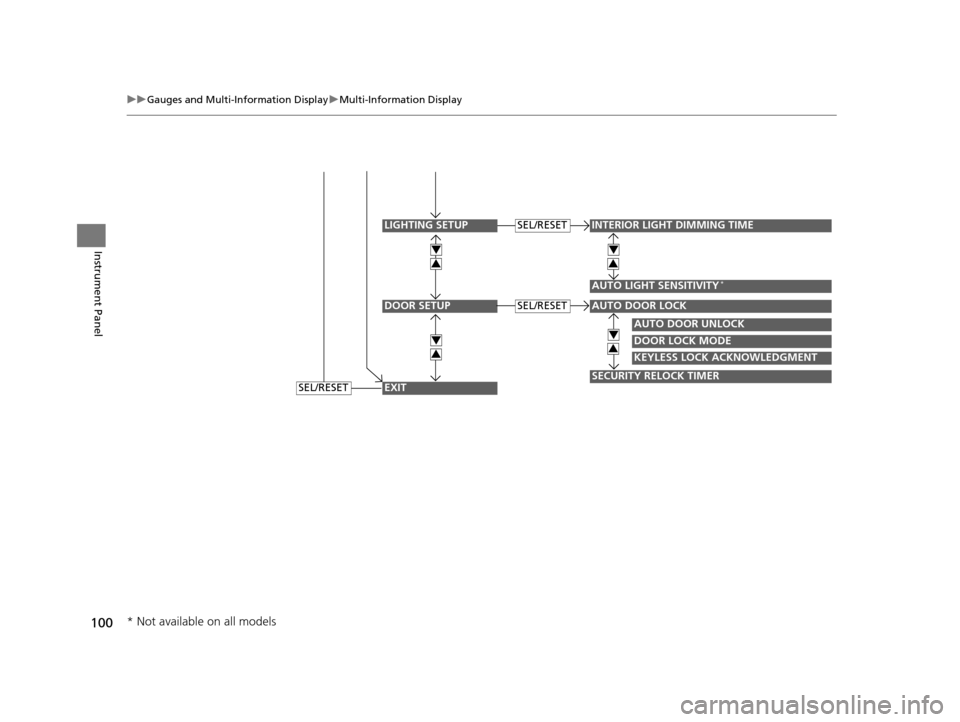

uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
DOOR SETUP
INTERIOR LIGHT DIMMING TIME
AUTO LIGHT SENSITIVITY*
AUTO DOOR UNLOCK
DOOR LOCK MODE
KEYLESS LOCK ACKNOWLEDGMENT
SECURITY RELOCK TIMER
AUTO DOOR LOCK
SEL/RESET
SEL/RESET
LIGHTING SETUP
EXIT
4
3
4
3
4
3
4
3
SEL/RESET
* Not available on all models
16 CR-Z-31SZT6500.book 100 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

101
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
■List of customizable options
*1: Default Setting Setup Group Customizable Features
Description Selectable settings
TPMS
CalibrationCalibrates the TPMS.CANCEL, CALIBRATE
Meter Setup
Language SelectionChanges the displayed language.English*1, French , Spanish
Adjust Outside Temp.
DisplayAdjusts the temperature r eading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F
-3°C ~ ±0°C*1 ~ +3°C
Trip A Reset with RefuelSets Trip A and the average fuel economy to reset
when you refuel.ON , OFF*1
Elapsed Time ResetChanges the resetting conditions of the elapsed
time.IGN OFF*1, Trip A , Trip B
Hold ECON ModeMaintains ECON mode.ON , OFF*1
Meter Color ChangeTurns the ambient meter feature on and off.ON*1, OFF
Display Km/MilesChanges the displayed m easurement on the multi-
information display.AUTO*1, KM , MILES
16 CR-Z-31SZT6500.book 101 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

102
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

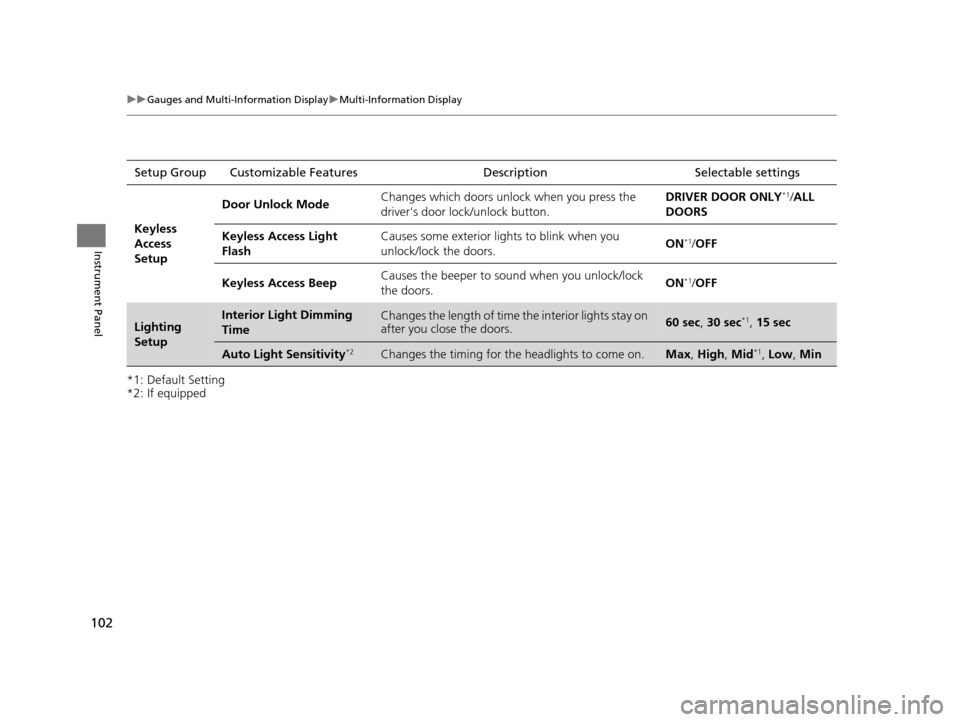

*1: Default Setting
*2: If equippedSetup Group Customizabl
e Features Description Selectable settings
Keyless
Access
Setup
Door Unlock ModeChanges which doors unlock when you press the
driver's door lock/unlock button.DRIVER DOOR ONLY*1/ALL
DOORS
Keyless Access Light
FlashCauses some exterior lights to blink when you
unlock/lock the doors.ON*1/ OFF
Keyless Access BeepCauses the beeper to sound when you unlock/lock
the doors.ON*1/OFF
Lighting
SetupInterior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60 sec, 30 sec*1, 15 sec
Auto Light Sensitivity*2Changes the timing for the headlights to come on.Max, High , Mid*1, Low , Min
16 CR-Z-31SZT6500.book 102 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

103
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel

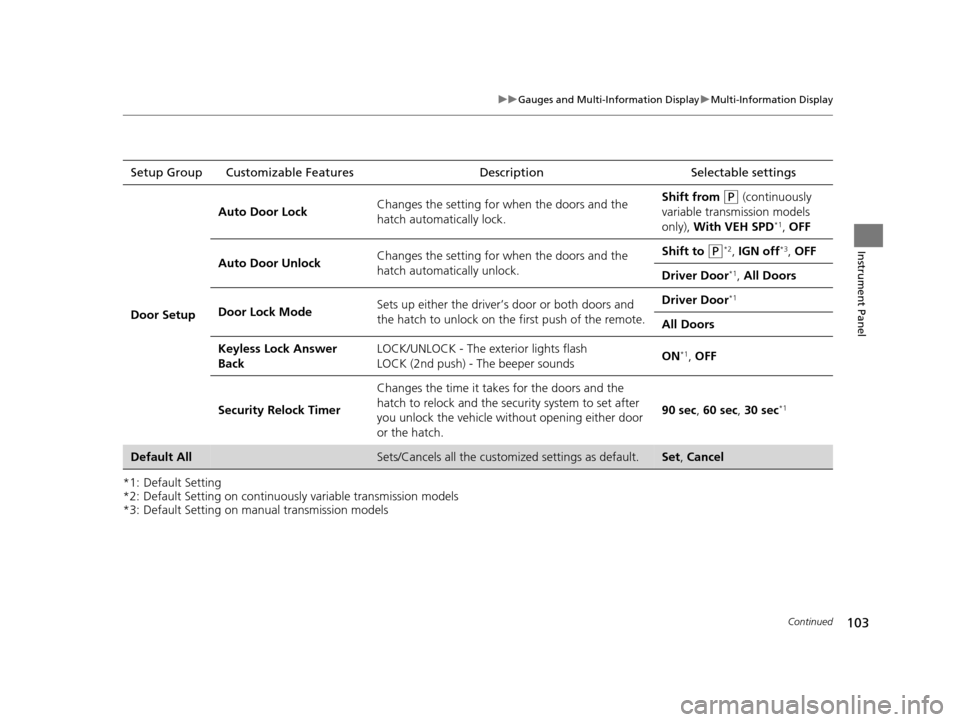

*1: Default Setting
*2: Default Setting on continuously variable transmission models
*3: Default Setting on manual transmission modelsSetup Group Customizable Features
Description Selectable settings
Door Setup
Auto Door LockChanges the setting for when the doors and the
hatch automatically lock.Shift from (P (continuously
variable transmission models
only), With VEH SPD
*1, OFF
Auto Door UnlockChanges the setting for when the doors and the
hatch automatically unlock.Shift to (P*2, IGN off*3, OFF
Driver Door*1, All Doors
Door Lock ModeSets up either the driver’s door or both doors and
the hatch to unlock on th e first push of the remote.Driver Door*1
All Doors
Keyless Lock Answer
BackLOCK/UNLOCK - The exterior lights flash
LOCK (2nd push) - The beeper soundsON*1, OFF
Security Relock Timer
Changes the time it takes for the doors and the
hatch to relock and the security system to set after
you unlock the vehicle without opening either door
or the hatch.
90 sec , 60 sec, 30 sec*1
Default AllSets/Cancels all the customiz ed settings as default.Set, Cancel
16 CR-Z-31SZT6500.book 103 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

104
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

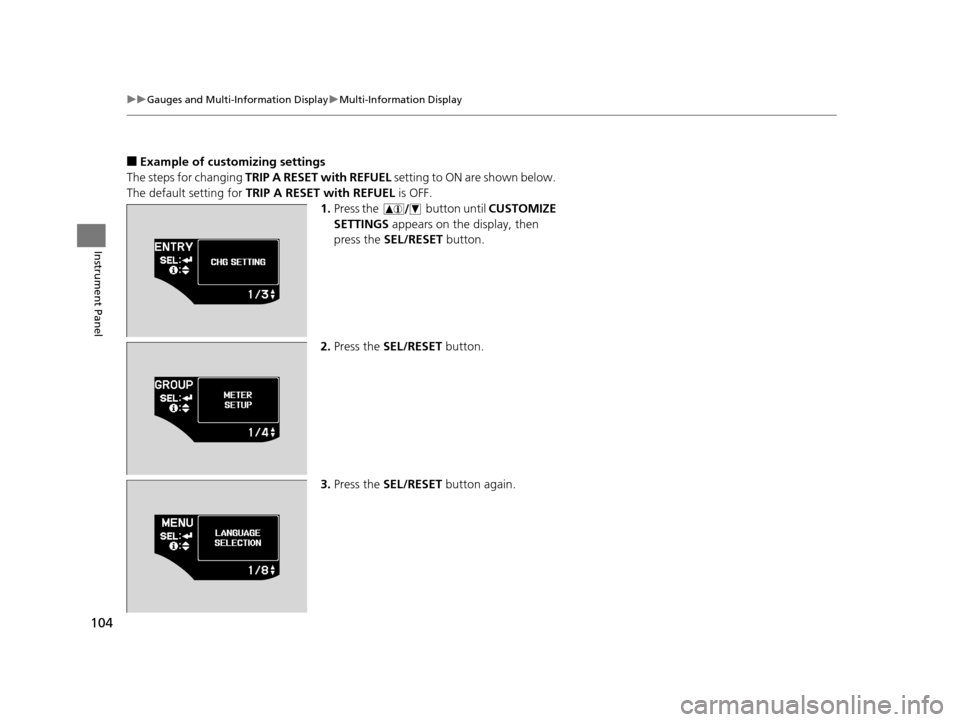

■Example of customizing settings
The steps for changing TRIP A RESET with REFUEL setting to ON are shown below.
The default setting for TRIP A RESET with REFUEL is OFF.
1. Press the button until CUSTOMIZE
SETTINGS appears on the display, then
press the SEL/RESET button.
2. Press the SEL/RESET button.
3. Press the SEL/RESET button again.
16 CR-Z-31SZT6500.book 104 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

105
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

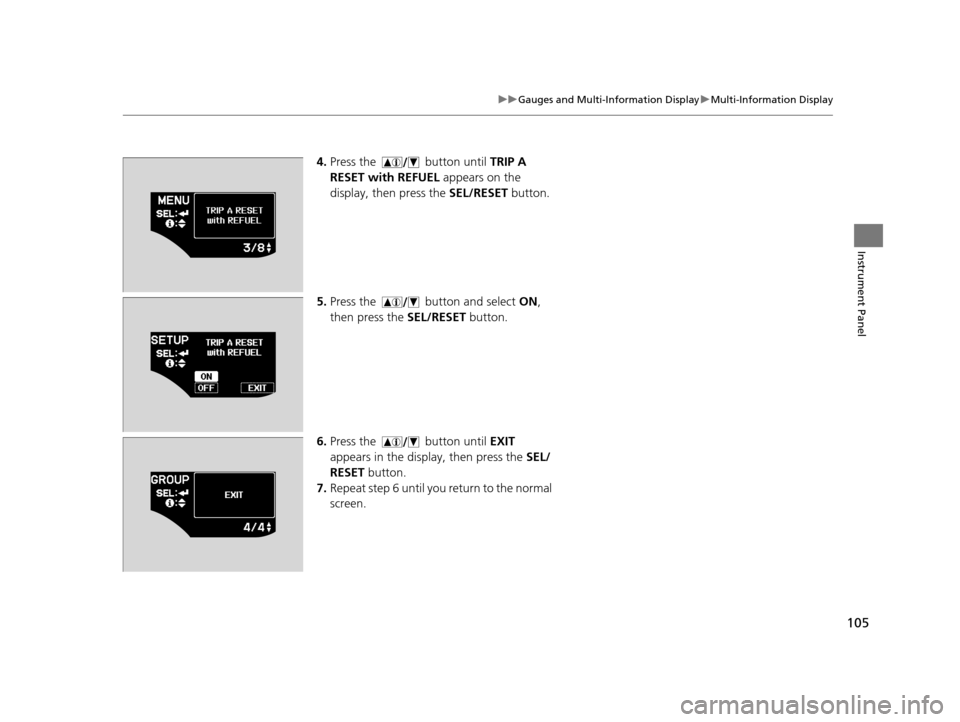

4. Press the button until TRIP A
RESET with REFUEL appears on the
display, then press the SEL/RESET button.
5. Press the button and select ON,
then press the SEL/RESET button.
6. Press the button until EXIT
appears in the display, then press the SEL/
RESET button.
7. Repeat step 6 until you return to the normal
screen.
16 CR-Z-31SZT6500.book 105 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

106
16 CR-Z-31SZT6500.book 106 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

107
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 108
Locking and Unlocking the Doors
Key Types and Functions .................. 109
Locking/Unlocking the Doors from the Outside .......................................... 112
Locking/Unlocking the Doors from the Inside ............................................. 116
Auto Door Locking/Unlocking .......... 118
Opening and Closing the Hatch....... 119
Security System Immobilizer System .......................... 122
Security System Alarm ...................... 122
Opening and Closing the Windows ..... 124
Operating the Switches Around the
Steering Wheel
ENGINE START/STOP Button............. 126
Turn Signals ..................................... 129
Light Switches.................................. 129
Fog Lights
*...................................... 133
Daytime Running Lights ................... 133
Wipers and Washers ........................ 134
Brightness Control ........................... 136
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 137
Adjusting the Steering Wheel........... 138 Adjusting the Mirrors
Interior Rearview Mirror ................... 139
Power Door Mirrors ......................... 140
Adjusting the Seats Adjusting the Seat Positions ............. 141
Interior Lights/Interior Convenience ItemsInterior Lights .................................. 146
Interior Convenience Items .............. 147
Climate Control System Using Automatic Climate Control .... 155
Automatic Climate Control Sensors ...... 157
* Not available on all models
16 CR-Z-31SZT6500.book 107 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

108
Controls

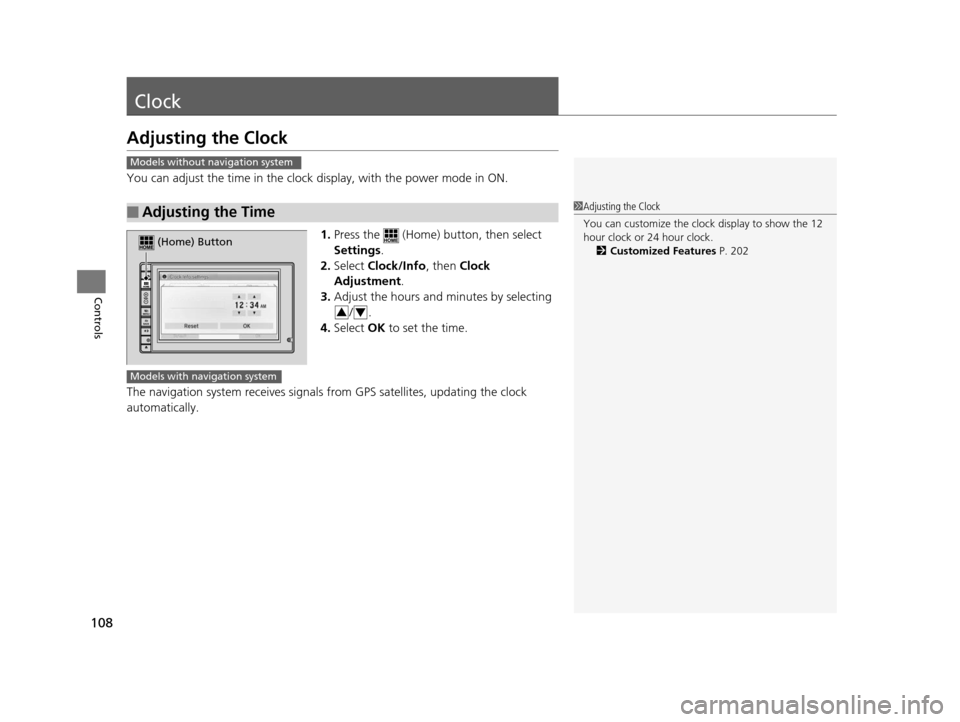

Clock
Adjusting the Clock
You can adjust the time in the clock display, with the power mode in ON.1.Press the (Home) button, then select
Settings .
2. Select Clock/Info , then Clock
Adjustment .
3. Adjust the hours and minutes by selecting
/.
4. Select OK to set the time.
The navigation system receives signals from GPS satellites, updating the clock
automatically.
■Adjusting the Time
Models without navigation system
1 Adjusting the Clock
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 202
(Home) Button
34
Models with navigation system
16 CR-Z-31SZT6500.book 108 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

109Continued
Controls

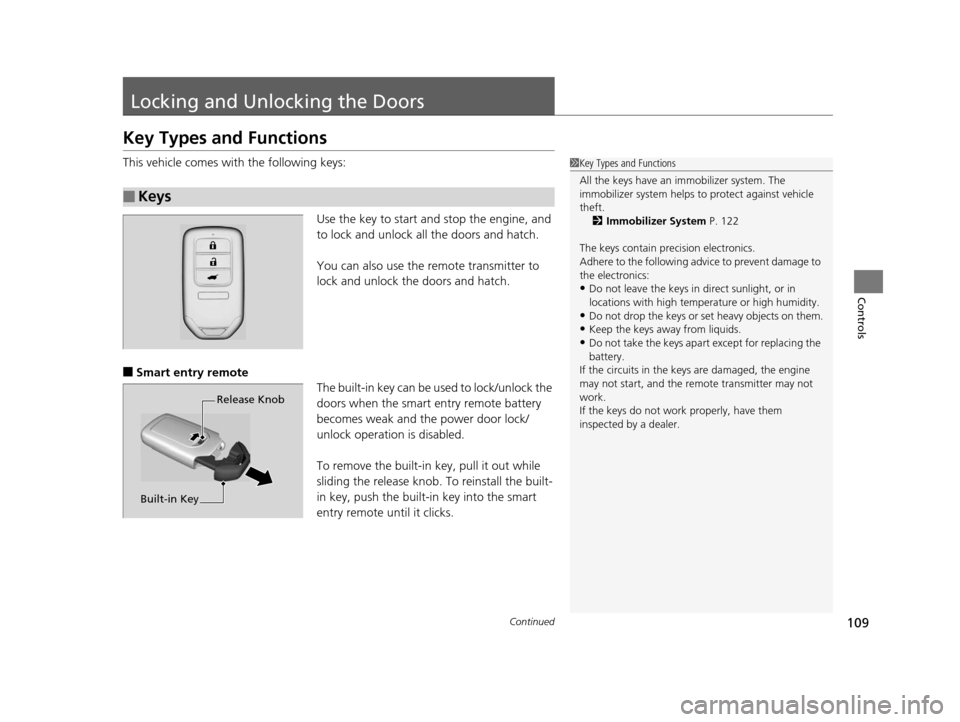

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, and
to lock and unlock all the doors and hatch.
You can also use the remote transmitter to
lock and unlock the doors and hatch.
■Smart entry remote The built-in key can be used to lock/unlock the
doors when the smart entry remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.
■Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 122
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
Release Knob
Built-in Key
