HONDA CROSSTOUR 2012 1.G Owners Manual

µ
Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors. Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last. If additional battery maintenance is
needed, see your dealer or a
qualif ied mechanic.
The location of the test indicator
window varies between
manuf acturers. Check the terminals f or corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it of f with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
f uture corrosion.
CONT INUED
WARNING:
Wash your hands af ter handling.
Checking the Battery
367
TEST INDICATOR WINDOW

Maint enance

2012 Crosstour

Fill the f uel tank.
Wash and dry the exterior
completely.
Clean the interior. Make sure the
carpeting, floor mats, etc., are
completely dry.
If you need to park your vehicle f or
an extended period (more than 1
month), there are several things you
should do to prepare it f or storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
If your vehicle’s battery is
disconnected, or goes dead, the time
setting may be lost. To reset the time,
see page .
If your vehicle’s battery is
disconnected or goes dead, the audio
system may disable itself. The next
time you turn on the radio, you will
see ‘‘ENTER CODE’’ in the
frequency display. Use the preset
buttons to enter the code (see
).
The navigation system will also
disableitself.Thenexttimeyouturn
on the ignition switch, the system
will require you to enter a PIN
bef ore it can be used. Ref er to the
navigation system manual. 240
On models with navigation system
Checking the Battery, Vehicle Storage
Vehicle Storage
368
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
technician do the battery
maintenance.

Maint enancepage 239

2012 Crosstour

Leave the parking brake off. Put
the transmission in Park.
Block the rear wheels.
If the vehicle is to be stored f or a
longer period, it should be
supported on jackstands so the
tires are of f the ground.
Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the battery.Support the f ront and rear wiper
blade arms with a f olded towel or
ragsotheydonottouchthe
windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and tailgate seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and tailgate seals.
Cover the vehicle with a
‘‘breathable’’ cover, one made
f rom a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
If possible, periodically run the
engine until it reaches f ull
operating temperature (the
cooling f ans cycle on and of f
twice). Pref erably, do this once a
month.Vacuum dirt and dust f rom the
leather f requently. Pay close
attention to the pleats and seams.
Clean the leather with a sof t cloth
dampened with a 90% water and 10%
neutral wool detergent solution.
Then buf f it with a clean, dry cloth.
Remove any dust or dirt on leather
surf aces immediately.
EX-L models
Vehicle Storage, Interior Care
Leather
369

Maint enance

2012 Crosstour

370


2012 Crosstour

This section covers the more
common problems that motorists
experience with their vehicles. It
gives you inf ormation about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also f ind instructions
on getting your vehicle towed.......................
Compact Spare Tire .372
....................
Changing a Flat Tire .373
.............
If the Engine Won’t Start . 380
................................
Jump Starting .382
..............
If the Engine Overheats . 384
.........
Low Oil Pressure Indicator . 386
..........
Charging System Indicator . 386
.......
Malf unction Indicator Lamp . 387
...............
Brake System Indicator . 388
Opening the Fuel Fill Door ....................................
Manually .389
..............................................
Fuses .390
..............................
Fuse Locations .394
......................
Emergency Towing .397
Taking Care of the Unexpected
T aking Care of t he Unexpect ed
371


2012 Crosstour

Check the air pressure of the
compact spare tire every time you
check the other tires. It should be
inf lated to:Replace the tire when you can see
the tread wear indicator bars. The
replacement tire should be the same
sizeanddesign,mountedonthe
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed f or mounting a regular tire.
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road
surf aces. Use greater caution
while driving.
Do not mount snow chains on the
compact spare tire. Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Do not place the f lat tire, a f ull size
tire of any kind, or a compact
spare from another vehicle in the
sparetireholder.Damagetothe
holder could result.
The low tire pressure indicator
comes on and stays on af ter you
replace the flat tire with the
compact spare tire. Af ter several
miles (kilometers) driving with the
compact spare tire, the TPMS
indicator comes on and the low
tire pressure indicator goes of f .
Compact Spare Tire
372
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm)

T aking Care of t he Unexpect ed

2012 Crosstour

CONT INUED
If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.Take the jack, tools and the bag
out of the tool kit case.
Park the vehicle on firm, level, and
non-slippery ground. Put the
transmission in Park. Apply the
parking brake. If you are towing a
trailer, unhitch it.
Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire. Open the tailgate. Pull up the
handle on the removable tray.
Then remove the hook, and hook
it to the hole on the cargo side
panel (see page ).
Thetoolsandjackareunderthe
cargo area behind the utility box.
Remove the utility box by lif ting it
up with the handle (see page ).
5. 4. 3.
2. 1. 120
121
Changing a Flat Tire
373
HOOK
JACK
SPARE TIRE
TOOLS REMOVABLE TRAY
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.

T aking Care of t he Unexpect ed

2012 Crosstour

µ

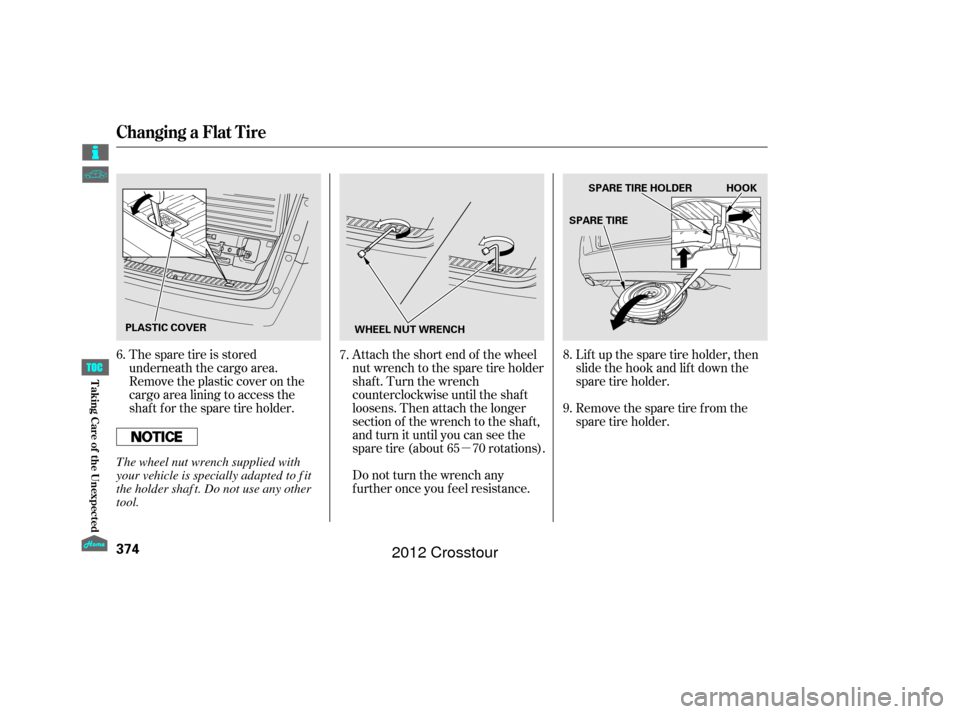

Attach the short end of the wheel
nut wrench to the spare tire holder
shaft. Turn the wrench
counterclockwise until the shaf t
loosens. Then attach the longer
section of the wrench to the shaf t,
andturnituntilyoucanseethe
sparetire(about65 70rotations).
Do not turn the wrench any
f urther once you f eel resistance.
The spare tire is stored
underneath the cargo area.
Remove the plastic cover on the
cargo area lining to access the
shaf t f or the spare tire holder.
Lift up the spare tire holder, then
slide the hook and lif t down the
sparetireholder.
Remove the spare tire from the
sparetireholder.
6.
7.8.
9.
Changing a Flat Tire
374
WHEEL NUT WRENCH SPARE TIRE
PLASTIC COVER SPARE TIRE HOLDER HOOK
The wheel nut wrench supplied with
your vehicle is specially adapted to f it
the holder shaf t. Do not use any other
tool.

T aking Care of t he Unexpect ed

2012 Crosstour

CONT INUED

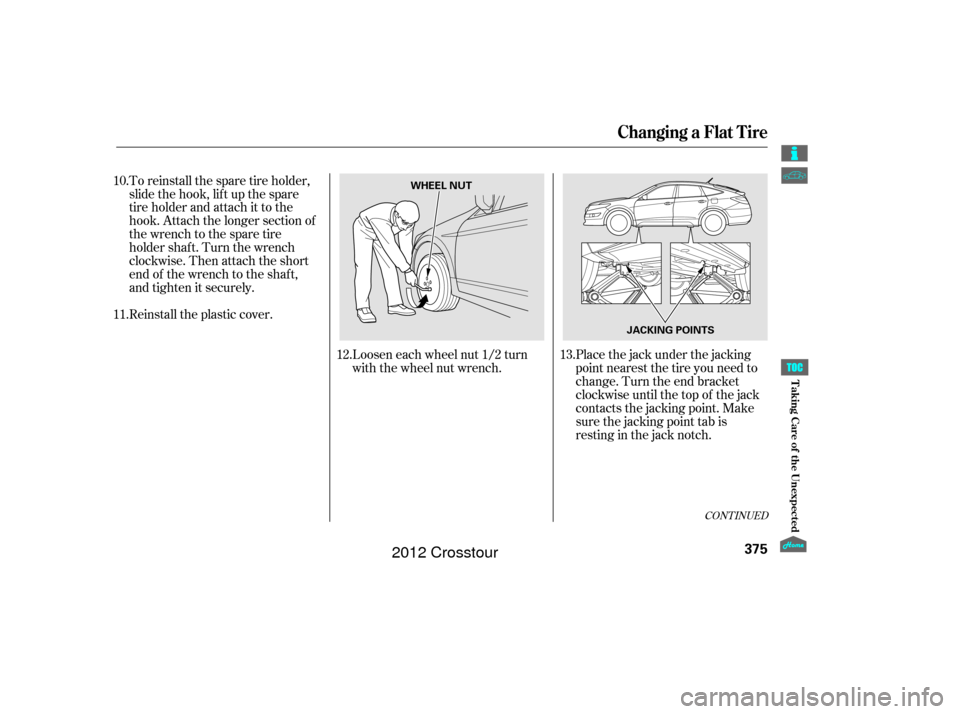

Placethejackunderthejacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
Loosen each wheel nut 1/2 turn
with the wheel nut wrench.
To reinstall the spare tire holder,
slide the hook, lift up the spare
tire holder and attach it to the
hook. Attach the longer section of
the wrench to the spare tire
holder shaft. Turn the wrench
clockwise. Then attach the short
end of the wrench to the shaft,
and tighten it securely.
Reinstall the plastic cover.
11. 10.
12.13.
Changing a Flat Tire
375
WHEEL NUT
JACKING POINTS

T aking Care of t he Unexpect ed

2012 Crosstour

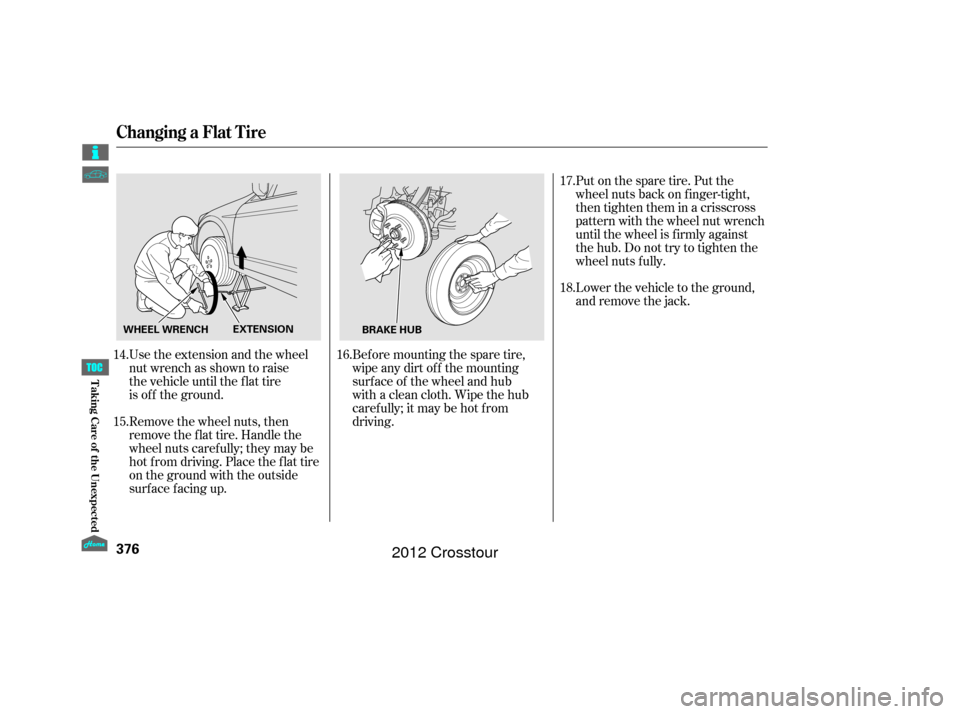

Before mounting the spare tire,
wipe any dirt off the mounting
surface of the wheel and hub
with a clean cloth. Wipe the hub
carefully; it may be hot from
driving.
Use the extension and the wheel
nut wrench as shown to raise
the vehicle until the flat tire
is off the ground.
Remove the wheel nuts, then
remove the f lat tire. Handle the
wheel nuts caref ully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up. Lower the vehicle to the ground,
and remove the jack. Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is f irmly against
the hub. Do not try to tighten the
wheel nuts f ully.
14.
15. 16.17.
18.
Changing a Flat Tire
376
BRAKE HUB
WHEEL WRENCH EXTENSION

T aking Care of t he Unexpect ed

2012 Crosstour
