HONDA CRV 2022 Owners Manual

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (display/information) button to see the mess age
again with the system message indicator on.
MessageConditionExplanation
●Appears if any door or the tailgate is not completely
closed.
●Appears if any door or th e tailgate is opened while
driving. The beeper sounds.
●Disappears when all doors and the tailgate are
closed.
●Appears if there is a problem with the parking sensor
system.
●If there is a problem with any of the sensors, the all
sensor indicator(s) comes on in red.
●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If th e indicator(s) stays on even
after you clean the area, ha ve the system checked by
a dealer.
●Appears if there is a proble m with the acoustic vehicle
alerting system.●Have your vehicle checked by a dealer immediately.
●Appears when the scheduled maintenance is due soon.●Consequently, Maintenance Due Now and
Maintenance Past Due follow.2Maintenance Minder Messages on the Driver
Information Interface P. 583
Models with parking sensor system
22 CR-V HEV ELP-31TPG6200.book 109 ページ ２０２１年６月３０日　水曜日　午前１１時６分

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the shutter grille,
and the radiator coolant temperature is too high.●Power output will be reduced, so you may not be
able to accelerate or maintain your current speed.
Have your vehicle checked by a dealer.
●Appears when there is a problem with the 12-volt
battery charging system.●Have your vehicle checked by a dealer.
●Appears if the automatic brake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the engine coolant temperature gets
abnormally high.
2 Overheating P. 649
●Appears when the engine coolant temperature is near
its upper limit.●Drive slowly to pr event overheating.
22 CR-V HEV ELP-31TPG6200.book 110 ページ ２０２１年６月３０日　水曜日　午前１１時６分

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the cooling system.●Drive slowly to prevent overheating and have your
vehicle checked by a dealer as soon as possible.
●Appears when you set the power mode to ON without
fastening the driver's seat belt.●Fasten the seat belt properly before you start to drive.
●Appears when you try to change the transmission
without depressing the brake pedal.●Depress the brake pedal, then change the
transmission.
●Appears when you try to change the transmission
without releasing your foot off the accelerator pedal.●Release your foot off the accelerator pedal, then
change the transmission.
●Appears when the (P button is pressed while the
vehicle is moving.
●Appears if you put the transmission into (R while the
vehicle is moving forward, or into
(D while the vehicle
is reversing.
●Make sure that the vehicle comes to a stop before
operating the shift button.
(White)
22 CR-V HEV ELP-31TPG6200.book 111 ページ ２０２１年６月３０日　水曜日　午前１１時６分

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the electric system.●Appears when you set the power mode to OFF while
driving.
●Immediately stop in a safe place and set the parking
brake, then restart the power system. If the message
disappears, continue driving.
●Continue driving if the me ssage goes off soon after.●If there is a problem with the transmission system,
the transmission indicator system comes on.
2Transmission System Indicator P. 95
●Appears when the automatic brake hold system is
turned off.
2Automatic Brake Hold P. 555
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 555
●Appears when the automa tic brake hold button is
pressed without de pressing the brake pedal while the
automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 555
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 555
2 Parking Brake P. 551
22 CR-V HEV ELP-31TPG6200.book 112 ページ ２０２１年６月３０日　水曜日　午前１１時６分

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while the
electric parking brake is in operation.●Press the electric parking brake switch with the brake
pedal depressed.
2Parking Brake P. 551
●Appears when the vehicle is no longer able to run due
to a malfunction.●Immediately stop in a safe place.
●Appears when there is a risk that the vehicle will move
unexpectedly after you have stopped due to a
malfunction with the vehicle.●While the vehicle is stopped, apply the parking brake.
2 Parking Brake P. 551●Have your vehicle checked by a dealer.
●Appears as soon as a problem is detected in the keyless
access system or push button starting system.●Appears constantly - Have your vehicle checked by
a dealer.
●Appears when you close the door with the power
mode in ON without the keyless remote inside the
vehicle.●Disappears when you bring the keyless remote back
inside the vehicle and close the door.
2 Keyless Remote Reminder P. 188
22 CR-V HEV ELP-31TPG6200.book 113 ページ ２０２１年６月３０日　水曜日　午前１１時６分

114
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the keyless remote battery becomes
weak.
2 Replacing the Remote Battery P. 617
●Appears when you set the power mode to ACCESSORY
or ON.
2Turning on the Power P. 469
●Appears if you press the POWER button while the
vehicle is moving.
2 Emergency Power System Off P. 646
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2POWER Button P. 186
●Appears if the keyless remote ’s battery is too weak to
turn on the power system or the key is not within
operating range to turn on the power system. The
beeper sounds six times.●Bring the back of the keyl ess remote into contact
with the POWER button.
2If the Keyless Remote Battery is Weak P. 645
22 CR-V HEV ELP-31TPG6200.book 114 ページ ２０２１年６月３０日　水曜日　午前１１時６分

115
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you press and hold (N button for more
than two seconds.●Disappears when you set the shift position to a shift
other than
(N.
2 If you want to keep the transmission in (N
position [car wash mode] P. 481
●Appears when the vehicle is stopped with the driver’s
seat belt unfastened and there is a chance that the
vehicle may roll unintentionally.●Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 479
●Appears when the power system temperature is high.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Park in a safe place, and cool the system down.
2Overheating P. 649
●Appears when the High Volt age battery temperature is
low.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Goes off once you start dr iving as the High Voltage
battery warms up.
●Appears after the 12-volt battery charging system
indicator comes on.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Contact a dealer immediately.
●Appears when the High Volt age battery temperature is
too low to operate (approx. -22°F [-30°C] or below).●You can start the engine and use the climate control
system to warm up the interior, which will also warm
the High Voltage battery en ough for you to drive the
vehicle.
22 CR-V HEV ELP-31TPG6200.book 115 ページ ２０２１年６月３０日　水曜日　午前１１時６分

116
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the High Voltage battery and other
system control temperatures are too low to operate
(approx. -40°F [-40°C] or below).●You must wait for an increase in the ambient
temperature or move the vehicle to a warmer
location.
●Consult a dealer if necessary.
●Appears if the power system is in diagnostic mode.●You may notice a decrease in available power. Have
your vehicle checked by a dealer.
●As a result of diagnostics, the power system indicator
may come on.
2 Power System Indicator P. 93
●Appears when you have met following situations and
EV mode is canceled.
-Battery Temperature At Limit.
- Battery Charge Too Low.
- Engine Too Cold.
- Cabin Being Heated.
- Speed Too High.
- Hard Acceleration Requested.●EV mode is available once the condition is improved
or the cause that canceled EV mode is cleared.
●Appears when you depress the accelerator pedal while
the shift position is in
(N.
●Remove your foot off the accelerator pedal. When
driving, depress the brake pedal and operate the shift
position.
22 CR-V HEV ELP-31TPG6200.book 116 ページ ２０２１年６月３０日　水曜日　午前１１時６分

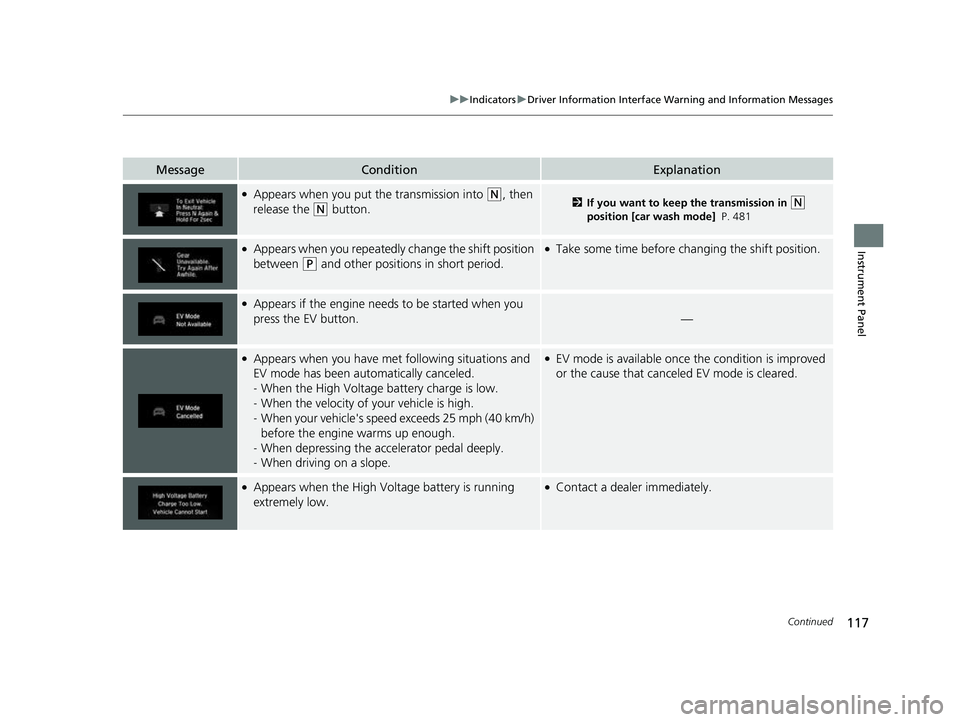

117
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you put the transmission into (N, then
release the
(N button.2 If you want to keep the transmission in (N
position [car wash mode] P. 481
●Appears when you repeatedly change the shift position
between
(P and other positions in short period.
●Take some time before chan ging the shift position.
●Appears if the engine needs to be started when you
press the EV button.
—
●Appears when you have met following situations and
EV mode has been automatically canceled.
-When the High Voltage battery charge is low.
- When the velocity of your vehicle is high.
- When your vehicle's speed exceeds 25 mph (40 km/h)
before the engine warms up enough.
- When depressing the accelerator pedal deeply.
- When driving on a slope.●EV mode is availa ble once the condition is improved
or the cause that canceled EV mode is cleared.
●Appears when the High Voltage battery is running
extremely low.●Contact a dealer immediately.
22 CR-V HEV ELP-31TPG6200.book 117 ページ ２０２１年６月３０日　水曜日　午前１１時６分

118
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the automatic
lighting control system.●Appears while driving - Manually turn the lights
on, and have your vehicl e checked by a dealer.
●Appears if there is a problem with the headlights.●Appears while driving - The headlights may not be
on.
When conditions allow you to drive safely, have your
vehicle checked by a dealer as soon as possible.
●Appears when you unlock and open the driver’s door
while the power system is on by remote engine start.
2 Remote Engine Start P. 471
●Appears if the vehicle is being driven in a manner
consistent with drowsy or inattentive driving.
2Driver Attention Monitor P. 135
●Appears when ACC with Lo w Speed Follow has been
automatically canceled.●You can resume the set speed after the condition
that caused ACC with Low Speed Follow to cancel
improves. Press the RES/+ button.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
22 CR-V HEV ELP-31TPG6200.book 118 ページ ２０２１年６月３０日　水曜日　午前１１時６分
