HONDA CRV 2022 Owners Manual

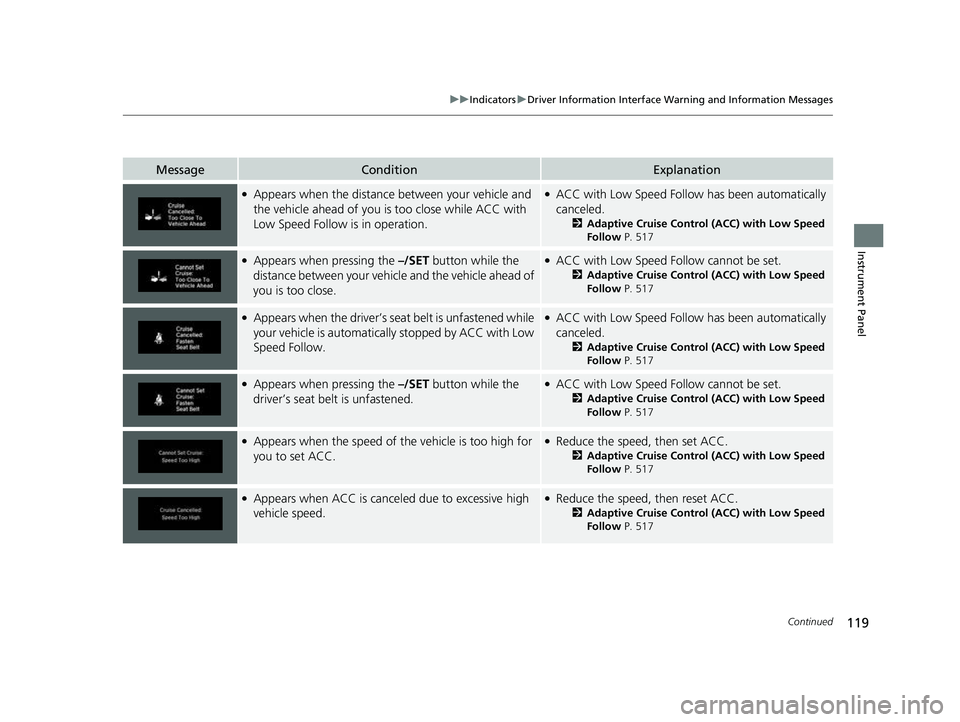

119
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with
Low Speed Follow is in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
●Appears when pressing the –/SET button while the
distance between your vehicle and the vehicle ahead of
you is too close.●ACC with Low Speed Fo llow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
●Appears when the driver’s seat belt is unfastened while
your vehicle is automatica lly stopped by ACC with Low
Speed Follow.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC with Low Speed Fo llow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
●Appears when the speed of th e vehicle is too high for
you to set ACC.●Reduce the speed, then set ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
●Appears when ACC is cancel ed due to excessive high
vehicle speed.●Reduce the speed, then reset ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
22 CR-V HEV ELP-31TPG6200.book 119 ページ ２０２１年６月３０日　水曜日　午前１１時６分

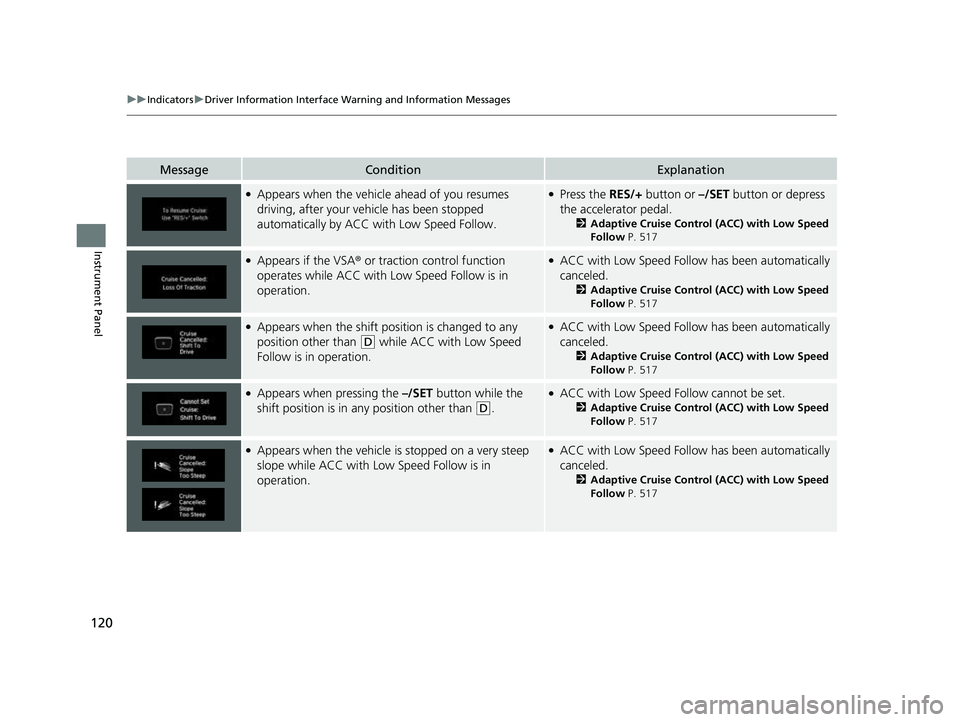

120
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle ahead of you resumes
driving, after your vehicle has been stopped
automatically by ACC with Low Speed Follow.●Press the RES/+ button or –/SET button or depress
the accelerator pedal.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
●Appears if the VSA ® or traction control function
operates while ACC with Low Speed Follow is in
operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
●Appears when the shift position is changed to any
position other than
(D while ACC with Low Speed
Follow is in operation.
●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
●Appears when pressing the –/SET button while the
shift position is in any position other than
(D.
●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
●Appears when the vehicle is stopped on a very steep
slope while ACC with Low Speed Follow is in
operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
22 CR-V HEV ELP-31TPG6200.book 120 ページ ２０２１年６月３０日　水曜日　午前１１時６分

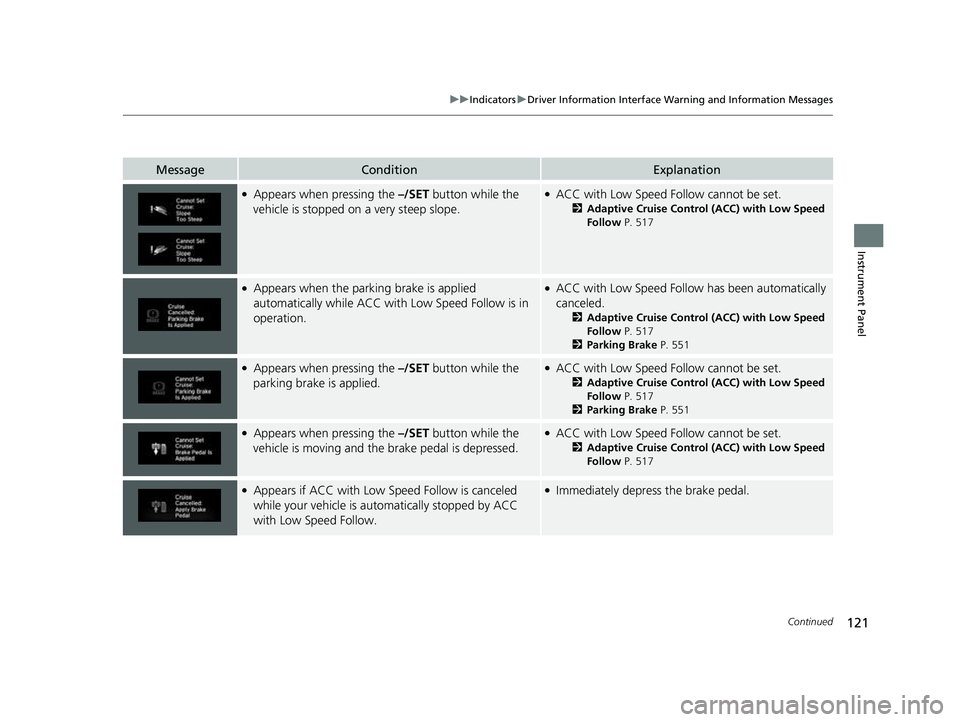

121
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC with Low Speed Fo llow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
●Appears when the parking brake is applied
automatically while ACC with Low Speed Follow is in
operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
2 Parking Brake P. 551
●Appears when pressing the –/SET button while the
parking brake is applied.●ACC with Low Speed Fo llow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
2 Parking Brake P. 551
●Appears when pressing the –/SET button while the
vehicle is moving and th e brake pedal is depressed.●ACC with Low Speed Fo llow cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
●Appears if ACC with Low Speed Follow is canceled
while your vehicle is au tomatically stopped by ACC
with Low Speed Follow.●Immediately depress the brake pedal.
22 CR-V HEV ELP-31TPG6200.book 121 ページ ２０２１年６月３０日　水曜日　午前１１時６分

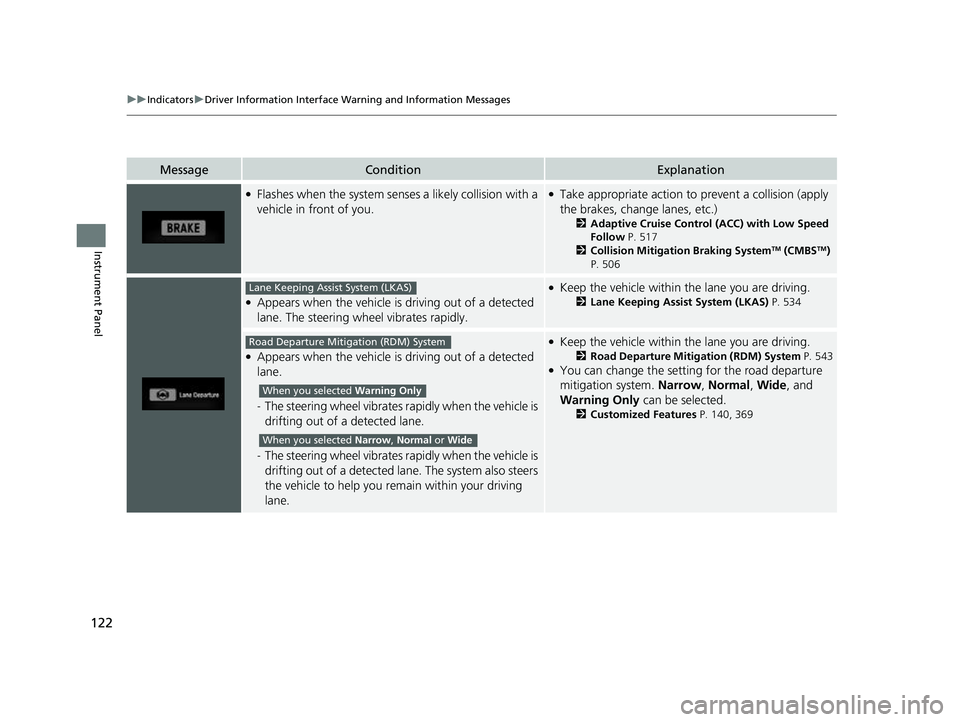

122
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Flashes when the system senses a likely collision with a
vehicle in front of you.●Take appropriate action to prevent a collision (apply
the brakes, change lanes, etc.)
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 517
2 Collision Mitigation Braking System
TM (CMBSTM)
P. 506
●Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2 Lane Keeping Assist System (LKAS) P. 534
●Appears when the vehicle is driving out of a detected
lane.
-The steering wheel vibrates ra pidly when the vehicle is
drifting out of a detected lane.
- The steering wheel vibrates ra pidly when the vehicle is
drifting out of a detected lane. The system also steers
the vehicle to help you remain within your driving
lane.
●Keep the vehicle within the lane you are driving.
2 Road Departure Mitigation (RDM) System P. 543●You can change the setting for the road departure
mitigation system. Narrow, Normal, Wide , and
Warning Only can be selected.
2Customized Features P. 140, 369
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow , Normal or Wide
22 CR-V HEV ELP-31TPG6200.book 122 ページ ２０２１年６月３０日　水曜日　午前１１時６分

123
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is likely to drive out of a
detected lane.
The RDM system also steers the vehicle to help you
remain within your driving lane.—
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering whee l to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a system
related to the LKAS. The LKAS cancels automatically.
The beeper sounds simultan eously if selected by
customization.●If any other system indicato rs come on, such as the
VSA ®, ABS and brake system, take appropriate
action.
2 Indicators P. 90
●Appears if anything covers the radar sensor cover and
prevents the sensor from detecting a vehicle in front.
●May appear when driving in bad weather (rain, snow,
fog, etc.)
●When the radar sensor gets dirty, stop your vehicle in
a safe place, and wipe off dirt using a soft cloth. The
message may take some time to go off.
●Have your vehicle checked by a dealer if the message
does not disappear even af ter you clean the sensor
cover.
2 Radar Sensor P. 550
2 Honda Sensing® P. 503
Road Departure Mitigation (RDM) System
When you selected Narrow
22 CR-V HEV ELP-31TPG6200.book 123 ページ ２０２１年６月３０日　水曜日　午前１１時６分

124
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.●Use the climate control system to cool down the
camera.
●Disappears - The camera has been cooled down
and the systems are activated normally.
2 Front Sensor Camera P. 548
2 Honda Sensing ® P. 503
●Appears if the area around the front sensor camera is
blocked by dirt, mud, etc. and be prevented from
detecting a vehicle in front.
●May appear when driving in bad weather (rain, snow,
fog, etc.)
●When the front window gets dirty, stop your vehicle
in a safe place, and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even a fter you cleaned the area
around the camera.
2 Front Sensor Camera P. 548
2 Honda Sensing ® P. 503
●Appears if there is a proble m with the auto high-beam.●Manually operate the headlight switch.●If you are driving with the high beam headlights
when this happens, the headlights are changed to
low beams.
22 CR-V HEV ELP-31TPG6200.book 124 ページ ２０２１年６月３０日　水曜日　午前１１時６分

125
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the real time AWD
with intelligent control systemTM.
●The engine drives the front wheels only in this state.
Have your vehicle checked by a dealer.
●Appears when the differential temperature is too high.●Stop in a safe place, change to (P, and idle the
engine until the message disappears. If the message
does not disappear, have your vehicle checked by a
dealer.
2 Real Time AWD with Intelligent Control
SystemTM P. 492
MessageConditionExplanation
●Appears when there is a problem with the power
tailgate system.●Manually open or close the power tailgate.●Have your vehicle checked by a dealer.
MessageConditionExplanation
●Appears while you are custom izing the settings and the
shift position changed out of
(P.2 Customized Features P. 140
Models with power tailgate
Models with color audio system
22 CR-V HEV ELP-31TPG6200.book 125 ページ ２０２１年６月３０日　水曜日　午前１１時６分

126
Instrument Panel
Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, fuel gauge, and other related indicators. They are
displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
Displays the amount of fuel left in the fuel tank.
■Electric motor
The degree to which the electric motor is being powered is displayed by the readings
on the POWER side.
■Battery charge in progress
The degree to which the High Voltage battery is being charged is displayed by the
readings on the CHARGE side.
■Speedometer
■Fuel Gauge
■POWER/CHARGE Gauge
1Gauges
Press the (display /information) button
repeatedly until the icon is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
and km/h.
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
22 CR-V HEV ELP-31TPG6200.book 126 ページ ２０２１年６月３０日　水曜日　午前１１時６分

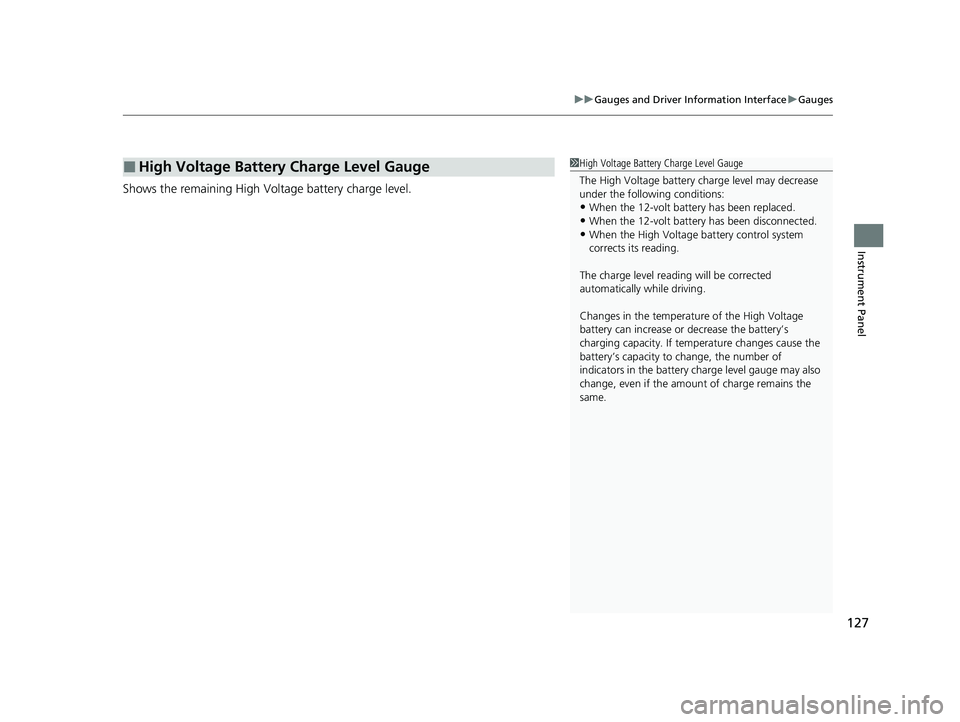

127
uuGauges and Driver Information Interface uGauges
Instrument Panel
Shows the remaining High Voltage battery charge level.
■High Voltage Battery Charge Level Gauge1High Voltage Battery Charge Level Gauge
The High Voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt battery has been replaced.
•When the 12-volt battery has been disconnected.•When the High Voltage battery control system
corrects its reading.
The charge level reading will be corrected
automatically while driving.
Changes in the temperature of the High Voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charge remains the
same.
22 CR-V HEV ELP-31TPG6200.book 127 ページ ２０２１年６月３０日　水曜日　午前１１時６分

128
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Driver Information Interface
The driver information interface shows in formation such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
■Main displays
Press the (display/information) button, and then press or to change the
display. Press ENTER to see detailed information.
■Switching the Display
(Display/
Information)
Button
Press , or .
Press ENTER . Eco Drive
Display
Audio
*Phone*
Speed Unit & Disp OFF
Warning
Messages Average
Fuel
Economy Records
Driver
Attention Monitor
Range &
Fuel Average
Speed &
Elapsed Time Navigation*
& Compass*
Customize*
Power Flow Monitor
AWD Torque Distribution Monito r
Main
tenance
MinderTM
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 128 ページ ２０２１年６月３０日　水曜日　午前１１時６分
