HONDA CRV 2022 Owners Manual

229
uuInterior Convenience Items uOther Interior Convenience Items
Continued
Controls
Other Interior Convenience Items

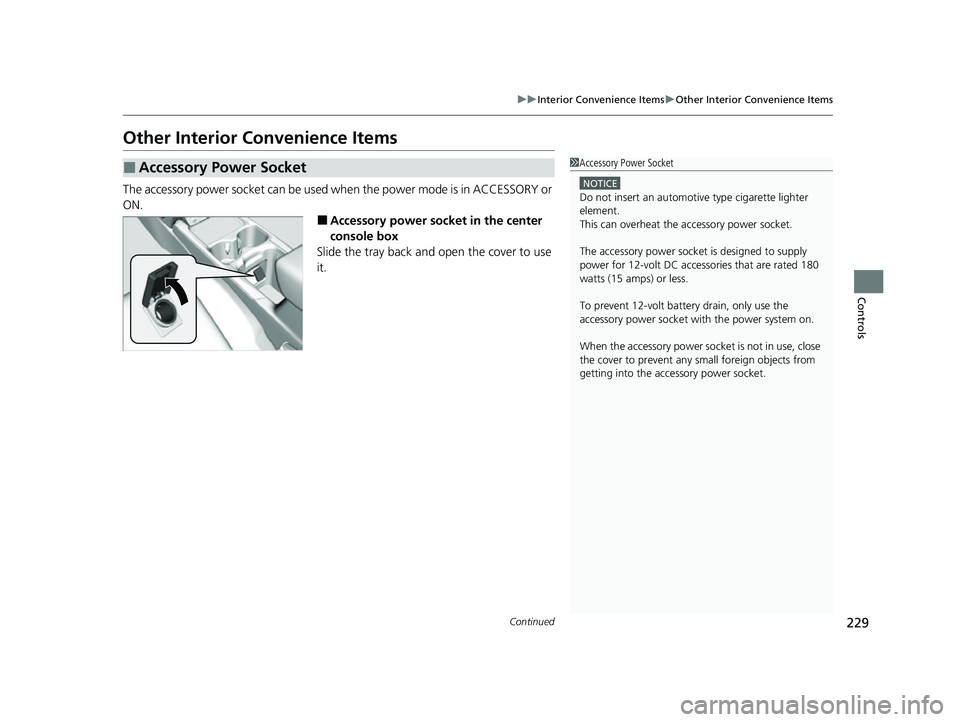

The accessory power socket can be used when the power mode is in ACCESSORY or
ON.
■Accessory power socket in the center
console box
Slide the tray back and open the cover to use
it.
■Accessory Power Socket1 Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the accessory power socket.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent 12-volt batte ry drain, only use the
accessory power socket with the power system on.
When the accessory power soc ket is not in use, close
the cover to prevent any small foreign objects from
getting into the accessory power socket.
22 CR-V HEV ELP-31TPG6200.book 229 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuInterior Convenience Items uOther Interior Convenience Items
230
Controls

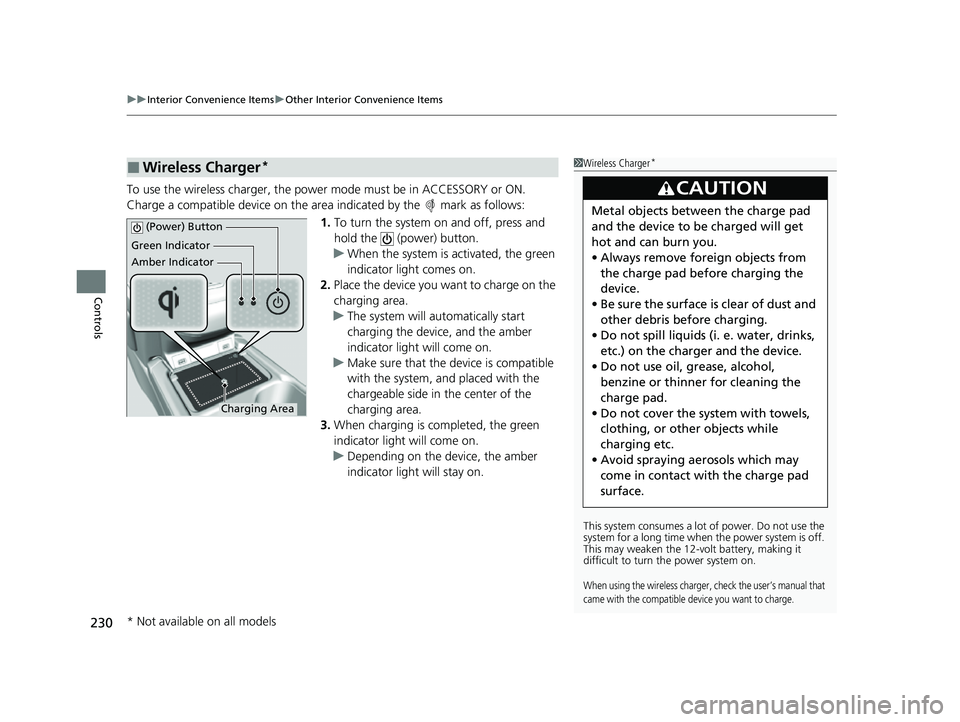

To use the wireless charger, the powe r mode must be in ACCESSORY or ON.
Charge a compatible device on the ar ea indicated by the mark as follows:
1. To turn the system on and off, press and
hold the (power) button.
u When the system is activated, the green
indicator light comes on.
2. Place the device you want to charge on the
charging area.
u The system will automatically start
charging the device, and the amber
indicator light will come on.
u Make sure that the device is compatible
with the system, a nd placed with the
chargeable side in the center of the
charging area.
3. When charging is completed, the green
indicator light will come on.
u Depending on the device, the amber
indicator light will stay on.
■Wireless Charger*1Wireless Charger*
This system consumes a lot of power. Do not use the
system for a long time when the power system is off.
This may weaken the 12-v olt battery, making it
difficult to turn the power system on.
When using the wireless charger, check the user’s manual that
came with the compatible device you want to charge.
3CAUTION
Metal objects between the charge pad
and the device to be charged will get
hot and can burn you.
• Always remove foreign objects from
the charge pad before charging the
device.
• Be sure the surface is clear of dust and
other debris before charging.
• Do not spill liquids (i. e. water, drinks,
etc.) on the charge r and the device.
• Do not use oil, grease, alcohol,
benzine or thinner for cleaning the
charge pad.
• Do not cover the system with towels,
clothing, or other objects while
charging etc.
• Avoid spraying aerosols which may
come in contact with the charge pad
surface.
Green Indicator
Amber Indicator
Charging Area
(Power) Button
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 230 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued231
uuInterior Convenience Items uOther Interior Convenience Items
Controls

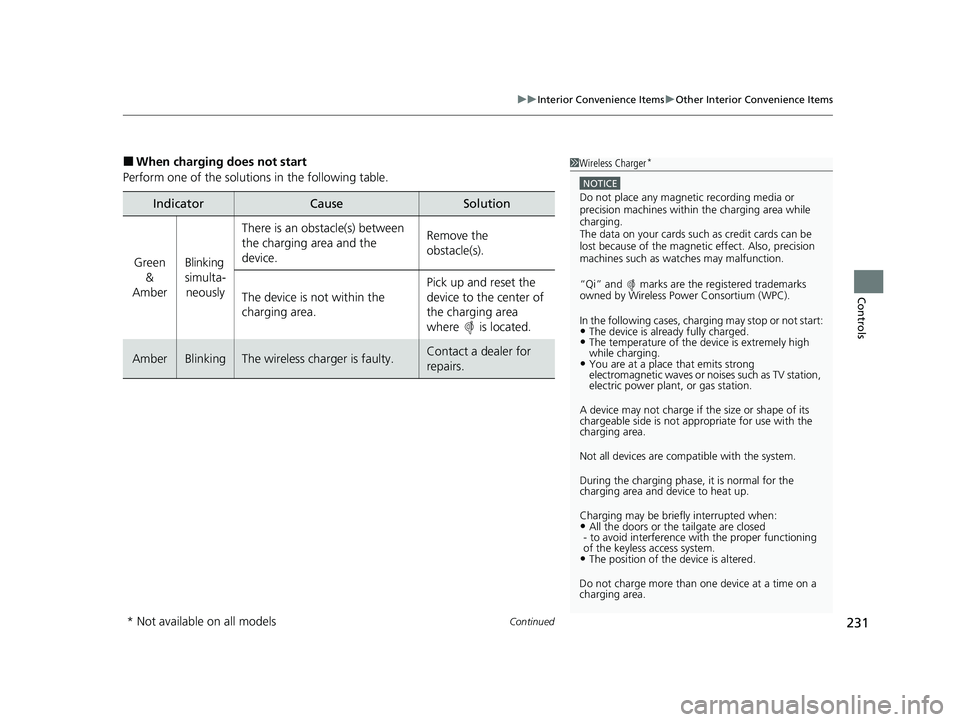

■When charging does not start
Perform one of the solutions in the following table.
IndicatorCauseSolution
Green &
AmberBlinking
simulta- neously
There is an obstacle(s) between
the charging area and the
device.Remove the
obstacle(s).
The device is not within the
charging area. Pick up and reset the
device to the center of
the charging area
where is located.
AmberBlinkingThe wireless charger is faulty.Contact a dealer for
repairs.
1
Wireless Charger*
NOTICE
Do not place any magneti c recording media or
precision machines within the charging area while
chargingM
The data on your cards such as credit cards can be
lost because of the magneti c effect. Also, precision
machines such as watches may malfunctionM

uuInterior Convenience Items uOther Interior Convenience Items
232
Controls

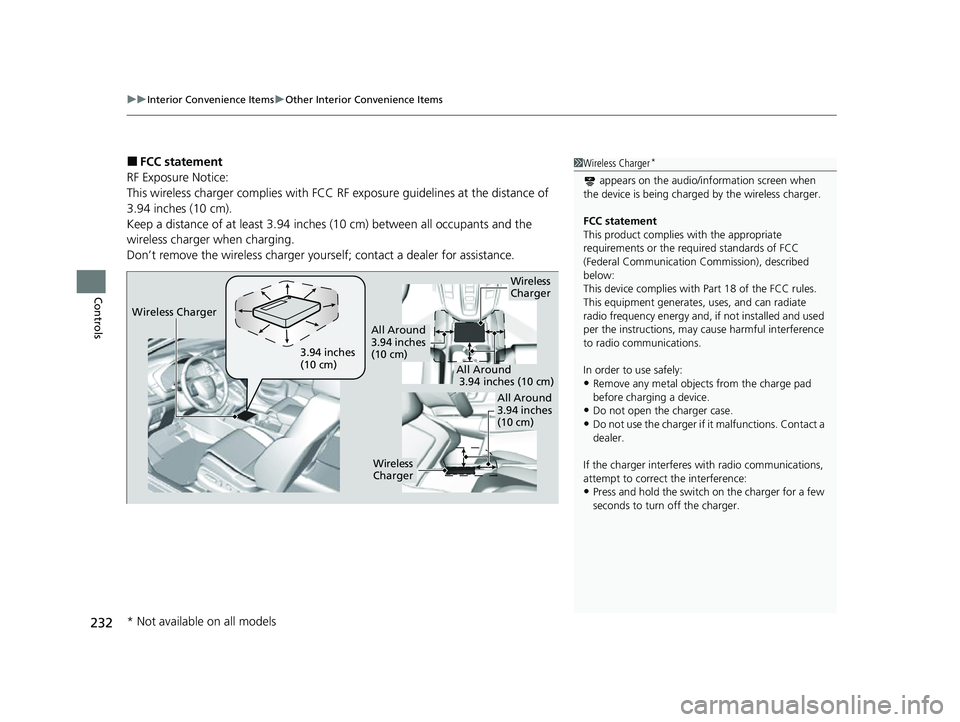

■FCC statement
RF Exposure Notice:
This wireless charger complies with FCC RF exposure guidelines at the distance of
3.94 inches (10 cm).
Keep a distance of at least 3.94 inches (10 cm) between all occupants and the
wireless charger when charging.
Don’t remove the wireless charger yourse lf; contact a dealer for assistance.1Wireless Charger*
appears on the audio/information screen when
the device is being charge d by the wireless charger.
FCC statement
This product complies with the appropriate
requirements or the requ ired standards of FCC
(Federal Communication Commission), described
below:
This device complies with Part 18 of the FCC rules.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used
per the instructions, may cause harmful interference
to radio communications.
In order to use safely:
•Remove any metal objects from the charge pad
before charging a device.
•Do not open the charger case.
•Do not use the charger if it malfunctions. Contact a
dealer.
If the charger interferes with radio communications,
attempt to correct the interference:
•Press and hold the switch on the charger for a few
seconds to turn off the charger.
Wireless
Charger
3.94 inches
(10 cm)
All Around
3.94 inches
(10 cm)
All Around
3.94 inches (10 cm)
All Around
3.94 inches
(10 cm)
Wireless
Charger
Wireless Charger
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 232 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued233
uuInterior Convenience Items uOther Interior Convenience Items
Controls

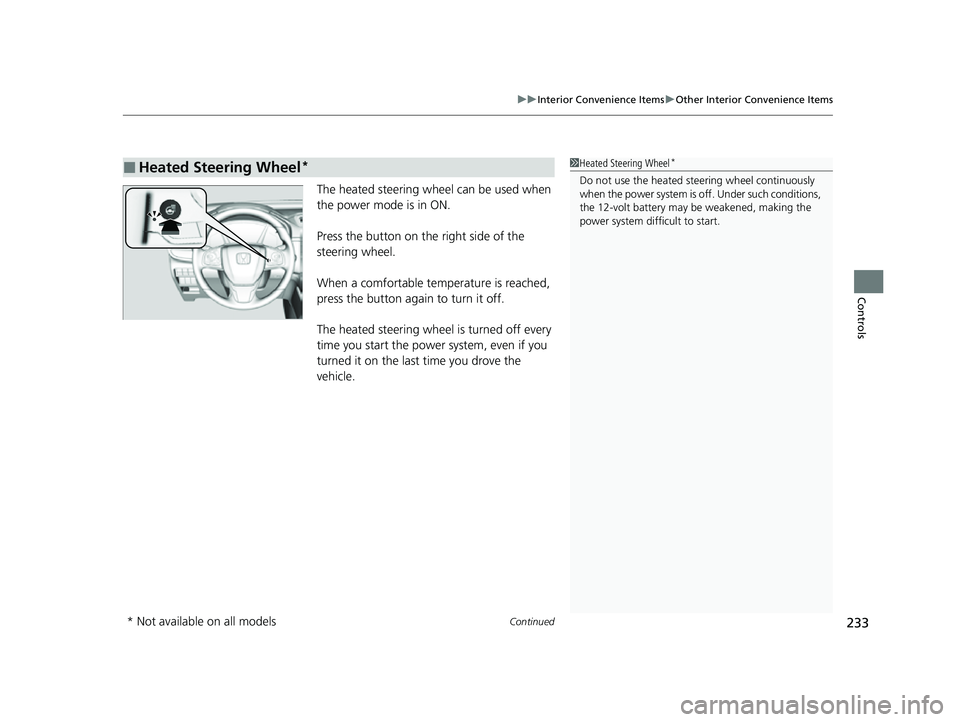

The heated steering wheel can be used when
the power mode is in ON.
Press the button on the right side of the
steering wheel.
When a comfortable temp erature is reached,
press the button again to turn it off.
The heated steering wheel is turned off every
time you start the power system, even if you
turned it on the last time you drove the
vehicle.
■Heated Steering Wheel*1 Heated Steering Wheel*
Do not use the heated st eering wheel continuously
when the power system is off. Under such conditions,
the 12-volt battery may be weakened, making the
power system difficult to start.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 233 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuInterior Convenience Items uOther Interior Convenience Items
234
Controls

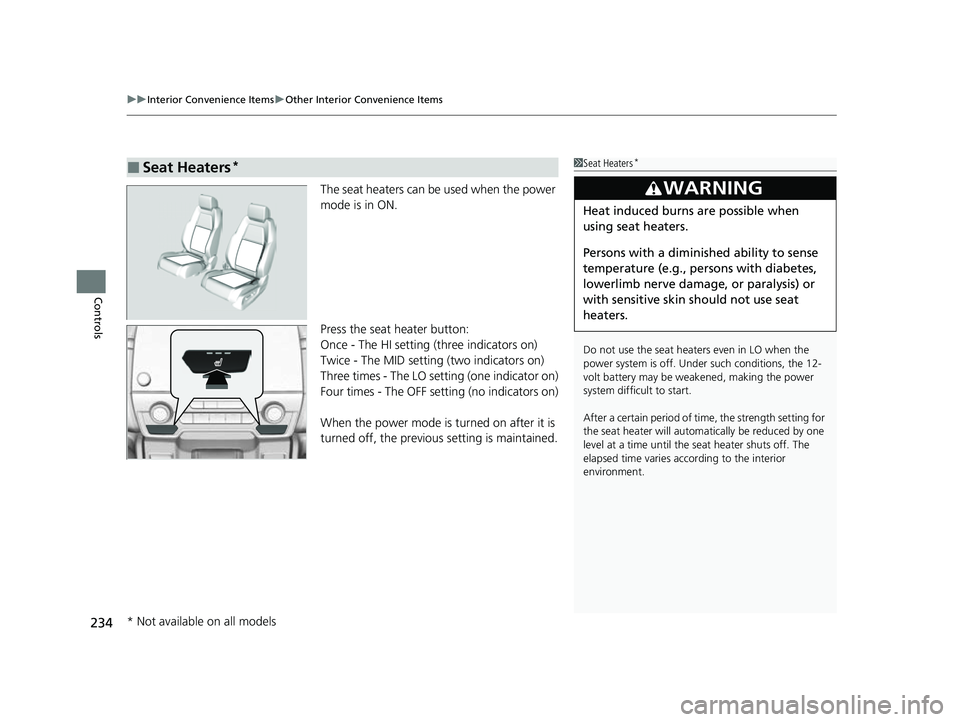

The seat heaters can be used when the power
mode is in ON.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
When the power mode is turned on after it is
turned off, the previous setting is maintained.
■Seat Heaters*1Seat Heaters*
Do not use the seat heaters even in LO when the
power system is off. U nder such conditions, the 12-
volt battery may be weakened, making the power
system difficult to start.
After a certain period of time, the strength setting for
the seat heater will automatically be reduced by one
level at a time until the seat heater shuts off. The
elapsed time varies according to the interior
environment.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lowerlimb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 234 ページ ２０２１年６月３０日　水曜日　午前１１時６分

235Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Temperature Control Dial Fan Control Dial
(Windshield Defroster) Button
(Fresh Air) Button
(ON/OFF) Button
(Recirculation) Button
AUTO Button
Air flows from
dashboard
vents, and
back of the
center
console. Air flows from
floor and
dashboard
vents, and
back of the
center
console.Air flows from
floor vents.
Air flows from
floor and
windshield
defroster
vents.
Models without SYNC button
A/C
(Air Conditioning) Button
22 CR-V HEV ELP-31TPG6200.book 235 ページ ２０２１年６月３０日　水曜日　午前１１時６分

236
uuClimate Control System uUsing Automatic Climate Control
Controls

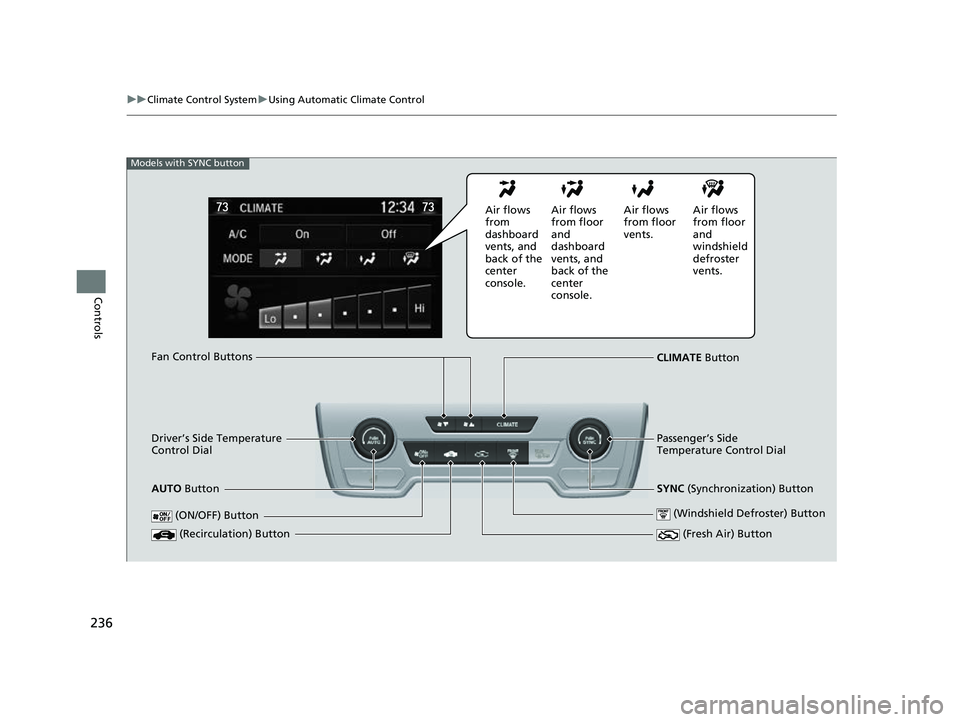

Driver’s Side Temperature
Control Dial Fan Control Buttons
CLIMATE Button
Passenger’s Side
Temperature Control Dial
SYNC (Synchronization) Button
(Windshield Defroster) Button
(Fresh Air) Button
(ON/OFF) Button
(Recirculation) Button
AUTO Button
Models with SYNC button
Air flows
from
dashboard
vents, and
back of the
center
console. Air flows
from floor
and
dashboard
vents, and
back of the
center
console. Air flows
from floor
vents.
Air flows
from floor
and
windshield
defroster
vents.
22 CR-V HEV ELP-31TPG6200.book 236 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued237
uuClimate Control System uUsing Automatic Climate Control
Controls
Use the system when the power system is on.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
dial.
3. Press the (ON/OFF) button to cancel.1Using Automatic Climate Control
Press the CLIMATE button to display A/C, MODE, and
fan control information on th e audio/information screen
to operate manually. Select icon to turn
On or Off A/C,
change the vent mode, or change the fan speed.
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button that were pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
Models with SYNC button
All models
Models without SYNC button
Models with SYNC button
All models
22 CR-V HEV ELP-31TPG6200.book 237 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuClimate Control System uUsing Automatic Climate Control
238
Controls

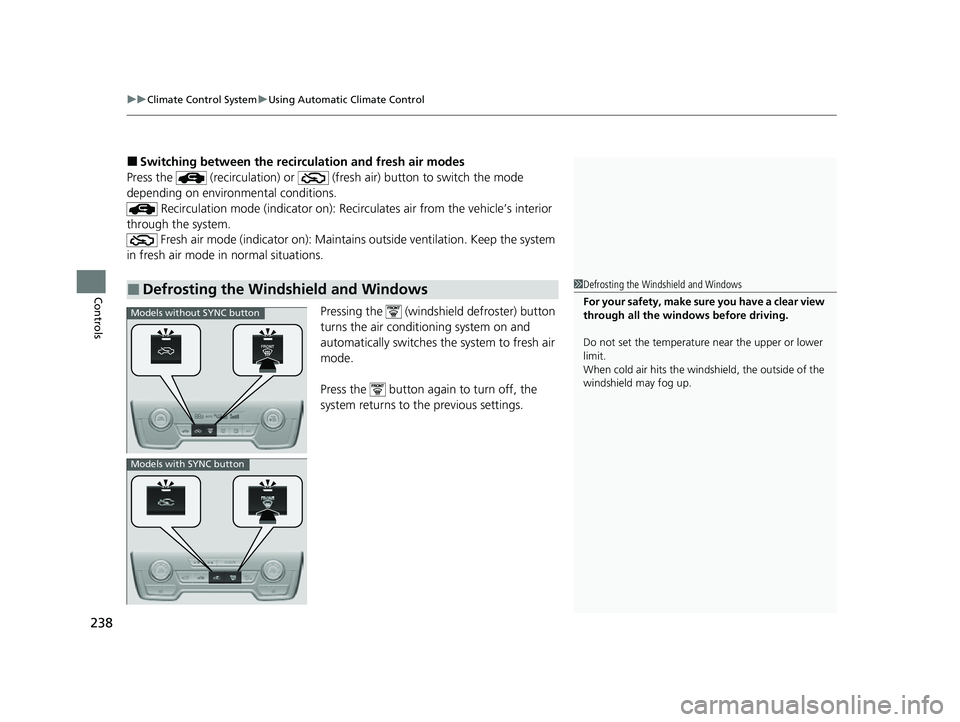

■Switching between the recirc ulation and fresh air modes
Press the (recirculation) or (fre sh air) button to switch the mode
depending on environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle’s interior
through the system. Fresh air mode (indicator on): Maintains outside ventilation. Keep the system
in fresh air mode in normal situations.
Pressing the (windshield defroster) button
turns the air conditioning system on and
automatically switches the system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
Models without SYNC button
Models with SYNC button
22 CR-V HEV ELP-31TPG6200.book 238 ページ ２０２１年６月３０日　水曜日　午前１１時６分
