sensor HONDA CRV 2022 Owner's Manual

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (display/information) button to see the mess age
again with the system message indicator on.
MessageConditionExplanation
●Appears if any door or the tailgate is not completely
closed.
●Appears if any door or th e tailgate is opened while
driving. The beeper sounds.
●Disappears when all doors and the tailgate are
closed.
●Appears if there is a problem with the parking sensor
system.
●If there is a problem with any of the sensors, the all
sensor indicator(s) comes on in red.
●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If th e indicator(s) stays on even
after you clean the area, ha ve the system checked by
a dealer.
●Appears if there is a proble m with the acoustic vehicle
alerting system.●Have your vehicle checked by a dealer immediately.
●Appears when the scheduled maintenance is due soon.●Consequently, Maintenance Due Now and
Maintenance Past Due follow.2Maintenance Minder Messages on the Driver
Information Interface P. 583
Models with parking sensor system
22 CR-V HEV ELP-31TPG6200.book 109 ページ ２０２１年６月３０日　水曜日　午前１１時６分

123
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is likely to drive out of a
detected lane.
The RDM system also steers the vehicle to help you
remain within your driving lane.—
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering whee l to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a system
related to the LKAS. The LKAS cancels automatically.
The beeper sounds simultan eously if selected by
customization.●If any other system indicato rs come on, such as the
VSA ®, ABS and brake system, take appropriate
action.
2 Indicators P. 90
●Appears if anything covers the radar sensor cover and
prevents the sensor from detecting a vehicle in front.
●May appear when driving in bad weather (rain, snow,
fog, etc.)
●When the radar sensor gets dirty, stop your vehicle in
a safe place, and wipe off dirt using a soft cloth. The
message may take some time to go off.
●Have your vehicle checked by a dealer if the message
does not disappear even af ter you clean the sensor
cover.
2 Radar Sensor P. 550
2 Honda Sensing® P. 503
Road Departure Mitigation (RDM) System
When you selected Narrow
22 CR-V HEV ELP-31TPG6200.book 123 ページ ２０２１年６月３０日　水曜日　午前１１時６分

124
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation

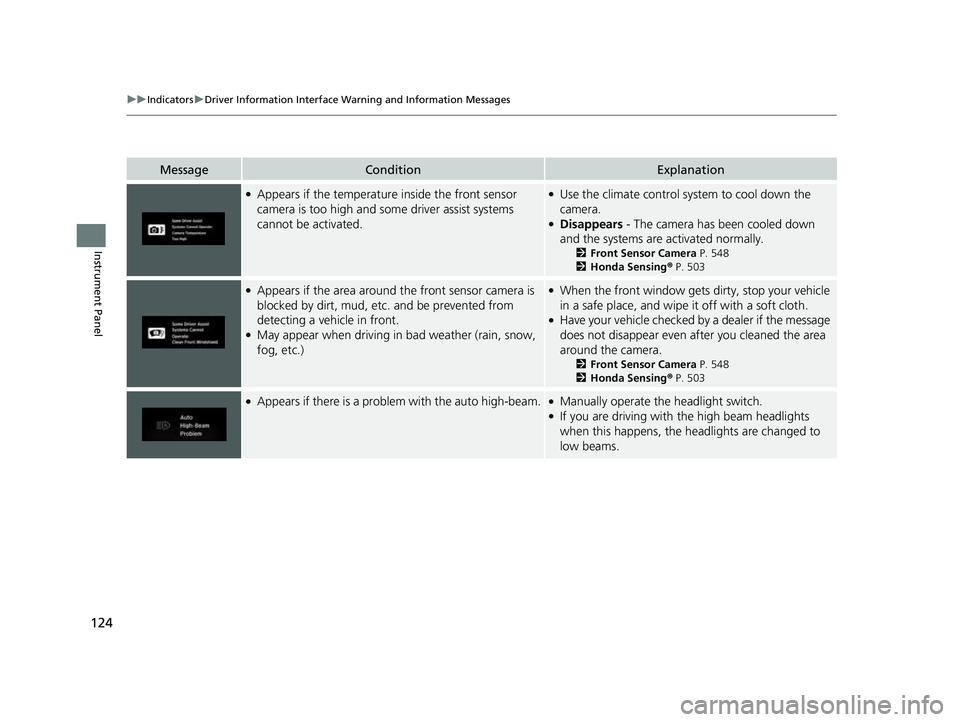

●Appears if the temperature inside the front sensor
camera is too high and some driver assist systems
cannot be activated.●Use the climate control system to cool down the
camera.
●Disappears - The camera has been cooled down
and the systems are activated normally.
2 Front Sensor Camera P. 548
2 Honda Sensing ® P. 503
●Appears if the area around the front sensor camera is
blocked by dirt, mud, etc. and be prevented from
detecting a vehicle in front.
●May appear when driving in bad weather (rain, snow,
fog, etc.)
●When the front window gets dirty, stop your vehicle
in a safe place, and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even a fter you cleaned the area
around the camera.
2 Front Sensor Camera P. 548
2 Honda Sensing ® P. 503
●Appears if there is a proble m with the auto high-beam.●Manually operate the headlight switch.●If you are driving with the high beam headlights
when this happens, the headlights are changed to
low beams.
22 CR-V HEV ELP-31TPG6200.book 124 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuGauges and Driver Information Interface uDriver Information Interface
138
Instrument Panel

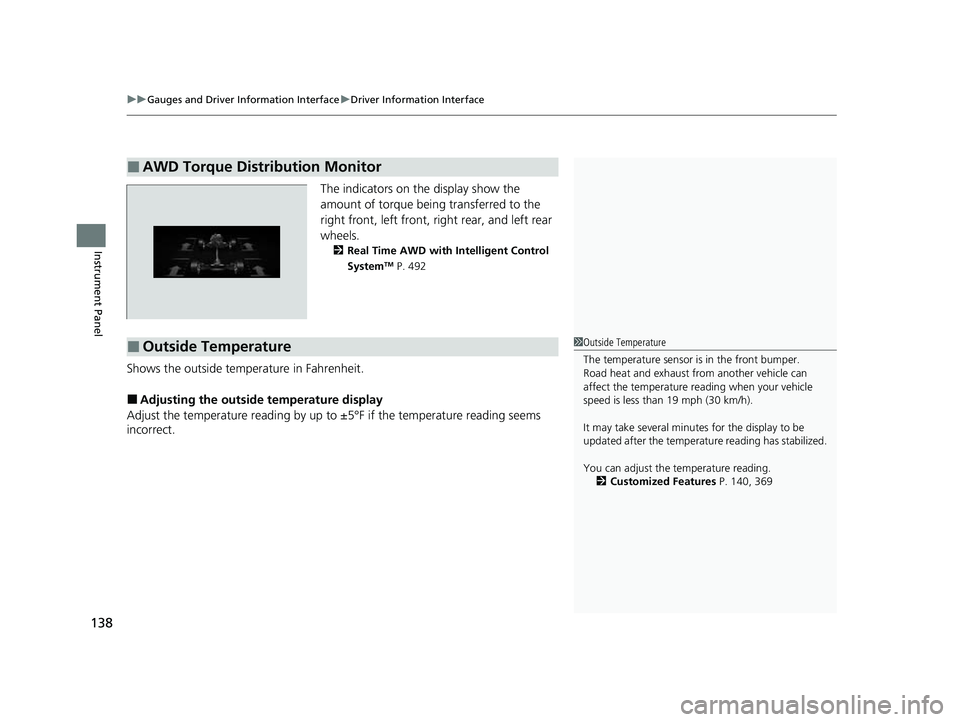

The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2 Real Time AWD with Intelligent Control
SystemTM P. 492
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature display
Adjust the temperature read ing by up to ±5°F if the temperature reading seems
incorrect.
■AWD Torque Distribution Monitor
■Outside Temperature1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
You can adjust the temperature reading.
2 Customized Features P. 140, 369
22 CR-V HEV ELP-31TPG6200.book 138 ページ ２０２１年６月３０日　水曜日　午前１１時６分

149
Controls

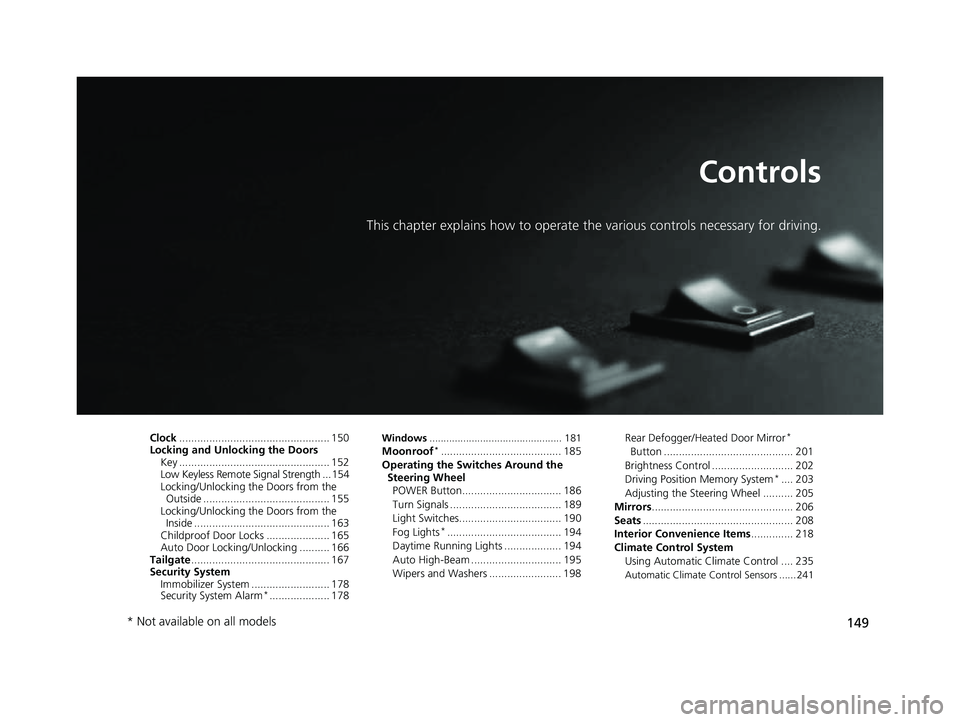

This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 150
Locking and Unlocking the Doors Key .................................................. 152
Low Keyless Remote Signal Strength ... 154
Locking/Unlocking the Doors from the Outside .......................................... 155
Locking/Unlocking the Doors from the Inside ............................................. 163
Childproof Door Locks ..................... 165
Auto Door Locking/Unlocking .......... 166
Tailgate .............................................. 167
Security System Immobilizer System .......................... 178
Security System Alarm
*.................... 178
Windows ............................................... 181Moonroof*........................................ 185
Operating the Switches Around the Steering Wheel
POWER Button................................. 186
Turn Signals ..................................... 189
Light Switches.................................. 190
Fog Lights
*...................................... 194
Daytime Running Lights ................... 194
Auto High-Beam .............................. 195
Wipers and Washers ........................ 198 Rear Defogger/Heated Door Mirror
*
Button ........................................... 201
Brightness Control ........................... 202
Driving Position Memory System
*.... 203
Adjusting the Steering Wheel .......... 205
Mirrors ............................................... 206
Seats .................................................. 208
Interior Convenience Items .............. 218
Climate Control System Using Automatic Climate Control .... 235
Automatic Climate Control Sensors ...... 241
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 149 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
156
Controls

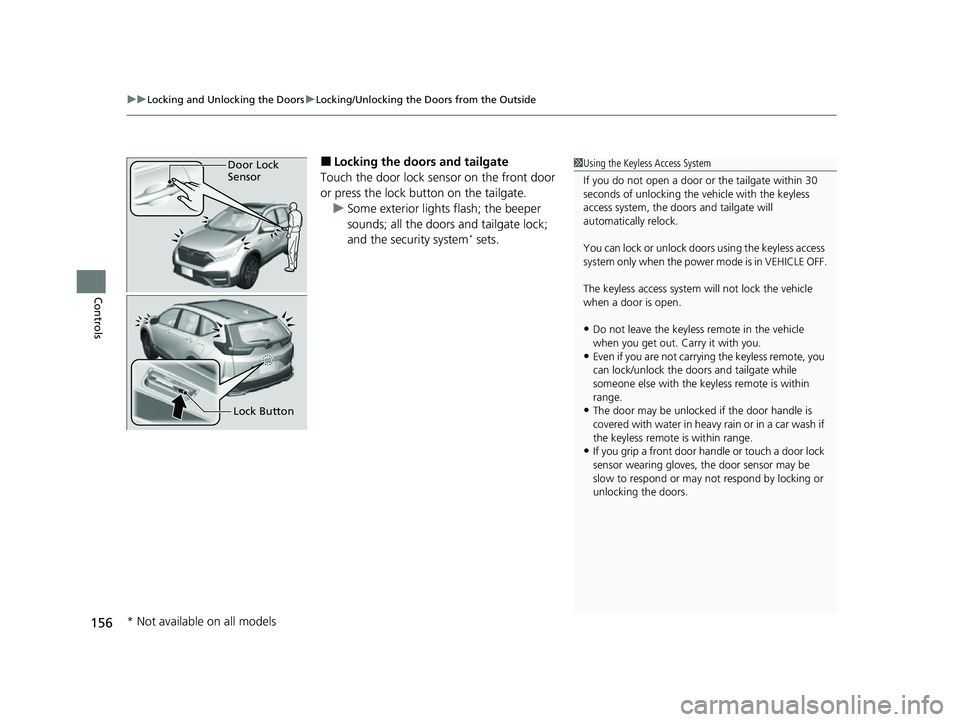

■Locking the doors and tailgate
Touch the door lock sensor on the front door
or press the lock button on the tailgate. u Some exterior lights flash; the beeper
sounds; all the doors and tailgate lock;
and the security system
* sets.
1Using the Keyless Access System
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the keyless
access system, the doors and tailgate will
automatically relock.
You can lock or unlock doors using the keyless access
system only when the power mode is in VEHICLE OFF.
The keyless access system will not lock the vehicle
when a door is open.
•Do not leave the keyless remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the keyless remote, you
can lock/unlock the doors and tailgate while
someone else with the keyless remote is within
range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless remote is within range.
•If you grip a front door ha ndle or touch a door lock
sensor wearing gloves, the door sensor may be
slow to respond or may no t respond by locking or
unlocking the doors.
Door Lock
Sensor
Lock Button
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 156 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued171
uuTailgate uOpening/Closing the Power Tailgate*
Controls

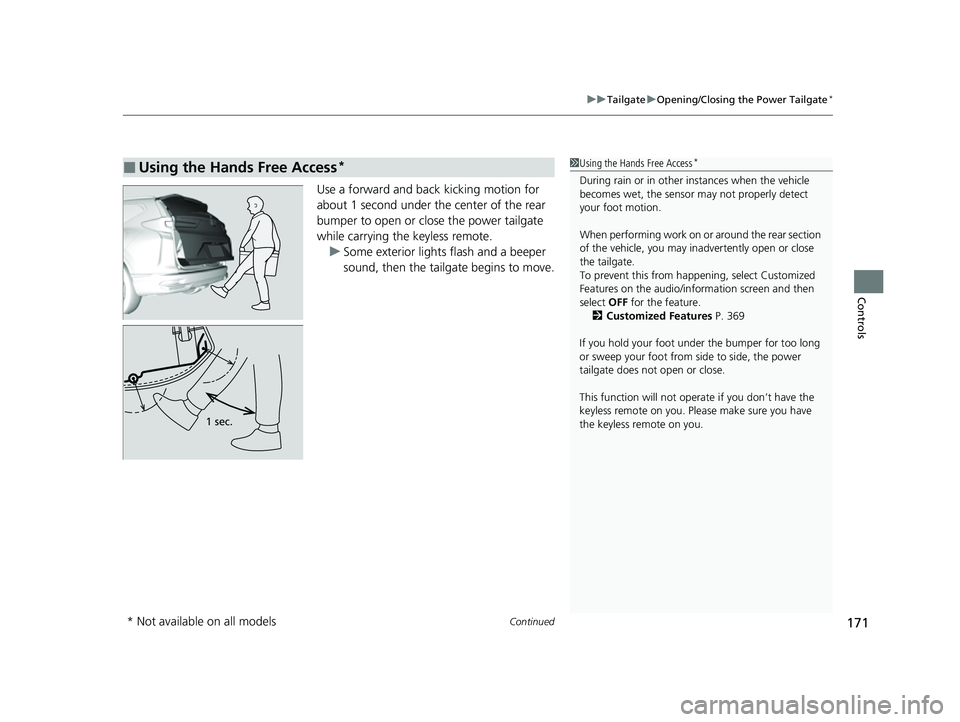

Use a forward and back kicking motion for
about 1 second under the center of the rear
bumper to open or close the power tailgate
while carrying the keyless remote.
u Some exterior lights flash and a beeper
sound, then the tailgate begins to move.
■Using the Hands Free Access*1Using the Hands Free Access*
During rain or in other instances when the vehicle
becomes wet, the sensor may not properly detect
your foot motion.
When performing work on or around the rear section
of the vehicle, you may in advertently open or close
the tailgate.
To prevent this from happe ning, select Customized
Features on the audio/information screen and then
select OFF for the feature.
2 Customized Features P. 369
If you hold your foot under the bumper for too long
or sweep your foot from side to side, the power
tailgate does not open or close.
This function will not opera te if you don’t have the
keyless remote on you. Please make sure you have
the keyless remote on you.
1 sec.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 171 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued173
uuTailgate uOpening/Closing the Power Tailgate*
Controls

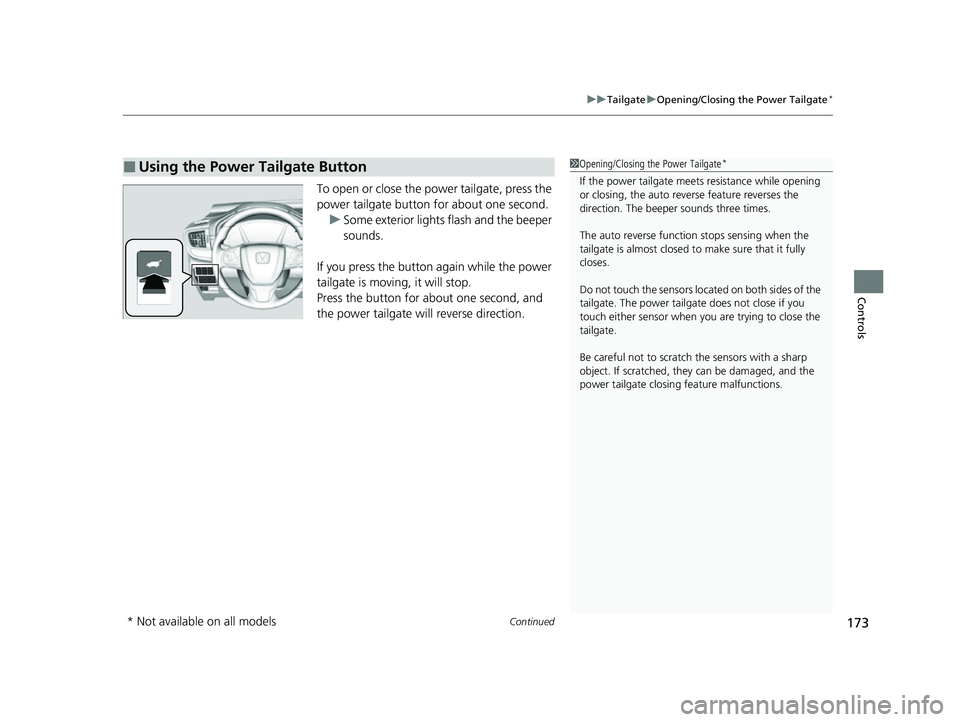

To open or close the power tailgate, press the
power tailgate button for about one secondM
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will stop.
Press the button for about one second, and
the power tailgate will reverse direction.
■Using the Power Tailgate Button1 Opening/Closing the Power Tailgate*
If the power tailgate meet s resistance while opening
or closing, the auto reverse feature reverses the
direction. The beeper sounds three times.
The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.
Do not touch the sensors located on both sides of the
tailgate. The power tailga te does not close if you
touch either sensor when you are trying to close the
tailgate.
Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 173 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued191
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls

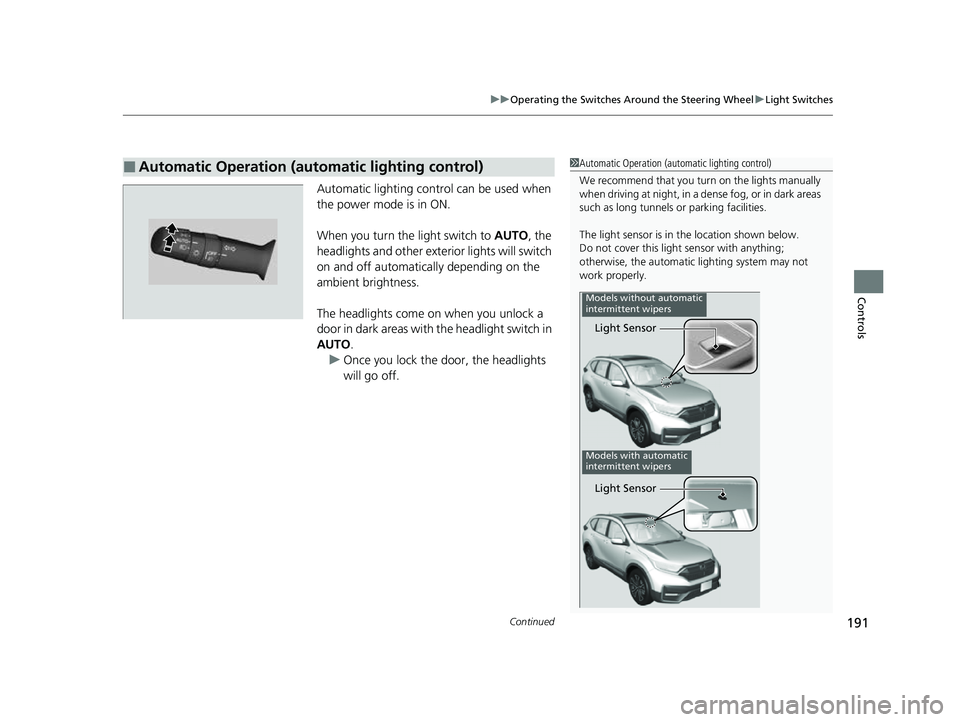

Automatic lighting control can be used when
the power mode is in ON.
When you turn the light switch to AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.
The headlights come on when you unlock a
door in dark areas with the headlight switch in
AUTO .
u Once you lock the door, the headlights
will go off.
■Automatic Operation (automatic lighting control)1Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a de nse fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
Models without automatic
intermittent wipers
Models with automatic
intermittent wipers
Light Sensor
22 CR-V HEV ELP-31TPG6200.book 191 ページ ２０２１年６月３０日　水曜日　午前１１時６分

195
uuOperating the Switches Around the Steering Wheel uAuto High-Beam
Continued
Controls
Auto High-Beam
The front sensor camera detects the light sources ahead of the vehicle such as the
lights of a preceding or oncoming vehicle, or street lights. When you are driving at
night, the system automatically switches the headlights between low beam and high
beam depending on the situation.
When all of the following conditions have been met, the auto high-beam indicator
comes on and the auto high-beam is activated. •The power mode is in ON.
• The light switch is in AUTO.
• The lever is in the low beam position.
• The headlights have been automatically
activated.
• It is dark outside the vehicle.
If the auto high-beam indica tor does not come on even when all the conditions have
been met, carry out the following procedure and the indicator will come on.
• Pull the lever toward you for flashing the high beams then release it while driving.1Auto High-Beam
The auto high-beam system does not always operate
in every situation. This syst em is just for assisting the
driver. Always observe your surroundings and switch
the headlights between high beam and low beam
manually if necessary.
If you find the timing of beam changes inconvenient
for driving, change the headlight beams manually.
The range and the distance at which the camera can
recognize varies de pending on conditions
surrounding your vehicle.
Regarding the handling of the camera mounted to
the inside of the windshiel d, refer to the following.
2 Front Sensor Camera P. 548
For the auto high-beam to work properly:
•Do not place an object that reflects light on the
dashboard.
•Keep the windshield around the camera clean.
•When cleaning the windshield, be careful not to
apply the windshield cleans er to the camera lens.
•Do not attach an object, sticker or film to the area
around the camera.
•Do not touch the camera lens.
If the camera receives a st rong impact, or repairing of
the area near the camera is required, consult a dealer.
■How to Use the Auto High-Beam
Front Sensor
Camera
Light Switch Auto High-Beam
Indicator
22 CR-V HEV ELP-31TPG6200.book 195 ページ ２０２１年６月３０日　水曜日　午前１１時６分
