uuParking Your Vehicle uParking Sensor System*
562
Driving
■Parking sensor system on and off
With the power mode in ON, press the
parking sensor system button to turn on or off
the system. The indicator in the button comes
on when the system is on.
The front corner and front center sensors start
to detect an obstacle wh en the transmission is
in any position other than
(P or (R, and the
vehicle speed is less than 5 mph (8 km/h).
The front corner, rear corner and rear center
sensors start to detect an obstacle when the
transmission is in
(R, and the vehicle speed is
less than 5 mph (8 km/h).
1 Parking sensor system on and off
When you set the power mode to ON, the system will
be in the previously selected condition.
22 CR-V HEV ELP-31TPG6200.book 562 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued563
uuParking Your Vehicle uParking Sensor System*
Driving

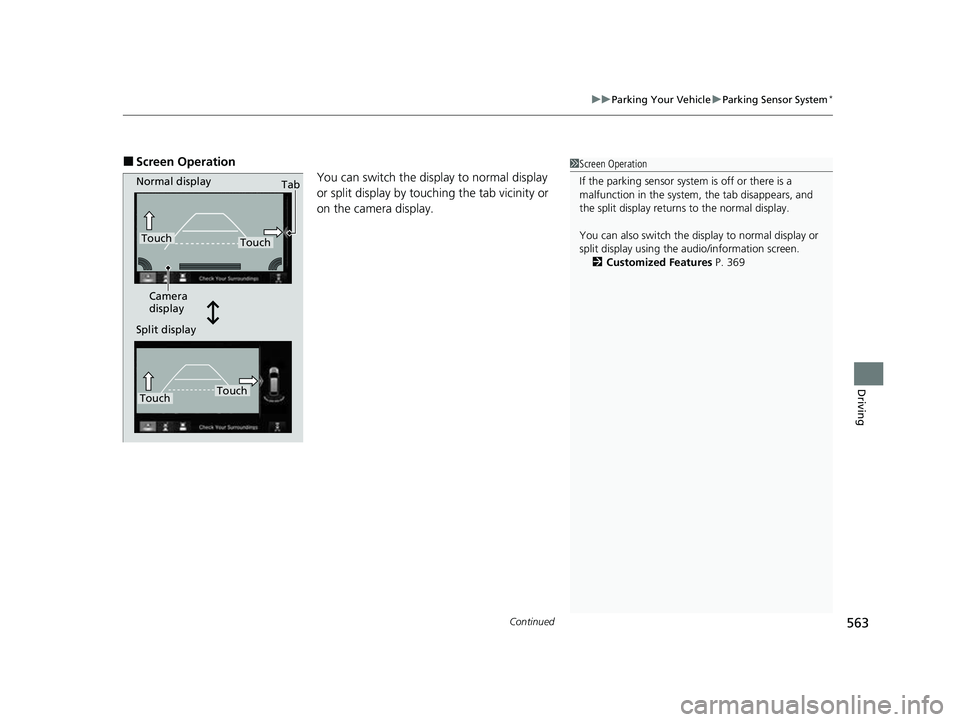

■Screen Operation
You can switch the display to normal display
or split display by touching the tab vicinity or
on the camera display.1Screen Operation
If the parking sensor system is off or there is a
malfunction in the system , the tab disappears, and
the split display returns to the normal display.
You can also switch the di splay to normal display or
split display using the audio/information screen. 2 Customized Features P. 369
Touch
TouchTouch
Touch
Camera
display Tab
Normal display
Split display
22 CR-V HEV ELP-31TPG6200.book 563 ページ ２０２１年６月３０日　水曜日　午前１１時６分

564
uuParking Your Vehicle uParking Sensor System*
Driving
■When the distance between your vehicle and obstacles behind becomes shorter
*1: At this stage, only the center sensors detect obstacles.
Interval between beepsDistance between the Bumper and ObstacleIndicatorDriver Information Interface/Audio/Information Screen
Corner SensorsCenter Sensors
Moderate—
Front: About 41-26 in
(105-65 cm)
Rear: About 45-26 in
(115-65 cm)
Blinks in Yellow*1
Short
Front: About 26-19 in
(65-50 cm)
Rear: About 30-19 in
(75-50 cm)
About 26-19 in (65-50 cm)
Blinks in Amber
Very shortAbout 19-16 in (50-40 cm)About 19-16 in (50-40 cm)
ContinuousAbout 16 in (40 cm) or lessAbout 16 in (40 cm) or lessBlinks in Red
Indicators light up where the
sensor detects an obstacle
Indicators light up where the
sensor detects an obstacle
Audio/information screen
Driver information interface
22 CR-V HEV ELP-31TPG6200.book 564 ページ ２０２１年６月３０日　水曜日　午前１１時６分

565
uuParking Your Vehicle uParking Sensor System*
Driving
1. Make sure that the parking sensor system is not activated. Set the power mode to
VEHICLE OFF (LOCK).
2. Press and hold the parking sensor system button, and set the power mode to ON.
3. Keep pressing the button for 10 seconds. Release the button when the indicator
in the button flashes.
4. Press the button again. The indi cator in the button goes off.
u The beeper sounds twice. The rear sensors are now turned off.
To turn the rear sensors on again, follo w the above procedure. The beeper sounds
three times when the rear sensors come back on.
■Turning off All Rear Sensors1 Turning off All Rear Sensors
When you shift to
(R, the indicator in the parking
sensor system button blinks as a reminder that the
rear sensors have been turned off.
22 CR-V HEV ELP-31TPG6200.book 565 ページ ２０２１年６月３０日　水曜日　午前１１時６分

566
uuParking Your Vehicle uCross Traffic Monitor*
Driving
Cross Traffic Monitor*
Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching fro m a rear corner is detected.
The system is convenient when you are backing out of a parking space.1 Cross Traffic Monitor*
3CAUTION
Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 566 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued567
uuParking Your Vehicle uCross Traffic Monitor*
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor system is turned
on.
2 Cross Traffic Monitor On and Off P. 569
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not detect or provide alerts for a vehicle that is moving away from
your vehicle, and it may alert for pedest rians, bicycles, or stationary objects.
■How the System Works1Cross Traffic Monitor*
Cross Traffic Monitor may not detect or may delay
alerting an approach ing vehicle, or may alert without
an approaching vehicle under the following
conditions:
•An obstacle, such as a nother vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
•Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilted due to a heavy load in the rear.•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
The rear bumper or the sens ors have been improperly
repaired or the rear bum per has been deformed.
Have your vehicle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 567 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuParking Your Vehicle uCross Traffic Monitor*
568
Driving

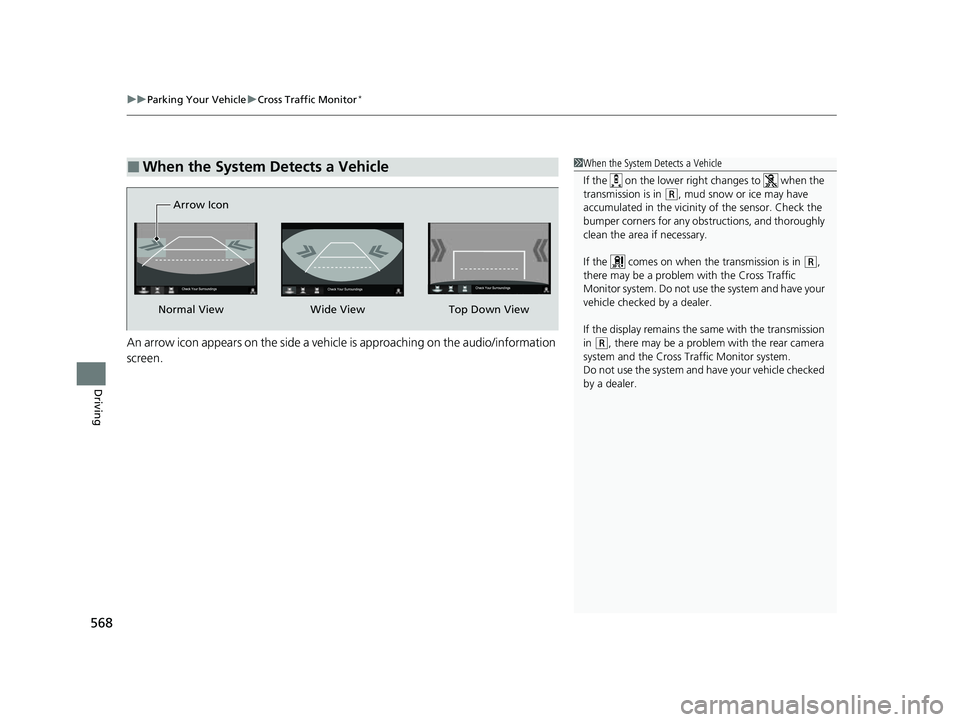

An arrow icon appears on the side a vehicl e is approaching on the audio/information
screen.
■When the System Detects a Vehicle1 When the System Detects a Vehicle
If the on the lower right changes to when the
transmission is in
(R, mud snow or ice may have
accumulated in the vicinity of the sensor. Check the
bumper corners for any obs tructions, and thoroughly
clean the area if necessary.
If the comes on when the transmission is in
( R,
there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.
If the display remains the same with the transmission
in
( R, there may be a problem with the rear camera
system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.
Wide View
Normal View Arrow IconTop Down View
22 CR-V HEV ELP-31TPG6200.book 568 ページ ２０２１年６月３０日　水曜日　午前１１時６分

615
Maintenance

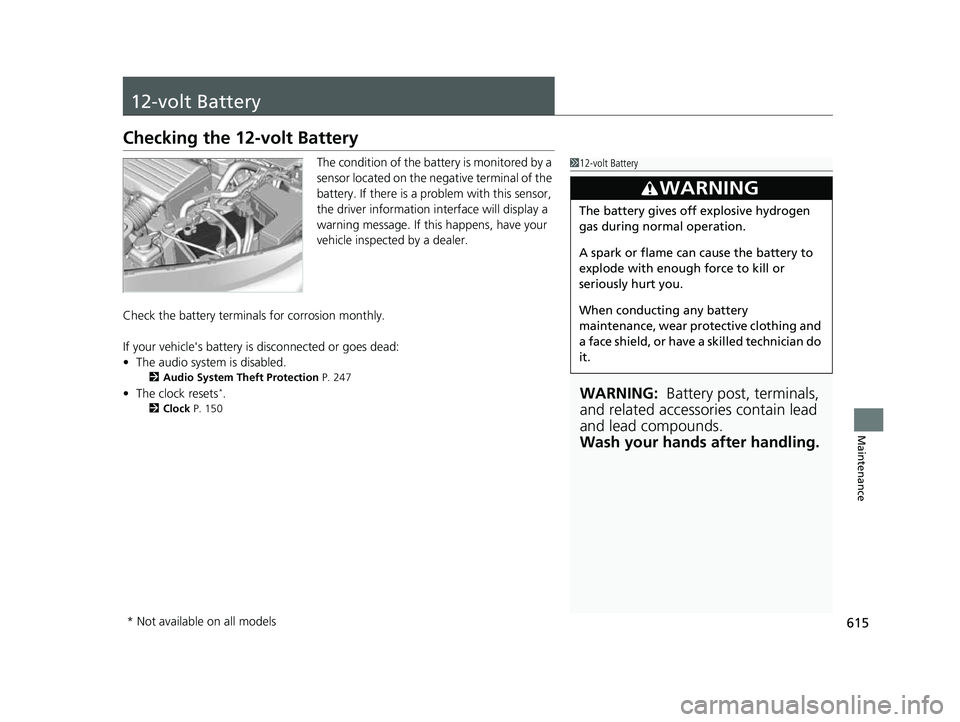

12-volt Battery
Checking the 12-volt Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termina ls for corrosion monthly.
If your vehicle's battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 247
•The clock resets*.
2 Clock P. 150
112-volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 615 ページ ２０２１年６月３０日　水曜日　午前１１時６分

619Continued
Maintenance

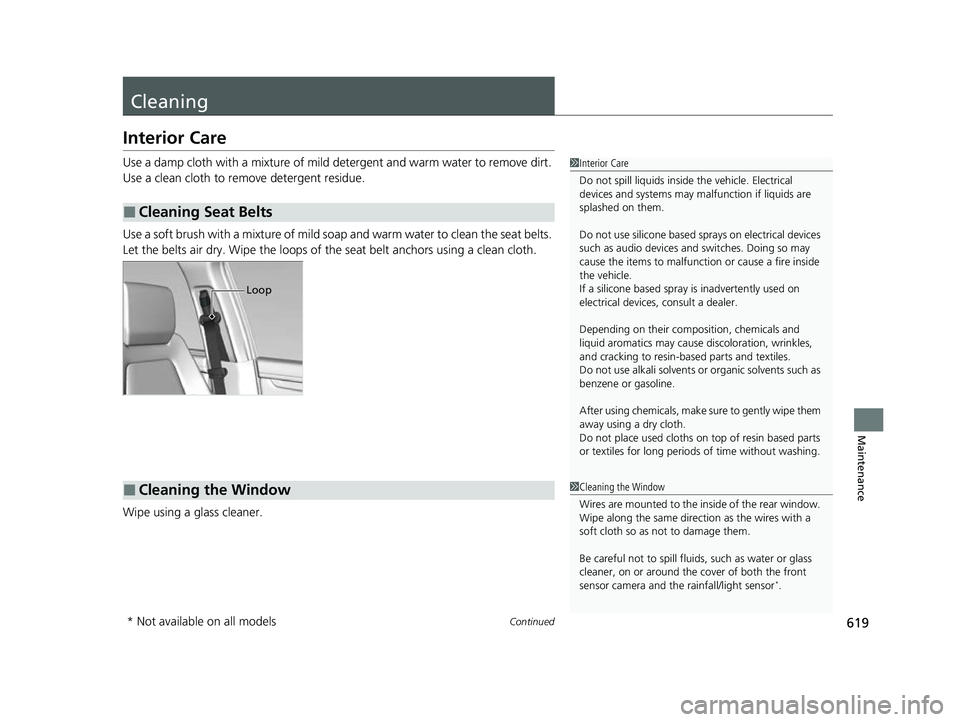

Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemicals, make su re to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Loop
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill fluids, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 619 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Index
681
Index
Index
Numbers
12-volt Battery......................................... 615
Charging System Indicator ................ 95, 652
Maintenance (Check ing the 12-volt
Battery) ................................................. 615
12-volt Battery Charging System Indicator ........................................... 95, 652
4WD .......................................................... 492
A
AAC................................................... 265, 321
ABS (Anti-lock Brake System) .................. 557
Accessories and Modifications ................ 624
Accessory Power Socket ........................... 229
Adaptive Cruise Control (ACC) with Low
Speed Follow .................................. 105, 517
Additives
Coolant .................................................. 593
Engine Oil ............................................... 588
Washer ................................................... 597
Additives, Engine Oil ............................... 588
Adjusting Armrest .................................................. 217
Front Seats.............................................. 208
Head Restraints ....................................... 215
Mirrors.................................................... 206
Rear Seats ............................................... 212
Steering Wheel ....................................... 205
Temperature ........................................... 138 Adjusting the Sound
........................ 256, 294
Agile Handling Assist ............................... 491
Air Conditioning System (Climate Control System) .................................................... 235
Changing the Mode ................................ 238
Defrosting the Windshield and Windows ............................................... 238
Dust and Pollen Filter ............................... 618
Recirculation/Fresh Air Mode ................... 238
Sensor ..................................................... 241
Synchronized Mode ................................. 240
Using Automatic Climate Control ............ 235
Air Pressure ....................................... 607, 669
Airbags ........................................................ 56
Advanced Airbags ..................................... 62
Airbag Care ............................................... 71
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 59
Indicator .............................................. 68, 97
Passenger Airbag Off Indicator .................. 69
Sensors ...................................................... 56
Side Airbags .............................................. 64
Side Curtain Airbags .................................. 66
All-Wheel Drive (AWD) ............................ 492
AM/FM Radio .................................... 258, 301
Android Auto
TM........................................ 336
Anti-lock Brake System (ABS) .................. 557
Indicator .................................................... 97
Apple CarPlay
TM........................................ 333
Armrest ..................................................... 217
Audio Remote Controls ............................ 248 Audio System
............................ 244, 251, 272
Adjusting the Sound........................ 256, 294
AM/FM Radio .................................. 258, 301
Android Auto
TM....................................... 336
Apple CarPlayTM....................................... 333
Audio/Information Screen................ 252, 273
Changing the Home Screen Icon Layout .. 277
Changing the Screen Interface ................ 291
Closing Apps ........................................... 293
Customizing the Meter............................ 278
Display Setup .................................. 257, 295
Error Messages ........................................ 340
General Information ................................ 345
Home Screen........................................... 284
HondaLink ®........................................... 326
How to use Siri ® Eyes Free .............. 271, 332
iPod ................................................ 260, 312
Limitations for Manual Operation ............ 296
Menu Customize ..................................... 292
MP3/WMA/AAC .............................. 265, 321
Pandora ®....................................... 263, 319
Playing Bluetooth ® Audio ................ 268, 324
Playing SiriusXM ® Radio .......................... 305
Reactivating ............................................ 247
Recommended Devices............................ 346
Remote Controls ..................................... 248
Security Code .......................................... 247
Selecting an Audio Source ....................... 296
Song By Voice
TM (SBV) ............................. 315
Status Area ............................................. 290
22 CR-V HEV ELP-31TPG6200.book 681 ページ ２０２１年６月３０日　水曜日　午前１１時６分
