sensor HONDA CRV 2022 Owner's Guide

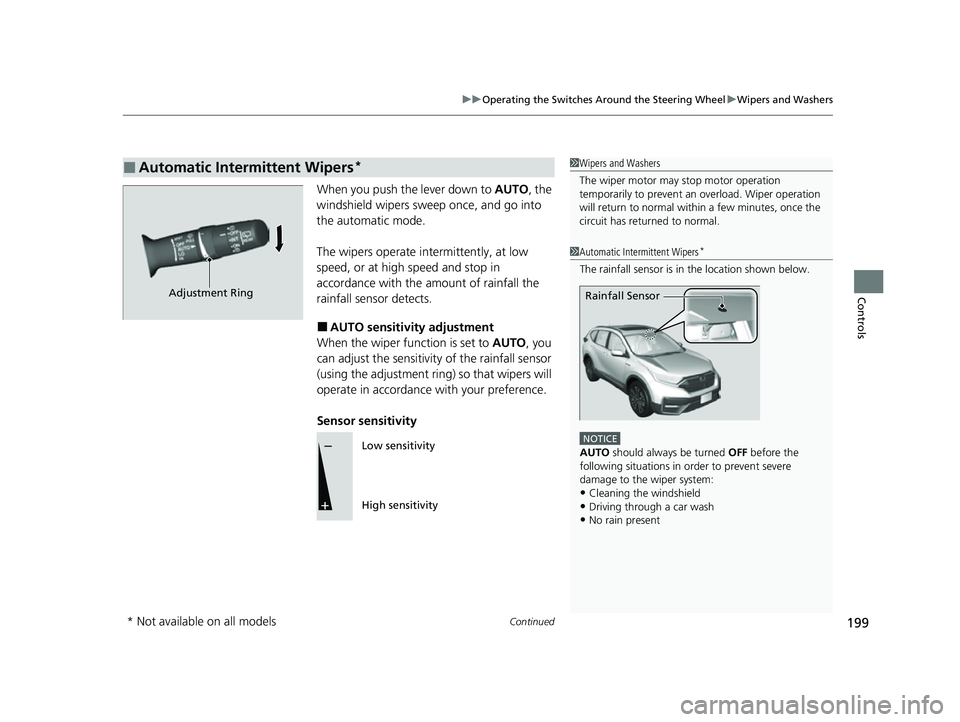

Continued199
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stop in
accordance with the amount of rainfall the
rainfall sensor detects.
■AUTO sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rainfall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers*1 Wipers and Washers
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
Adjustment Ring
1 Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
NOTICE
AUTO should always be turned OFF before the
following situations in order to prevent severe
damage to the wiper system:
•Cleaning the windshield•Driving through a car wash
•No rain present
Rainfall Sensor
Low sensitivity
High sensitivity
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 199 ページ ２０２１年６月３０日　水曜日　午前１１時６分

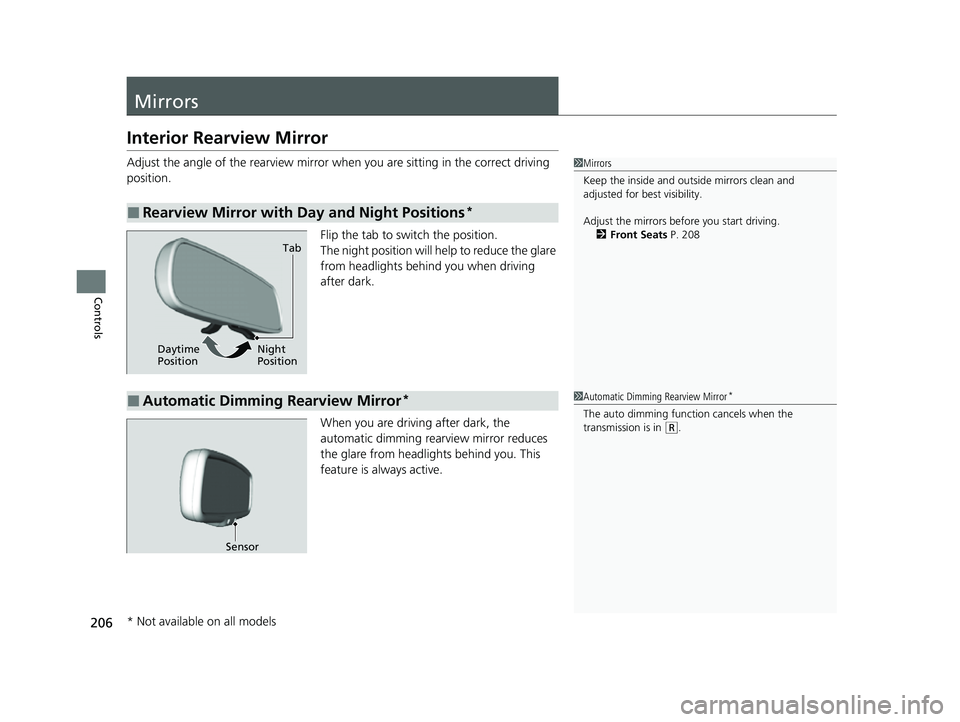

206
Controls
Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you. This
feature is always active.
■Rearview Mirror with Day and Night Positions*
1Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Front Seats P. 208
Tab
Daytime
Position Night
Position
■Automatic Dimming Rearview Mirror*
Sensor
1
Automatic Dimming Rearview Mirror*
The auto dimming function cancels when the
transmission is in
(R.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 206 ページ ２０２１年６月３０日　水曜日　午前１１時６分

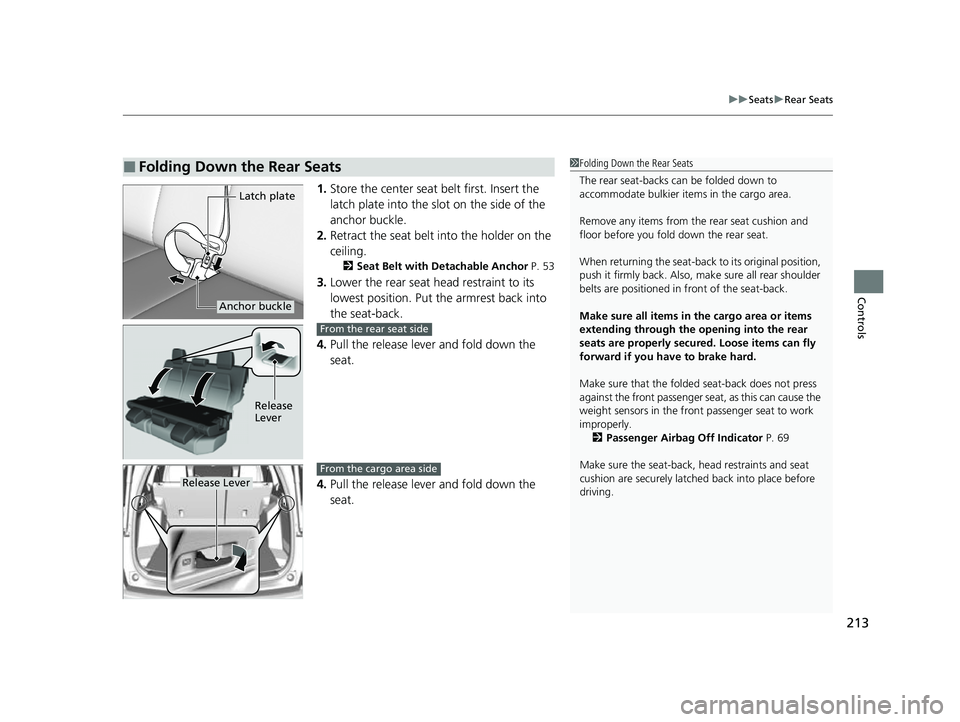

213
uuSeats uRear Seats
Controls
1. Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 53
3.Lower the rear seat head restraint to its
lowest position. Put the armrest back into
the seat-back.
4. Pull the release lever and fold down the
seat.
4. Pull the release lever and fold down the
seat.
■Folding Down the Rear Seats
Latch plate
Anchor buckle
1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the cargo area.
Remove any items from th e rear seat cushion and
floor before you fold down the rear seat.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure all items in the cargo area or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 69
Make sure the seat-back, head restraints and seat
cushion are securely latche d back into place before
driving.
Release
Lever
From the rear seat side
Release Lever
From the cargo area side
22 CR-V HEV ELP-31TPG6200.book 213 ページ ２０２１年６月３０日　水曜日　午前１１時６分

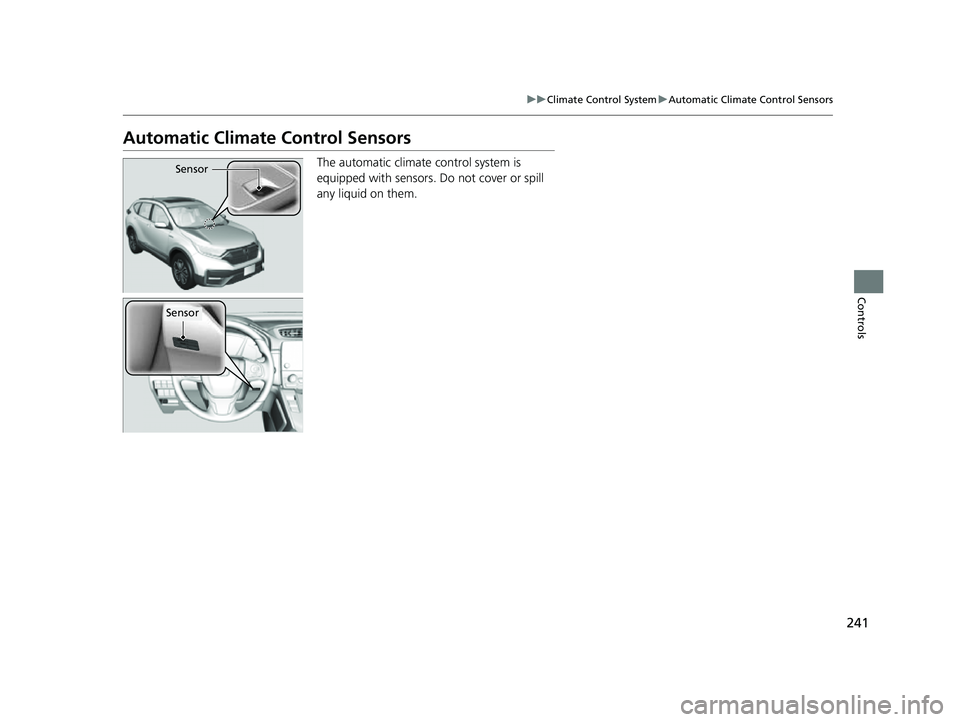

241
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
22 CR-V HEV ELP-31TPG6200.book 241 ページ ２０２１年６月３０日　水曜日　午前１１時６分

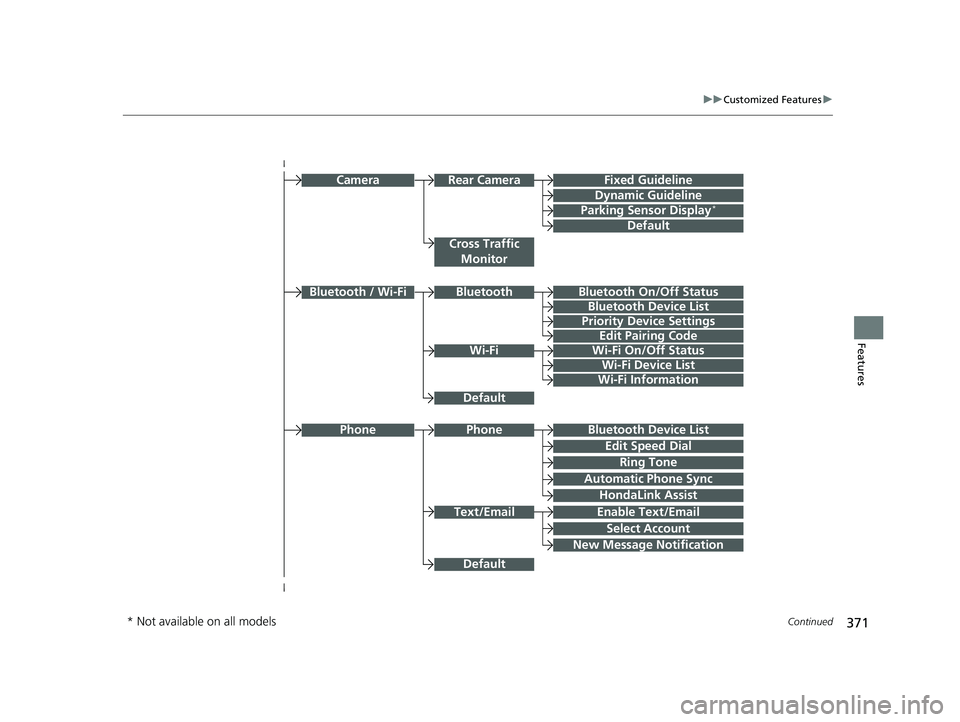

371
uuCustomized Features u
Continued
Features
Bluetooth Device List
Priority Device Settings
Edit Pairing Code
Wi-Fi On/Off Status
Wi-Fi Device List
Wi-Fi
BluetoothBluetooth / Wi-Fi
Wi-Fi Information
Text/Email
Bluetooth Device List
Edit Speed Dial
Ring Tone
Phone
Automatic Phone Sync
HondaLink Assist
Enable Text/Email
Select Account
New Message Notification
Phone
Fixed Guideline
Dynamic Guideline
Rear CameraCamera
Parking Sensor Display*
Cross Traffic
Monitor
Default
Default
Default
Bluetooth On/Off Status
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 371 ページ ２０２１年６月３０日　水曜日　午前１１時６分

380
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features
DescriptionSelectable Settings
Info HondaLink
Diagnostic &
Location Data
Turns HondaLink
® on and off. On
*1/Off
Others Info Screen
Preference Selects the top menu when the (display/
information) button is pressed.
●Info Top
- A brief menu pops up.●Info Menu - A full menu pops up.●Off- A menu does not pop up. Info Top
/Info
Menu
*1/ Off
Default Cancels/Resets all customized items in the
Info settings
group as default. Yes
/No
Camera
Rear
Camera
Fixed Guideline
Selects whether the fixed guidelines come on the rear
camera monitor.
2 Multi-View Rear Camera P. 570
On*1/Off
Dynamic Guideline
Selects whether the guidelines adjust to the movement
of the steering wheel.
2 Multi-View Rear Camera P. 570
On*1/Off
Parking Sensor
Display*Selects whether to turn on the parking sensor display.Normal View /Split
View*1
DefaultCancels/Resets all customized items in the Rear Camera
setting group as default.Yes /No
Cross Traffic MonitorTurns on and off the cross traffic monitor.On*1/Off
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 380 ページ ２０２１年６月３０日　水曜日　午前１１時６分

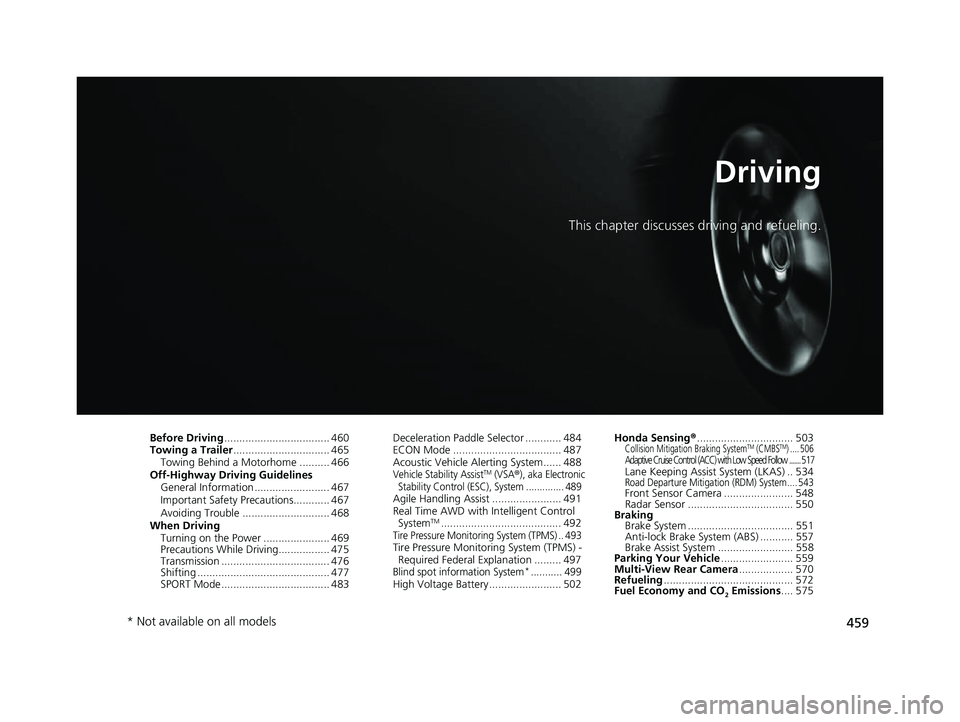

459
Driving
This chapter discusses driving and refueling.
Before Driving................................... 460
Towing a Trailer ................................ 465
Towing Behind a Motorhome .......... 466
Off-Highway Driving Guidelines General Information ......................... 467
Important Safety Precautions............ 467
Avoiding Trouble ............................. 468
When Driving Turning on the Power ...................... 469
Precautions While Driving................. 475
Transmission .................................... 476
Shifting ............................................ 477
SPORT Mode.................................... 483 Deceleration Paddl
e Selector ............ 484
ECON Mode .................................... 487
Acoustic Vehicle Alerting System...... 488
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System .............. 489
Agile Handling Assist ....................... 491
Real Time AWD with Intelligent Control System
TM........................................ 492Tire Pressure Monitoring System (TPMS) .. 493Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 497
Blind spot information System*........... 499High Voltage Battery ........................ 502 Honda Sensing®
................................ 503
Collision Mitigation Braking SystemTM (CMBSTM) .... 506Adaptive Cruise Control (ACC) with Low Speed Follow ....... 517Lane Keeping Assist System (LKAS) .. 534Road Departure Mitigation (RDM) System.... 543Front Sensor Camera ....................... 548
Radar Sensor ................................... 550
Braking Brake System ................................... 551
Anti-lock Brake System (ABS) ........... 557
Brake Assist System ......................... 558
Parking Your Vehicle ........................ 559
Multi-View Rear Camera .................. 570
Refueling ........................................... 572
Fuel Economy and CO
2 Emissions .... 575
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 459 ページ ２０２１年６月３０日　水曜日　午前１１時６分

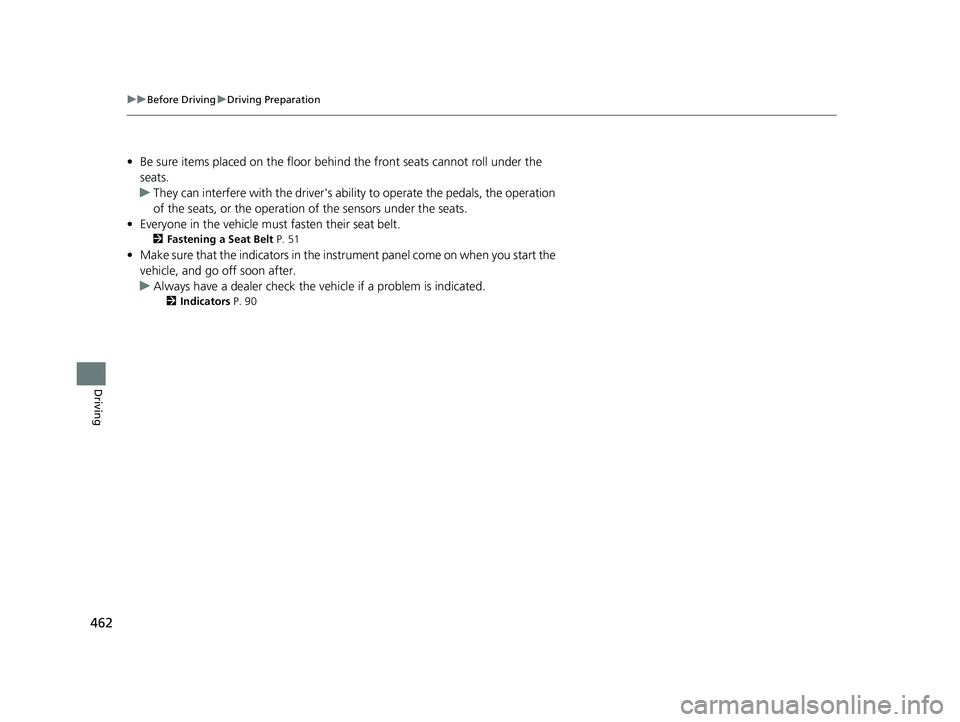

462
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver's ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 51
•Make sure that the indicators in the instrument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 90
22 CR-V HEV ELP-31TPG6200.book 462 ページ ２０２１年６月３０日　水曜日　午前１１時６分

499
uuWhen Driving uBlind spot information System*
Continued
Driving
Blind spot information System*
Is designed to detect vehicles in specified alert zones adjacent to your vehicle,
particularly in harder to see areas commonly known as “blind spots.”
When the system detects vehicles approaching from behind in adjacent lanes, the
appropriate indicator comes on for a few se conds, providing assistance when you
change lanes.
■How the system works
1 Blind spot information System*
Important Safety Reminder
Like all assistance systems, blind spot information
system has limitations. Over reliance on blind spot
information system may result in a collision.
The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur.
•The blind spot informatio n system alert indicator
may not come on due to obstruction (splashes,
etc.) even without the Blind Spot Info Not
Available driver information interface appearing.
•The blind spot information system alert indicator
may come on even with the message appearing.
3WARNING
Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.
Do not rely only on the blind spot
information system wh en changing lanes.
Always look in your mi rrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
Alert zone range
A: Approx. 1.6 ft. (0.5 m)
B: Approx. 10 ft. (3 m)
C: Approx. 10 ft. (3 m) Radar Sensors:
underneath the
rear bumper
corners
Alert ZoneA
B
C
●The transmission is in (D.●Your vehicle speed is
between 20 mph (32 km/h)
and 100 mph (160 km/h)
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 499 ページ ２０２１年６月３０日　水曜日　午前１１時６分

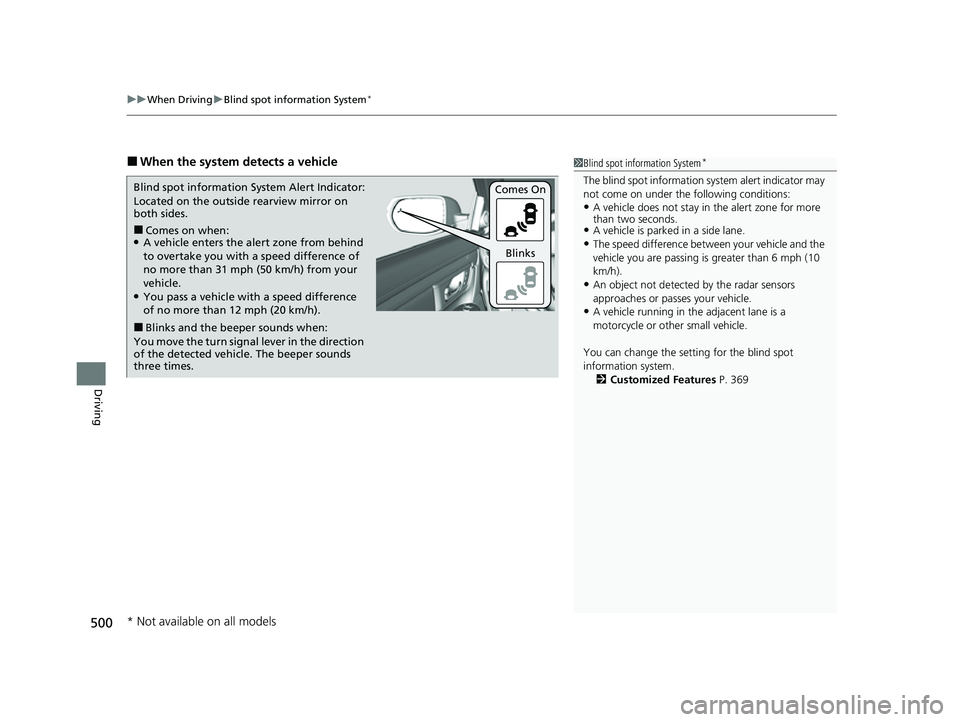

uuWhen Driving uBlind spot information System*
500
Driving
■When the system detects a vehicle1Blind spot information System*
The blind spot information system alert indicator may
not come on under the following conditions:
•A vehicle does not stay in the alert zone for more
than two seconds.
•A vehicle is parked in a side lane.
•The speed difference betw een your vehicle and the
vehicle you are passing is greater than 6 mph (10
km/h).
•An object not detected by the radar sensors
approaches or passes your vehicle.
•A vehicle running in the adjacent lane is a
motorcycle or other small vehicle.
You can change the setting for the blind spot
information system. 2 Customized Features P. 369
■Comes on when:●A vehicle enters the alert zone from behind
to overtake you with a speed difference of
no more than 31 mph (50 km/h) from your
vehicle.
●You pass a vehicle with a speed difference
of no more than 12 mph (20 km/h).
■Blinks and the beeper sounds when:
You move the turn signal lever in the direction
of the detected vehicle. The beeper sounds
three times. Comes On
Blinks
Blind spot information
System Alert Indicator:
Located on the outside rearview mirror on
both sides.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 500 ページ ２０２１年６月３０日　水曜日　午前１１時６分
