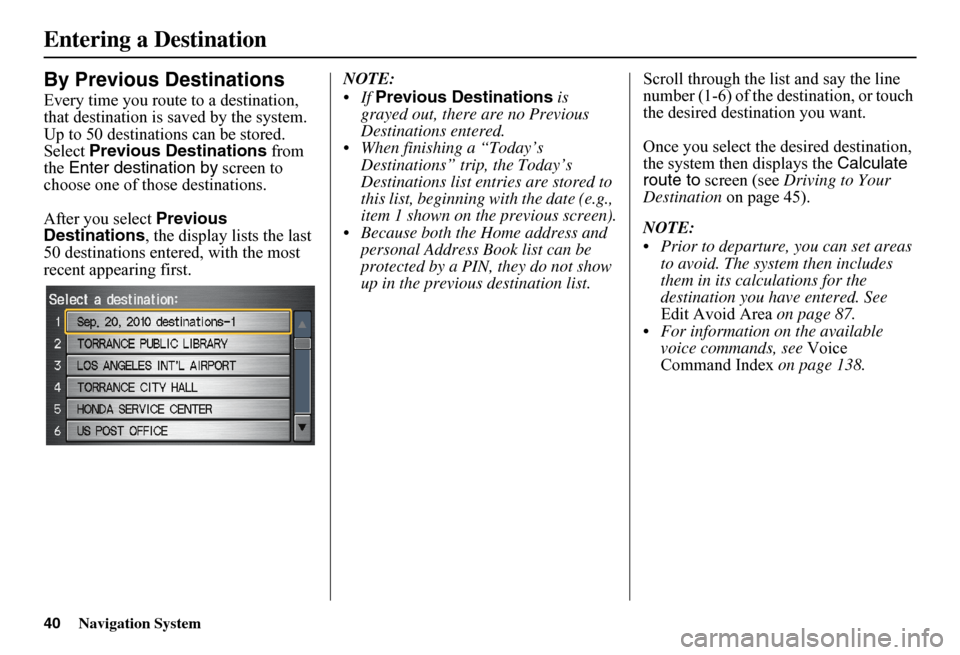

40Navigation System
By Previous Destinations
Every time you route to a destination, that destination is saved by the system. Up to 50 destinations can be stored. Select Previous Destinations from the Enter destination by screen to choose one of those destinations.
After you select Previous Destinations , the display lists the last 50 destinations entered, with the most recent appearing first.
NOTE:
Previous Destinations is grayed out, there are no Previous Destinations entered. When finishing a “Today’s Destinations” trip, the Today’s Destinations list entries are stored to this list, beginning with the date (e.g., item 1 shown on the previous screen). Because both the Home address and personal Address Book list can be protected by a PIN, they do not show up in the previous destination list.
Scroll through the list and say the line number (1-6) of the destination, or touch the desired destination you want.
Once you select the desired destination, the system then displays the Calculate route to screen (see Driving to Your Destination on page 45).
NOTE:
Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 87. For information on the available voice commands, see Voice Command Index on page 138.
Entering a Destination

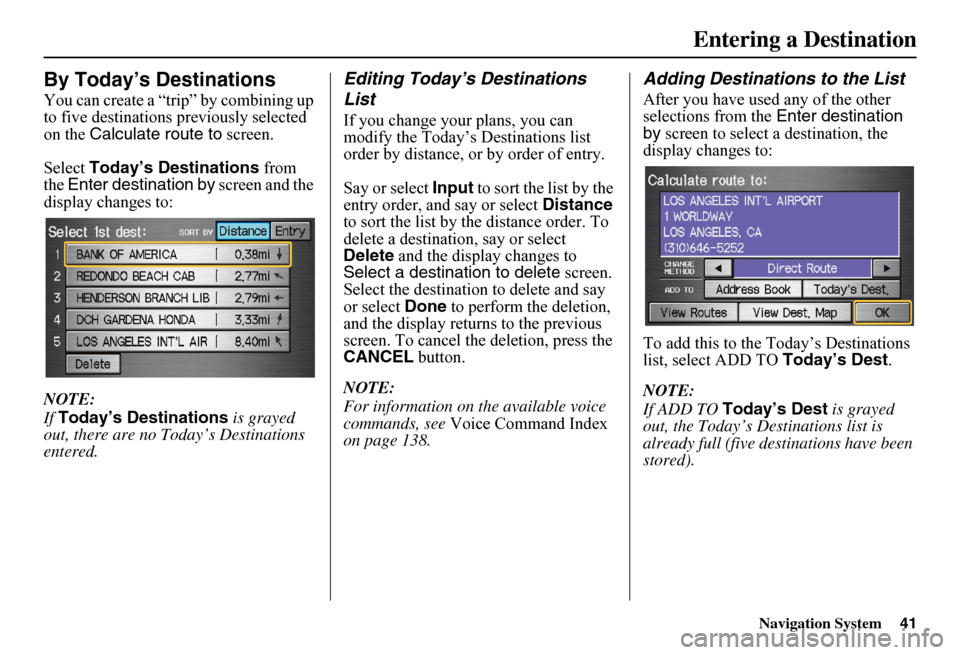

Navigation System41
Entering a Destination
By Today’s Destinations
You can create a “trip” by combining up to five destinations previously selected on the Calculate route to screen.
Select Today’s Destinations from the Enter destination by screen and the display changes to:
NOTE:
If Today’s Destinations is grayed out, there are no Today’s Destinations entered.
Editing Today’s Destinations
List
If you change your plans, you can modify the Today’s Destinations list order by distance, or by order of entry.
Say or select Input to sort the list by the entry order, and say or select Distance to sort the list by the distance order. To delete a destination, say or select Delete and the display changes to Select a destination to delete screen. Select the destinatio n to delete and say or select Done to perform the deletion, and the display return s to the previous screen. To cancel the deletion, press the CANCEL button.
NOTE:
For information on the available voice commands, see Voice Command Index on page 138.
Adding Destinations to the List
After you have used any of the other selections from the Enter destination by screen to select a destination, the display changes to:
To add this to the Today’s Destinations list, select ADD TO Today’s Dest.
NOTE:
If ADD TO Today’s Dest is grayed out, the Today’s Destinations list is already full (five destinations have been stored).

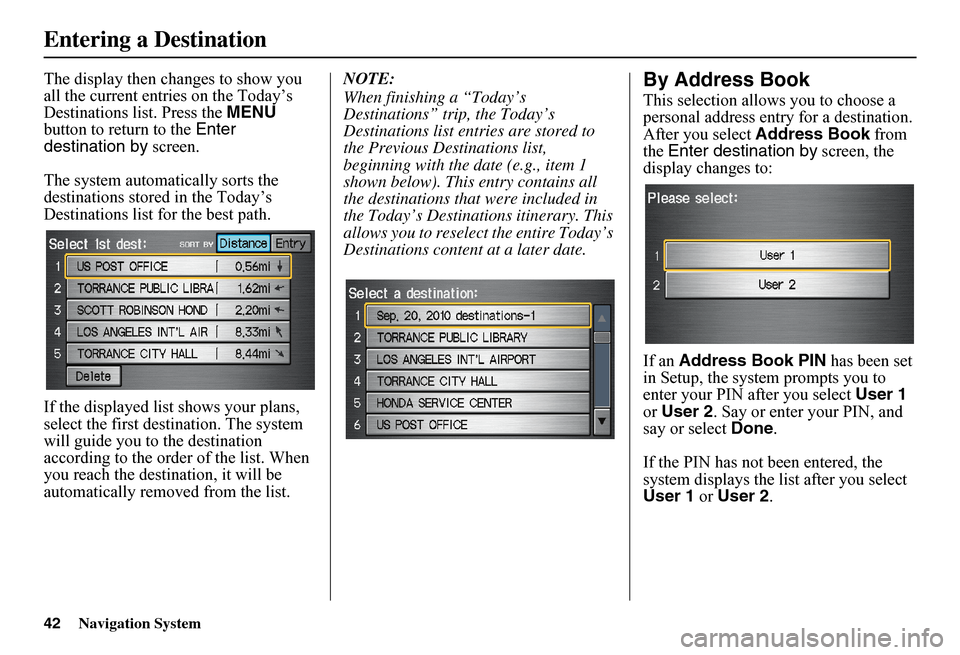

42Navigation System
Entering a Destination
The display then changes to show you all the current entries on the Today’s Destinations list. Press the MENU button to return to the Enter destination by screen.
The system automatically sorts the destinations stored in the Today’s Destinations list fo r the best path.
If the displayed list shows your plans, select the first destination. The system will guide you to the destination according to the order of the list. When you reach the destination, it will be automatically removed from the list.
NOTE:
When finishing a “Today’s Destinations” trip, the Today’s Destinations list entries are stored to the Previous Destinations list, beginning with the date (e.g., item 1 shown below). This entry contains all the destinations that were included in the Today’s Destinations itinerary. This allows you to reselect the entire Today’s Destinations content at a later date.
By Address Book
This selection allows you to choose a personal address entry for a destination.After you select Address Book from the Enter destination by screen, the display changes to:
If an Address Book PIN has been set in Setup, the system prompts you to enter your PIN after you select User 1 or User 2. Say or enter your PIN, and say or select Done.
If the PIN has not been entered, the system displays the list after you select User 1 or User 2.

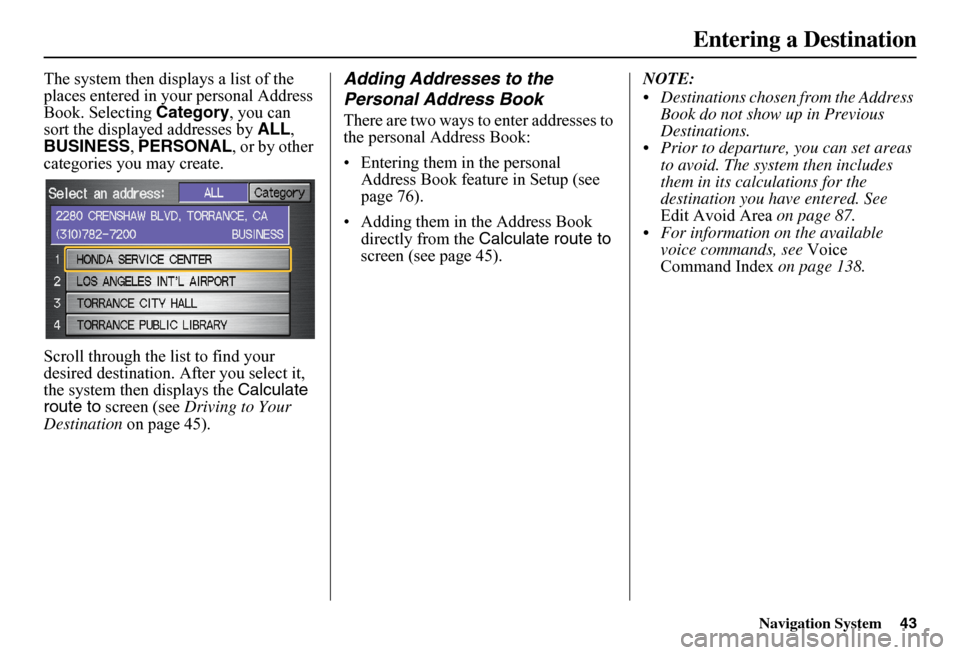

Navigation System43
Entering a Destination
The system then displays a list of the places entered in your personal Address Book. Selecting Category, you can sort the displayed addresses by ALL, BUSINESS , PERSONAL, or by other categories you may create.
Scroll through the lis t to find your desired destination. After you select it, the system then displays the Calculate route to screen (see Driving to Your Destination on page 45).
Adding Addresses to the
Personal Address Book
There are two ways to enter addresses to the personal Address Book:
• Entering them in the personal Address Book feature in Setup (see page 76).
• Adding them in the Address Book directly from the Calculate route to screen (see page 45).
NOTE:
Destinations chosen from the Address Book do not show up in Previous Destinations. Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 87. For information on the available voice commands, see Voice Command Index on page 138.

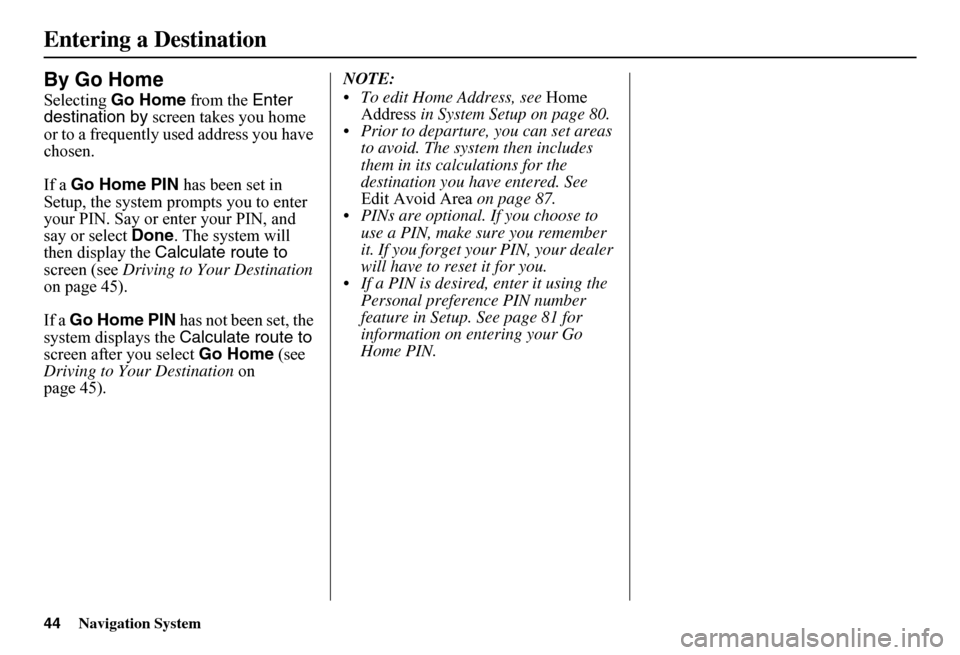

44Navigation System
Entering a Destination
By Go Home
Selecting Go Home from the Enter destination by screen takes you home or to a frequently used address you have chosen.
If a Go Home PIN has been set in Setup, the system prompts you to enter your PIN. Say or enter your PIN, and say or select Done. The system will then display the Calculate route to screen (see Driving to Your Destination on page 45).
If a Go Home PIN has not been set, the system displays the Calculate route to screen after you select Go Home (see Driving to Your Destination on page 45).
NOTE:
To edit Home Address, see Home Address in System Setup on page 80. Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 87. PINs are optional. If you choose to use a PIN, make sure you remember it. If you forget your PIN, your dealer will have to reset it for you. If a PIN is desired, enter it using the Personal preference PIN number feature in Setup. See page 81 for information on entering your Go Home PIN.

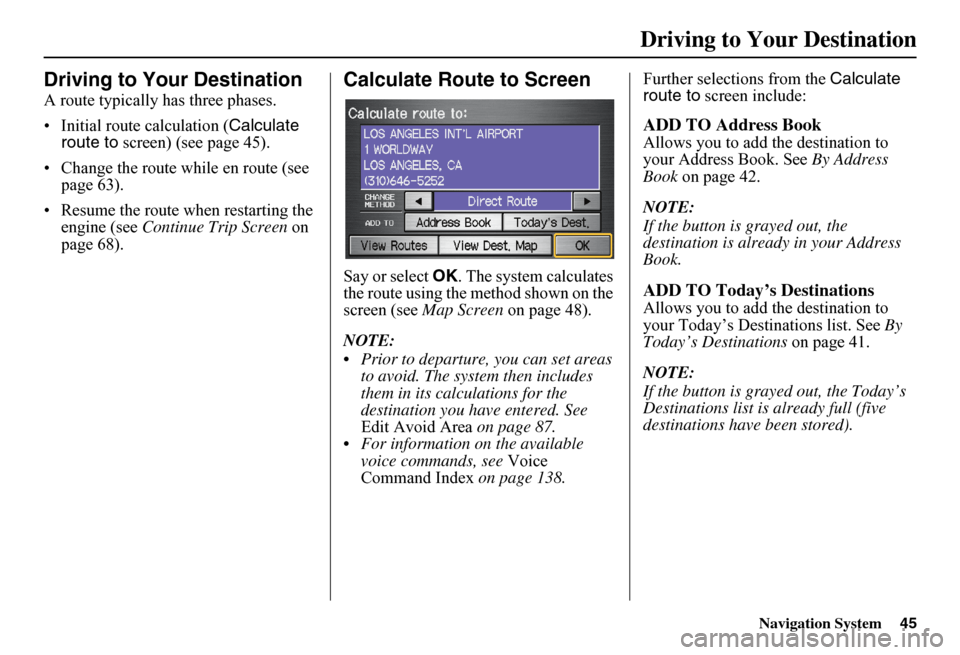

Navigation System45
Driving to Your Destination
Driving to Your Destination
A route typically has three phases.
• Initial route calculation ( Calculate route to screen) (see page 45).
• Change the route while en route (see page 63).
• Resume the route when restarting the engine (see Continue Trip Screen on page 68).
Calculate Route to Screen
Say or select OK. The system calculates the route using the method shown on the screen (see Map Screen on page 48).
NOTE:
Prior to departure, you can set areas to avoid. The system then includes them in its calculations for the destination you have entered. See Edit Avoid Area on page 87. For information on the available voice commands, see Voice Command Index on page 138.
Further selections from the Calculate route to screen include:
ADD TO Address Book
Allows you to add the destination to your Address Book. See By Address Book on page 42.
NOTE:
If the button is grayed out, the destination is already in your Address Book.
ADD TO Today’s Destinations
Allows you to add the destination to your Today’s Destinations list. See By Today’s Destinations on page 41.
NOTE:
If the button is grayed out, the Today’s Destinations list is already full (five destinations have been stored).

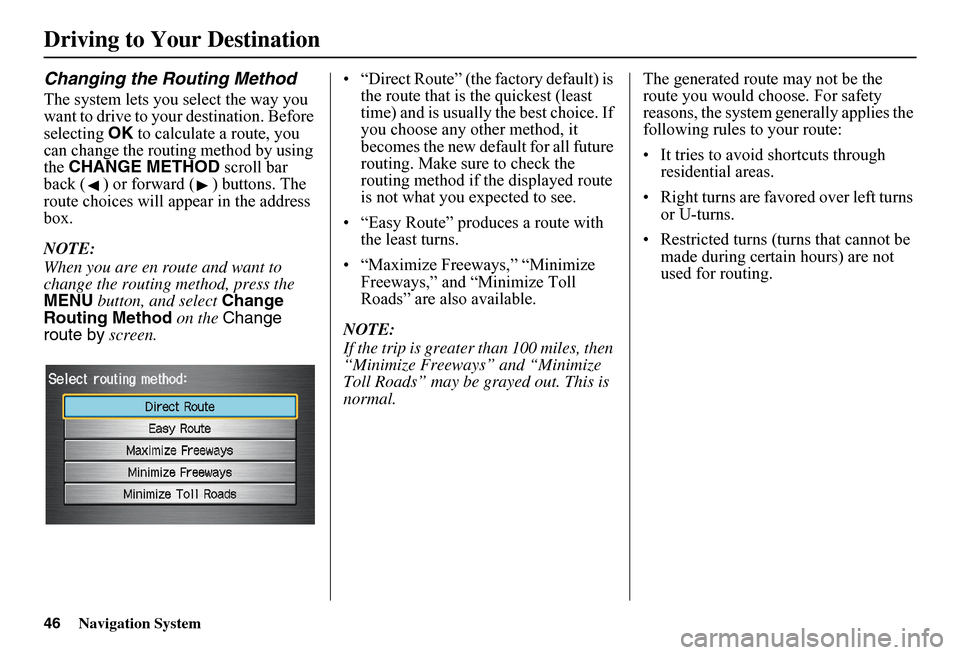

46Navigation System
Driving to Your Destination
Changing the Routing Method
The system lets you select the way you want to drive to your destination. Before selecting OK to calculate a route, you can change the routing method by using the CHANGE METHOD scroll bar back ( ) or forward ( ) buttons. The route choices will appear in the address box.
NOTE:
When you are en route and want to change the routing method, press the MENU button, and select Change Routing Method on the Change route by screen.
• “Direct Route” (the factory default) is the route that is the quickest (least time) and is usually the best choice. If you choose any other method, it becomes the new default for all future routing. Make sure to check the routing method if the displayed route is not what you expected to see.
• “Easy Route” produces a route with the least turns.
• “Maximize Freeways,” “Minimize Freeways,” and “Minimize Toll Roads” are also available.
NOTE:
If the trip is greater than 100 miles, then “Minimize Freeways” and “Minimize Toll Roads” may be grayed out. This is normal.
The generated route may not be the route you would choose. For safety reasons, the system generally applies the following rules to your route:
• It tries to avoid shortcuts through residential areas.
• Right turns are favored over left turns or U-turns.
• Restricted turns (turns that cannot be made during certain hours) are not used for routing.

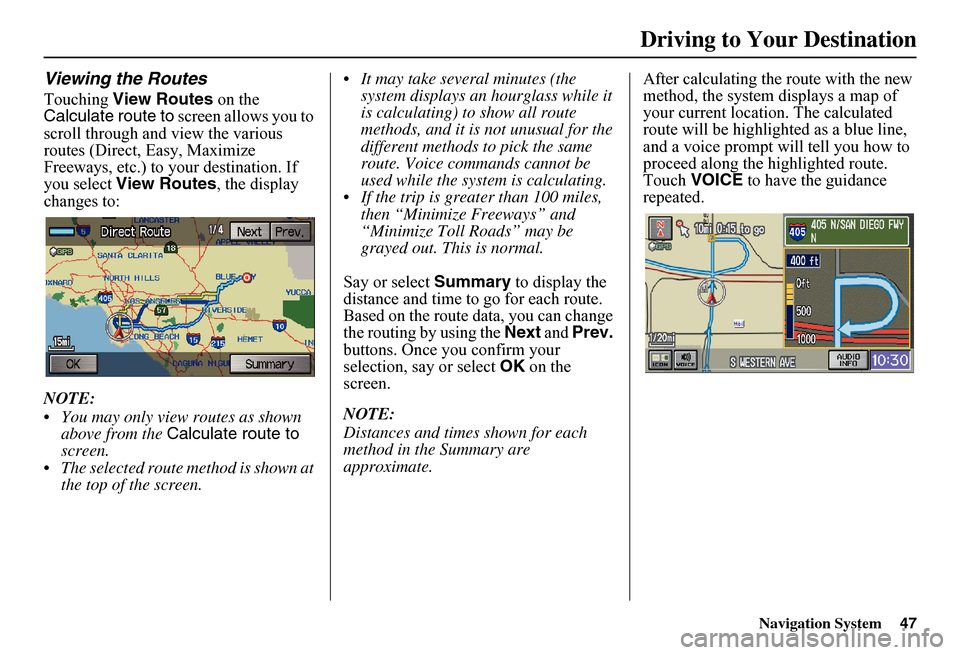

Navigation System47
Viewing the Routes
Touching View Routes on the Calculate route to screen allows you to scroll through and view the various routes (Direct, Easy, Maximize Freeways, etc.) to your destination. If you select View Routes, the display changes to:
NOTE:
You may only view routes as shown above from the Calculate route to screen. The selected route method is shown at the top of the screen.
It may take several minutes (the system displays an hourglass while it is calculating) to show all route methods, and it is not unusual for the different methods to pick the same route. Voice commands cannot be used while the system is calculating. If the trip is greater than 100 miles, then “Minimize Freeways” and “Minimize Toll Roads” may be grayed out. This is normal.
Say or select Summary to display the distance and time to go for each route. Based on the route data, you can change the routing by using the Next and Prev. buttons. Once you confirm your selection, say or select OK on the screen.
NOTE:
Distances and times shown for each method in the Summary are approximate.
After calculating the route with the new method, the system displays a map of your current locatio n. The calculated route will be highlighted as a blue line, and a voice prompt will tell you how to proceed along the highlighted route. Touch VOICE to have the guidance repeated.
Driving to Your Destination

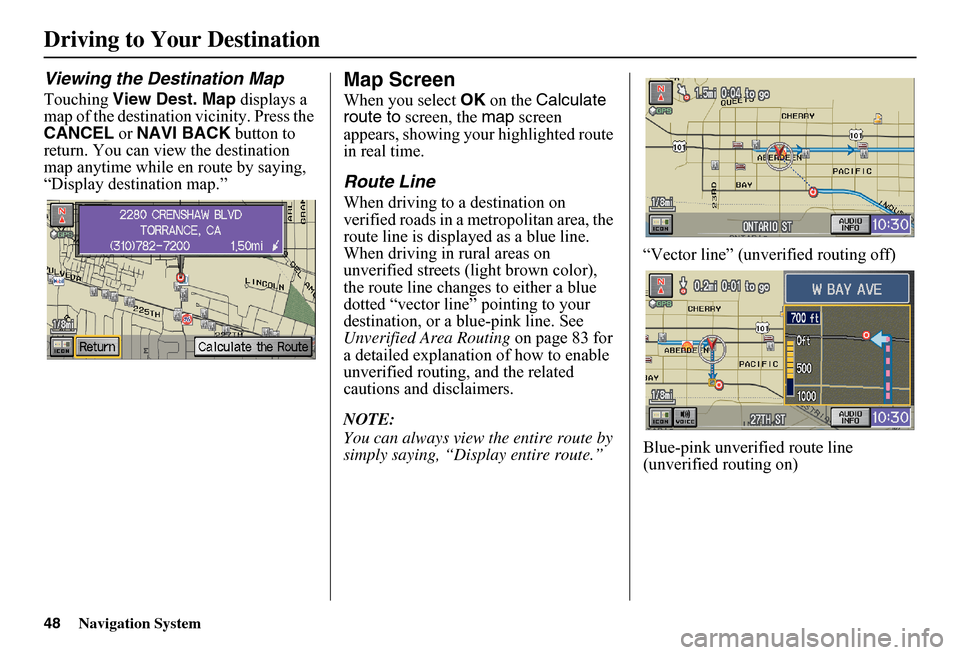

48Navigation System
Driving to Your Destination
Viewing the Destination Map
Touching View Dest. Map displays a map of the destination vicinity. Press the CANCEL or NAVI BACK button to return. You can view the destination map anytime while en route by saying, “Display destination map.”
Map Screen
When you select OK on the Calculate route to screen, the map screen appears, showing your highlighted route in real time.
Route Line
When driving to a destination on verified roads in a metropolitan area, the route line is displayed as a blue line. When driving in rural areas on unverified streets (light brown color), the route line changes to either a blue dotted “vector line” pointing to your destination, or a blue-pink line. See Unverified Area Routing on page 83 for a detailed explanatio n of how to enable unverified routing, and the related cautions and disclaimers.
NOTE:
You can always view the entire route by simply saying, “Display entire route.”
“Vector line” (unverified routing off)
Blue-pink unverified route line (unverified routing on)

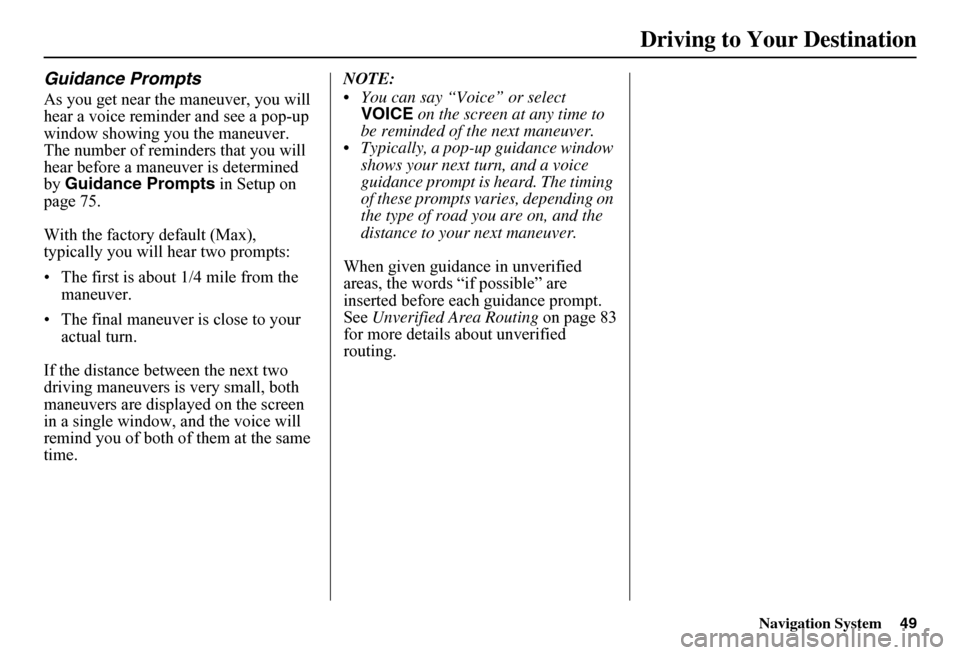

Navigation System49
Guidance Prompts
As you get near the maneuver, you will hear a voice reminder and see a pop-up window showing you the maneuver. The number of reminders that you will hear before a maneuver is determined by Guidance Prompts in Setup on page 75.
With the factory default (Max), typically you will hear two prompts:
• The first is about 1/4 mile from the maneuver.
• The final maneuver is close to your actual turn.
If the distance between the next two driving maneuvers is very small, both maneuvers are displayed on the screen in a single window, and the voice will remind you of both of them at the same time.
NOTE:
You can say “Voice” or select VOICE on the screen at any time to be reminded of the next maneuver. Typically, a pop-up guidance window shows your next turn, and a voice guidance prompt is heard. The timing of these prompts varies, depending on the type of road you are on, and the distance to your next maneuver.
When given guidance in unverified areas, the words “if possible” are inserted before each guidance prompt. See Unverified Area Routing on page 83 for more details about unverified routing.
Driving to Your Destination
