HONDA FIT 2011 2.G Navigation Manual

50Navigation System
Driving to Your Destination
Acura Dealer
School
Restaurant
AT M
Parking Lot
Post Office
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Freeway Exit Information

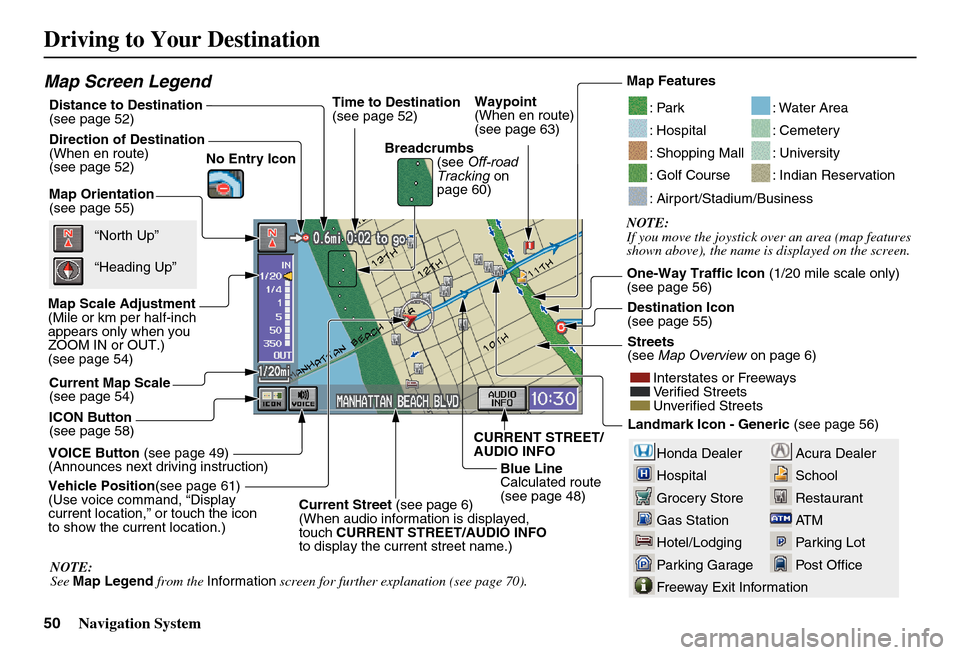

Map Screen Legend
Map Orientation (see page 55)
Map Scale Adjustment (Mile or km per half-inch appears only when you ZOOM IN or OUT.)(see page 54)
Current Map Scale (see page 54)
ICON Button (see page 58)
Breadcrumbs (see Off-road Tracking on page 60)
Direction of Destination (When en route)(see page 52)
VOICE Button (see page 49) (Announces next driving instruction)
Distance to Destination (see page 52) Time to Destination (see page 52)
Vehicle Position (see page 61) (Use voice command, “Display current location,” or touch the icon to show the current location.)
Blue Line Calculated route (see page 48)
Map Features
NOTE: If you move the joystick over an area (map features shown above), the name is displayed on the screen.
: Par k
: Hospital
: Shopping Mall
: Golf Course
: Water Area
: Cemetery
: University
: Indian Reservation
: Airport/Stadium/Business
One-Way Traffic Icon (1/20 mile scale only) (see page 56)
Streets (see Map Overview on page 6)
Interstates or Freeways Verified StreetsUnverified Streets
Landmark Icon - Generic (see page 56)
“North Up”
“Heading Up”
NOTE: See Map Legend from the Information screen for further explanation (see page 70).
Destination Icon (see page 55)
Waypoint (When en route)(see page 63)
CURRENT STREET/ AUDIO INFO
Current Street (see page 6) (When audio information is displayed, touch CURRENT STREET/AUDIO INFO to display the current street name.)
No Entry Icon

Navigation System51

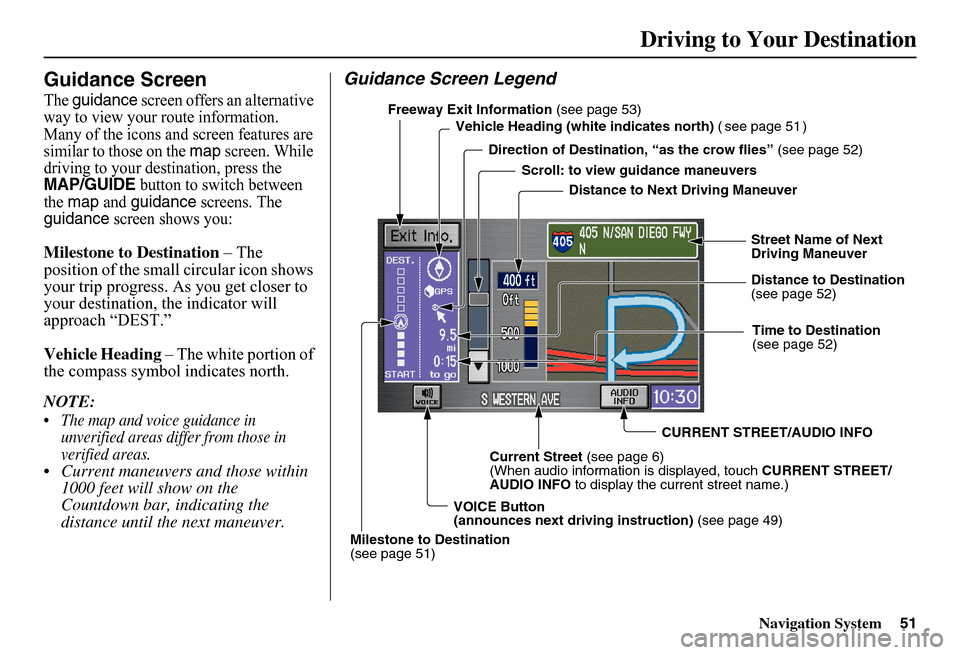

Guidance Screen
The guidance screen offers an alternative way to view your route information. Many of the icons and screen features are similar to those on the map screen. While driving to your destination, press the MAP/GUIDE button to switch between the map and guidance screens. The guidance screen shows you:
Milestone to Destination – The position of the small circular icon shows your trip progress. As you get closer to your destination, the indicator will approach “DEST.”
Vehicle Heading – The white portion of the compass symbol indicates north.
NOTE:
The map and voice guidance in unverified areas differ from those in verified areas. Current maneuvers and those within 1000 feet will show on the Countdown bar, indicating the distance until the next maneuver.
Guidance Screen Legend
Vehicle Heading (whi te indicates north) ( see page 51 )
Distance to Next Driving Maneuver
Street Name of Next Driving Maneuver
Distance to Destination (see page 52)
CURRENT STREET/AUDIO INFO
Current Street (see page 6) (When audio information is displayed, touch CURRENT STREET/ AUDIO INFO to display the current street name.)
VOICE Button (announces nex t driving instruction) (see pa ge 49)
Milestone to Destination (see page 51)
Scroll: to view guidance maneuvers
Freeway Exit Information (see page 53)
Direction of Destinatio n, “as the crow flies” (see page 52)
Time to Destination (see page 52)
Driving to Your Destination

52Navigation System
Driving to Your Destination

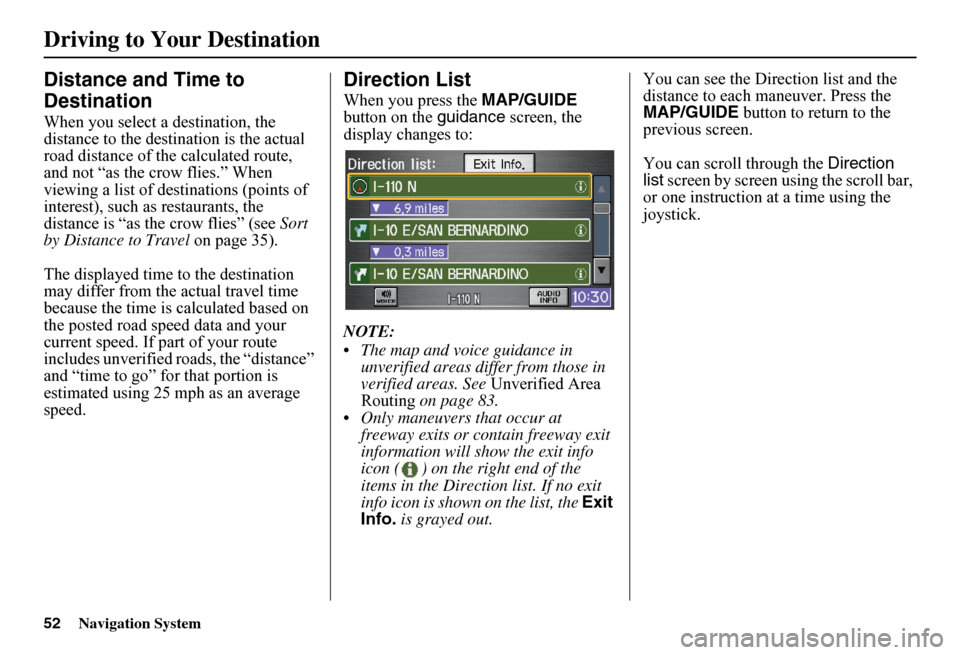

Distance and Time to
Destination
When you select a destination, the distance to the destin ation is the actual road distance of the calculated route, and not “as the crow flies.” When viewing a list of destinations (points of interest), such as restaurants, the distance is “as the crow flies” (see Sort by Distance to Travel on page 35).
The displayed time to the destination may differ from the actual travel time because the time is calculated based on the posted road speed data and your current speed. If part of your route includes unverified roads, the “distance” and “time to go” fo r that portion is estimated using 25 mph as an average speed.
Direction List
When you press the MAP/GUIDE button on the guidance screen, the display changes to:
NOTE:
The map and voice guidance in unverified areas differ from those in verified areas. See Unverified Area Routing on page 83. Only maneuvers that occur at freeway exits or contain freeway exit information will show the exit info icon ( ) on the right end of the items in the Direction list. If no exit info icon is shown on the list, the Exit Info. is grayed out.
You can see the Direction list and the distance to each maneuver. Press the MAP/GUIDE button to return to the previous screen.
You can scroll through the Direction list screen by screen using the scroll bar, or one instruction at a time using the joystick.

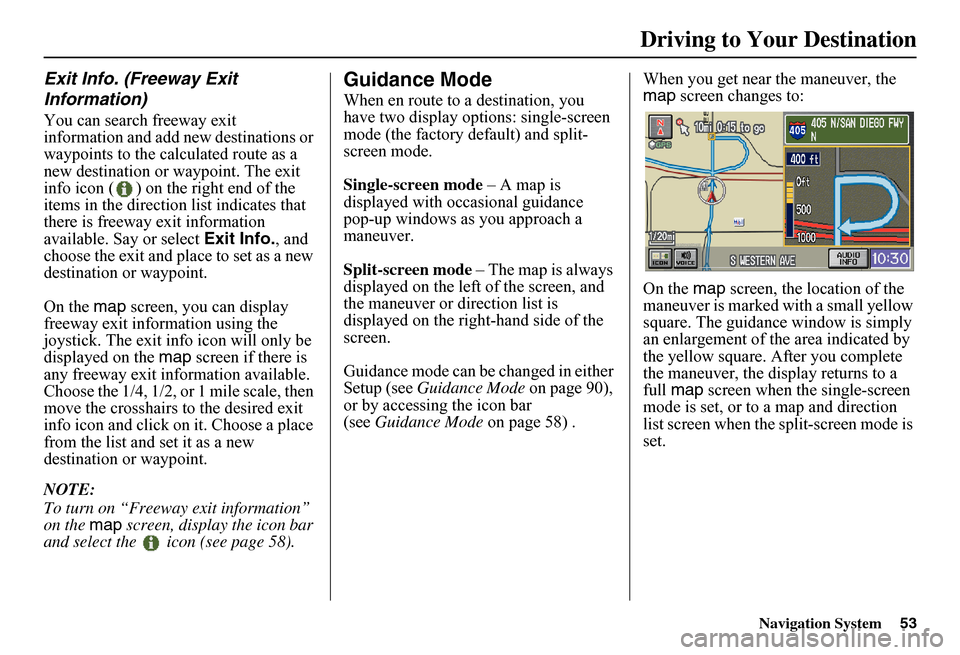

Navigation System53
Exit Info. (Freeway Exit
Information)
You can search freeway exit information and add new destinations or waypoints to the calculated route as a new destination or waypoint. The exit info icon ( ) on the right end of the items in the direction list indicates that there is freeway exit information available. Say or select Exit Info., and choose the exit and place to set as a new destination or waypoint.
On the map screen, you can display freeway exit information using the joystick. The exit info icon will only be displayed on the map screen if there is any freeway exit information available. Choose the 1/4, 1/2, or 1 mile scale, then move the crosshairs to the desired exit info icon and click on it. Choose a place from the list and set it as a new destination or waypoint.
NOTE:
To turn on “Freeway exit information” on the map screen, display the icon bar and select the icon (see page 58).
Guidance Mode
When en route to a destination, you have two display options: single-screen mode (the factory default) and split-screen mode.
Single-screen mode – A map is displayed with occasional guidance pop-up windows as you approach a maneuver.
Split-screen mode – The map is always displayed on the left of the screen, and the maneuver or direction list is displayed on the right-hand side of the screen.
Guidance mode can be changed in either Setup (see Guidance Mode on page 90), or by accessing the icon bar (see Guidance Mode on page 58) .
When you get near the maneuver, the map screen changes to:
On the map screen, the location of the maneuver is marked with a small yellow square. The guidance window is simply an enlargement of th e area indicated by the yellow square. After you complete the maneuver, the display returns to a full map screen when the single-screen mode is set, or to a map and direction list screen when the split-screen mode is set.
Driving to Your Destination

54Navigation System
Driving to Your Destination

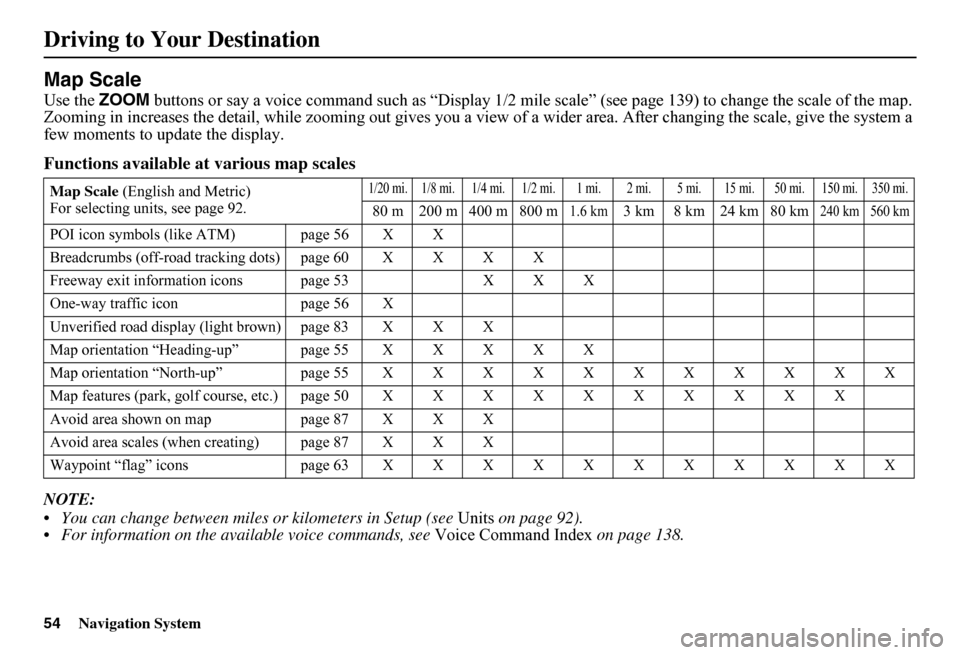

Map Scale
Use the ZOOM buttons or say a voice command such as “Display 1/2 mile scale” (see page 139) to change the scale of the map. Zooming in increases the detail, while zooming out gives you a vi ew of a wider area. After changing the scale, give the system a few moments to update the display.
Functions available at various map scales
NOTE:
You can change between miles or kilometers in Setup (see Units on page 92). For information on the av ailable voice commands, see Voice Command Index on page 138.
Map Scale (English and Metric) For selecting uni ts, see page 92.
1/20 mi. 1/8 mi. 1/4 mi. 1/2 mi. 1 mi. 2 mi. 5 mi. 15 mi. 50 mi. 150 mi. 350 mi.
80 m 200 m 400 m 800 m1.6 km3 km 8 km 24 km 80 km240 km 560 km
POI icon symbols (like ATM) page 56 X X
Breadcrumbs (off-road tracking dots)page60XXXX
Freeway exit information icons page 53 X X X
One-way traffic icon page 56 X
Unverified road display (light brown) page 83 X X X
Map orientation “Heading-up” page55XXXXX
Map orientation “North-up” page55XXXXXXXXXXX
Map features (park, golf course, etc.)page50XXXXXXXXXX
Avoid area shown on map page 87 X X X
Avoid area scales (w hen creating) page 87 X X X
Waypoint “flag” icons page 63 XXXXXXXXXXX

Navigation System55

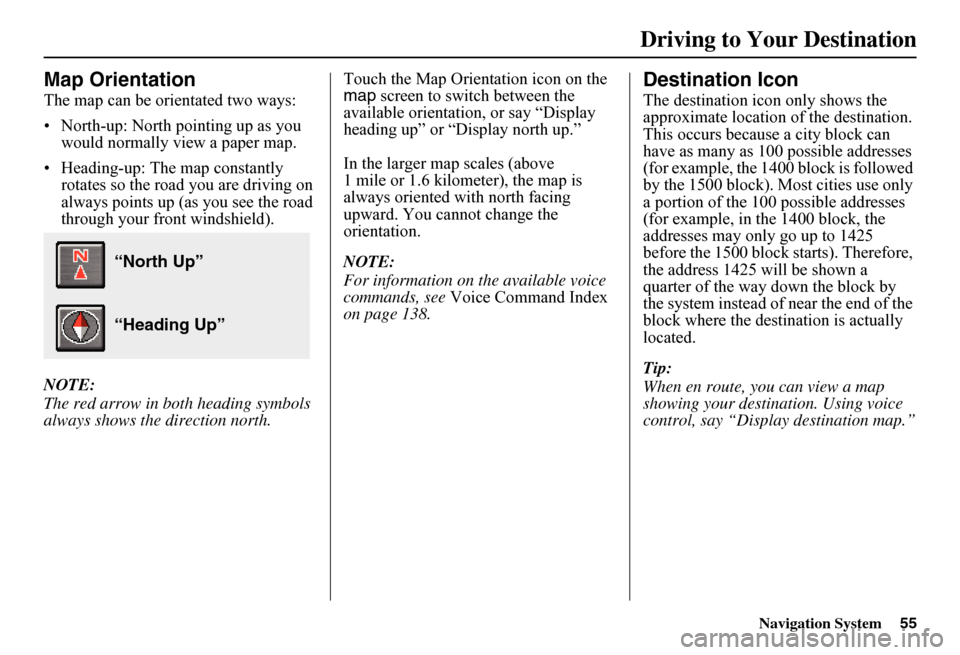

Map Orientation
The map can be orientated two ways:
• North-up: North pointing up as you would normally view a paper map.
• Heading-up: The map constantly rotates so the road you are driving on always points up (as you see the road through your front windshield).
NOTE:
The red arrow in both heading symbols always shows the direction north.
Touch the Map Orientation icon on the map screen to switch between the available orientation, or say “Display heading up” or “Display north up.”
In the larger map scales (above 1 mile or 1.6 kilometer), the map is always oriented with north facing upward. You cannot change the orientation.
NOTE:
For information on the available voice commands, see Voice Command Index on page 138.
Destination Icon
The destination icon only shows the approximate location of the destination. This occurs because a city block can have as many as 100 possible addresses (for example, the 1400 block is followed by the 1500 block). Most cities use only a portion of the 100 possible addresses (for example, in the 1400 block, the addresses may only go up to 1425 before the 1500 block starts). Therefore, the address 1425 will be shown a quarter of the way down the block by the system instead of near the end of the block where the destination is actually located.
Tip:
When en route, you can view a map showing your destination. Using voice control, say “Display destination map.”
“North Up”
“Heading Up”
Driving to Your Destination

56Navigation System
Driving to Your Destination
The display automatically changes to the map screen when you reach your destination. Press the MENU button to return to the Enter destination by screen.
NOTE:
For information on the available voice commands, see Voice Command Index on page 138. If you are en route and the joystick is moved, the “Time to Destination” and “Distance to Destination” indicators are replaced with an indicator showing distance from the current vehicle location.

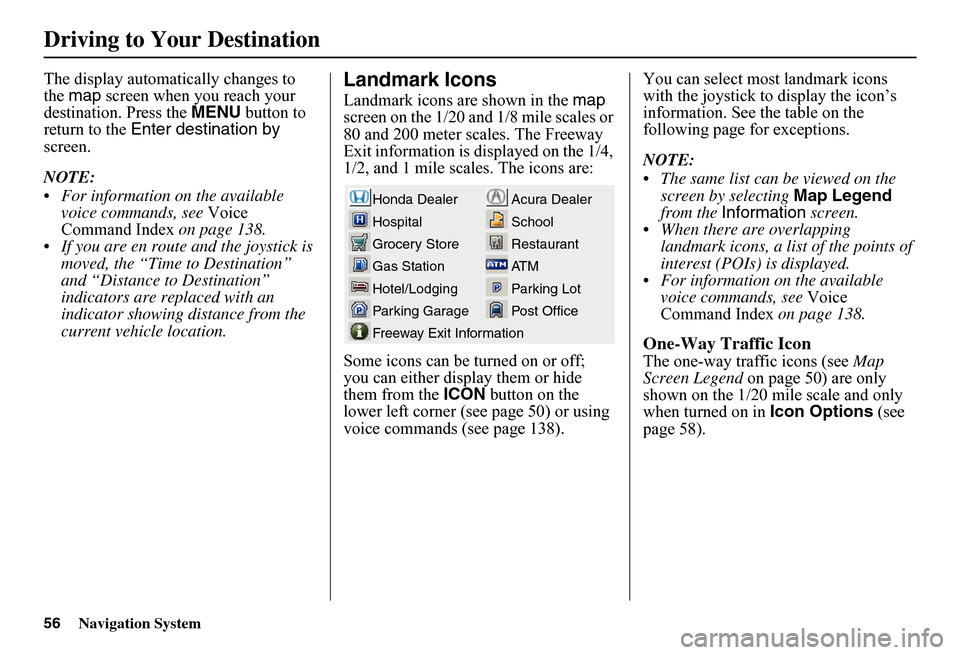

Landmark Icons
Landmark icons are shown in the map screen on the 1/20 and 1/8 mile scales or 80 and 200 meter scales. The Freeway Exit information is displayed on the 1/4, 1/2, and 1 mile scales. The icons are:
Some icons can be turned on or off; you can either display them or hide them from the ICON button on the lower left corner (see page 50) or using voice commands (see page 138).
You can select most landmark icons with the joystick to display the icon’s information. See the table on the following page for exceptions.
NOTE:
The same list can be viewed on the screen by selecting Map Legend from the Information screen. When there are overlapping landmark icons, a list of the points of interest (POIs) is displayed. For information on the available voice commands, see Voice Command Index on page 138.
One-Way Traffic Icon
The one-way traffic icons (see Map Screen Legend on page 50) are only shown on the 1/20 mile scale and only when turned on in Icon Options (see page 58).
Acura Dealer
School
Restaurant
AT M
Parking Lot
Post Office
Honda Dealer
Hospital
Grocery Store
Gas Station
Hotel/Lodging
Parking Garage
Freeway Exit Information

Navigation System57

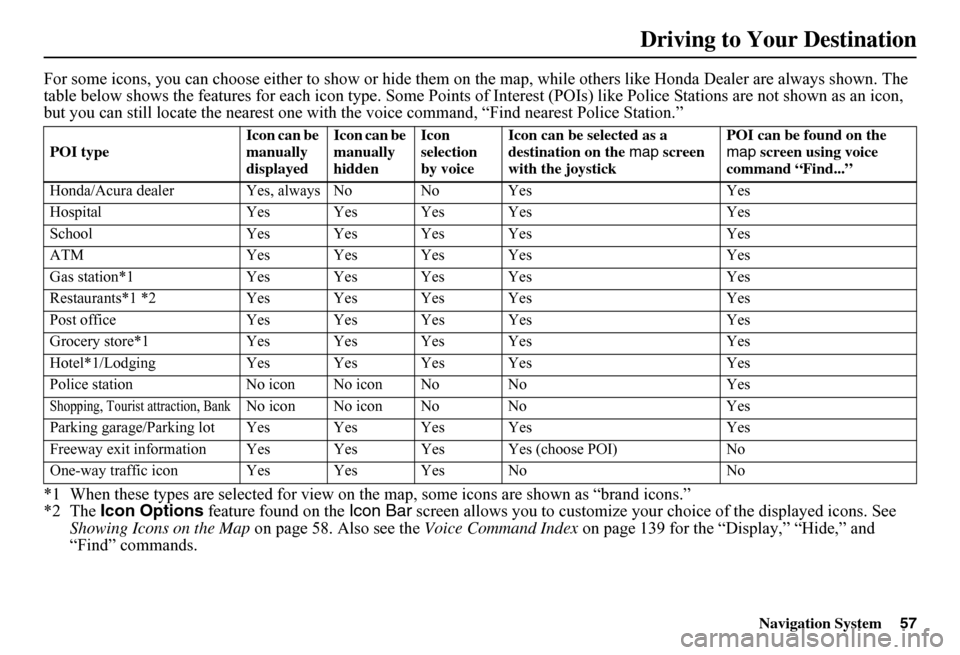

For some icons, you can choose either to show or hide them on the map, while others like Honda Dealer are always shown. The table below shows the features for each icon type. Some Points of Interest (POIs) like Police Stations are not shown as an icon, but you can still locate the near est one with the voice command, “Find nearest Police Station.”
*1 When these types are selected for view on th e map, some icons are shown as “brand icons.” *2 The Icon Options feature found on the Icon Bar screen allows you to customize your choice of the displayed icons. See Showing Icons on the Map on page 58. Also see the Voice Command Index on page 139 for the “Display,” “Hide,” and “Find” commands.
POI type Icon can be manually displayed
Icon can be manually hidden
Icon selection by voice
Icon can be selected as a destination on the map screen with the joystick
POI can be found on the map screen using voice command “Find...”
Honda/Acura dealer Ye s, always No No Yes Yes
Hospital Yes Yes Yes Yes Yes
School Yes Yes Yes Yes Yes
ATM Yes Yes Yes Yes Yes
Gas station*1 Yes Yes Yes Yes Yes
Restaurants*1 *2 Yes Yes Yes Yes Yes
Post office Yes Yes Yes Yes Yes
Grocery store*1 Yes Yes Yes Yes Yes
Hotel*1/Lodging Yes Yes Yes Yes Yes
Police station No icon No icon No No Yes
Shopping, Tourist attraction, BankNo icon No icon No No Yes
Parking garage/Parking lot Yes Yes Yes Yes Yes
Freeway exit information Y es Yes Yes Yes (choose POI) No
One-way traffic icon Yes Yes Yes No No
Driving to Your Destination

58Navigation System
Driving to Your Destination

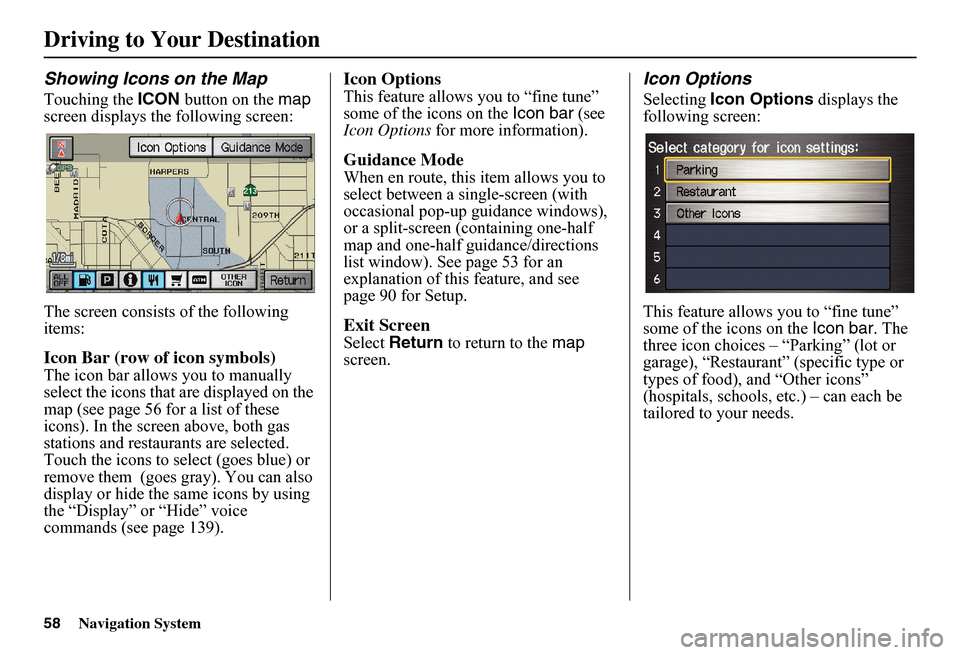

Showing Icons on the Map
Touching the ICON button on the map screen displays the following screen:
The screen consists of the following items:
Icon Bar (row of icon symbols)
The icon bar allows you to manually select the icons that are displayed on the map (see page 56 for a list of these icons). In the screen above, both gas stations and restaurants are selected. Touch the icons to select (goes blue) or remove them (goes gray). You can also display or hide the same icons by using the “Display” or “Hide” voice commands (see page 139).
Icon Options
This feature allows you to “fine tune” some of the icons on the Icon bar (see Icon Options for more information).
Guidance Mode
When en route, this item allows you to select between a single-screen (with occasional pop-up guidance windows), or a split-screen (containing one-half map and one-half guidance/directions list window). See page 53 for an explanation of this feature, and see page 90 for Setup.
Exit Screen
Select Return to return to the map screen.
Icon Options
Selecting Icon Options displays the following screen:
This feature allows you to “fine tune” some of the icons on the Icon bar. The three icon choices – “Parking” (lot or garage), “Restaurant” (specific type or types of food), and “Other icons” (hospitals, schools, etc.) – can each be tailored to your needs.

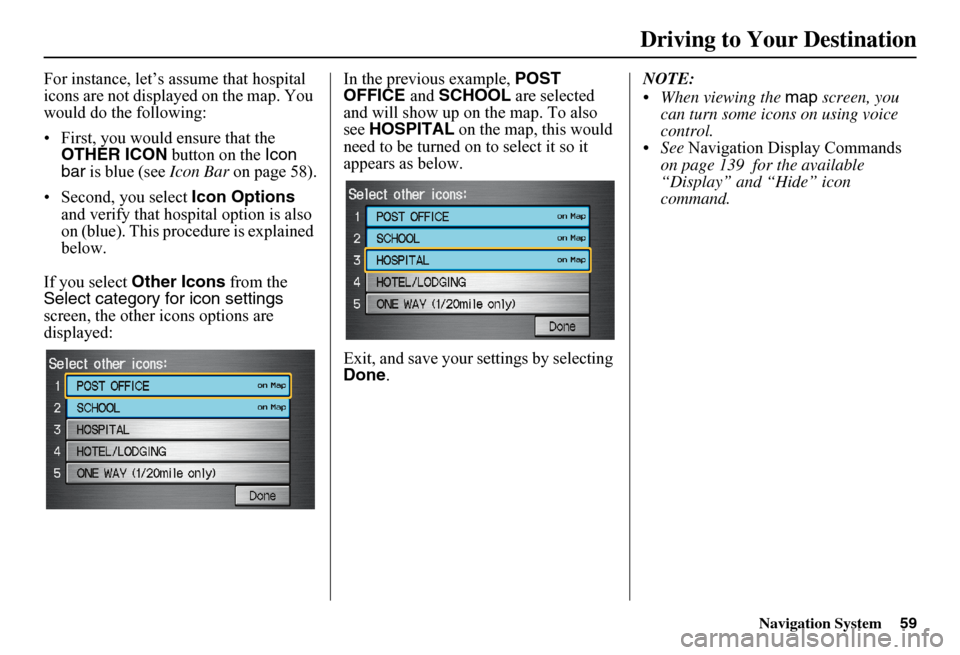

Navigation System59
For instance, let’s assume that hospital icons are not displayed on the map. You would do the following:
• First, you would ensure that the OTHER ICON button on the Icon bar is blue (see Icon Bar on page 58).
• Second, you select Icon Options and verify that hospital option is also on (blue). This procedure is explained below.
If you select Other Icons from the Select category for icon settings screen, the other icons options are displayed:
In the previous example, POST OFFICE and SCHOOL are selected and will show up on the map. To also see HOSPITAL on the map, this would need to be turned on to select it so it appears as below.
Exit, and save your settings by selecting Done .
NOTE:
When viewing the map screen, you can turn some icons on using voice control. See Navigation Display Commands on page 139 for the available “Display” and “Hide” icon command.
Driving to Your Destination
